Page 2505 of 2572

F46287
Skid Control ECU
S27
VSCW
Combination Meter
(harness side view)
C12
(harness side connector)
G24767
GND1
Skid Control ECU
(harness side connector)
S27
05-850
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
1040 Author: Date:

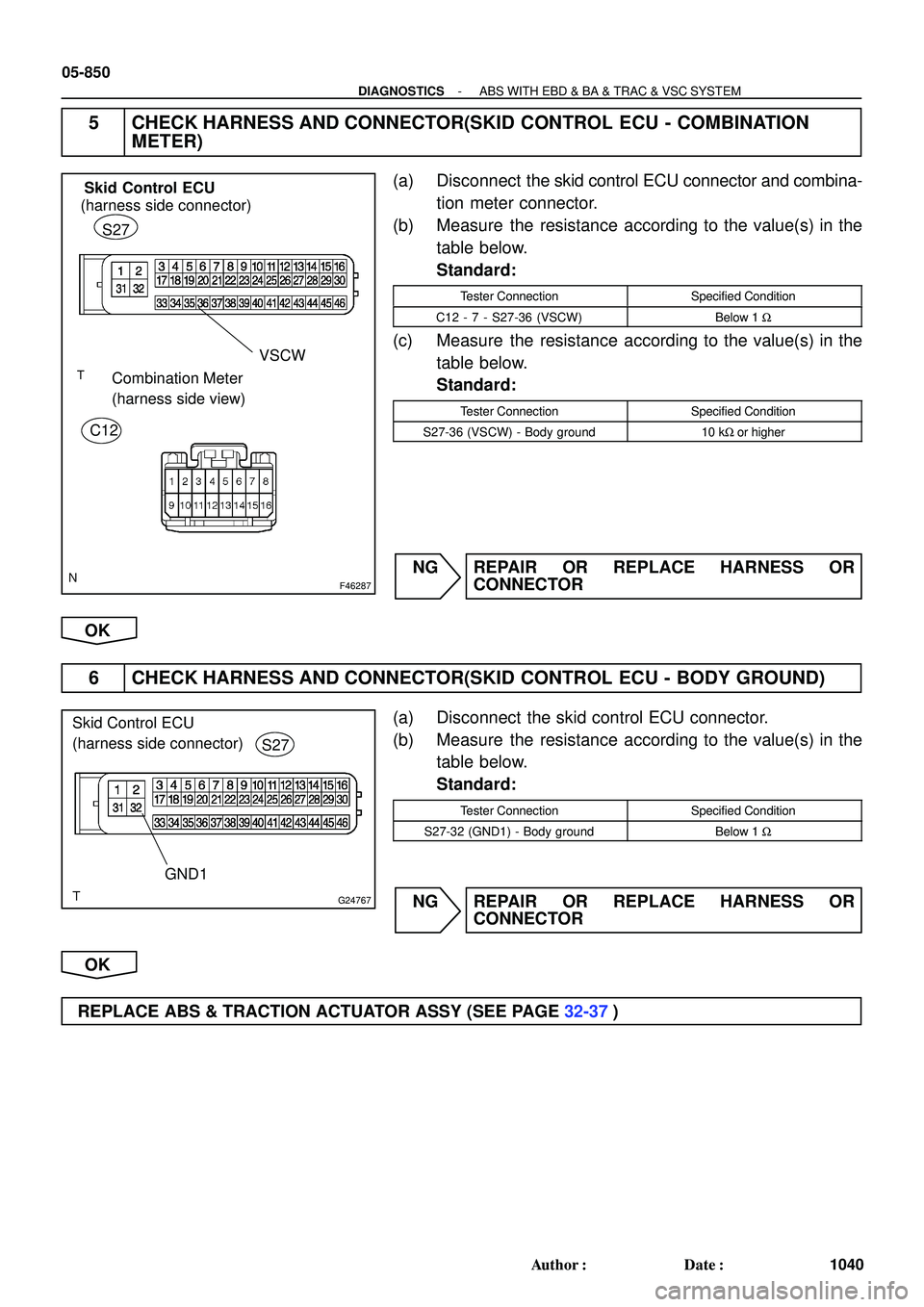

5 CHECK HARNESS AND CONNECTOR(SKID CONTROL ECU - COMBINATION
METER)
(a) Disconnect the skid control ECU connector and combina-
tion meter connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
C12 - 7 - S27-36 (VSCW)Below 1 W
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
S27-36 (VSCW) - Body ground10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
6 CHECK HARNESS AND CONNECTOR(SKID CONTROL ECU - BODY GROUND)
(a) Disconnect the skid control ECU connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
S27-32 (GND1) - Body groundBelow 1 W
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE ABS & TRACTION ACTUATOR ASSY (SEE PAGE 32-37)
Page 2506 of 2572
F46303
Combination MeterSkid Control ECU with Actuator
Instrument Panel J/BI15
Ignition SW
F7
FL BlockECU-IG
IGN
AM1
ALT
AM2VSC
IG1 AM1VSCW
IG1
FL MAIN
BatteryIG2 AM2 IF3IC2
S27
IL1
S27 IC4 C11
J6
J/C Passenger Side J/B
IC1 C12
4E
4H 4J 4M
1A1C
1D
1C
1C 1G 1
2 45
6 7
1013 1636
9
4
11 7
6
642
746
10
1 12
10 PV
L-Y
SB
PP
WYEE
GR B-R
G
GR
W
Y B W
L-Y12
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-851
1041 Author: Date:
VSC WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)
CIRCUIT DESCRIPTION
If the ECU stores DTC, the VSC warning light comes on in the combination meter.
WIRING DIAGRAM
05F1U-05
Page 2507 of 2572

G24767
Skid Control ECU
(harness side connector)
S27
VSCW
05-852
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
1042 Author: Date:
INSPECTION PROCEDURE
1 CHECK VSC WARNING LIGHT
WHEN USING HAND-HELD TESTER:
(a) Connect the hand-held tester to the DLC3 and start the engine.
(b) Select the item ºVSC WARN LIGHTº in the ACTIVE TEST and operate the VSC warning light on the
hand-held tester.
(c) Check that ºONº and ºOFFº of the VSC warning light are indicated on the combination meter when us-
ing the hand-held tester.
ItemVehicle Condition / Test DetailsDiagnostic Note
VSC WARN LIGHTTurns VSC warning light ON / OFFObserve combination me-
ter
OK:
Turn the VSC warning light ON or OFF in accordance with the hand-held tester.
WHEN NOT USING HAND-HELD TESTER:
(a) Turn the ignition switch off and disconnect the connector
from the skid control ECU.
(b) Ground the terminal VSCW of skid control ECU.
(c) Turn the ignition switch to the ON position.
(d) Check that the VSC warning light.
OK:
Turn the light ON or OFF in accordance with the con-
necting condition of terminal VSCW and body
ground.
NG CHECK AND REPAIR VSC WARNING LIGHT
CIRCUIT (SEE PAGE 05-1868)
OK
Page 2508 of 2572
F46287
Skid Control ECU
S27
VSCW
Combination Meter
(harness side view)
C12
(harness side connector)
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-853
1043 Author: Date:

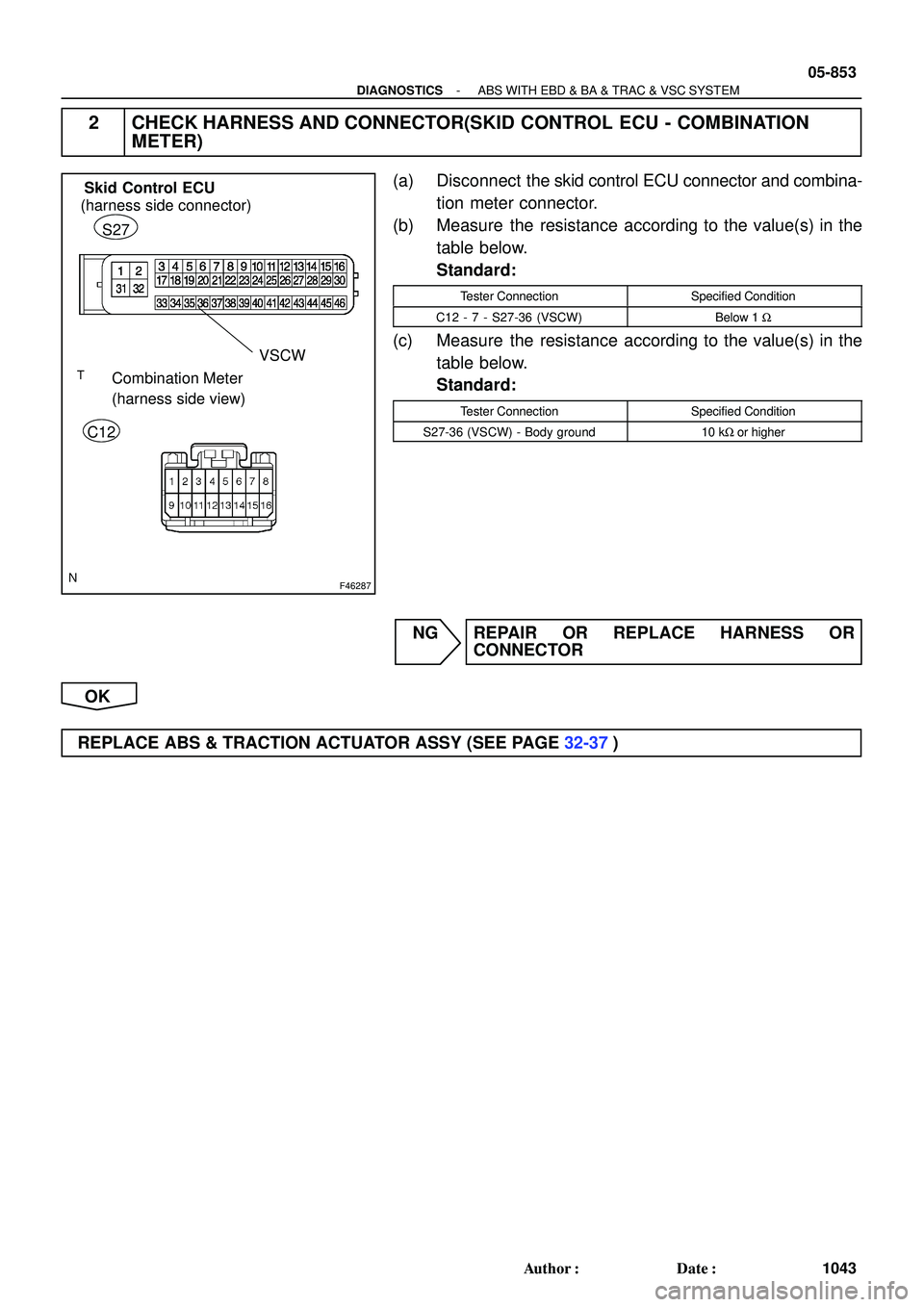

2 CHECK HARNESS AND CONNECTOR(SKID CONTROL ECU - COMBINATION
METER)
(a) Disconnect the skid control ECU connector and combina-
tion meter connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
C12 - 7 - S27-36 (VSCW)Below 1 W
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
S27-36 (VSCW) - Body ground10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE ABS & TRACTION ACTUATOR ASSY (SEE PAGE 32-37)
Page 2509 of 2572

31050-02
C82977
No.2 Plug
No.1 Plug
Drain Plug
F45388
- TRANSFERTRANSFER ASSY (4WD)
31-9
3087 Author: Date:

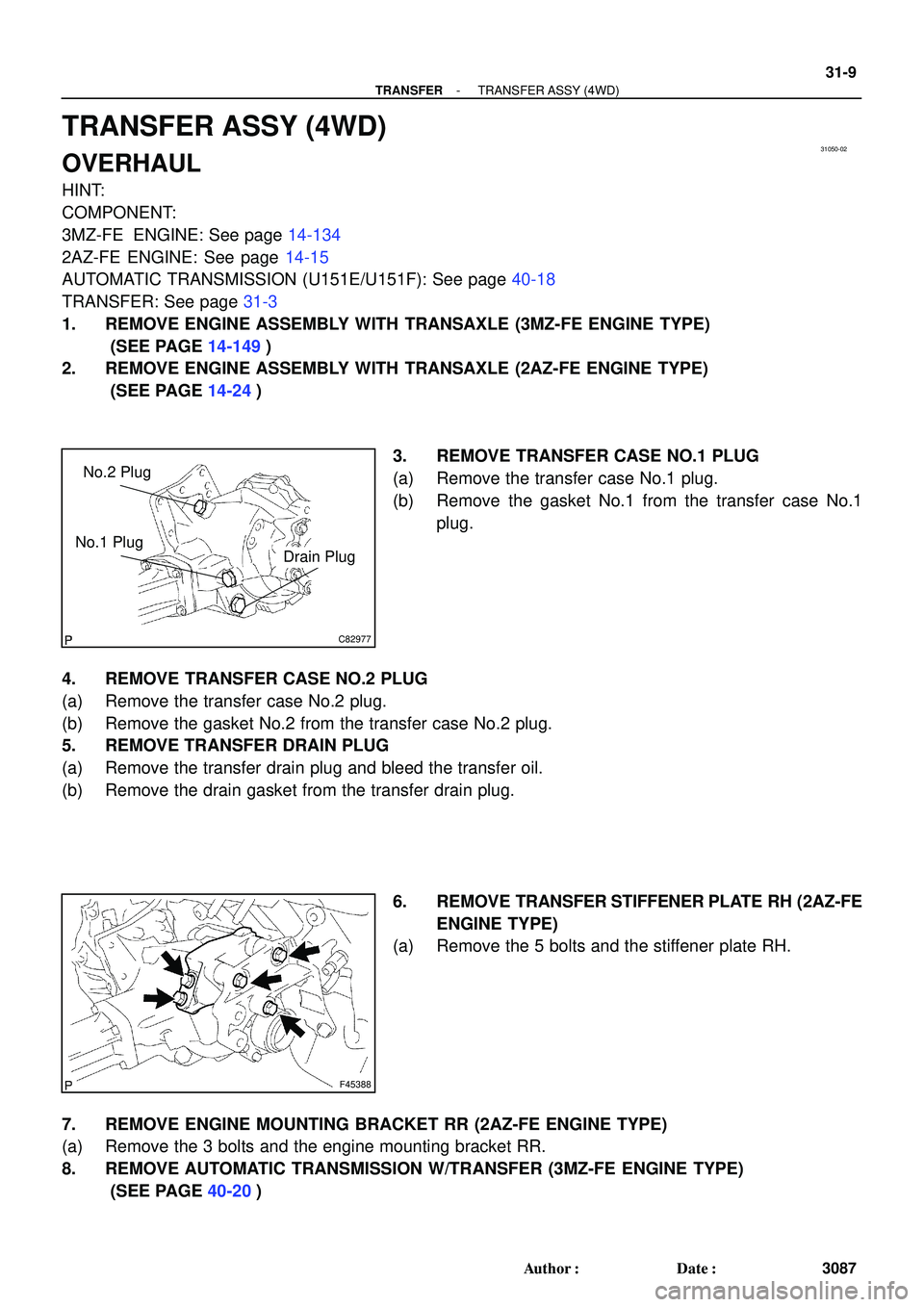

TRANSFER ASSY (4WD)
OVERHAUL
HINT:
COMPONENT:
3MZ-FE ENGINE: See page 14-134
2AZ-FE ENGINE: See page 14-15
AUTOMATIC TRANSMISSION (U151E/U151F): See page 40-18
TRANSFER: See page 31-3
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (3MZ-FE ENGINE TYPE)
(SEE PAGE 14-149)
2. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (2AZ-FE ENGINE TYPE)
(SEE PAGE 14-24)
3. REMOVE TRANSFER CASE NO.1 PLUG
(a) Remove the transfer case No.1 plug.
(b) Remove the gasket No.1 from the transfer case No.1
plug.
4. REMOVE TRANSFER CASE NO.2 PLUG
(a) Remove the transfer case No.2 plug.
(b) Remove the gasket No.2 from the transfer case No.2 plug.
5. REMOVE TRANSFER DRAIN PLUG
(a) Remove the transfer drain plug and bleed the transfer oil.
(b) Remove the drain gasket from the transfer drain plug.
6. REMOVE TRANSFER STIFFENER PLATE RH (2AZ-FE
ENGINE TYPE)
(a) Remove the 5 bolts and the stiffener plate RH.
7. REMOVE ENGINE MOUNTING BRACKET RR (2AZ-FE ENGINE TYPE)
(a) Remove the 3 bolts and the engine mounting bracket RR.
8. REMOVE AUTOMATIC TRANSMISSION W/TRANSFER (3MZ-FE ENGINE TYPE)
(SEE PAGE 40-20)
Page 2510 of 2572
C82785
C82798
C94714
C83507
C50303
31-10
- TRANSFERTRANSFER ASSY (4WD)
3088 Author: Date:

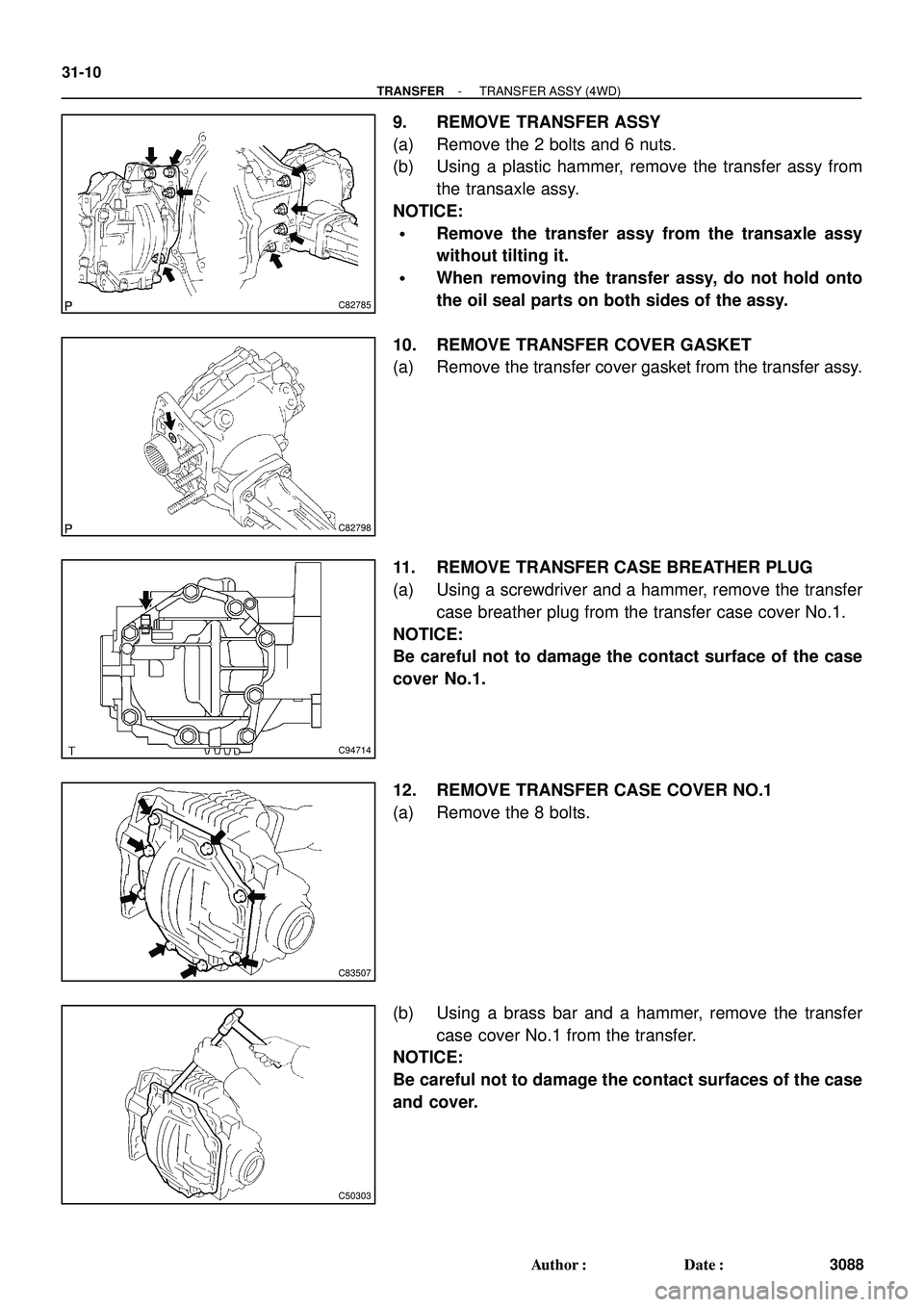

9. REMOVE TRANSFER ASSY
(a) Remove the 2 bolts and 6 nuts.
(b) Using a plastic hammer, remove the transfer assy from
the transaxle assy.
NOTICE:
Remove the transfer assy from the transaxle assy
without tilting it.
When removing the transfer assy, do not hold onto
the oil seal parts on both sides of the assy.
10. REMOVE TRANSFER COVER GASKET
(a) Remove the transfer cover gasket from the transfer assy.
11. REMOVE TRANSFER CASE BREATHER PLUG
(a) Using a screwdriver and a hammer, remove the transfer
case breather plug from the transfer case cover No.1.
NOTICE:
Be careful not to damage the contact surface of the case
cover No.1.
12. REMOVE TRANSFER CASE COVER NO.1
(a) Remove the 8 bolts.
(b) Using a brass bar and a hammer, remove the transfer
case cover No.1 from the transfer.
NOTICE:
Be careful not to damage the contact surfaces of the case
and cover.
Page 2511 of 2572

C67665
C82802
C82788
C82978
SST
- TRANSFERTRANSFER ASSY (4WD)
31-1 1
3089 Author: Date:

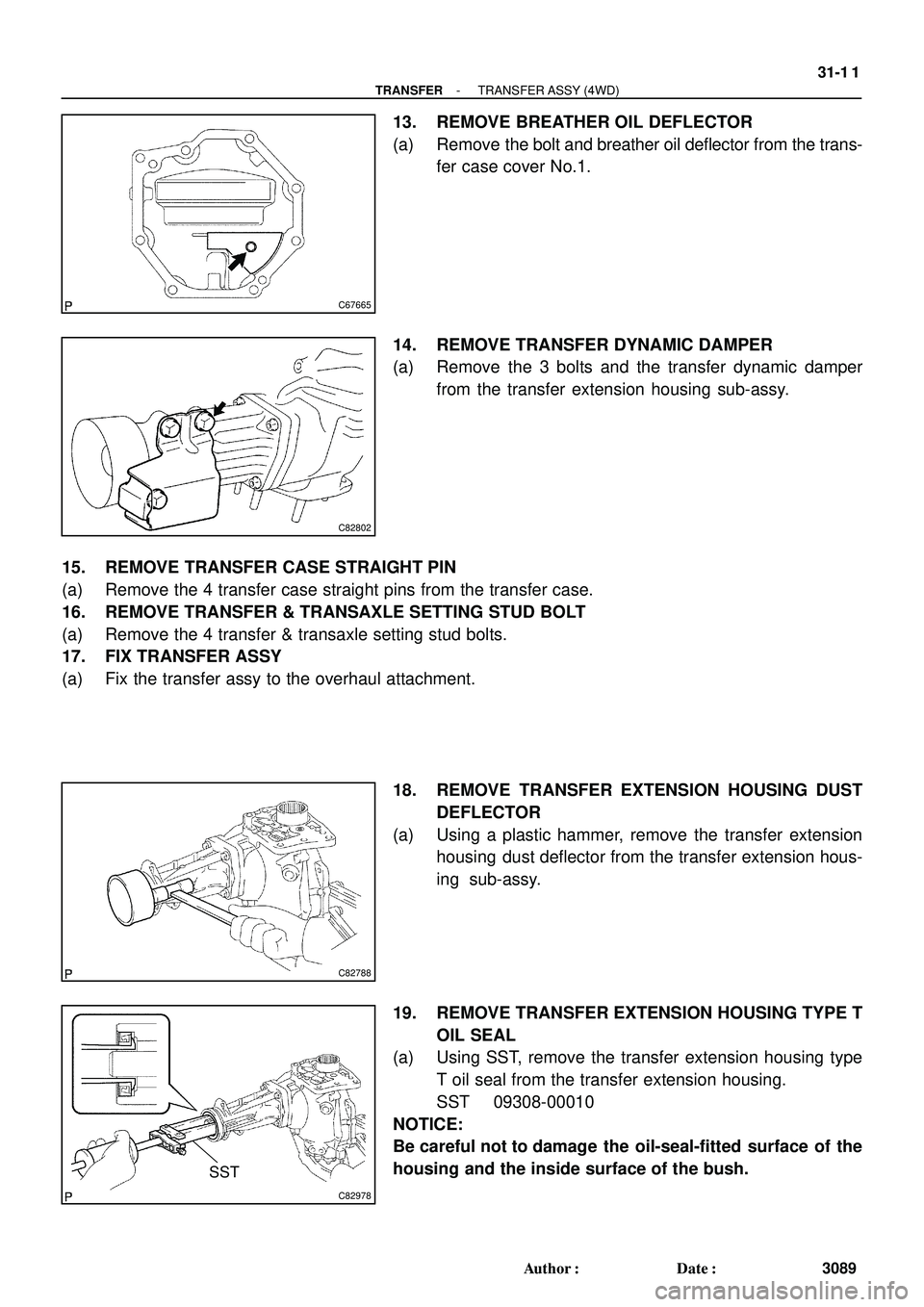

13. REMOVE BREATHER OIL DEFLECTOR
(a) Remove the bolt and breather oil deflector from the trans-
fer case cover No.1.
14. REMOVE TRANSFER DYNAMIC DAMPER
(a) Remove the 3 bolts and the transfer dynamic damper
from the transfer extension housing sub-assy.
15. REMOVE TRANSFER CASE STRAIGHT PIN
(a) Remove the 4 transfer case straight pins from the transfer case.
16. REMOVE TRANSFER & TRANSAXLE SETTING STUD BOLT
(a) Remove the 4 transfer & transaxle setting stud bolts.
17. FIX TRANSFER ASSY
(a) Fix the transfer assy to the overhaul attachment.
18. REMOVE TRANSFER EXTENSION HOUSING DUST
DEFLECTOR
(a) Using a plastic hammer, remove the transfer extension
housing dust deflector from the transfer extension hous-
ing sub-assy.
19. REMOVE TRANSFER EXTENSION HOUSING TYPE T
OIL SEAL
(a) Using SST, remove the transfer extension housing type
T oil seal from the transfer extension housing.
SST 09308-00010
NOTICE:
Be careful not to damage the oil-seal-fitted surface of the
housing and the inside surface of the bush.
Page 2512 of 2572

C82790
C82791
C82792C83635
SST
C50309
31-12
- TRANSFERTRANSFER ASSY (4WD)
3090 Author: Date:

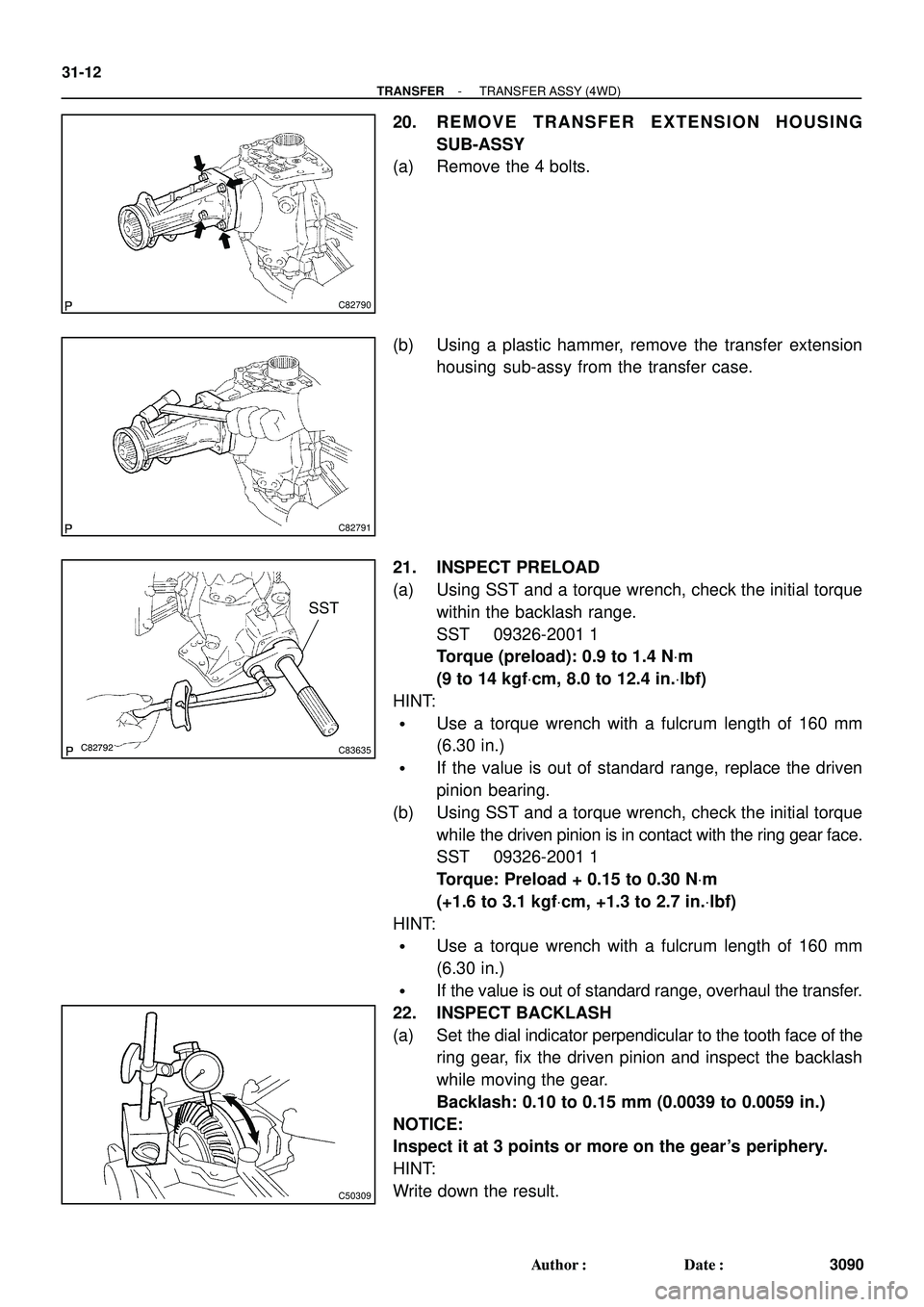

20. REMOVE TRANSFER EXTENSION HOUSING
SUB-ASSY
(a) Remove the 4 bolts.
(b) Using a plastic hammer, remove the transfer extension
housing sub-assy from the transfer case.
21. INSPECT PRELOAD
(a) Using SST and a torque wrench, check the initial torque
within the backlash range.
SST 09326-2001 1
Torque (preload): 0.9 to 1.4 NVm
(9 to 14 kgfVcm, 8.0 to 12.4 in.Vlbf)
HINT:
Use a torque wrench with a fulcrum length of 160 mm
(6.30 in.)
If the value is out of standard range, replace the driven
pinion bearing.
(b) Using SST and a torque wrench, check the initial torque
while the driven pinion is in contact with the ring gear face.
SST 09326-2001 1
Torque: Preload + 0.15 to 0.30 NVm
(+1.6 to 3.1 kgfVcm, +1.3 to 2.7 in.Vlbf)
HINT:
Use a torque wrench with a fulcrum length of 160 mm
(6.30 in.)
If the value is out of standard range, overhaul the transfer.
22. INSPECT BACKLASH
(a) Set the dial indicator perpendicular to the tooth face of the
ring gear, fix the driven pinion and inspect the backlash
while moving the gear.
Backlash: 0.10 to 0.15 mm (0.0039 to 0.0059 in.)
NOTICE:
Inspect it at 3 points or more on the gear's periphery.
HINT:
Write down the result.
