Page 761 of 2572

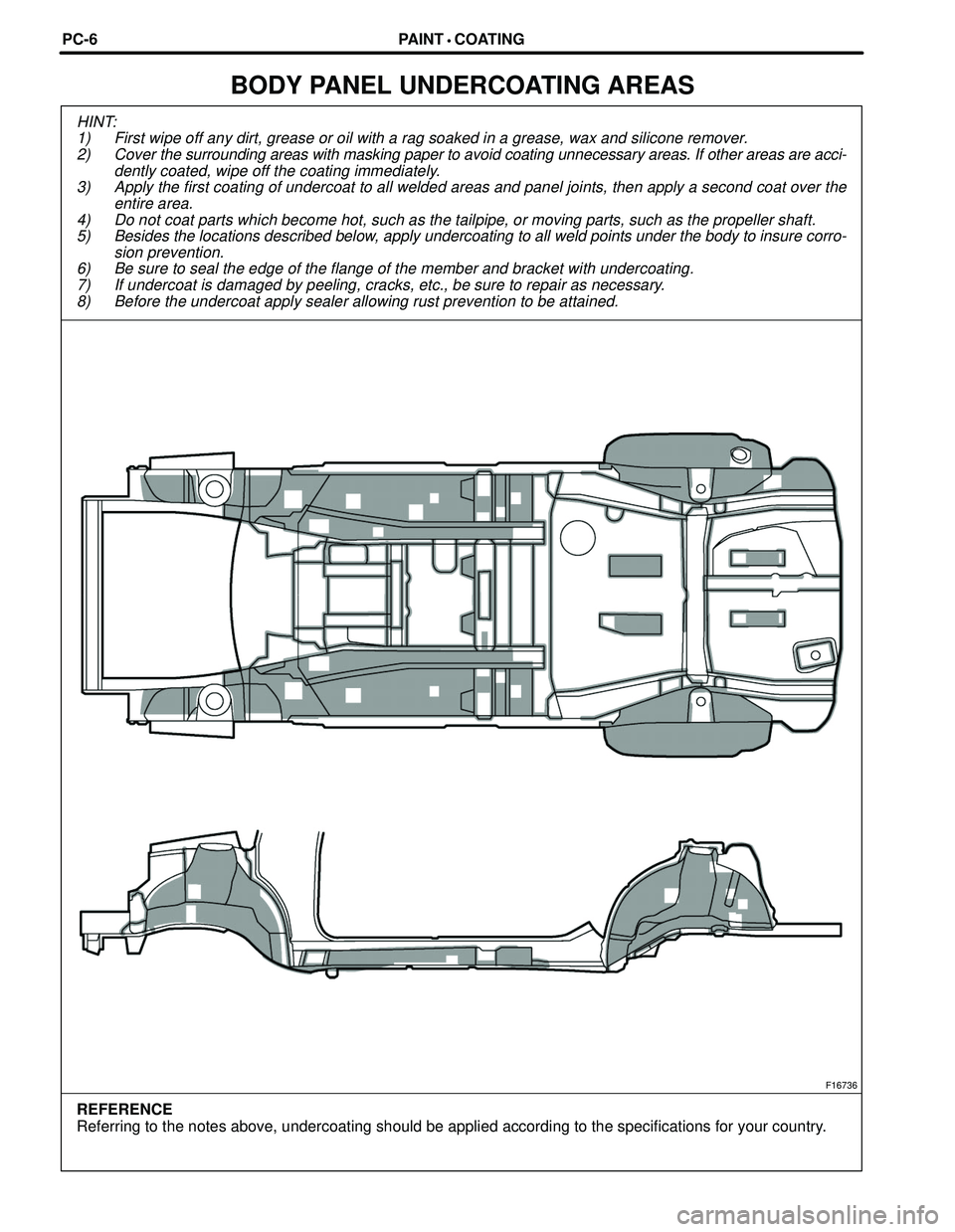

TOYOTA HIGHLANDER 2001 Service Repair Manual HINT: 1) First wipe off any dirt, grease or oil with a rag soaked in a grease, wax and silicone remover. 2) Cover the surrounding areas with masking paper to avoid coating unnecessary areas. If other

Page 762 of 2572

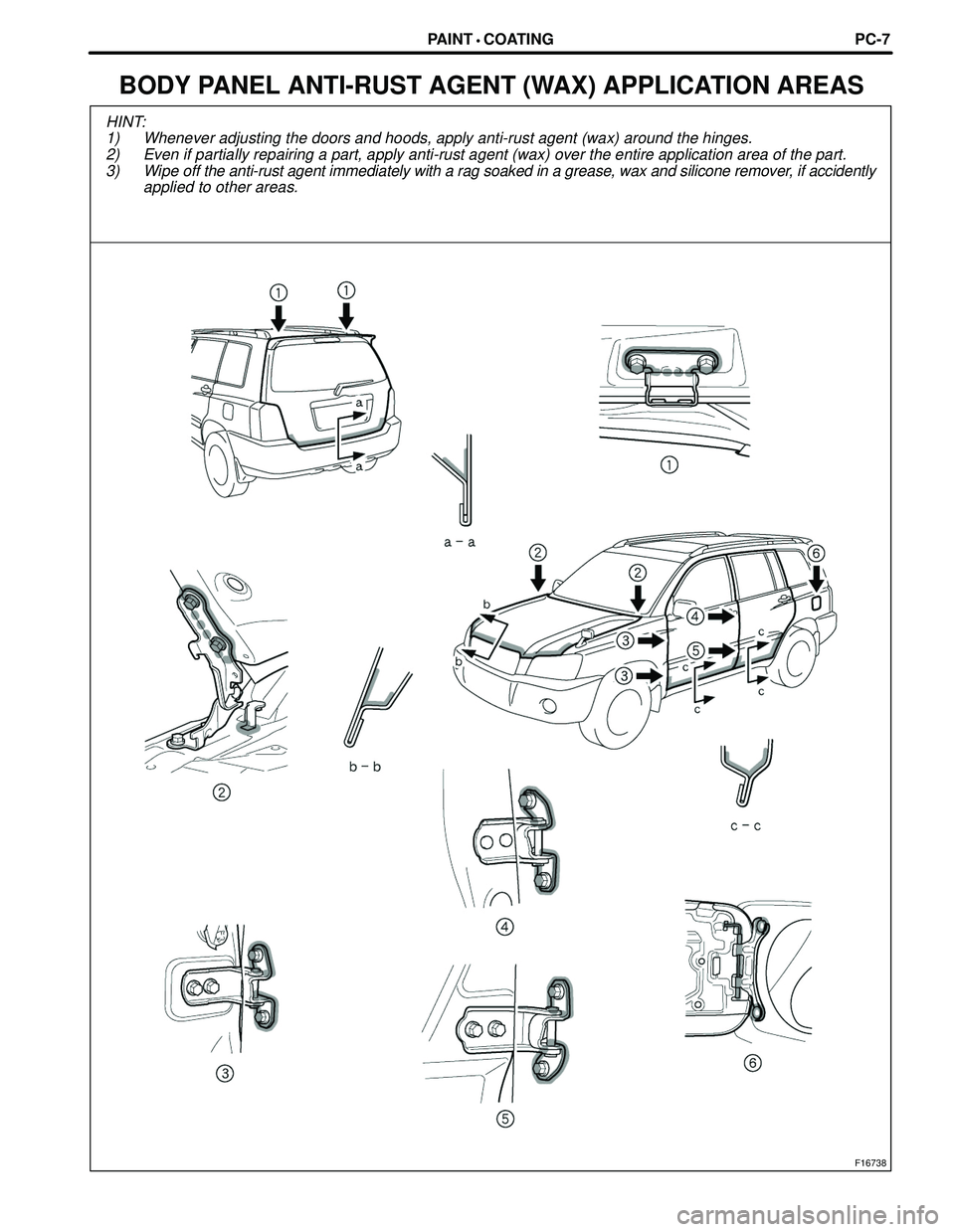

TOYOTA HIGHLANDER 2001 Service Repair Manual HINT: 1) Whenever adjusting the doors and hoods, apply anti-rust agent (wax) around the hinges. 2) Even if partially repairing a part, apply anti-rust agent (wax) over the entire application area of t

Page 763 of 2572

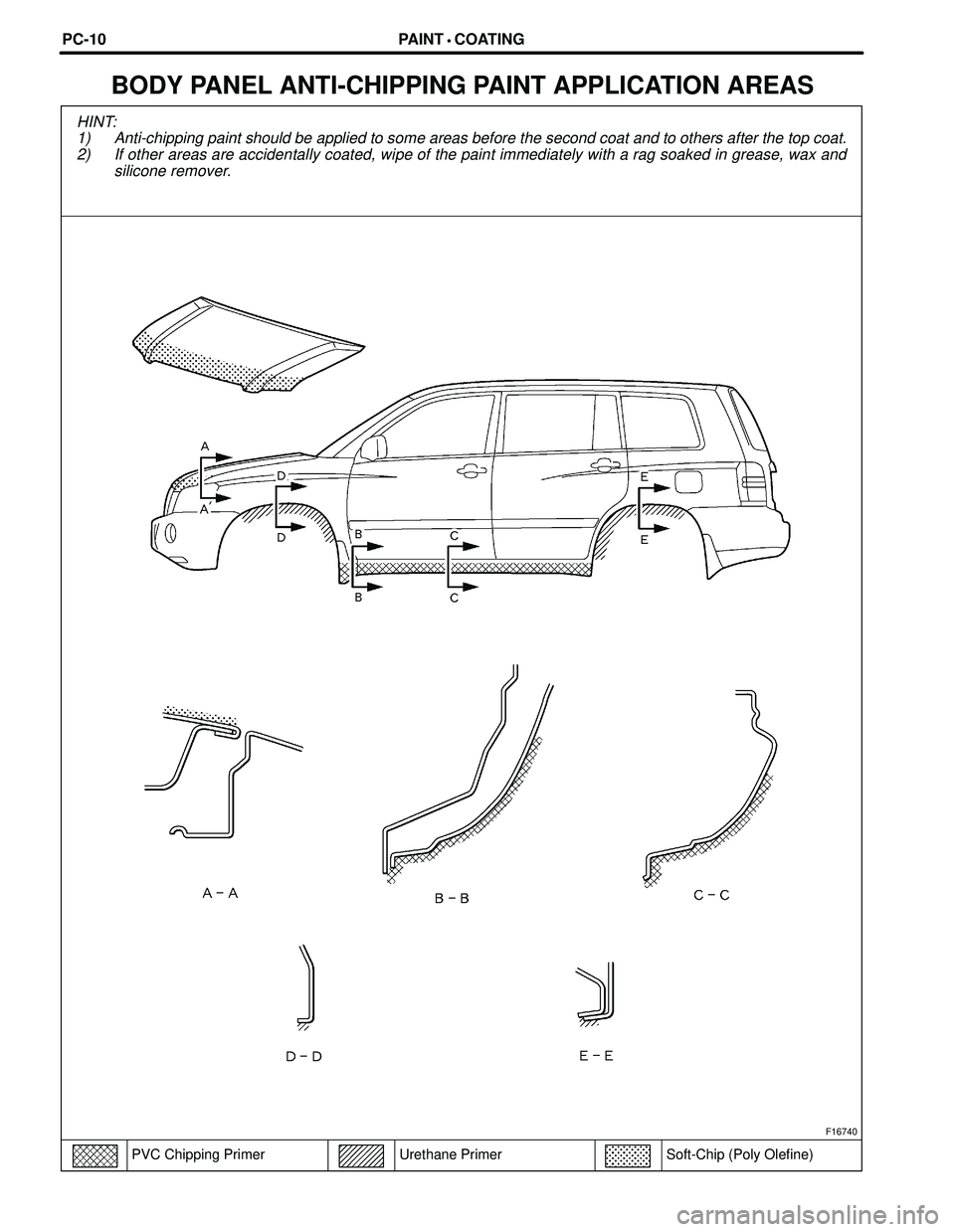

TOYOTA HIGHLANDER 2001 Service Repair Manual F16740 HINT: 1) Anti-chipping paint should be applied to some areas before the second coat and to others after the top coat. 2) If other areas are accidentally coated, wipe of the paint immediately wi

Page 764 of 2572

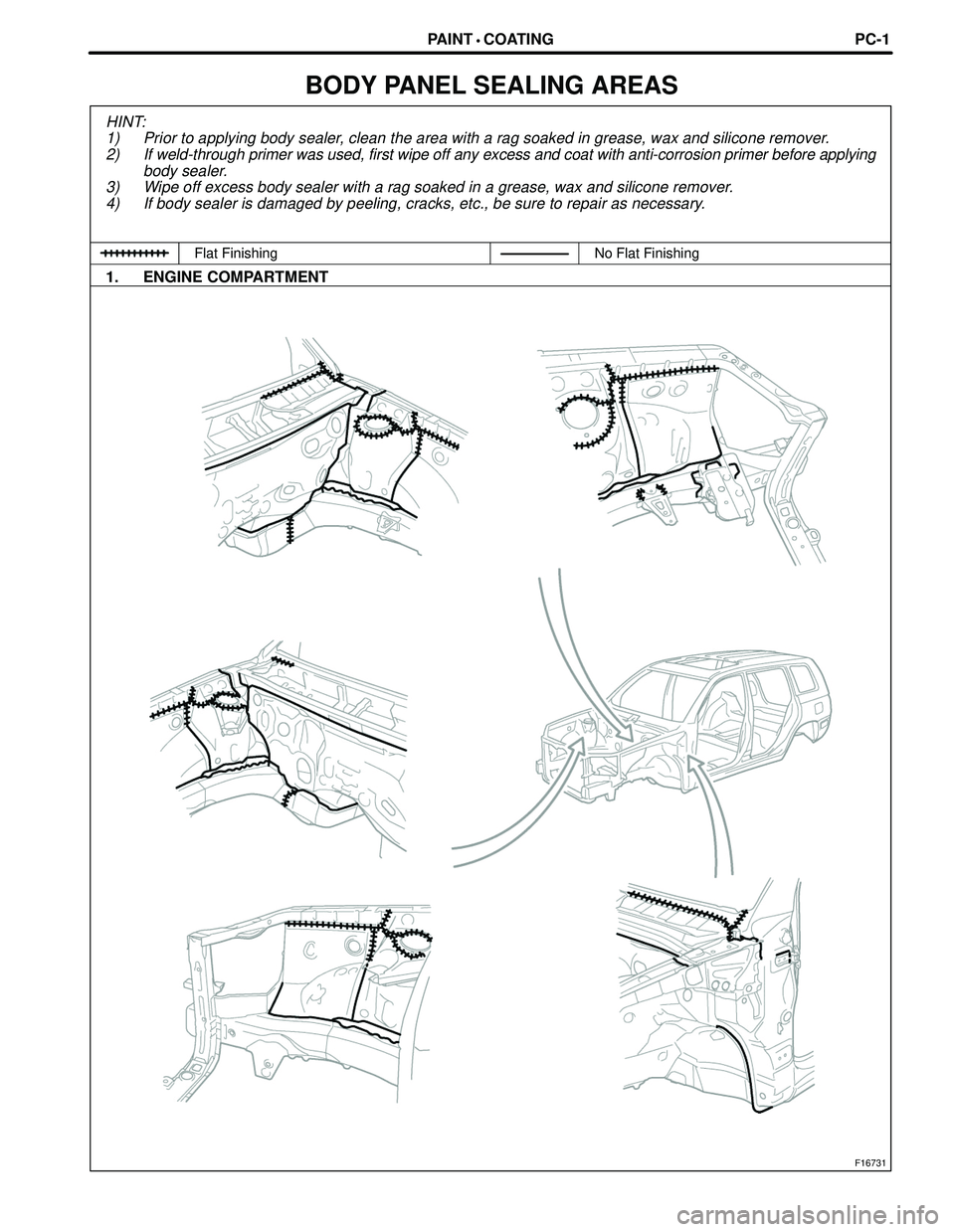

TOYOTA HIGHLANDER 2001 Service Repair Manual PAINT  COATING HINT: 1) Prior to applying body sealer, clean the area with a rag soaked in grease, wax and silicone remover. 2) If weld-through primer was used, first wipe off any excess and coat wit

Page 765 of 2572

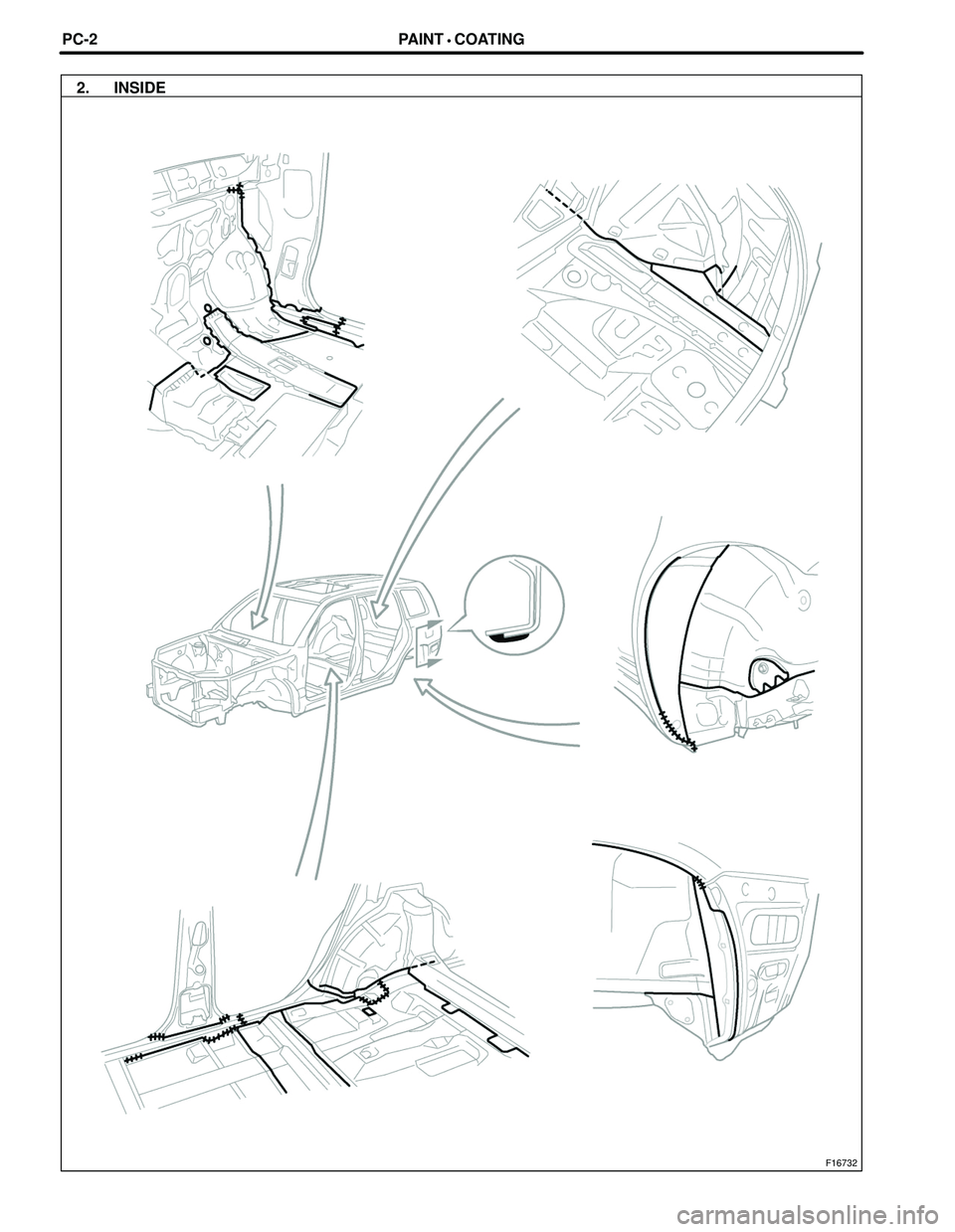

TOYOTA HIGHLANDER 2001 Service Repair Manual PAINT  COATING F16732 2. INSIDE PC-2

Page 766 of 2572

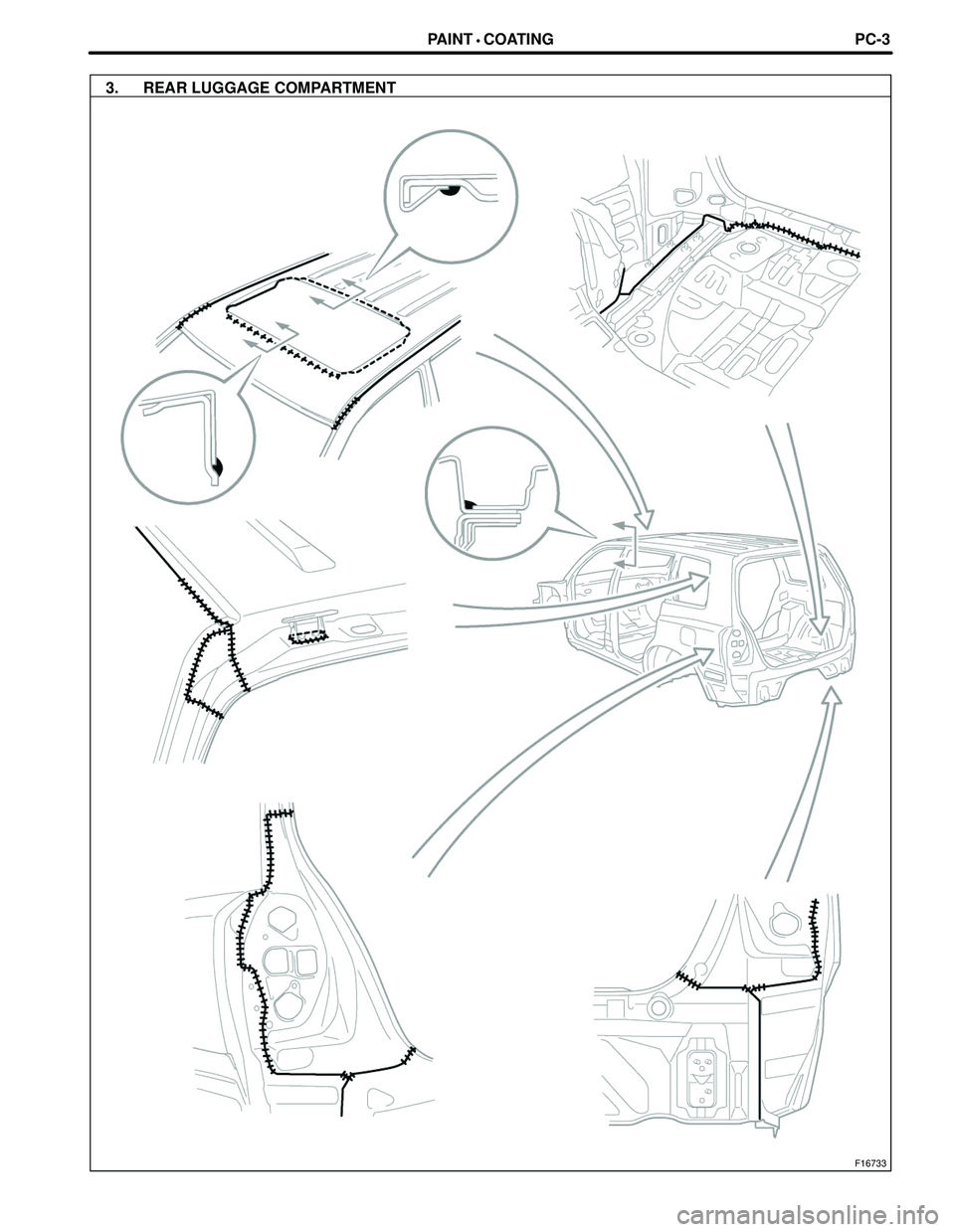

TOYOTA HIGHLANDER 2001 Service Repair Manual PAINT  COATING 3. REAR LUGGAGE COMPARTMENT F16733 PC-3

Page 767 of 2572

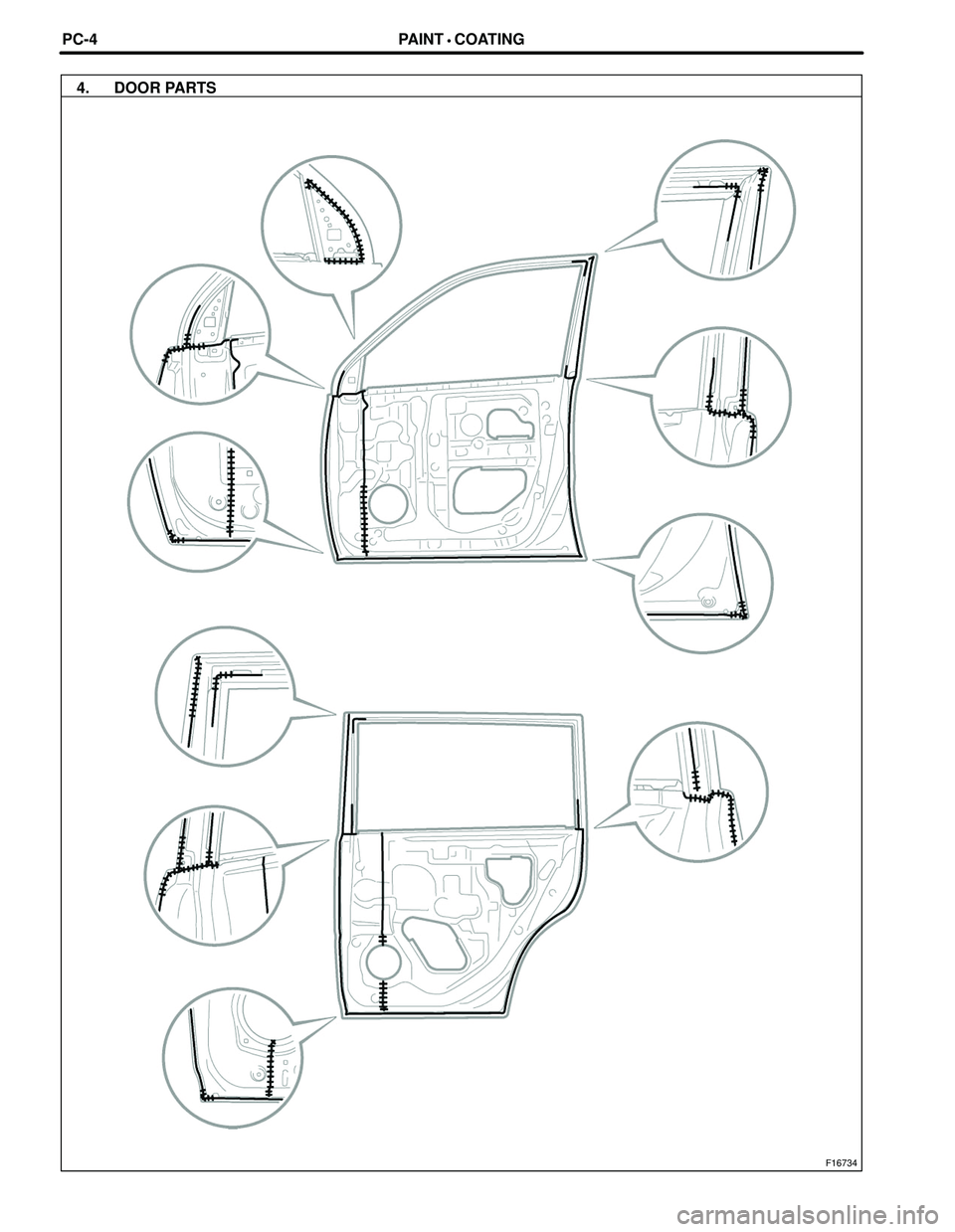

TOYOTA HIGHLANDER 2001 Service Repair Manual PAINT  COATING F16734 4. DOOR PARTS PC-4

Page 768 of 2572

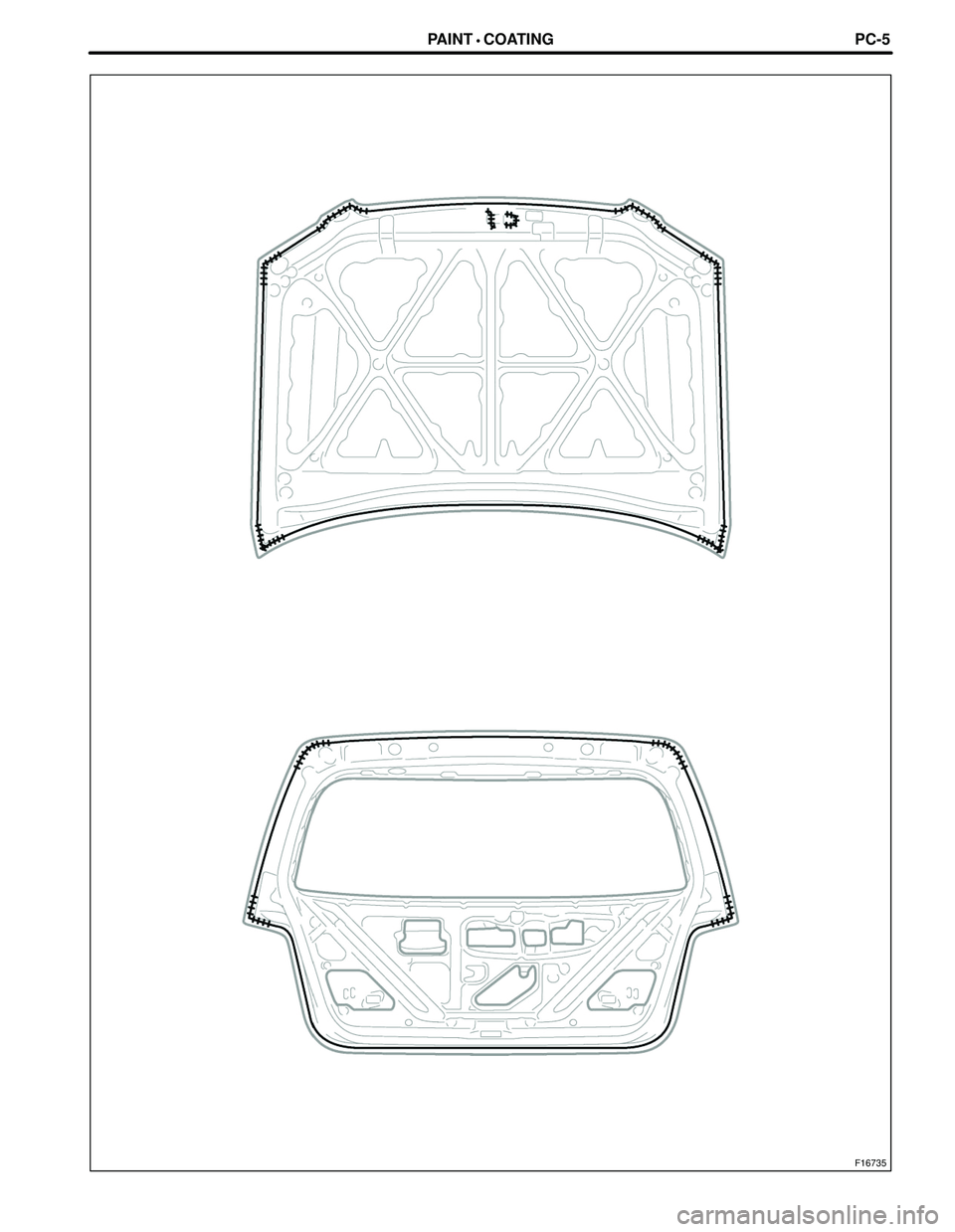

TOYOTA HIGHLANDER 2001 Service Repair Manual F16735 PAINT  COATINGPC-5
