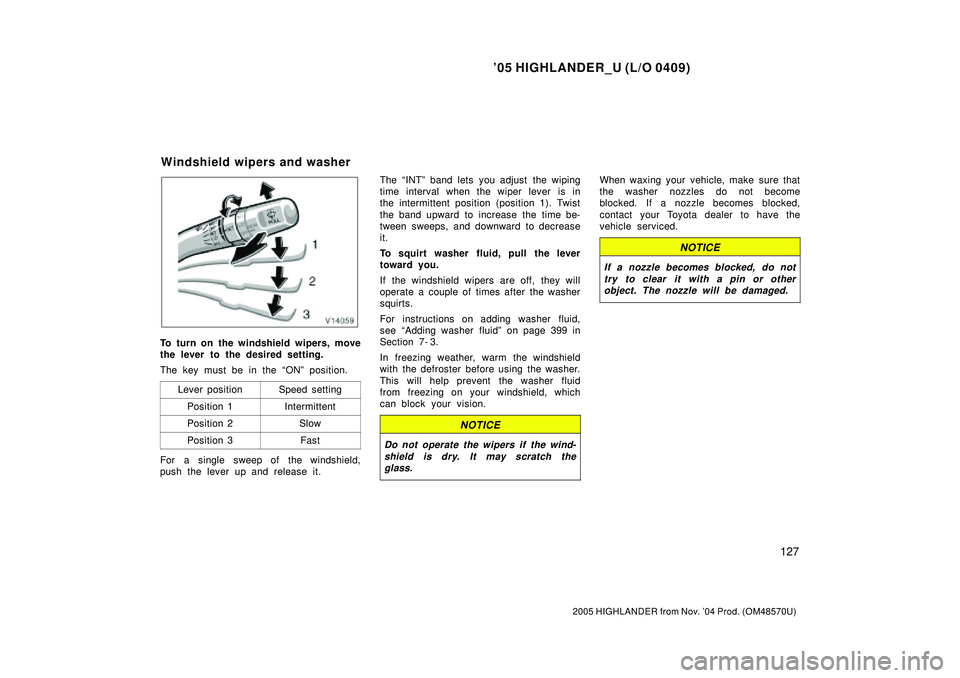

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.The INTº band lets you adjust the wiping
time interval when the wiper lever is in
the intermittent position (position 1). Twist
the band upward to increase the time be-
tween sweeps, and downward to decrease
it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see Adding washer fluidº on page 399 in
Section 7- 3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
When waxing your vehicle, make sure that
the washer nozzles do not become
blocked. If a nozzle becomes blocked,
contact your Toyota dealer to have the
vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not
try to clear it with a pin or other
object. The nozzle will be damaged.
Windshield wipers and washer
Page 266 of 2572
'05 HIGHLANDER_U (L/O 0409)
128
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

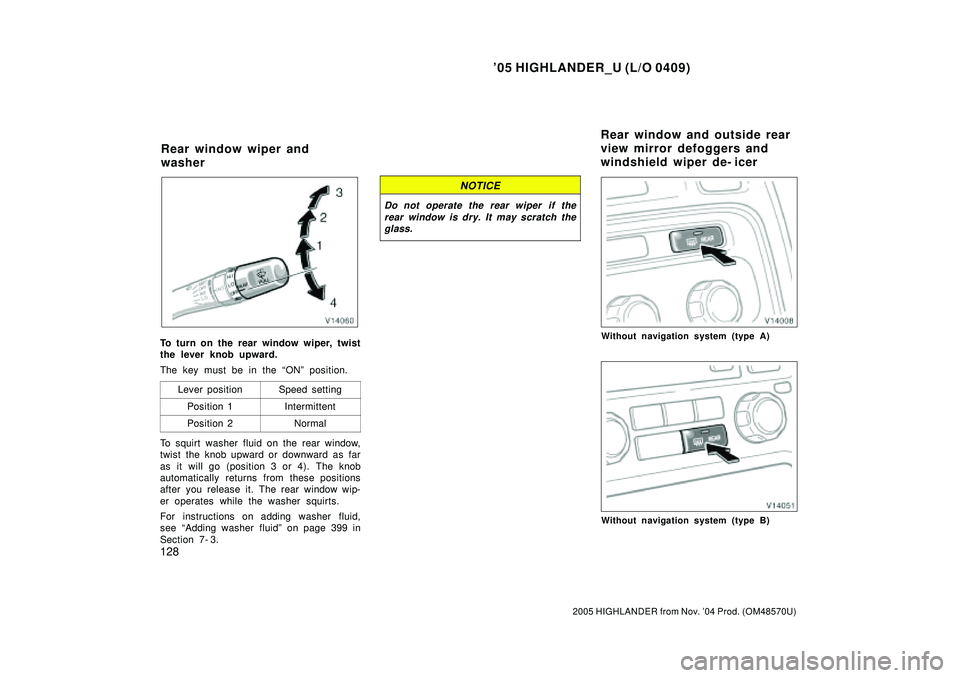

To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it. The rear window wip-
er operates while the washer squirts.
For instructions on adding washer fluid,
see Adding washer fluidº on page 399 in
Section 7- 3.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Without navigation system (type A)
Without navigation system (type B)
Rear window wiper and
washerRear window and outside rear
view mirror defoggers and
windshield wiper de- icer
Page 267 of 2572

'05 HIGHLANDER_U (L/O 0409)
129
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
With navigation system

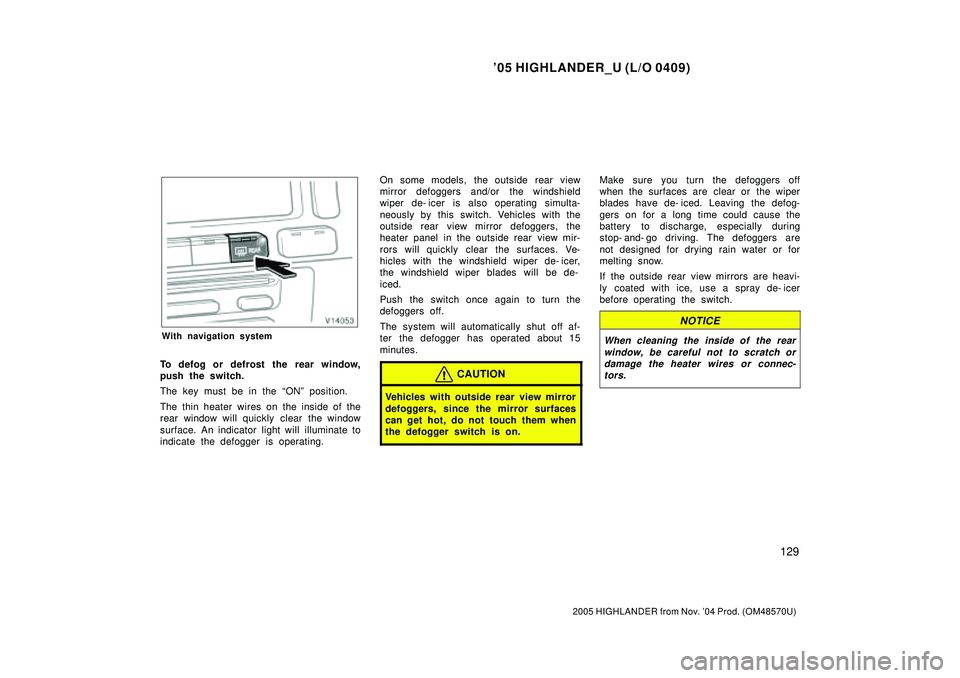

To defog or defrost the rear window,
push the switch.
The key must be in the ONº position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.On some models, the outside rear view
mirror defoggers and/or the windshield
wiper de- icer is also operating simulta-
neously by this switch. Vehicles with the
outside rear view mirror defoggers, the
heater panel in the outside rear view mir-
rors will quickly clear the surfaces. Ve-
hicles with the windshield wiper de- icer,
the windshield wiper blades will be de-
iced.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.CAUTION
Vehicles with outside rear view mirror
defoggers, since the mirror surfaces
can get hot, do not touch them when
the defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear or the wiper
blades have de- iced. Leaving the defog-
gers on for a long time could cause the
battery to discharge, especially during
stop- and- go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de- icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Page 268 of 2572
'05 HIGHLANDER_U (L/O 0409)
130
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Page 269 of 2572
2005 HIGHLANDER (EWD592U)
88

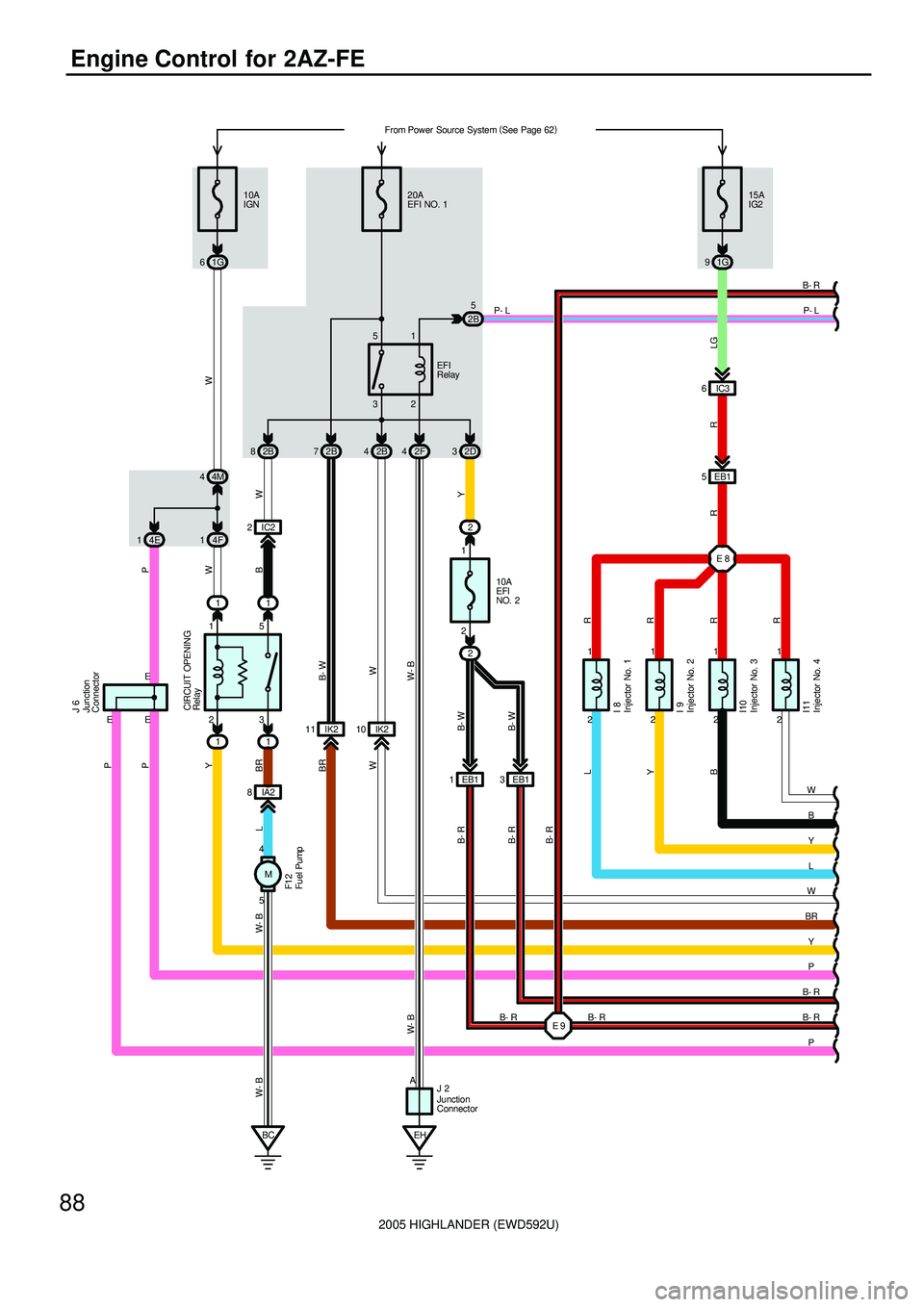

Engine Control for 2AZ-FE
