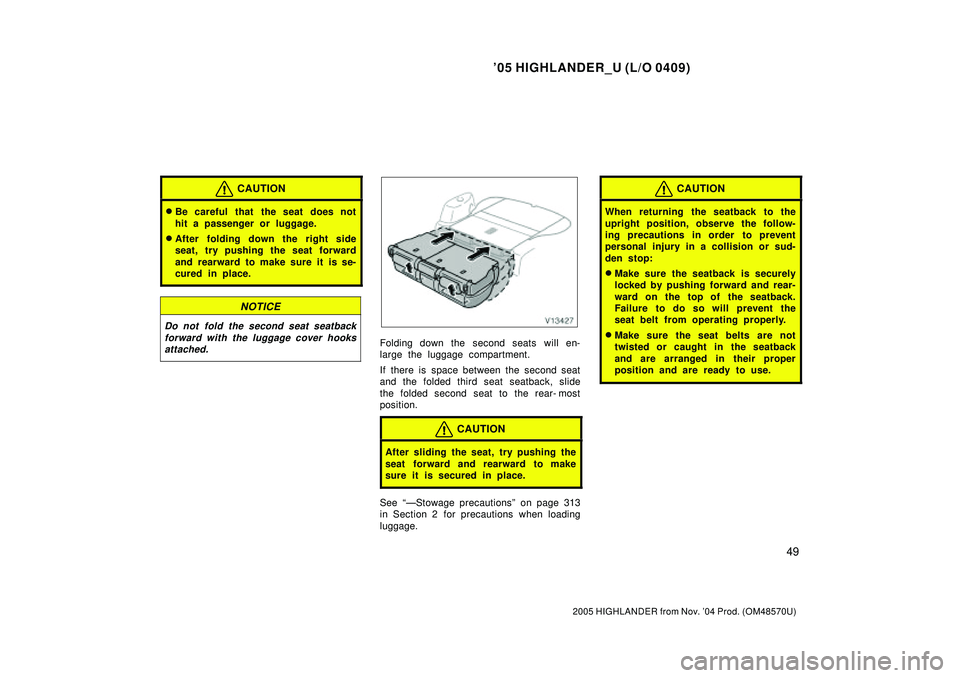

Page 169 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 49 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) CAUTION Be careful that the seat does not hit a passenger or luggage. After folding down the right side seat, try pushi

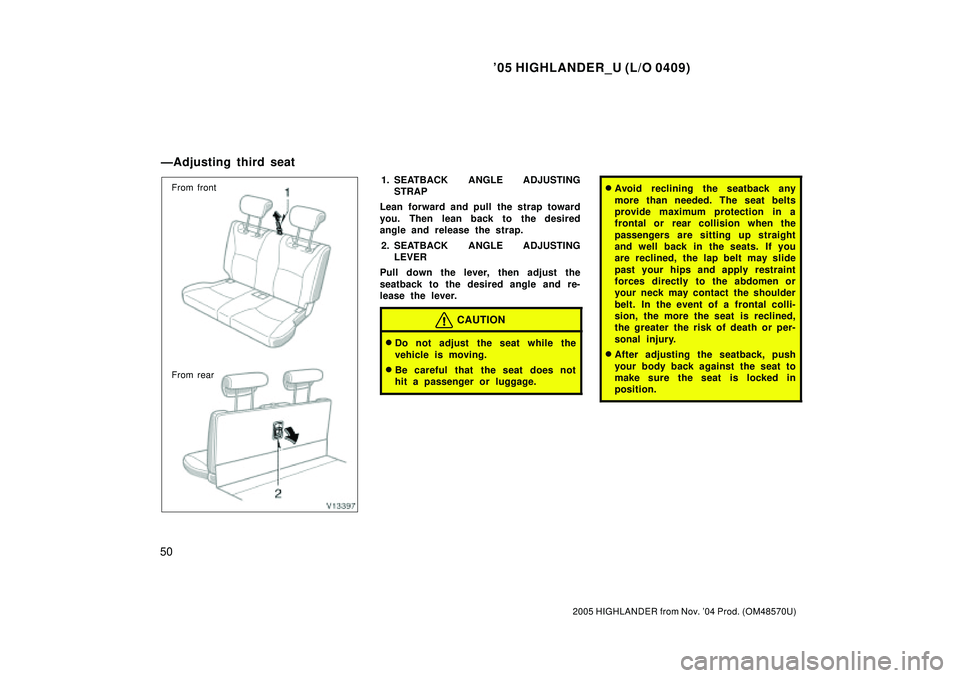

Page 170 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 50 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) From front From rear1. SEATBACK ANGLE ADJUSTING STRAP Lean forward and pull the strap toward you. Then lean back to the de

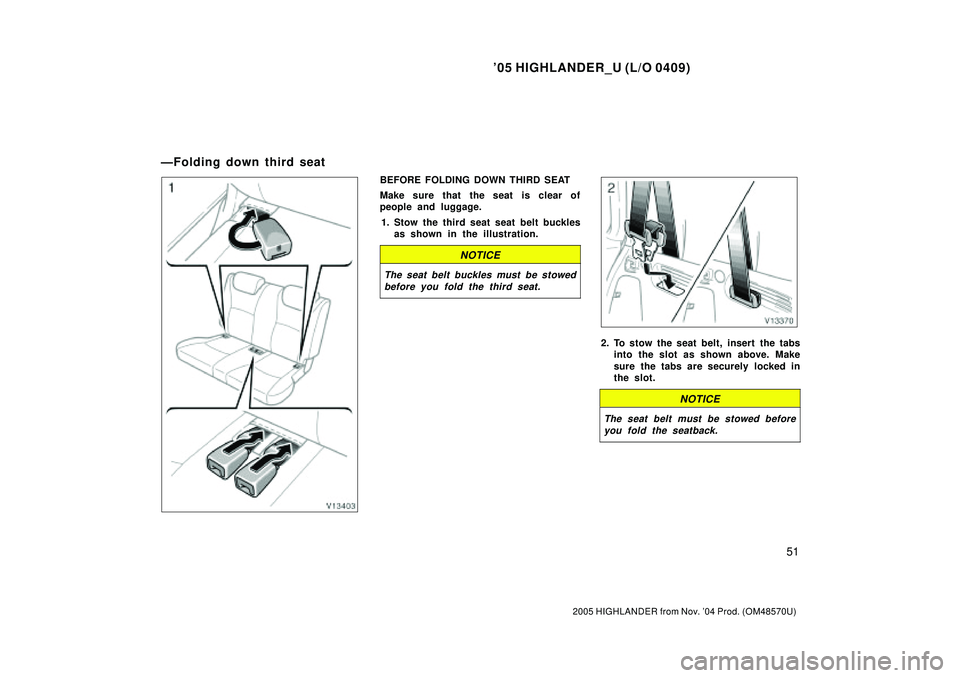

Page 171 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 51 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) BEFORE FOLDING DOWN THIRD SEAT Make sure that the seat is clear of people and luggage. 1. Stow the third seat seat belt bu

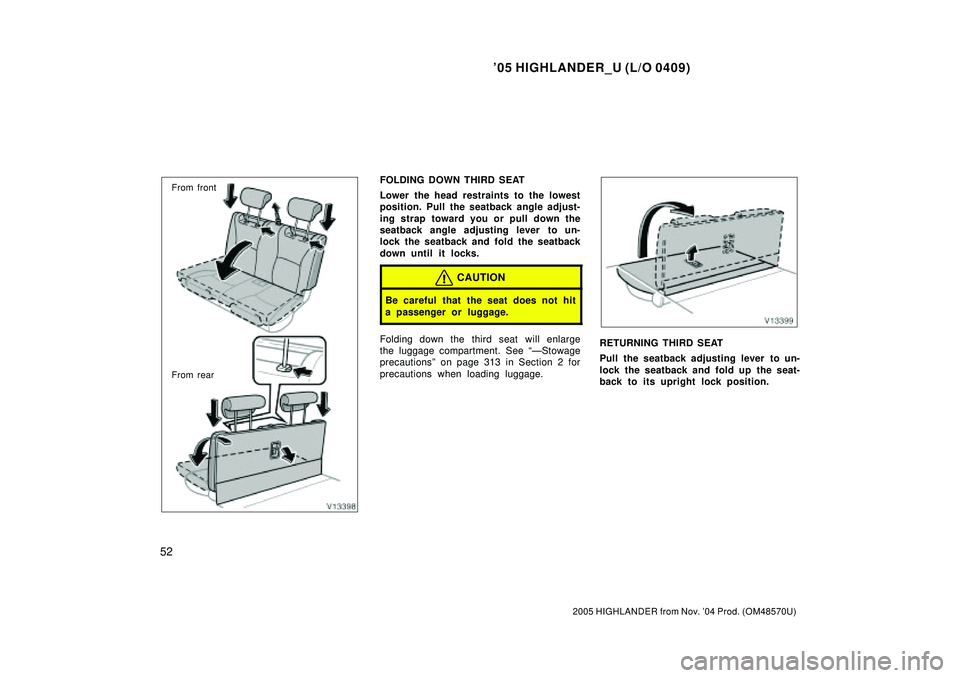

Page 172 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 52 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) From front From rearFOLDING DOWN THIRD SEAT Lower the head restraints to the lowest position. Pull the seatback angle adju

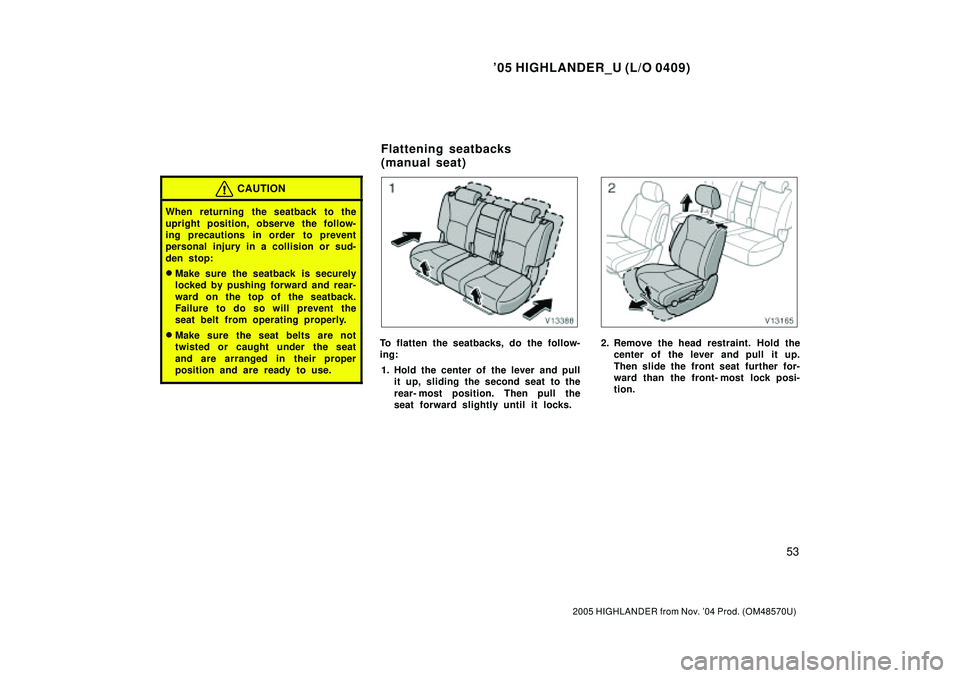

Page 173 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 53 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) CAUTION When returning the seatback to the upright position, observe the follow- ing precautions in order to prevent pers

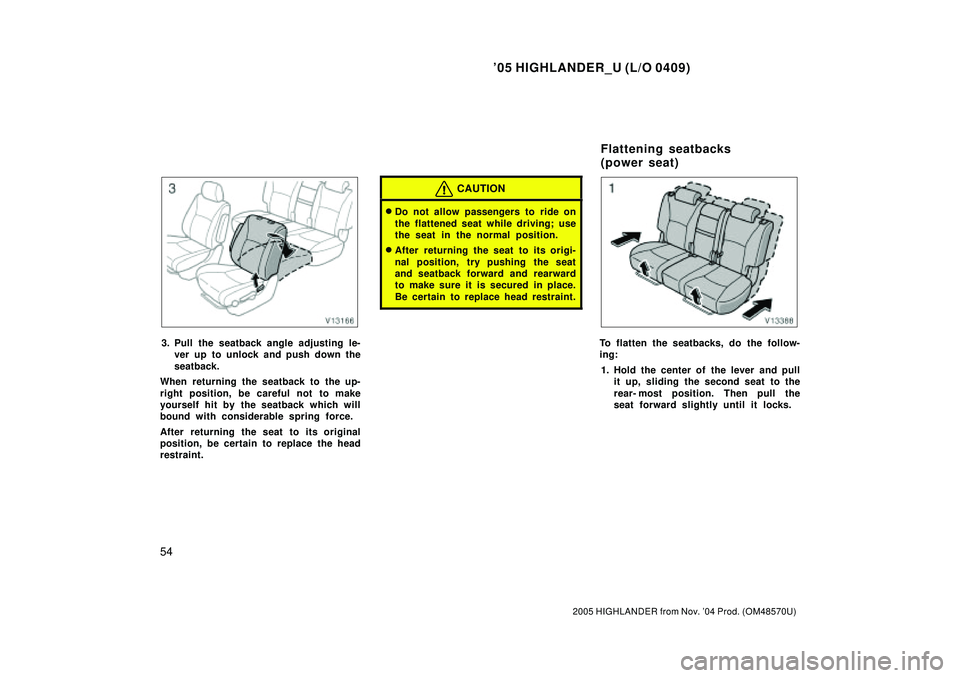

Page 174 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 54 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 3. Pull the seatback angle adjusting le- ver up to unlock and push down the seatback. When returning the seatback to the u

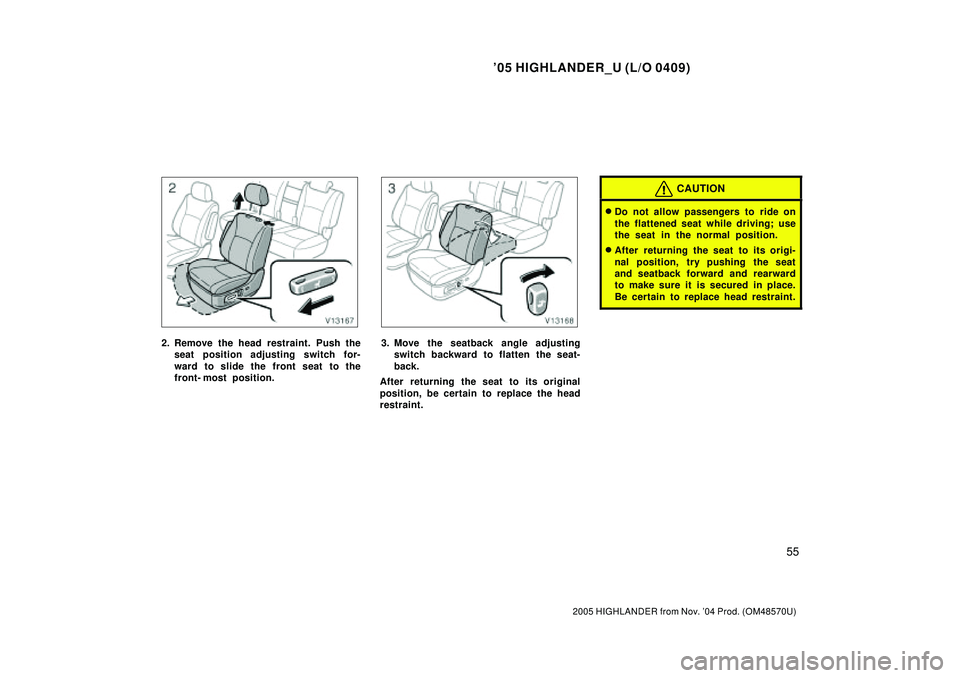

Page 175 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 55 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 2. Remove the head restraint. Push the seat position adjusting switch for- ward to slide the front seat to the front- most

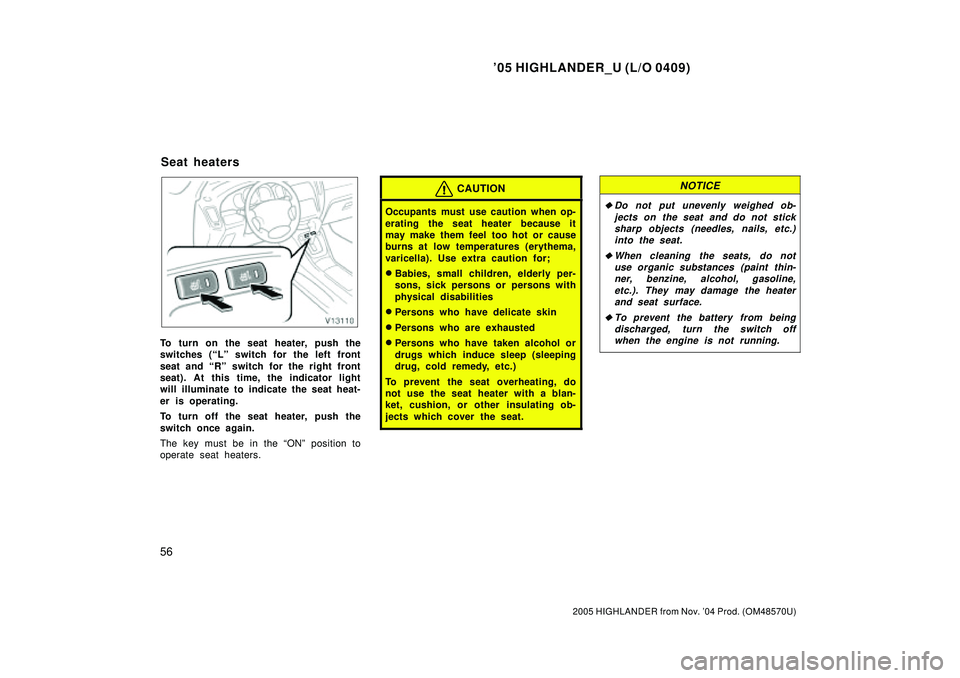

Page 176 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 56 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) To turn on the seat heater, push the switches (Lº switch for the left front seat and Rº switch for the right front sea
