Page 1337 of 2572

E50013
05-1678
- DIAGNOSTICSAUDIO SYSTEM
1868 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
CD CANNOT BE INSERTED OR IS EJECTED RIGHT AFTER
INSERTION
INSPECTION PROCEDURE
1 CHECK IF A NORMAL CD IS INSERTED
(a) Check if a normal CD is inserted.
(1) Make sure that the CD is a normal audio CD, and that there is no deformation, flaw, stain, burr
or other defects on the CD.
OK: Normal audio CD.
Reference:
Translucent or oddly-shaped CD cannot be played.
Computer CD-ROMs (even those with music) and CD-R discs cannot be played.
Playing an 8 cm CD does not require an adapter.
NG CD FAULTY
OK
2 CHECK IF A CD IS INSERTED PROPERLY
(a) Check if a CD is inserted properly.
(1) Check whether or not the CD is inserted upside down.
OK: Not upside down.
NG SET DISC CORRECTLY
OK
3 DISC CLEANING
(a) Disc cleaning
(1) If the disc gets dirty, clean the disc by wiping the sur-
face from the center to outside in the radial direc-
tions with a soft cloth.
NOTICE:
Do not use a conventional record cleaner or anti-static pre-
servative.
OK: Malfunction disappears.
OK DISC DIRTY
NG
05ASH-07

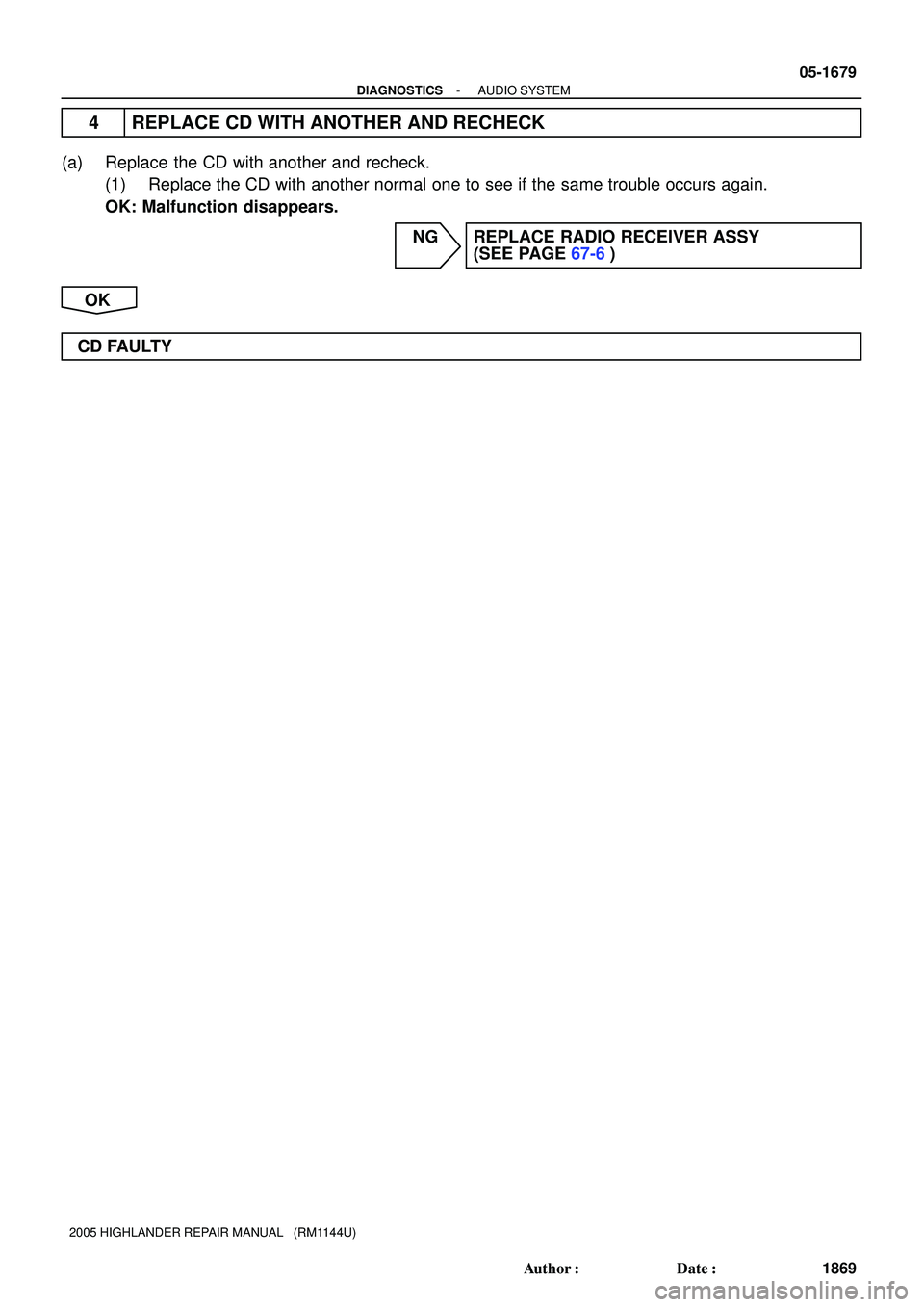

Page 1338 of 2572
- DIAGNOSTICSAUDIO SYSTEM
05-1679
1869 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
4 REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD with another and recheck.
(1) Replace the CD with another normal one to see if the same trouble occurs again.
OK: Malfunction disappears.
NG REPLACE RADIO RECEIVER ASSY
(SEE PAGE 67-6)
OK
CD FAULTY

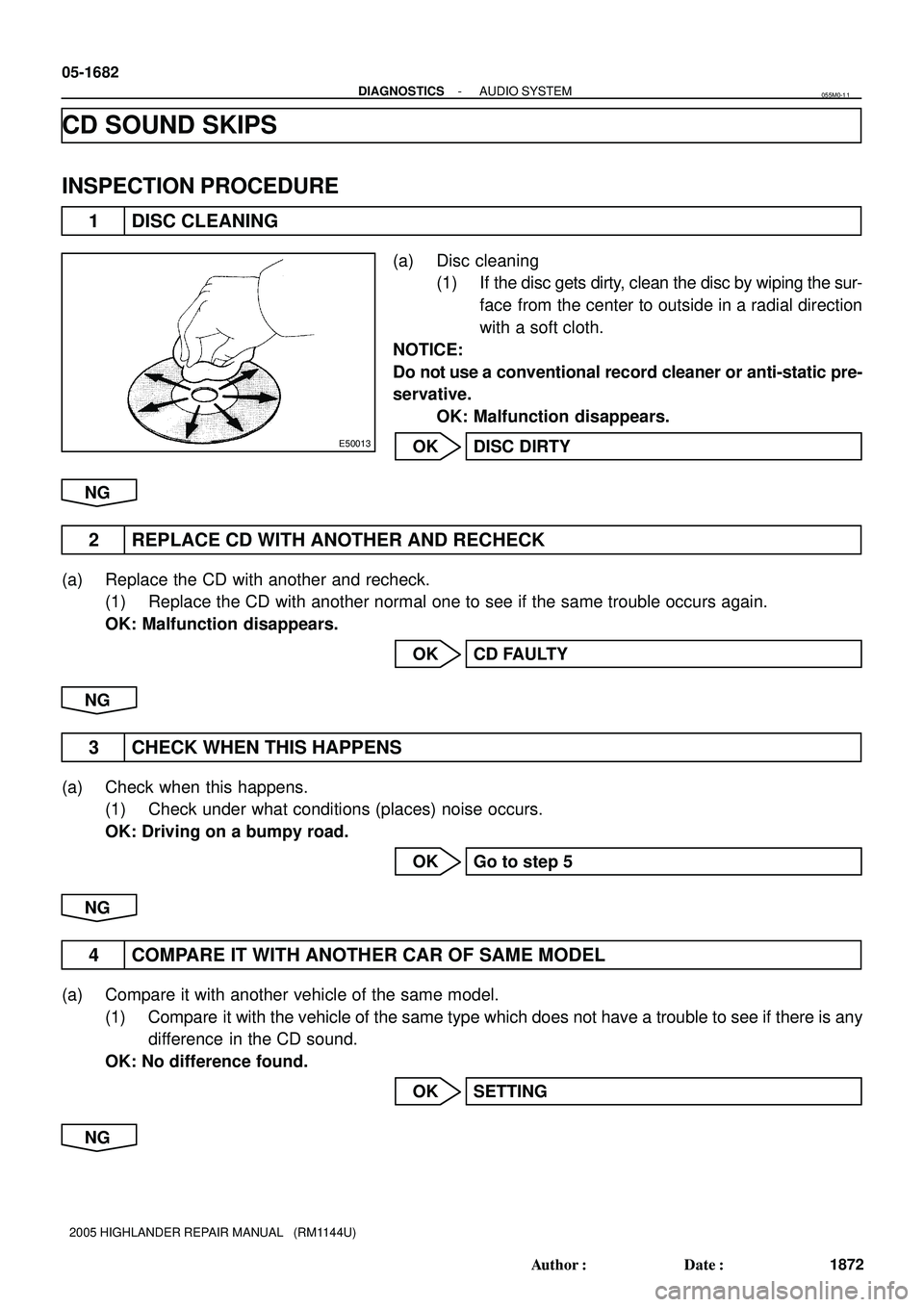

Page 1339 of 2572

E50013
05-1682
- DIAGNOSTICSAUDIO SYSTEM
1872 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
CD SOUND SKIPS
INSPECTION PROCEDURE
1 DISC CLEANING
(a) Disc cleaning
(1) If the disc gets dirty, clean the disc by wiping the sur-
face from the center to outside in a radial direction
with a soft cloth.
NOTICE:
Do not use a conventional record cleaner or anti-static pre-
servative.
OK: Malfunction disappears.
OK DISC DIRTY
NG
2 REPLACE CD WITH ANOTHER AND RECHECK
(a) Replace the CD with another and recheck.
(1) Replace the CD with another normal one to see if the same trouble occurs again.
OK: Malfunction disappears.
OK CD FAULTY
NG
3 CHECK WHEN THIS HAPPENS
(a) Check when this happens.
(1) Check under what conditions (places) noise occurs.
OK: Driving on a bumpy road.
OK Go to step 5
NG
4 COMPARE IT WITH ANOTHER CAR OF SAME MODEL
(a) Compare it with another vehicle of the same model.
(1) Compare it with the vehicle of the same type which does not have a trouble to see if there is any
difference in the CD sound.
OK: No difference found.
OK SETTING
NG
055M0-1 1

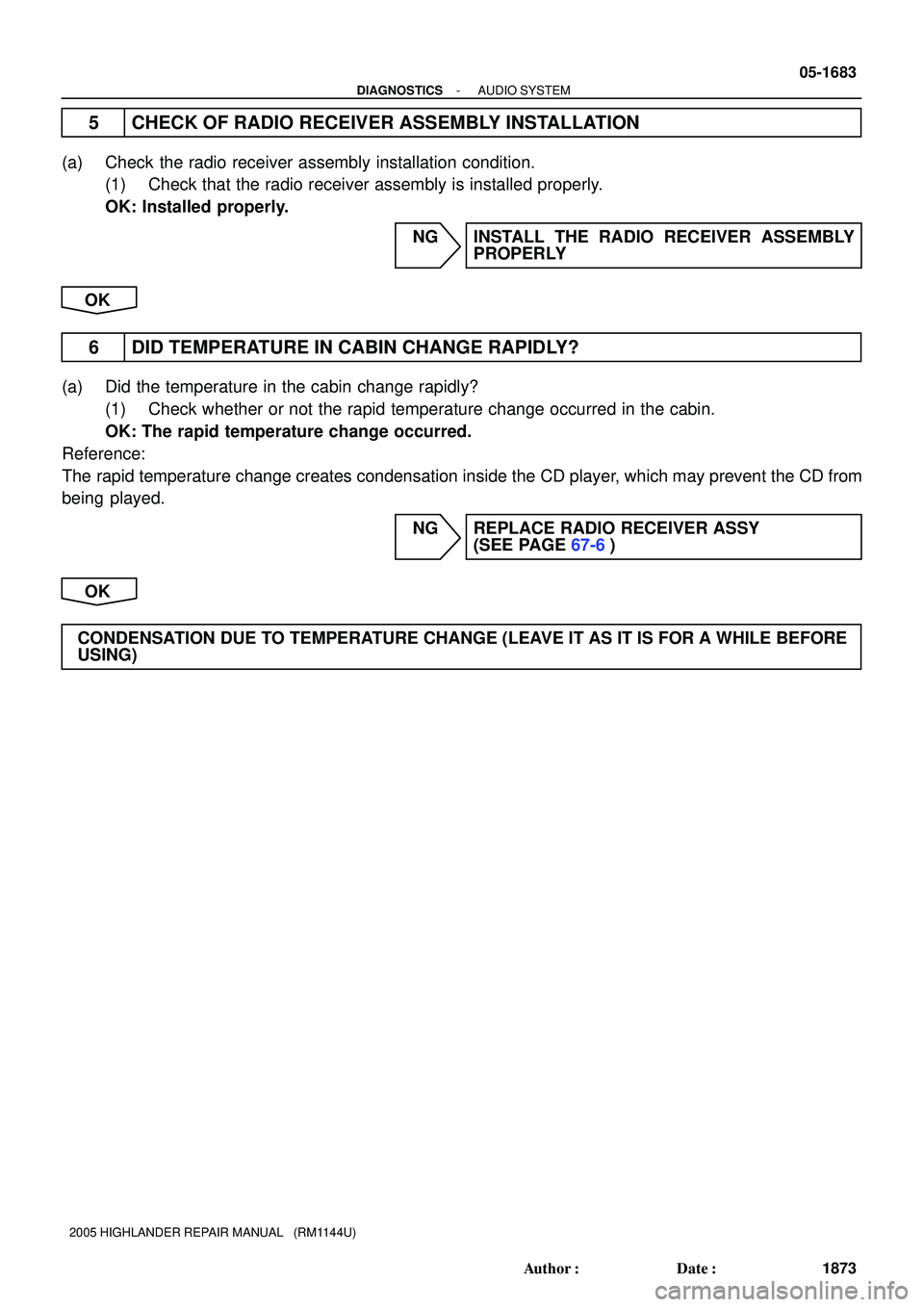

Page 1340 of 2572
- DIAGNOSTICSAUDIO SYSTEM
05-1683
1873 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
5 CHECK OF RADIO RECEIVER ASSEMBLY INSTALLATION
(a) Check the radio receiver assembly installation condition.
(1) Check that the radio receiver assembly is installed properly.
OK: Installed properly.
NG INSTALL THE RADIO RECEIVER ASSEMBLY
PROPERLY
OK
6 DID TEMPERATURE IN CABIN CHANGE RAPIDLY?
(a) Did the temperature in the cabin change rapidly?
(1) Check whether or not the rapid temperature change occurred in the cabin.
OK: The rapid temperature change occurred.
Reference:
The rapid temperature change creates condensation inside the CD player, which may prevent the CD from
being played.
NG REPLACE RADIO RECEIVER ASSY
(SEE PAGE 67-6)
OK
CONDENSATION DUE TO TEMPERATURE CHANGE (LEAVE IT AS IT IS FOR A WHILE BEFORE
USING)
Page 1341 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual 05MOJ-01
TLT CID Description of Test ValueUnit Conversion Description of Test Limit
Multiply by 0.625 and
subtract 40 [C]ECT sensor output when estimated ECT
has reached to malfunction criterionMalfu TOYOTA HIGHLANDER 2001 Service Repair Manual 05MOJ-01
TLT CID Description of Test ValueUnit Conversion Description of Test Limit
Multiply by 0.625 and
subtract 40 [C]ECT sensor output when estimated ECT
has reached to malfunction criterionMalfu](/manual-img/14/57457/w960_57457-1340.png)
05MOJ-01
TLT CID Description of Test ValueUnit Conversion Description of Test Limit
Multiply by 0.625 and
subtract 40 [C]ECT sensor output when estimated ECT
has reached to malfunction criterionMalfunction criterion for thermostat 1 $01 05-24
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
214 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
CHECKING MONITOR STATUS
NOTICE:
The monitor status (mode 6) is not applicable to the heated oxygen sensor (HO2S). However, HO2S
test values can be checked by O2S TEST RESULT (mode 5). Refer to page 05-22
1. Outline
The monitor results and the test values can be checked with the OBDII scan tool.
The engine control module (ECM) monitors the emissions-related components as the thermostat, catalyst
converter and evaporative emissions (EVAP), and determines whether they are functioning normally or not.
When finished monitoring, the ECM stores the monitor results and the test values.
The monitor result indicates whether the component is functioning normally or not. The test value is the value
that was used to determine the monitor result. If the test value is outside the test limit (malfunction criterion),
the ECM determines the component is malfunctioning. Some emissions-related components have multiple
test values to determine monitor result. If one of these test values is outside test limit, the ECM determines
the component is malfunctioning.
2. Description
The test value and test limit information are described as shown in the following table. This information is
included under ºMONITOR RESULTº in the emissions-related DTC sections:
TID $08: Thermostat
TID (Test Identification Data) is assigned to each emissions-related component.
TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
CID (Component Identification Data) is assigned to each test value.
Unit Conversion is used to calculate the test value indicated on generic OBDII scan tools.
Page 1342 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual MONITOR RESULT
CATALYST#1 B1 . INCMP
CATALYST#1 B2 . INCMP
O2S HEAT B1S1 . INCMP
O2S HEAT B1S2 . INCMP
O2S HEAT B2S1 . INCMP
O2S HEAT B2S2 . INCMP
THERMOSTAT . . . . . PASS
Press [ENTER] t TOYOTA HIGHLANDER 2001 Service Repair Manual MONITOR RESULT
CATALYST#1 B1 . INCMP
CATALYST#1 B2 . INCMP
O2S HEAT B1S1 . INCMP
O2S HEAT B1S2 . INCMP
O2S HEAT B2S1 . INCMP
O2S HEAT B2S2 . INCMP
THERMOSTAT . . . . . PASS
Press [ENTER] t](/manual-img/14/57457/w960_57457-1341.png)
MONITOR RESULT
CATALYST#1 B1 . INCMP
CATALYST#1 B2 . INCMP
O2S HEAT B1S1 . INCMP
O2S HEAT B1S2 . INCMP
O2S HEAT B2S1 . INCMP
O2S HEAT B2S2 . INCMP
THERMOSTAT . . . . . PASS
Press [ENTER] to
Select the Label .
A82674
Thermostat malfunction
VAL. . . . . . . . . . . . . . 119.375C
LMT. . . . . . . . . . . . . . . 75.000C
TLT. . . . . . . . . . . . . . . . . . . . . . 1
[HELP] to notice
[EXIT] to return
A82675

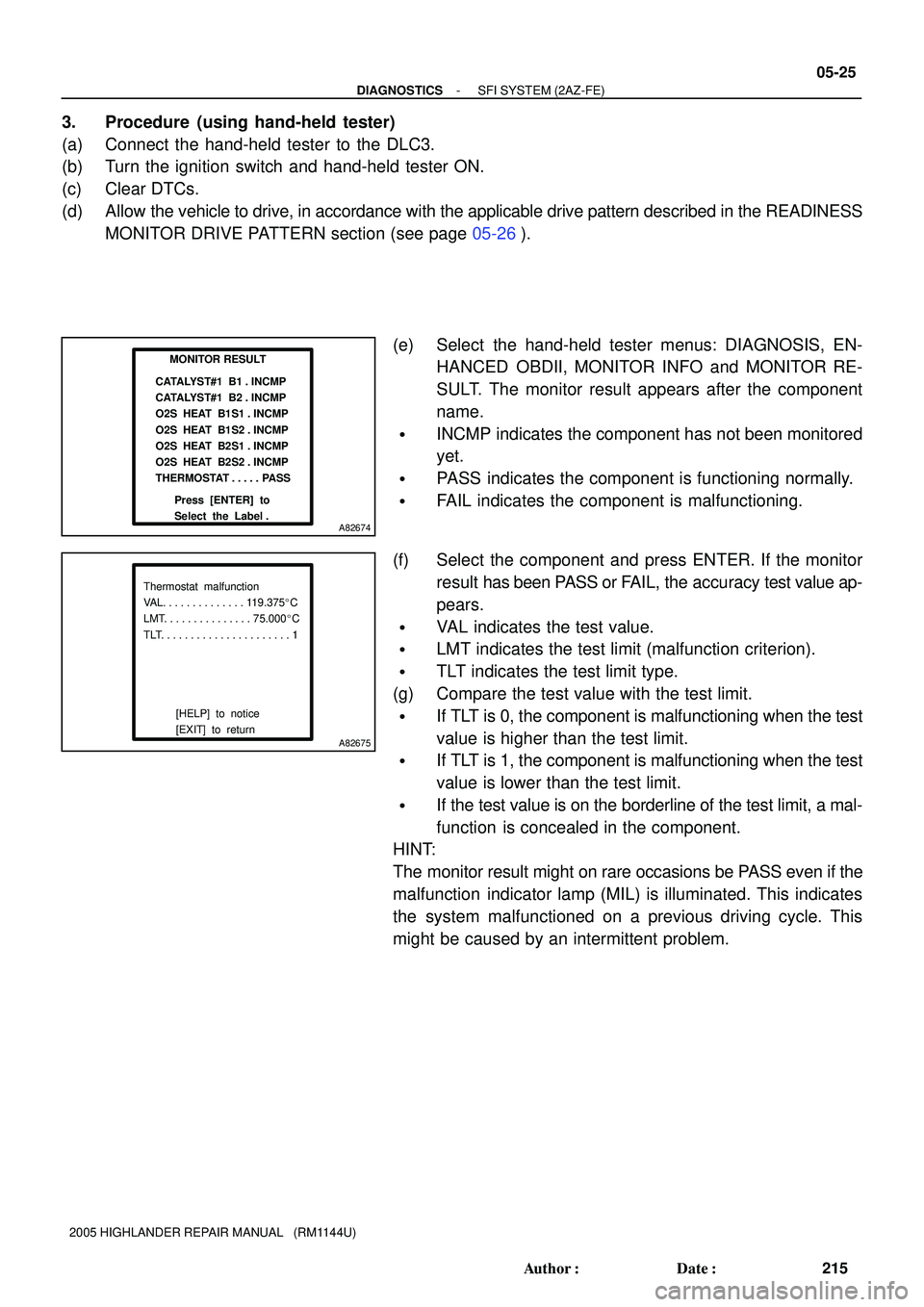

- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-25
215 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3. Procedure (using hand-held tester)
(a) Connect the hand-held tester to the DLC3.
(b) Turn the ignition switch and hand-held tester ON.
(c) Clear DTCs.
(d) Allow the vehicle to drive, in accordance with the applicable drive pattern described in the READINESS
MONITOR DRIVE PATTERN section (see page 05-26).
(e) Select the hand-held tester menus: DIAGNOSIS, EN-
HANCED OBDII, MONITOR INFO and MONITOR RE-
SULT. The monitor result appears after the component
name.
INCMP indicates the component has not been monitored
yet.
PASS indicates the component is functioning normally.
FAIL indicates the component is malfunctioning.
(f) Select the component and press ENTER. If the monitor
result has been PASS or FAIL, the accuracy test value ap-
pears.
VAL indicates the test value.
LMT indicates the test limit (malfunction criterion).
TLT indicates the test limit type.
(g) Compare the test value with the test limit.
If TLT is 0, the component is malfunctioning when the test
value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test
value is lower than the test limit.
If the test value is on the borderline of the test limit, a mal-
function is concealed in the component.
HINT:
The monitor result might on rare occasions be PASS even if the
malfunction indicator lamp (MIL) is illuminated. This indicates
the system malfunctioned on a previous driving cycle. This
might be caused by an intermittent problem.

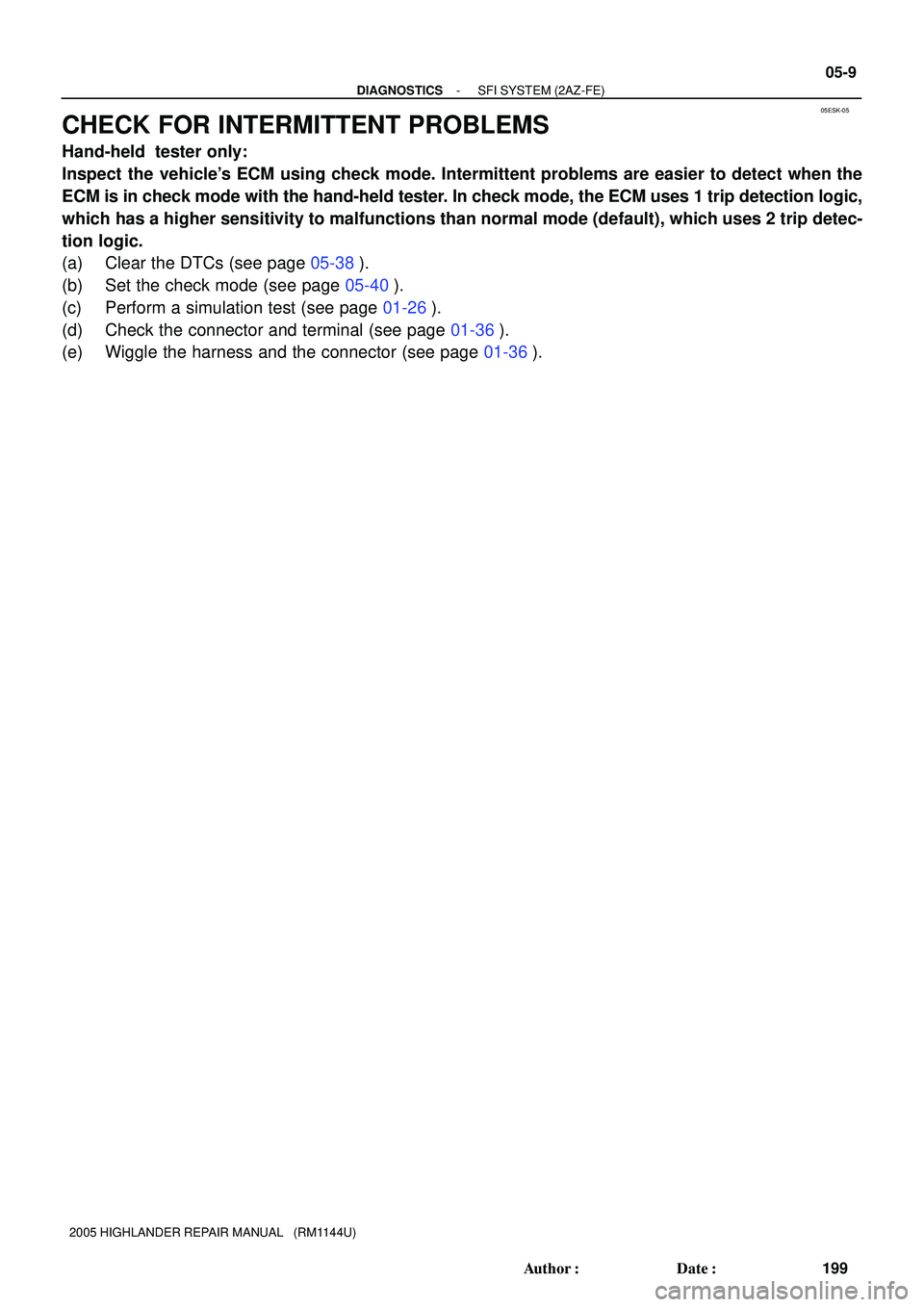

Page 1343 of 2572
05ESK-05
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-9
199 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
CHECK FOR INTERMITTENT PROBLEMS
Hand-held tester only:
Inspect the vehicle's ECM using check mode. Intermittent problems are easier to detect when the
ECM is in check mode with the hand-held tester. In check mode, the ECM uses 1 trip detection logic,
which has a higher sensitivity to malfunctions than normal mode (default), which uses 2 trip detec-
tion logic.
(a) Clear the DTCs (see page 05-38).
(b) Set the check mode (see page 05-40).
(c) Perform a simulation test (see page 01-26).
(d) Check the connector and terminal (see page 01-36).
(e) Wiggle the harness and the connector (see page 01-36).

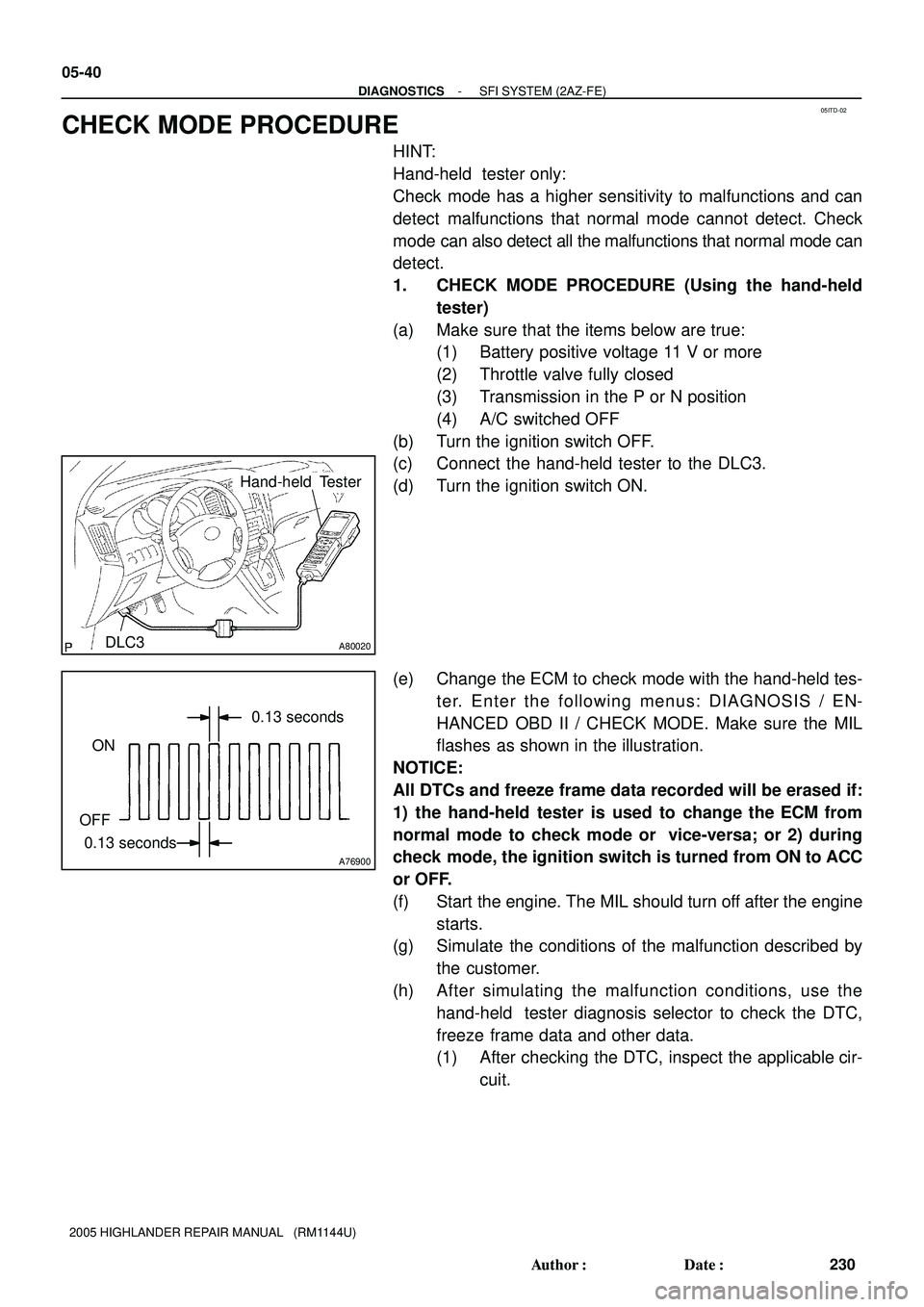

Page 1344 of 2572

05ITD-02
A80020
Hand-held Tester
DLC3
A76900
ON
OFF
0.13 seconds0.13 seconds 05-40
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
230 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
CHECK MODE PROCEDURE
HINT:
Hand-held tester only:
Check mode has a higher sensitivity to malfunctions and can
detect malfunctions that normal mode cannot detect. Check
mode can also detect all the malfunctions that normal mode can
detect.
1. CHECK MODE PROCEDURE (Using the hand-held
tester)
(a) Make sure that the items below are true:
(1) Battery positive voltage 11 V or more
(2) Throttle valve fully closed
(3) Transmission in the P or N position
(4) A/C switched OFF
(b) Turn the ignition switch OFF.
(c) Connect the hand-held tester to the DLC3.
(d) Turn the ignition switch ON.
(e) Change the ECM to check mode with the hand-held tes-
ter. Enter the following menus: DIAGNOSIS / EN-
HANCED OBD II / CHECK MODE. Make sure the MIL
flashes as shown in the illustration.
NOTICE:
All DTCs and freeze frame data recorded will be erased if:
1) the hand-held tester is used to change the ECM from
normal mode to check mode or vice-versa; or 2) during
check mode, the ignition switch is turned from ON to ACC
or OFF.
(f) Start the engine. The MIL should turn off after the engine
starts.
(g) Simulate the conditions of the malfunction described by
the customer.
(h) After simulating the malfunction conditions, use the
hand-held tester diagnosis selector to check the DTC,
freeze frame data and other data.
(1) After checking the DTC, inspect the applicable cir-
cuit.
