Page 1929 of 2572

A96746
Fuel Tank Canister
Vacuum Pump: OFF Pressure Sensor 0.02 Inch Orifice
Pump Module
Operation A: Atmospheric Pressure Measurement
Vent Valve: OFF (vent)
Operation D: Purge VSV monitor Operation B, E: 0.02 Inch Leak Pressure Measurement
Negative
Pressure Atmospheric
Pressure Air Filter
Purge VSV: OFFOFF (vent)
ON
OFF
OFF
ON
ON (closed)ON
ON
ON (closed)
Operation C: EVAP System Pressure Measurement
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)(From August, 2004)
05-295
485 Author: Date:
MONITOR DESCRIPTION
5 hours* after the ignition switch is turned OFF, the electric vacuum pump creates negative pressure (vacu-
um) in the EVAP (Evaporative Emission) system. The ECM monitors for leaks and actuator malfunctions
based on the EVAP pressure.
HINT:
*: If the engine coolant temperature is not below 35C (95F) 5 hours after the ignition switch is turned off,
the monitor check starts 2 hours later. If it is still not below 35C (95F) 7 hours after the ignition switch is
turned off, the monitor check starts 2.5 hours later.
SequenceOperationsDescriptionsDuration
-ECM activationActivated by soak timer, 5 hours (7 or 9.5 hours) after ignition switch turned to OFF.-
AAtmospheric pressure
measurement
Vent valve turned OFF (vent) and EVAP system pressure measured by ECM in order to
register atmospheric pressure.
If EVAP pressure is not between 70 kPa and 110 kPa (525 mmHg and 825 mmHg), ECM
cancels EVAP system monitor.
10 seconds
B
First 0.02 inch leak
pressure measure-
mentIn order to determine 0.02 inch leak pressure standard, vacuum pump creates negative pres-
sure (vacuum) through 0.02 inch orifice and them ECM checks if vacuum pump and vent
valve operate normally.
60 seconds
CEVAP system pres-
sure measurement
Vent valve turned ON (closed) to shut EVAP system.
Negative pressure (vacuum) created in EVAP system, and EVAP system pressure then
measured.
Write down the measured value as it will be used in the leak check.
If EVAP pressure does not stabilize within 15 minutes, ECM cancels EVAP system monitor.
15 minutes*
DPurge VSV monitorPurge VSV opened and then EVAP system pressure measured by ECM.
Large increase indicates normal.10 seconds
E
Second 0.02 inch leak
pressure measure-
mentLeak check is performed after second 0.02 inch leak pressure standard is measured.
If stabilized system pressure higher than second 0.02 inch leak pressure standard, ECM
determines that EVAP system leaking.
60 seconds
FFinal checkAtmospheric pressure measured and then monitoring result recorded by ECM.-
* If only a small amount of fuel is in the fuel tank, it takes longer for the EVAP pressure to stabilize.
Page 1930 of 2572
A85217
Purge VSV
Vent Valve
Vacuum Pump
EVAP Pressure
secOFF
Sequence
TimeA
10
sec60
Within 15 minutes
sec ON
Specified
RangeBCD
EVAP Pressure during EVAP Monitor
OK
Malfunction
ON: Open
OFF: Closed
OFF: Vent ON: Closed
10
sec60
E Malfunction
OFF
OFF
ON OFF
OK
Malfunction
Malfunction
-1 kPa
-4.85 kPa
05-296
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)(From August, 2004)
486 Author: Date:

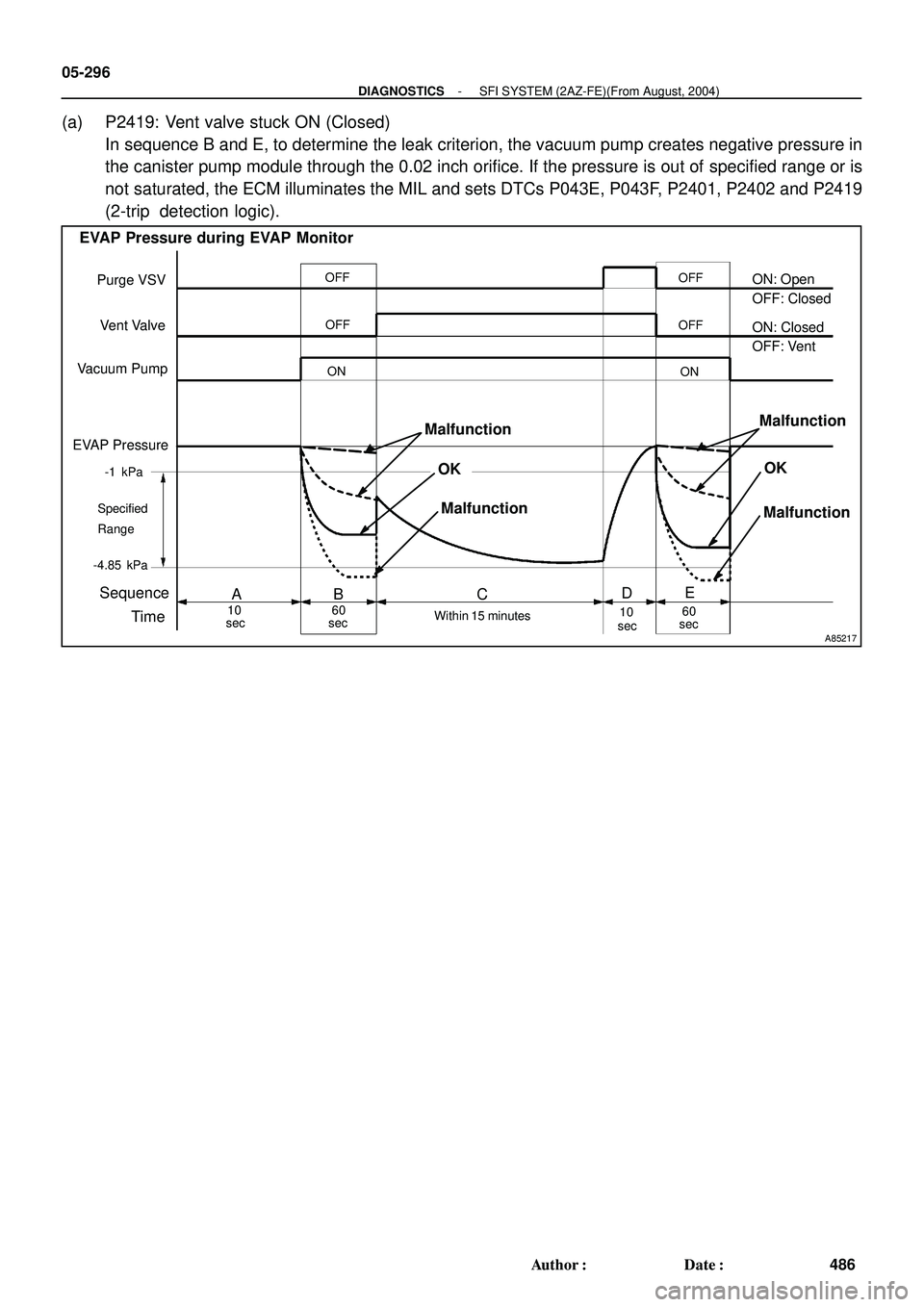

(a) P2419: Vent valve stuck ON (Closed)
In sequence B and E, to determine the leak criterion, the vacuum pump creates negative pressure in
the canister pump module through the 0.02 inch orifice. If the pressure is out of specified range or is
not saturated, the ECM illuminates the MIL and sets DTCs P043E, P043F, P2401, P2402 and P2419
(2-trip detection logic).
Page 1931 of 2572
G36780
Purge VSV
Vent Valve
Vacuum Pump
EVAP Pressure
Positive
Leak Pressure
sec NegativeON OFF
Sequence
TimeA
10
sec60
Within 15 minutes ON
First 0.02 inch
BCD
EVAP Pressure when Vent Valve Stuck OFF (vent):
OK
Malfunction
ON: Open
OFF: Closed
OFF: Vent ON: Closed
10
Standard
sec60
E
OFF
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)(From August, 2004)
05-297
487 Author: Date:

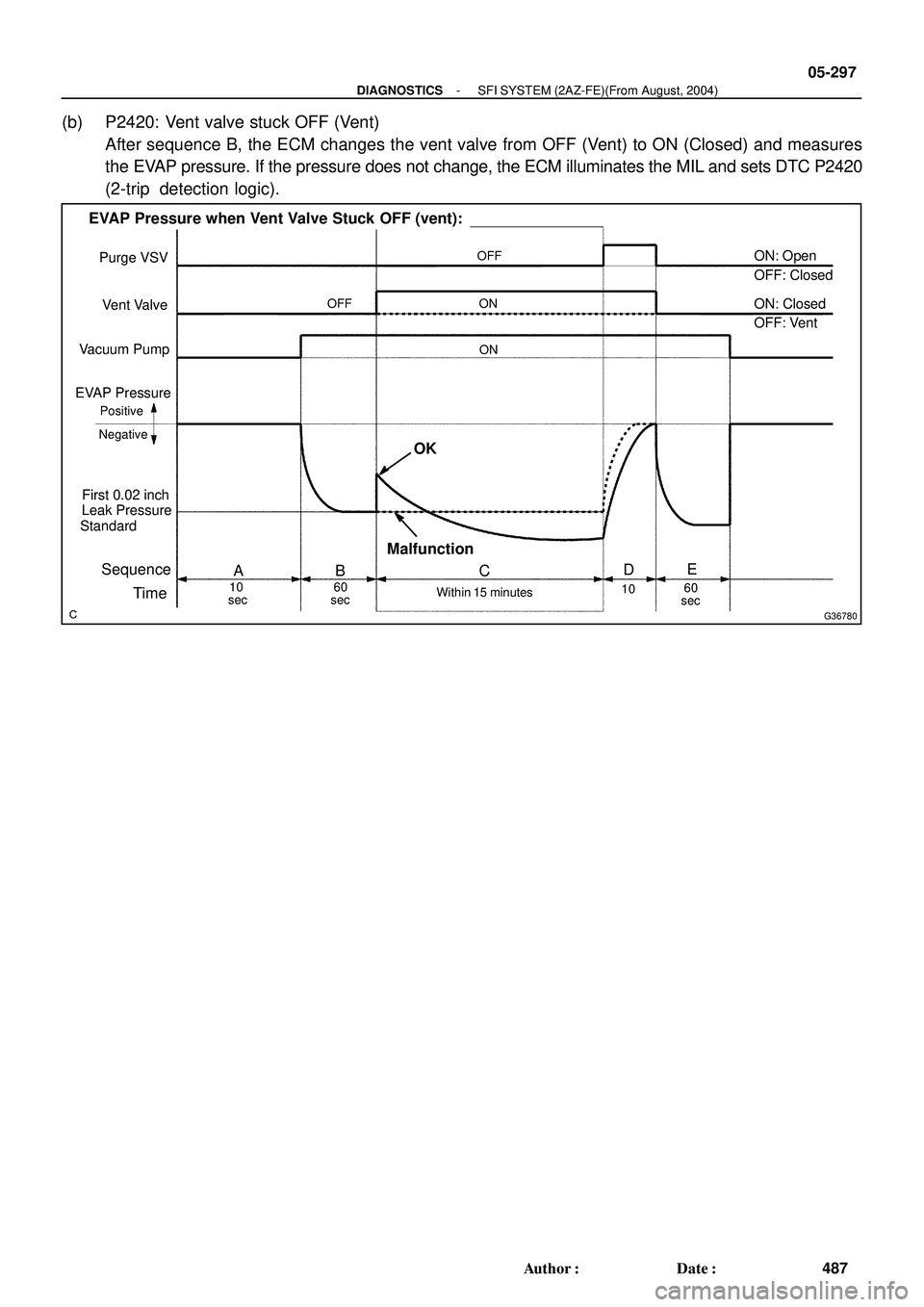

(b) P2420: Vent valve stuck OFF (Vent)
After sequence B, the ECM changes the vent valve from OFF (Vent) to ON (Closed) and measures
the EVAP pressure. If the pressure does not change, the ECM illuminates the MIL and sets DTC P2420
(2-trip detection logic).
Page 1932 of 2572

05-298
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)(From August, 2004)
488 Author: Date:
OBD II MONITOR SPECIFICATIONS
Monitor Strategy
Required Sensors/ComponentsPurge VSV and pump module
Frequency of OperationOnce per driving cycle
DurationWithin 15 minutes (varies with amount of fuel in tank)
MIL Operation2 driving cycles
Sequence of OperationNone
Typical Enabling Conditions
The monitor will run whenever these DTCs are not presentSee page 05-16
EVAP key-off monitor runs when all of the following condi-
tions met:-
Atmospheric pressure525 to 825 mmHg (70 to 110 kPa)
Battery voltage10.5 V or more
Vehicle speedBelow 4 km/h (2.5 mph)
Ignition switchOFF
Engine conditionNot running
Time after engine stopped5 hours
FTP sensor malfunction (P0450, P0452, P0453)Not detected
Purge VSVNot operated by scan tool
Vent valveNot operated by scan tool
Leak detection pumpNot operated by scan tool
Both of the following conditions are met before IG switch
OFF:Condition 1 and 2
1. Duration that vehicle is driven5 min. or more
2. Purge flowExecuted
ECT4.4 to 35C (40 to 95F)
IAT4.4 to 35C (40 to 95F)
Accumulated purge volume100 g or more (varies with engine coolant temperature)
Example of re-start time
First time7 hours
Second time9 hours and 30 min.
Key-of f monitor sequence: 1 to 8
1. Atmospheric pressure
Next sequence is run if following condition met-
Atmospheric pressure change for 10 sec.Within 2.25 mmHg (0.3 kPa) for 1 sec.
2. First reference pressure
Next sequence is run if all of following conditions metCondition 1, 2 and 3
1. FTP when 4 sec. after reference pressure measurement-7.5 mmHg (-1 kPa) or less
2. Reference pressure-36.47 to -7.93 mmHg (-4.85 to -1.057 kPa)
3. Reference pressureSaturated
3. Vent valve stuck closed check
Next sequence is run if following condition met-
FTP change for 10 sec. after vent valve ON (closed)2.25 mmHg (0.3 kPa) or more
4. Vacuum introduction and leak
Next sequence is run if both of following conditions metCondition 1 and 2
1. Vacuum introduction timeWithin 15 min.
2. FTPFTP was saturated
5. Purge VSV stuck closed check
Next sequence is run if following condition met-
FTP change for 10 sec. after purge VSV ON (open)2.25 mmHg (0.3 kPa) or more
Page 1933 of 2572

- DIAGNOSTICSSFI SYSTEM (2AZ-FE)(From August, 2004)
05-299
489 Author: Date:

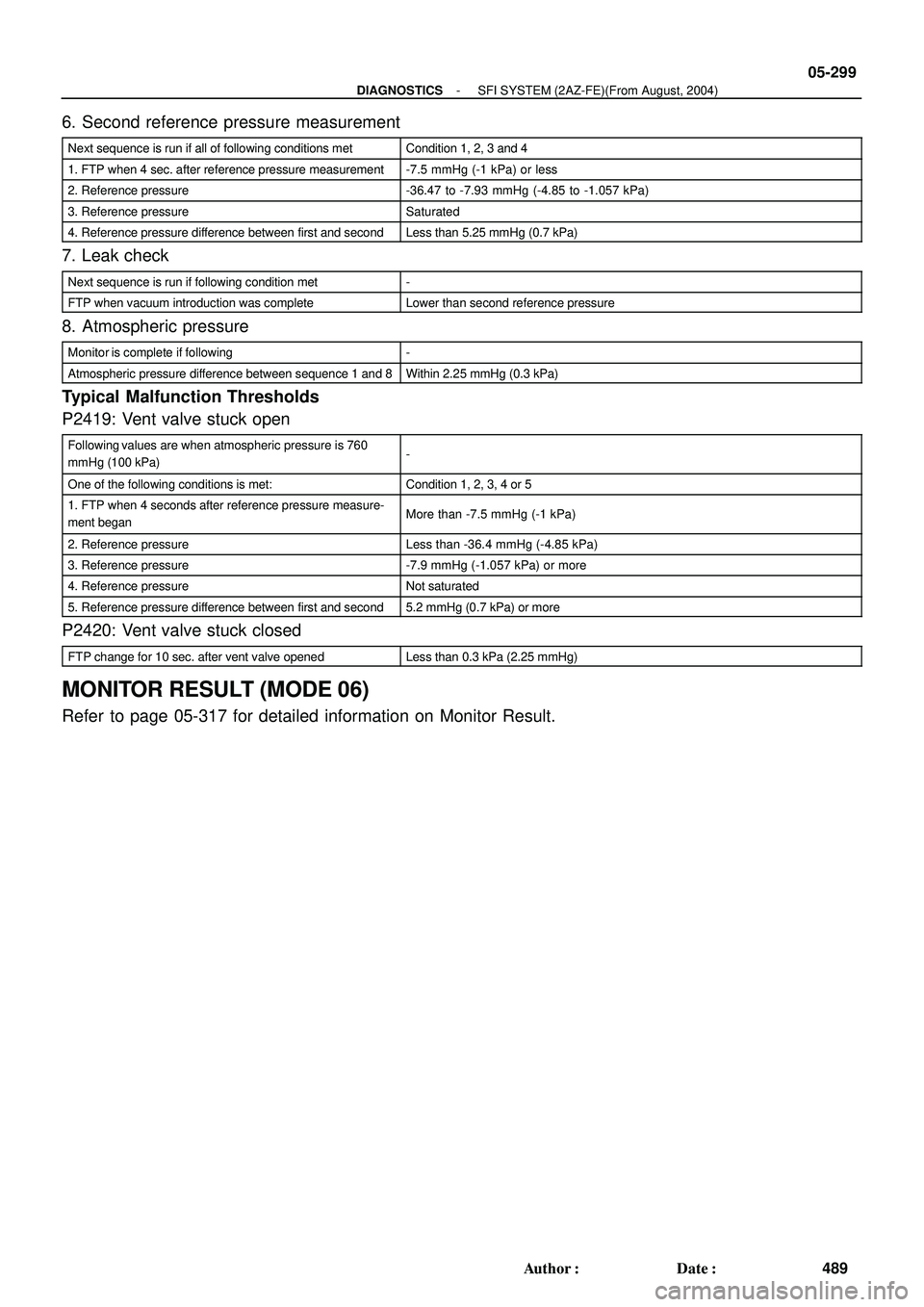

6. Second reference pressure measurement
Next sequence is run if all of following conditions metCondition 1, 2, 3 and 4
1. FTP when 4 sec. after reference pressure measurement-7.5 mmHg (-1 kPa) or less
2. Reference pressure-36.47 to -7.93 mmHg (-4.85 to -1.057 kPa)
3. Reference pressureSaturated
4. Reference pressure difference between first and secondLess than 5.25 mmHg (0.7 kPa)
7. Leak check
Next sequence is run if following condition met-
FTP when vacuum introduction was completeLower than second reference pressure
8. Atmospheric pressure
Monitor is complete if following-
Atmospheric pressure difference between sequence 1 and 8Within 2.25 mmHg (0.3 kPa)
Typical Malfunction Thresholds
P2419: Vent valve stuck open
Following values are when atmospheric pressure is 760
mmHg (100 kPa)-
One of the following conditions is met:Condition 1, 2, 3, 4 or 5
1. FTP when 4 seconds after reference pressure measure-
ment beganMore than -7.5 mmHg (-1 kPa)
2. Reference pressureLess than -36.4 mmHg (-4.85 kPa)
3. Reference pressure-7.9 mmHg (-1.057 kPa) or more
4. Reference pressureNot saturated
5. Reference pressure difference between first and second5.2 mmHg (0.7 kPa) or more
P2420: Vent valve stuck closed
FTP change for 10 sec. after vent valve openedLess than 0.3 kPa (2.25 mmHg)
MONITOR RESULT (MODE 06)
Refer to page 05-317 for detailed information on Monitor Result.
Page 1934 of 2572

A85251
Soak Timer Circuit
Ignition Switch
IGSW
Power
ECM
EFI MAIN
MREL+B
15 ASource IC
Soak Timer ICMain Relay
Control IC
Battery 05-300
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
490 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P2610 ECM/PCM INTERNAL ENGINE OFF TIMER
PERFORMANCE
DTC SUMMARY
DTCMonitoring ItemsMalfunction Detection ConditionsTrouble AreasDetection
TimingsDetection
Logic
P2610Soak timer (built into ECM)ECM internal malfunctionECMEngine
running2 trip

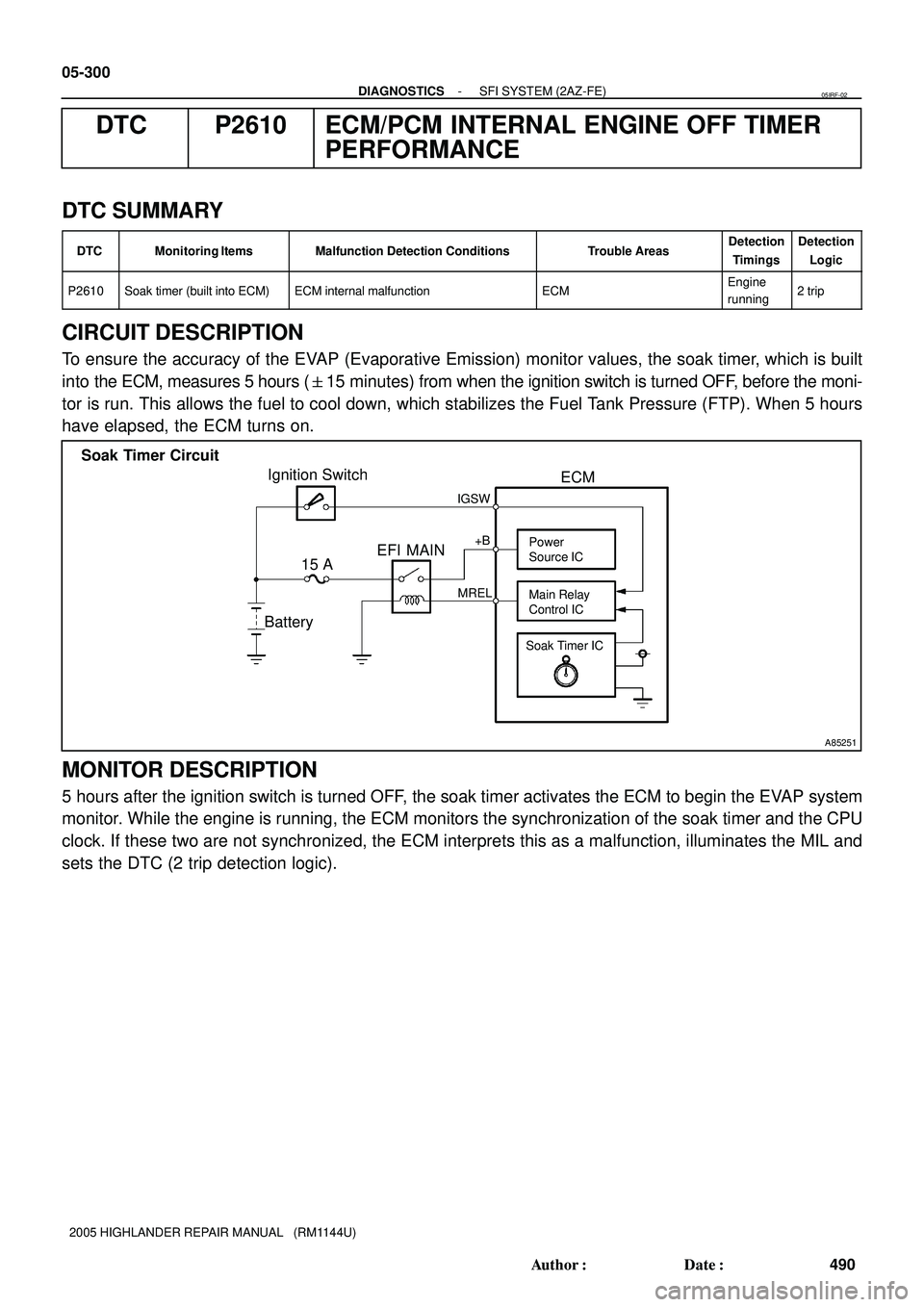

CIRCUIT DESCRIPTION
To ensure the accuracy of the EVAP (Evaporative Emission) monitor values, the soak timer, which is built
into the ECM, measures 5 hours (15 minutes) from when the ignition switch is turned OFF, before the moni-
tor is run. This allows the fuel to cool down, which stabilizes the Fuel Tank Pressure (FTP). When 5 hours
have elapsed, the ECM turns on.
MONITOR DESCRIPTION
5 hours after the ignition switch is turned OFF, the soak timer activates the ECM to begin the EVAP system
monitor. While the engine is running, the ECM monitors the synchronization of the soak timer and the CPU
clock. If these two are not synchronized, the ECM interprets this as a malfunction, illuminates the MIL and
sets the DTC (2 trip detection logic).
05IRF-02
Page 1935 of 2572

- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-301
491 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
OBD II MONITOR SPECIFICATIONS
Monitor Strategy
Required Sensors/ComponentsECM
Frequency of OperationOnce per driving cycle
Duration10 minutes
MIL Operation2 driving cycles
Sequence of OperationNone
Typical Enabling Conditions
The monitor will run whenever this DTC is not presentSee page 05-16
Ignition switchON
EngineRunning
Battery voltage8 V or more
StarterOFF
Typical Malfunction Thresholds
Soak timer measurement when ECM CPU clock counts 10
minutesLess than 7 minutes, or more than 13 minutes
INSPECTION PROCEDURE
HINT:
DTC P2610 is set if an internal ECM problem is detected. Diagnostic procedures are not required. ECM
replacement is required.
Read freeze frame data using a hand-held tester or OBD II scan tool. Freeze frame data record the
engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help
determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel
ratio was lean or rich, and other data, from the time the malfunction occurred.
1 REPLACE ECM (see page 10-9)
NEXT
CHECK WHETHER DTC OUTPUT RECURS
(a) Connect a hand-held tester to the DLC3.
(b) Turn the ignition switch to ON.
(c) Clear DTCs (see page 05-38).
(d) Start the engine and wait for 10 minutes or more.
(e) On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PEND-
ING CODES.
(f) If no pending DTC is displayed, the repair has been successfully completed.
Page 1936 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual D02290
Line Pressure
Control Pressure
Current Flow to Solenoid
BE4056
ON
OFF
1 cycle 05-974
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1164 Author: Date:
2005 HIGHLA TOYOTA HIGHLANDER 2001 Service Repair Manual D02290
Line Pressure
Control Pressure
Current Flow to Solenoid
BE4056
ON
OFF
1 cycle 05-974
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1164 Author: Date:
2005 HIGHLA](/manual-img/14/57457/w960_57457-1935.png)
D02290
Line Pressure
Control Pressure
Current Flow to Solenoid
BE4056
ON
OFF
1 cycle 05-974
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1164 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P2716 PRESSURE CONTROL SOLENOID ºDº
ELECTRICAL (SHIFT SOLENOID SLT)
CIRCUIT DESCRIPTION
The linear solenoid valve (SLT) controls the transmission line
pressure for smooth transmission operation based on signals
from the throttle position sensor and the vehicle speed sensor.
The ECM adjusts the duty cycle of the SLT solenoid valve to
control hydraulic line pressure coming from the primary regula-
tor valve. Appropriate line pressure assures smooth shifting
with varying engine outputs.
(*): Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle.
For example, if A is the period of continuity in one cycle, and B
is the period of non-continuity, then
Duty Ratio=A/(A+B) x 100 (%)
DTC No.DTC Detection ConditionTrouble Area
P2716
Condition (a) or (b) below is detected 1 sec. or more:
(1-trip detection logic)
(a) SLT-
terminal: 0V
(b) SLT-
terminal: 12V
Open or short in shift solenoid valve SLT circuit
Shift solenoid valve SLT
ECM
MONITOR DESCRIPTION
When an open or short in the linear solenoid valve (SLT) circuit is detected, the ECM interprets this as a fault.
The ECM will turn ON the MIL and store the DTC.
MONITOR STRATEGY
Related DTCsP2716: Shift solenoid valve SLT/Range check
Required sensors/ComponentsShift solenoid valve SLT
Frequency of operationContinuous
Duration1 sec.
MIL operationImmediate
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
The monitor will run whenever this DTC is not present.See page 05-895
Battery voltage11 V or more
Solenoid current cut statusNot cut
CPU commanded duty ratio to SLT19% or more
Ignition switchON
StarterOFF
TYPICAL MALFUNCTION THRESHOLDS
Solenoid status from ICFail (Open or short)
05C19-26
