Page 2425 of 2572

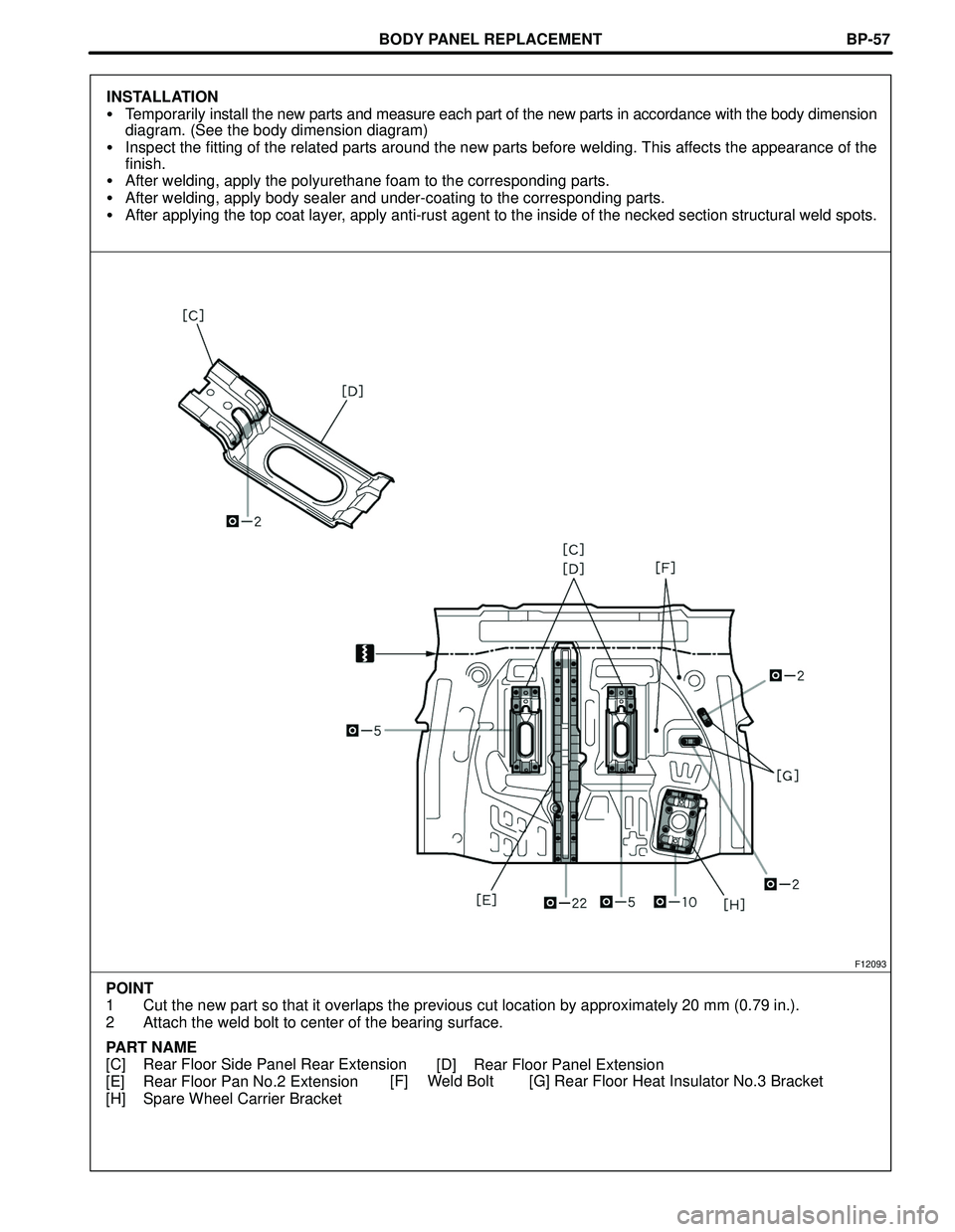

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F12093 POINT 1 Cut the new part so that it overlaps the previous cut location by approximately 20 mm (0.79 in.). 2 Attach the weld bolt to center of the bearing surface. PART NA

Page 2426 of 2572

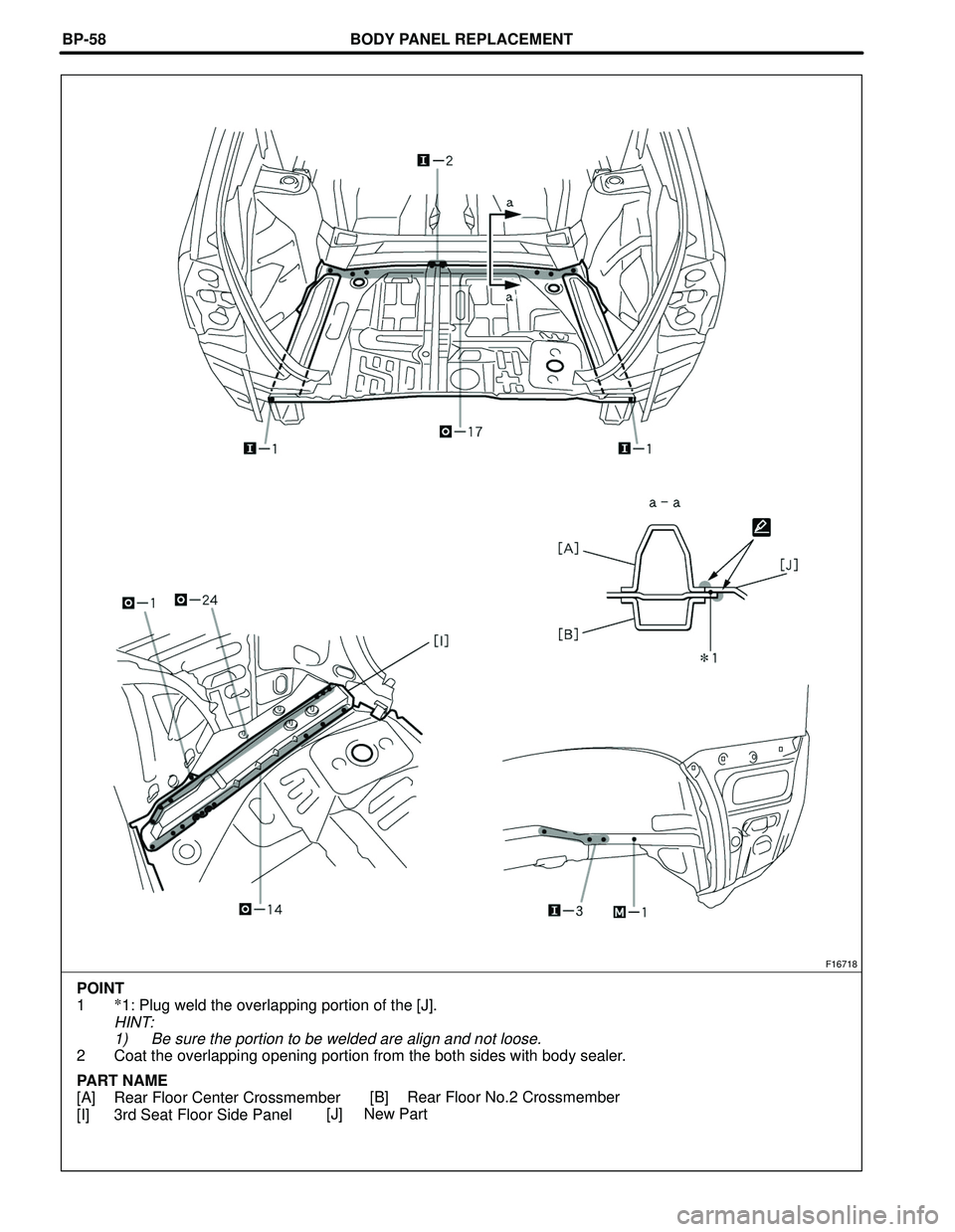

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16718 POINT 1*1: Plug weld the overlapping portion of the [J]. HINT: 1) Be sure the portion to be welded are align and not loose. 2 Coat the overlapping opening portion from th

Page 2427 of 2572

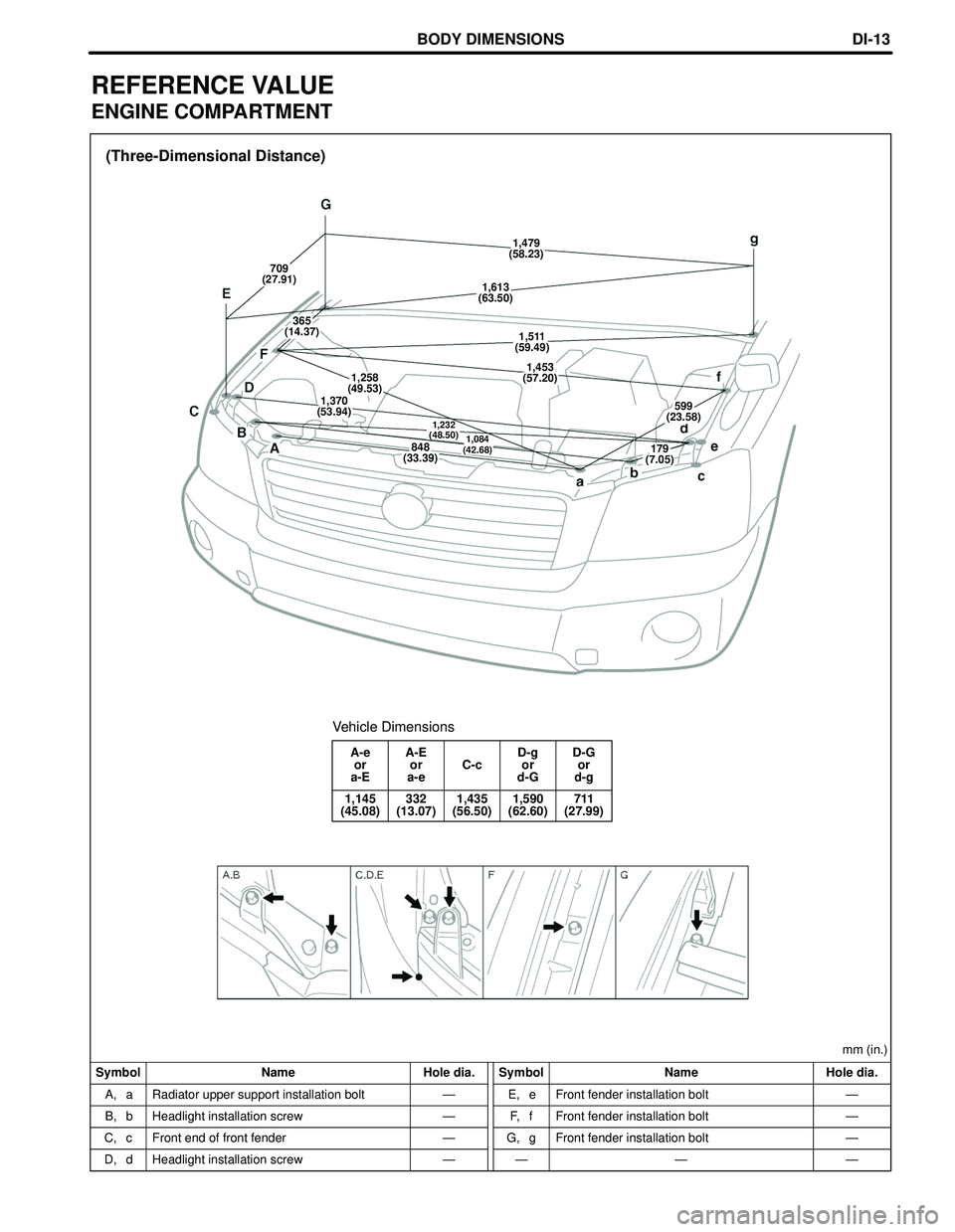

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY DIMENSIONS (Three-Dimensional Distance) Symbol Name Hole dia. Symbol Name Hole dia.mm (in.) A, a B, b C, c D, dRadiator upper support installation bolt Headlight installation screw Front end of f

Page 2428 of 2572

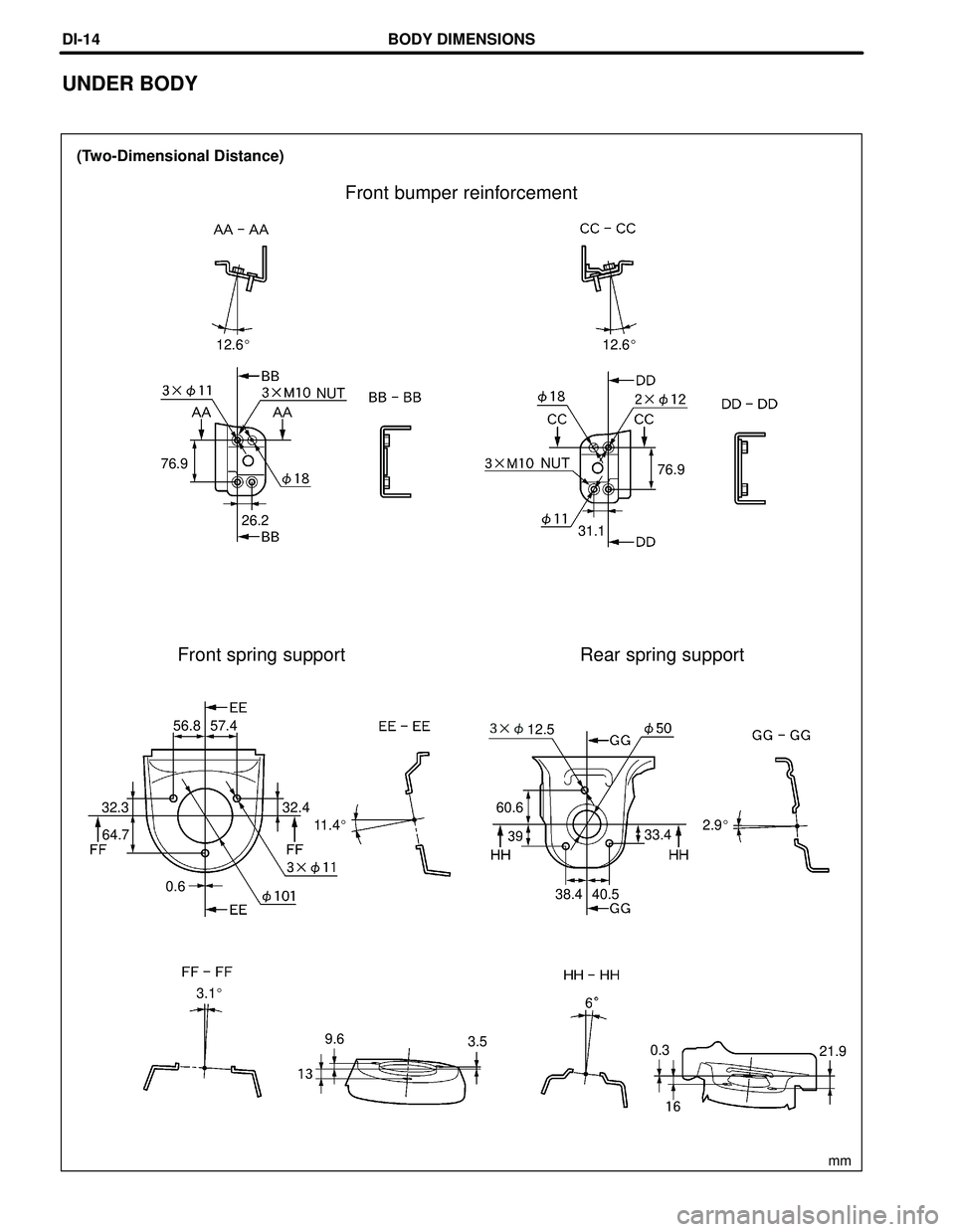

TOYOTA HIGHLANDER 2001 Service Repair Manual (Two-Dimensional Distance) Front bumper reinforcement Front spring support Rear spring support NUT NUT 26.2 76.9 76.9 31.1 12.6 57.4 56.812.6 32.3 64.7 0.632.412.5 60.6 38.4 40.533.42.9 11.4 9.6 3

Page 2429 of 2572

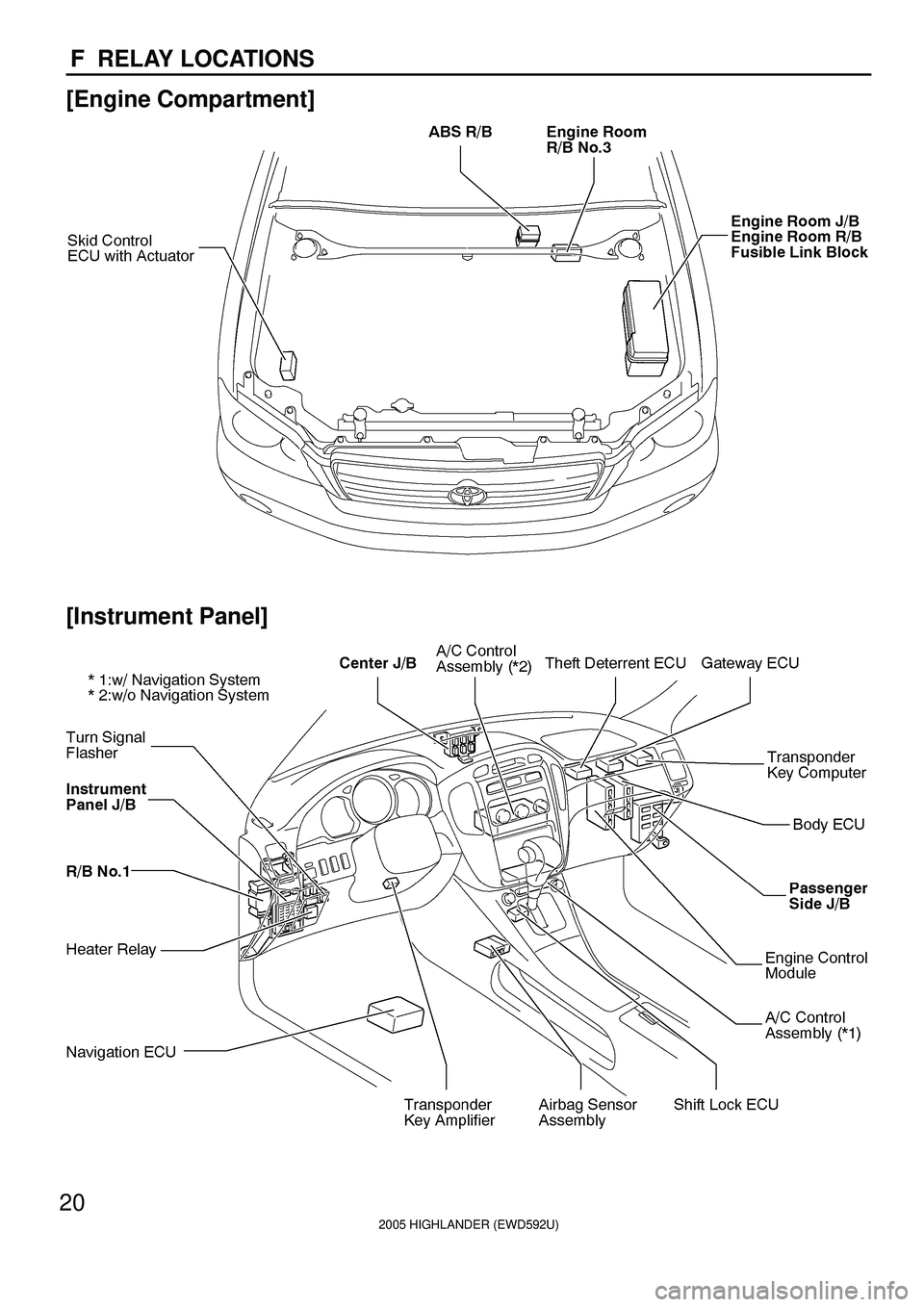

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 20 F RELAY LOCATIONS [Engine Compartment] [Instrument Panel]

Page 2430 of 2572

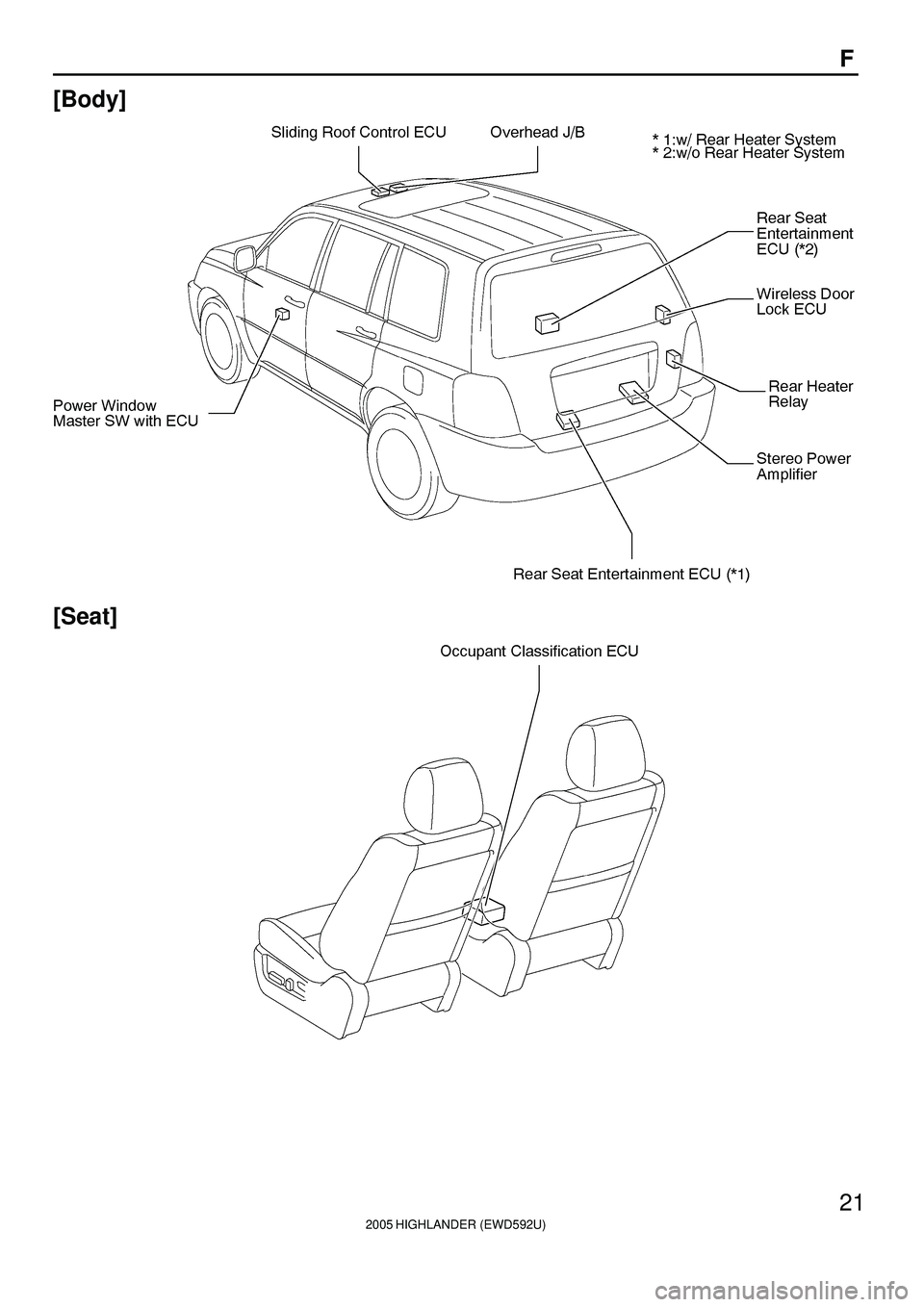

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 21 F [Body] [Seat]

Page 2431 of 2572

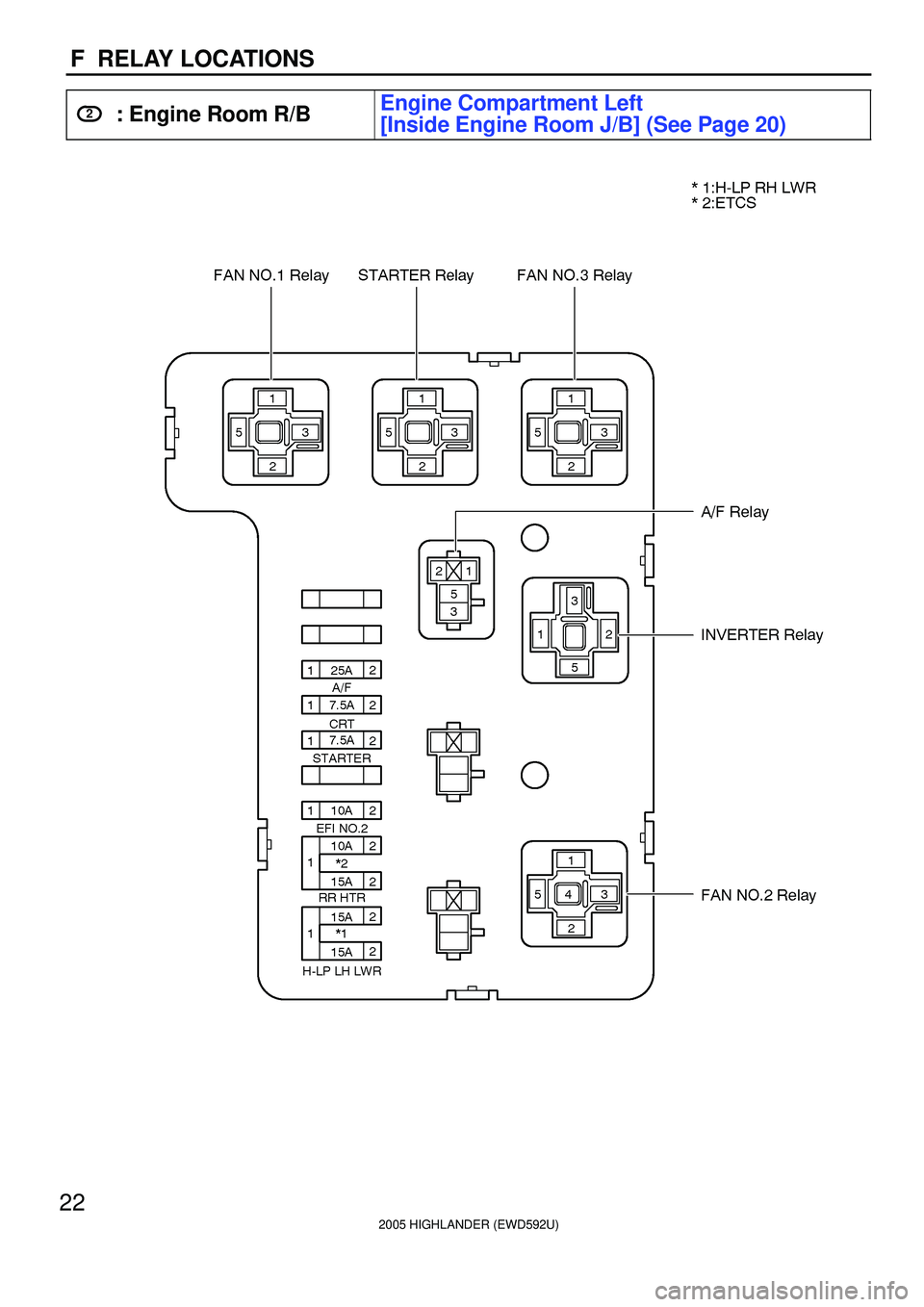

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 22 F RELAY LOCATIONS 2: Engine Room R/BEngine Compartment Left [Inside Engine Room J/B] (See Page 20)

Page 2432 of 2572

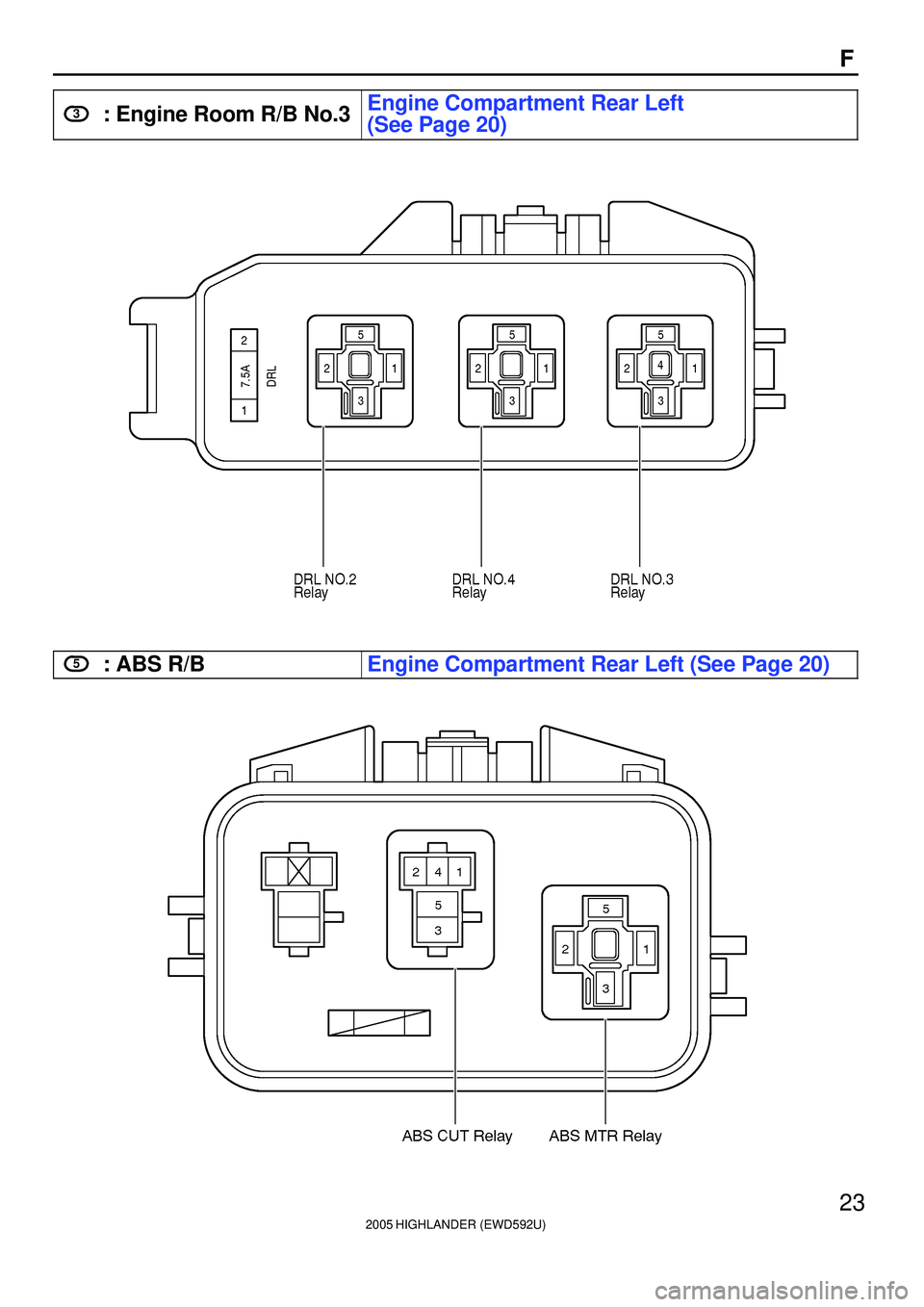

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 23 F 3: Engine Room R/B No.3Engine Compartment Rear Left (See Page 20) 5: ABS R/BEngine Compartment Rear Left (See Page 20)
