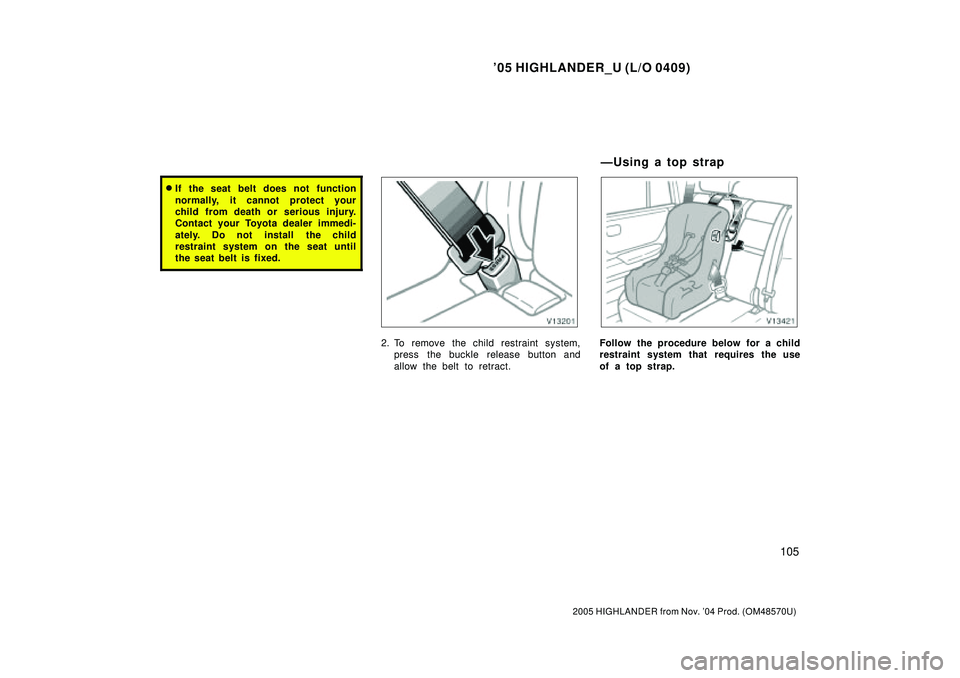

Page 225 of 2572
'05 HIGHLANDER_U (L/O 0409)
105
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. To remove the child restraint system,
press the buckle release button and
allow the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Ð U sin g a to p st rap

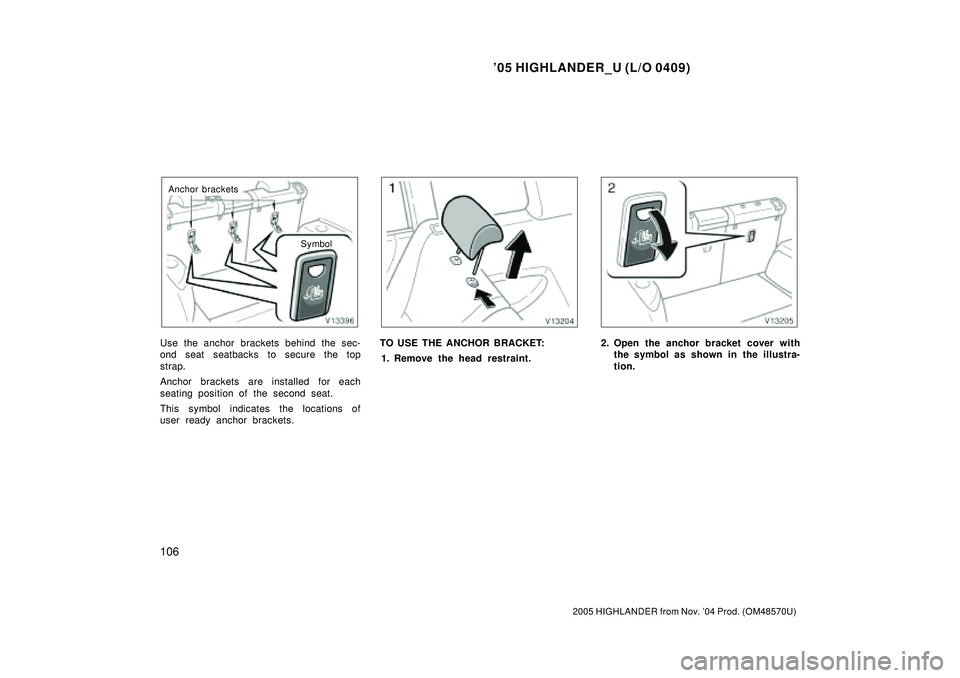

Page 226 of 2572
'05 HIGHLANDER_U (L/O 0409)
106
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Anchor brackets
Symbol
Use the anchor brackets behind the sec-
ond seat seatbacks to secure the top
strap.
Anchor brackets are installed for each
seating position of the second seat.
This symbol indicates the locations of
user ready anchor brackets.TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.2. Open the anchor bracket cover with
the symbol as shown in the illustra-
tion.
Page 227 of 2572

'05 HIGHLANDER_U (L/O 0409)
107
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
3. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see Child restraintº on
page 91 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint and lift it
up to the uppermost lock position.
Be sure to close the cover when the an-
chor bracket is not in use.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the second seat.
The anchorages are installed in the seat
cushion of both outside second seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
ÐInstallation with child
restraint lower anchorages

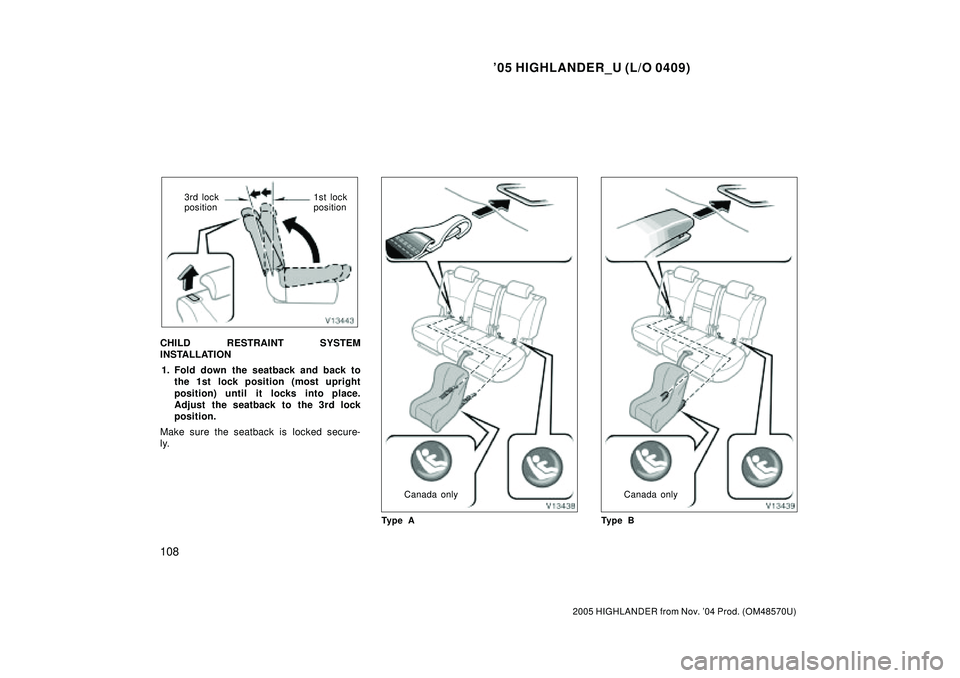

Page 228 of 2572
'05 HIGHLANDER_U (L/O 0409)
108
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
3rd lock
position1st lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and back to
the 1st lock position (most upright
position) until it locks into place.
Adjust the seatback to the 3rd lock
position.
Make sure the seatback is locked secure-
ly.
Canada only
Ty p e ACanada only
Ty p e B

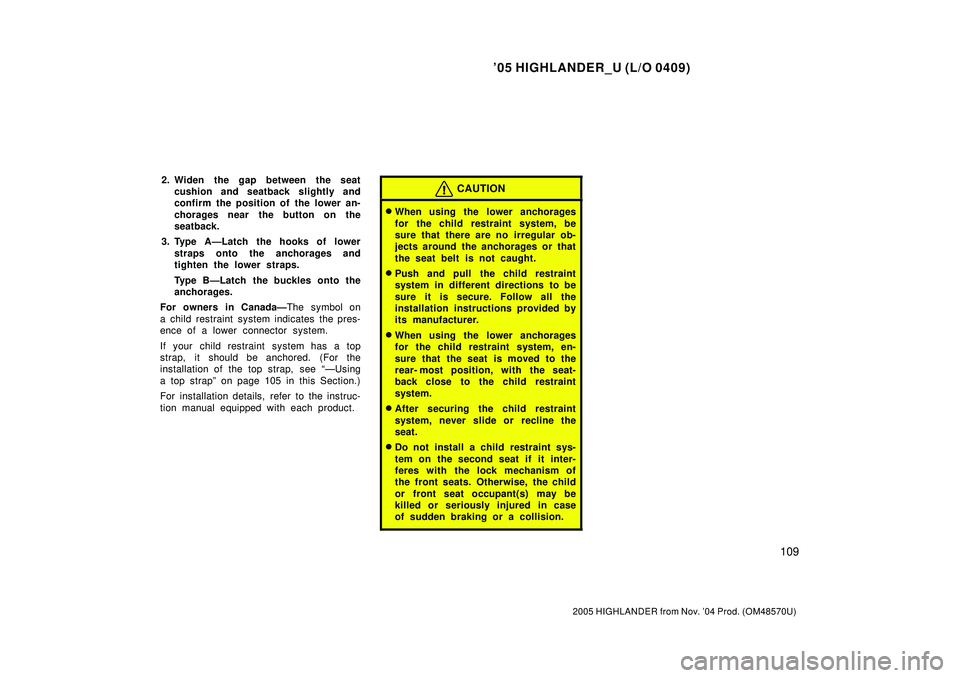

Page 229 of 2572

'05 HIGHLANDER_U (L/O 0409)
109
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
2. Widen the gap between the seat
cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
3. Type AÐLatch the hooks of lower
straps onto the anchorages and
tighten the lower straps.
Type BÐLatch the buckles onto the
anchorages.
For owners in CanadaÐThe symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see ÐUsing
a top strapº on page 105 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, en-
sure that the seat is moved to the
rear- most position, with the seat-
back close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.

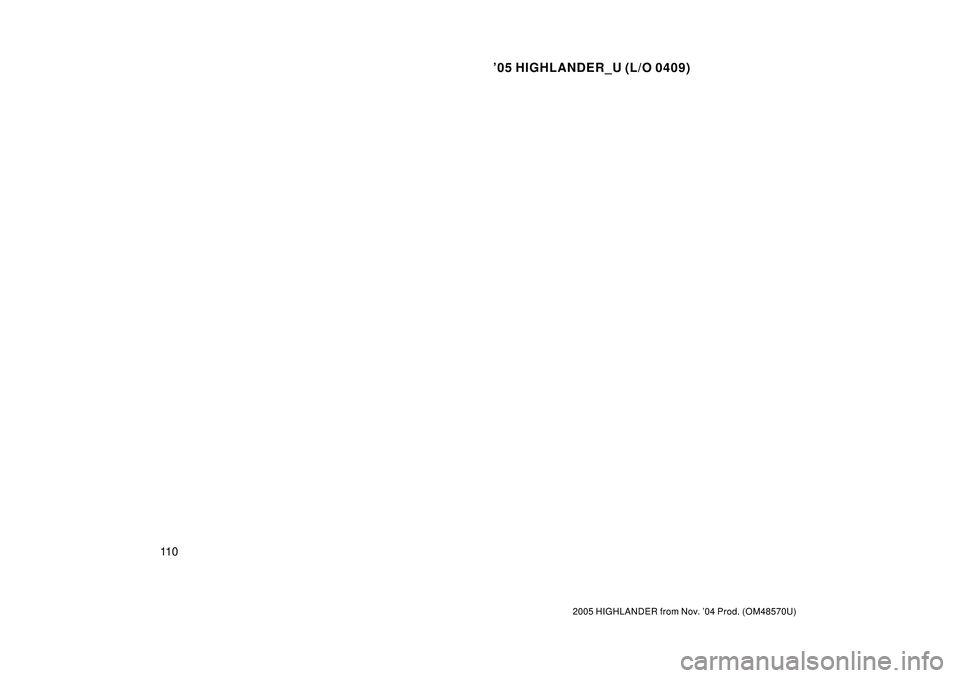

Page 230 of 2572
'05 HIGHLANDER_U (L/O 0409)
11 0
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

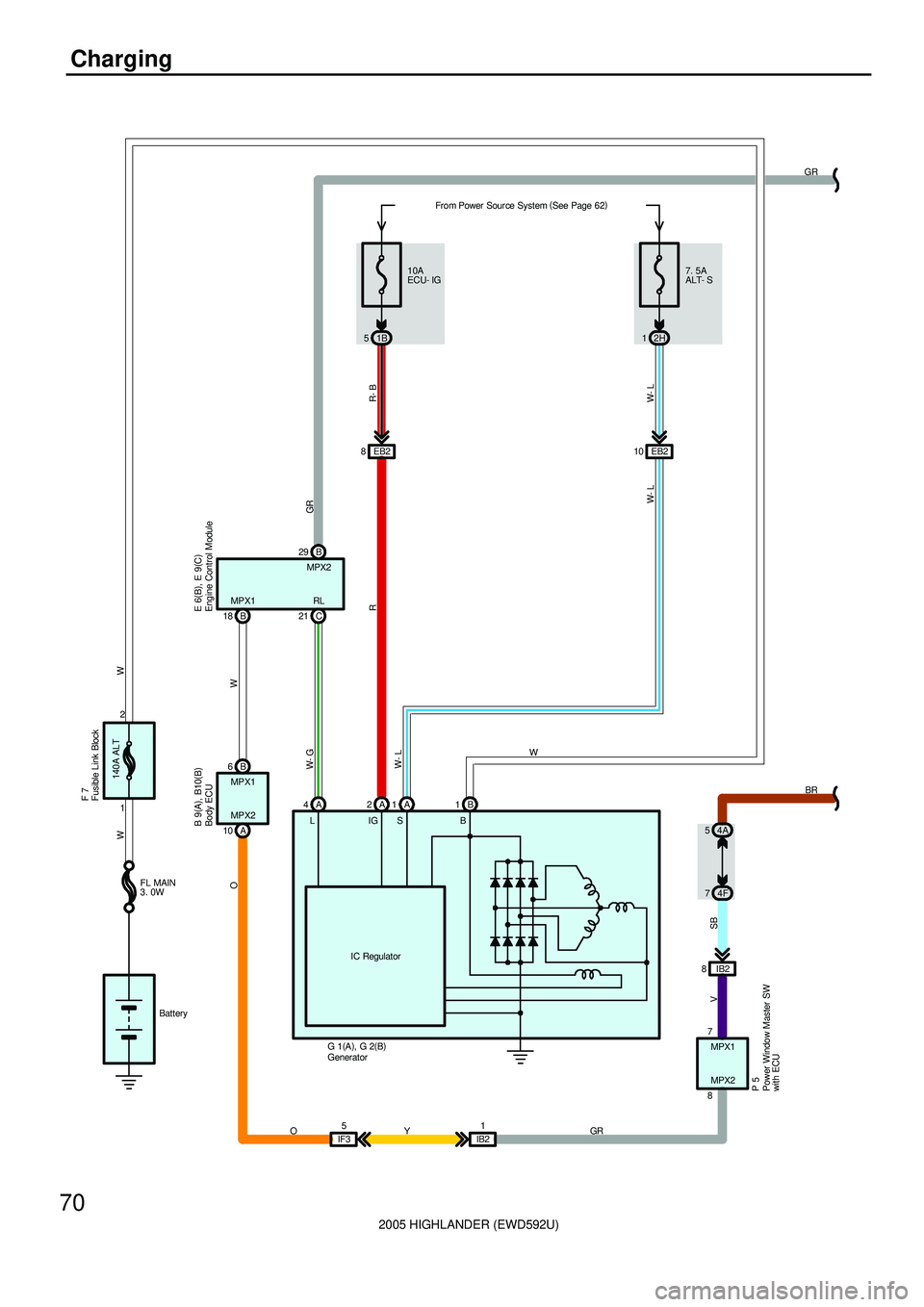

Page 231 of 2572
2005 HIGHLANDER (EWD592U)
70
Charging
10A
ECU- IG
1B 57. 5A
ALT- S
2H 1
140A ALT
2
1
F 7
LIGS B
IC Regulator A 4A2A1B1 C 21
R- B
W- L
RLR
W- L W- L
W EB2 8 EB210
W
FL MAIN
3. 0W
W
Battery
W- G
B 29
GR
MPX2GR
B 18MPX1
MPX1
A 10B 6
MPX2
IB21
IF35MPX1
8 7
MPX2
P 5
4A 5
4F 7
IB2 8
W O
VSB
OY GRBR From Power Sour ce System (
See Page 62)
B 9(
A)
, B10(
B)
G 1(
A)
, G 2(
B)
E 6(
B)
, E 9(
C)
Body ECU Engine Control ModuleFusible Link Block
Generator
Power Window Master SW
with ECU
Page 232 of 2572
2005 HIGHLANDER (EWD592U)
71
Charge
2 A 1
BR W- L LGPB
73C 43A
11K 10 1G5
A IC37. 5A
ECU- B
2A 4 13 1K 10A
HEATER
R
11 A
IB 3B 12
3K 2
BR
B 9
SB GR
IL2 1 GR
B 2B1
A 2A1
MPX2 22
MPX1 24
BR BR
A17MPX-
MPX+
MPD2
MPD1B 2A 9
BR
BR
RG 5
4 11V
(
*1)
G
(
*1)
G
(
*2)
A 213J 12
3E 1
G
G Y
7V
* 1 : w/ Navigation System
* 2 : w/o Navigation System
IL2 12From Power Source System (
See Page 62)
C11(
A)
, C12(
B)
A10(
A)
, A11(
B) S30(
A)
, S31(
B)
A/C Control Assembly
Airbag Sensor AssemblyCombination Meter
Gat ew ay ECU Short Connector
