Page 2345 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 47 G Position of Parts in Seat [w/o Power Seat] B 17 Buckle SW (Front Passengers Side) B 19 Buckle SW LH Seat Position Airbag Sensor LH O 6 Occupant Classification ECU O 7

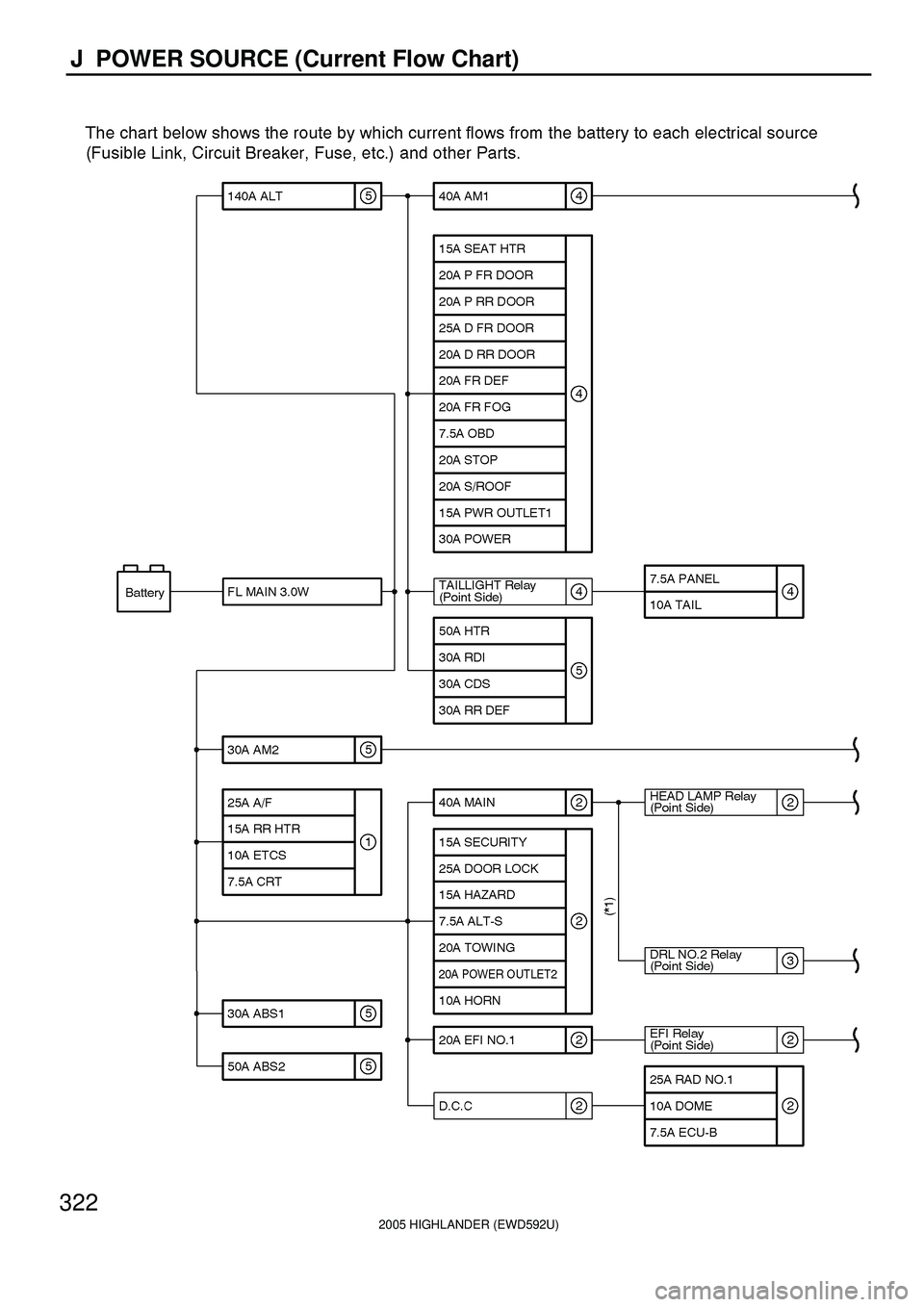

Page 2346 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 322 J POWER SOURCE (Current Flow Chart)

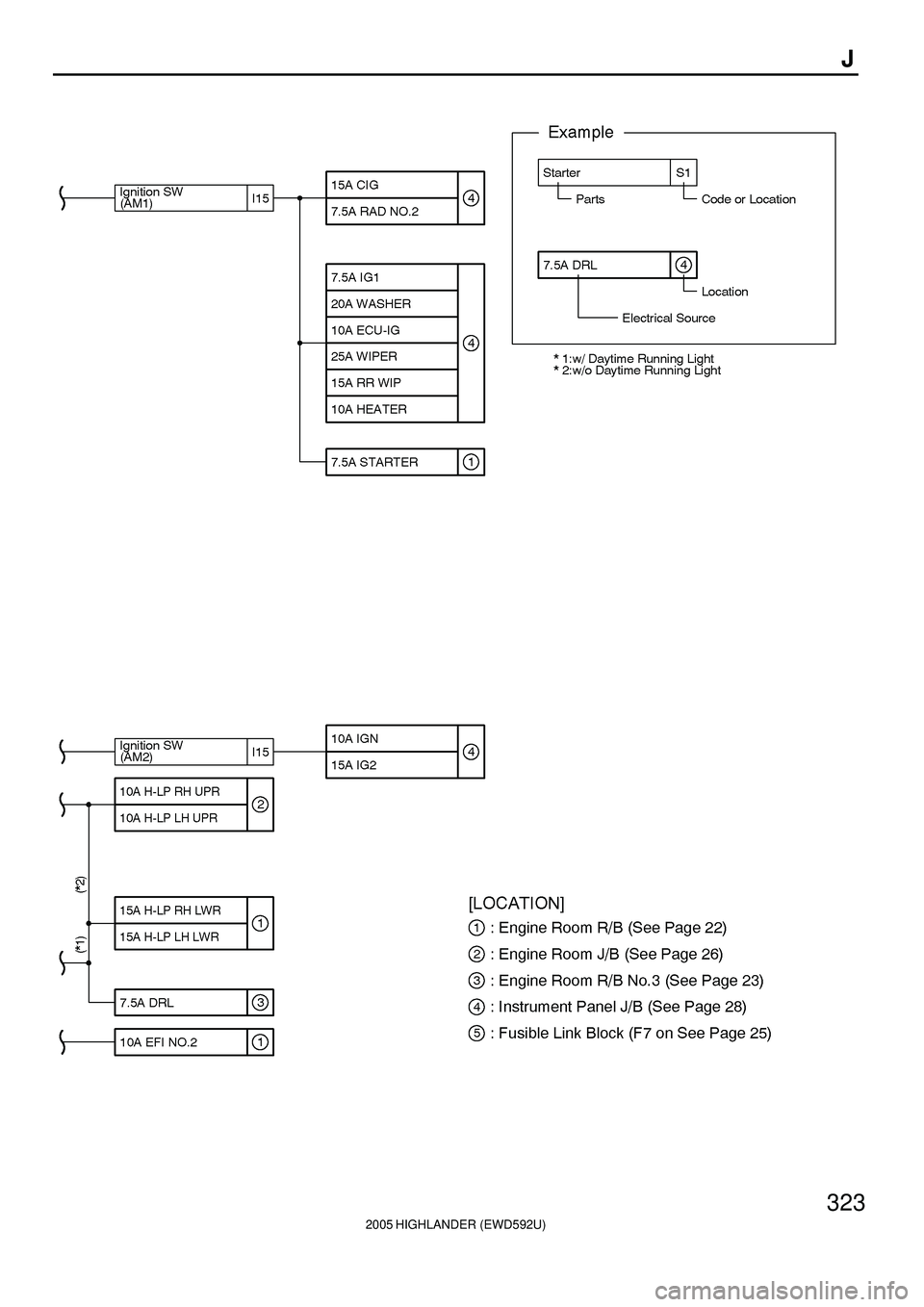

Page 2347 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 323 J

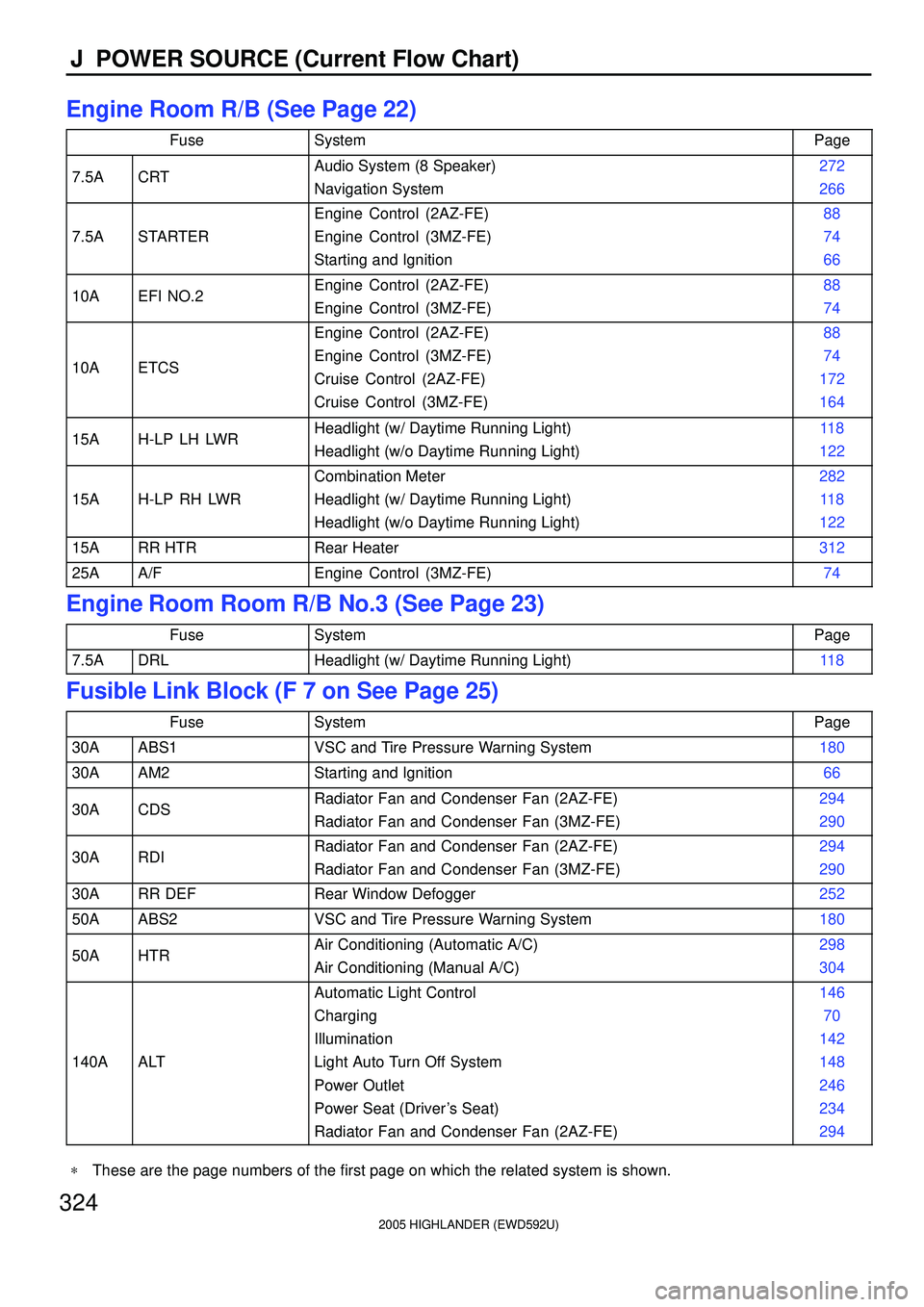

Page 2348 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 324 J POWER SOURCE (Current Flow Chart) Engine Room R/B (See Page 22) FuseSystemPage 7.5ACRTAudio System (8 Speaker) Navigation System272 266 7.5ASTARTER Engine Control (2AZ

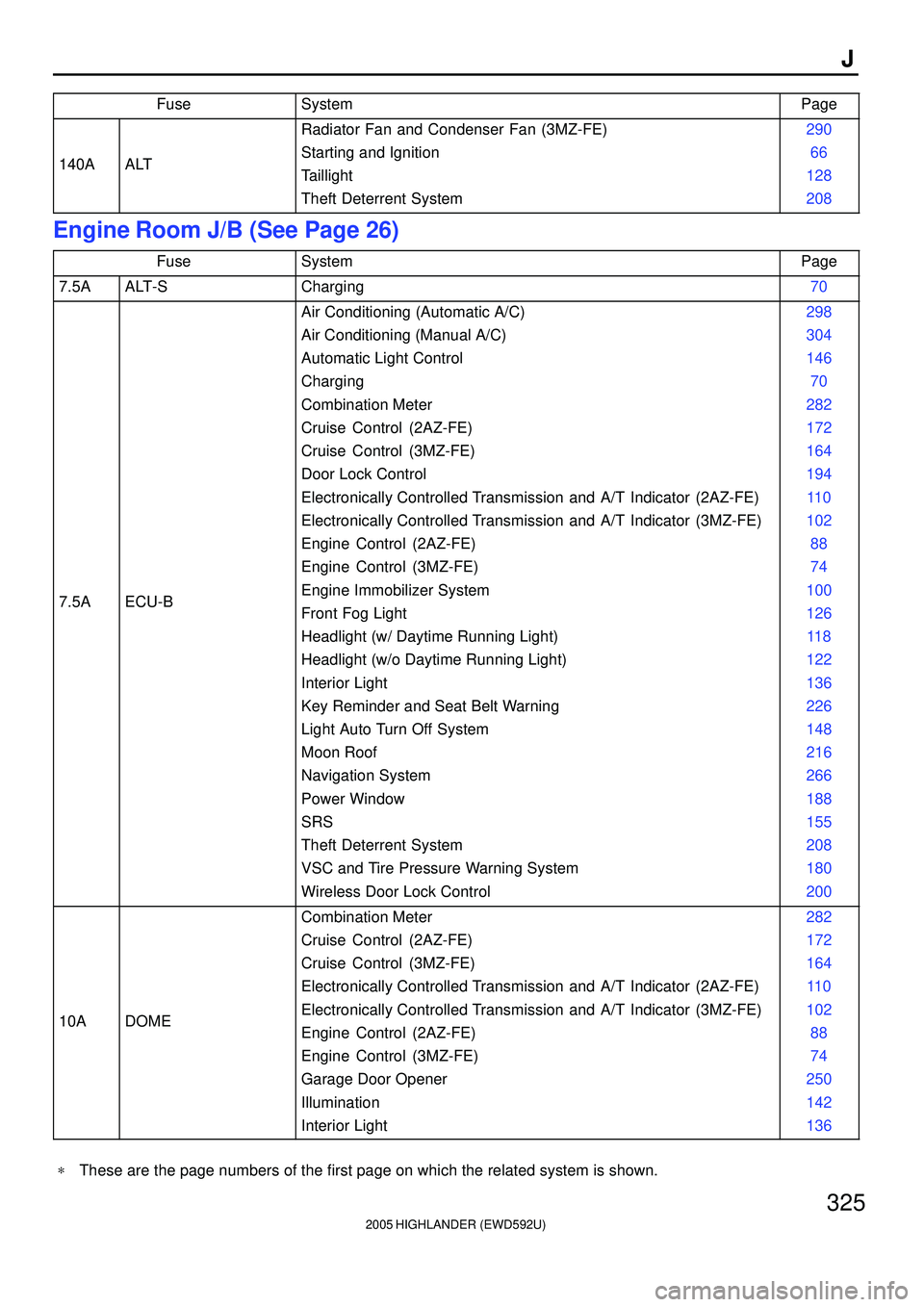

Page 2349 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 325 J FuseSystemPage 140AALT Radiator Fan and Condenser Fan (3MZ-FE) Starting and Ignition Taillight Theft Deterrent System290 66 128 208 Engine Room J/B (See Page 26) FuseSy

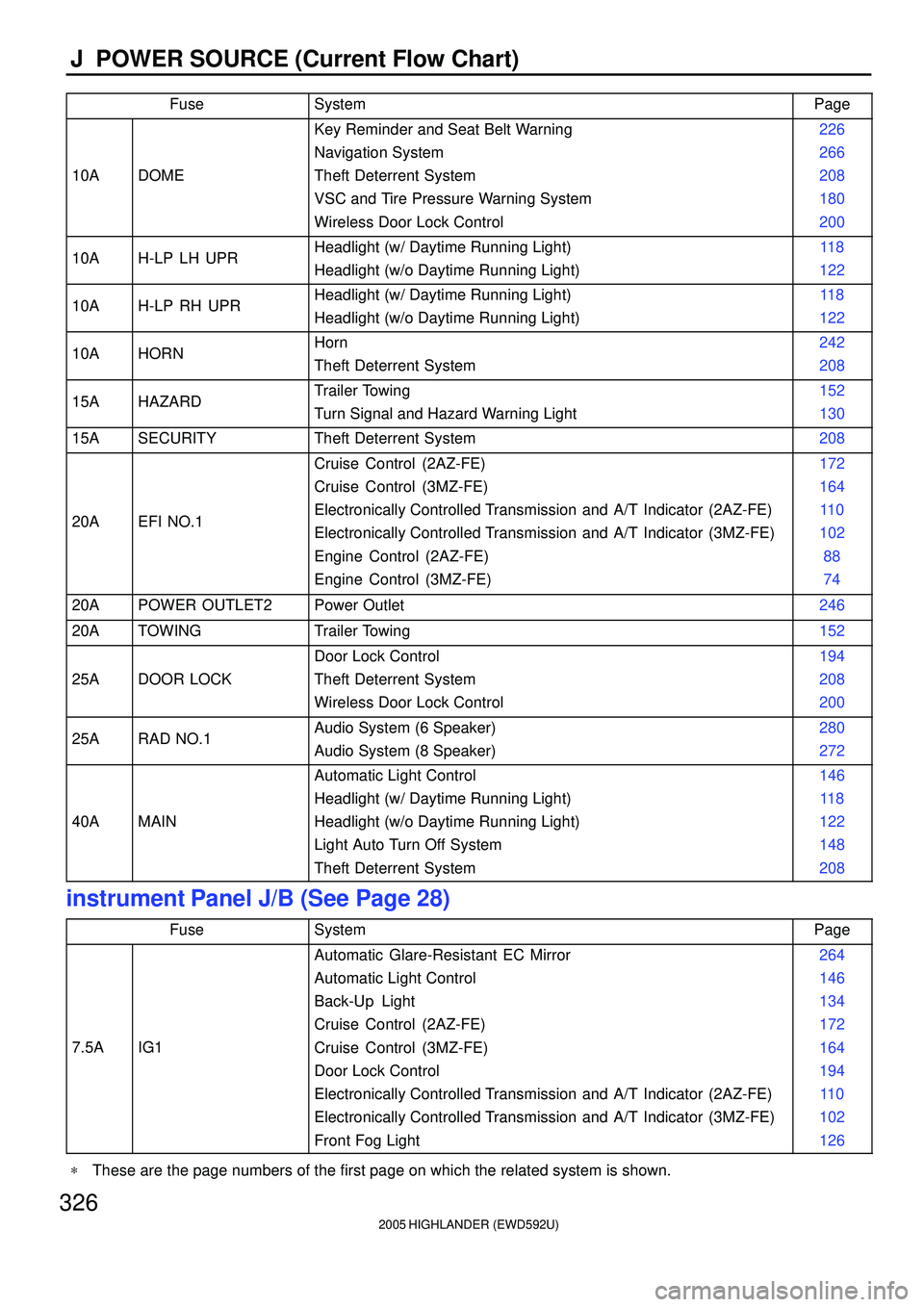

Page 2350 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 326 J POWER SOURCE (Current Flow Chart) FuseSystemPage 10ADOME Key Reminder and Seat Belt Warning Navigation System Theft Deterrent System VSC and Tire Pressure Warning Syst

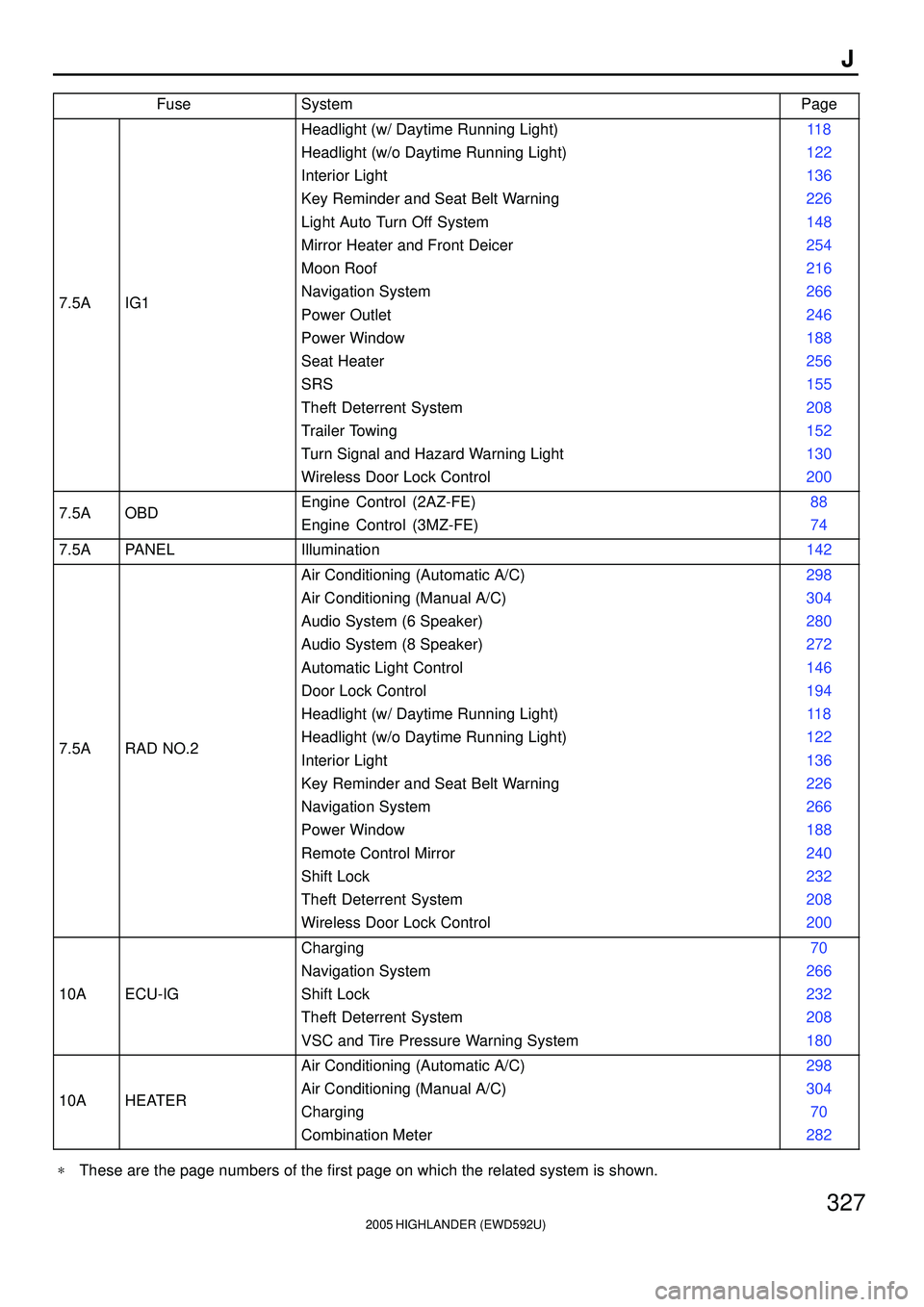

Page 2351 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 327 J FuseSystemPage 7.5AIG1 Headlight (w/ Daytime Running Light) Headlight (w/o Daytime Running Light) Interior Light Key Reminder and Seat Belt Warning Light Auto Turn Off

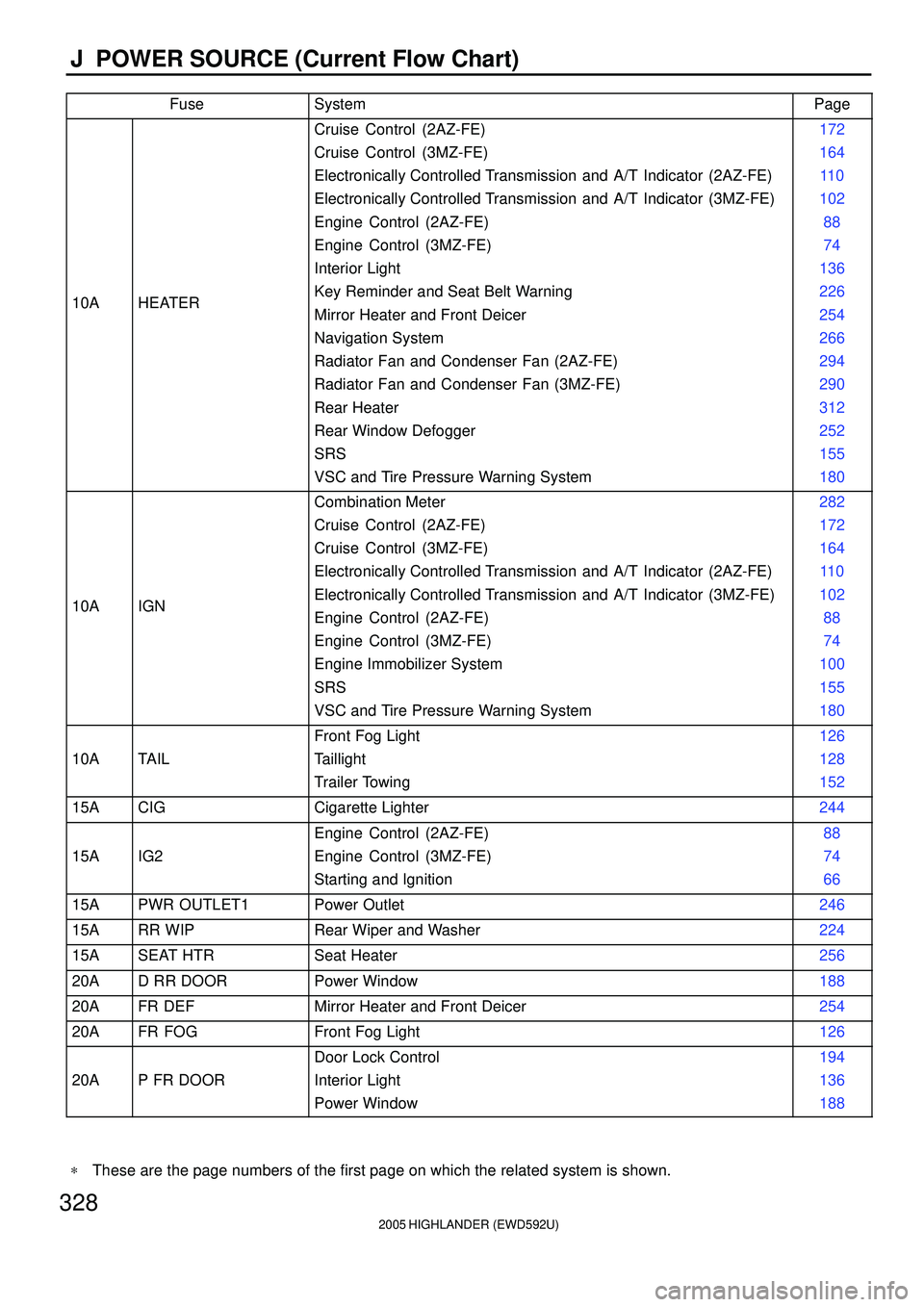

Page 2352 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U) 328 J POWER SOURCE (Current Flow Chart) FuseSystemPage 10AHEATER Cruise Control (2AZ-FE) Cruise Control (3MZ-FE) Electronically Controlled Transmission and A/T Indicator (2A
