Page 345 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
185
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

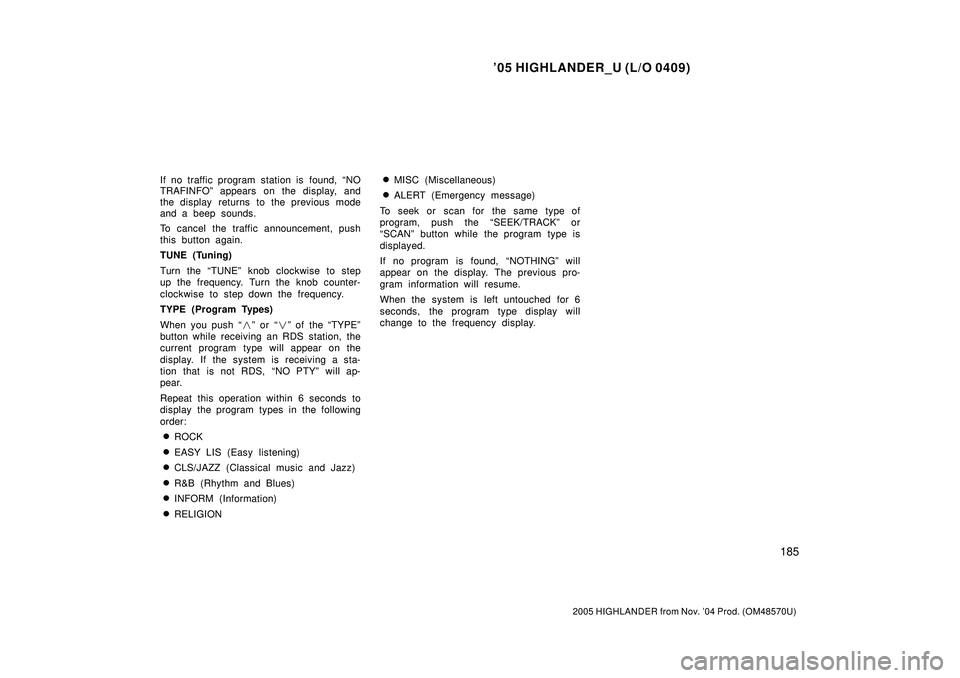

If no traffic program station is found, NO
TRAFINFOº appears on the display, and
the display returns to the previous m

Page 346 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
186
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

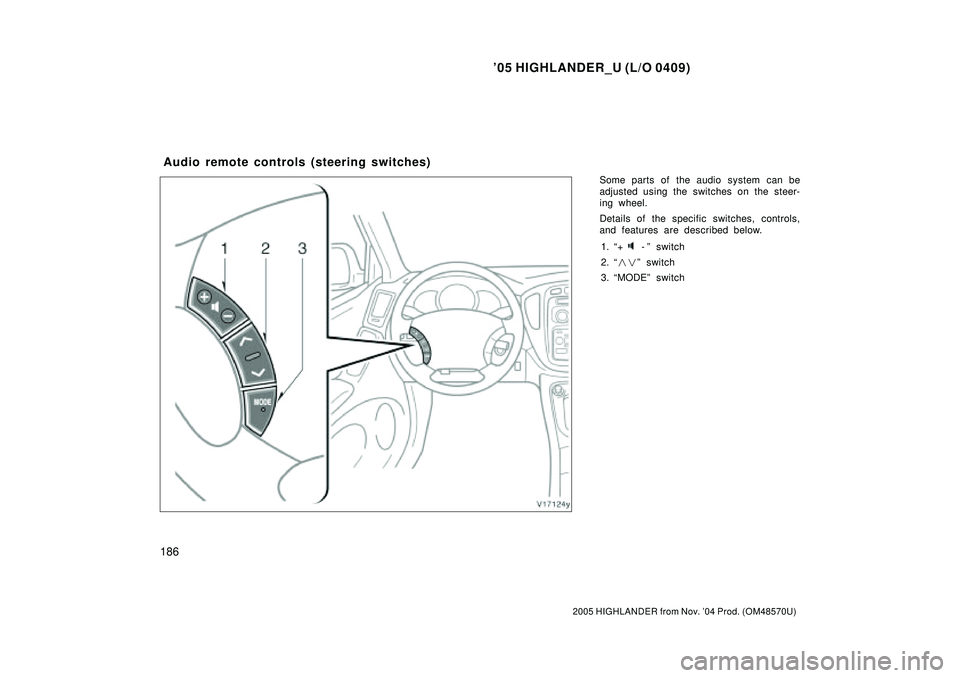

Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switch

Page 347 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
187
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

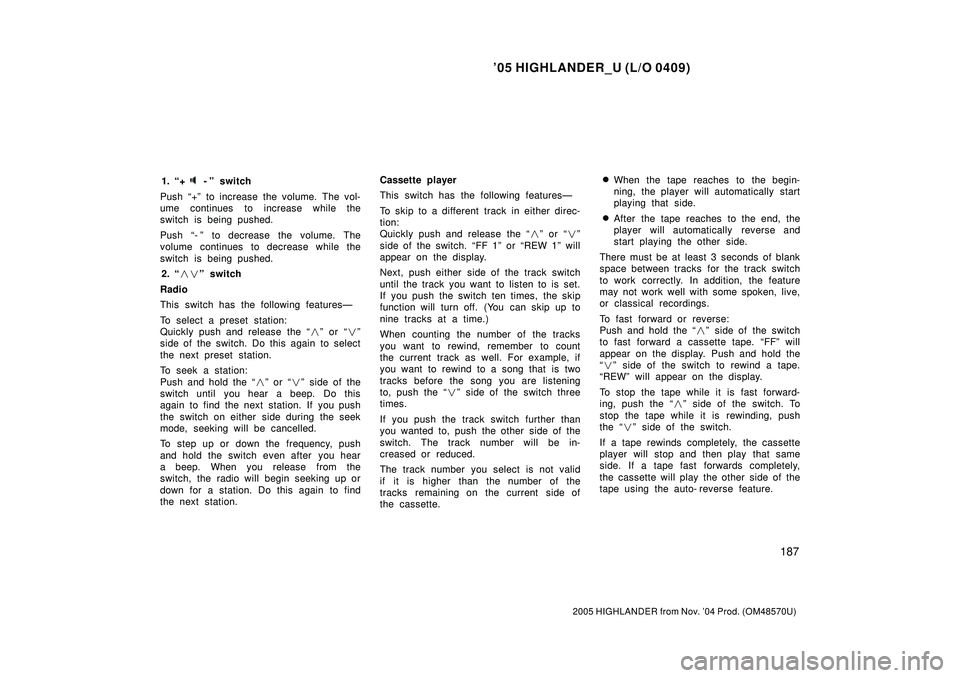

1. +-º switch
Push +º to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Pu

'05 HIGHLANDER_U (L/O 0409)
187
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1. +-º switch
Push +º to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push - º to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. º switch
Radio
This switch has the following featuresÐ
To select a preset station:
Quickly push and release the º or º
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the º or º side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear
a beep. When you release from the
switch, the radio will begin seeking up or
down for a station. Do this again to find
the next station.Cassette player
This switch has the following featuresÐ
To skip to a different track in either direc-
tion:
Quickly push and release the º or º
side of the switch. FF 1º or REW 1º will
appear on the display.
Next, push either side of the track switch
until the track you want to listen to is set.
If you push the switch ten times, the skip
function will turn off. (You can skip up to
nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
tracks before the song you are listening
to, push the º side of the switch three
times.
If you push the track switch further than
you wanted to, push the other side of the
switch. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track switch
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
To fast forward or reverse:
Push and hold the º side of the switch
to fast forward a cassette tape. FFº will
appear on the display. Push and hold the
º side of the switch to rewind a tape.
REWº will appear on the display.
To stop the tape while it is fast forward-
ing, push the º side of the switch. To
stop the tape while it is rewinding, push
the º side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the auto- reverse feature.

Page 348 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
188
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

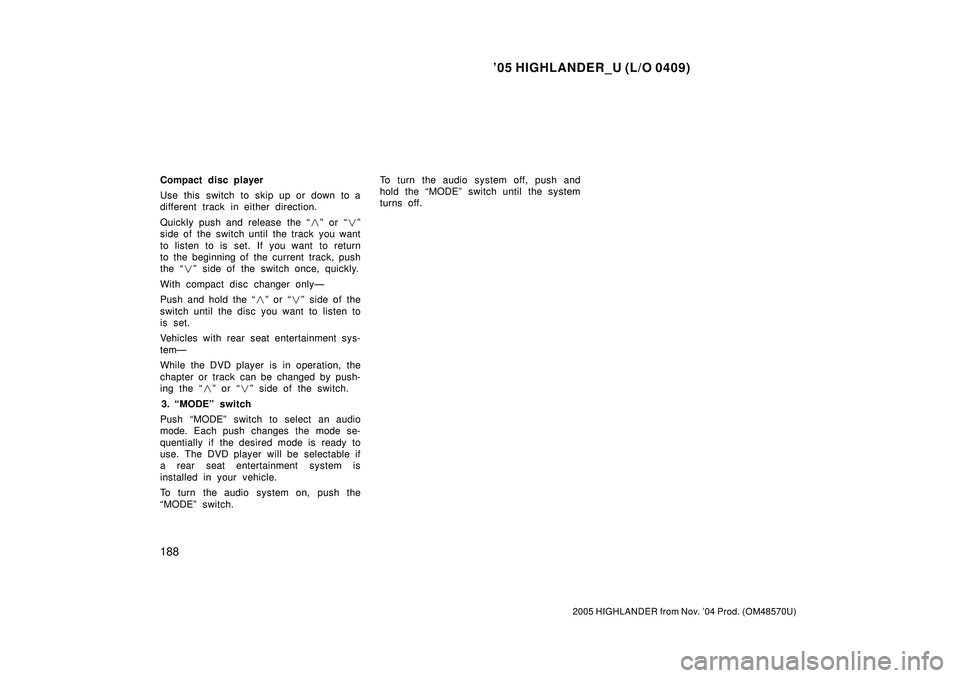

Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release

Page 349 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
189
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

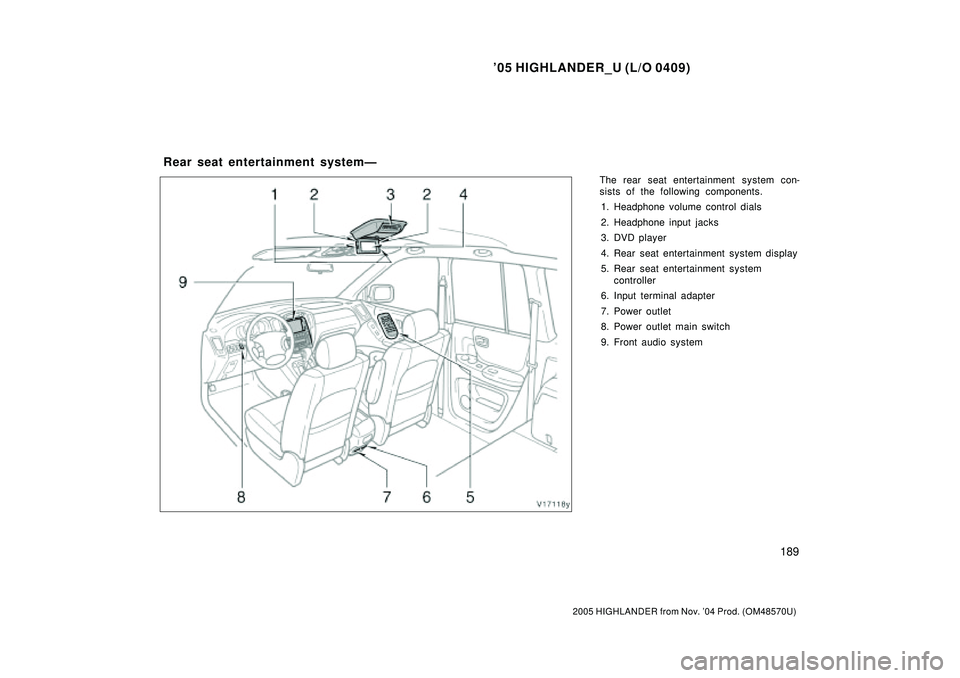

The rear seat entertainment system con-
sists of the following components.
1. Headphone volume control dials
2. Headphone

Page 350 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
190
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

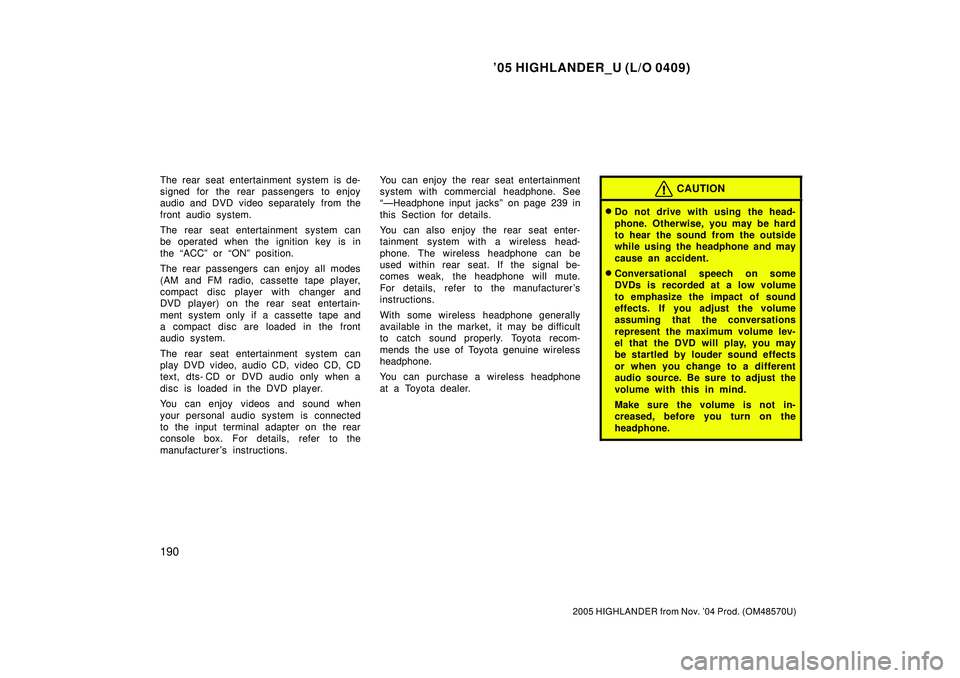

The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the

'05 HIGHLANDER_U (L/O 0409)
190
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the ignition key is in
the ACCº or ONº position.
The rear passengers can enjoy all modes
(AM and FM radio, cassette tape player,
compact disc player with changer and
DVD player) on the rear seat entertain-
ment system only if a cassette tape and
a compact disc are loaded in the front
audio system.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts- CD or DVD audio only when a
disc is loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the input terminal adapter on the rear
console box. For details, refer to the
manufacturer 's instructions.You can enjoy the rear seat entertainment
system with commercial headphone. See
ÐHeadphone input jacksº on page 239 in
this Section for details.
You can also enjoy the rear seat enter-
tainment system with a wireless head-
phone. The wireless headphone can be
used within rear seat. If the signal be-
comes weak, the headphone will mute.
For details, refer to the manufacturer 's
instructions.
With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone.
You can purchase a wireless headphone
at a Toyota dealer.CAUTION
Do not drive with using the head-
phone. Otherwise, you may be hard
to hear the sound from the outside
while using the headphone and may
cause an accident.
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

Page 351 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
191
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

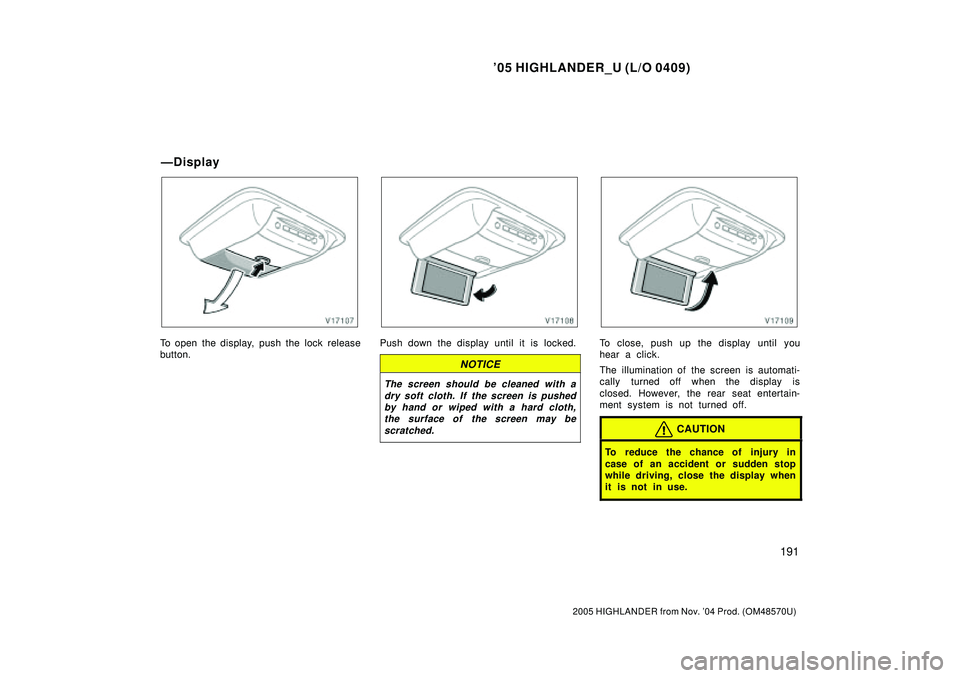

To open the display, push the lock release
button.Push down the display until it is locked.
NOTICE
The screen should be c

Page 352 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
192
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

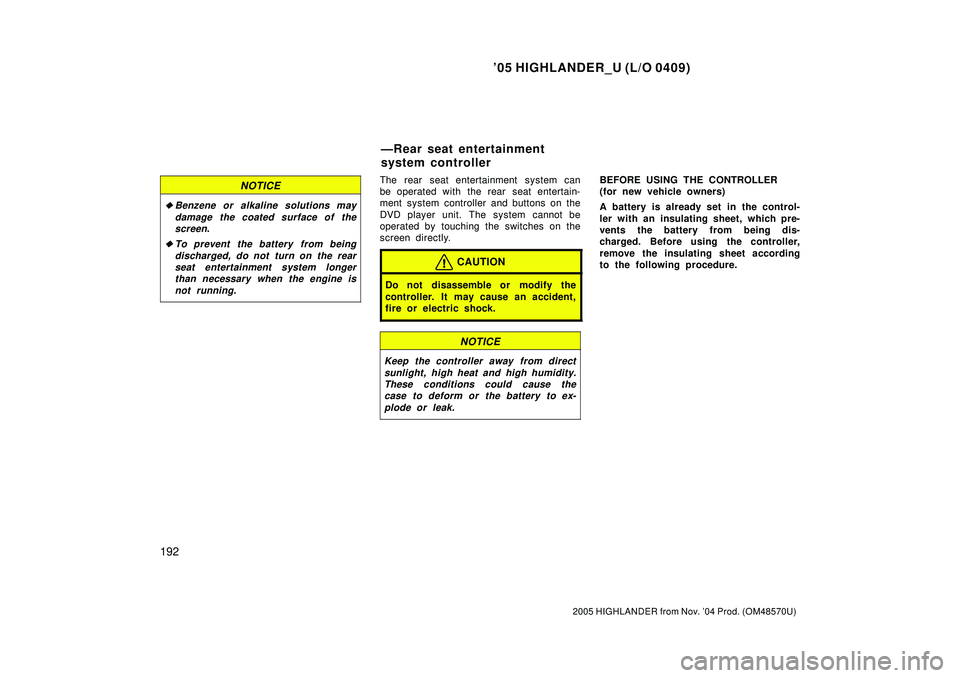

NOTICE
Benzene or alkaline solutions may
damage the coated surface of the
screen
.

To prevent the battery from being
