- DIAGNOSTICSPOWER WINDOW CONTROL SYSTEM
2112 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

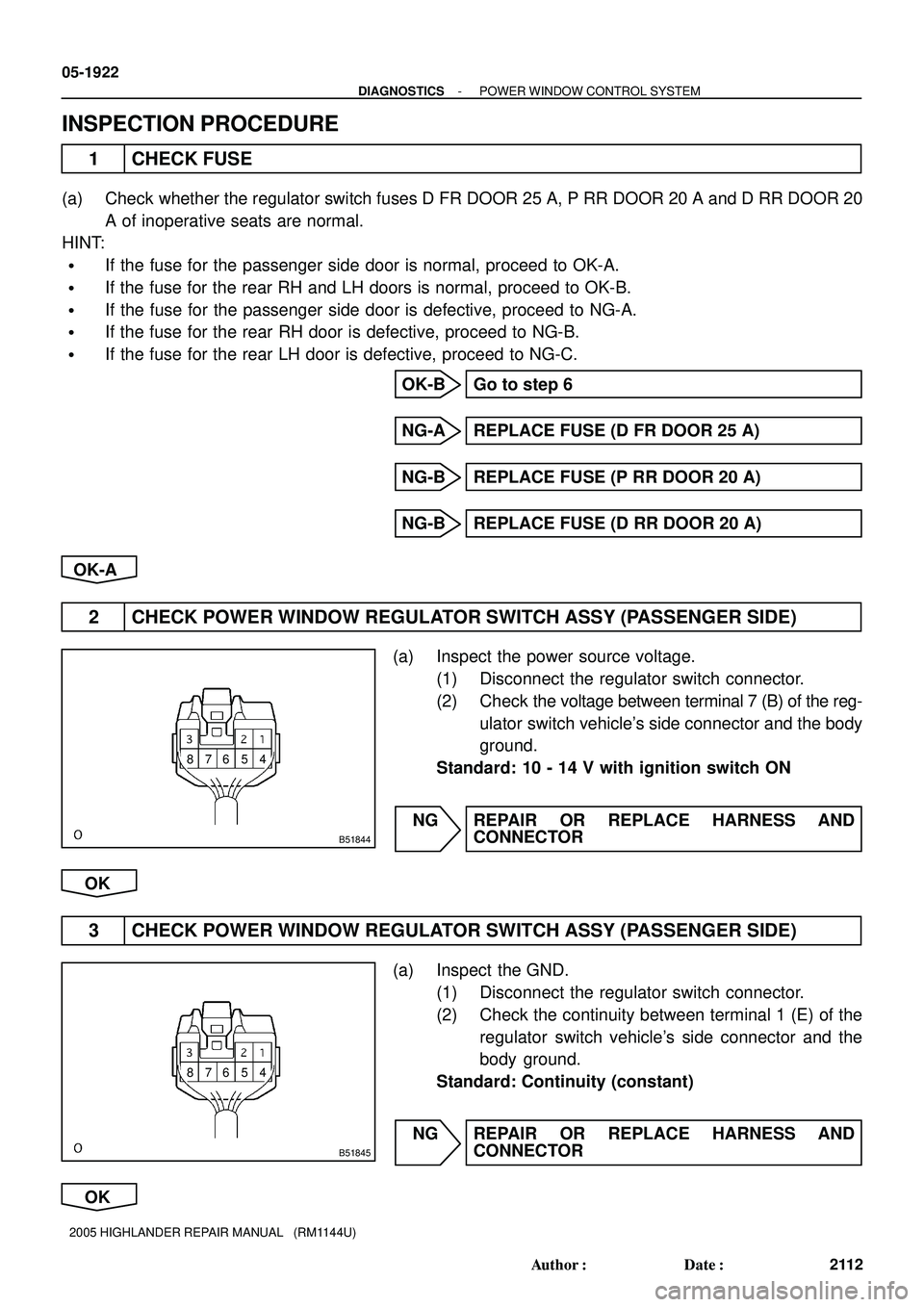

INSPECTION PROCEDURE
1 CHECK FUSE
(a) Check whether the regulator switch fuses D FR DOOR 25 A, P RR DOOR 20 A and D RR DOOR 20
A of inoperative seats are normal.
HINT:
If the fuse for the passenger side door is normal, proceed to OK-A.
If the fuse for the rear RH and LH doors is normal, proceed to OK-B.
If the fuse for the passenger side door is defective, proceed to NG-A.
If the fuse for the rear RH door is defective, proceed to NG-B.
If the fuse for the rear LH door is defective, proceed to NG-C.
OK-B Go to step 6
NG-A REPLACE FUSE (D FR DOOR 25 A)
NG-B REPLACE FUSE (P RR DOOR 20 A)
NG-B REPLACE FUSE (D RR DOOR 20 A)
OK-A
2 CHECK POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
(a) Inspect the power source voltage.
(1) Disconnect the regulator switch connector.
(2) Check the voltage between terminal 7 (B) of the reg-
ulator switch vehicle's side connector and the body
ground.
Standard: 10 - 14 V with ignition switch ON
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
3 CHECK POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
(a) Inspect the GND.
(1) Disconnect the regulator switch connector.
(2) Check the continuity between terminal 1 (E) of the
regulator switch vehicle's side connector and the
body ground.
Standard: Continuity (constant)
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
Page 1466 of 2572
4 5 6 7 8
B51846
- DIAGNOSTICSPOWER WINDOW CONTROL SYSTEM
05-1923
2113 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
4 CHECK POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)
(a) Inspect the motor operation.
(1) Disconnect the regulator switch connector.
(2) Inspect the door glass operation when the battery
voltage is applied between terminals 3 (U) and 6 (D)
of the regulator switch vehicle's side connector.
Standard:
Measuring ConditionOperational Direction
Battery positive - Terminal 3 (U)
Battery negative - Terminal 6 (D)Upward
Battery positive - Terminal 6 (D)
Battery negative - Terminal 3 (U)Downward
OK REPLACE POWER WINDOW REGULATOR
SWITCH ASSY
NG
Page 1467 of 2572

B51847
Driving Axis
ClockwiseCounterclock-
wise
4 5 6 7 8
B51844
05-1924
- DIAGNOSTICSPOWER WINDOW CONTROL SYSTEM
2114 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

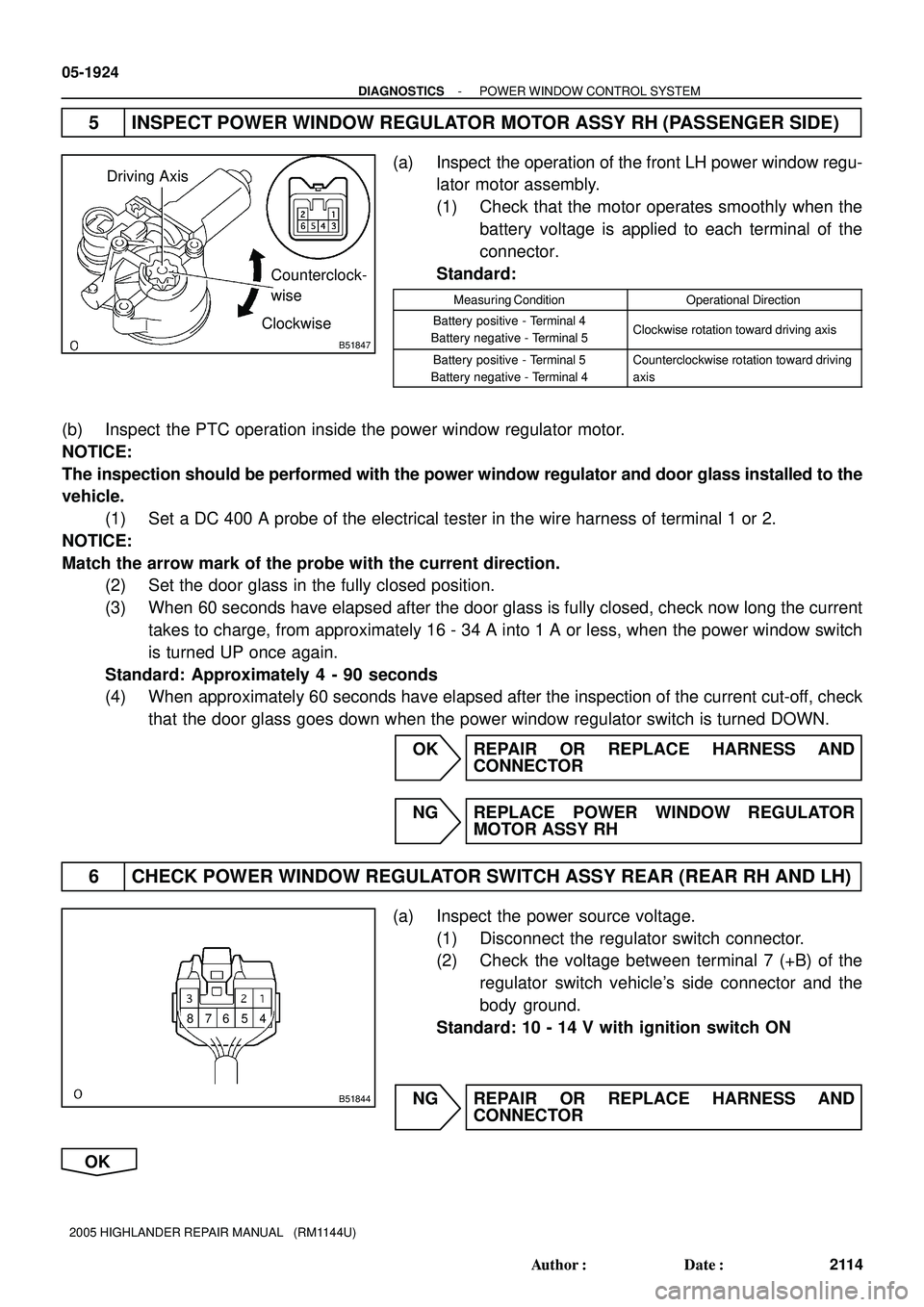

5 INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)
(a) Inspect the operation of the front LH power window regu-
lator motor assembly.
(1) Check that the motor operates smoothly when the
battery voltage is applied to each terminal of the
connector.
Standard:
Measuring ConditionOperational Direction
Battery positive - Terminal 4
Battery negative - Terminal 5Clockwise rotation toward driving axis
Battery positive - Terminal 5
Battery negative - Terminal 4Counterclockwise rotation toward driving
axis
(b) Inspect the PTC operation inside the power window regulator motor.
NOTICE:
The inspection should be performed with the power window regulator and door glass installed to the
vehicle.
(1) Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
NOTICE:
Match the arrow mark of the probe with the current direction.
(2) Set the door glass in the fully closed position.
(3) When 60 seconds have elapsed after the door glass is fully closed, check now long the current
takes to charge, from approximately 16 - 34 A into 1 A or less, when the power window switch
is turned UP once again.
Standard: Approximately 4 - 90 seconds
(4) When approximately 60 seconds have elapsed after the inspection of the current cut-off, check
that the door glass goes down when the power window regulator switch is turned DOWN.
OK REPAIR OR REPLACE HARNESS AND
CONNECTOR
NG REPLACE POWER WINDOW REGULATOR
MOTOR ASSY RH
6 CHECK POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH AND LH)
(a) Inspect the power source voltage.
(1) Disconnect the regulator switch connector.
(2) Check the voltage between terminal 7 (+B) of the
regulator switch vehicle's side connector and the
body ground.
Standard: 10 - 14 V with ignition switch ON
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
Page 1468 of 2572

4 5 6 7 8
B51845
4 5 6 7 8
B51846
- DIAGNOSTICSPOWER WINDOW CONTROL SYSTEM
05-1925
2115 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

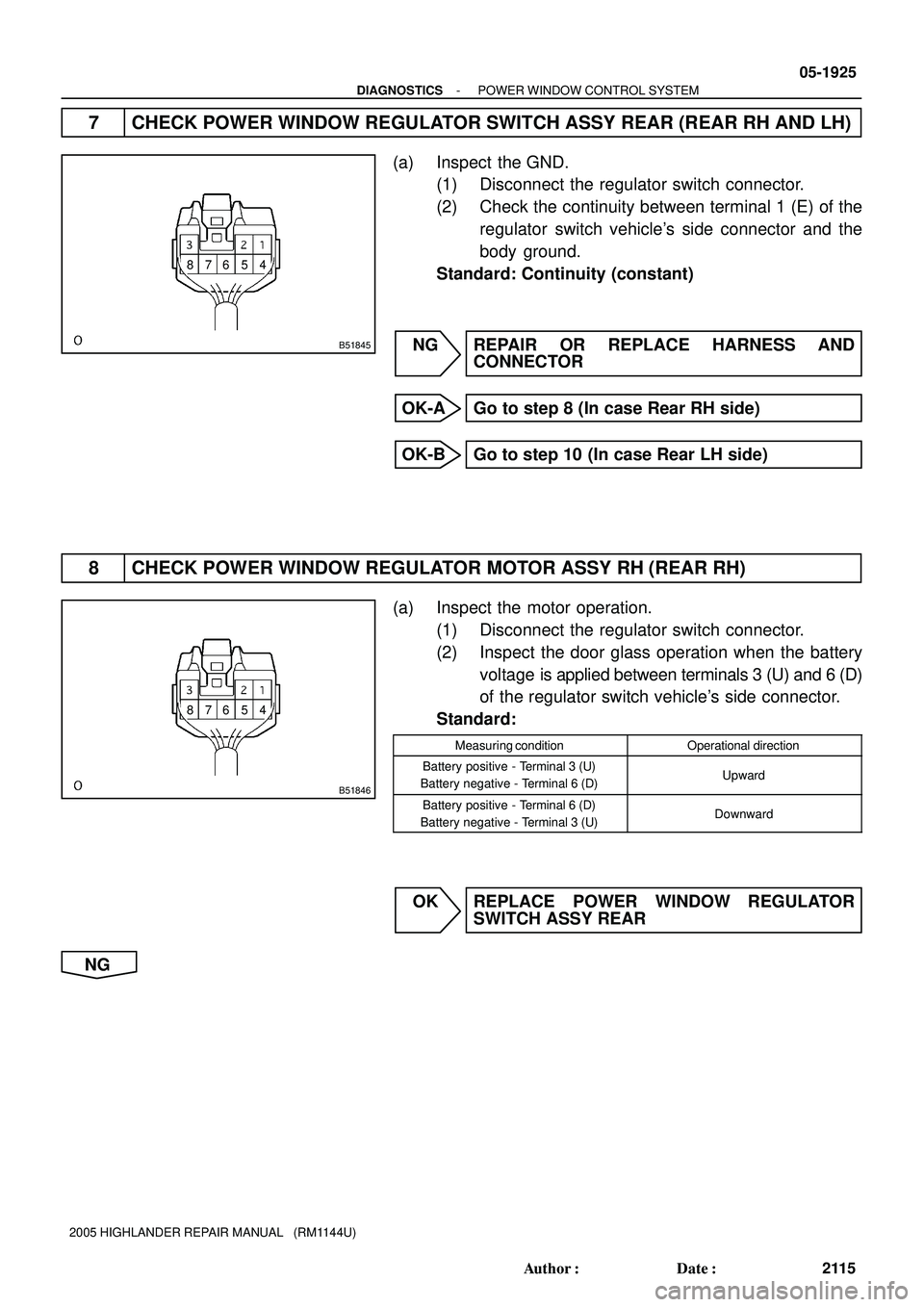

7 CHECK POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH AND LH)
(a) Inspect the GND.
(1) Disconnect the regulator switch connector.
(2) Check the continuity between terminal 1 (E) of the
regulator switch vehicle's side connector and the
body ground.
Standard: Continuity (constant)
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK-A Go to step 8 (In case Rear RH side)
OK-B Go to step 10 (In case Rear LH side)
8 CHECK POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)
(a) Inspect the motor operation.
(1) Disconnect the regulator switch connector.
(2) Inspect the door glass operation when the battery
voltage is applied between terminals 3 (U) and 6 (D)
of the regulator switch vehicle's side connector.
Standard:
Measuring conditionOperational direction
Battery positive - Terminal 3 (U)
Battery negative - Terminal 6 (D)Upward
Battery positive - Terminal 6 (D)
Battery negative - Terminal 3 (U)Downward
OK REPLACE POWER WINDOW REGULATOR
SWITCH ASSY REAR
NG
Page 1469 of 2572

B51848
Driving Axis
Clockwise
Counterclockwise
05-1926
- DIAGNOSTICSPOWER WINDOW CONTROL SYSTEM
2116 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

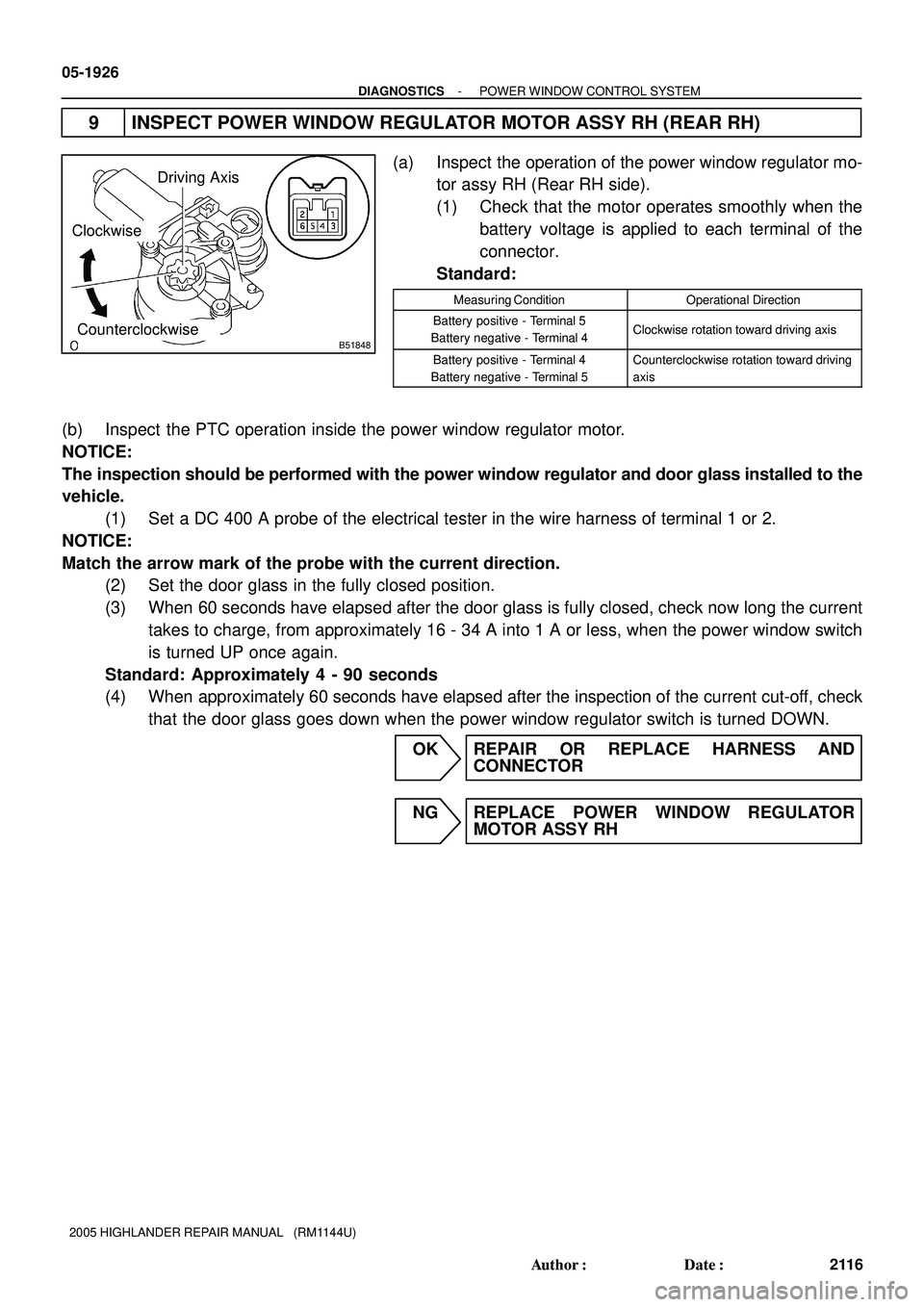

9 INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)
(a) Inspect the operation of the power window regulator mo-
tor assy RH (Rear RH side).
(1) Check that the motor operates smoothly when the
battery voltage is applied to each terminal of the
connector.
Standard:
Measuring ConditionOperational Direction
Battery positive - Terminal 5
Battery negative - Terminal 4Clockwise rotation toward driving axis
Battery positive - Terminal 4
Battery negative - Terminal 5Counterclockwise rotation toward driving
axis
(b) Inspect the PTC operation inside the power window regulator motor.
NOTICE:
The inspection should be performed with the power window regulator and door glass installed to the
vehicle.
(1) Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
NOTICE:
Match the arrow mark of the probe with the current direction.
(2) Set the door glass in the fully closed position.
(3) When 60 seconds have elapsed after the door glass is fully closed, check now long the current
takes to charge, from approximately 16 - 34 A into 1 A or less, when the power window switch
is turned UP once again.
Standard: Approximately 4 - 90 seconds
(4) When approximately 60 seconds have elapsed after the inspection of the current cut-off, check
that the door glass goes down when the power window regulator switch is turned DOWN.
OK REPAIR OR REPLACE HARNESS AND
CONNECTOR
NG REPLACE POWER WINDOW REGULATOR
MOTOR ASSY RH
Page 1470 of 2572
4 5 6 7 8
B51846
- DIAGNOSTICSPOWER WINDOW CONTROL SYSTEM
05-1927
2117 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

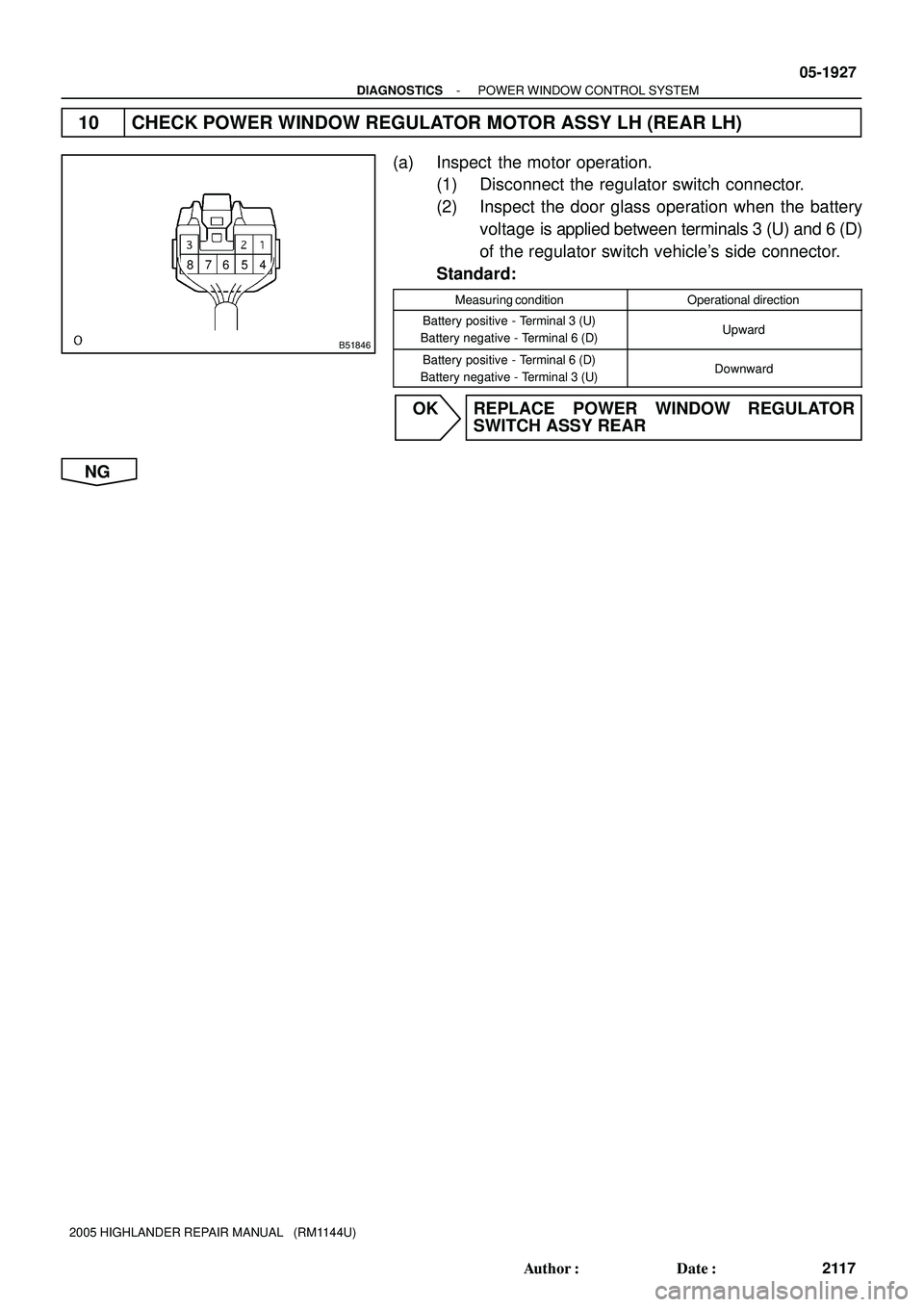

10 CHECK POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
(a) Inspect the motor operation.
(1) Disconnect the regulator switch connector.
(2) Inspect the door glass operation when the battery
voltage is applied between terminals 3 (U) and 6 (D)
of the regulator switch vehicle's side connector.
Standard:
Measuring conditionOperational direction
Battery positive - Terminal 3 (U)
Battery negative - Terminal 6 (D)Upward
Battery positive - Terminal 6 (D)
Battery negative - Terminal 3 (U)Downward
OK REPLACE POWER WINDOW REGULATOR
SWITCH ASSY REAR
NG
Page 1471 of 2572

B51849
Driving Axis
ClockwiseCounterclock-
wise
05-1928
- DIAGNOSTICSPOWER WINDOW CONTROL SYSTEM
2118 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

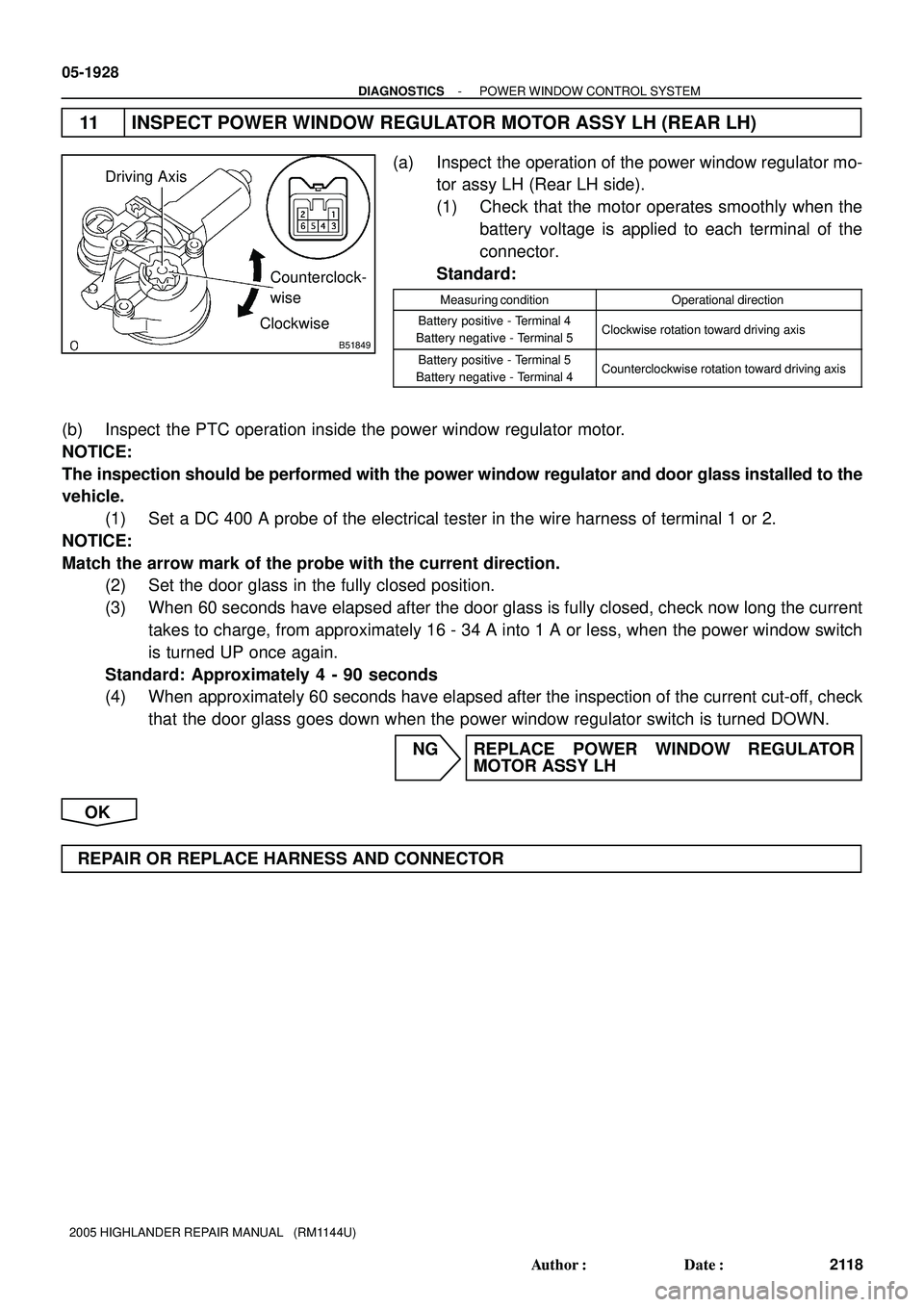

11 INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
(a) Inspect the operation of the power window regulator mo-
tor assy LH (Rear LH side).
(1) Check that the motor operates smoothly when the
battery voltage is applied to each terminal of the
connector.
Standard:
Measuring conditionOperational direction
Battery positive - Terminal 4
Battery negative - Terminal 5Clockwise rotation toward driving axis
Battery positive - Terminal 5
Battery negative - Terminal 4Counterclockwise rotation toward driving axis
(b) Inspect the PTC operation inside the power window regulator motor.
NOTICE:
The inspection should be performed with the power window regulator and door glass installed to the
vehicle.
(1) Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
NOTICE:
Match the arrow mark of the probe with the current direction.
(2) Set the door glass in the fully closed position.
(3) When 60 seconds have elapsed after the door glass is fully closed, check now long the current
takes to charge, from approximately 16 - 34 A into 1 A or less, when the power window switch
is turned UP once again.
Standard: Approximately 4 - 90 seconds
(4) When approximately 60 seconds have elapsed after the inspection of the current cut-off, check
that the door glass goes down when the power window regulator switch is turned DOWN.
NG REPLACE POWER WINDOW REGULATOR
MOTOR ASSY LH
OK
REPAIR OR REPLACE HARNESS AND CONNECTOR
Page 1472 of 2572
I38766
A/C Amplifier Assy
IG 3JA10 HEATER
AM14
B7
BR2
Battery FL MAINInstrument Panel J/B
Center J/B
3A 2
IG14
G
W7
613
1
1A 1C 1C1K
AM1
1 2
B
2
1
ALT
WF7
Fusible
Link
Block I15
Ignition SW
IB3FGND A1011
W-B 6
3J 13
W-B 05-1 170
- DIAGNOSTICSAIR CONDITIONING SYSTEM
1360 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

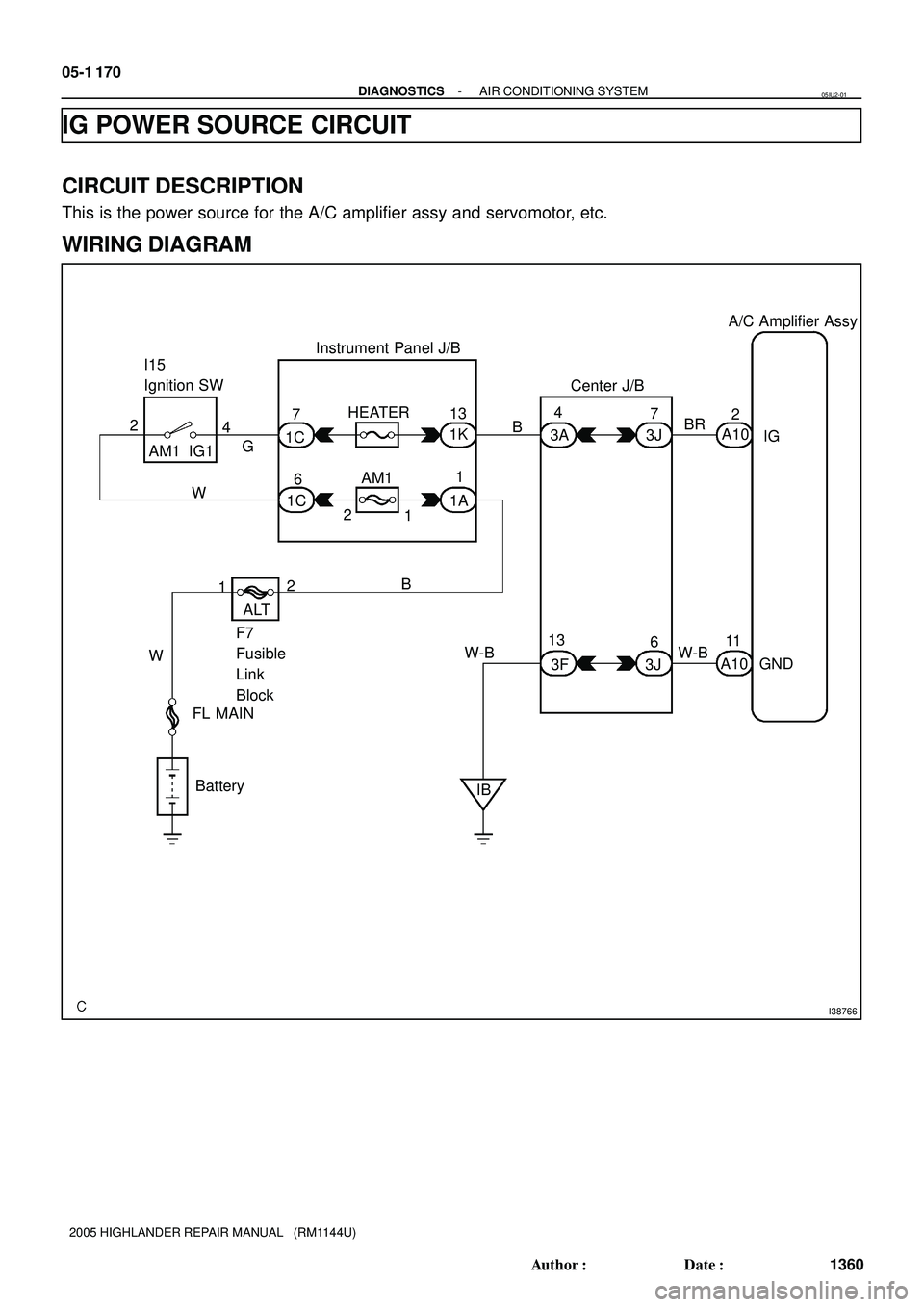

IG POWER SOURCE CIRCUIT
CIRCUIT DESCRIPTION
This is the power source for the A/C amplifier assy and servomotor, etc.
WIRING DIAGRAM
05IU2-01
