'05 HIGHLANDER_U (L/O 0409)
170
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Type 1: AM´FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)
Type 2: AM´FM radio/cassette player/com-
pact disc player with changer

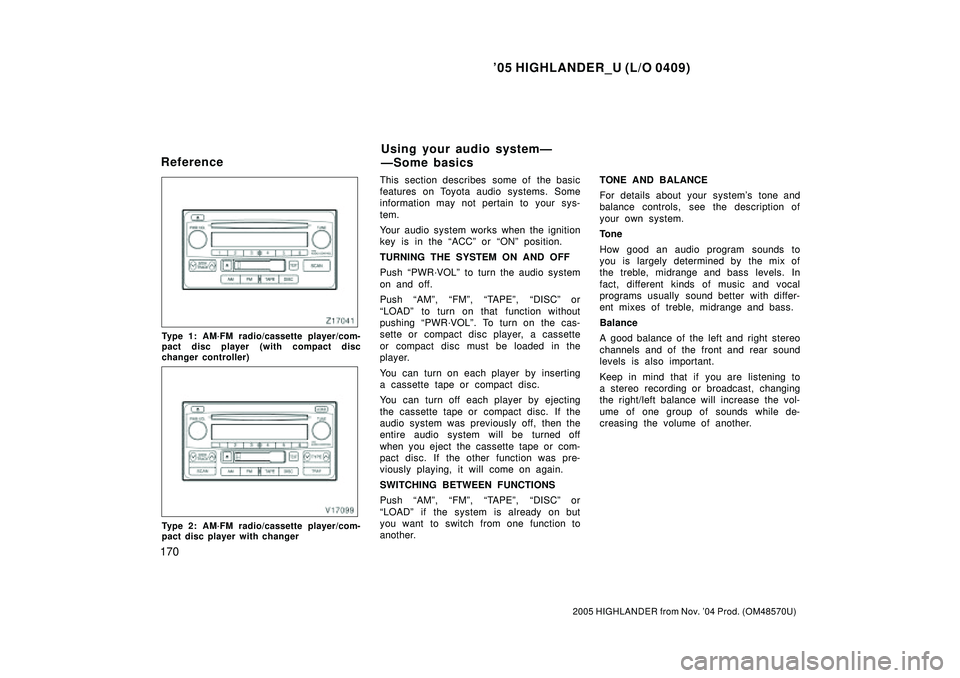

This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACCº or ONº position.
TURNING THE SYSTEM ON AND OFF
Push PWR´VOLº to turn the audio system
on and off.
Push AMº, FMº, TAPEº, DISCº or
LOADº to turn on that function without
pushing PWR´VOLº. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the other function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AMº, FMº, TAPEº, DISCº or
LOADº if the system is already on but
you want to switch from one function to
another.TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
ReferenceUsing your audio systemÐ
ÐSome basics

Page 331 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
171
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

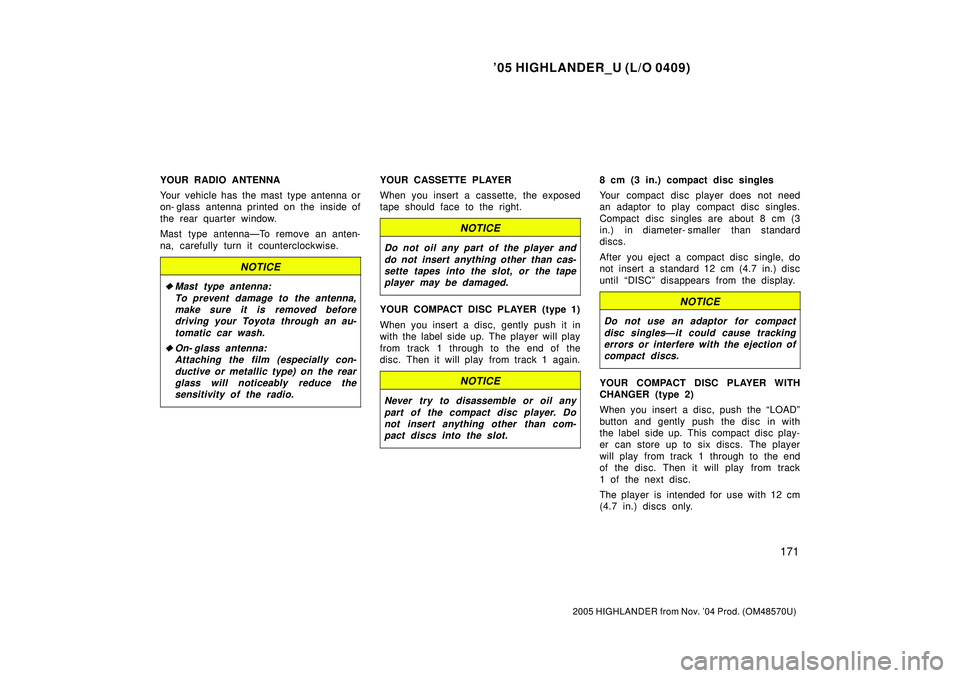

YOUR RADIO ANTENNA
Your vehicle has the mast type antenna or
on- glass antenna printed on the inside of
the rear quarter

'05 HIGHLANDER_U (L/O 0409)
171
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
YOUR RADIO ANTENNA
Your vehicle has the mast type antenna or
on- glass antenna printed on the inside of
the rear quarter window.
Mast type antennaÐTo remove an anten-
na, carefully turn it counterclockwise.
NOTICE
Mast type antenna:
To prevent damage to the antenna,
make sure it is removed before
driving your Toyota through an au-
tomatic car wash.
On- glass antenna:
Attaching the film (especially con-
ductive or metallic type) on the rear
glass will noticeably reduce the
sensitivity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter- smaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (4.7 in.) disc
until DISCº disappears from the display.
NOTICE
Do not use an adaptor for compact
disc singles
Ðit could cause tracking
errors or interfere with the ejection of
compact discs.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the LOADº
button and gently push the disc in with
the label side up. This compact disc play-
er can store up to six discs. The player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.

Page 332 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
172
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

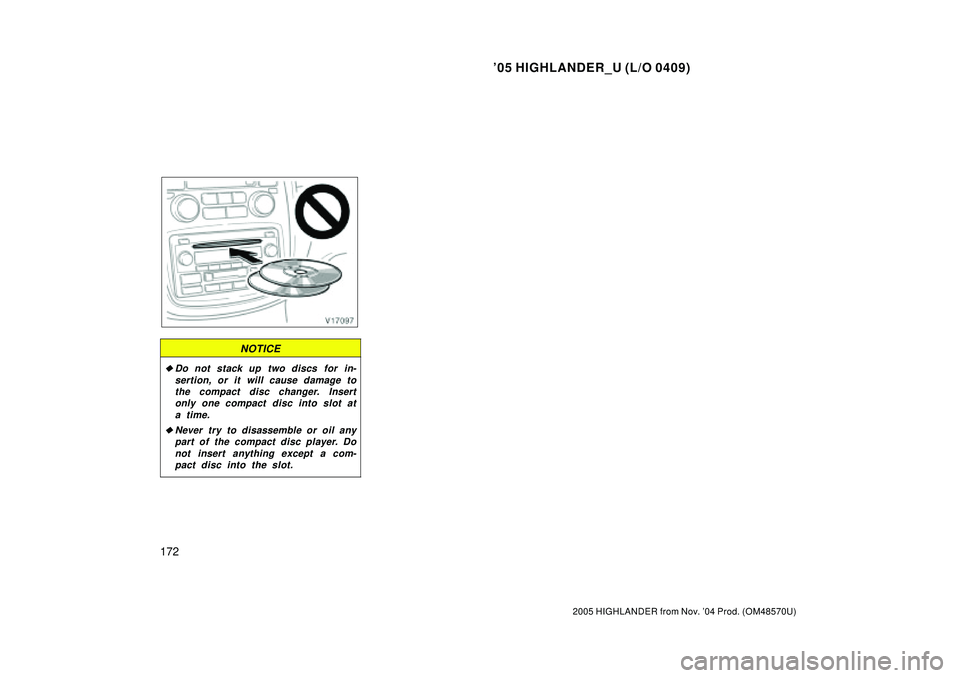

NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc changer. Insert
only one c

Page 333 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
173
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

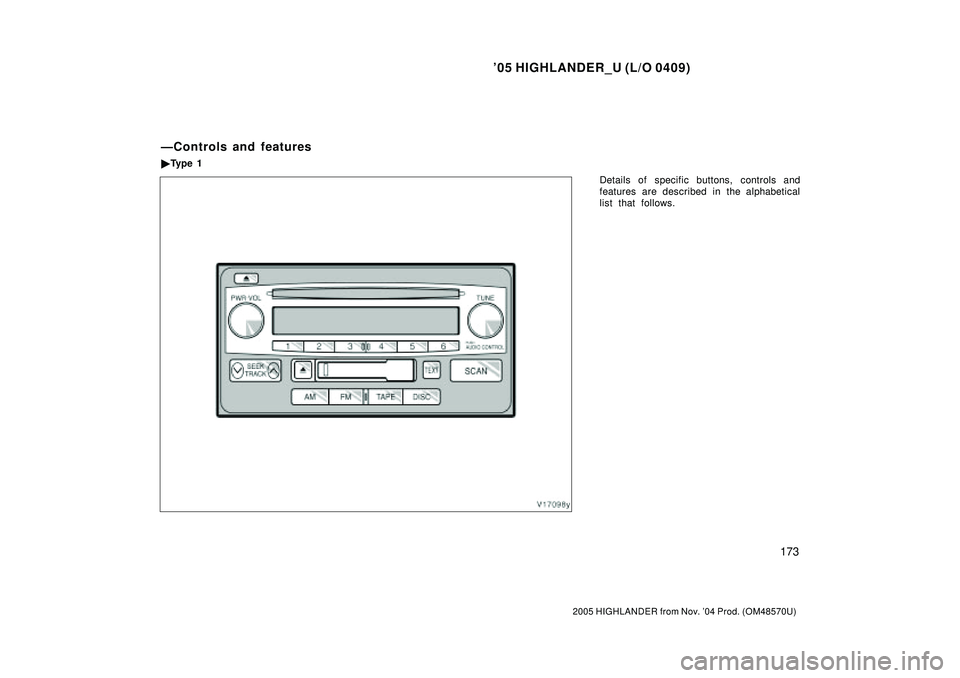

Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
ÐControls and fe

Page 334 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
174
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

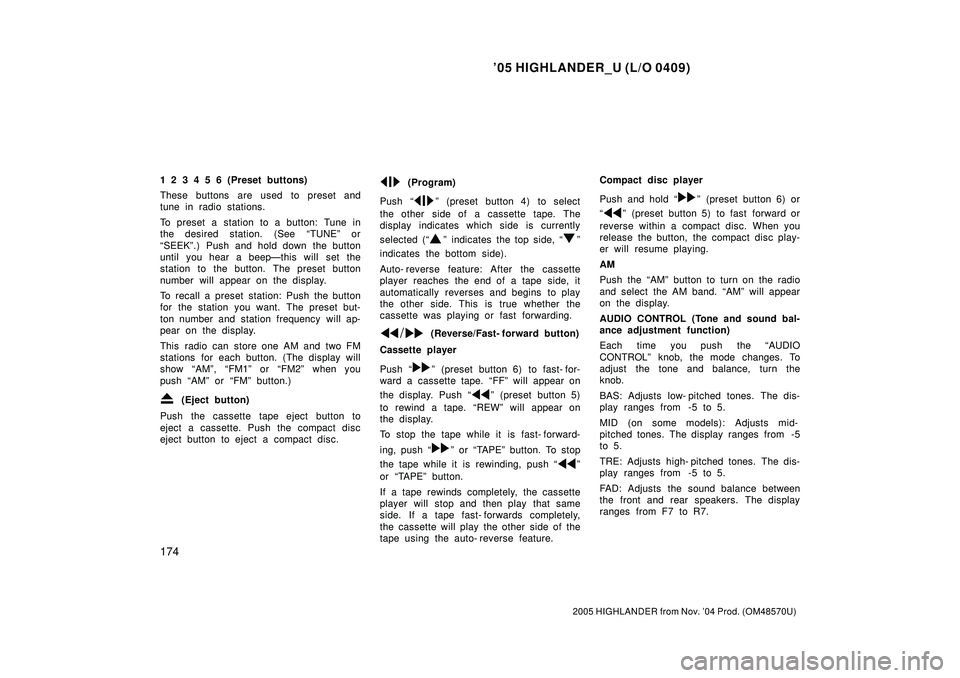

1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button

'05 HIGHLANDER_U (L/O 0409)
174
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See TUNEº or
SEEKº.) Push and hold down the button
until you hear a beepÐthis will set the
station to the button. The preset button
number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show AMº, FM1º or FM2º when you
push AMº or FMº button.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
(Program)
Push
º (preset button 4) to select
the other side of a cassette tape. The
display indicates which side is currently
selected (
º indicates the top side, º
indicates the bottom side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast- forward button)
Cassette player
Push
º (preset button 6) to fast- for-
ward a cassette tape. FFº will appear on
the display. Push
º (preset button 5)
to rewind a tape. REWº will appear on
the display.
To stop the tape while it is fast- forward-
ing, push
º or TAPEº button. To stop
the tape while it is rewinding, push
º
or TAPEº button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast- forwards completely,
the cassette will play the other side of the
tape using the auto- reverse feature.Compact disc player
Push and hold
º (preset button 6) or

º (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the AMº button to turn on the radio
and select the AM band. AMº will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the AUDIO
CONTROLº knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low- pitched tones. The dis-
play ranges from -5 to 5.
MID (on some models): Adjusts mid-
pitched tones. The display ranges from -5
to 5.
TRE: Adjusts high- pitched tones. The dis-
play ranges from -5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.

Page 335 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
175
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
DISC (Compact disc

'05 HIGHLANDER_U (L/O 0409)
175
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
DISC (Compact disc)
Push the DISCº button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Vehicles with rear seat entertainment sys-
temÐ
The DISCº button may also be used to
operate a DVD player when a disc is
loaded in the DVD player. Pressing the
DISCº button changes between the CD
player and DVD player. When the DVD
player is in operation, AUXº appears on
the display.

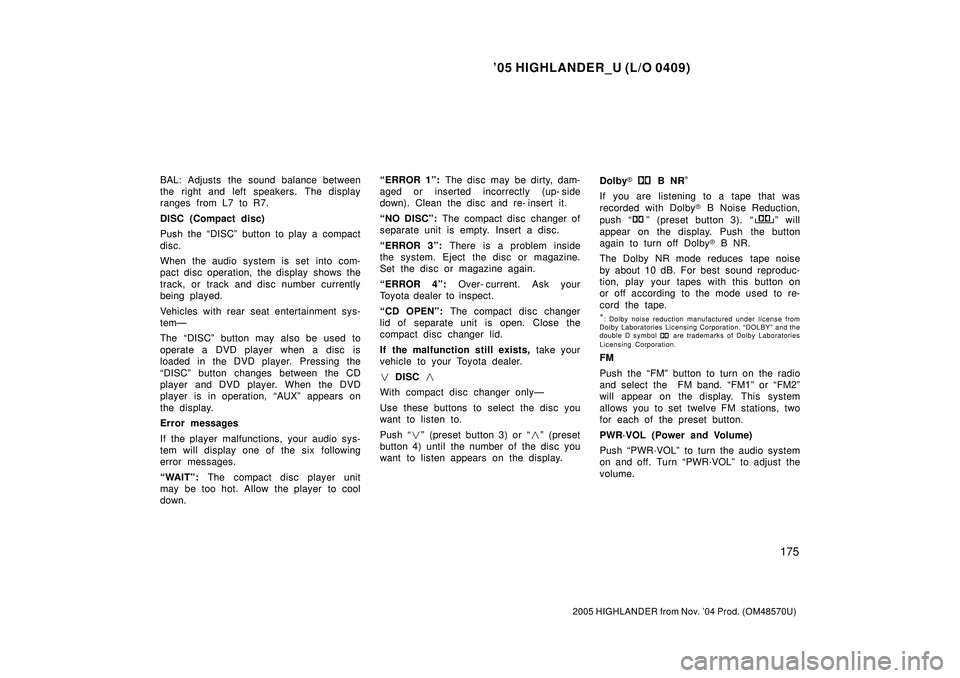

Error messages
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
WAITº: The compact disc player unit
may be too hot. Allow the player to cool
down.ERROR 1º: The disc may be dirty, dam-
aged or inserted incorrectly (up- side
down). Clean the disc and re- insert it.
NO DISCº: The compact disc changer of
separate unit is empty. Insert a disc.
ERROR 3º: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
ERROR 4º: Over- current. Ask your
Toyota dealer to inspect.
CD OPENº: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
DISC
With compact disc changer onlyÐ
Use these buttons to select the disc you
want to listen to.
Push º (preset button 3) or º (preset
button 4) until the number of the disc you
want to listen appears on the display.DolbyB NR*
If you are listening to a tape that was
recorded with Dolby B Noise Reduction,
push
º (preset button 3). º will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
*: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. DOLBYº and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push the FMº button to turn on the radio
and select the FM band. FM1º or FM2º
will appear on the display. This system
allows you to set twelve FM stations, two
for each of the preset button.
PWR´VOL (Power and Volume)
Push PWR´VOLº to turn the audio system
on and off. Turn PWR´VOLº to adjust the
volume.

Page 336 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
176
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

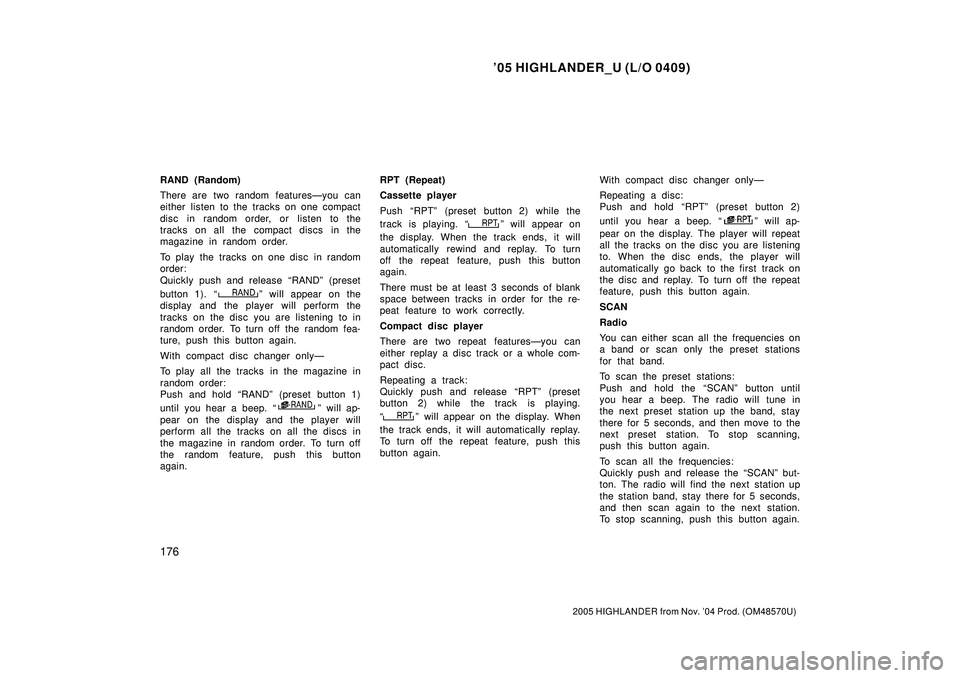

RAND (Random)
There are two random featuresÐyou can
either listen to the tracks on one compact
disc in random order, or

'05 HIGHLANDER_U (L/O 0409)
176
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
RAND (Random)
There are two random featuresÐyou can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release RANDº (preset
button 1).
º will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer onlyÐ
To play all the tracks in the magazine in
random order:
Push and hold RANDº (preset button 1)
until you hear a beep.
º will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again.RPT (Repeat)
Cassette player
Push RPTº (preset button 2) while the
track is playing.
º will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player
There are two repeat featuresÐyou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release RPTº (preset
button 2) while the track is playing.

º will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.With compact disc changer onlyÐ
Repeating a disc:
Push and hold RPTº (preset button 2)
until you hear a beep.
º will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the SCANº button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the SCANº but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.

Load next 8 pages

Page: < prev 1-10 ... 297-304 305-312 313-320 321-328 329-336 337-344 345-352 353-360 361-368 ... 2576 next >

transmission gearbox tire pressure brake sensor headlight aiming brake
