Page 297 of 2572

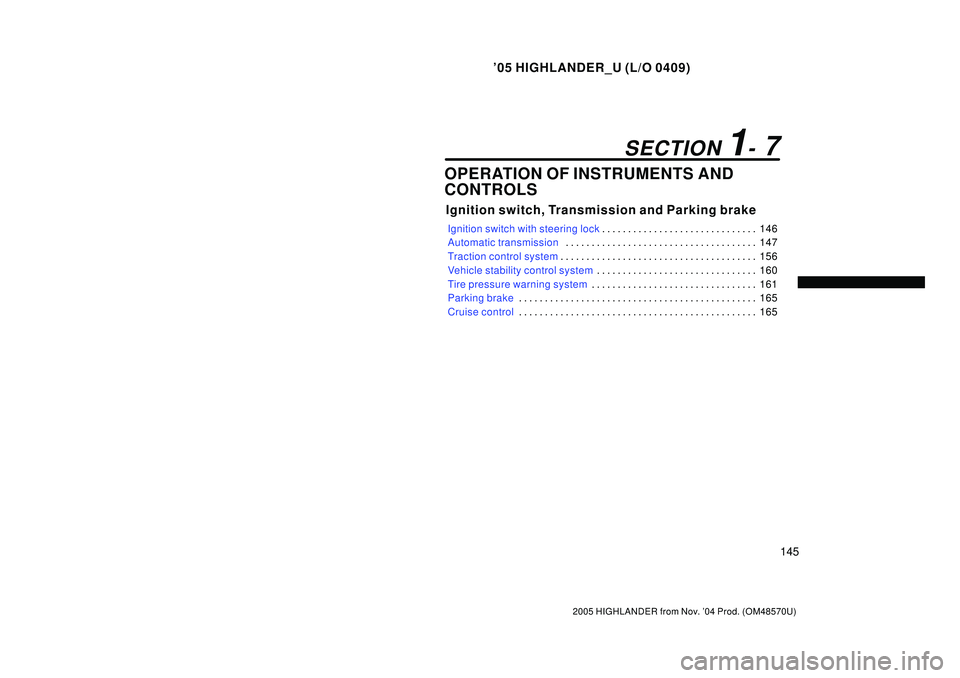

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
145
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock1

Page 298 of 2572

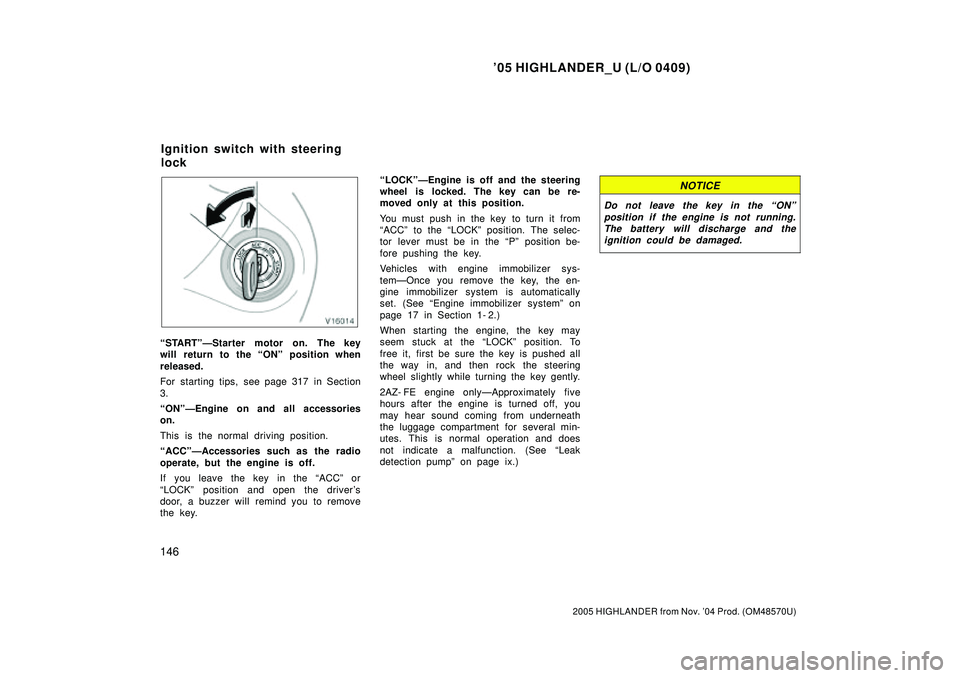

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
146
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
STARTºÐStarter motor on. The key
will return to the ONº position when
released.
For starting tips, see page 317 in S

Page 299 of 2572

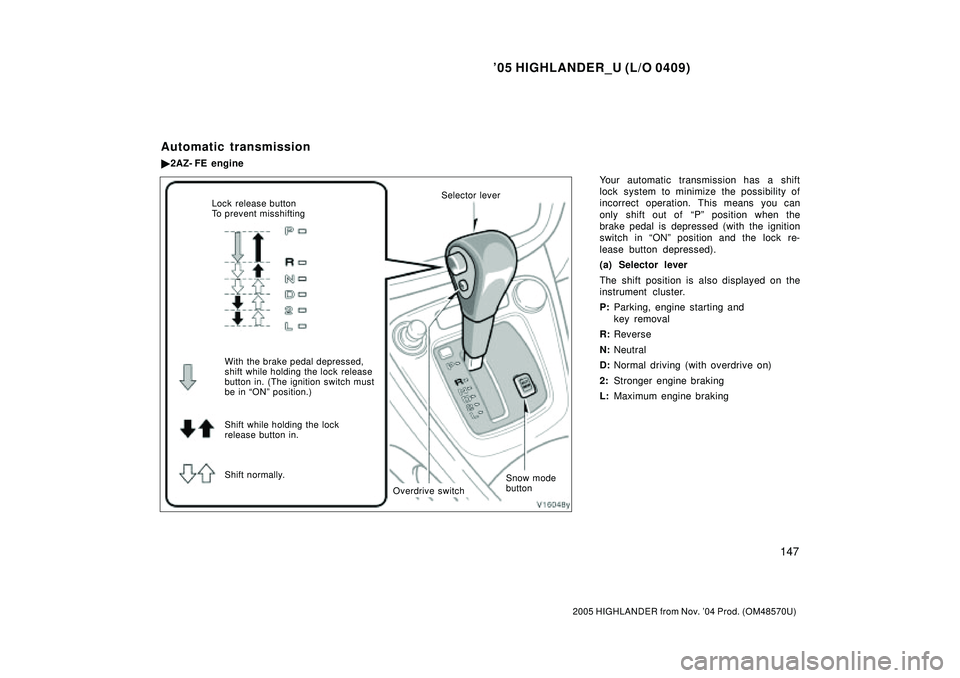

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
147
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you ca

Page 300 of 2572

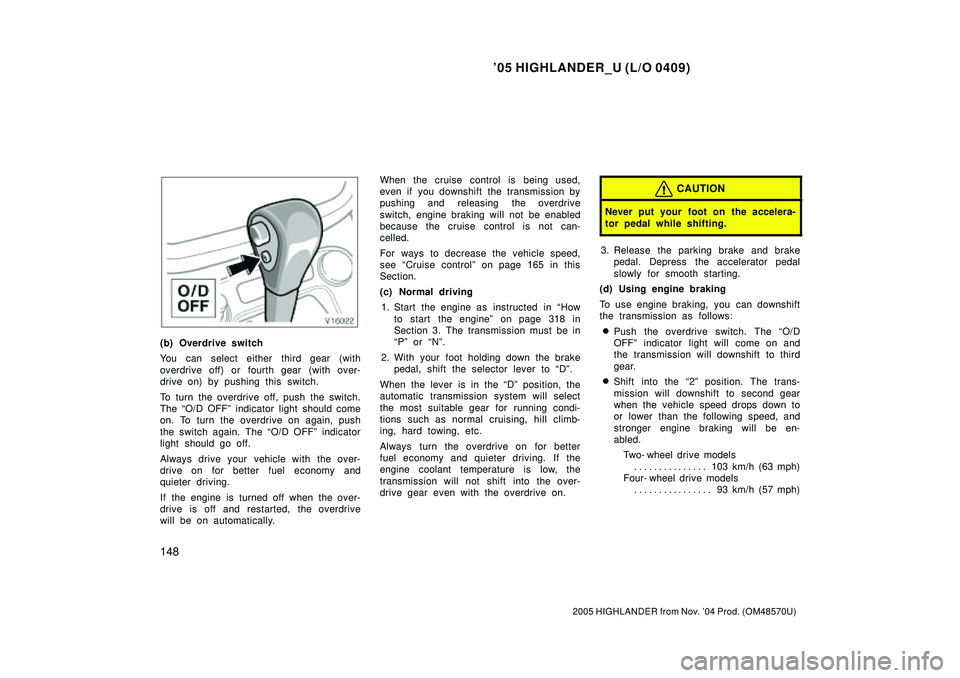

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
148
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushi

'05 HIGHLANDER_U (L/O 0409)
148
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The O/D OFFº indicator light should come
on. To turn the overdrive on again, push
the switch again. The O/D OFFº indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically.When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not be enabled
because the cruise control is not can-
celled.
For ways to decrease the vehicle speed,
see Cruise controlº on page 165 in this
Section.
(c) Normal driving
1. Start the engine as instructed in How
to start the engineº on page 318 in
Section 3. The transmission must be in
Pº or Nº.
2. With your foot holding down the brake
pedal, shift the selector lever to Dº.
When the lever is in the Dº position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The O/D
OFFº indicator light will come on and
the transmission will downshift to third
gear.
Shift into the 2º position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Two- wheel drive models
103 km/h (63 mph) . . . . . . . . . . . . . . .
Four- wheel drive models
93 km/h (57 mph) . . . . . . . . . . . . . . . .

Page 301 of 2572

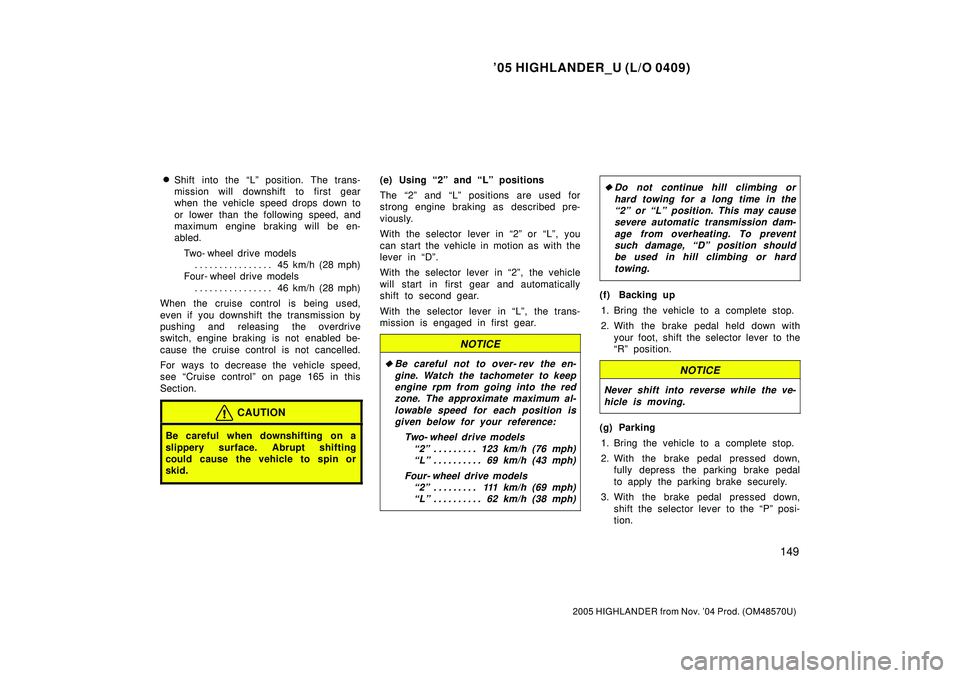

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
149
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Shift into the Lº position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or l

'05 HIGHLANDER_U (L/O 0409)
149
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Shift into the Lº position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
Two- wheel drive models
45 km/h (28 mph) . . . . . . . . . . . . . . . .
Four- wheel drive models
46 km/h (28 mph) . . . . . . . . . . . . . . . .
When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking is not enabled be-
cause the cruise control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº on page 165 in this
Section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using 2º and Lº positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº.
With the selector lever in 2º, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in Lº, the trans-
mission is engaged in first gear.
NOTICE
Be careful not to over- rev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
Two- wheel drive models
2º 123 km/h (76 mph). . . . . . . . .
Lº 69 km/h (43 mph). . . . . . . . . .
Four- wheel drive models
2 º 111 k m / h ( 6 9 m p h ). . . . . . . . .
Lº 62 km/h (38 mph). . . . . . . . . .
Do not continue hill climbing or
hard towing for a long time in the
2º or Lº position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, Dº position should
be used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down,
fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down,
shift the selector lever to the Pº posi-
tion.

Page 302 of 2572

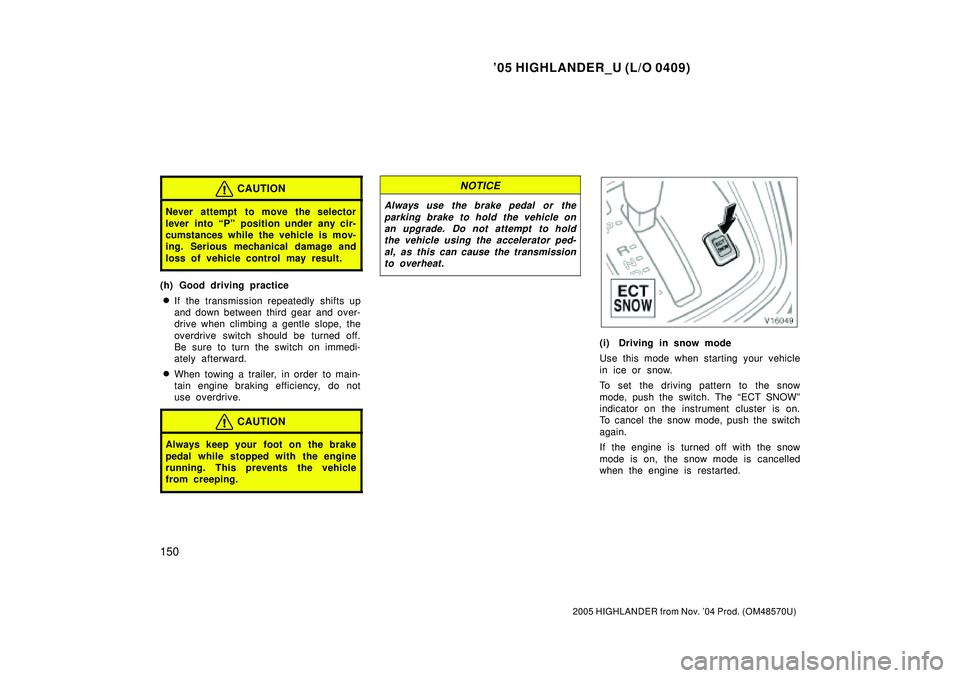

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
150
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
CAUTION
Never attempt to move the selector
lever into Pº position under any cir-
cumstances while the vehicle is mov-
i

Page 303 of 2572

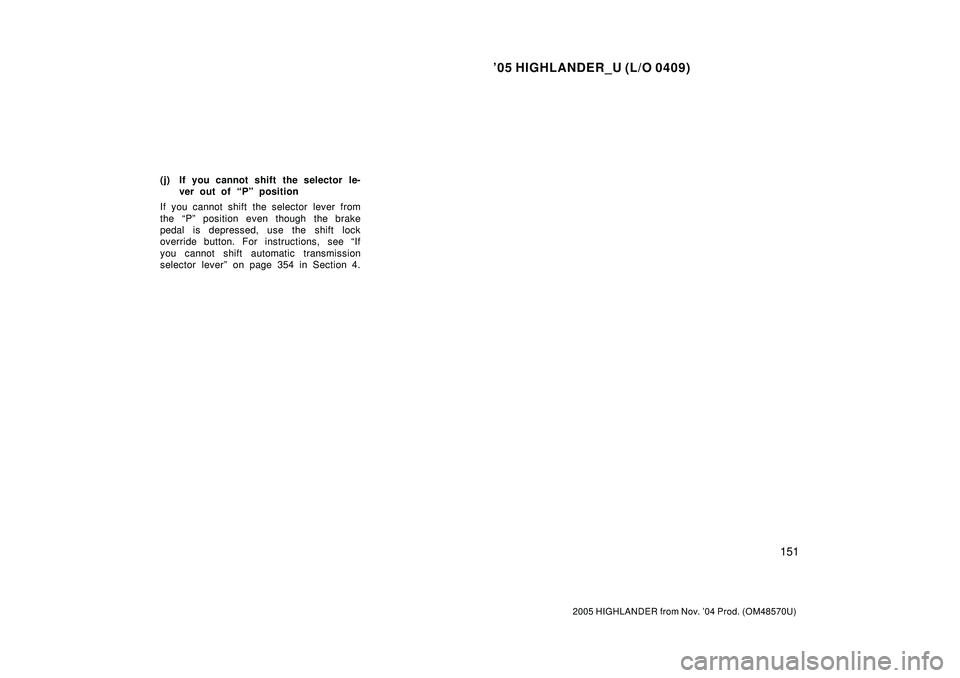

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
151
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
(j) If you cannot shift the selector le-
ver out of Pº position
If you cannot shift the selector lever from
the Pº po

Page 304 of 2572

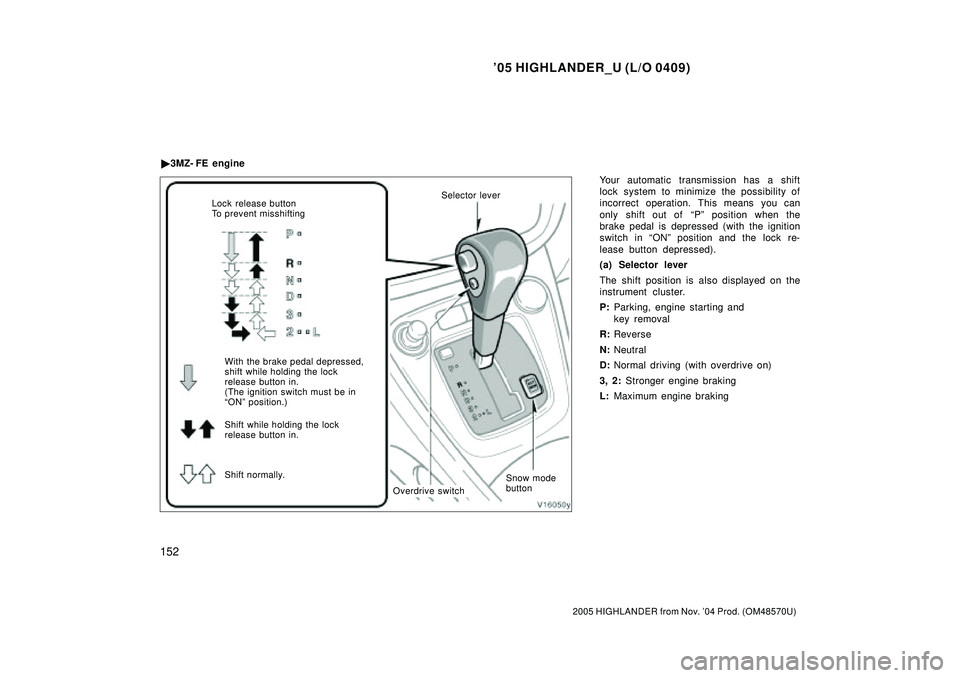

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
152
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you ca
