2001 TOYOTA HIGHLANDER Service Repair Manual

TPMS reset window engine oil capacity key fob seats oil type

Load previous 8 pages

Page 17 of 2572

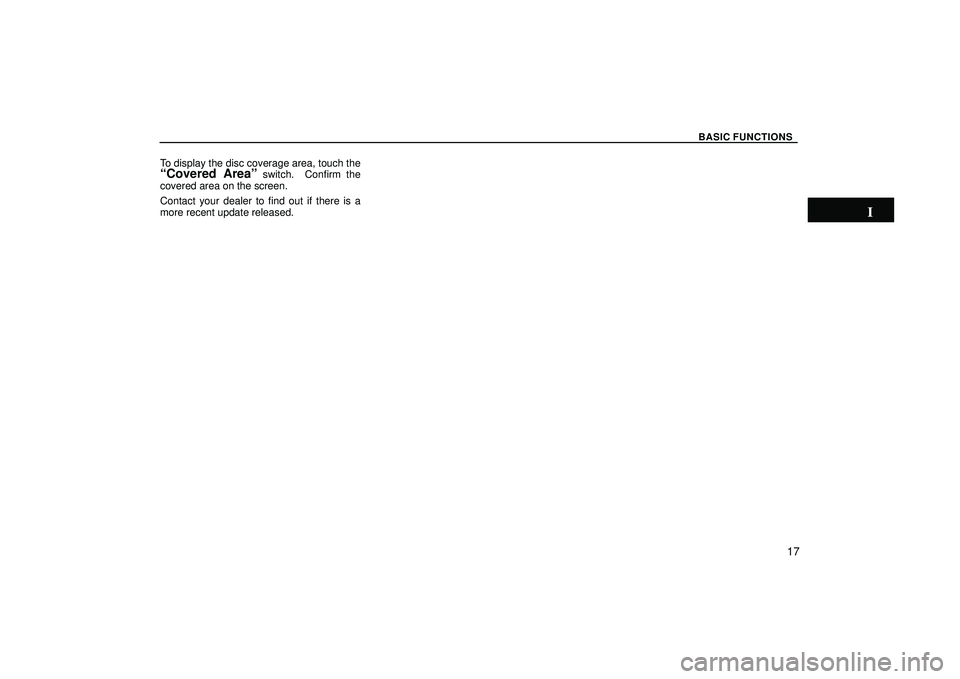

TOYOTA HIGHLANDER 2001 Service Repair Manual BASIC FUNCTIONS
17
To display the disc coverage area, touch theCovered Areaº switch. Confirm the
covered area on the screen.
Contact your dealer to find out if there is a
more recent update release

Page 18 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual BASIC FUNCTIONS
18

Page 19 of 2572

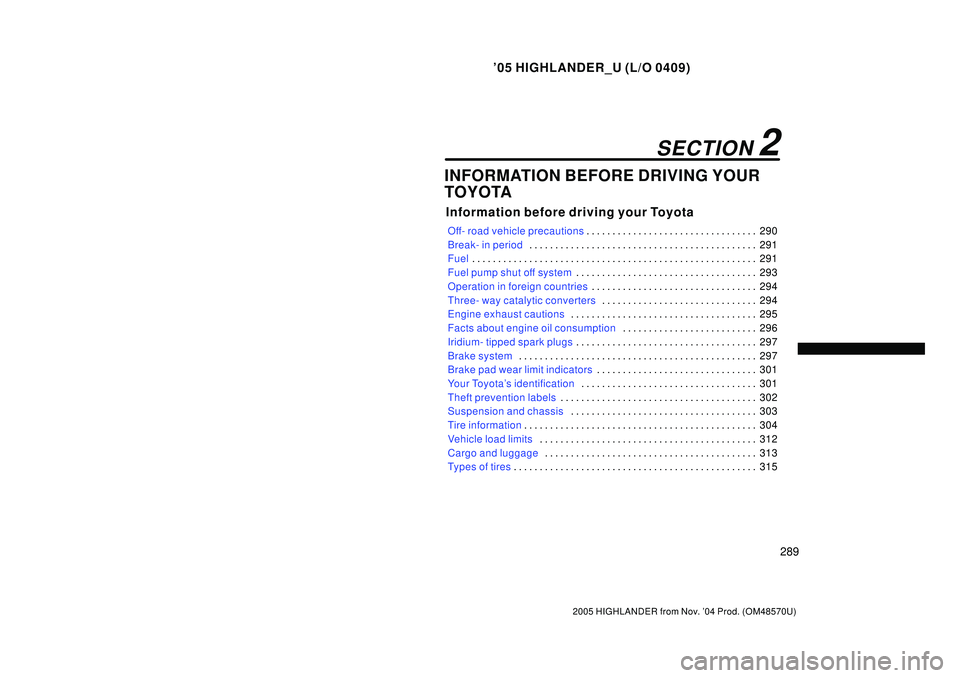

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
289
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Off- road vehicle precautions290 . . . . .

'05 HIGHLANDER_U (L/O 0409)
289
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Off- road vehicle precautions290 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break- in period291 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel291 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system293 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries294 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three- way catalytic converters294 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions295 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption296 . . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium- tipped spark plugs297 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system297 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota's identification301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire information304 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle load limits312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo and luggage313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires315 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2

Page 20 of 2572

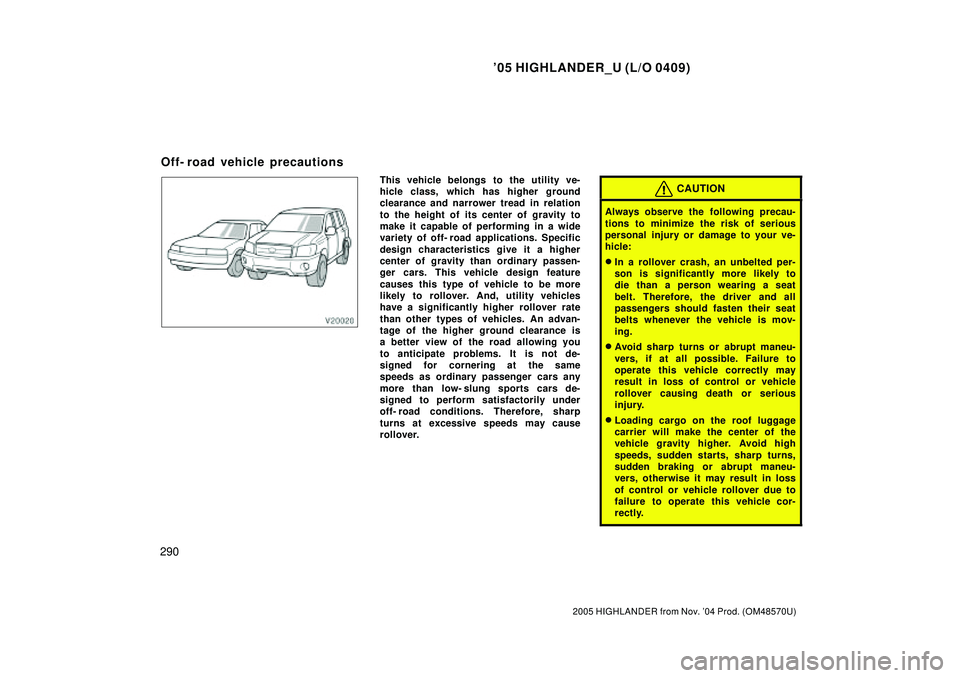

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
290
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
This vehicle belongs to the utility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to

Page 21 of 2572

Page 22 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
292
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
OCTANE RATING
2AZ- FE engine: Select Octane Rating 87
(Research Octane Number 91) or higher.
3MZ- FE engine: Select Octan

'05 HIGHLANDER_U (L/O 0409)
292
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
OCTANE RATING
2AZ- FE engine: Select Octane Rating 87
(Research Octane Number 91) or higher.
3MZ- FE engine: Select Octane Rating
87 (Research Octane Number 91) or
higher. For improved vehicle perfor-
mance, the use of premium unleaded
gasoline with an Octane Rating of 91
(Research Octane Number 96) or higher
is recommended.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid build- up of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
World- Wide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of four categories
that depend on required emission lev-
els. In the U.S., category 3 or 4 has
been adopted. The WWFC improves air
quality by providing for better emis-
sions in vehicle fleets, and customer
satisfaction through better vehicle per-
formance.CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.
OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.

Page 23 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
293
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
clopentadienyl Mangane

Page 24 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
294
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm
