Page 185 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
65
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

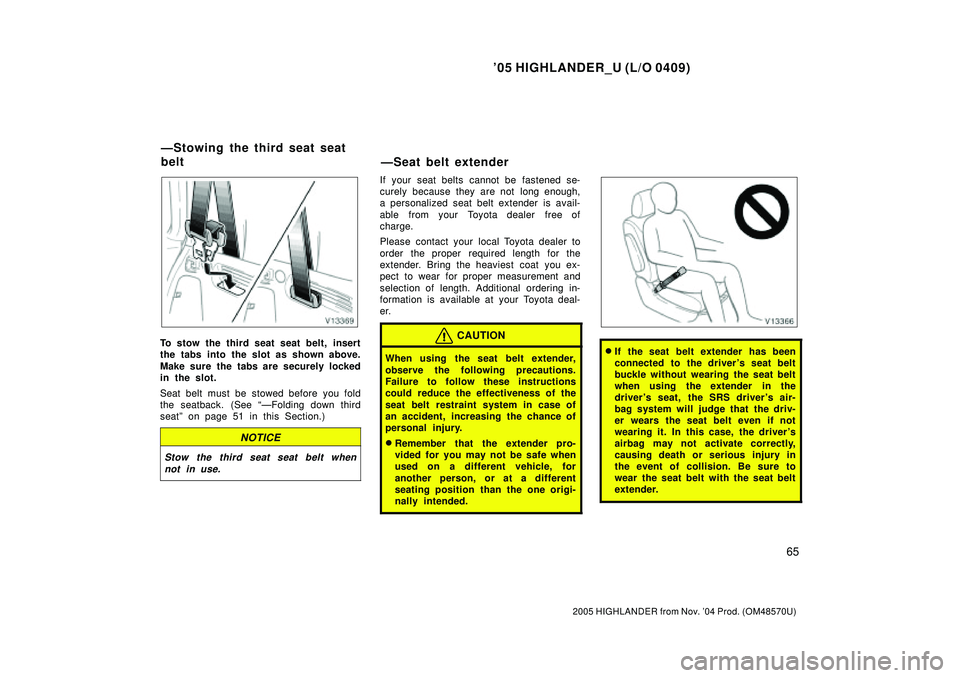

To stow the third seat seat belt, insert
the tabs into the slot as shown above.
Make sure the tabs are securely locked
in

Page 186 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
66
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

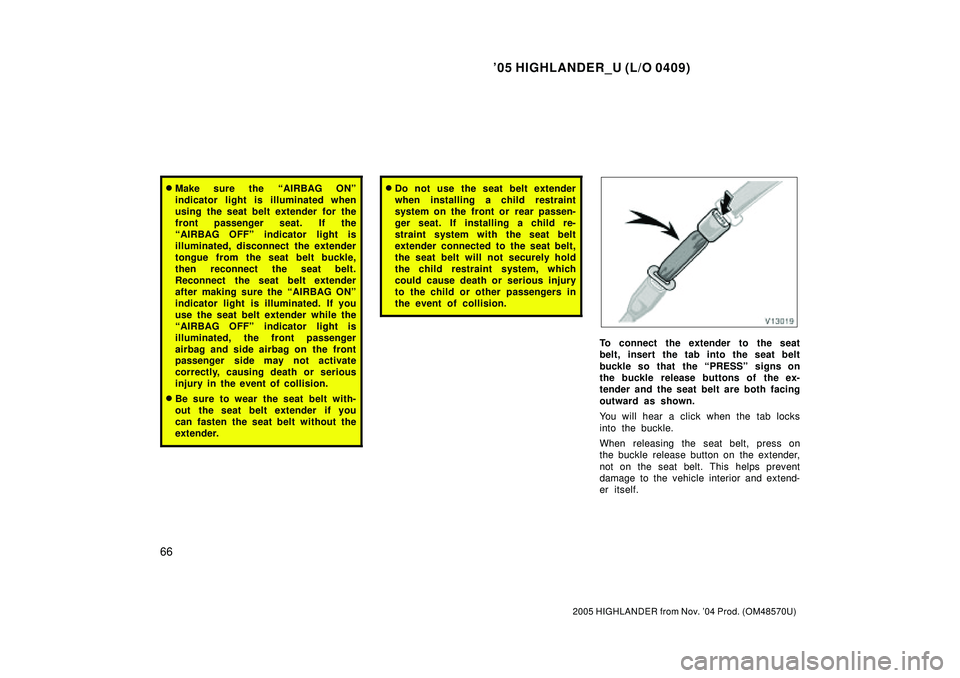

Make sure the AIRBAG ONº
indicator light is illuminated when
using the seat belt extender for the
front passenger seat.

Page 187 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
67
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
As far as the seat belt extender on the
front passenger side is concerned, do not
fail to disconnect the extender from th

Page 188 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
68
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
The seat belt pretensioner system con-
sists mainly of the following components
and their locations are shown in the il-
l

Page 189 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
69
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
This indicator comes on when the igni-
tion key is turned to the ONº position.
It goes off after about 6 seconds. This
m

Page 190 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
70
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

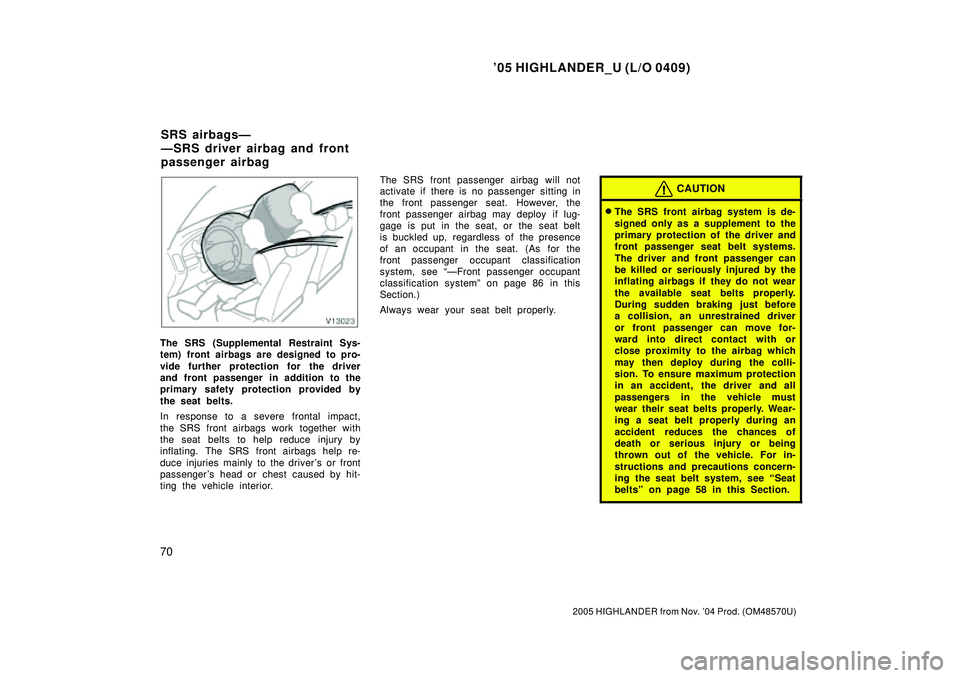

The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and fr

Page 191 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
71
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

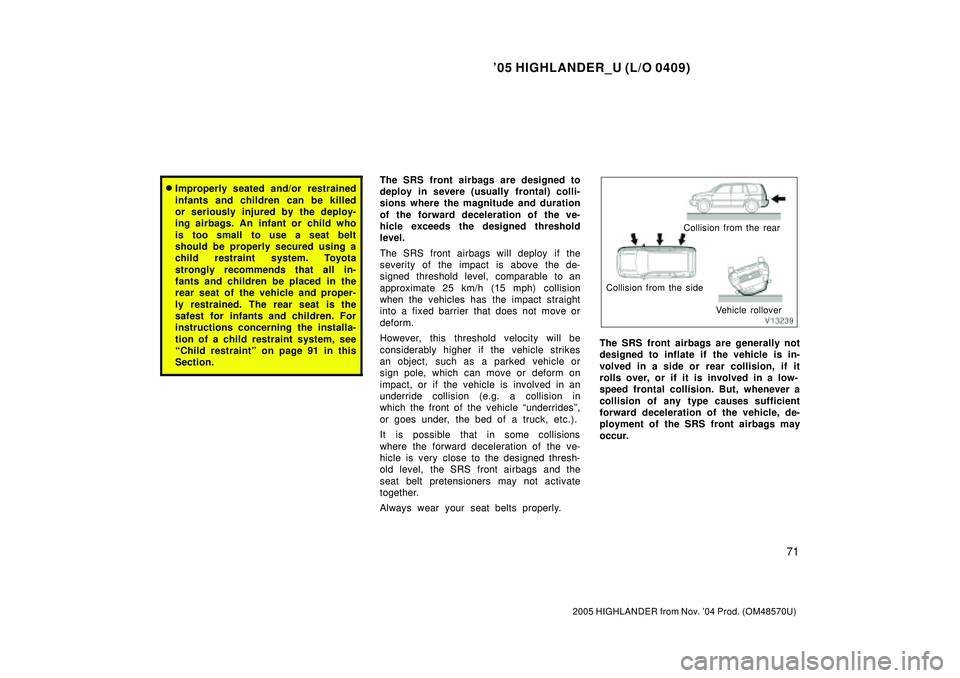

Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. A

'05 HIGHLANDER_U (L/O 0409)
71
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seat of the vehicle and proper-
ly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installa-
tion of a child restraint system, see
Child restraintº on page 91 in this
Section.The SRS front airbags are designed to
deploy in severe (usually frontal) colli-
sions where the magnitude and duration
of the forward deceleration of the ve-
hicle exceeds the designed threshold
level.
The SRS front airbags will deploy if the
severity of the impact is above the de-
signed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when the vehicles has the impact straight
into a fixed barrier that does not move or
deform.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride collision (e.g. a collision in
which the front of the vehicle underridesº,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the ve-
hicle is very close to the designed thresh-
old level, the SRS front airbags and the
seat belt pretensioners may not activate
together.
Always wear your seat belts properly.
Collision from the rear
Collision from the side
Vehicle rollover
The SRS front airbags are generally not
designed to inflate if the vehicle is in-
volved in a side or rear collision, if it
rolls over, or if it is involved in a low-
speed frontal collision. But, whenever a
collision of any type causes sufficient
forward deceleration of the vehicle, de-
ployment of the SRS front airbags may
occur.

Page 192 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
72
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Hitting a curb,
edge of pavement
or hard surfaceFalling into or
jumping over a
deep hole
Landing hard or vehicle falling
T
