- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2133
2323 Author: Date:
3 CHECK CAN BUS LINE FOR SHORT TO GND(SKID CONTROL ECU, CAN-L)
(a) Disconnect the connector (S27) from the skid control
ECU.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-14 (CANL)Ignition SW OFF3 kW or more
OK REPLACE SKID CONTROL ECU WITH
ACTUATOR (SEE PAGE 32-37)
NG
4 CHECK CAN BUS LINE FOR SHORT TO GND(STEERING SENSOR, CAN-L)
(a) Reconnect the connector (S27) to the skid control ECU.
(b) Disconnect the connector (S14) from the steering sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-14 (CANL)Ignition SW OFF3 kW or more
OK REPLACE STEERING SENSOR
(SEE PAGE 32-48)
NG
5 CHECK CAN BUS LINE FOR SHORT TO GND(YAW RATE SWENSOR, CAN-L)
(a) Reconnect the connector (S14) to the steering sensor.
(b) Disconnect the connector (Y1) from the yaw rate sensor.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
D3-4 (CG) -
D3-14 (CANL)Ignition SW OFF3 kW or more
OK REPLACE YAW RATE SENSOR
(SEE PAGE 32-46)
NG
Page 826 of 2572
G25476G26430
Junction Connector:
J16
CANH
CANL
E69126
Skid Control ECU
Connector Front
View:
CANL
S27
GND1
05-2134
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2324 Author: Date:
6 CHECK CAN BUS LINE FOR SHORT TO GND(SKID CONTROL ECU - JUNCTION
CONNECTOR, CAN-L)
(a) Reconnect the connector (Y1) to the yaw rate sensor.
(b) Disconnect the wire harness connector (J16) from the
junction connector.
(c) Disconnect the connector (S27) from the skid control
ECU.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S27-25 (CANL) -
S27-32 (GND1)Ignition SW OFF1 MW more
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (SKID CONTROL ECU - JUNC-
TION CONNECTOR, CAN-L)
OK
Page 827 of 2572
G24991G26210
S14
Steering Sensor Wire Harness View:
CANLESS
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2135
2325 Author: Date:
7 CHECK CAN BUS LINE FOR SHORT TO GND(STEERING SENSOR - JUNCTION
CONNECTOR, CAN-L)
(a) Disconnect the connector (S14) from the steering sensor.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified value
S14-2 (ESS) -
S14-9 (CANL)Ignition SW OFF1 MW more
HINT:
Check the wire harness connector connected to the junction
connector while disconnecting them.
NG REPAIR OR REPLACE CAN MAIN BUS LINE OR
CONNECTOR (STEERING SENSOR - JUNC-
TION CONNECTOR, CAN-L)
OK
REPAIR OR REPLACE YAW RATE SENSOR SUB BUS LINE OR CONNECTOR (CAN-L)
Page 828 of 2572

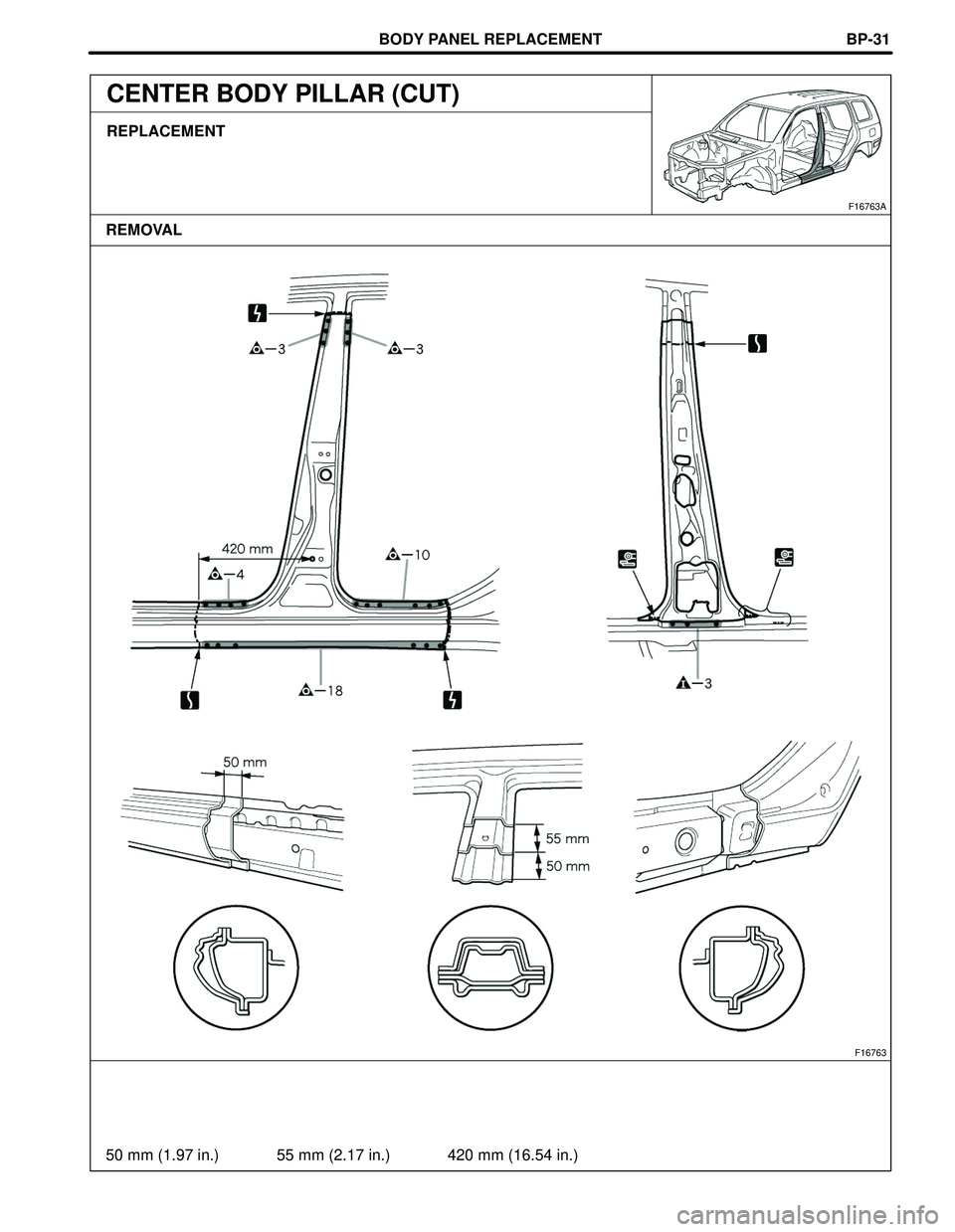

BODY PANEL REPLACEMENT
F16763
50 mm (1.97 in.) 55 mm (2.17 in.) 420 mm (16.54 in.)
F16763A
REMOVALBP-31
CENTER BODY PILLAR (CUT)
REPLACEMENT
Page 829 of 2572

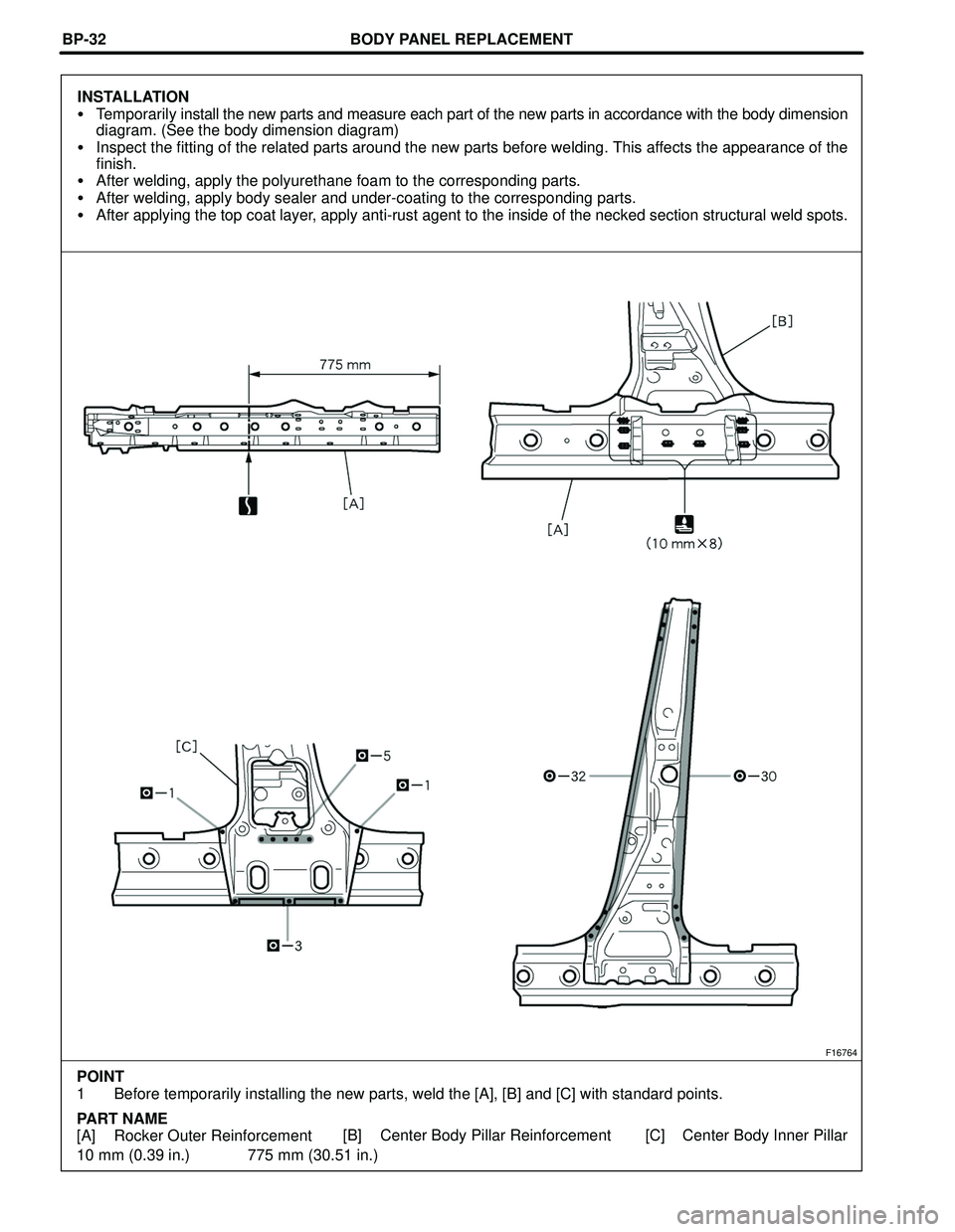

BODY PANEL REPLACEMENT
F16764
10 mm (0.39 in.) 775 mm (30.51 in.) POINT
1 Before temporarily installing the new parts, weld the [A], [B] and [C] with standard points.
PART NAME
[A] Rocker Outer Reinforcement[B] Center Body Pillar Reinforcement [C] Center Body Inner Pillar BP-32
INSTALLATION
Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension
diagram. (See the body dimension diagram)
Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.
After welding, apply the polyurethane foam to the corresponding parts.
After welding, apply body sealer and under-coating to the corresponding parts.
After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.
Page 830 of 2572

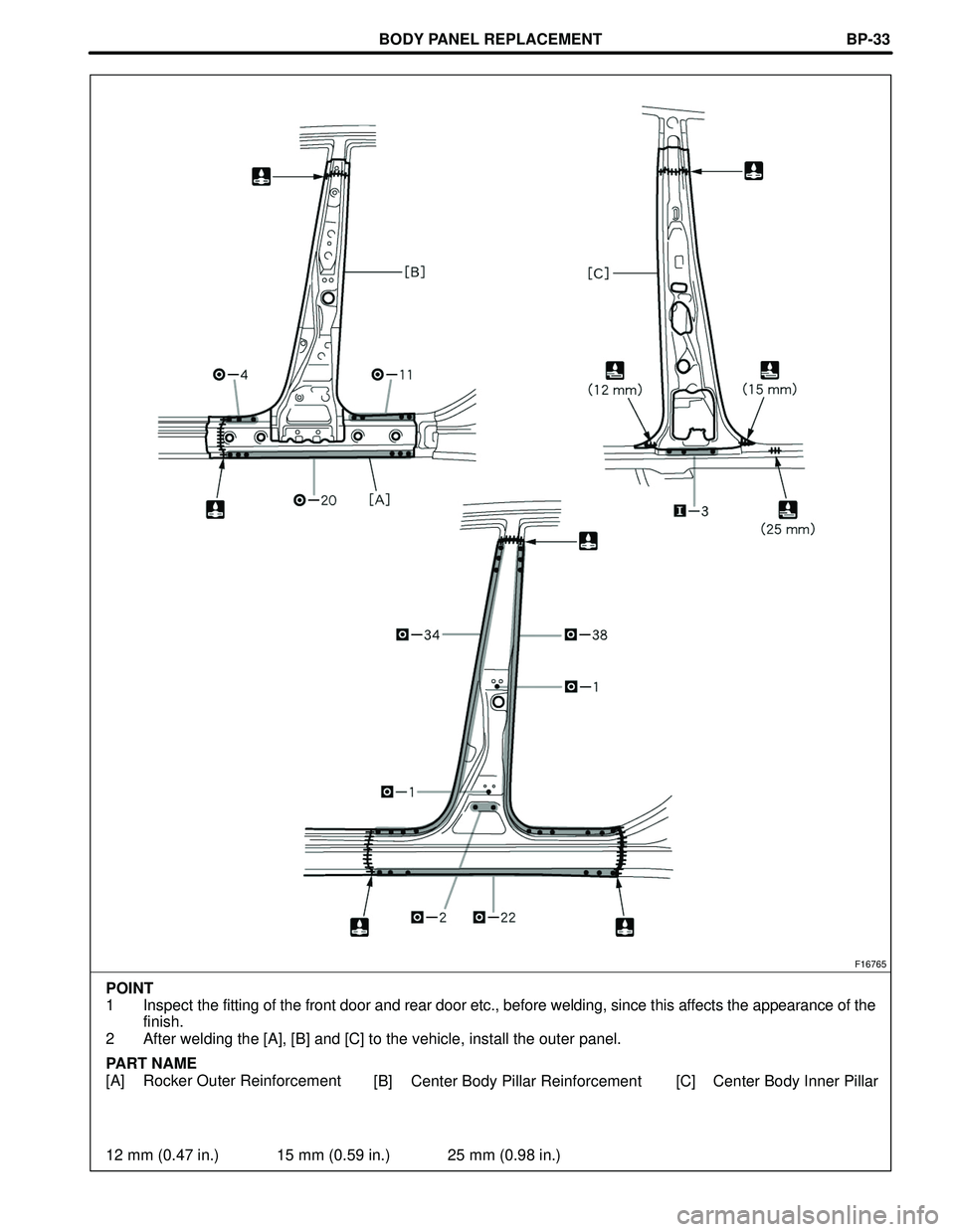

BODY PANEL REPLACEMENT
F16765
12 mm (0.47 in.) 15 mm (0.59 in.) 25 mm (0.98 in.) POINT
1 Inspect the fitting of the front door and rear door etc., before welding, since this affects the appearance of the
finish.
2 After welding the [A], [B] and [C] to the vehicle, install the outer panel.
PART NAME
[A] Rocker Outer Reinforcement
[B] Center Body Pillar Reinforcement[C] Center Body Inner PillarBP-33
Page 831 of 2572

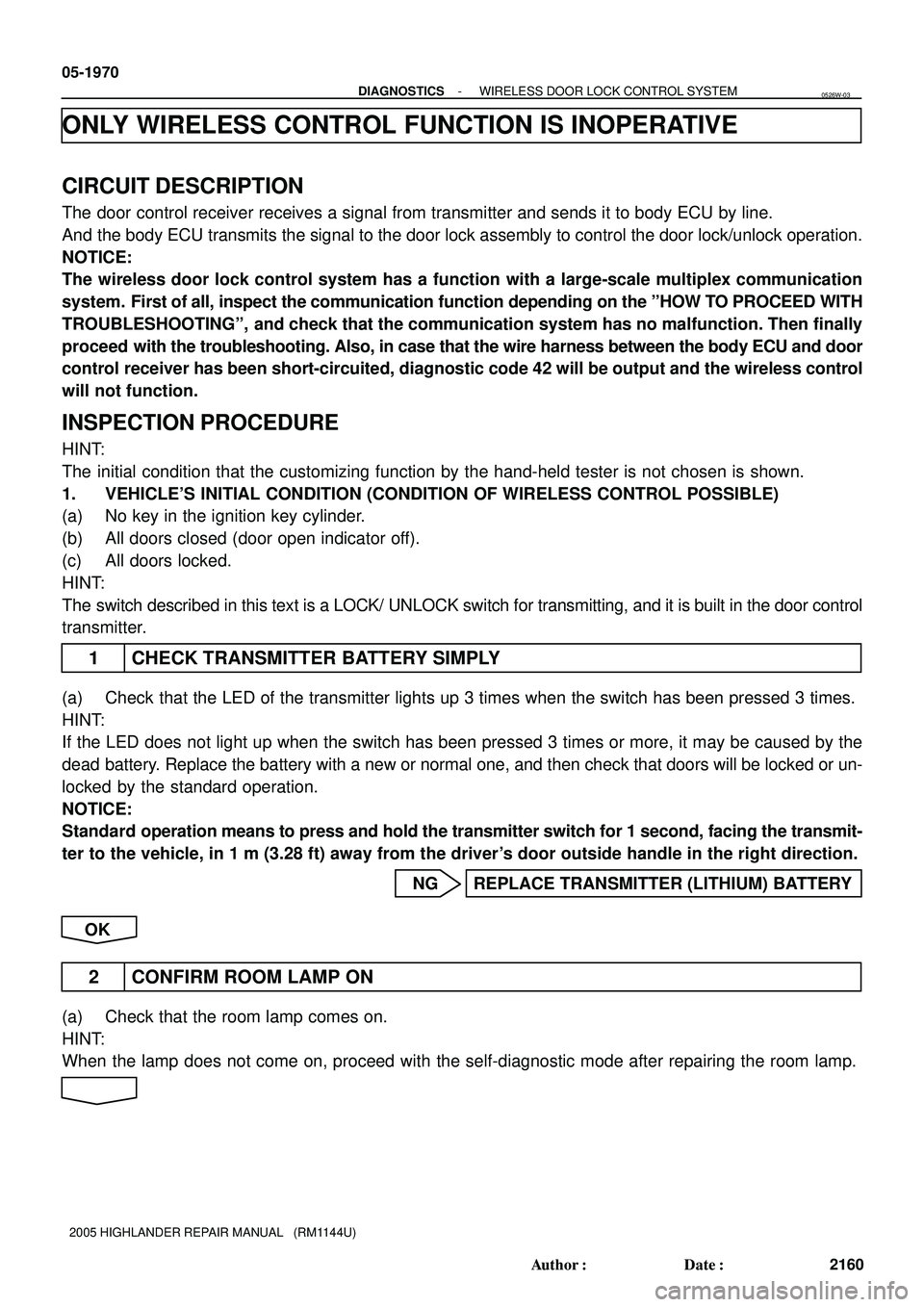

05-1970
- DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
2160 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
ONLY WIRELESS CONTROL FUNCTION IS INOPERATIVE
CIRCUIT DESCRIPTION
The door control receiver receives a signal from transmitter and sends it to body ECU by line.
And the body ECU transmits the signal to the door lock assembly to control the door lock/unlock operation.
NOTICE:
The wireless door lock control system has a function with a large-scale multiplex communication
system. First of all, inspect the communication function depending on the ºHOW TO PROCEED WITH
TROUBLESHOOTINGº, and check that the communication system has no malfunction. Then finally
proceed with the troubleshooting. Also, in case that the wire harness between the body ECU and door
control receiver has been short-circuited, diagnostic code 42 will be output and the wireless control
will not function.
INSPECTION PROCEDURE
HINT:
The initial condition that the customizing function by the hand-held tester is not chosen is shown.
1. VEHICLE'S INITIAL CONDITION (CONDITION OF WIRELESS CONTROL POSSIBLE)
(a) No key in the ignition key cylinder.
(b) All doors closed (door open indicator off).
(c) All doors locked.
HINT:
The switch described in this text is a LOCK/ UNLOCK switch for transmitting, and it is built in the door control
transmitter.
1 CHECK TRANSMITTER BATTERY SIMPLY
(a) Check that the LED of the transmitter lights up 3 times when the switch has been pressed 3 times.
HINT:
If the LED does not light up when the switch has been pressed 3 times or more, it may be caused by the
dead battery. Replace the battery with a new or normal one, and then check that doors will be locked or un-
locked by the standard operation.
NOTICE:
Standard operation means to press and hold the transmitter switch for 1 second, facing the transmit-
ter to the vehicle, in 1 m (3.28 ft) away from the driver's door outside handle in the right direction.
NG REPLACE TRANSMITTER (LITHIUM) BATTERY
OK
2 CONFIRM ROOM LAMP ON
(a) Check that the room lamp comes on.
HINT:
When the lamp does not come on, proceed with the self-diagnostic mode after repairing the room lamp.
0526W-03
Page 832 of 2572

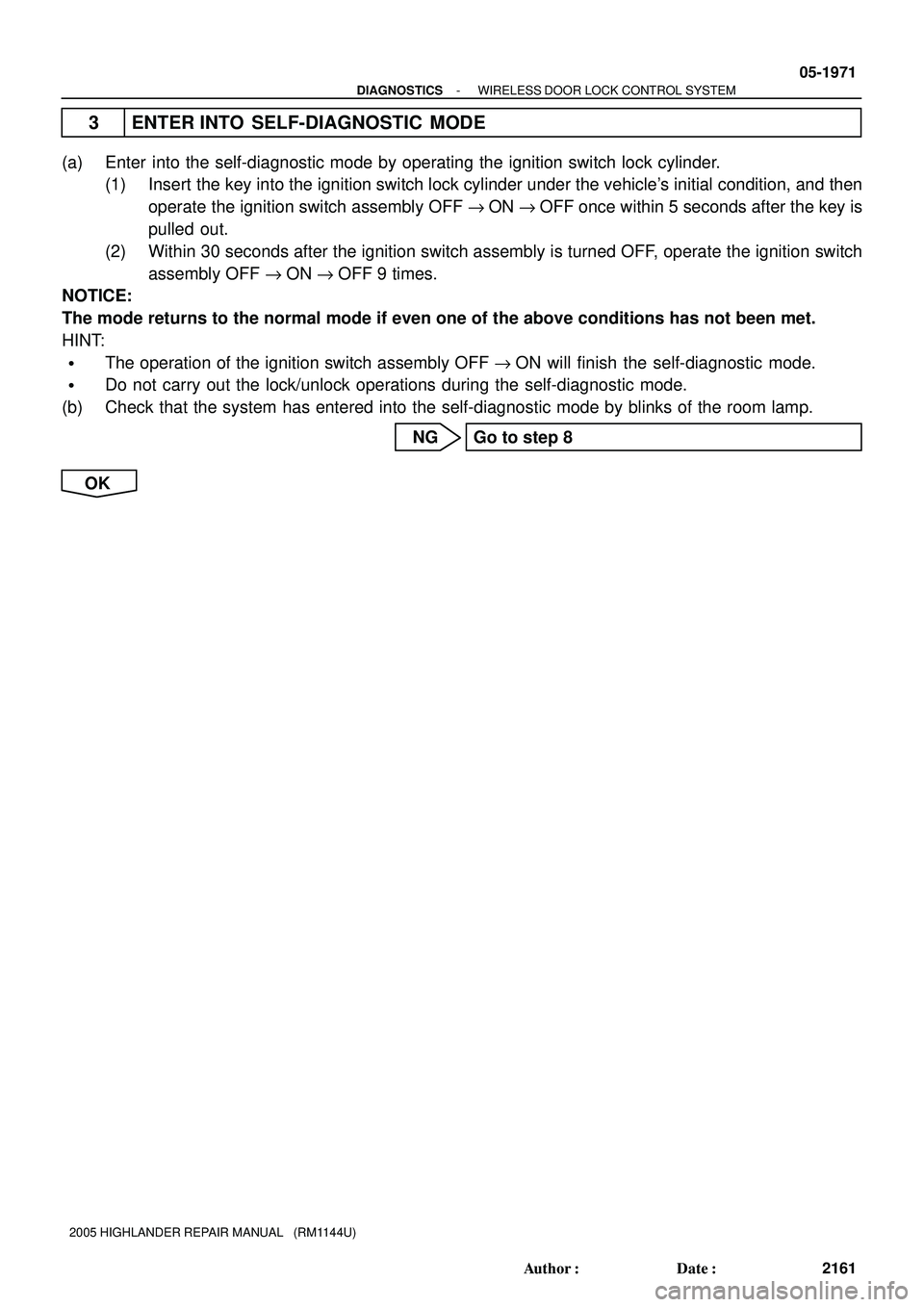

- DIAGNOSTICSWIRELESS DOOR LOCK CONTROL SYSTEM
05-1971
2161 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3 ENTER INTO SELF-DIAGNOSTIC MODE
(a) Enter into the self-diagnostic mode by operating the ignition switch lock cylinder.
(1) Insert the key into the ignition switch lock cylinder under the vehicle's initial condition, and then
operate the ignition switch assembly OFF "ON "OFF once within 5 seconds after the key is
pulled out.
(2) Within 30 seconds after the ignition switch assembly is turned OFF, operate the ignition switch
assembly OFF "ON "OFF 9 times.
NOTICE:
The mode returns to the normal mode if even one of the above conditions has not been met.
HINT:
The operation of the ignition switch assembly OFF "ON will finish the self-diagnostic mode.
Do not carry out the lock/unlock operations during the self-diagnostic mode.
(b) Check that the system has entered into the self-diagnostic mode by blinks of the room lamp.
NG Go to step 8
OK
