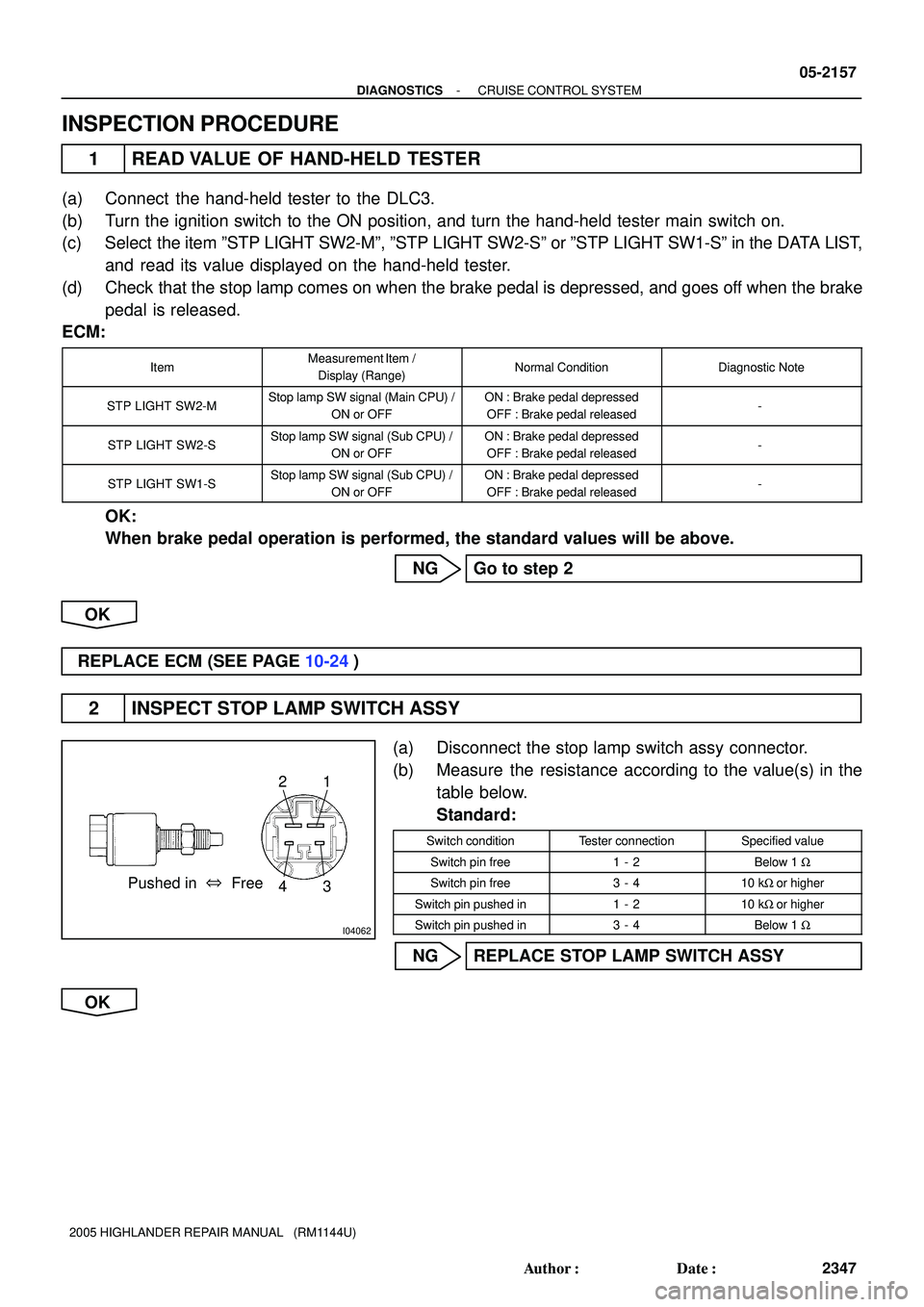

Page 1945 of 2572

I04062
Free Pushed in
3 41 2@
- DIAGNOSTICSCRUISE CONTROL SYSTEM
05-2157
2347 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 READ VALUE OF HAND-HELD TESTER
(a) Connect the hand-held tester to the DLC3.
(b) Turn the ignition switch to the ON position, and turn the hand-held tester main switch on.
(c) Select the item ºSTP LIGHT SW2-Mº, ºSTP LIGHT SW2-Sº or ºSTP LIGHT SW1-Sº in the DATA LIST,
and read its value displayed on the hand-held tester.
(d) Check that the stop lamp comes on when the brake pedal is depressed, and goes off when the brake
pedal is released.
ECM:
ItemMeasurement Item /
Display (Range)Normal ConditionDiagnostic Note
STP LIGHT SW2-MStop lamp SW signal (Main CPU) /
ON or OFFON : Brake pedal depressed
OFF : Brake pedal released-
STP LIGHT SW2-SStop lamp SW signal (Sub CPU) /
ON or OFFON : Brake pedal depressed
OFF : Brake pedal released-
STP LIGHT SW1-SStop lamp SW signal (Sub CPU) /
ON or OFFON : Brake pedal depressed
OFF : Brake pedal released-
OK:
When brake pedal operation is performed, the standard values will be above.
NG Go to step 2
OK
REPLACE ECM (SEE PAGE 10-24)
2 INSPECT STOP LAMP SWITCH ASSY
(a) Disconnect the stop lamp switch assy connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Switch conditionTester connectionSpecified value
Switch pin free1 - 2Below 1 W
Switch pin free3 - 410 kW or higher
Switch pin pushed in1 - 210 kW or higher
Switch pin pushed in3 - 4Below 1 W
NG REPLACE STOP LAMP SWITCH ASSY
OK

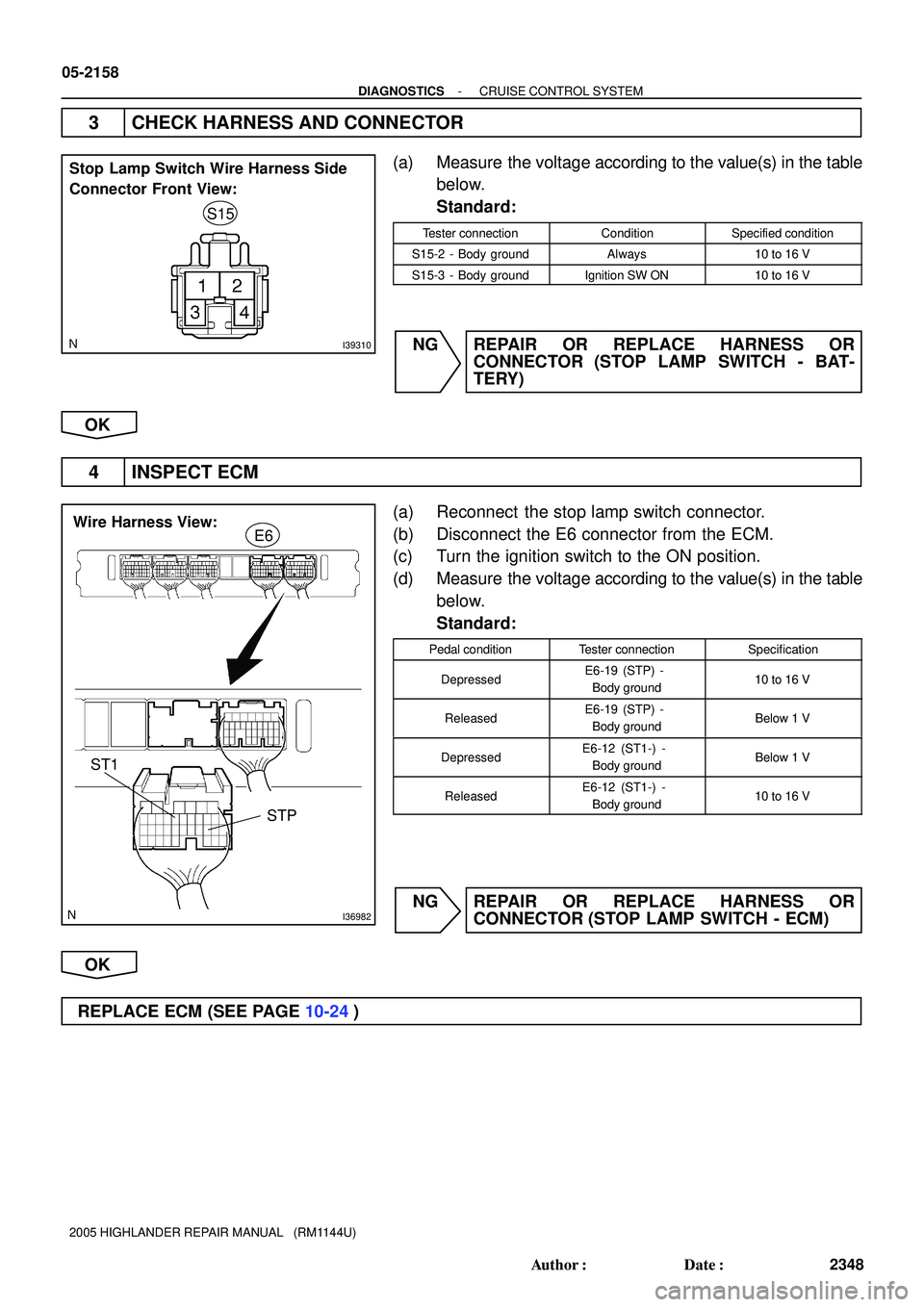

Page 1946 of 2572

I39310
Stop Lamp Switch Wire Harness Side
Connector Front View:
S15
I36982
Wire Harness View:
E6
ST1
STP
05-2158
- DIAGNOSTICSCRUISE CONTROL SYSTEM
2348 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3 CHECK HARNESS AND CONNECTOR
(a) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
S15-2 - Body groundAlways10 to 16 V
S15-3 - Body groundIgnition SW ON10 to 16 V
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR (STOP LAMP SWITCH - BAT-
TERY)
OK
4 INSPECT ECM
(a) Reconnect the stop lamp switch connector.
(b) Disconnect the E6 connector from the ECM.
(c) Turn the ignition switch to the ON position.
(d) Measure the voltage according to the value(s) in the table
below.
Standard:
Pedal conditionTester connectionSpecification
DepressedE6-19 (STP) -
Body ground10 to 16 V
ReleasedE6-19 (STP) -
Body groundBelow 1 V
DepressedE6-12 (ST1-) -
Body groundBelow 1 V
ReleasedE6-12 (ST1-) -
Body ground10 to 16 V
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR (STOP LAMP SWITCH - ECM)
OK
REPLACE ECM (SEE PAGE 10-24)
Page 1947 of 2572
- DIAGNOSTICSCRUISE CONTROL SYSTEM
05-2159
2349 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0607/54 INPUT SIGNAL CIRCUIT MALFUNCTION
CIRCUIT DESCRIPTION
This DTC indicates the internal abnormalities of the ECM.
DTC No.Detection ItemTrouble Area
P0607/54
The ECM has a supervisory CPU and a control ECU inside.
When each input STP signal is different for 0.15 sec. or more,
this trouble code is output.
This trouble code is output after 0.4 sec. has passed from the
time the cruise cancel input signal (STP input) is input into the
ECM.
ECM
HINT:
The ECM receives signals from each sensor to control all the functions of the cruise control with the micro-
computer.
When a trouble code is detected, fail-safe remains on until the ignition switch is turned off.
INSPECTION PROCEDURE
1 REPLACE ECM (SEE PAGE 10-24)
05B34-05
Page 1948 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual 05-928- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
111 8 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0710 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº C TOYOTA HIGHLANDER 2001 Service Repair Manual 05-928- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
111 8 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0710 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº C](/manual-img/14/57457/w960_57457-1947.png)
05-928- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
111 8 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0710 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº CIRCUIT
DTC P0712 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº CIRCUIT LOW INPUT
DTC P0713 TRANSMISSION FLUID TEMPERATURE
SENSOR ºAº CIRCUIT HIGH INPUT
CIRCUIT DESCRIPTION
The ATF (Automatic Transmission Fluid) temperature sensor converts the fluid temperature into a resistance
value which is input into the ECM.
The ECM applies a voltage to the temperature sensor through ECM terminal THO1 (THO).
The sensor resistance changes with the transmission fluid temperature. As the temperature becomes high-
er, the sensor resistance decreases.
One terminal of the sensor is grounded so that the sensor resistance decreases and the voltage goes down
as the temperature becomes higher.
The ECM calculates the fluid temperature based on the voltage signal.
DTC No.DTC Detection ConditionTrouble Area
P0710
(a) and (b) is detected momentary within 0.5 sec. when neither
P0712 or P0713 is not detected (1-trip detection logic)
(a) ATF temperature sensor resistance is less than 79 W.
(b) ATF temperature sensor resistance is more than 156 kW.
HINT:
Within 0.5 sec., the malfunction switches from (a) to (b) or from
(b) to (a)
Open or short in ATF temperature sensor circuit
Transmission wire (ATF temperature sensor)
ECM
P0712ATF temperature sensor resistance is less than 79 W for 0.5
sec. or more (1-trip detection logic)Short in ATF temperature sensor circuit
Transmission wire (ATF temperature sensor)
ECM
P0713
ATF temperature sensor resistance is more than 156 kW when
15 minutes or more after the engine start
DTC is detected for 0.5 sec. or more (1-trip detection logic)Open in ATF temperature sensor circuit
Transmission wire (ATF temperature sensor)
ECM
MONITOR DESCRIPTION
The automatic transmission fluid (ATF) temperature sensor converts ATF temperature to an electrical resis-
tance value. Based on the resistance, the ECM determines the ATF temperature, and the ECM detects an
opens or shorts in the ATF temperature circuit. If the resistance value of the ATF temperature is less than
79
W*1 or more than 156 kW*2, the ECM interprets this as a fault in the ATF sensor or wiring. The ECM will
turn on the MIL and store the DTC.
*1: 150C (302F) or more is indicated regardless of the actual ATF temperature.
*2: -40C (-40F) is indicated regardless of the actual ATF temperature.
HINT:
The ATF temperature can be checked on the OBD II scan tool or hand-held tester display.
0527N-31
Page 1949 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-929
111 9 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
MONITOR STRATEGY
Related DTCs
P0710: ATF temperature se TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-929
111 9 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
MONITOR STRATEGY
Related DTCs
P0710: ATF temperature se](/manual-img/14/57457/w960_57457-1948.png)
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-929
111 9 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
MONITOR STRATEGY
Related DTCs
P0710: ATF temperature sensor/Range check (Fluttering)
P0712: ATF temperature sensor/Range check (Low resistance)
P0713: ATF temperature sensor/Range check (High resistance)
Required sensors/ComponentsATF temperature sensor (TFT sensor)
Frequency of operationContinuous
Duration0.5 sec.
MIL operationImmediate
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
P0710: Range check (Fluttering)
P0712: Range check (Low resistance)
The monitor will run whenever these DTCs are not present.See page 05-895
The typical enabling condition is not available.-
P0713: Range check (High resistance)
The monitor will run whenever this DTC is not present.See page 05-895
Time after engine start15 min. or more
TYPICAL MALFUNCTION THRESHOLDS
P0710: Range check (Fluttering)
TFT (transmission fluid temperature) sensor
Less than 79 W
or
More than 156 kW
P0712: Range check (Low resistance)
TFT (transmission fluid temperature) sensorLess than 79 W
P0713: Range check (High resistance)
TFT (transmission fluid temperature) sensorMore than 156 kW
COMPONENT OPERATING RANGE
TFT (transmission fluid temperature)Atmospheric temperature - approx. 130C (266F)

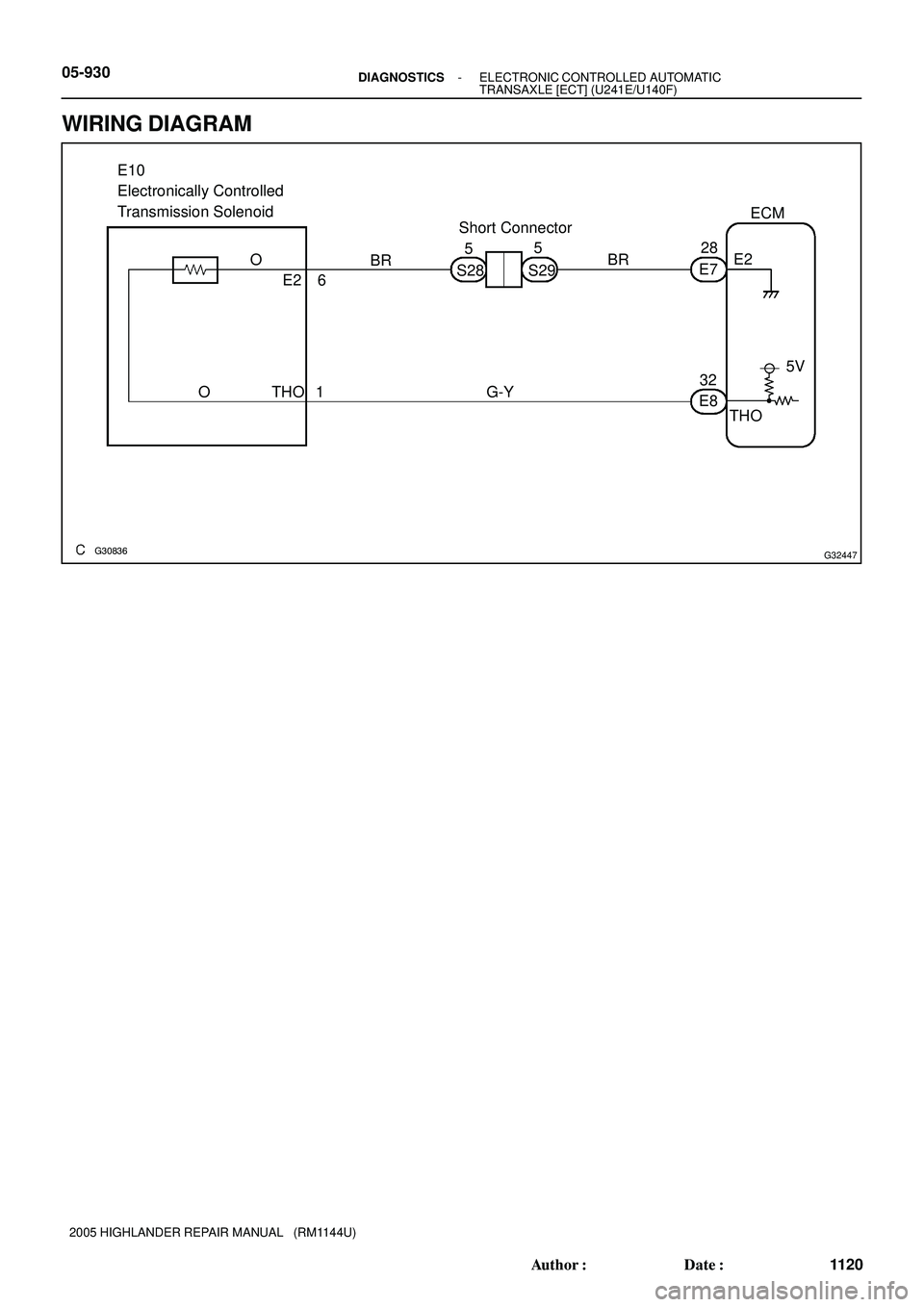

Page 1950 of 2572
G30836G32447
THOE2
BR
E828
32 6 E10
Electronically Controlled
Transmission Solenoid
E7 O
1 O G-YECM
E2
THO5V BR
S28 S2955 Short Connector 05-930
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1120 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
WIRING DIAGRAM
Page 1951 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual C54864
THO
E2 Transmission Wire Side:
(Connector Front View):
E10
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-931
1121 Author: Date:
2005 HIGHLANDER REPAIR MANUAL TOYOTA HIGHLANDER 2001 Service Repair Manual C54864
THO
E2 Transmission Wire Side:
(Connector Front View):
E10
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-931
1121 Author: Date:
2005 HIGHLANDER REPAIR MANUAL](/manual-img/14/57457/w960_57457-1950.png)
C54864
THO
E2 Transmission Wire Side:
(Connector Front View):
E10
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-931
1121 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
According to the DATA LIST displayed by the OBD II scan tool or hand-held tester, you can read the value
of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of
troubleshooting is one method to shorten labor time.
(a) Warm up the engine.
(b) Turn the ignition switch off.
(c) Connect the OBD II scan tool or hand-held tester to the DLC3.
(d) Turn the ignition switch to the ON position.
(e) Push the ºONº button of the OBD II scan tool or the hand-held tester.
(f) When you use hand-held tester:
Select the item ºDIAGNOSIS/ENHANCED OBD II/DATA LISTº.
(g) According to the display on tester, read the ºDATA LISTº.
ItemMeasurement Item/
Range (display)Normal Condition
AT FLUID TEMP
ATF Temp. Sensor Value/
min.: -40C (-40F)
max.: 215C (419F)
Approx. 80C (176F) (After Stall Test)
HINT:
When DTC P0712 is output and OBD II scan tool or hand-held tester output is 150C (302F), there is a
short circuit.
When DTC P0713 is output and OBD II scan tool or hand-held tester output is -40C (-40F), there is an
open circuit.
Measure the resistance between terminal THO1 (THO) and body ground.
Temperature DisplayedMalfunction
-40°C (-40°F)Open circuit
150°C (302°F) or moreShort circuit
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
1 (THO) - 6 (E2)79 W to 156 kW
(c) Measure the resistance according to the value(s) in the
table below.
Standard (Check for short):
Tester ConnectionSpecified Condition
1 (THO) - Body ground10 kW or higher
6 (E2) - Body ground=
NG REPAIR OR REPLACE TRANSMISSION WIRE
(SEE PAGE 40-34)
OK

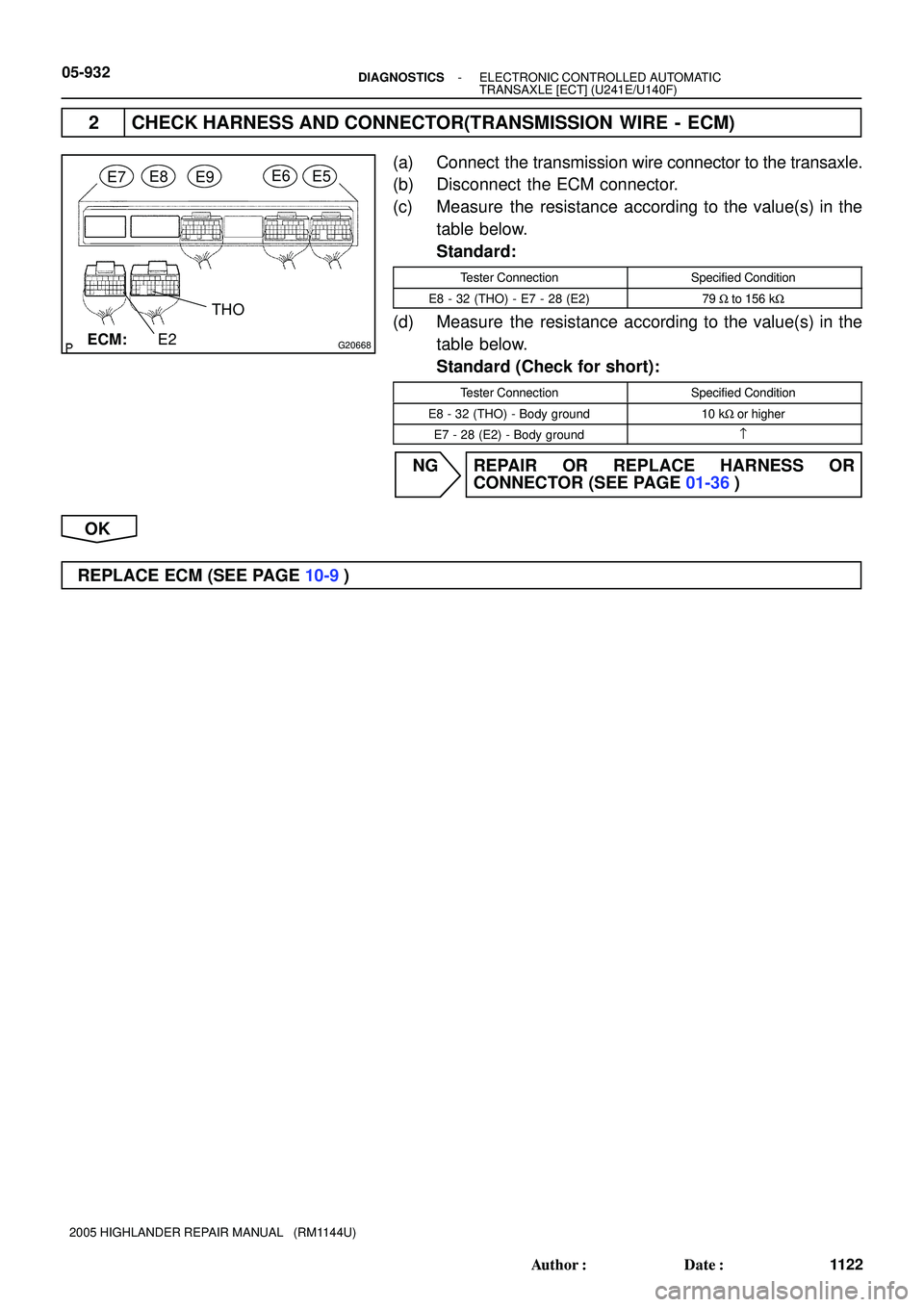

Page 1952 of 2572
G20668
THO
E2
E7E8E9E6E5
ECM:
05-932- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1122 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE - ECM)
(a) Connect the transmission wire connector to the transaxle.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
E8 - 32 (THO) - E7 - 28 (E2)79 W to 156 kW
(d) Measure the resistance according to the value(s) in the
table below.
Standard (Check for short):
Tester ConnectionSpecified Condition
E8 - 32 (THO) - Body ground10 kW or higher
E7 - 28 (E2) - Body ground=
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR (SEE PAGE 01-36)
OK
REPLACE ECM (SEE PAGE 10-9)
