Page 2129 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16757 F16757A REMOVALBP-25 FRONT BODY PILLAR LOWER GUSSET (ASSY) REPLACEMENT

Page 2130 of 2572

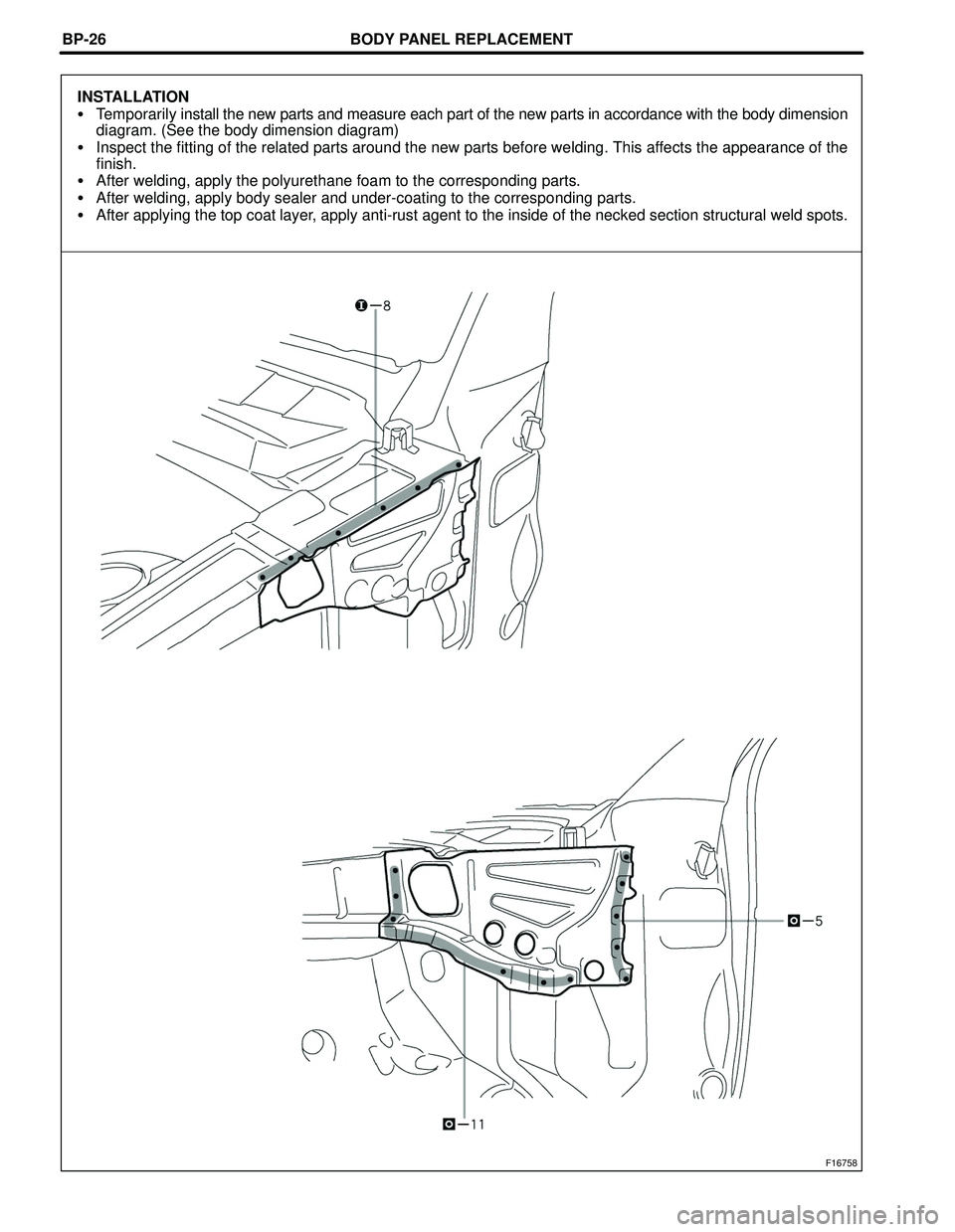

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16758 BP-26 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagra

Page 2131 of 2572

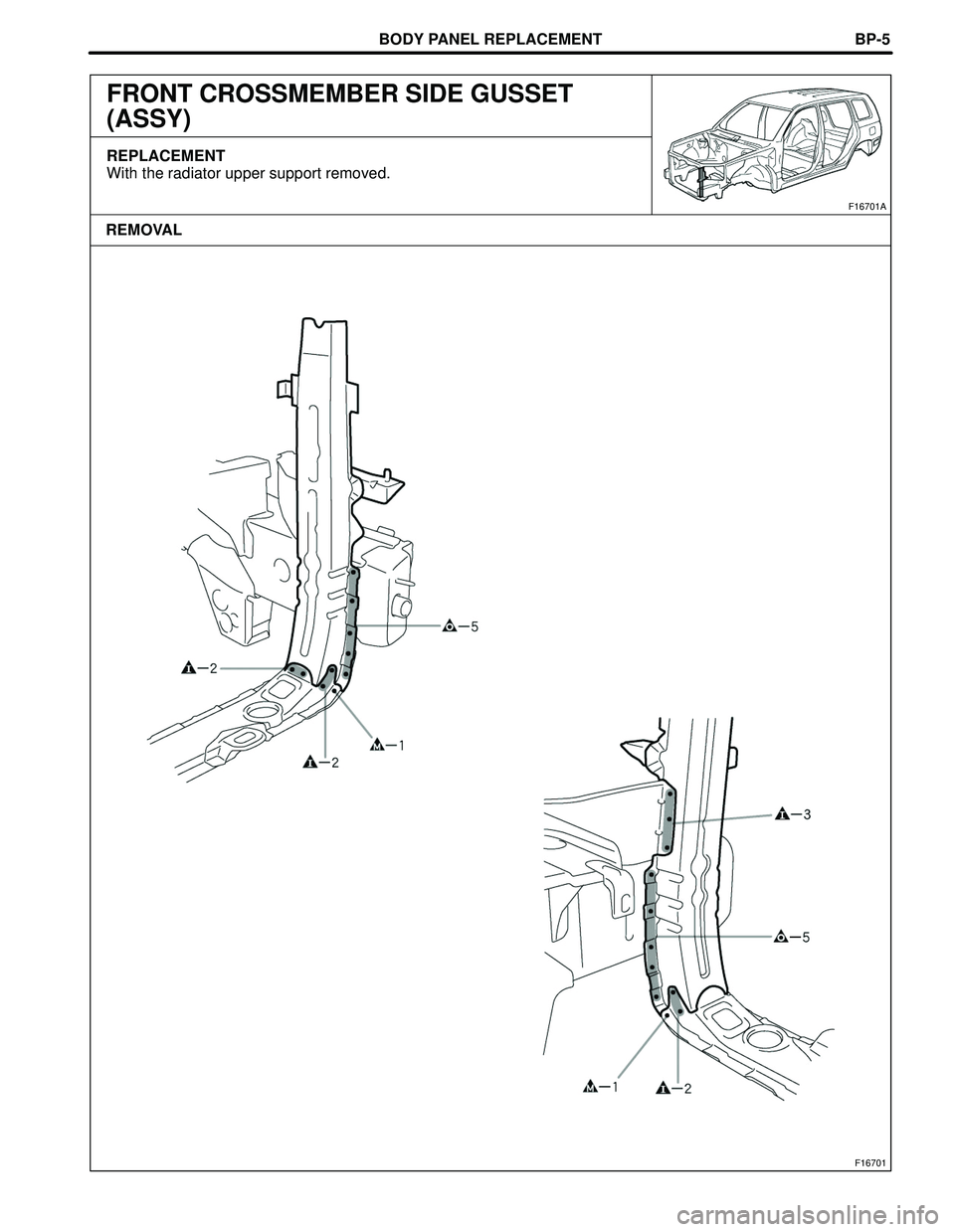

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16701 F16701A REMOVALBP-5 FRONT CROSSMEMBER SIDE GUSSET (ASSY) REPLACEMENT With the radiator upper support removed.

Page 2132 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16702 101 mm (3.98 in.) 200 mm (7.87 in.) POINT 1*1: Reference value PART NAME [A] Radiator Support Extension[B] Front Bumper Support BP-6 INSTALLATION Temporarily install the

Page 2133 of 2572

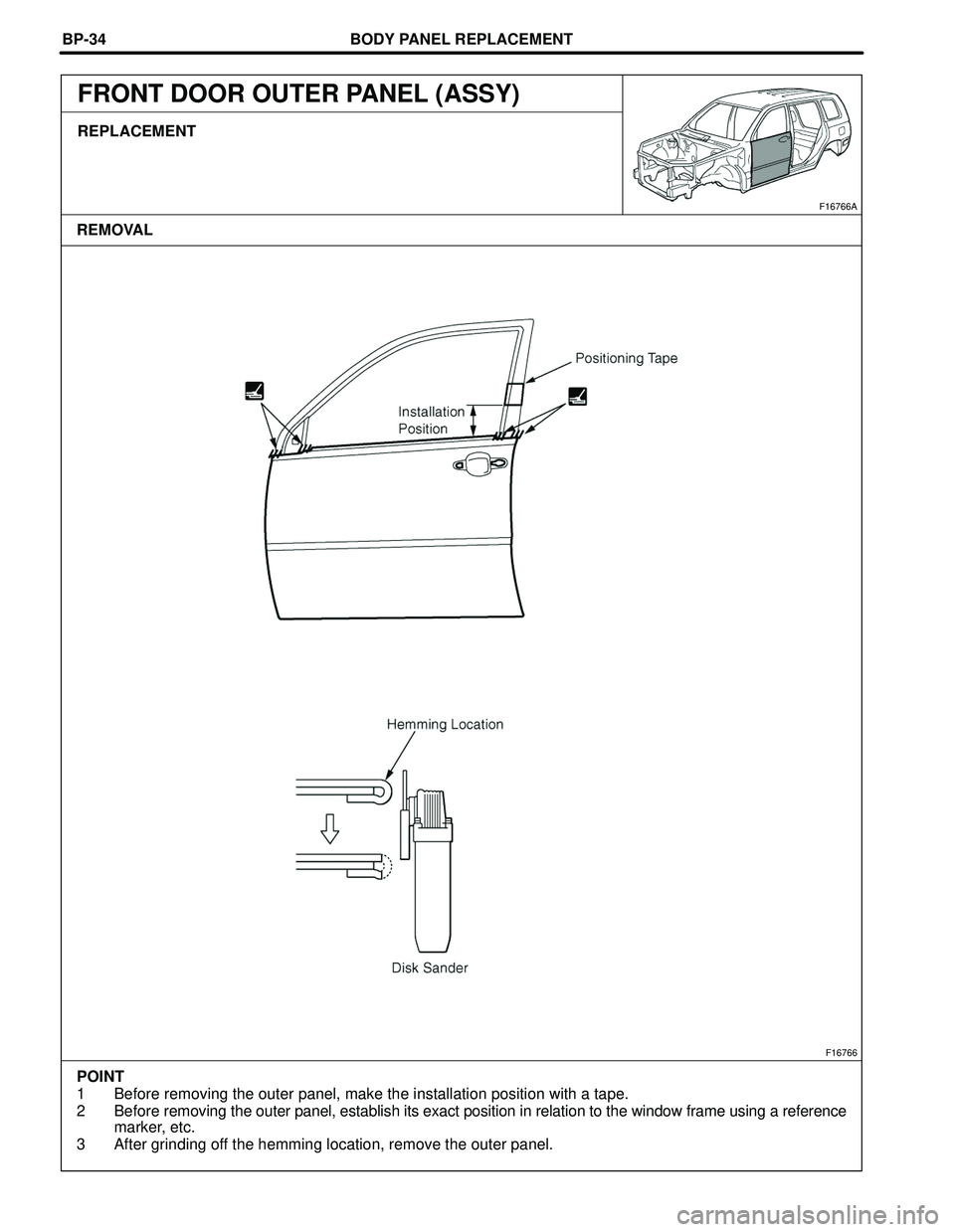

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16766 POINT 1 Before removing the outer panel, make the installation position with a tape. 2 Before removing the outer panel, establish its exact position in relation to the wi

Page 2134 of 2572

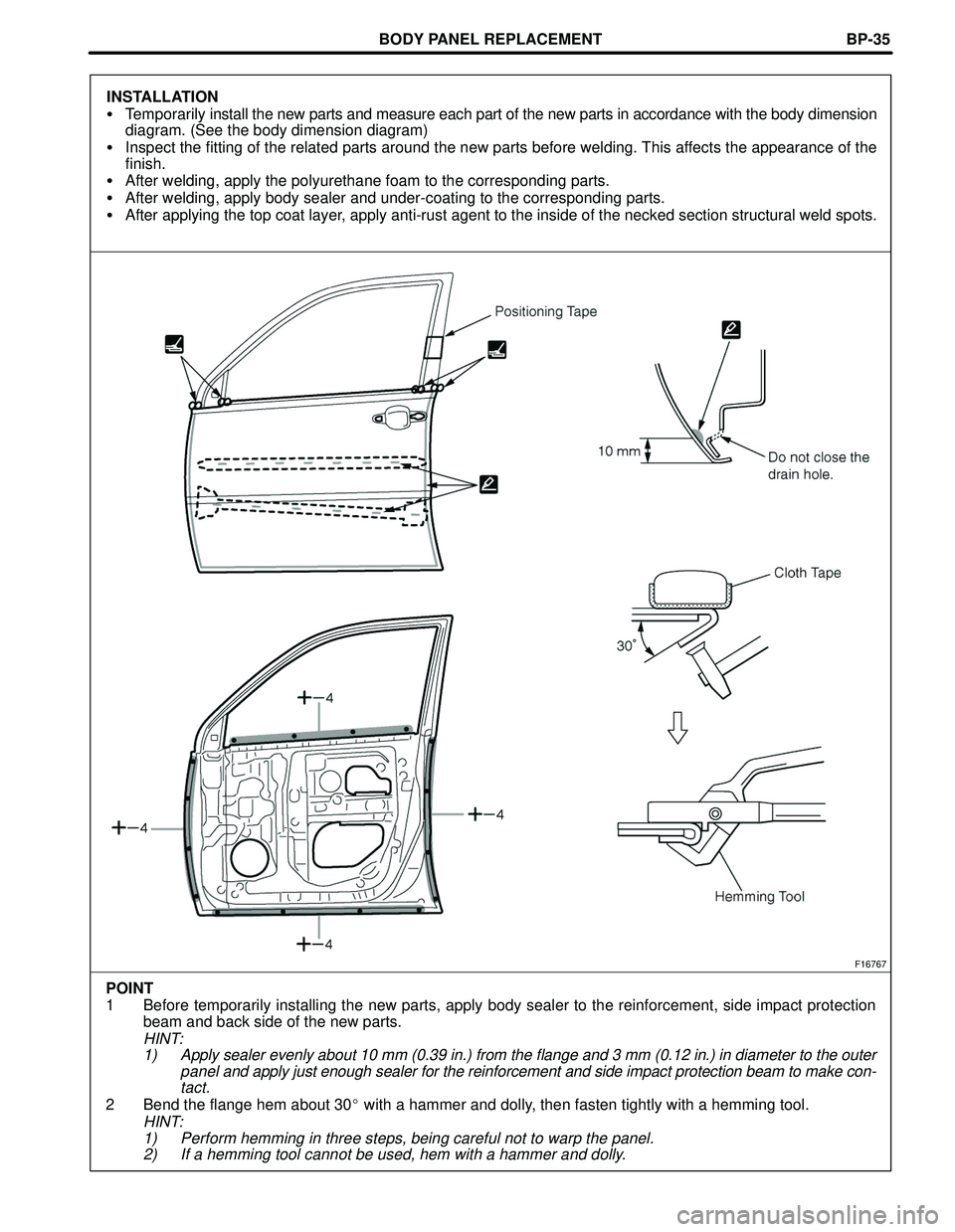

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16767 POINT 1 Before temporarily installing the new parts, apply body sealer to the reinforcement, side impact protection beam and back side of the new parts. HINT: 1) Apply se

Page 2135 of 2572

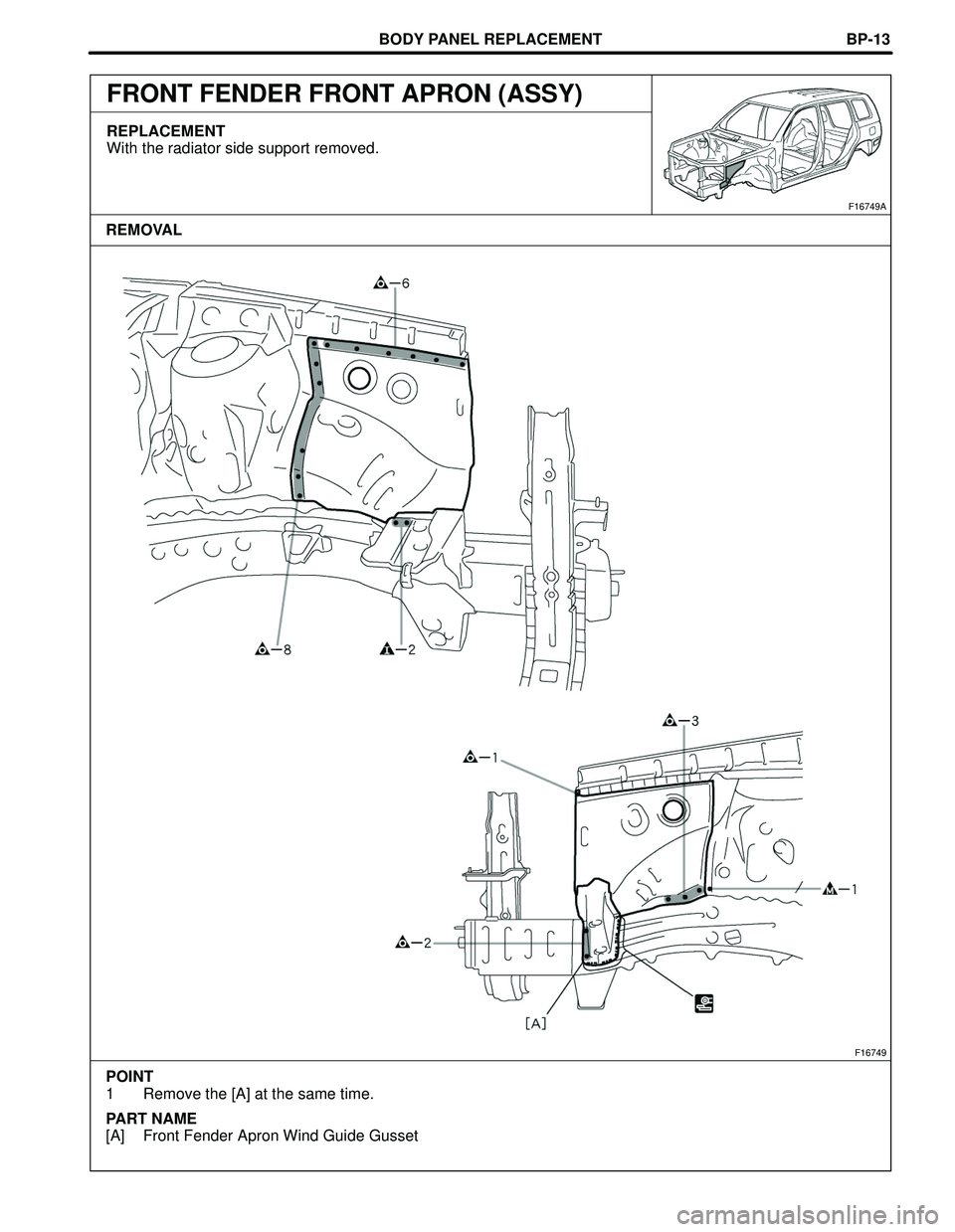

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16749 POINT 1 Remove the [A] at the same time. PART NAME [A] Front Fender Apron Wind Guide Gusset F16749A REMOVALBP-13 FRONT FENDER FRONT APRON (ASSY) REPLACEMENT With the radi

Page 2136 of 2572

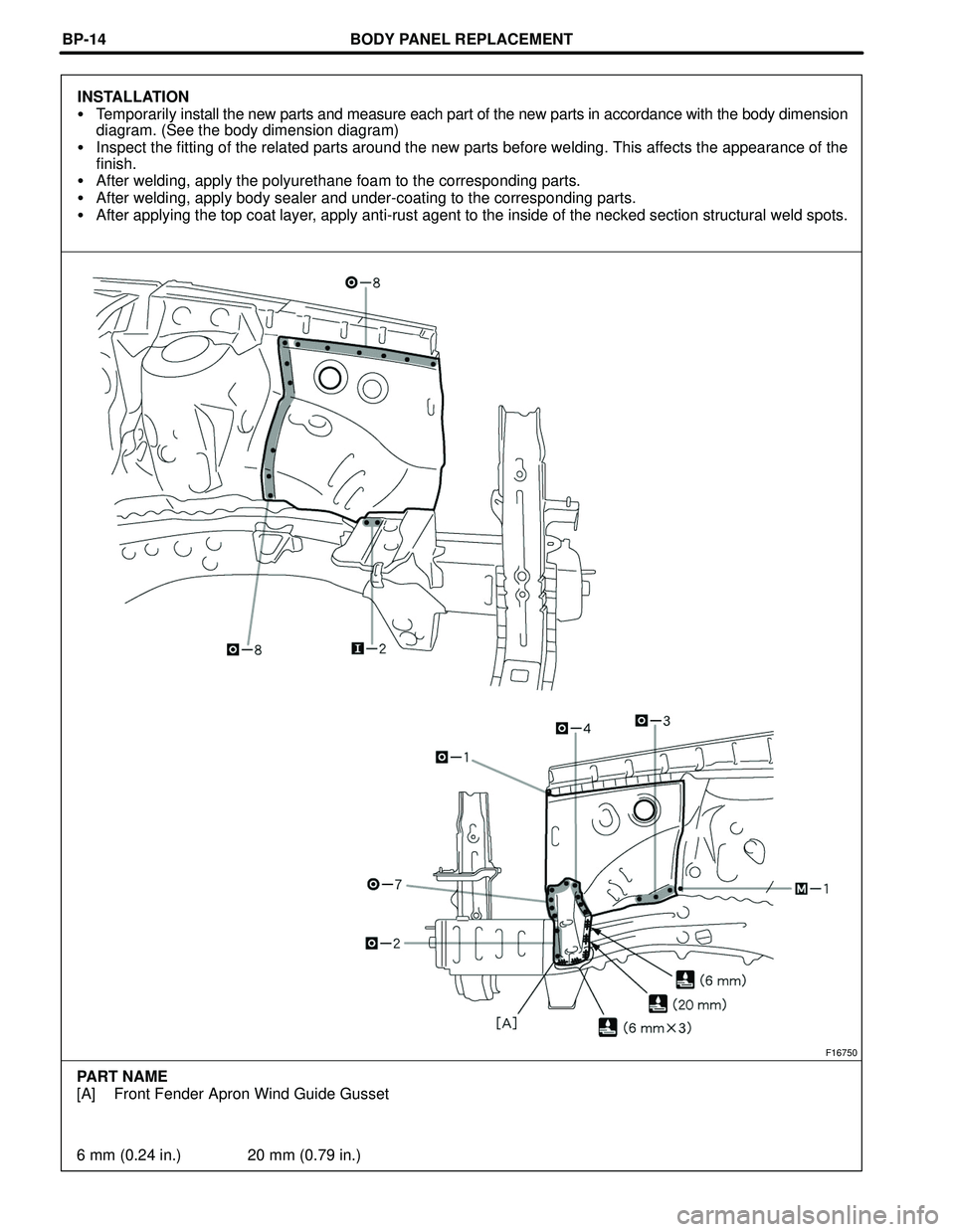

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16750 6 mm (0.24 in.) 20 mm (0.79 in.) PART NAME [A] Front Fender Apron Wind Guide Gusset BP-14 INSTALLATION Temporarily install the new parts and measure each part of the new
