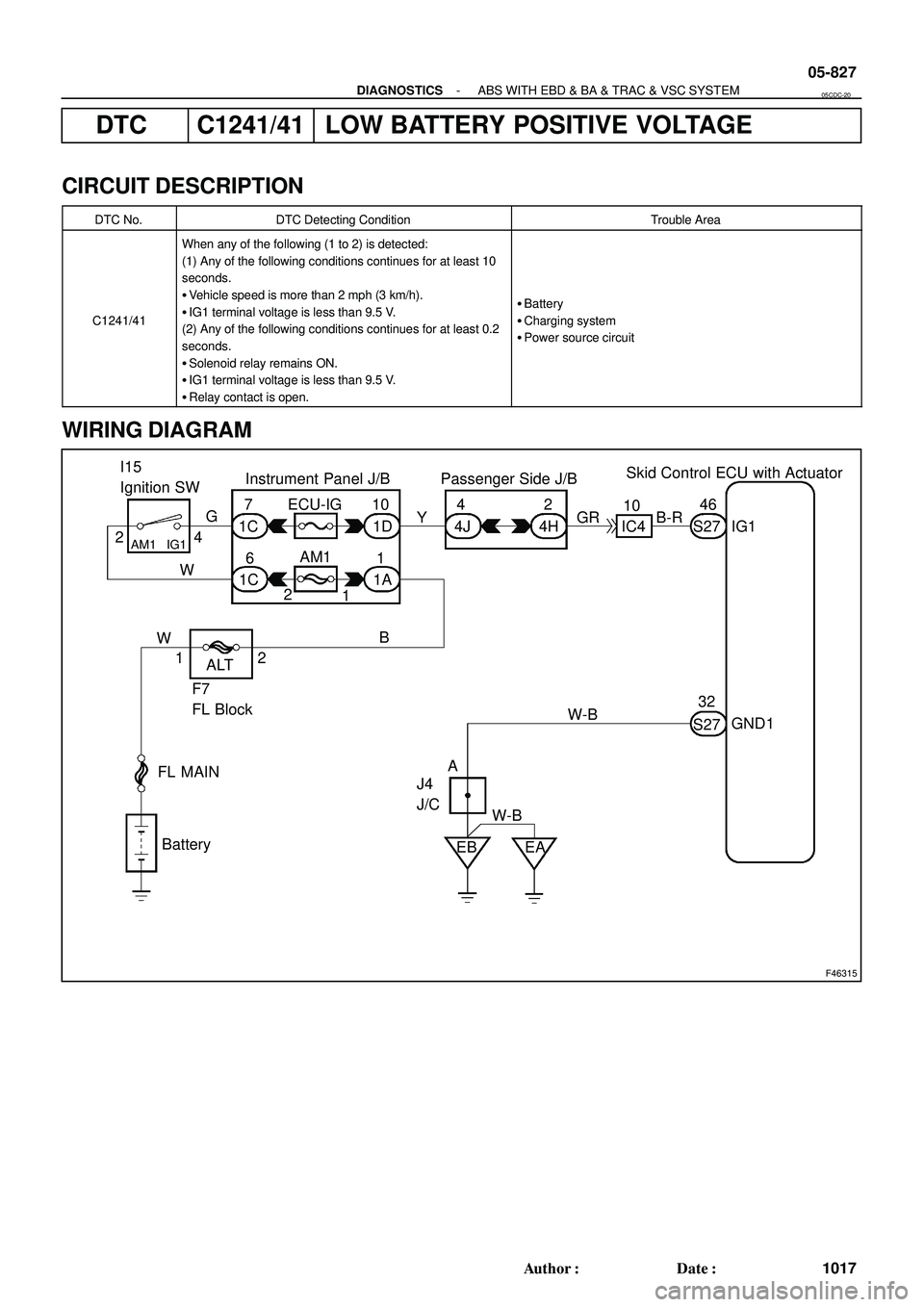

TOYOTA HIGHLANDER 2001 Service Repair Manual F46315 I15 Ignition SWPassenger Side J/B Instrument Panel J/B ECU-IG AM1 AM1 IG1 FL MAIN BatteryW W1A 1C 1D 1C6 710 1 1 24H 4J42 S27 Skid Control ECU with Actuator IC41046 32 S27 W-B EB F7 FL BlockALT

Page 810 of 2572

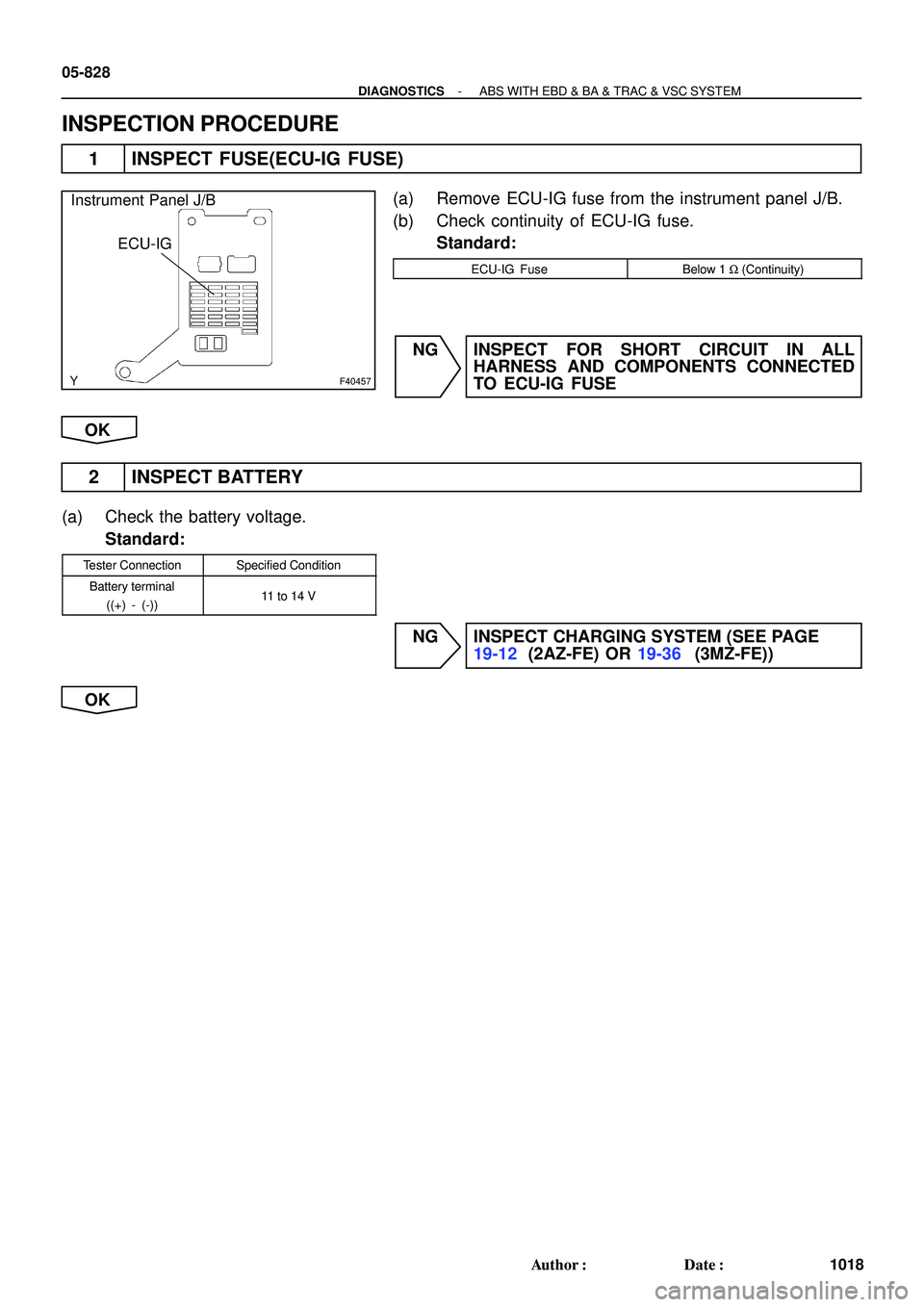

TOYOTA HIGHLANDER 2001 Service Repair Manual F40457 ECU-IG Instrument Panel J/B 05-828 - DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM 1018 Author: Date: INSPECTION PROCEDURE 1 INSPECT FUSE(ECU-IG FUSE) (a) Remove ECU-IG fuse from the instr

Page 811 of 2572

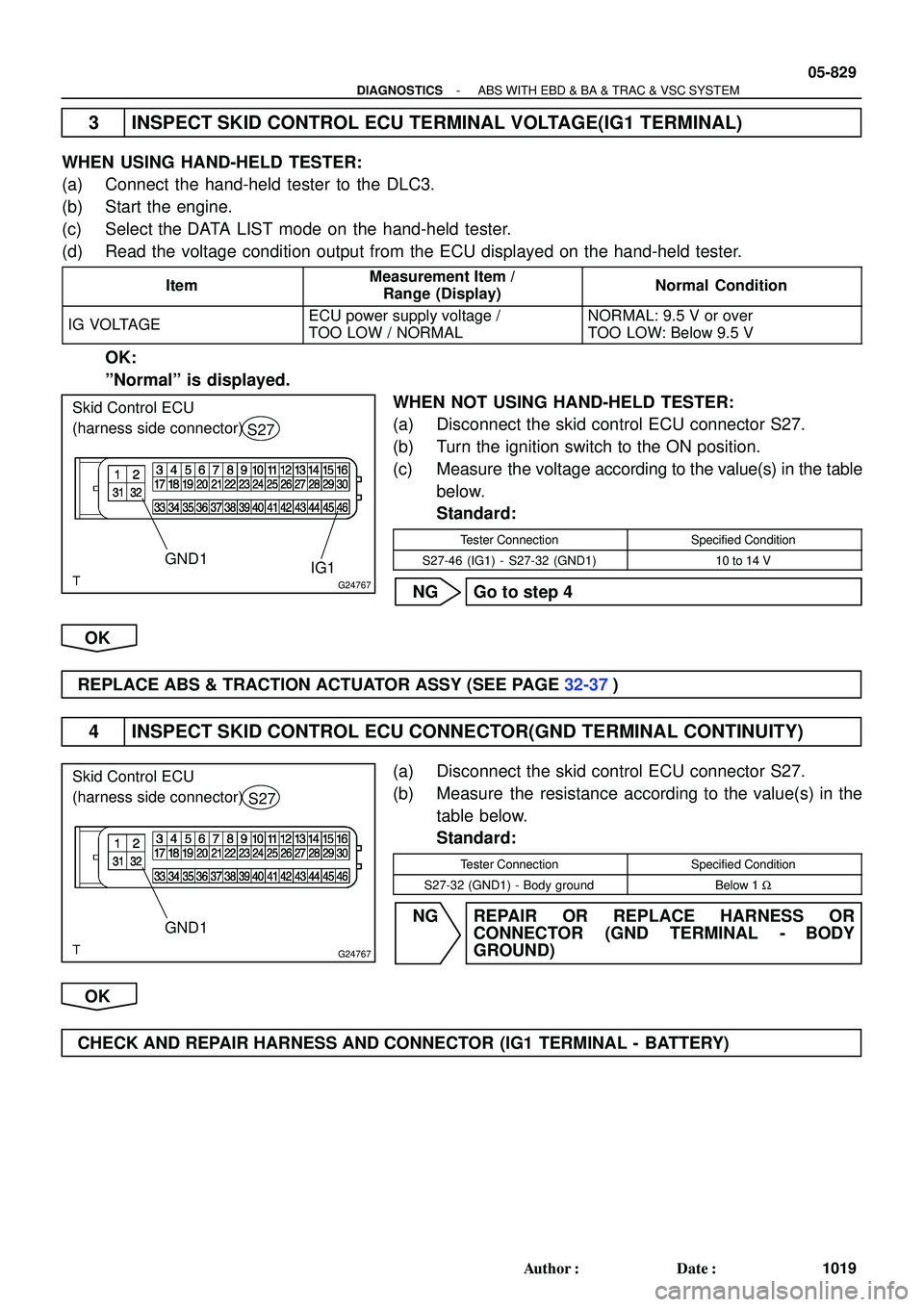

TOYOTA HIGHLANDER 2001 Service Repair Manual G24767 GND1IG1 Skid Control ECU (harness side connector) S27 G24767 GND1 Skid Control ECU (harness side connector) S27 - DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM 05-829 1019 Author: Date:

Page 812 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-830 - DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM 1020 Author: Date: DTC C1246/46 MALFUNCTION IN MASTER CYLINDER PRESSURE SENSOR CIRCUIT DESCRIPTION Master cylinder pressure sensor is connec

Page 813 of 2572

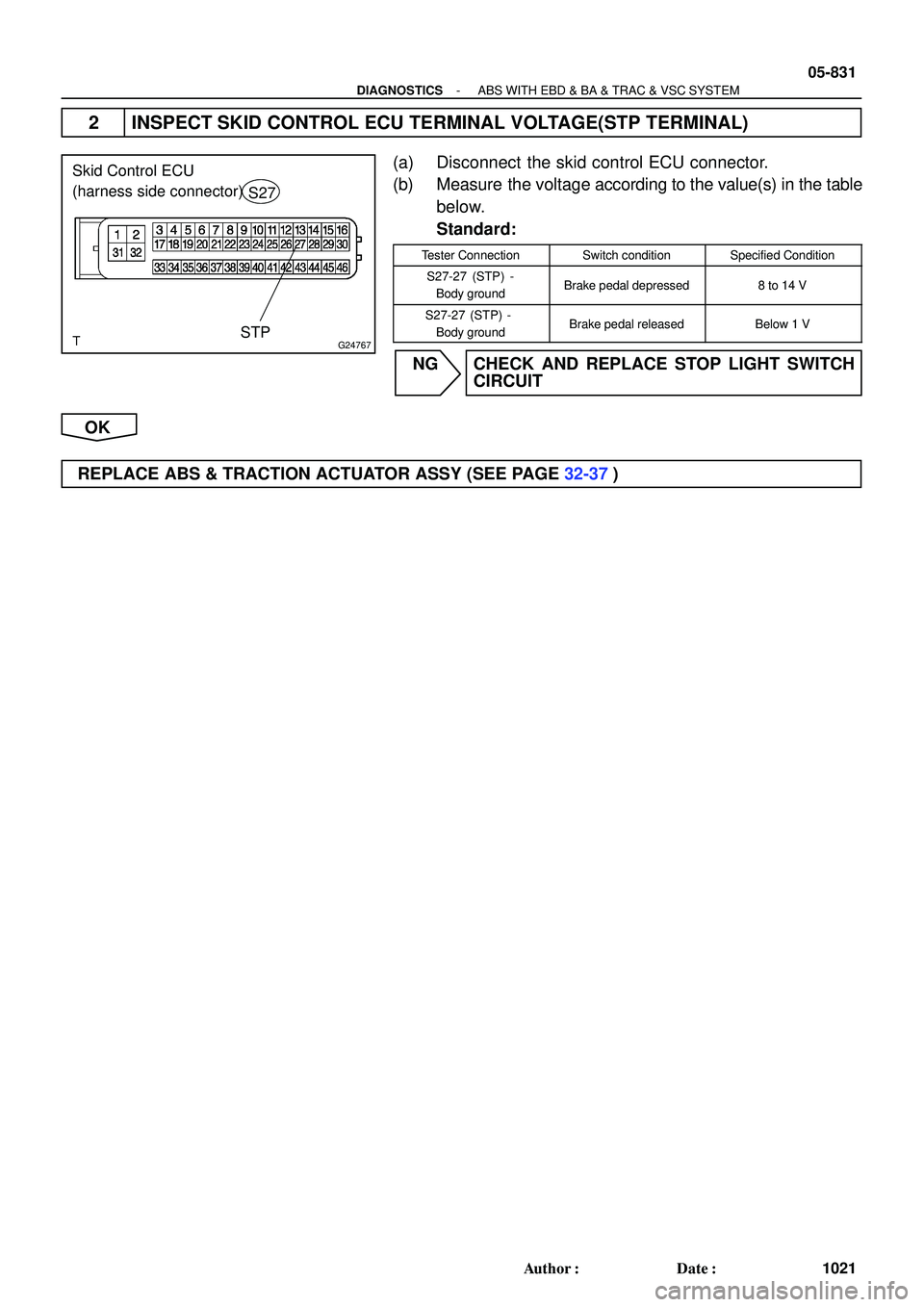

TOYOTA HIGHLANDER 2001 Service Repair Manual G24767STP Skid Control ECU (harness side connector) S27 - DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM 05-831 1021 Author: Date: 2 INSPECT SKID CONTROL ECU TERMINAL VOLTAGE(STP TERMINAL) (a) Di

Page 814 of 2572

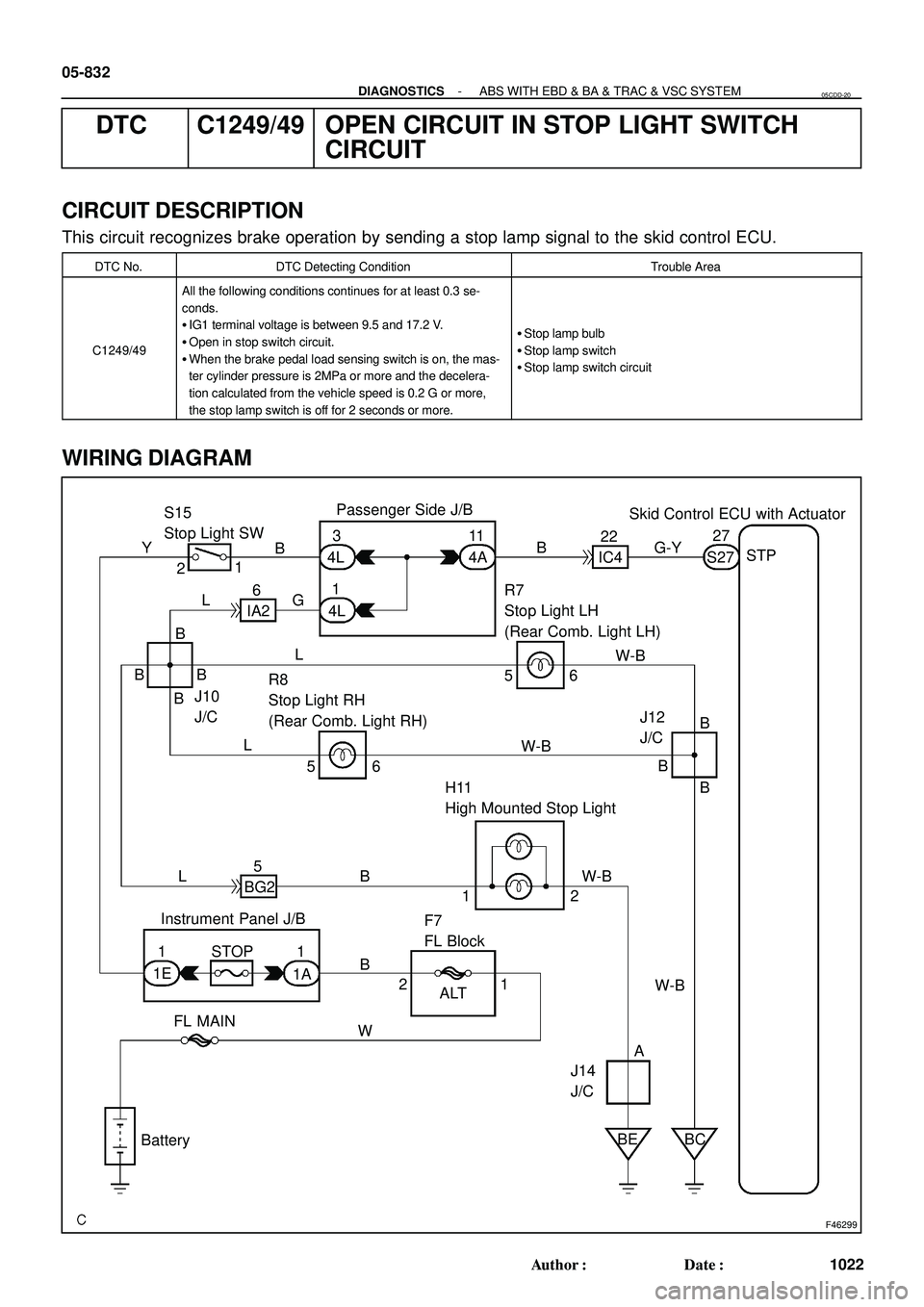

TOYOTA HIGHLANDER 2001 Service Repair Manual F46299 S15 Stop Light SWPassenger Side J/B Skid Control ECU with Actuator R7 Stop Light LH (Rear Comb. Light LH) R8 Stop Light RH (Rear Comb. Light RH) H11 High Mounted Stop Light Instrument Panel J/B

Page 815 of 2572

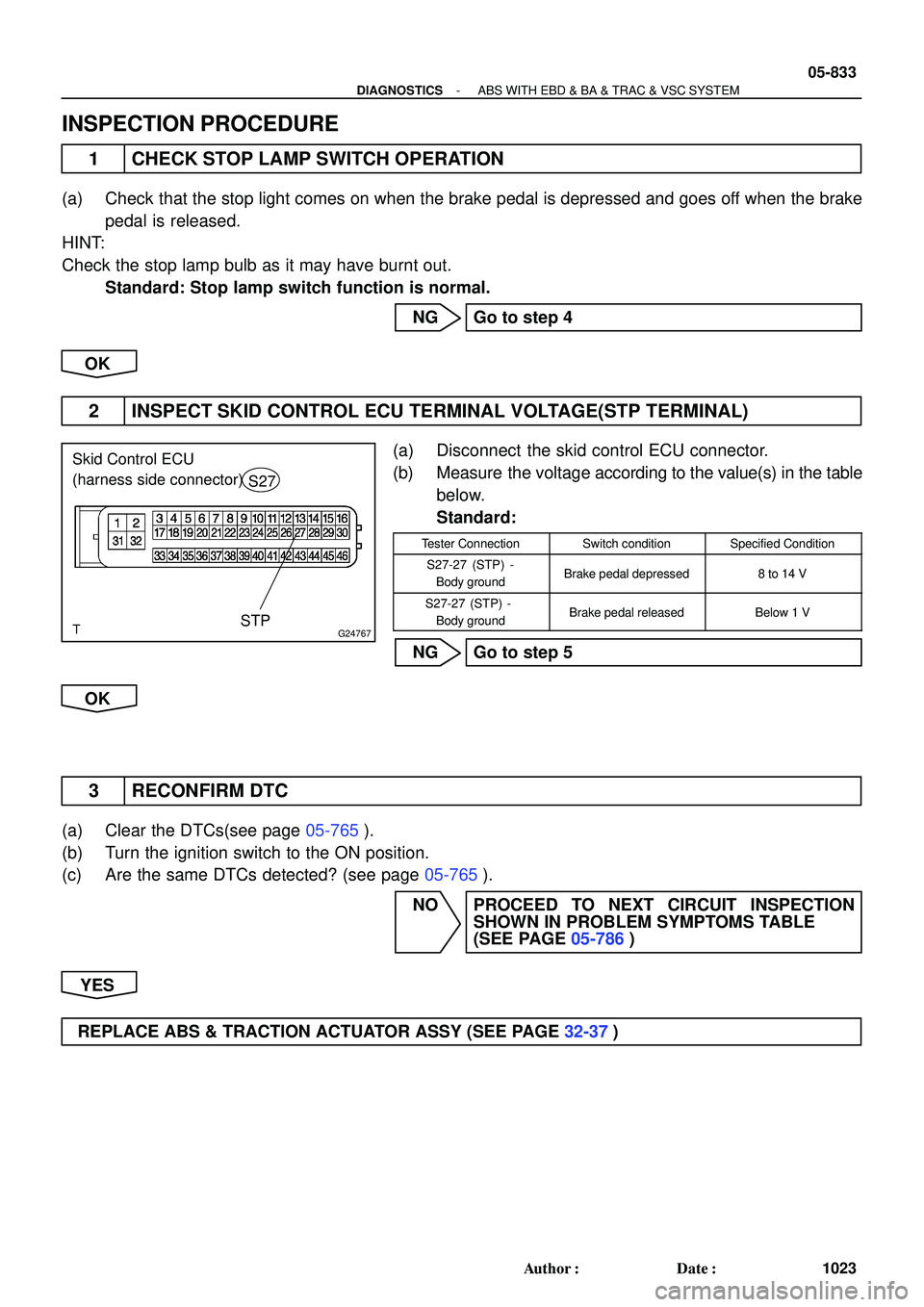

TOYOTA HIGHLANDER 2001 Service Repair Manual G24767STP Skid Control ECU (harness side connector) S27 - DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM 05-833 1023 Author: Date: INSPECTION PROCEDURE 1 CHECK STOP LAMP SWITCH OPERATION (a) Chec

Page 816 of 2572

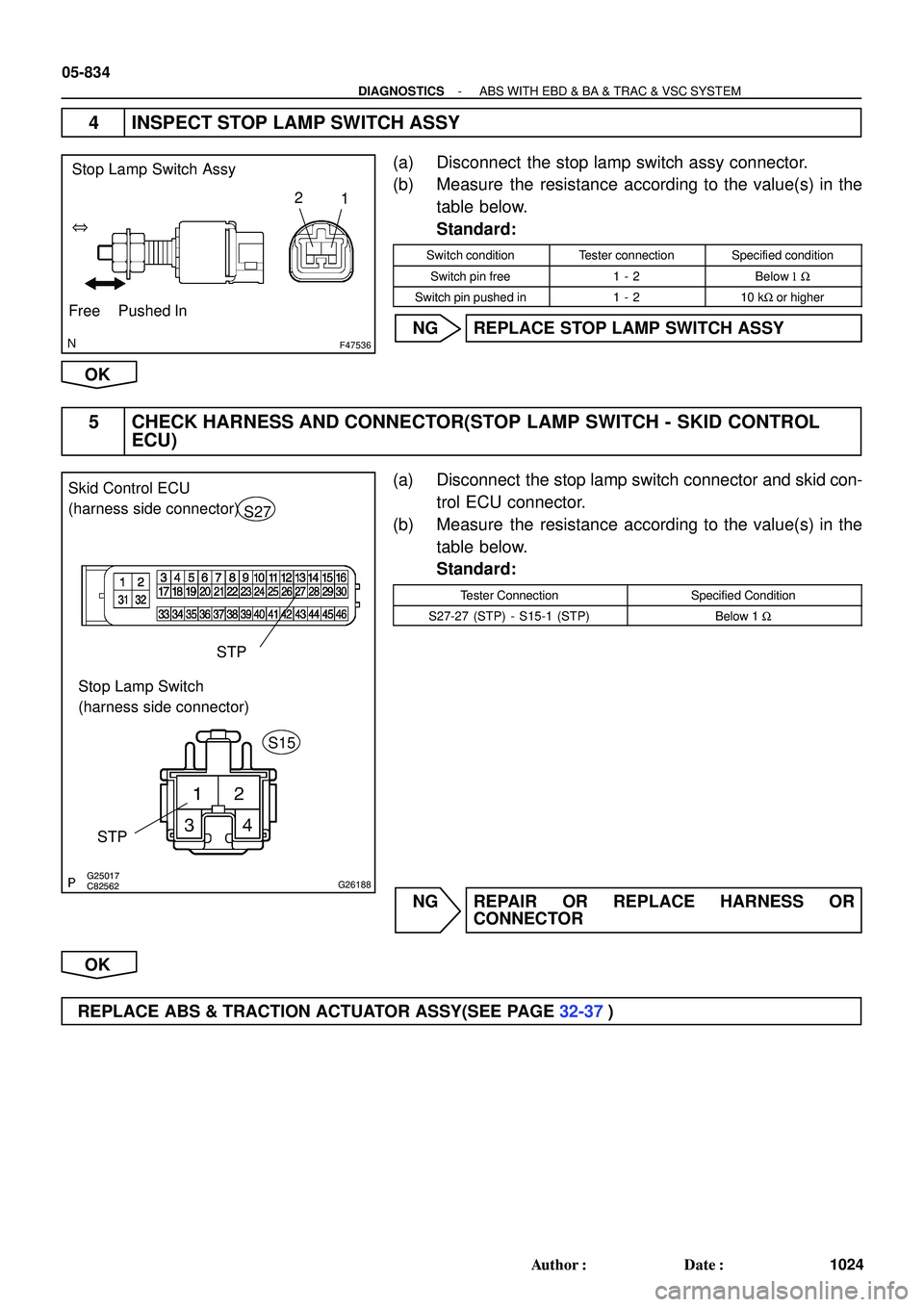

TOYOTA HIGHLANDER 2001 Service Repair Manual F47536 Free Pushed In1 2 Stop Lamp Switch Assy @ C82562G25017G26188 STP Skid Control ECU (harness side connector) S27 Stop Lamp Switch (harness side connector) S15 STP 05-834 - DIAGNOSTICSABS WITH E
