TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
367
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

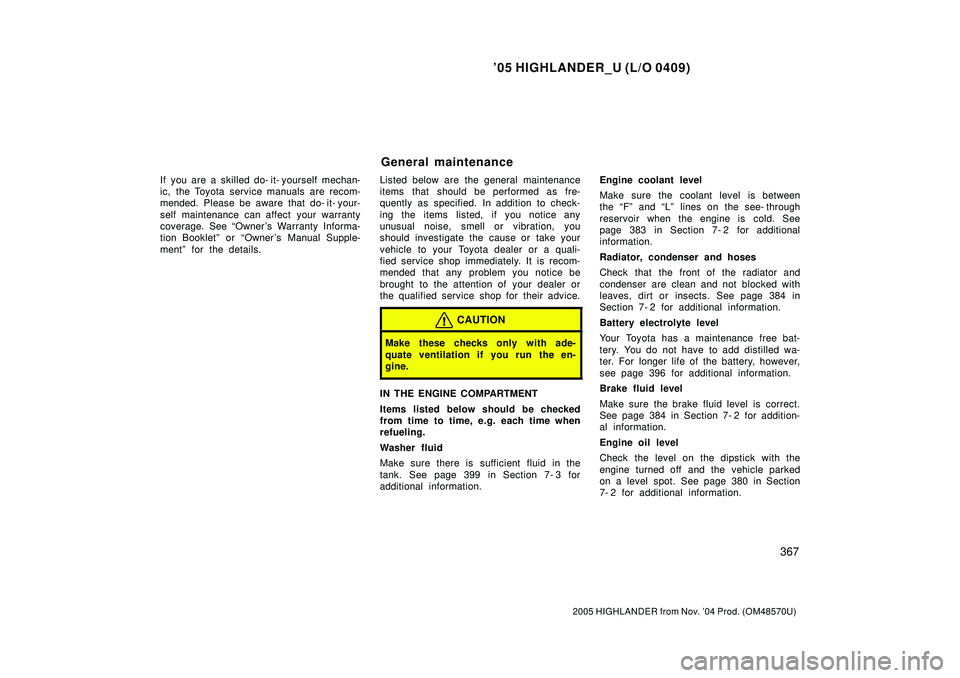

If you are a skilled do- it- yourself mechan-
ic, the Toyota service manuals are recom-
mended. Please be aware that do-

'05 HIGHLANDER_U (L/O 0409)
367
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
If you are a skilled do- it- yourself mechan-
ic, the Toyota service manuals are recom-
mended. Please be aware that do- it- your-
self maintenance can affect your warranty
coverage. See Owner 's Warranty Informa-
tion Bookletº or Owner 's Manual Supple-
mentº for the details.Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only with ade-
quate ventilation if you run the en-
gine.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 399 in Section 7- 3 for
additional information.Engine coolant level
Make sure the coolant level is between
the Fº and Lº lines on the see- through
reservoir when the engine is cold. See
page 383 in Section 7- 2 for additional
information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt or insects. See page 384 in
Section 7- 2 for additional information.
Battery electrolyte level
Your Toyota has a maintenance free bat-
tery. You do not have to add distilled wa-
ter. For longer life of the battery, however,
see page 396 for additional information.
Brake fluid level
Make sure the brake fluid level is correct.
See page 384 in Section 7- 2 for addition-
al information.
Engine oil level
Check the level on the dipstick with the
engine turned off and the vehicle parked
on a level spot. See page 380 in Section
7- 2 for additional information.
General maintenance

Page 98 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
368
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the HOTº or COLDº
range depe

'05 HIGHLANDER_U (L/O 0409)
368
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the HOTº or COLDº
range depending on the fluid temperature.
See page 385 in Section 7- 2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See Engine exhaust cautionsº on
page 295 in Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise.Seats
Check that all seat controls such as seat
adjusters, seatback recliner, etc. operate
smoothly and that all latches lock securely
in any position. Check that the head re-
straints move up and down smoothly and
that the locks hold securely in any latched
position. For folding- down rear seatbacks,
check that the latches lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied.Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission Parkº mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in Pº position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all side doors and back door
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.

Page 99 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
369
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

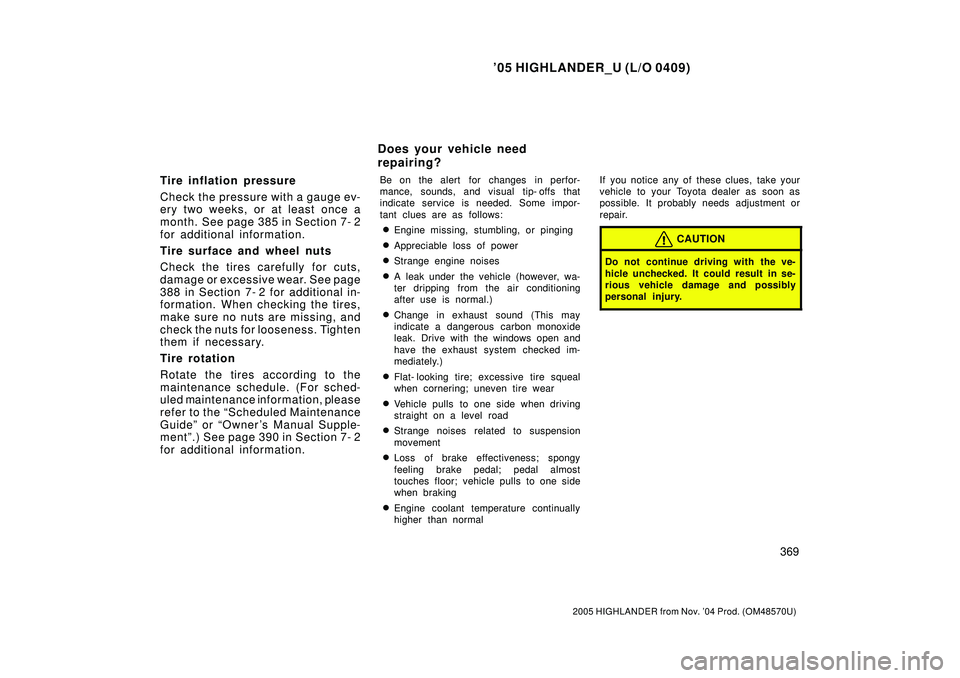

Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See page 385 in Sect

Page 100 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
370
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

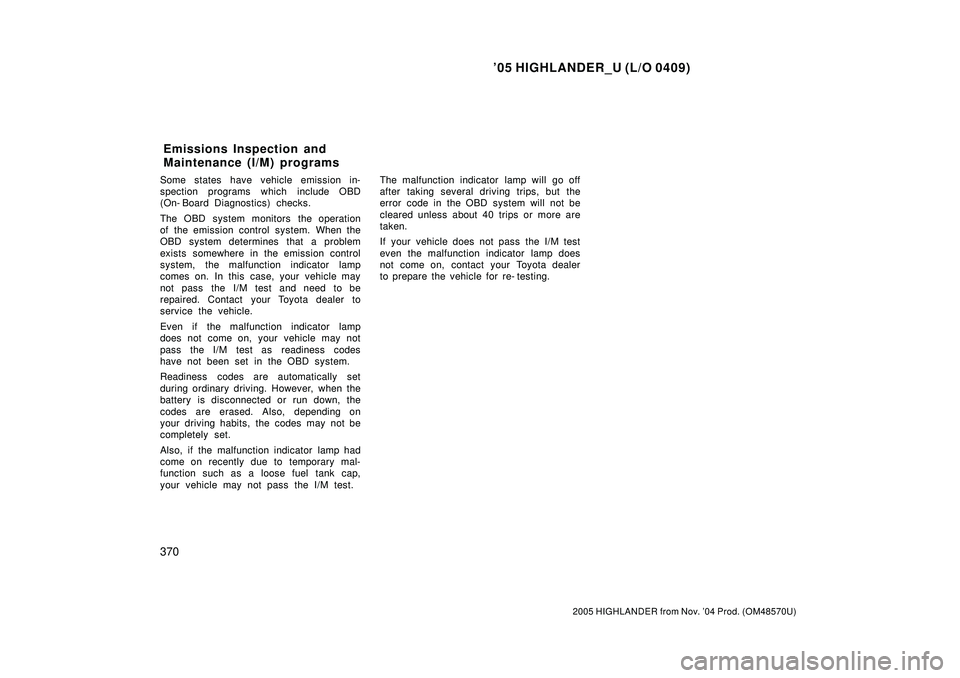

Some states have vehicle emission in-
spection programs which include OBD
(On- Board Diagnostics) checks.
The OBD system

Page 101 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
405
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

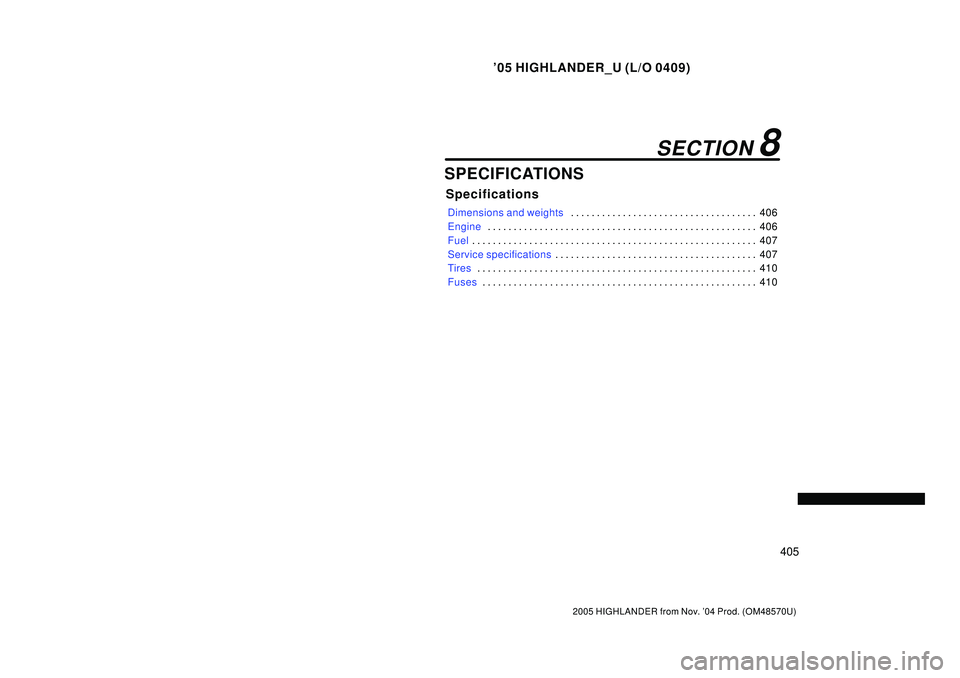

SPECIFICATIONS
Specifications
Dimensions and weights406 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 102 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
406
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

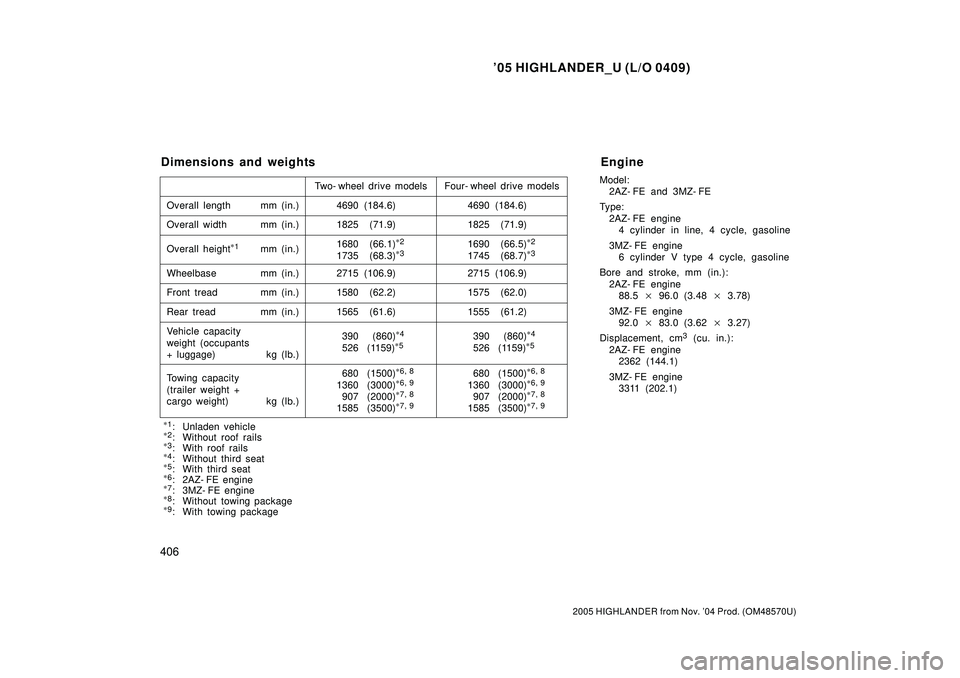

Model:
2AZ- FE and 3MZ- FE
Type:
2AZ- FE engine
4 cylinder in line, 4 cycle, gasoline
3MZ- FE engine
6 cylinder V type 4

Page 103 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
407
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Fuel type:
2AZ- FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
3MZ- FE engine
Unlead

Page 104 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
408
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

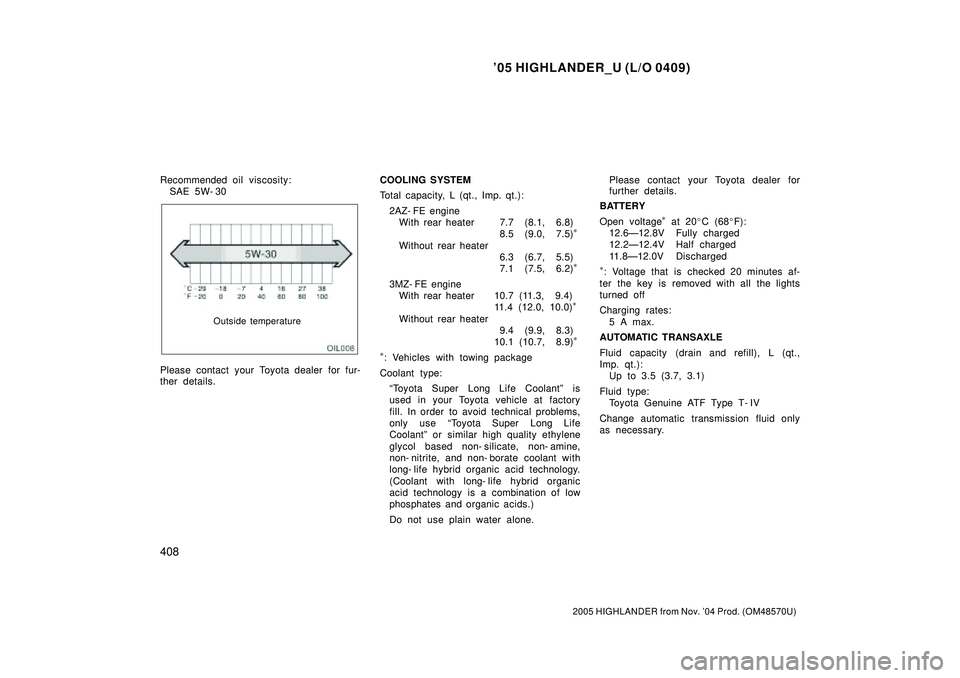

Recommended oil viscosity:
SAE 5W- 30
Outside temperature
Please contact your Toyota dealer for fur-
ther details.COOLING
