Page 1081 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-1508 - DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM 1698 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 10 PERFORM SENSITIVITY CHECK (a) Using the hand-held tester, perform ºSensitivity

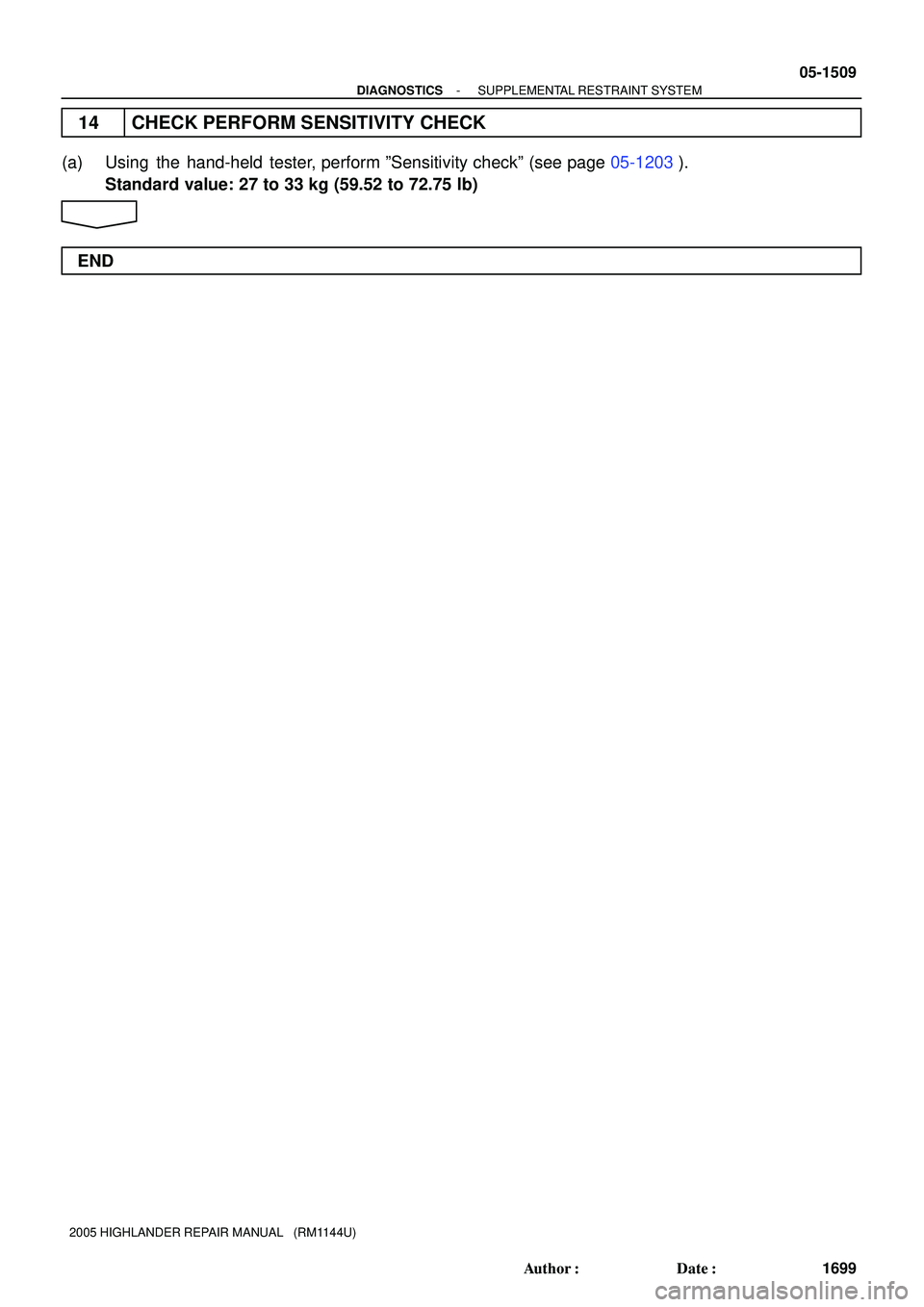

Page 1082 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM 05-1509 1699 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 14 CHECK PERFORM SENSITIVITY CHECK (a) Using the hand-held tester, perform ºSensit

Page 1083 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-1510 - DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM 1700 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) DTC B1795 OCCUPANT CLASSIFICATION ECU MALFUNCTION CIRCUIT DESCRIPTION DTC B1795 is rec

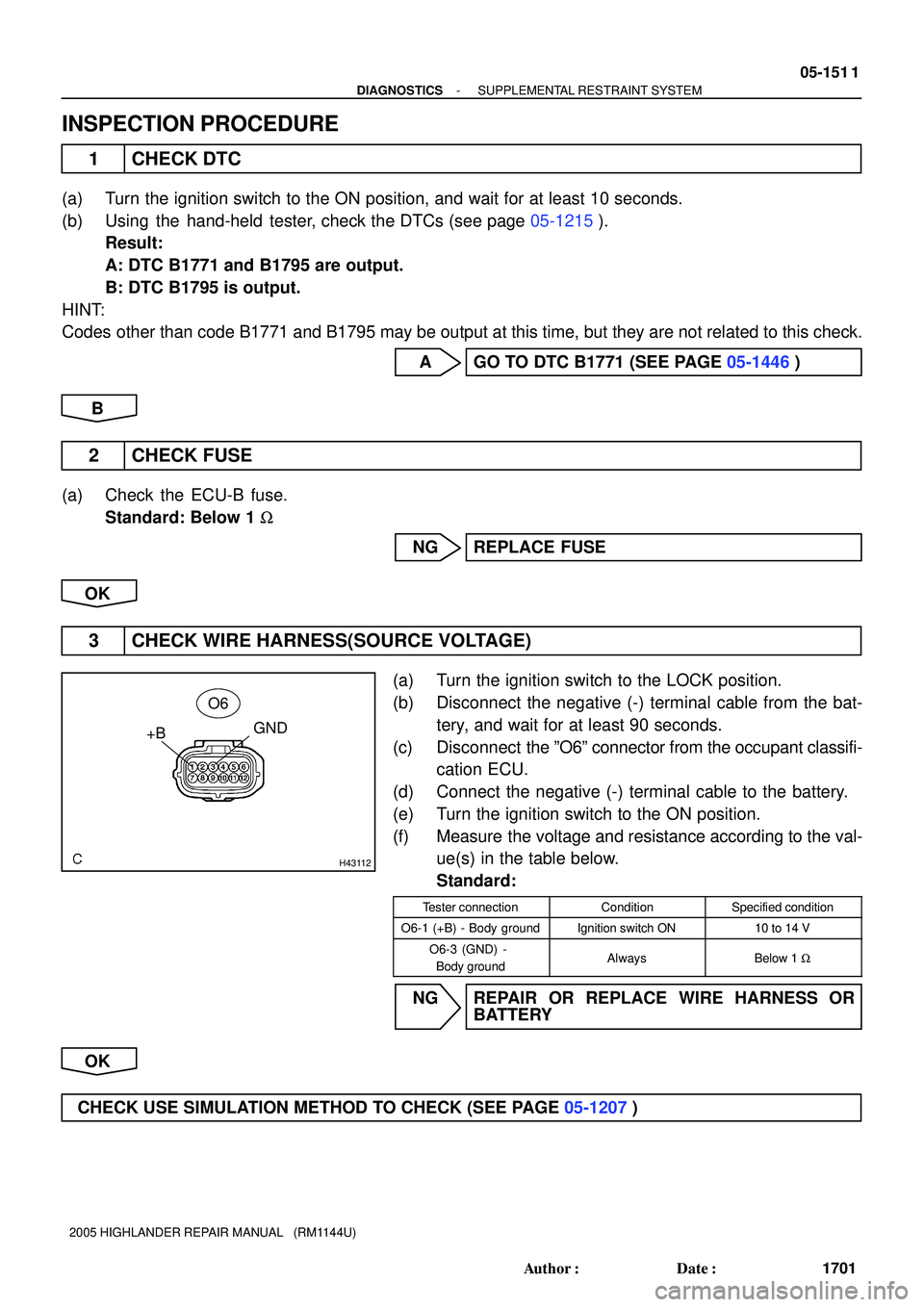

Page 1084 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual H43112 O6 +BGND - DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM 05-151 1 1701 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) INSPECTION PROCEDURE 1 CHECK DTC (a) Turn the ignition switch to the

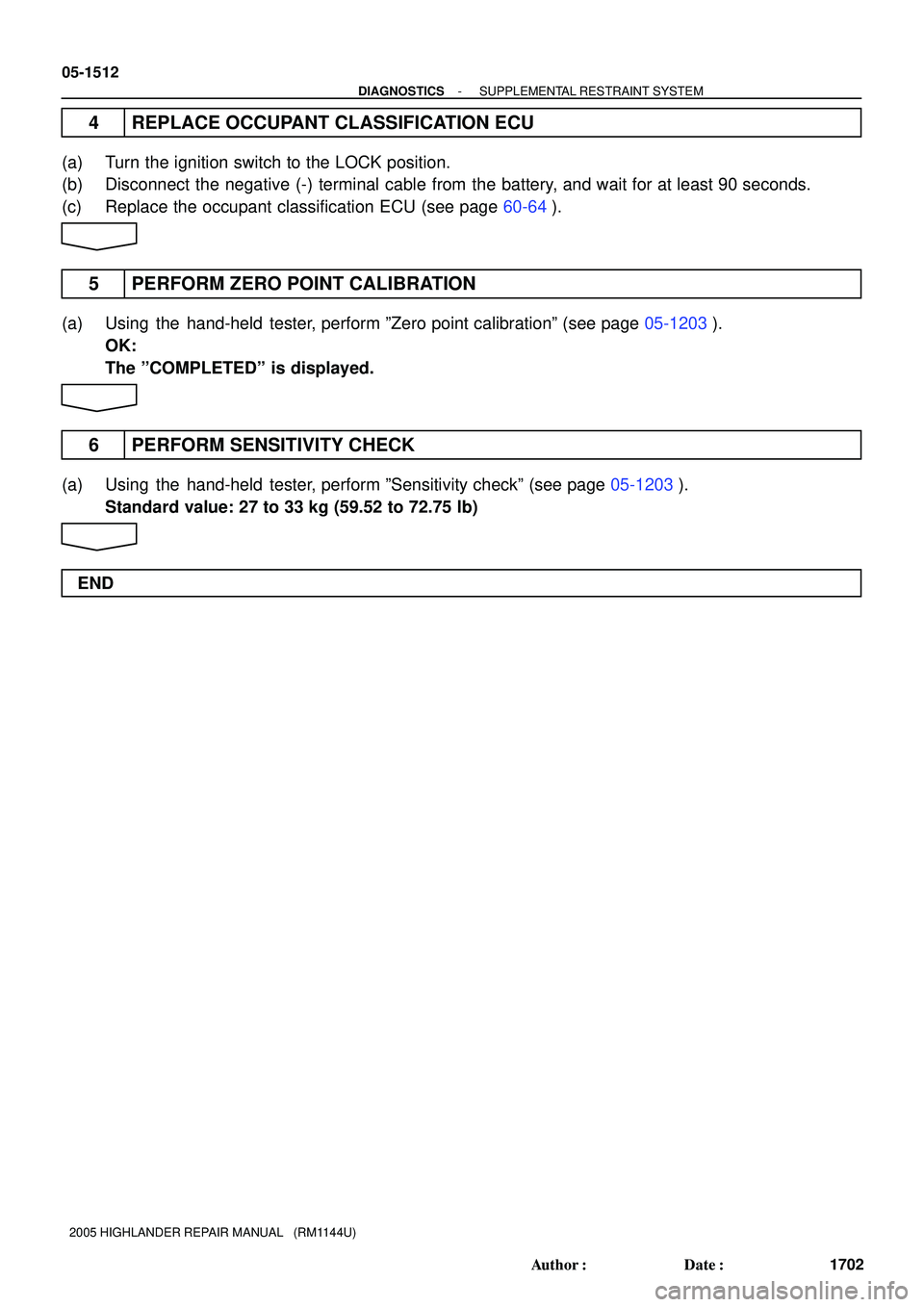

Page 1085 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-1512 - DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM 1702 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 4 REPLACE OCCUPANT CLASSIFICATION ECU (a) Turn the ignition switch to the LOCK positio

Page 1086 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM 05-1513 1703 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) DTC B1796 SLEEP OPERATION FAILURE OF OCCUPANT CLASSIFICATION ECU CIRCUIT DESCRIPTION D

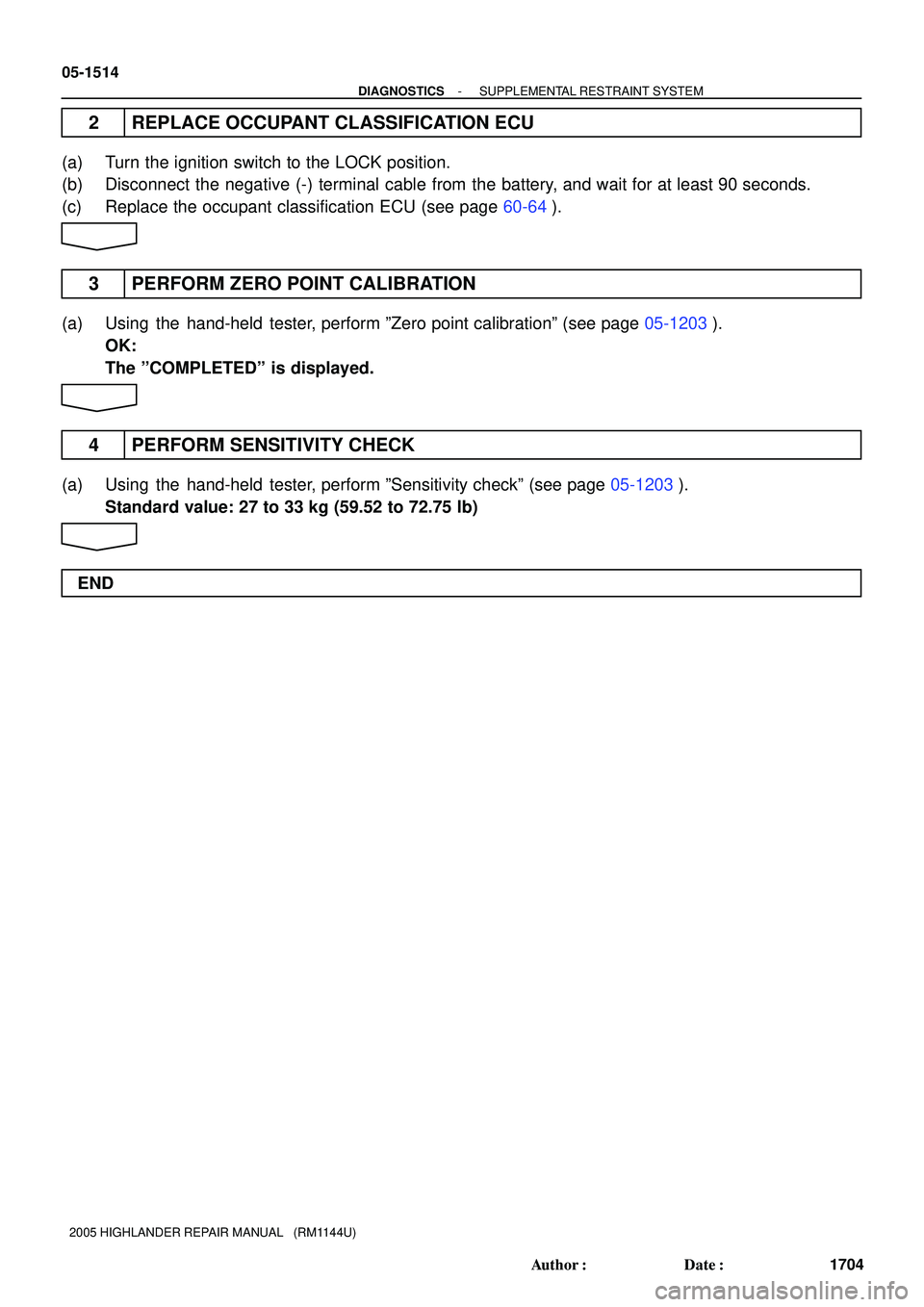

Page 1087 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-1514 - DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM 1704 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 2 REPLACE OCCUPANT CLASSIFICATION ECU (a) Turn the ignition switch to the LOCK positio

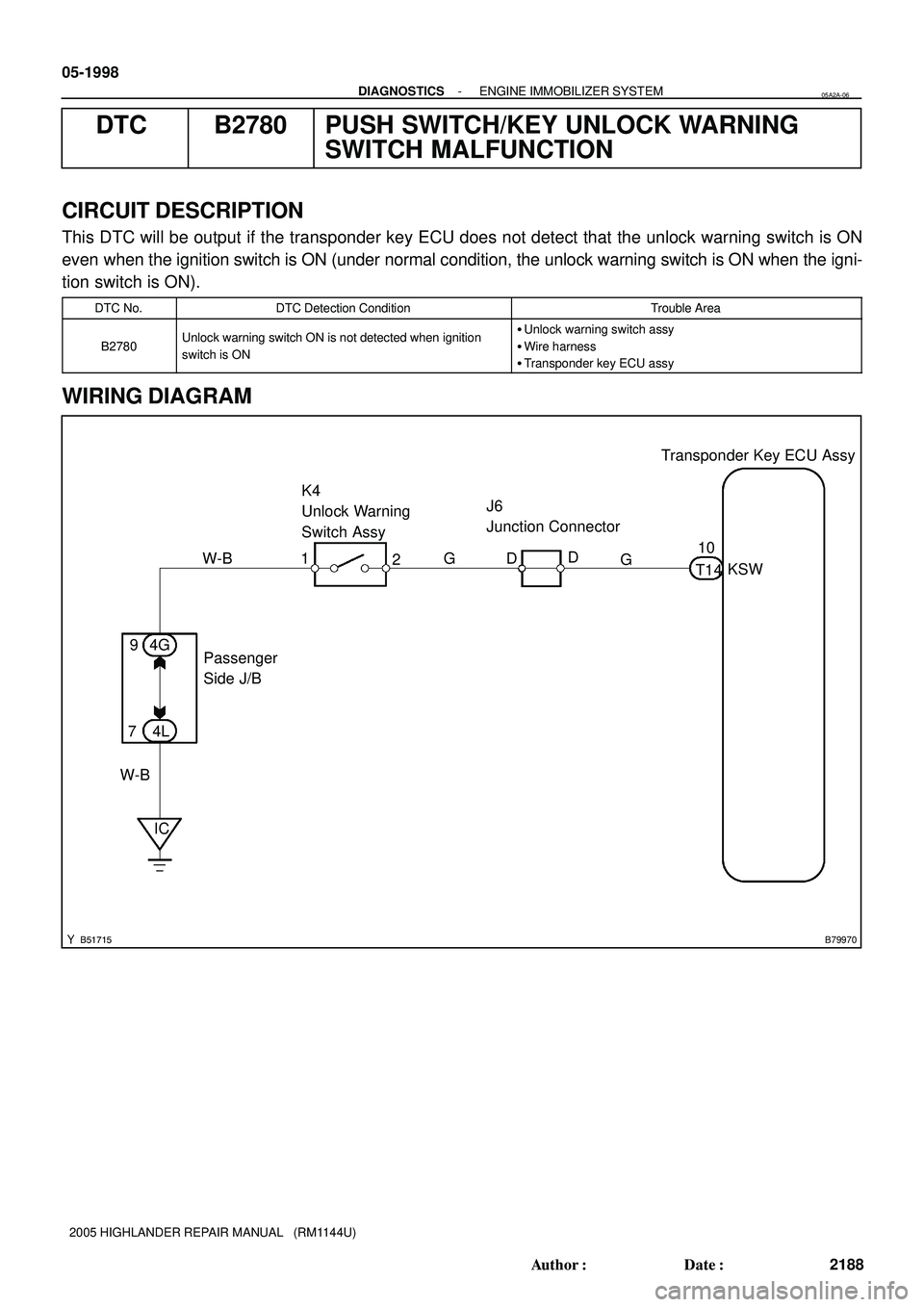

Page 1088 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual B51715B79970 T1410 G K4 Unlock Warning Switch Assy 1 2 W-B G KSW DD IC W-B4L 4G 9 7J6 Junction Connector Passenger Side J/BTransponder Key ECU Assy 05-1998 - DIAGNOSTICSENGINE IMMOBILIZER SYSTEM 218
