Page 1377 of 2572
05IS2-02
I38215
I38222
I38223
- DIAGNOSTICSNAVIGATION SYSTEM
05-1763
1953 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

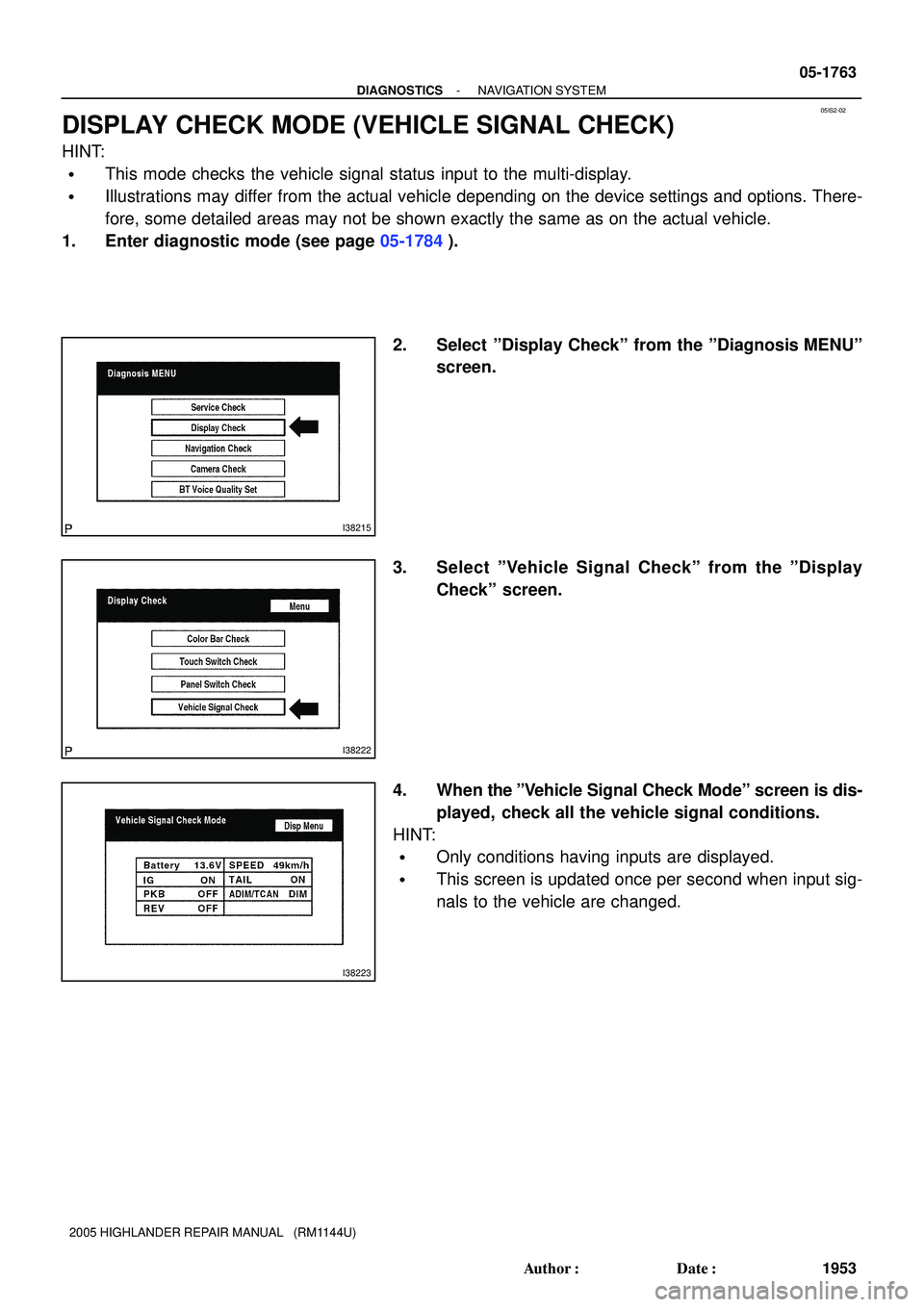

DISPLAY CHECK MODE (VEHICLE SIGNAL CHECK)
HINT:
This mode checks the vehicle signal status input to the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºDisplay Checkº from the ºDiagnosis MENUº
screen.
3. Select ºVehicle Signal Checkº from the ºDisplay
Checkº screen.
4. When the ºVehicle Signal Check Modeº screen is dis-
played, check all the vehicle signal conditions.
HINT:
Only conditions having inputs are displayed.
This screen is updated once per second when input sig-
nals to the vehicle are changed.
Page 1378 of 2572

05ESI-05
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-1
191 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
SFI SYSTEM (2AZ-FE)
DEFINITION OF TERMS
TermDefinition
Monitor descriptionDescription of what the ECM monitors and how it detects malfunctions (monitoring purpose and its details).
Related DTCsA group of diagnostic trouble codes that are output by the ECM based on the same malfunction detection logic.
Typical enabling condition
Preconditions that allow the ECM to detect malfunctions.
With all preconditions satisfied, the ECM sets the DTC when the monitored value(s) exceeds the malfunction
threshold(s).
Sequence of operation
The priority order that is applied to monitoring, if multiple sensors and components are used to detect the malfunc-
tion.
When a sensor is being monitored, the next sensor or component will not be monitored until the current sensor
monitoring is finished.
Required sensor/compo-
nentsThe sensors and components that are used by the ECM to detect malfunctions.
Frequency of operation
The number of times that the ECM checks for malfunctions per driving cycle.
ºOnce per driving cycleº means that the ECM detects the malfunction only one time during a single driving cycle.
ºContinuousº means that the ECM detects the malfunction every time an enabling condition is met.
DurationThe minimum time that the ECM must sense a continuous deviation in the monitored value(s) before setting a
DTC. This timing begins after the ºtypical enabling conditionsº are met.
Malfunction thresholdsBeyond this value, the ECM will conclude that there is a malfunction and set a DTC.
MIL operation
MIL illumination timing after a defect is detected.
ºImmediateº means that the ECM illuminates the MIL the instant the ECM determines that there is a malfunction.
º2 driving cyclesº means that the ECM illuminates the MIL if the same malfunction is detected again in the 2nd
driving cycle.
Page 1379 of 2572

05IS7-02
I38587*1
*2*1
*2*3
*4
05-1768
- DIAGNOSTICSNAVIGATION SYSTEM
1958 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DIAGNOSIS DISPLAY DETAILED DESCRIPTION
HINT:
This section contains a detailed description of displays within diagnostic mode.
Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.

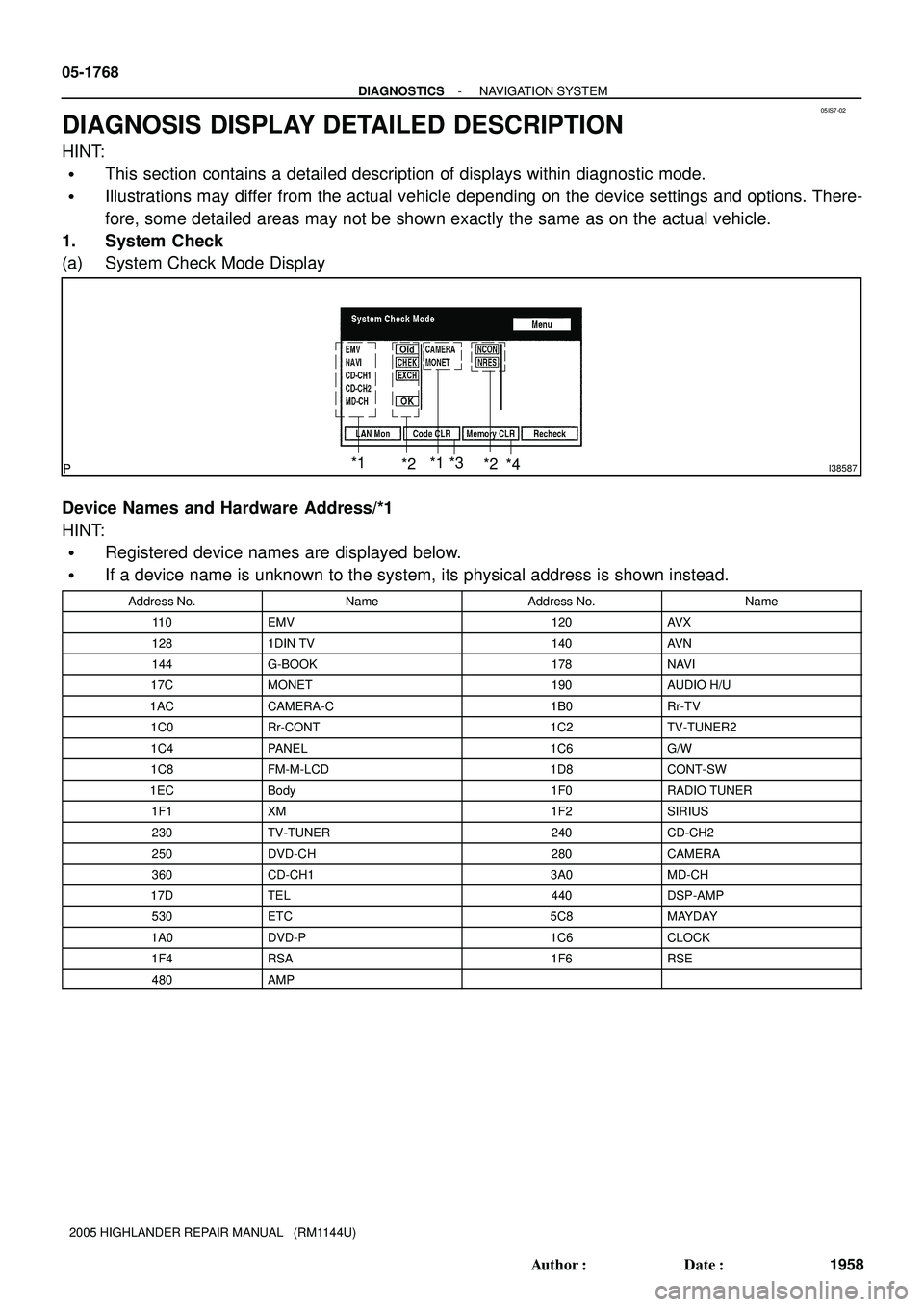

1. System Check
(a) System Check Mode Display
Device Names and Hardware Address/*1
HINT:
Registered device names are displayed below.
If a device name is unknown to the system, its physical address is shown instead.
Address No.NameAddress No.Name
11 0EMV120AV X
1281DIN TV140AV N
144G-BOOK178NAVI
17CMONET190AUDIO H/U
1ACCAMERA-C1B0Rr-TV
1C0Rr-CONT1C2TV-TUNER2
1C4PANEL1C6G/W
1C8FM-M-LCD1D8CONT-SW
1ECBody1F0RADIO TUNER
1F1XM1F2SIRIUS
230TV-TUNER240CD-CH2
250DVD-CH280CAMERA
360CD-CH13A0MD-CH
17DTEL440DSP-AMP
530ETC5C8MAYDAY
1A0DVD-P1C6CLOCK
1F4RSA1F6RSE
480AMP
Page 1380 of 2572

I38666
- DIAGNOSTICSNAVIGATION SYSTEM
05-1769
1959 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

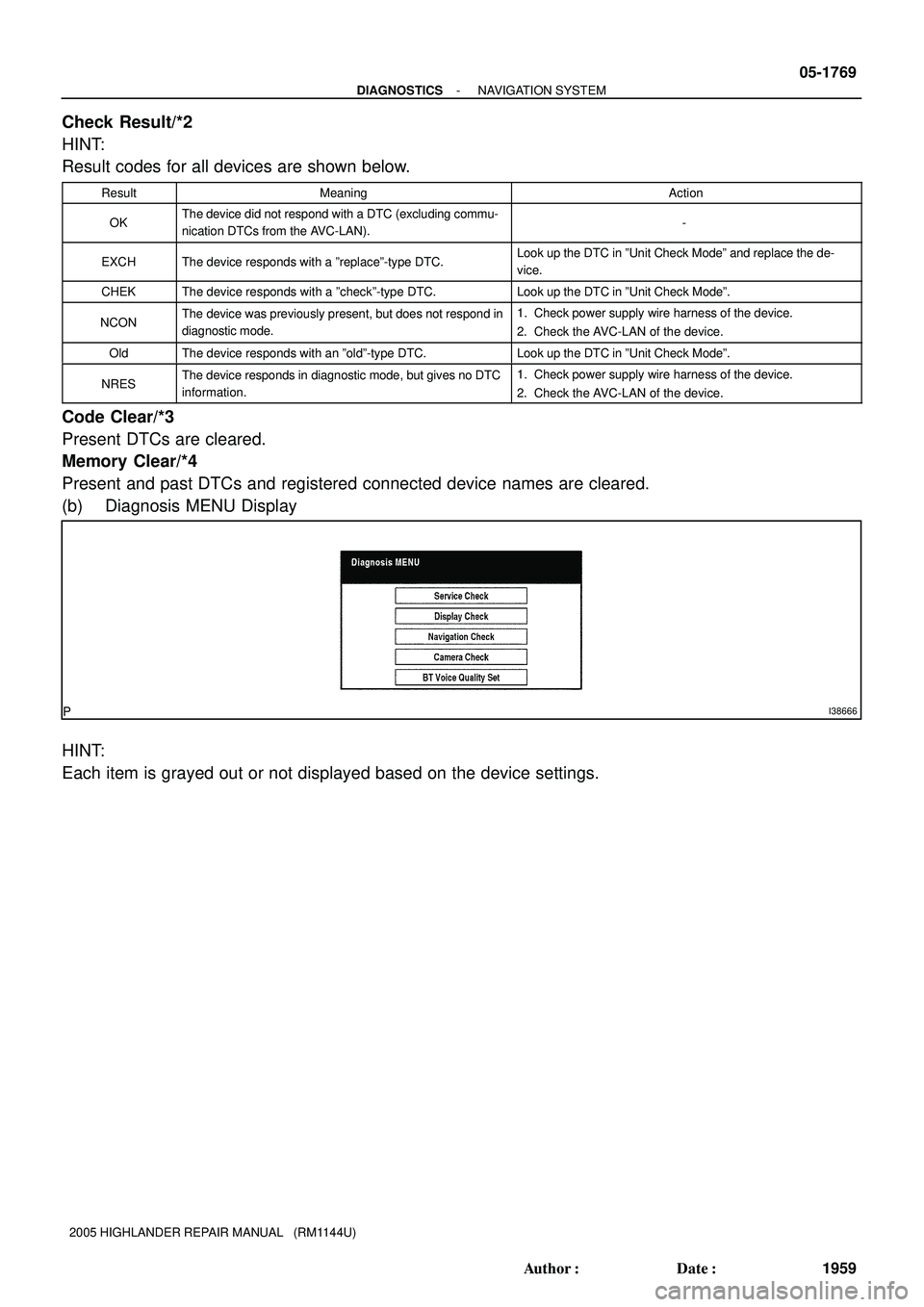

Check Result/*2
HINT:
Result codes for all devices are shown below.
ResultMeaningAction
OKThe device did not respond with a DTC (excluding commu-
nication DTCs from the AVC-LAN).-
EXCHThe device responds with a ºreplaceº-type DTC.Look up the DTC in ºUnit Check Modeº and replace the de-
vice.
CHEKThe device responds with a ºcheckº-type DTC.Look up the DTC in ºUnit Check Modeº.
NCONThe device was previously present, but does not respond in
diagnostic mode.1. Check power supply wire harness of the device.
2. Check the AVC-LAN of the device.
OldThe device responds with an ºoldº-type DTC.Look up the DTC in ºUnit Check Modeº.
NRESThe device responds in diagnostic mode, but gives no DTC
information.1. Check power supply wire harness of the device.
2. Check the AVC-LAN of the device.
Code Clear/*3
Present DTCs are cleared.
Memory Clear/*4
Present and past DTCs and registered connected device names are cleared.
(b) Diagnosis MENU Display
HINT:
Each item is grayed out or not displayed based on the device settings.
Page 1381 of 2572

I38588
*1
*2 *3 *5
*4
*6
I38589
*1
05-1770
- DIAGNOSTICSNAVIGATION SYSTEM
1960 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

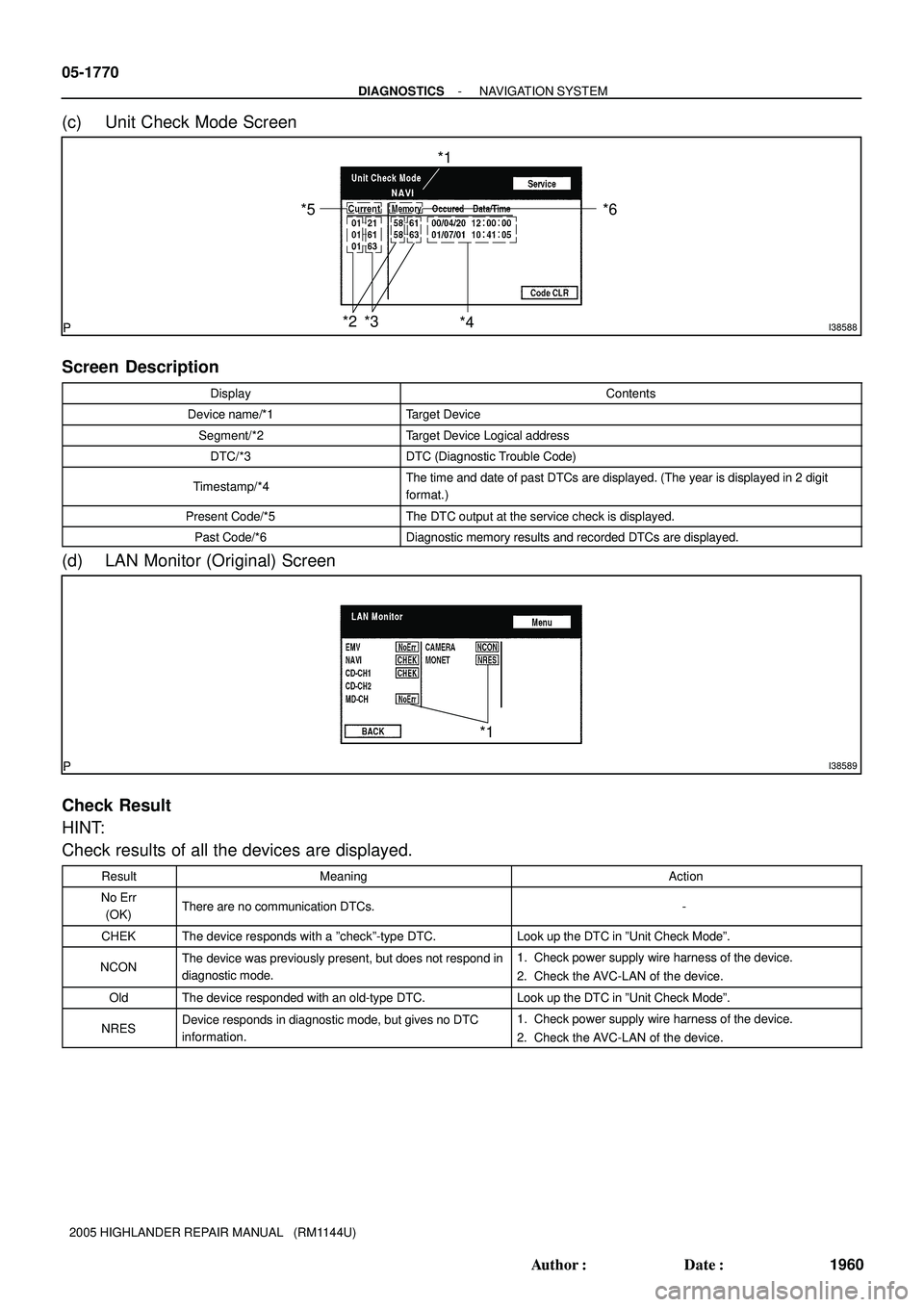

(c) Unit Check Mode Screen
Screen Description
DisplayContents
Device name/*1Target Device
Segment/*2Target Device Logical address
DTC/*3DTC (Diagnostic Trouble Code)
Timestamp/*4The time and date of past DTCs are displayed. (The year is displayed in 2 digit
format.)
Present Code/*5The DTC output at the service check is displayed.
Past Code/*6Diagnostic memory results and recorded DTCs are displayed.
(d) LAN Monitor (Original) Screen
Check Result
HINT:
Check results of all the devices are displayed.
ResultMeaningAction
No Err
(OK)There are no communication DTCs.-
CHEKThe device responds with a ºcheckº-type DTC.Look up the DTC in ºUnit Check Modeº.
NCONThe device was previously present, but does not respond in
diagnostic mode.1. Check power supply wire harness of the device.
2. Check the AVC-LAN of the device.
OldThe device responded with an old-type DTC.Look up the DTC in ºUnit Check Modeº.
NRESDevice responds in diagnostic mode, but gives no DTC
information.1. Check power supply wire harness of the device.
2. Check the AVC-LAN of the device.
Page 1382 of 2572

I38590
*1
*2
*3
*4
*5*6
I38591
- DIAGNOSTICSNAVIGATION SYSTEM
05-1771
1961 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

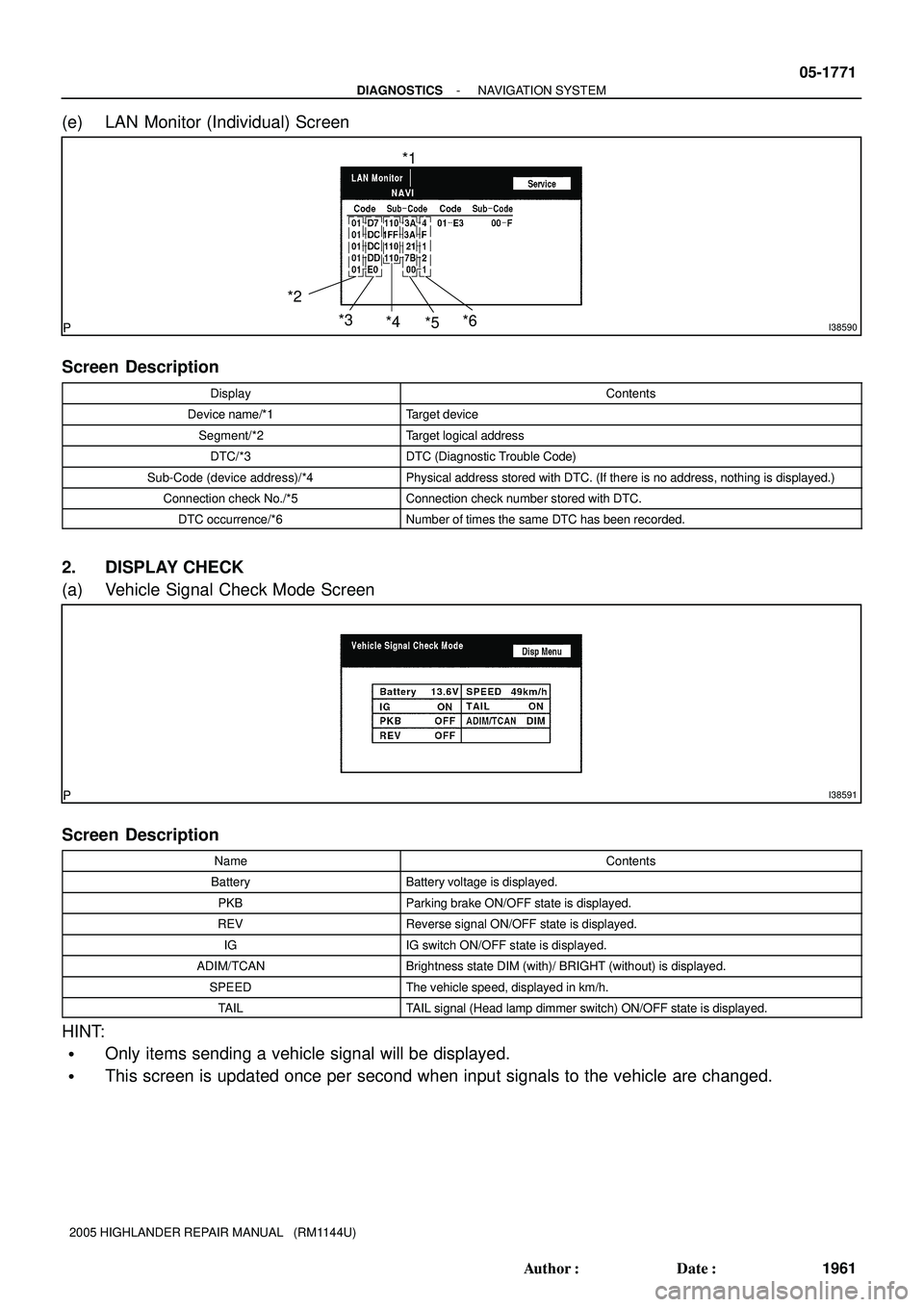

(e) LAN Monitor (Individual) Screen
Screen Description
DisplayContents
Device name/*1Target device
Segment/*2Target logical address
DTC/*3DTC (Diagnostic Trouble Code)
Sub-Code (device address)/*4Physical address stored with DTC. (If there is no address, nothing is displayed.)
Connection check No./*5Connection check number stored with DTC.
DTC occurrence/*6Number of times the same DTC has been recorded.
2. DISPLAY CHECK
(a) Vehicle Signal Check Mode Screen
Screen Description
NameContents
BatteryBattery voltage is displayed.
PKBParking brake ON/OFF state is displayed.
REVReverse signal ON/OFF state is displayed.
IGIG switch ON/OFF state is displayed.
ADIM/TCANBrightness state DIM (with)/ BRIGHT (without) is displayed.
SPEEDThe vehicle speed, displayed in km/h.
TAILTAIL signal (Head lamp dimmer switch) ON/OFF state is displayed.
HINT:
Only items sending a vehicle signal will be displayed.
This screen is updated once per second when input signals to the vehicle are changed.
Page 1383 of 2572

I38667
I38592
*2
*3*2
*5
*4
*1 *1
05-1772
- DIAGNOSTICSNAVIGATION SYSTEM
1962 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

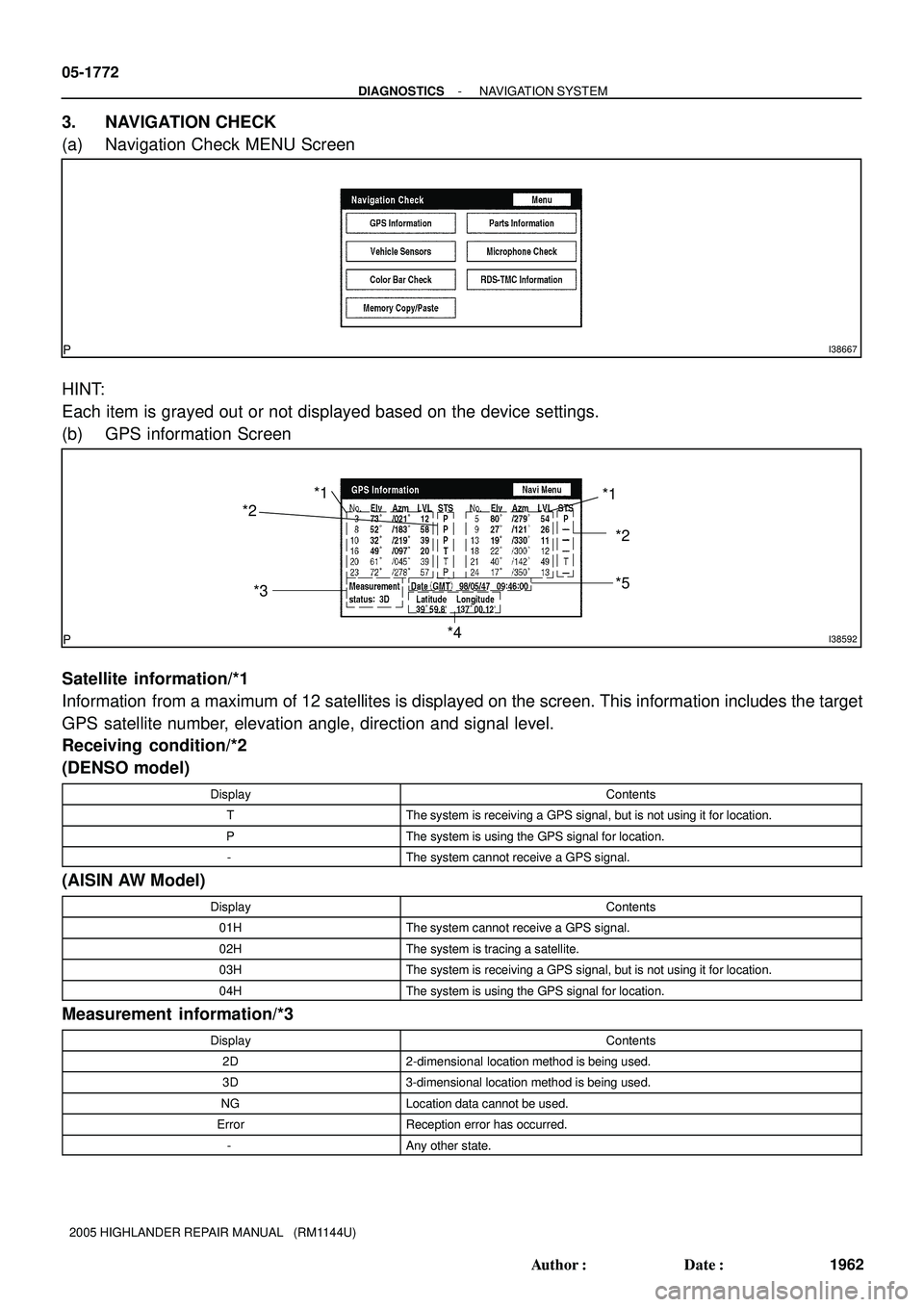

3. NAVIGATION CHECK
(a) Navigation Check MENU Screen
HINT:
Each item is grayed out or not displayed based on the device settings.
(b) GPS information Screen
Satellite information/*1
Information from a maximum of 12 satellites is displayed on the screen. This information includes the target
GPS satellite number, elevation angle, direction and signal level.
Receiving condition/*2
(DENSO model)
DisplayContents
TThe system is receiving a GPS signal, but is not using it for location.
PThe system is using the GPS signal for location.
-The system cannot receive a GPS signal.
(AISIN AW Model)
DisplayContents
01HThe system cannot receive a GPS signal.
02HThe system is tracing a satellite.
03HThe system is receiving a GPS signal, but is not using it for location.
04HThe system is using the GPS signal for location.
Measurement information/*3
DisplayContents
2D2-dimensional location method is being used.
3D3-dimensional location method is being used.
NGLocation data cannot be used.
ErrorReception error has occurred.
-Any other state.
Page 1384 of 2572

I38593
*1
*2
*3
I38594
*1
*2
*3
*4
- DIAGNOSTICSNAVIGATION SYSTEM
05-1773
1963 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
Position information/*4
DisplayContents
PositionLatitude and longitude information on the current position is displayed.
Date information/*5
DisplayContents
DateThe date/time information obtained from GPS signal is displayed in Greenwich
mean time (GMT). The last 4 digits are displayed.
(c) Vehicle Signal Check Screen
Vehicle signal
DisplayContents
REV/*1REV signal ON/OFF state is displayed.
SPD/*2SPD signal condition is displayed.
Sensor signal
DisplayContents
Gyro sensor/*3Gyro sensor output condition is displayed (when the vehicle runs straight or is sta-
tionary, the voltage is approximately 2.5 V).
HINT:
Signals are updated once per second only when vehicle sensor signals are changed.
(d) Parts Information Screen
Screen description
DisplayContents
Navigation Manufacturer/*1Navigation ECU manufacturer is displayed.
Navigation Version No./*2Navigation ECU version is displayed.
Disc Manufacturer/*3Map disc manufacturer is displayed.
Disc Version No./*4Map disc version is displayed.
