2001 TOYOTA HIGHLANDER seat adjustment

'05 HIGHLANDER_U (L/O 0409)
41
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

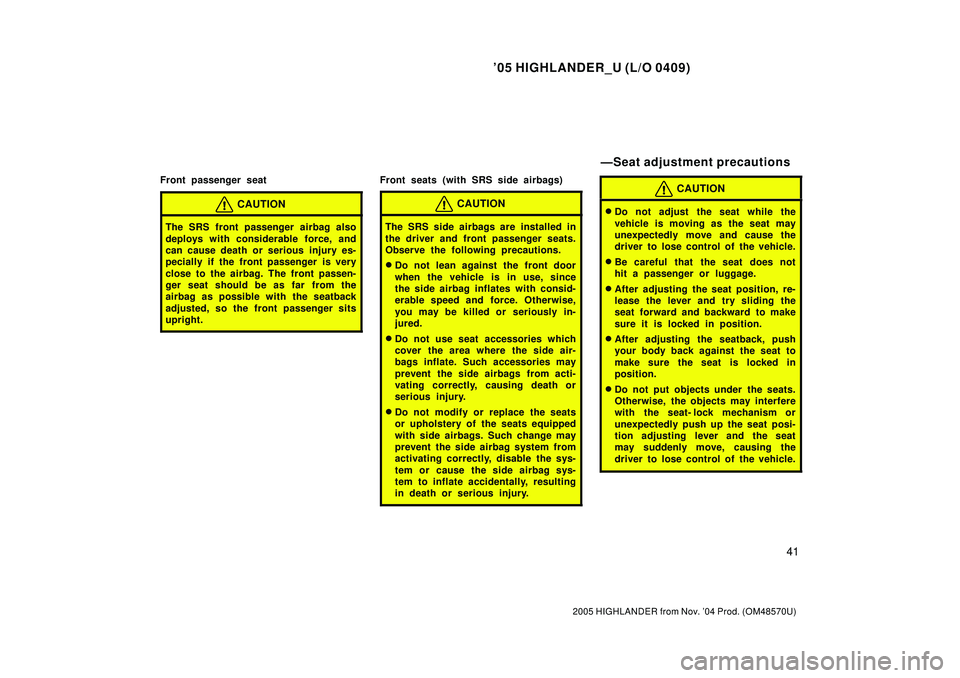

Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.

Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.

Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.

Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem or cause the side airbag sys-
tem to inflate accidentally, resulting
in death or serious injury.
CAUTION

Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.

Be careful that the seat does not
hit a passenger or luggage.

After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.

After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.

Do not put objects under the seats.
Otherwise, the objects may interfere
with the seat- lock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
ÐSeat adjustment precautions

'05 HIGHLANDER_U (L/O 0409)
61
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
CAUTION

Both high- positioned lap belts and
loose- fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.

Do not place the shoulder belt un-
der your arm.
Seat belts with an adjustable shoulder
anchorÐ
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injures in a collision.

'05 HIGHLANDER_U (L/O 0409)
181
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

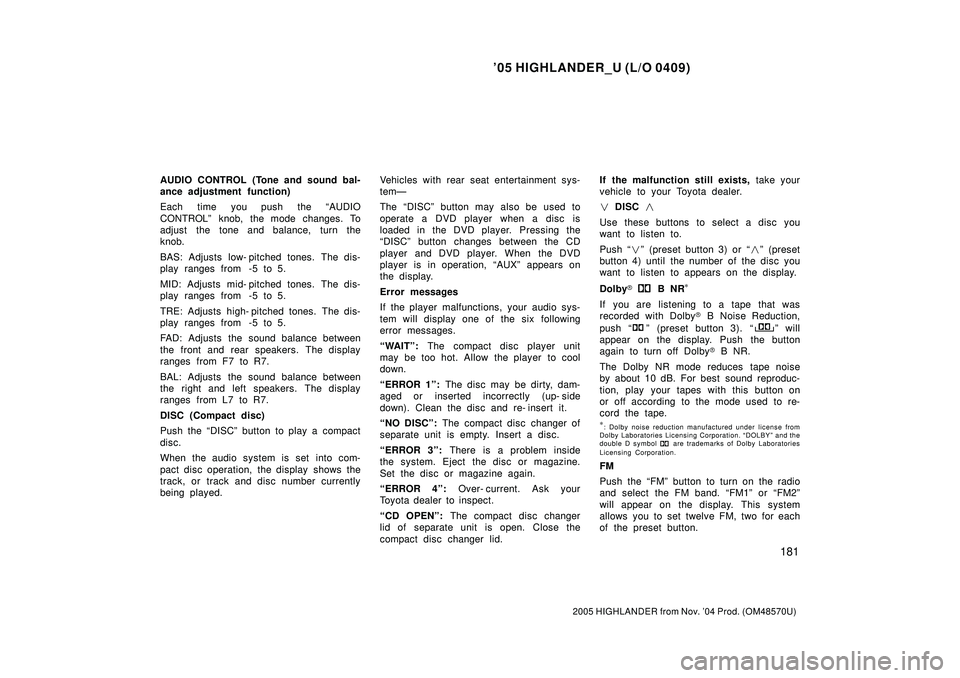

AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the AUDIO
CONTROLº knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low- pitched tones. The dis-
play ranges from -5 to 5.
MID: Adjusts mid- pitched tones. The dis-
play ranges from -5 to 5.
TRE: Adjusts high- pitched tones. The dis-
play ranges from -5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
DISC (Compact disc)
Push the DISCº button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.Vehicles with rear seat entertainment sys-
temÐ
The DISCº button may also be used to
operate a DVD player when a disc is
loaded in the DVD player. Pressing the
DISCº button changes between the CD
player and DVD player. When the DVD
player is in operation, AUXº appears on
the display.
Error messages
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
WAITº: The compact disc player unit
may be too hot. Allow the player to cool
down.
ERROR 1º: The disc may be dirty, dam-
aged or inserted incorrectly (up- side
down). Clean the disc and re- insert it.
NO DISCº: The compact disc changer of
separate unit is empty. Insert a disc.
ERROR 3º: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
ERROR 4º: Over- current. Ask your
Toyota dealer to inspect.
CD OPENº: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC

Use these buttons to select a disc you
want to listen to.
Push º (preset button 3) or
º (preset
button 4) until the number of the disc you
want to listen to appears on the display.
Dolby
B NR*
If you are listening to a tape that was
recorded with Dolby B Noise Reduction,
push
º (preset button 3). º will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
*: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. DOLBYº and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push the FMº button to turn on the radio
and select the FM band. FM1º or FM2º
will appear on the display. This system
allows you to set twelve FM, two for each
of the preset button.
