Page 681 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
379
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

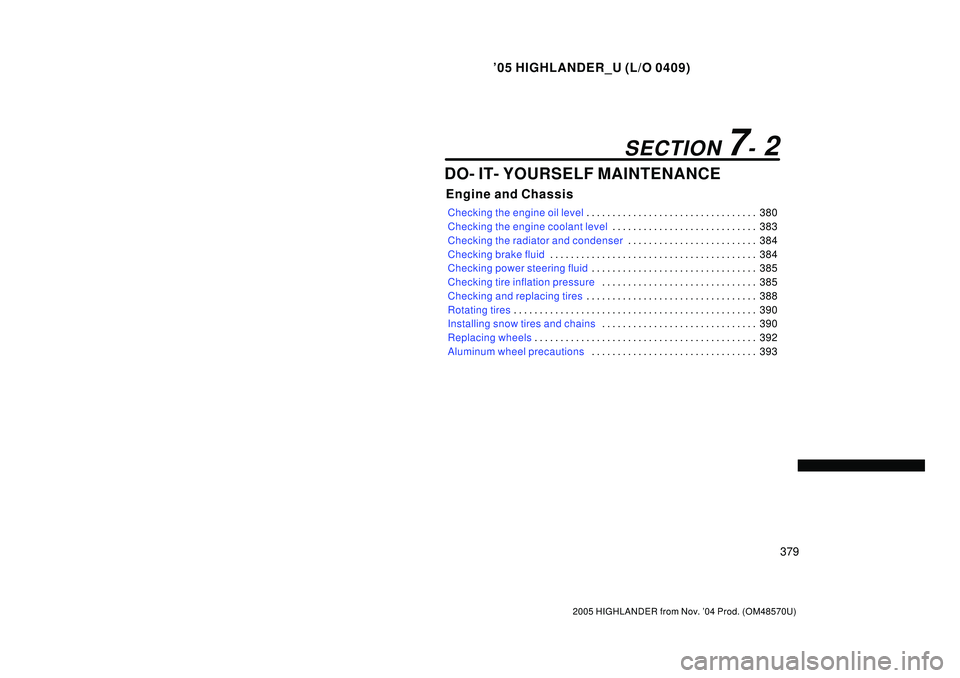

DO- IT- YOURSELF MAINTENANCE
Engine and Chassis

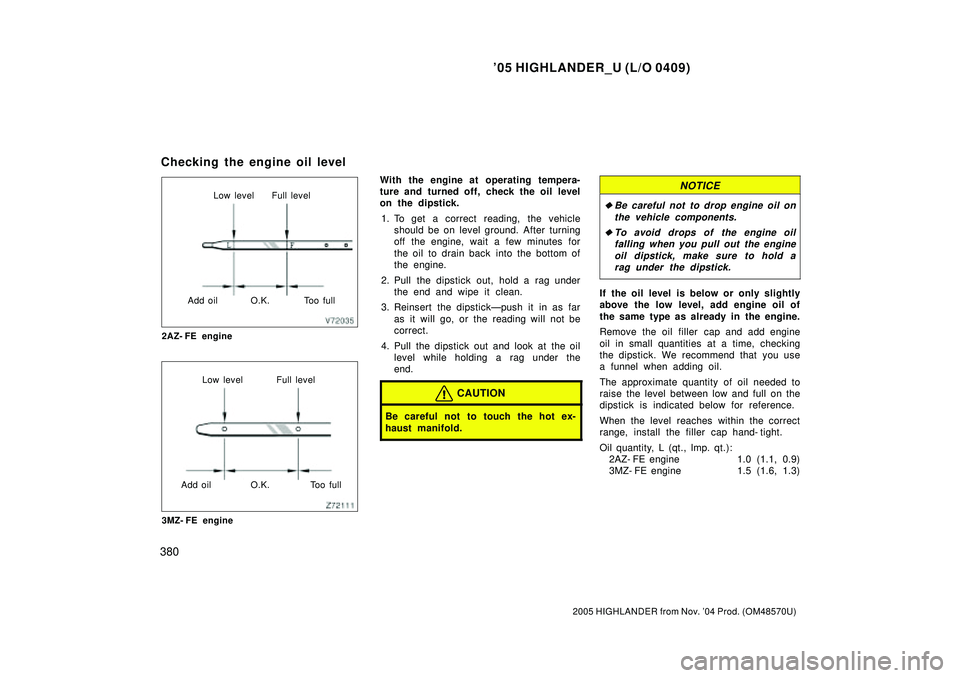

Checking the engine oil level380 . . . . . . . . . . . . . . . . . . . .

Page 682 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
380
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Low level Full level
Add oil O.K. Too full
2AZ- FE engine
Low level Full level
Add oil O.K. Too full
3MZ- FE engine
With

Page 683 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
381
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

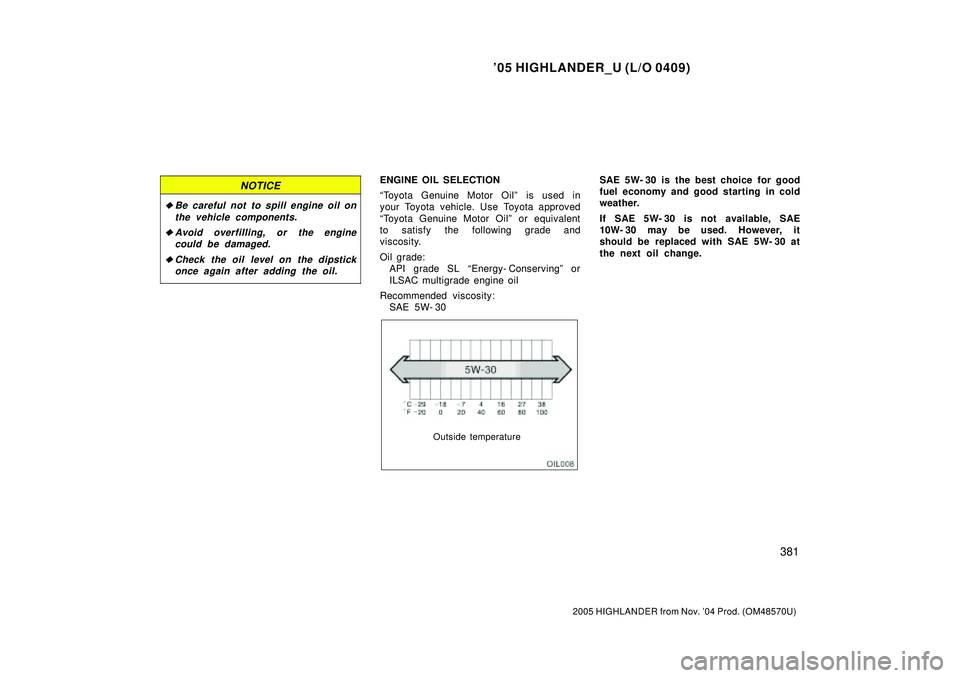

NOTICE
Be careful not to spill engine oil on
the vehicle components.
Avoid overfilling, or the engine
could be damaged

Page 684 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
382
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

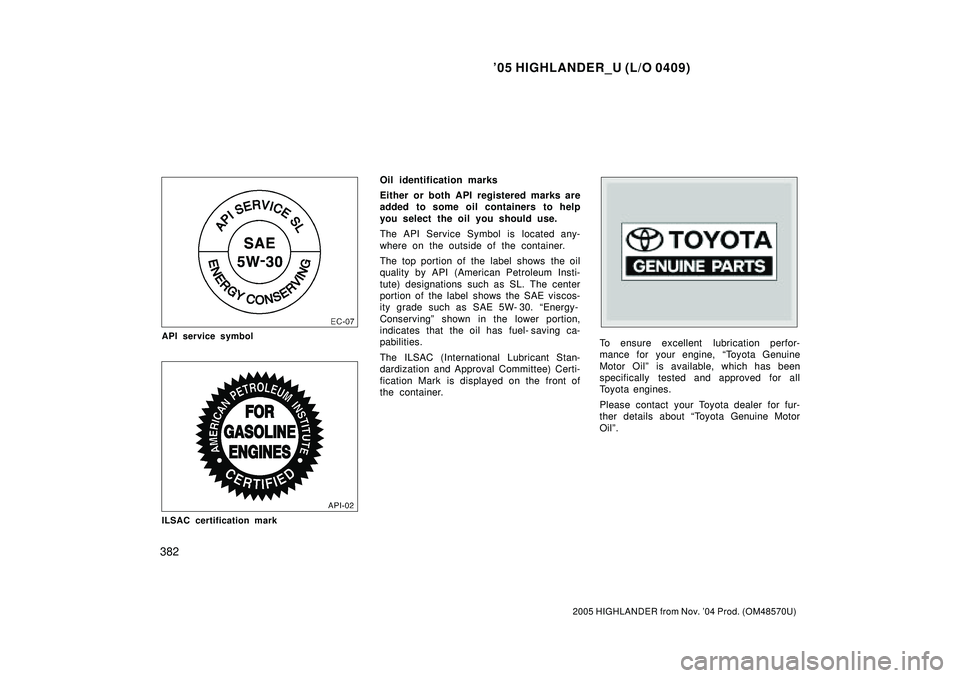

API service symbol
ILSAC certification mark
Oil identification marks
Either or both API registered marks are
added to so

Page 685 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
383
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

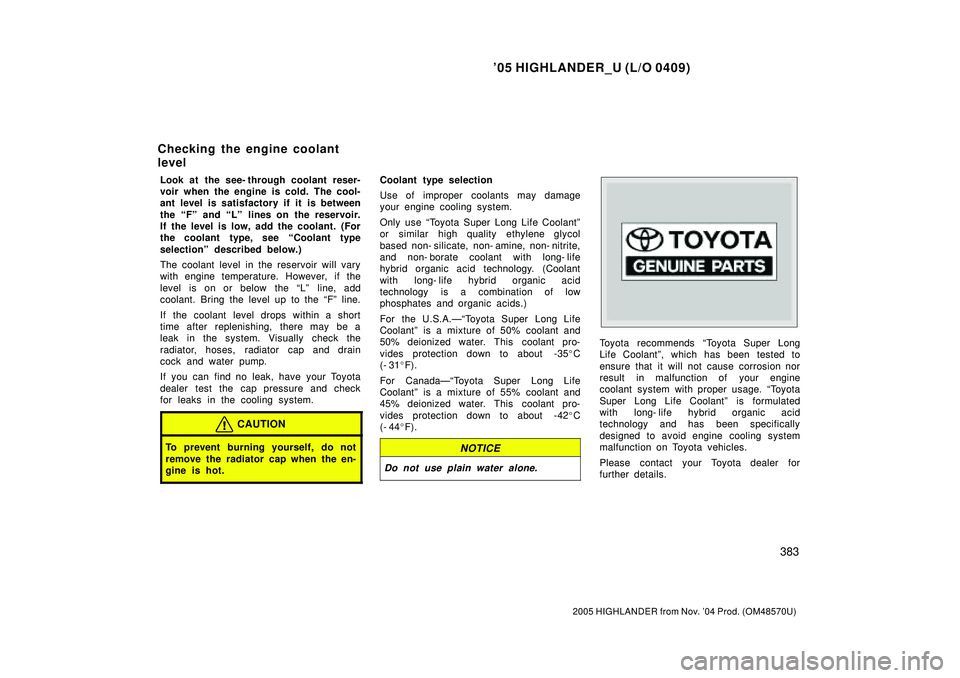

Look at the see- through coolant reser-
voir when the engine is cold. The cool-
ant level is satisfactory if it is betwee

'05 HIGHLANDER_U (L/O 0409)
383
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Look at the see- through coolant reser-
voir when the engine is cold. The cool-
ant level is satisfactory if it is between
the Fº and Lº lines on the reservoir.
If the level is low, add the coolant. (For
the coolant type, see Coolant type
selectionº described below.)
The coolant level in the reservoir will vary
with engine temperature. However, if the
level is on or below the Lº line, add
coolant. Bring the level up to the Fº line.
If the coolant level drops within a short
time after replenishing, there may be a
leak in the system. Visually check the
radiator, hoses, radiator cap and drain
cock and water pump.
If you can find no leak, have your Toyota
dealer test the cap pressure and check
for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not
remove the radiator cap when the en-
gine is hot.
Coolant type selection
Use of improper coolants may damage
your engine cooling system.
Only use Toyota Super Long Life Coolantº
or similar high quality ethylene glycol
based non- silicate, non- amine, non- nitrite,
and non- borate coolant with long- life
hybrid organic acid technology. (Coolant
with long- life hybrid organic acid
technology is a combination of low
phosphates and organic acids.)
For the U.S.A.ÐToyota Super Long Life
Coolantº is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about -35C
(- 31F).
For CanadaÐToyota Super Long Life
Coolantº is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about -42C
(- 44F).
NOTICE
Do not use plain water alone.
Toyota recommends Toyota Super Long
Life Coolantº, which has been tested to
ensure that it will not cause corrosion nor
result in malfunction of your engine
coolant system with proper usage. Toyota
Super Long Life Coolantº is formulated
with long- life hybrid organic acid
technology and has been specifically
designed to avoid engine cooling system
malfunction on Toyota vehicles.
Please contact your Toyota dealer for
further details.
Checking the engine coolant
level

Page 686 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
384
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

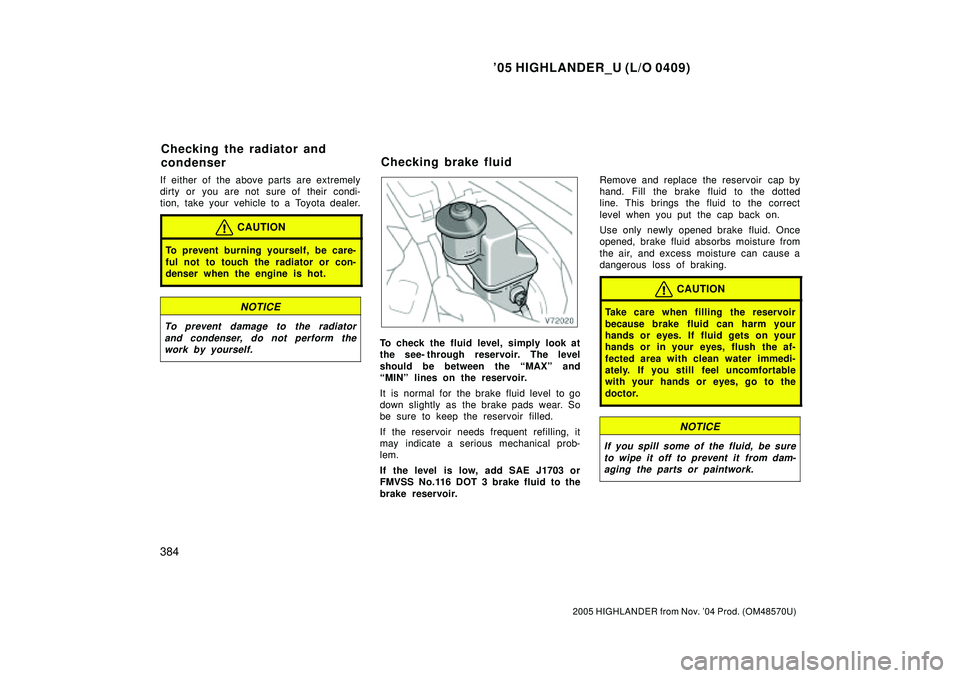

If either of the above parts are extremely
dirty or you are not sure of their condi-
tion, take your vehicle to a Toyota

Page 687 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
385
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
OpenIf hot O.K.
If hot add
If cold add If cold O.K.
Close

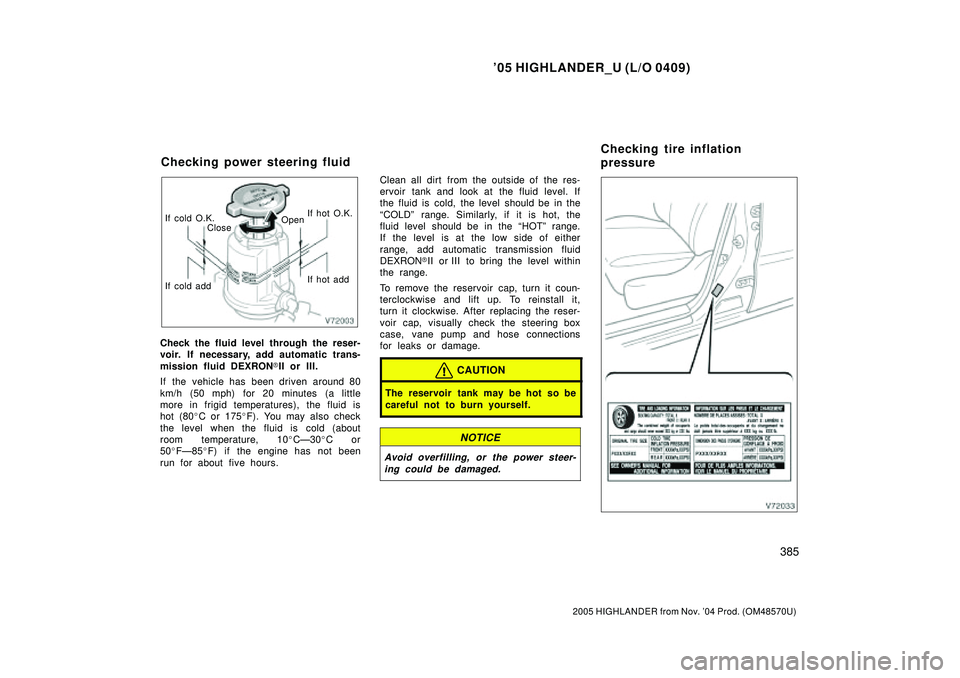

Check the fluid level through the reser-
voir. If necessary, ad

Page 688 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
386
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

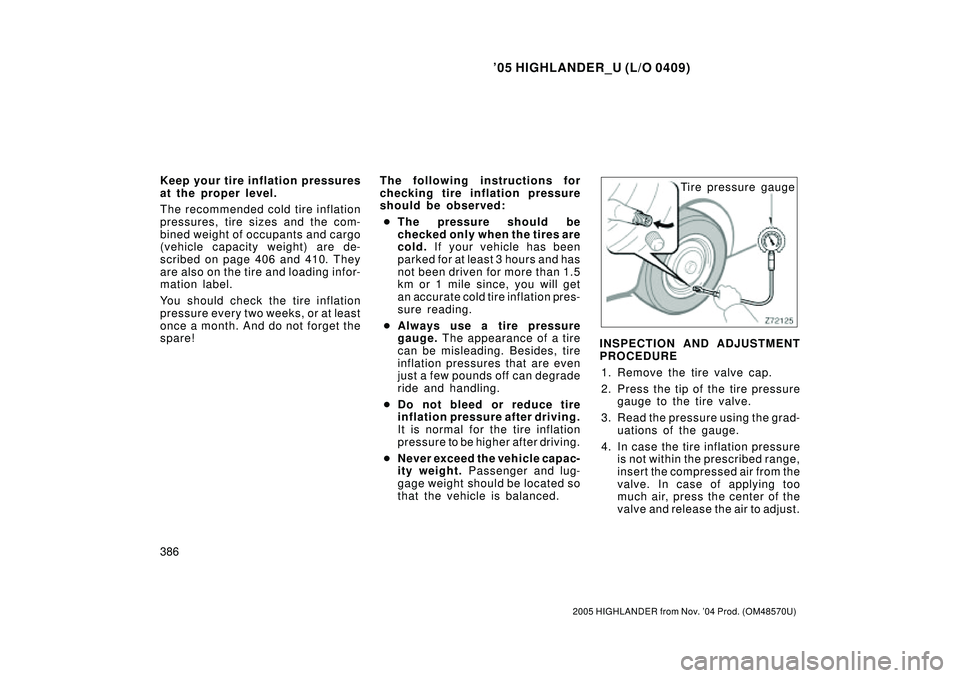

Keep your tire inflation pressures
at the proper level.
The recommended cold tire inflation
pressures, tire sizes and the
