Page 2569 of 2572

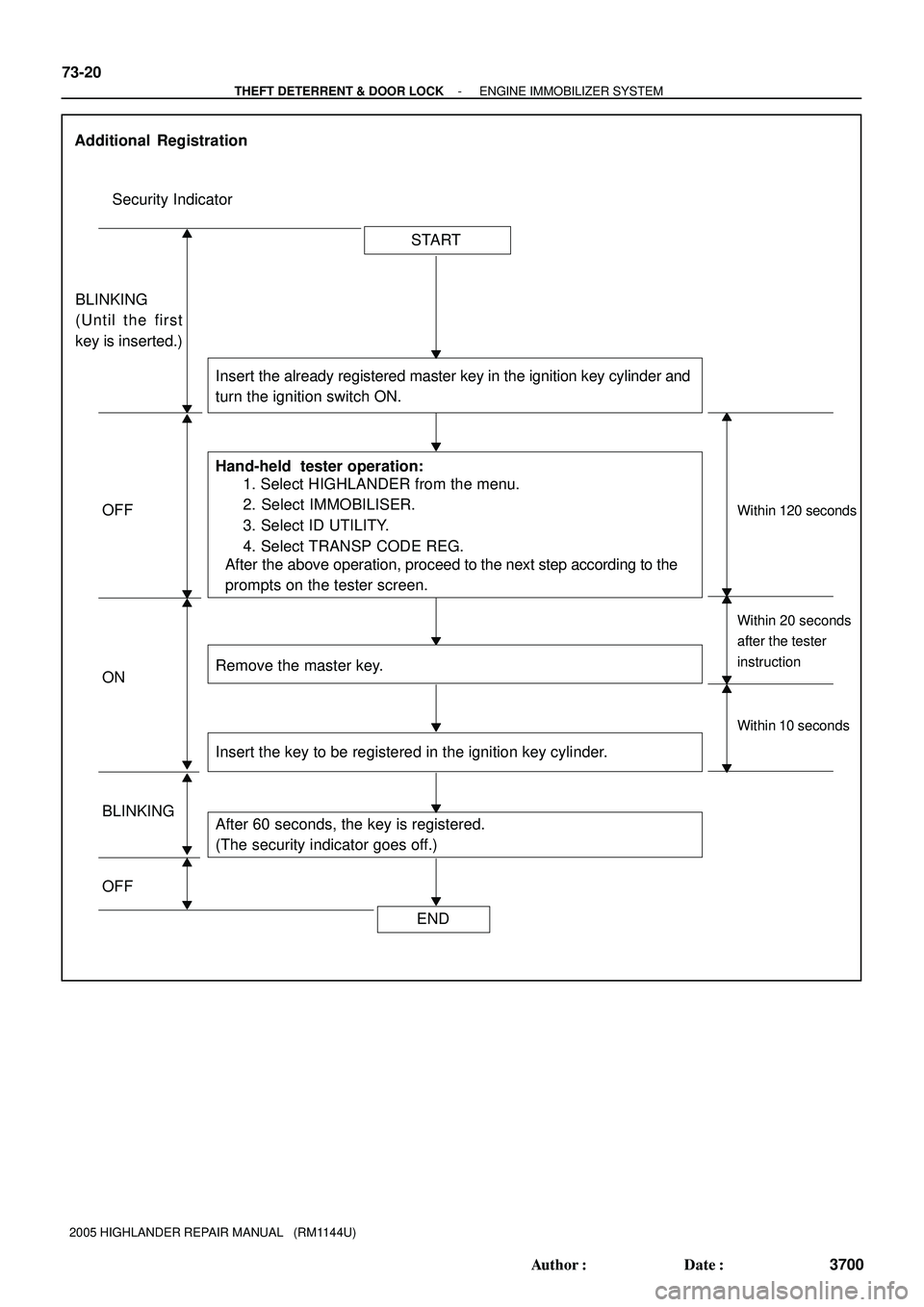

TOYOTA HIGHLANDER 2001 Service Repair Manual Remove the master key. Insert the already registered master key in the ignition key cylinder and turn the ignition switch ON. 1. Select HIGHLANDER from the menu. 2. Select IMMOBILISER. 3. Select ID UT

Page 2570 of 2572

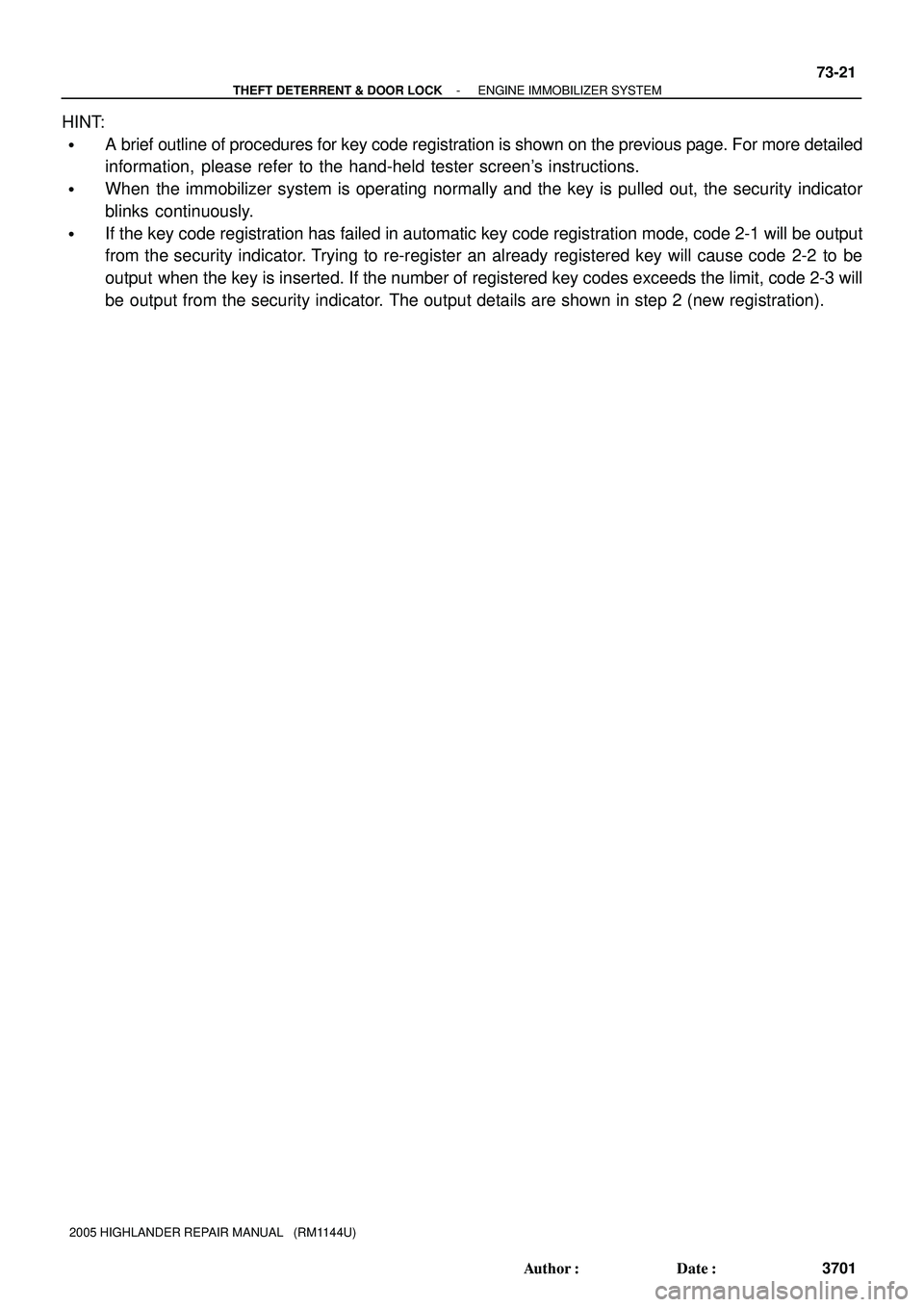

TOYOTA HIGHLANDER 2001 Service Repair Manual - THEFT DETERRENT & DOOR LOCKENGINE IMMOBILIZER SYSTEM 73-21 3701 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) HINT: A brief outline of procedures for key code registration is shown on t

Page 2571 of 2572

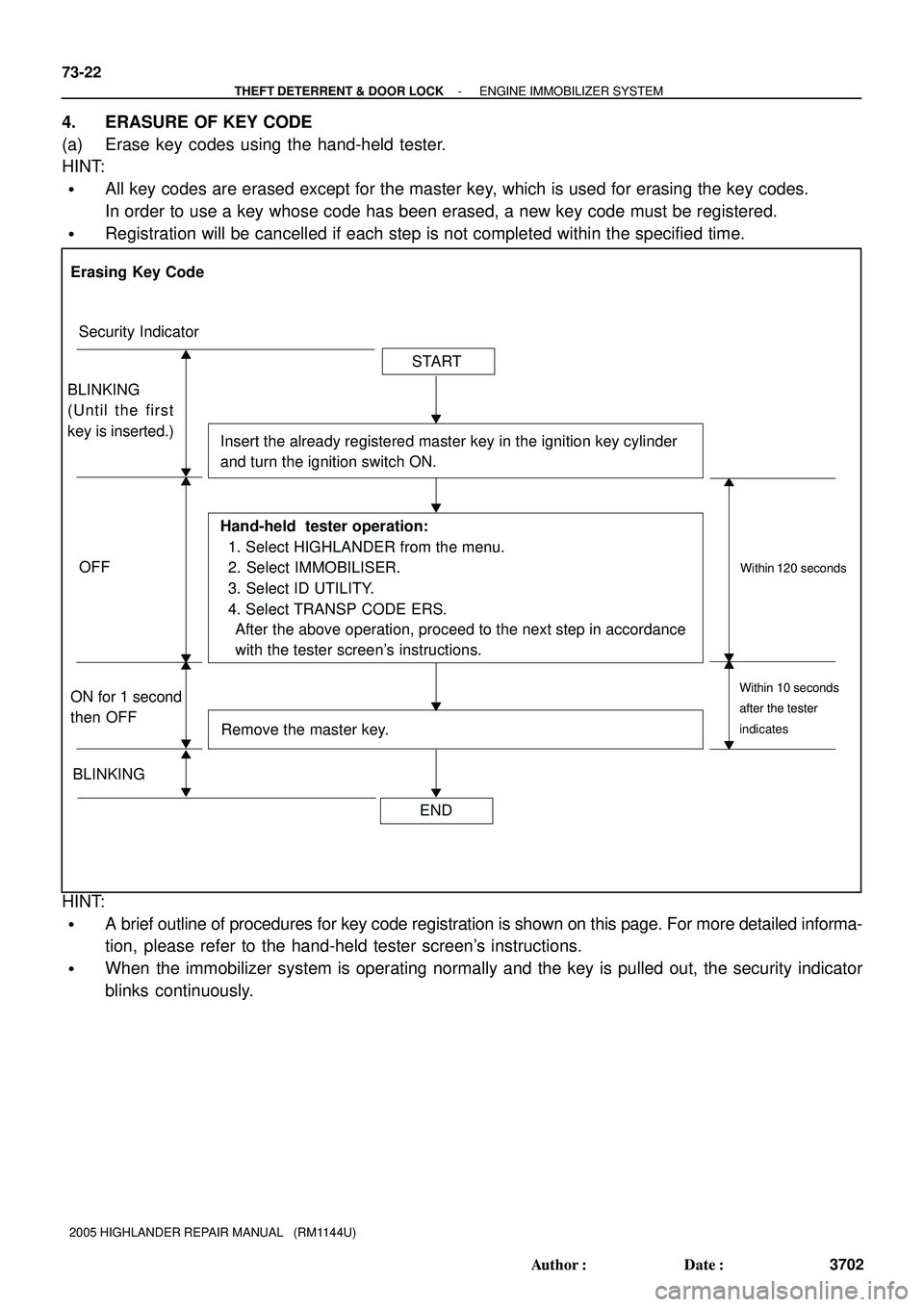

TOYOTA HIGHLANDER 2001 Service Repair Manual Remove the master key. Insert the already registered master key in the ignition key cylinder and turn the ignition switch ON. After the above operation, proceed to the next step in accordance with th

Page 2572 of 2572

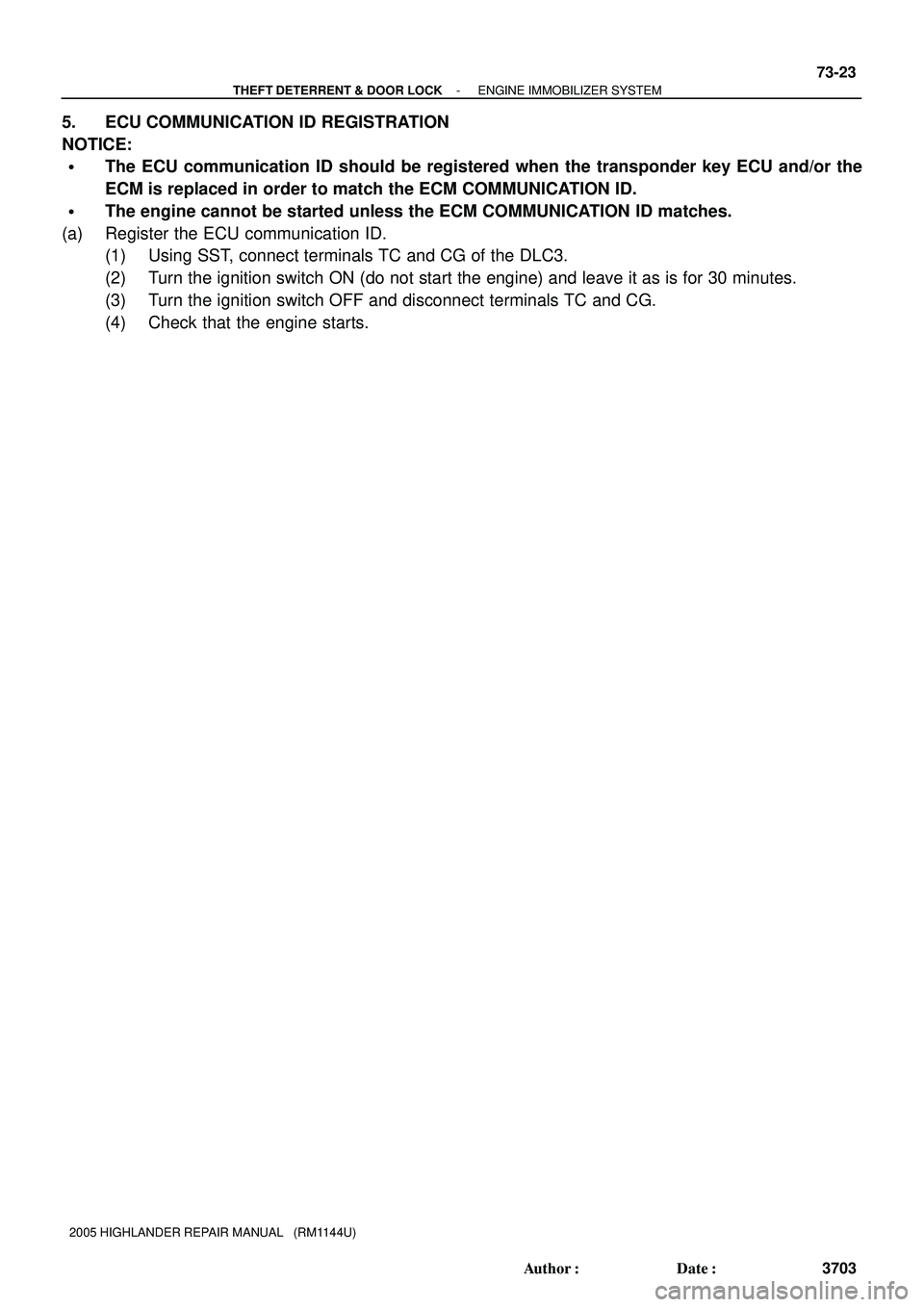

TOYOTA HIGHLANDER 2001 Service Repair Manual - THEFT DETERRENT & DOOR LOCKENGINE IMMOBILIZER SYSTEM 73-23 3703 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 5. ECU COMMUNICATION ID REGISTRATION NOTICE: The ECU communication ID shoul
