Page 1249 of 2572

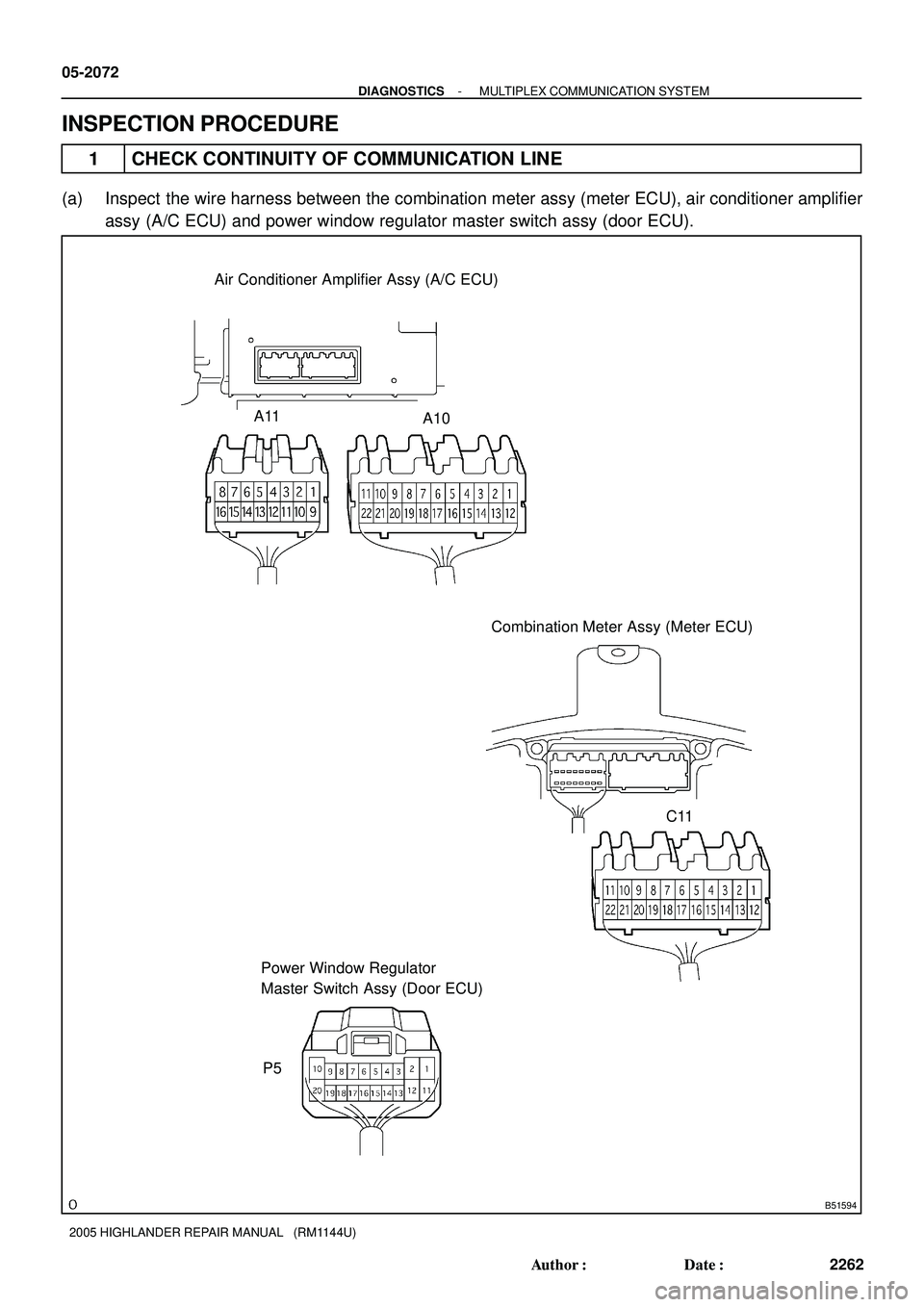

TOYOTA HIGHLANDER 2001 Service Repair Manual B51594 A11 A10 C11 Combination Meter Assy (Meter ECU) Power Window Regulator Master Switch Assy (Door ECU) Air Conditioner Amplifier Assy (A/C ECU) P5 05-2072 - DIAGNOSTICSMULTIPLEX COMMUNICATION SYS

Page 1250 of 2572

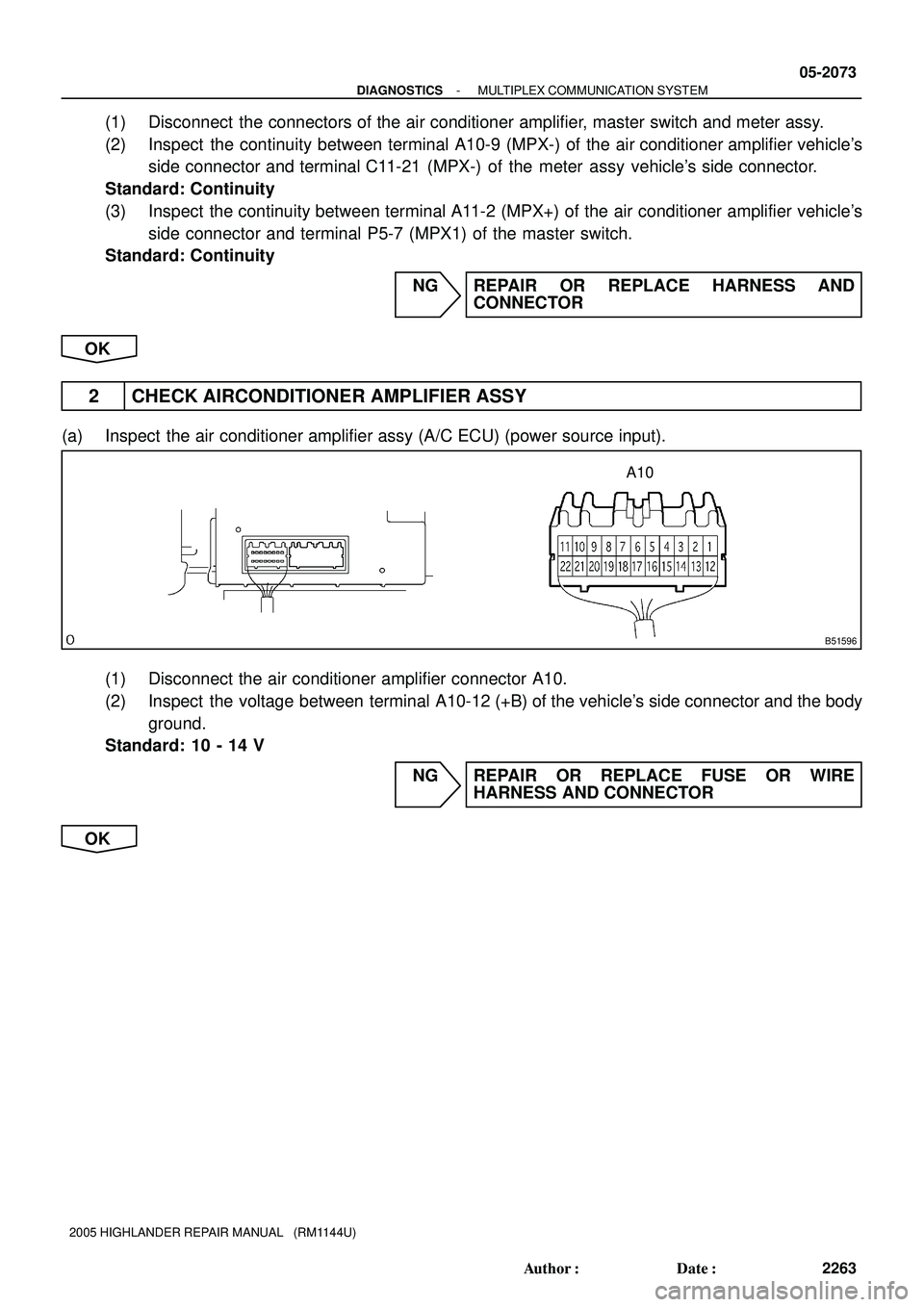

TOYOTA HIGHLANDER 2001 Service Repair Manual B51596 A10 - DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM 05-2073 2263 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) (1) Disconnect the connectors of the air conditioner amplifier, master sw

Page 1251 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual B51837 A10 05-2074 - DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM 2264 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 3 CHECK AIRCONDITIONER AMPLIFIER ASSY (a) Inspect the air conditioner ampl

Page 1252 of 2572

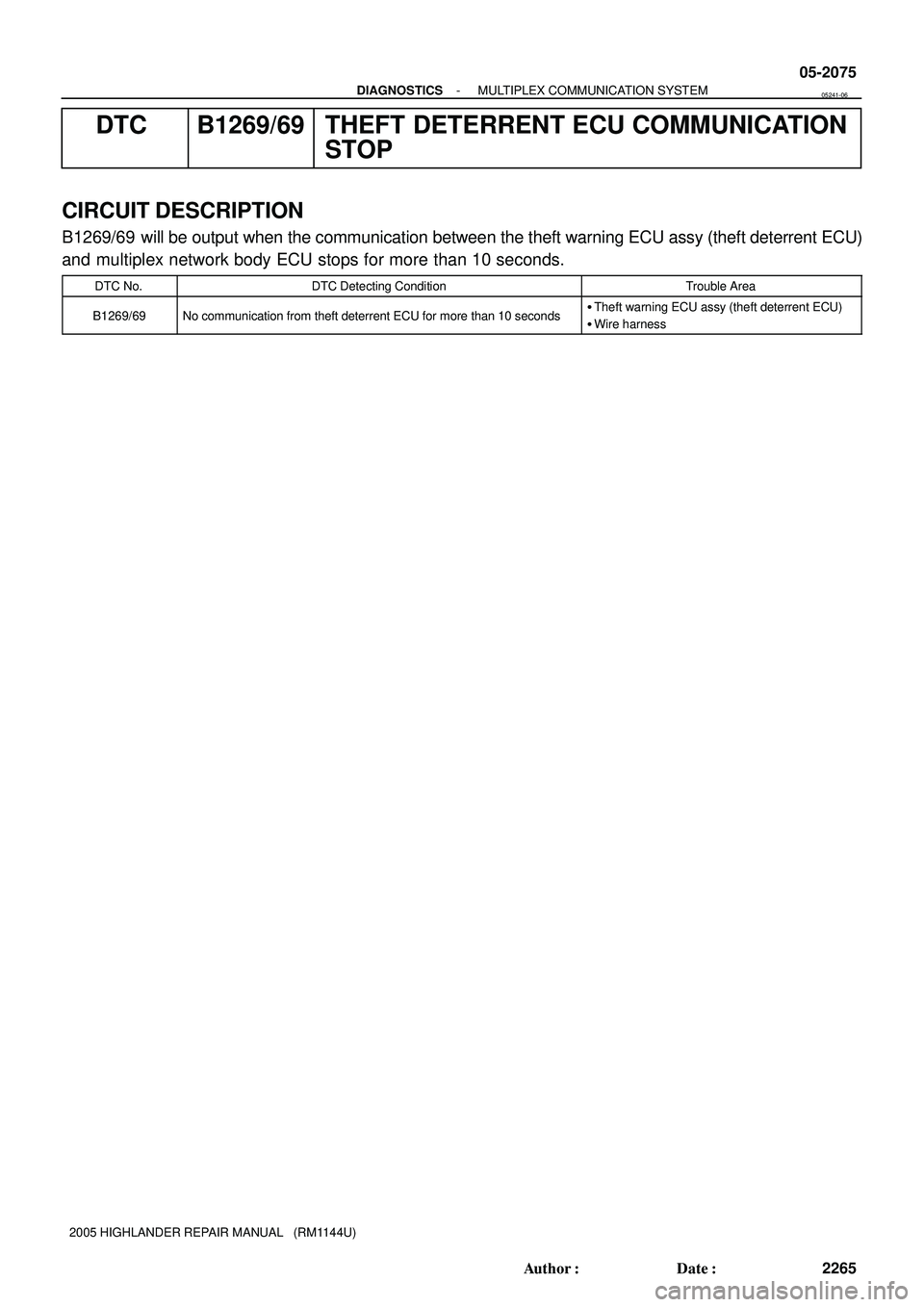

TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM 05-2075 2265 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) DTC B1269/69 THEFT DETERRENT ECU COMMUNICATION STOP CIRCUIT DESCRIPTION B1269/69 wil

Page 1253 of 2572

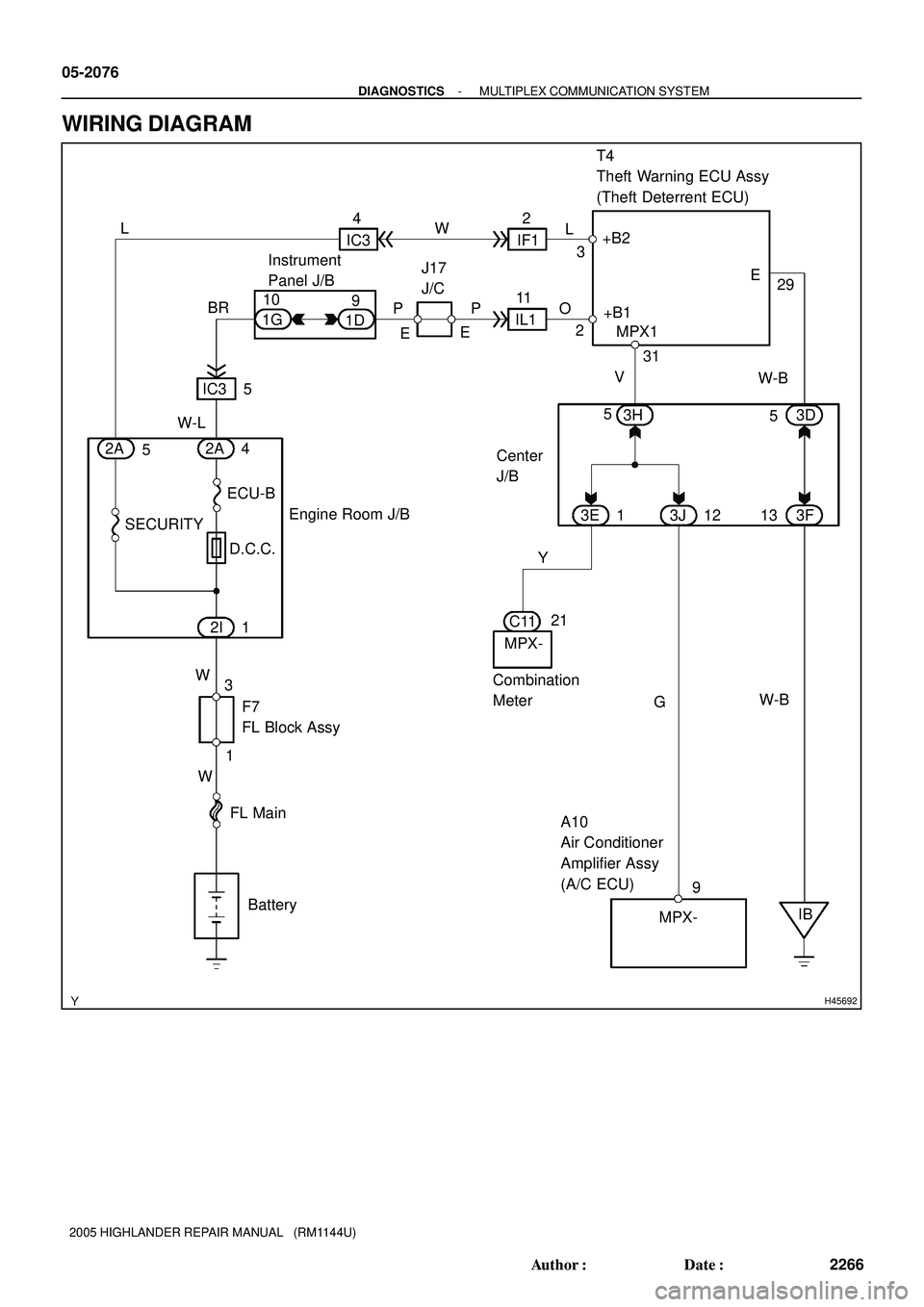

TOYOTA HIGHLANDER 2001 Service Repair Manual H45692 T4 Theft Warning ECU Assy (Theft Deterrent ECU) A10 Air Conditioner Amplifier Assy (A/C ECU) F7 FL Block AssyEngine Room J/B Combination Meter 1 41D9 MPX1 21 1G10 BR 2A 2I SECURITYW-L3 IC3 B

Page 1254 of 2572

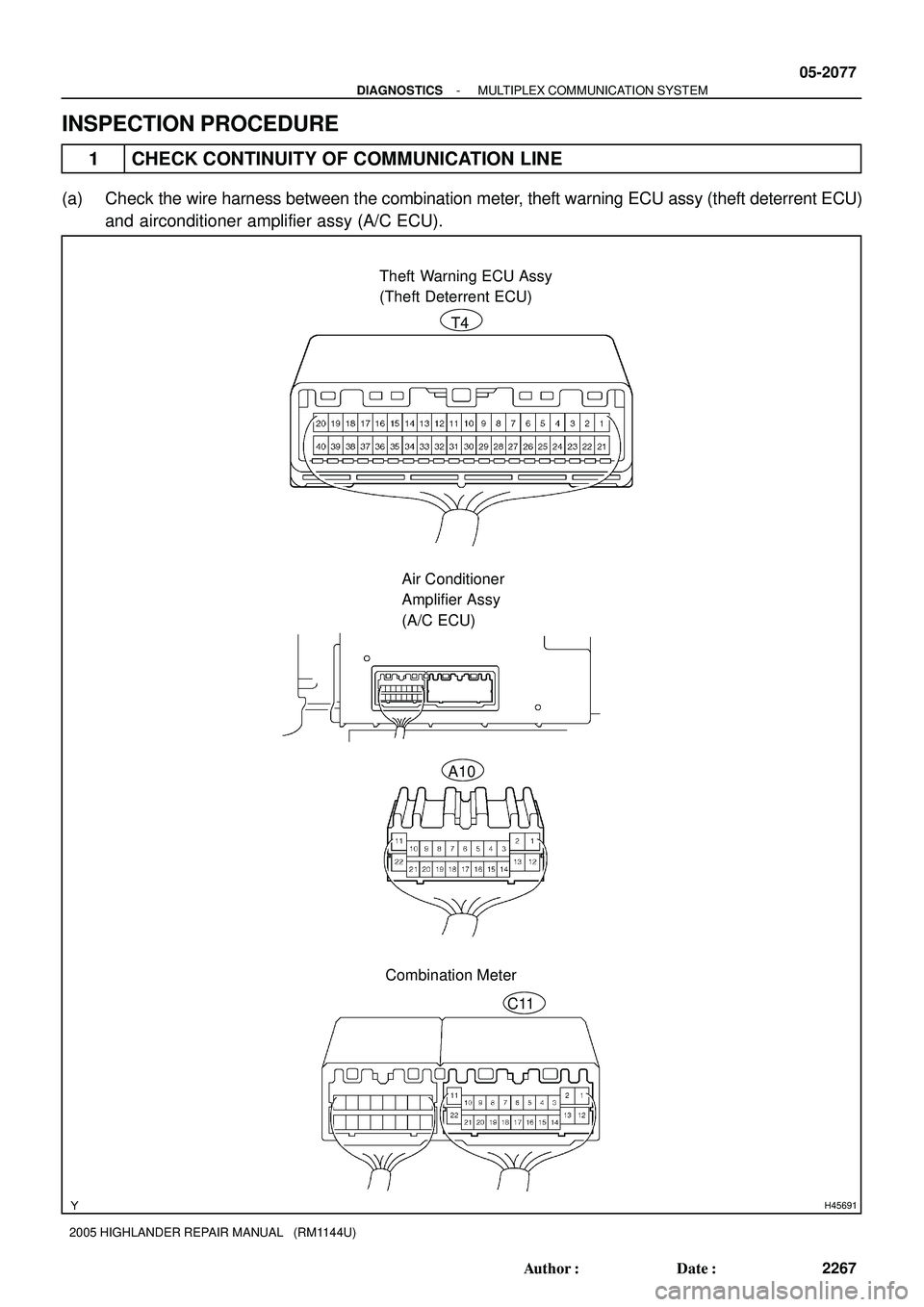

TOYOTA HIGHLANDER 2001 Service Repair Manual H45691 Theft Warning ECU Assy (Theft Deterrent ECU) Air Conditioner Amplifier Assy (A/C ECU) Combination MeterA10 C11 T4 - DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM 05-2077 2267 Author: Date: 2005

Page 1255 of 2572

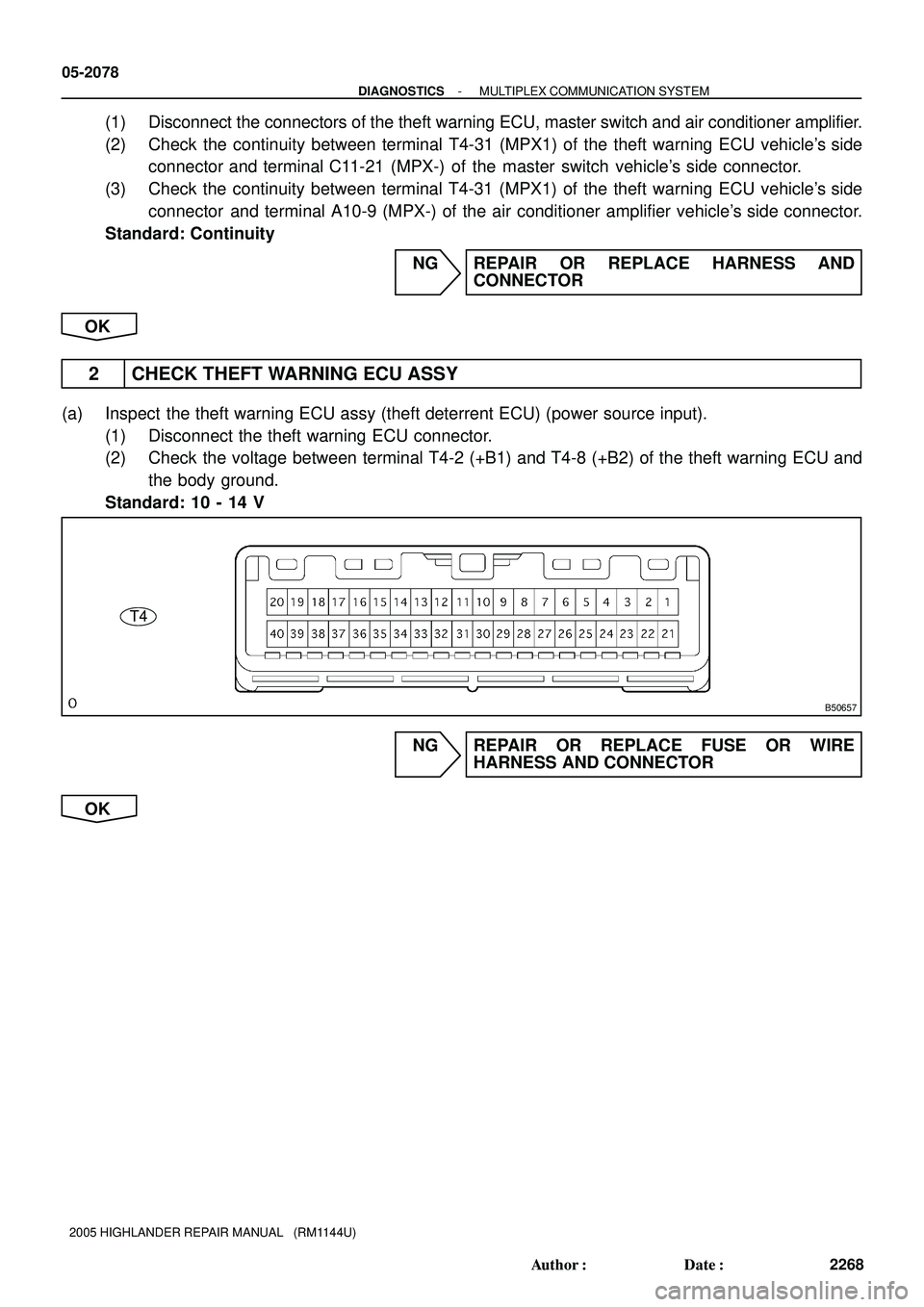

TOYOTA HIGHLANDER 2001 Service Repair Manual B50657 4T4 05-2078 - DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM 2268 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) (1) Disconnect the connectors of the theft warning ECU, master switch and

Page 1256 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual B50657 T4 - DIAGNOSTICSMULTIPLEX COMMUNICATION SYSTEM 05-2079 2269 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 3 CHECK THEFT WARNING ECU ASSY (a) Inspect the theft warning ECU assy (thef
