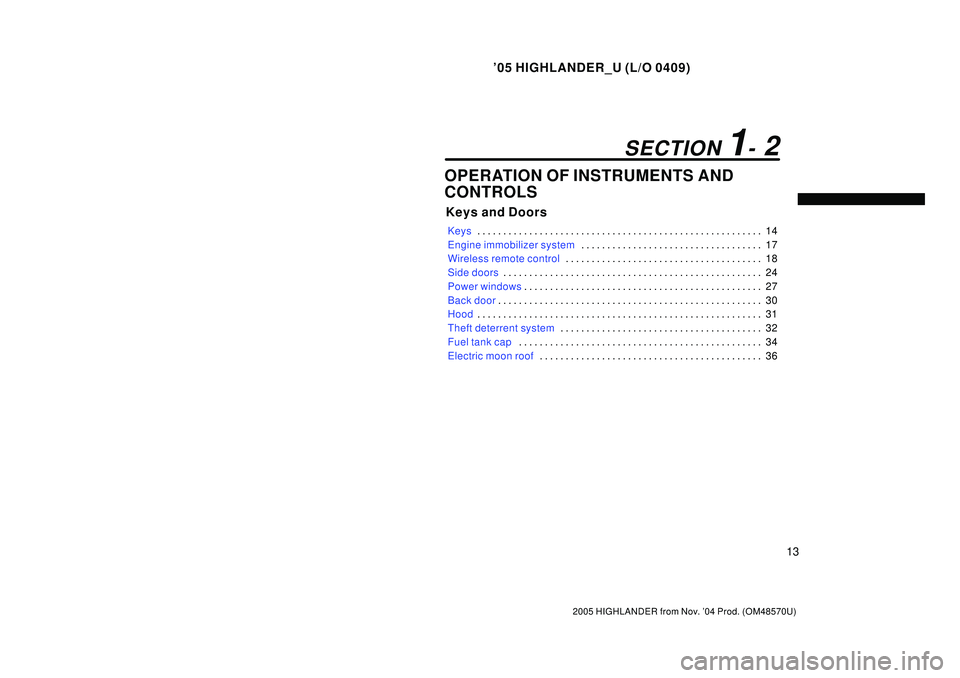

Page 129 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
13
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 130 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
14
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Your vehicle is supplied with two kinds
of keys.
1. Master keysÐThese keys work in ev-
ery lock.
2. Sub keyÐThis key wil

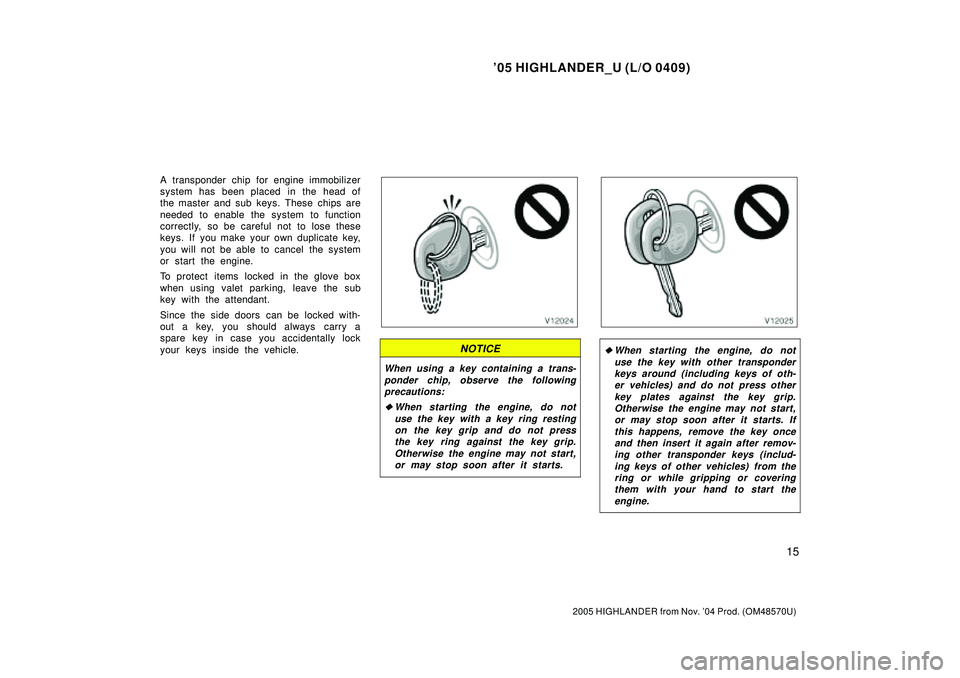

Page 131 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
15
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are

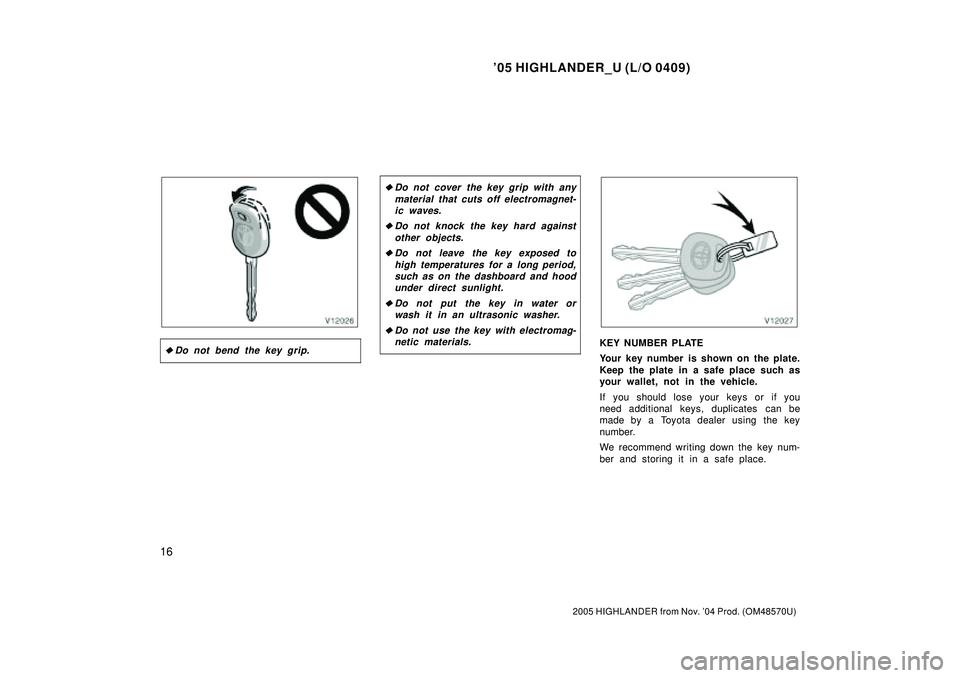

Page 132 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
16
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not kno

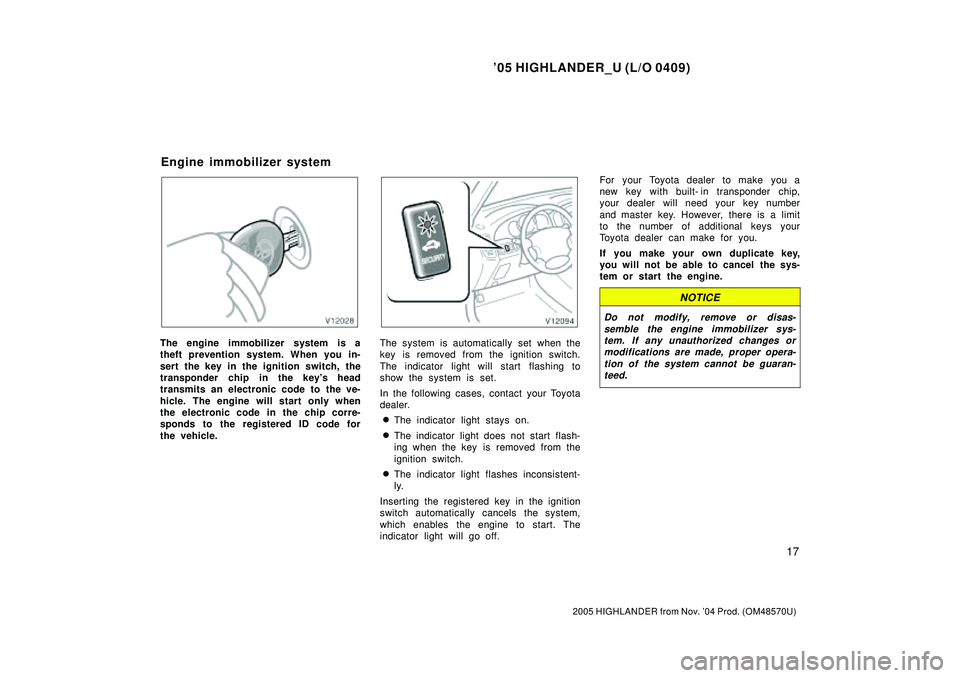

Page 133 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
17
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transpon

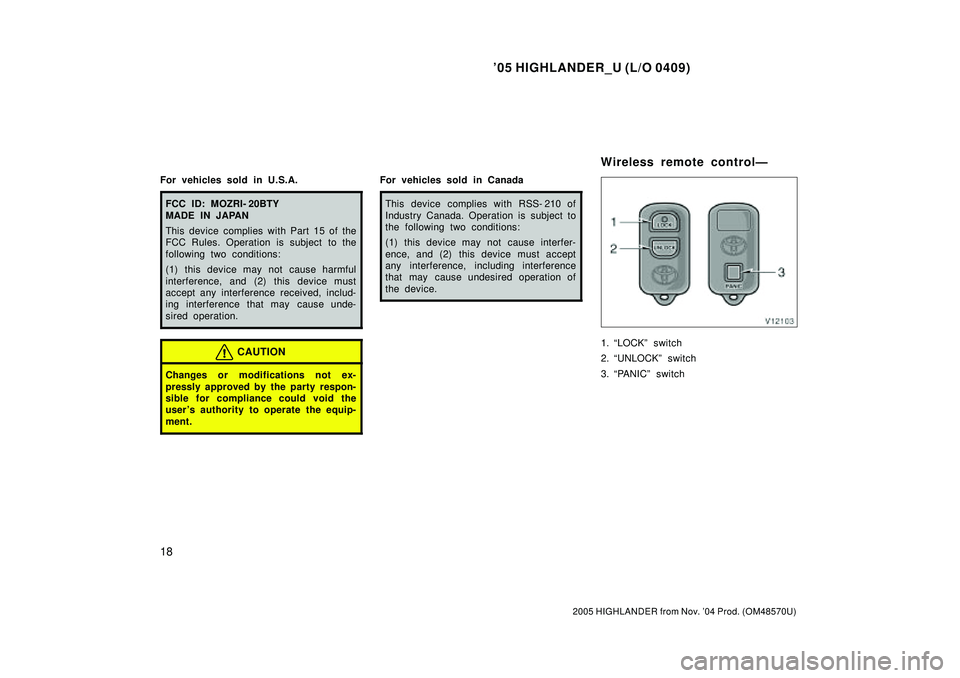

Page 134 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
18
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
For vehicles sold in U.S.A.
FCC ID: MOZRI- 20BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operati

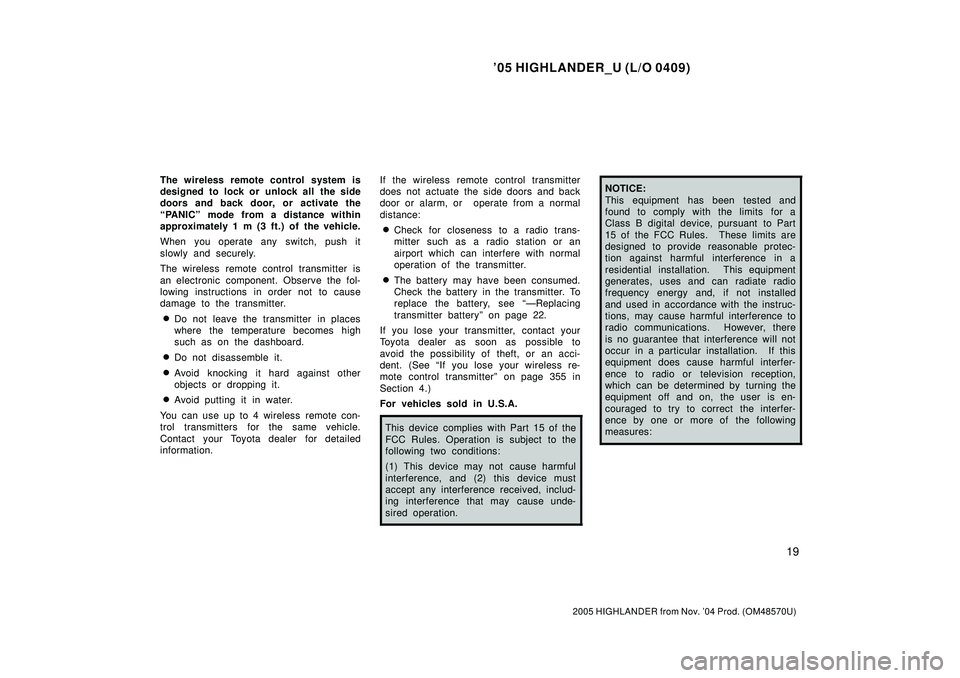

Page 135 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
19
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
PANI

'05 HIGHLANDER_U (L/O 0409)
19
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
PANICº mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.If the wireless remote control transmitter
does not actuate the side doors and back
door or alarm, or operate from a normal
distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see ÐReplacing
transmitter batteryº on page 22.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See If you lose your wireless re-
mote control transmitterº on page 355 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:

Page 136 of 2572

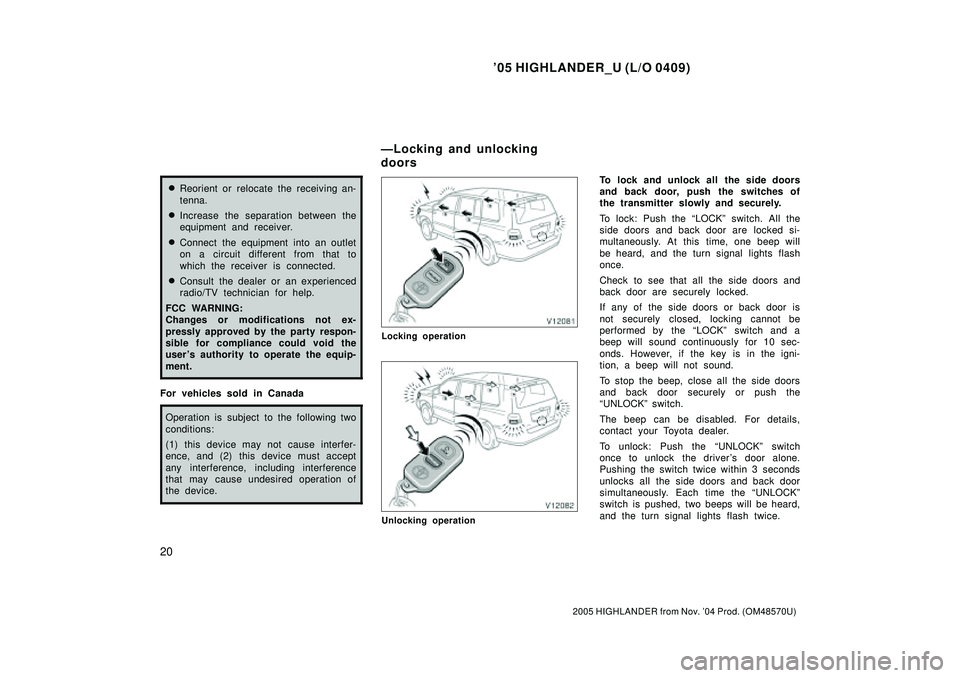

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
20
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the e
