Page 2449 of 2572

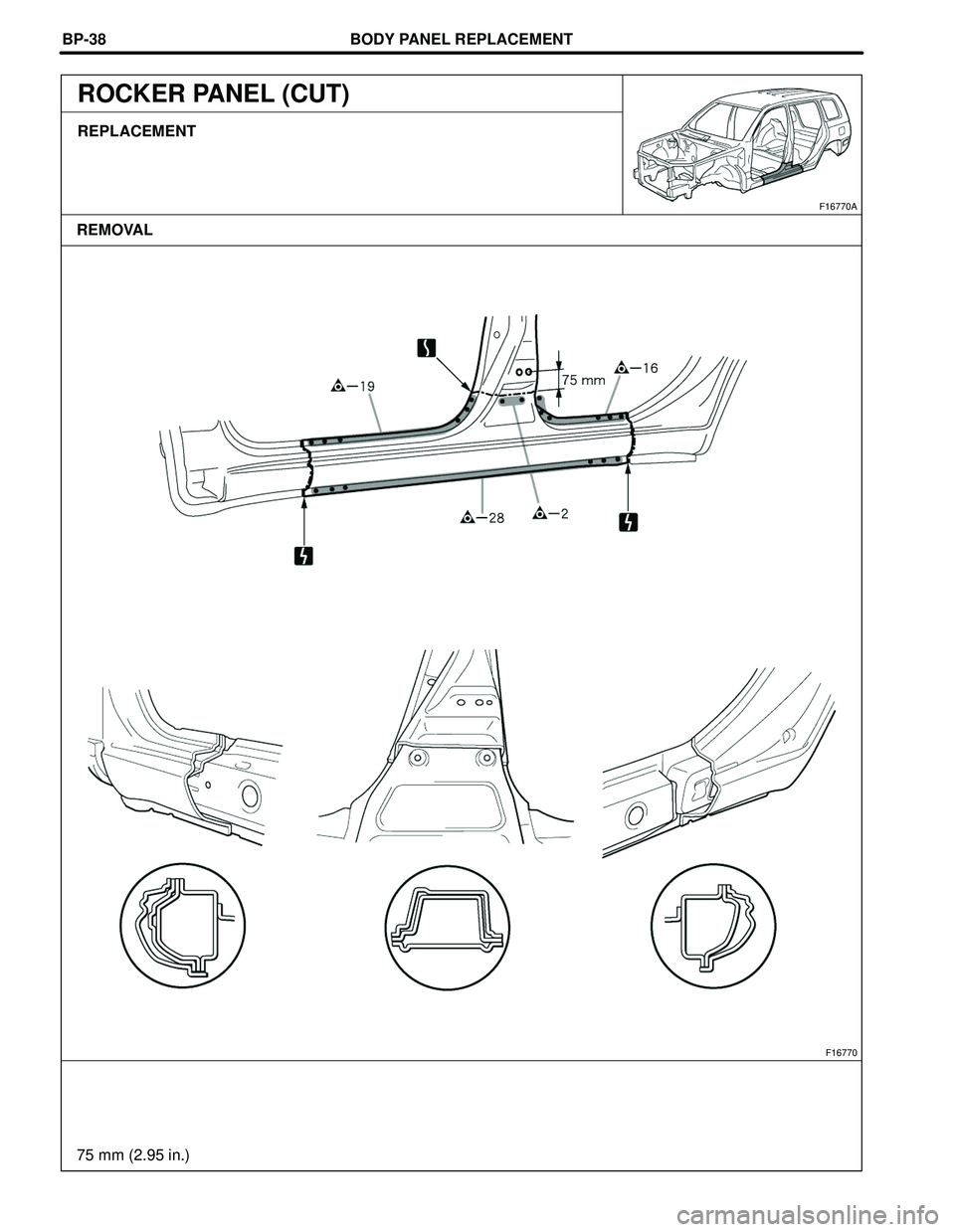

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16770 75 mm (2.95 in.) F16770A REMOVAL BP-38 ROCKER PANEL (CUT) REPLACEMENT

Page 2450 of 2572

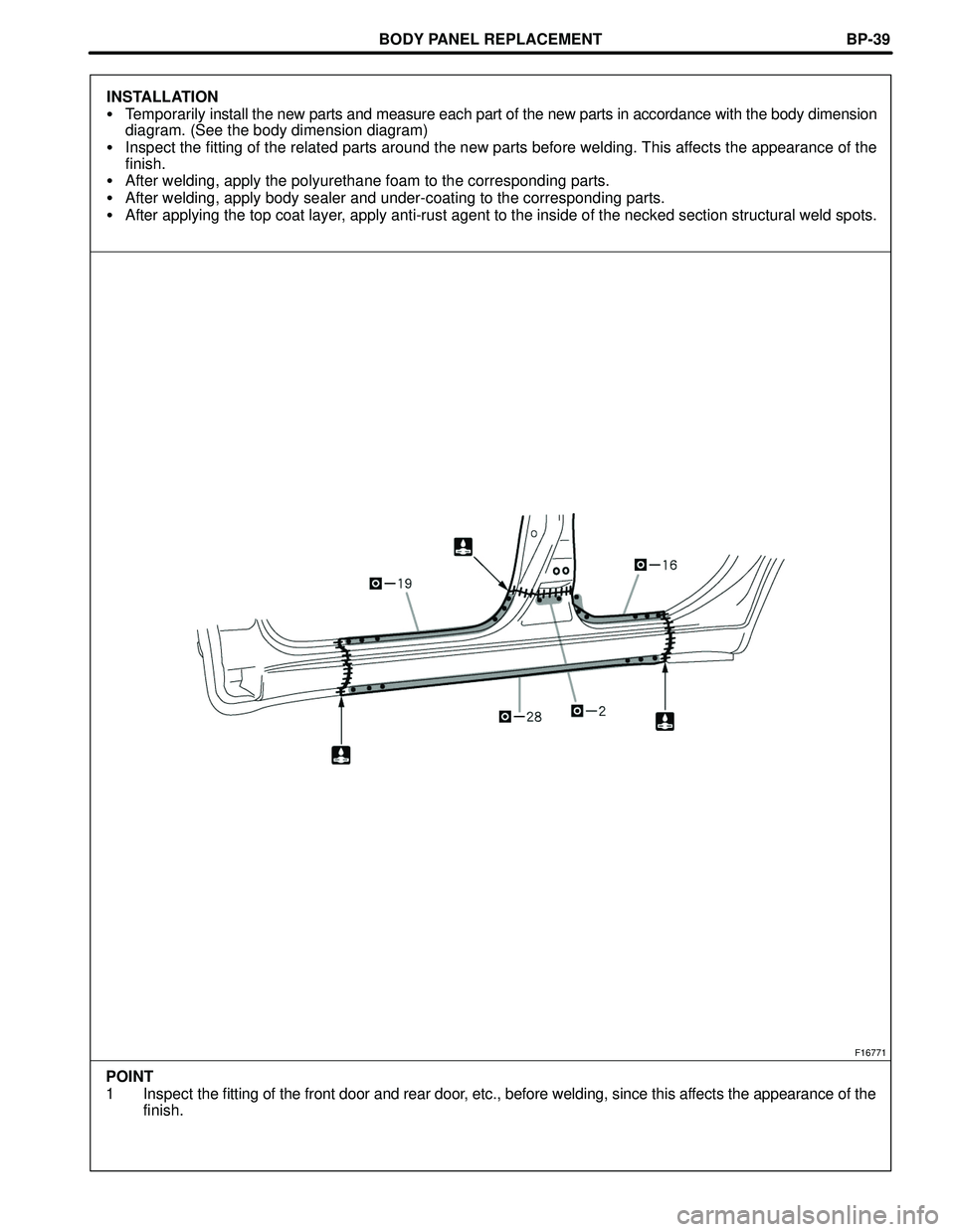

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16771 POINT 1 Inspect the fitting of the front door and rear door, etc., before welding, since this affects the appearance of the finish.BP-39 INSTALLATION Temporarily install

Page 2451 of 2572

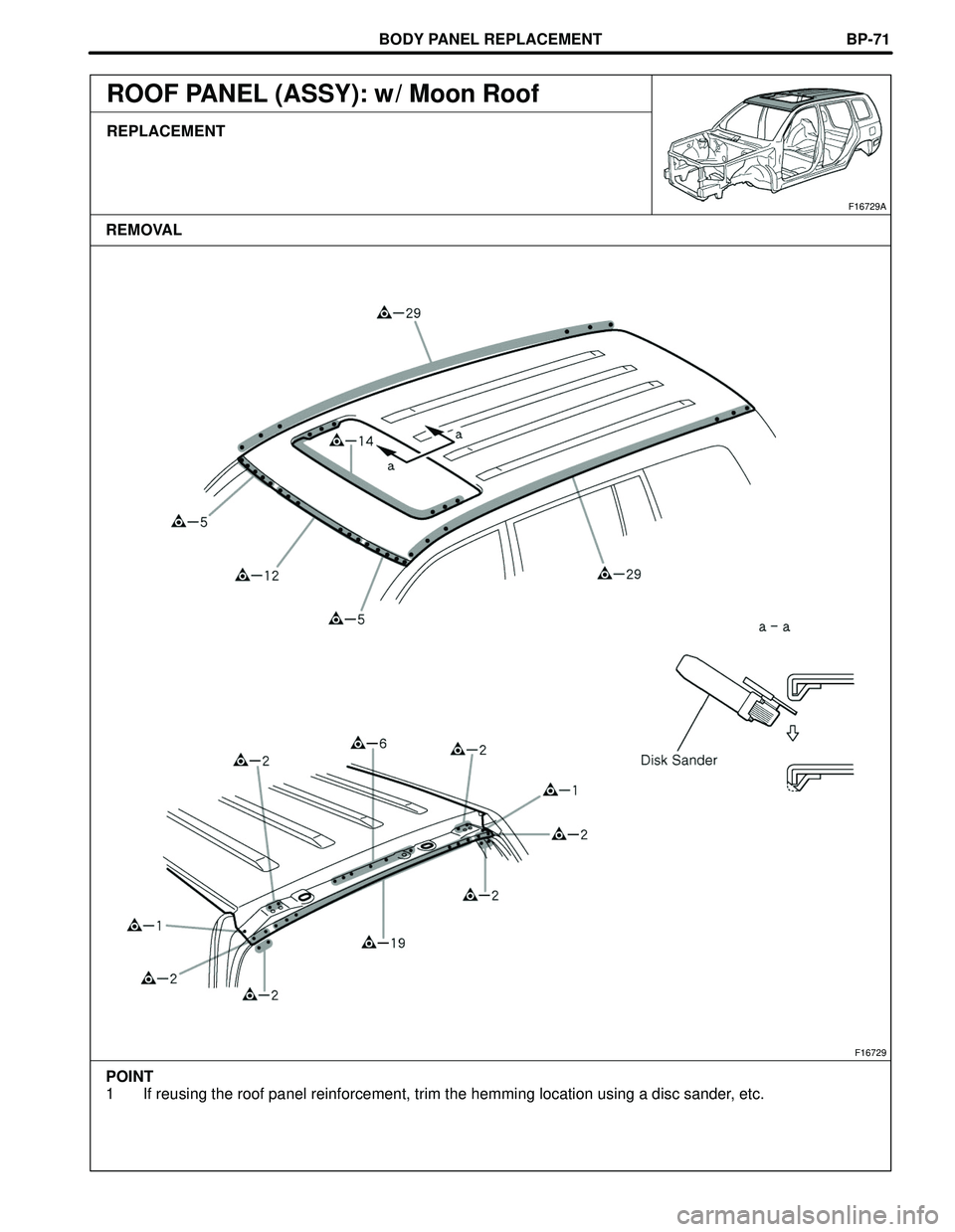

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16729 POINT 1 If reusing the roof panel reinforcement, trim the hemming location using a disc sander, etc. F16729A REMOVALBP-71 ROOF PANEL (ASSY): w / Moon Roof REPLACEMENT

Page 2452 of 2572

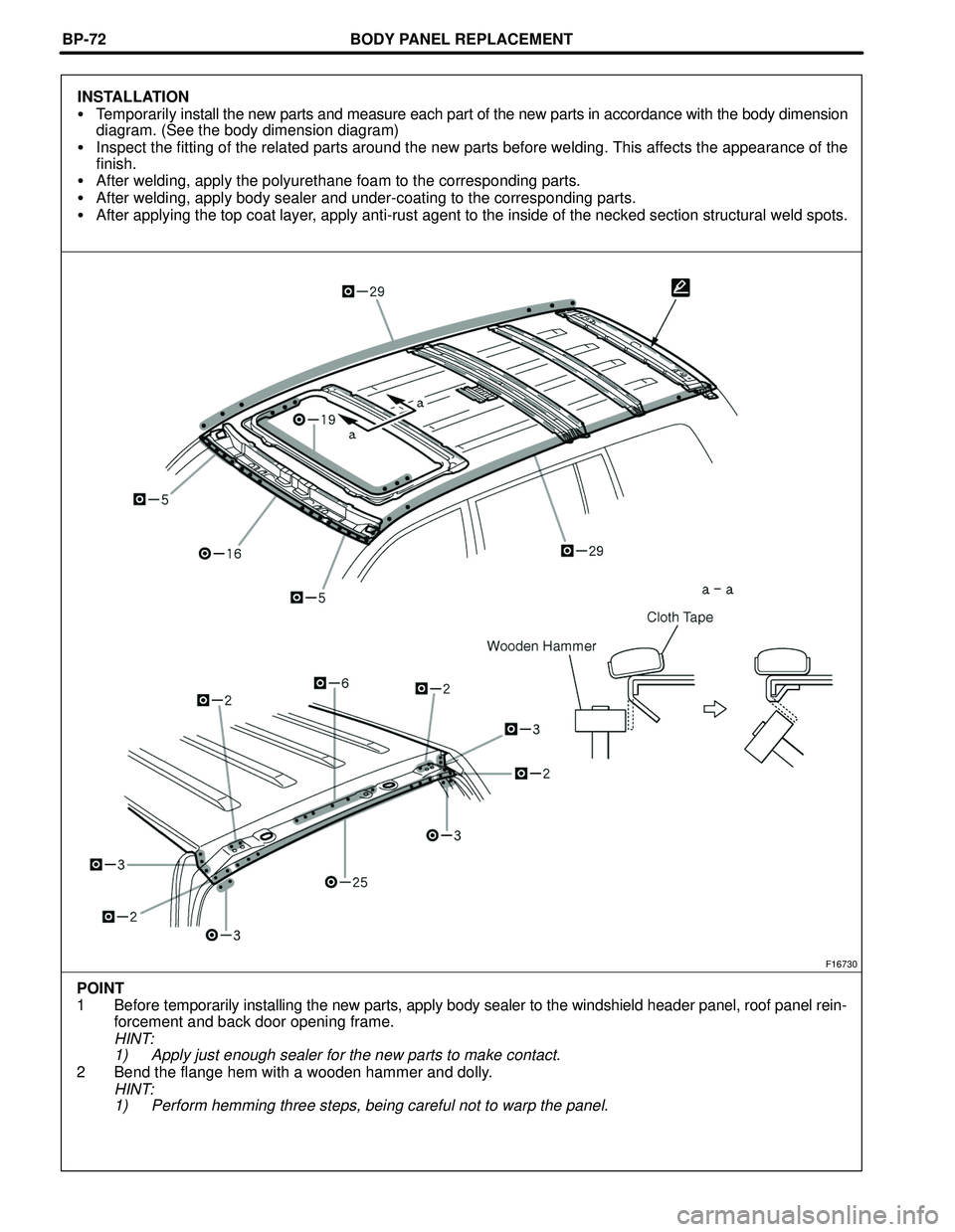

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16730 POINT 1 Before temporarily installing the new parts, apply body sealer to the windshield header panel, roof panel rein- forcement and back door opening frame. HINT: 1) Ap

Page 2453 of 2572

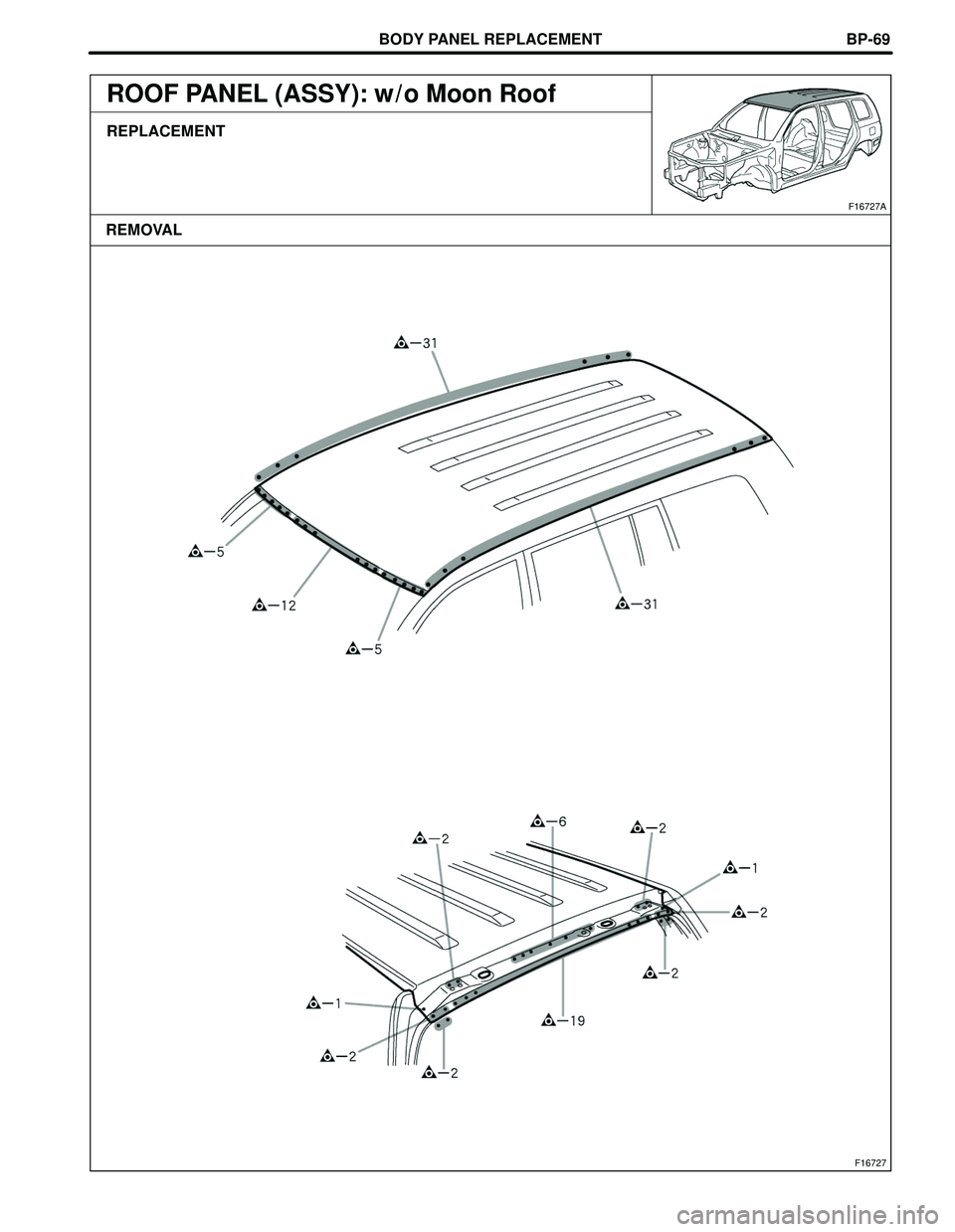

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16727 F16727A REMOVALBP-69 ROOF PANEL (ASSY): w / o Moon Roof REPLACEMENT

Page 2454 of 2572

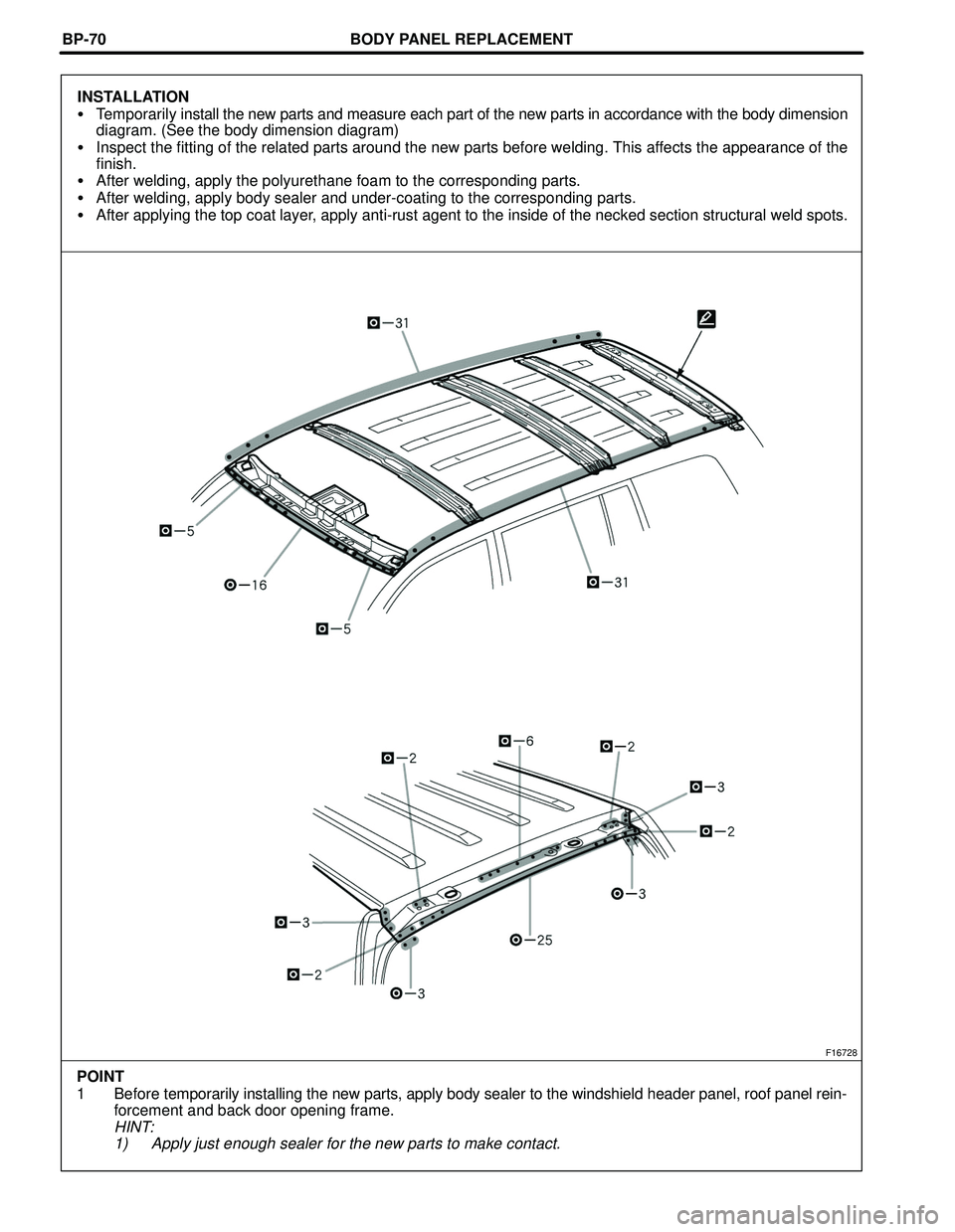

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16728 POINT 1 Before temporarily installing the new parts, apply body sealer to the windshield header panel, roof panel rein- forcement and back door opening frame. HINT: 1) Ap

Page 2455 of 2572

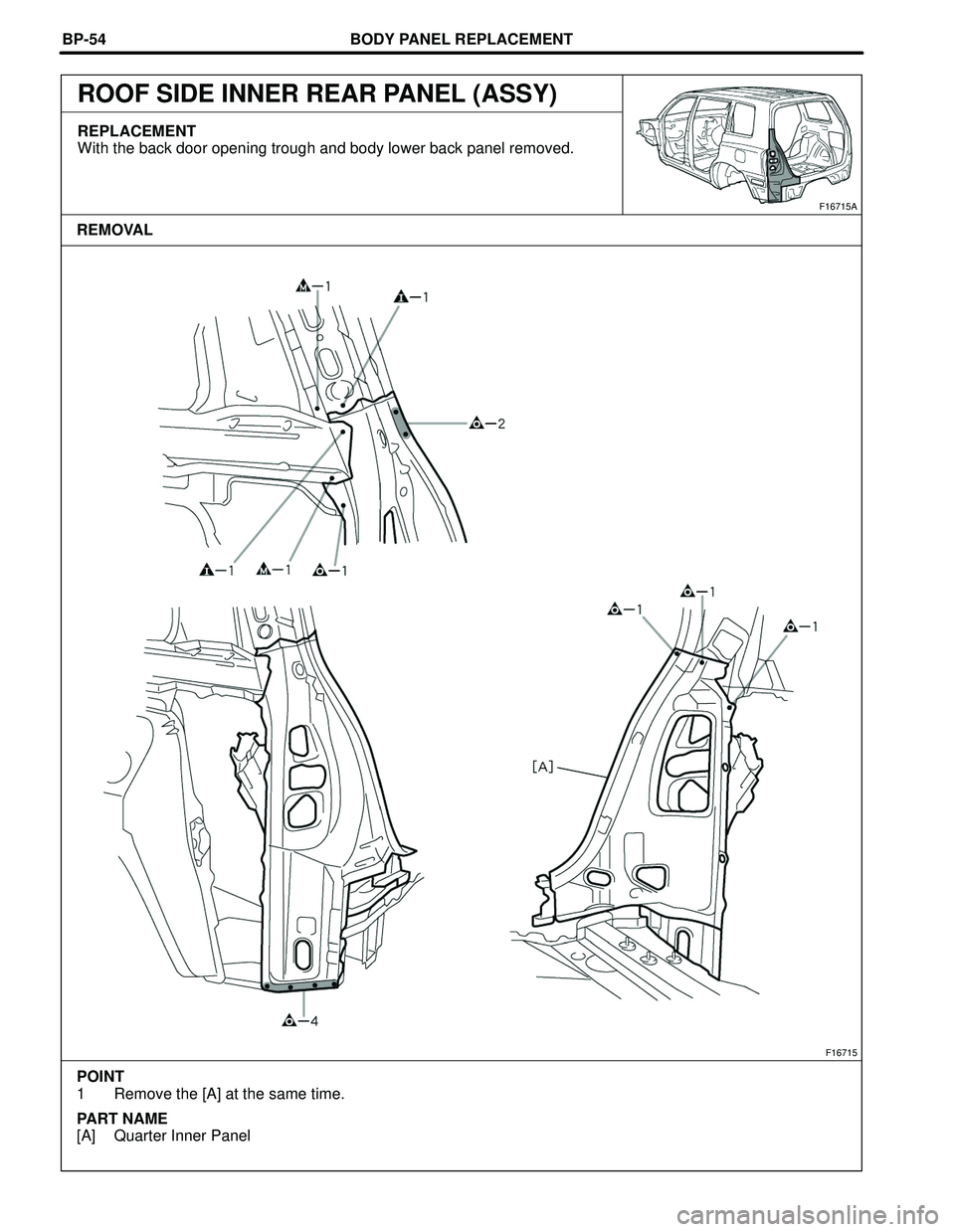

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16715 POINT 1 Remove the [A] at the same time. PART NAME [A] Quarter Inner Panel F16715A REMOVAL BP-54 ROOF SIDE INNER REAR PANEL (ASSY) REPLACEMENT With the back door opening

Page 2456 of 2572

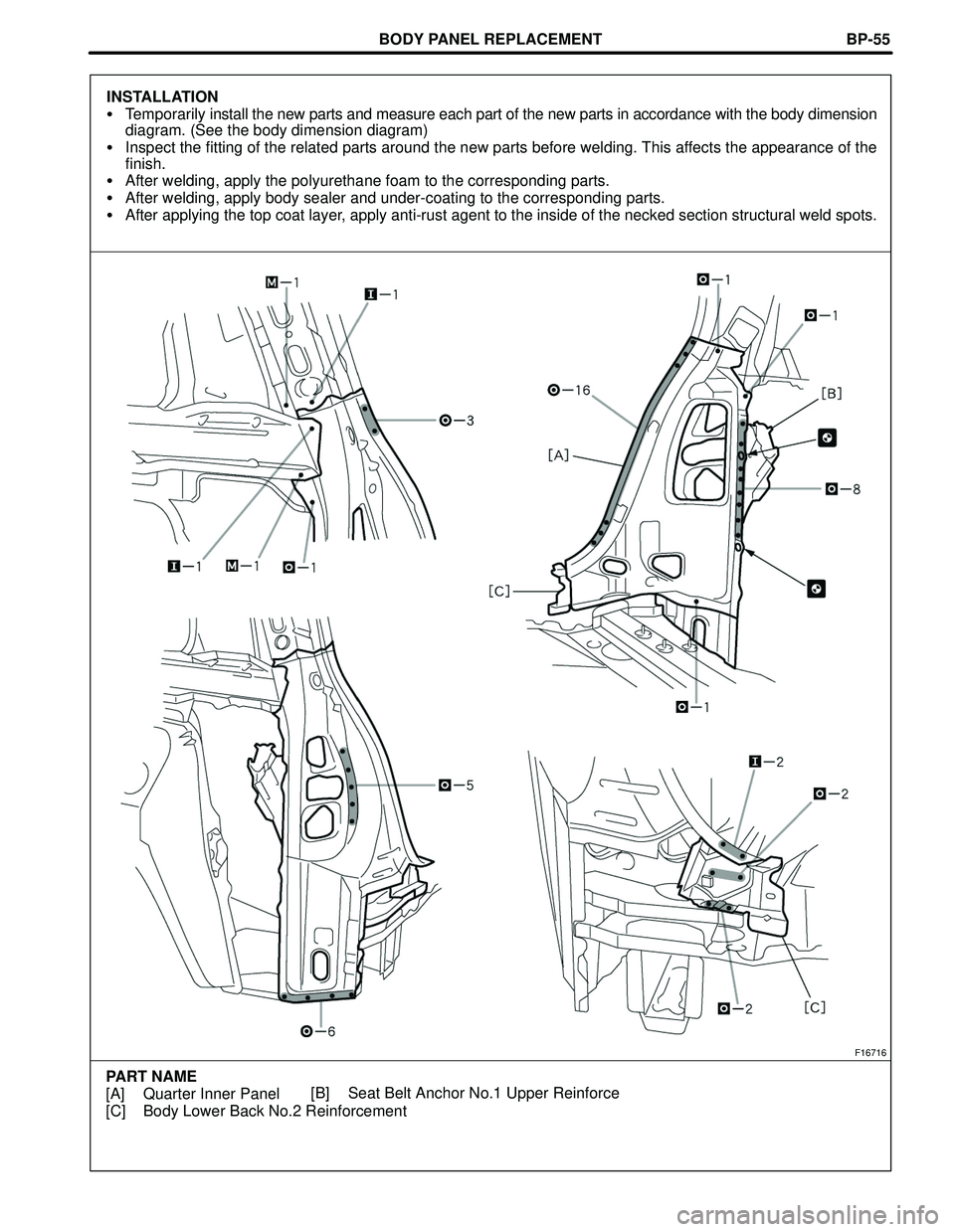

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16716 PART NAME [A] Quarter Inner Panel [C] Body Lower Back No.2 Reinforcement[B] Seat Belt Anchor No.1 Upper ReinforceBP-55 INSTALLATION Temporarily install the new parts and
