Page 2393 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16707 POINT 1 After removing the [A], [B] and [C], remove the quarter wheel housing outer panel. PART NAME [A] Roof Side Outer Reinforcement [C] Quarter Wheel Housing Center Gu

Page 2394 of 2572

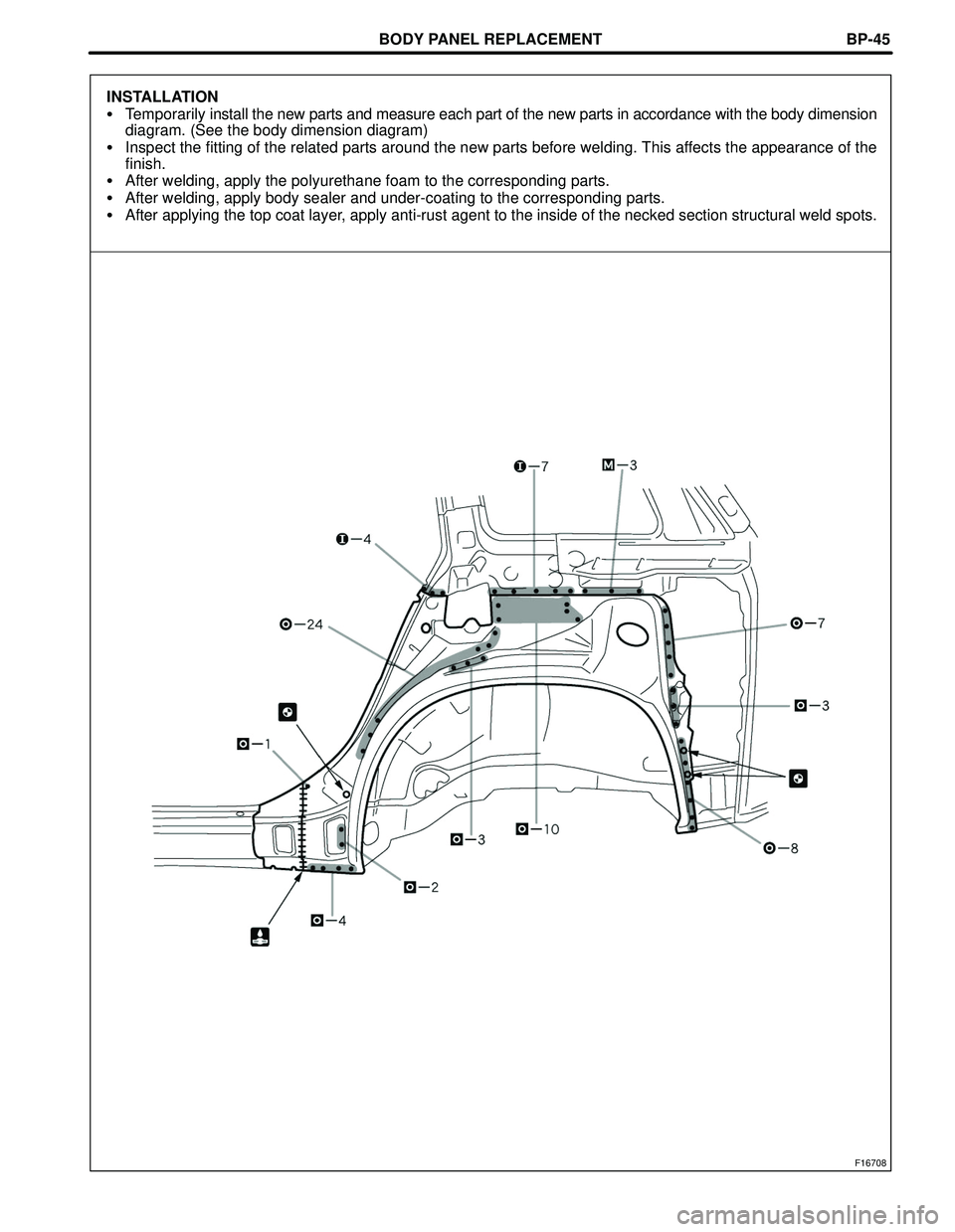

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16708 BP-45 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagra

Page 2395 of 2572

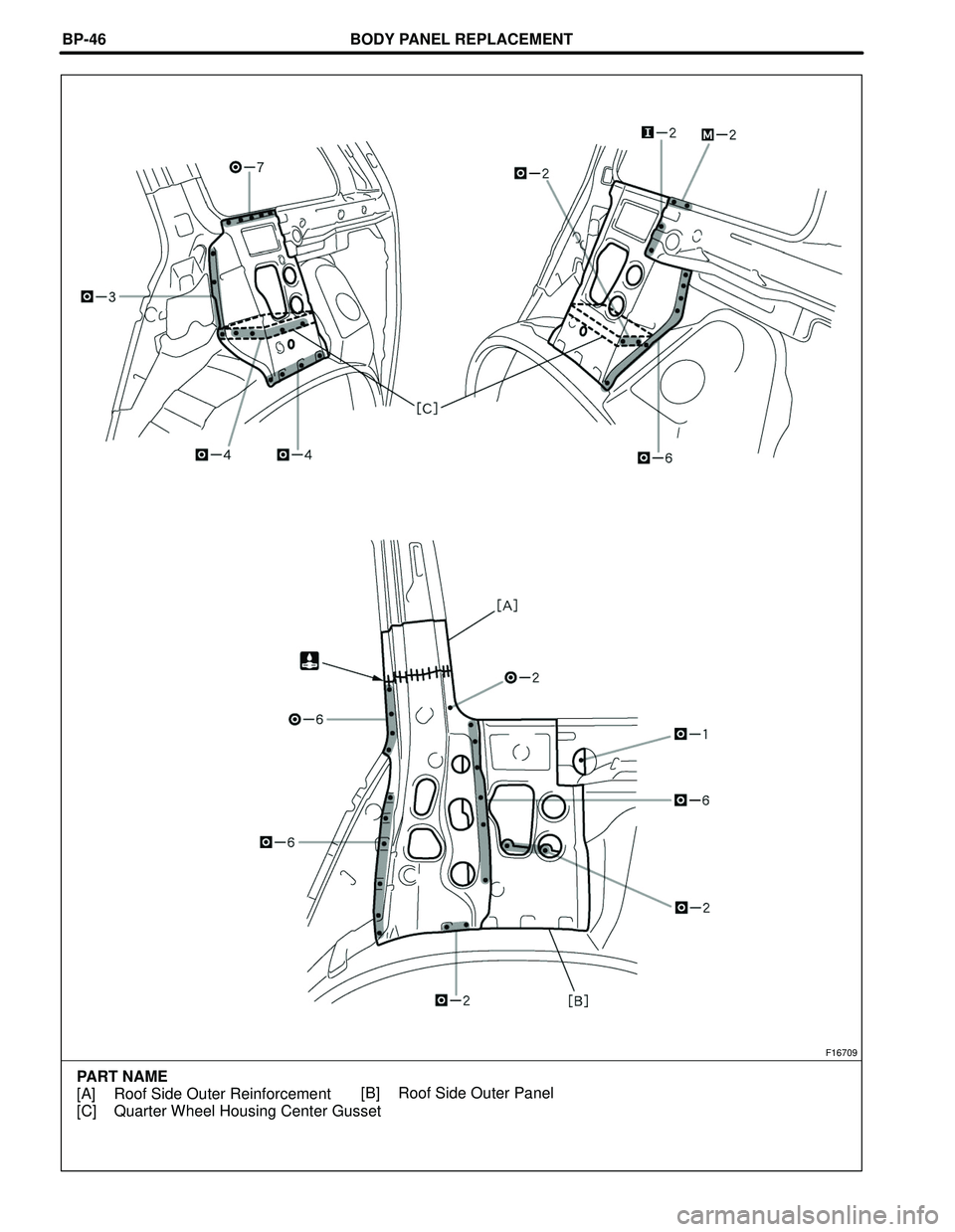

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16709 PART NAME [A] Roof Side Outer Reinforcement [C] Quarter Wheel Housing Center Gusset[B] Roof Side Outer Panel BP-46

Page 2396 of 2572

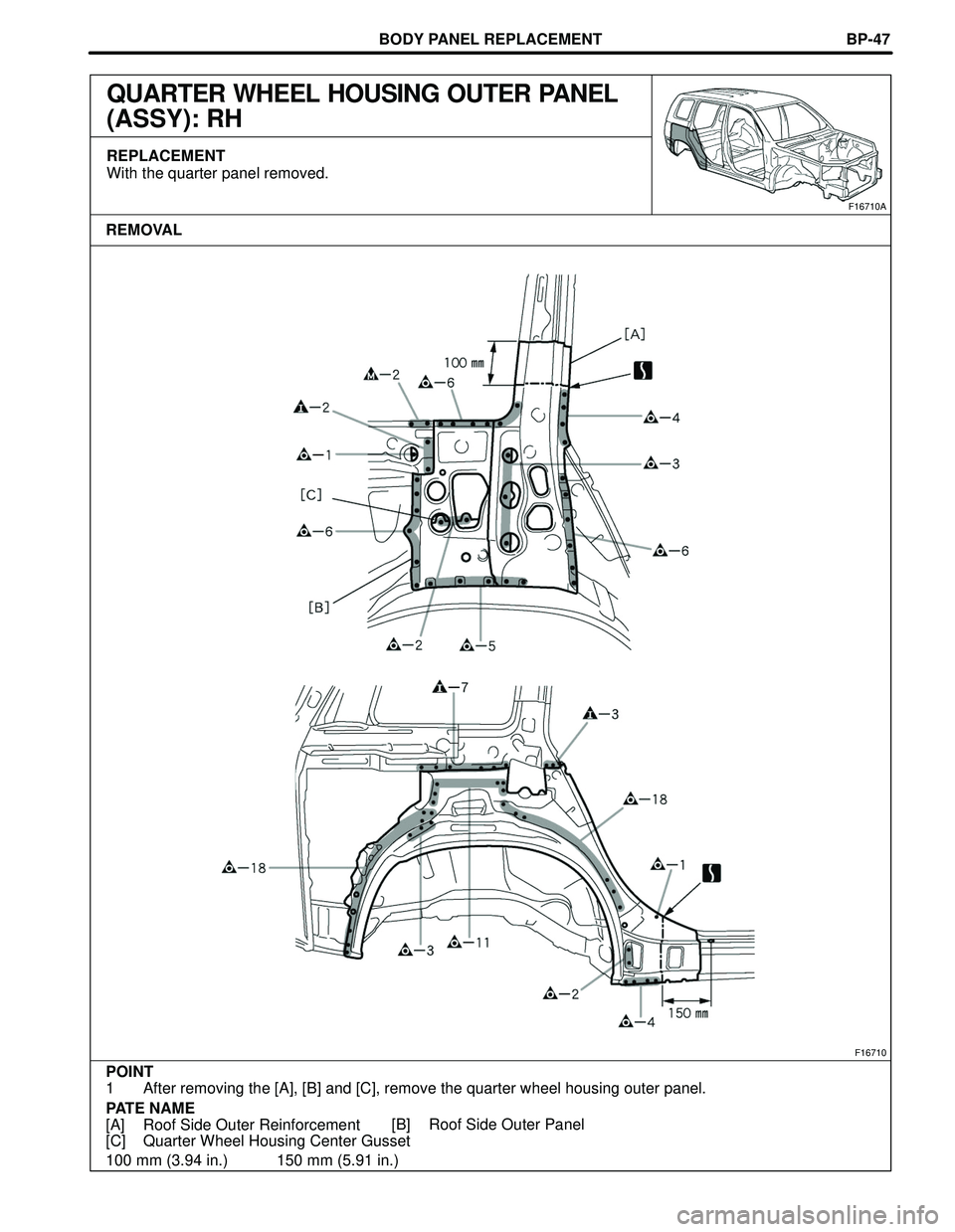

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16710 POINT 1 After removing the [A], [B] and [C], remove the quarter wheel housing outer panel. PATE NAME [A] Roof Side Outer Reinforcement [C] Quarter Wheel Housing Center Gu

Page 2397 of 2572

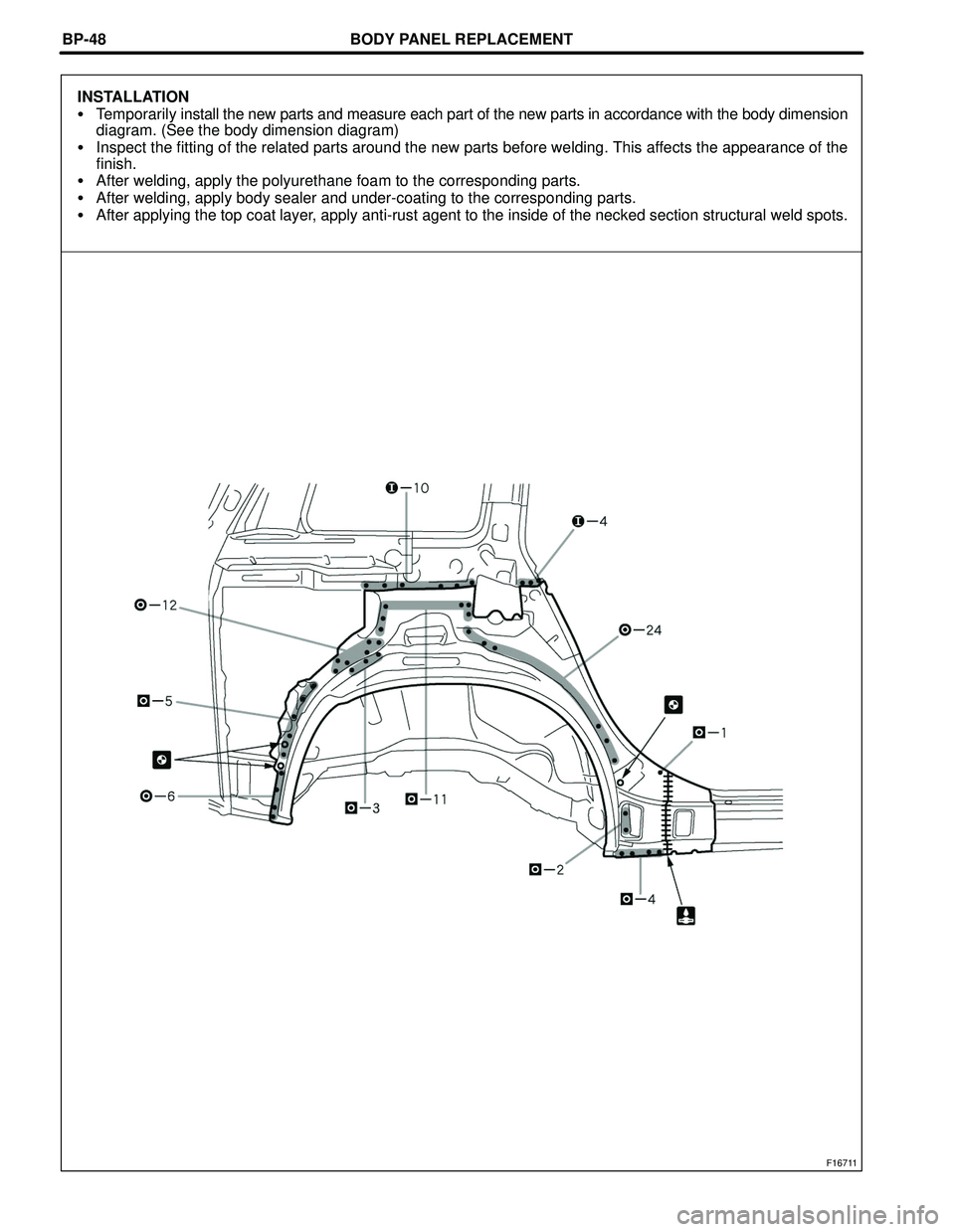

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16711 BP-48 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagra

Page 2398 of 2572

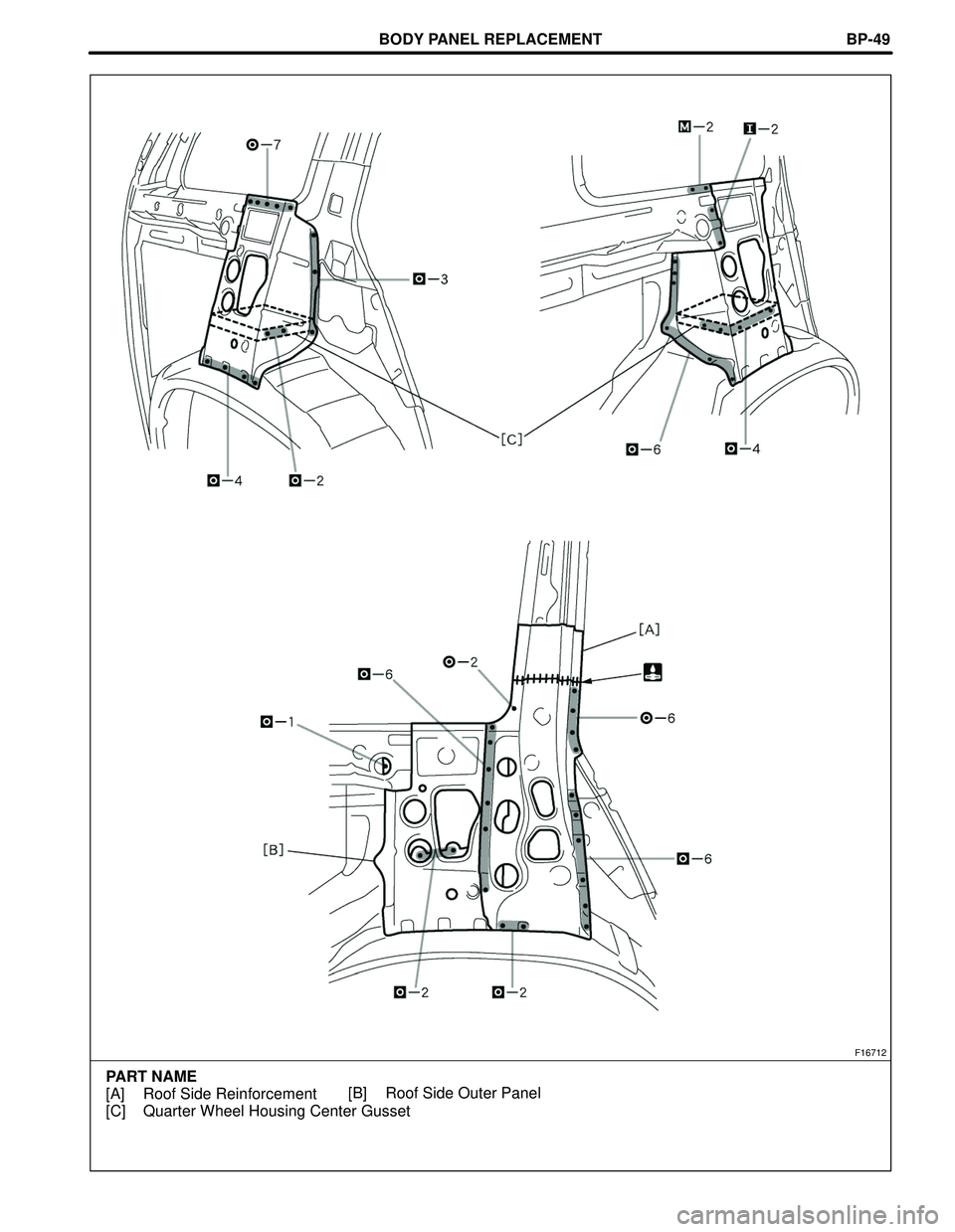

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16712 PART NAME [A] Roof Side Reinforcement [C] Quarter Wheel Housing Center Gusset[B] Roof Side Outer PanelBP-49

Page 2399 of 2572

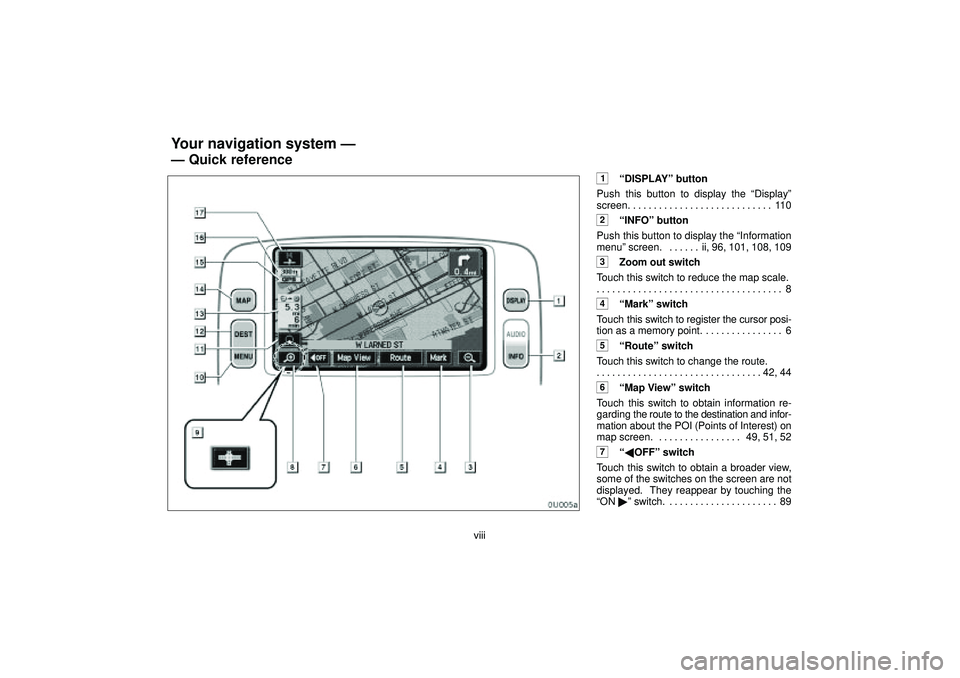

TOYOTA HIGHLANDER 2001 Service Repair Manual viii 1DISPLAYº button Push this button to display the Displayº screen. 110. . . . . . . . . . . . . . . . . . . . . . . . . . . 2INFOº button Push this button to display the Information menuº

Page 2400 of 2572

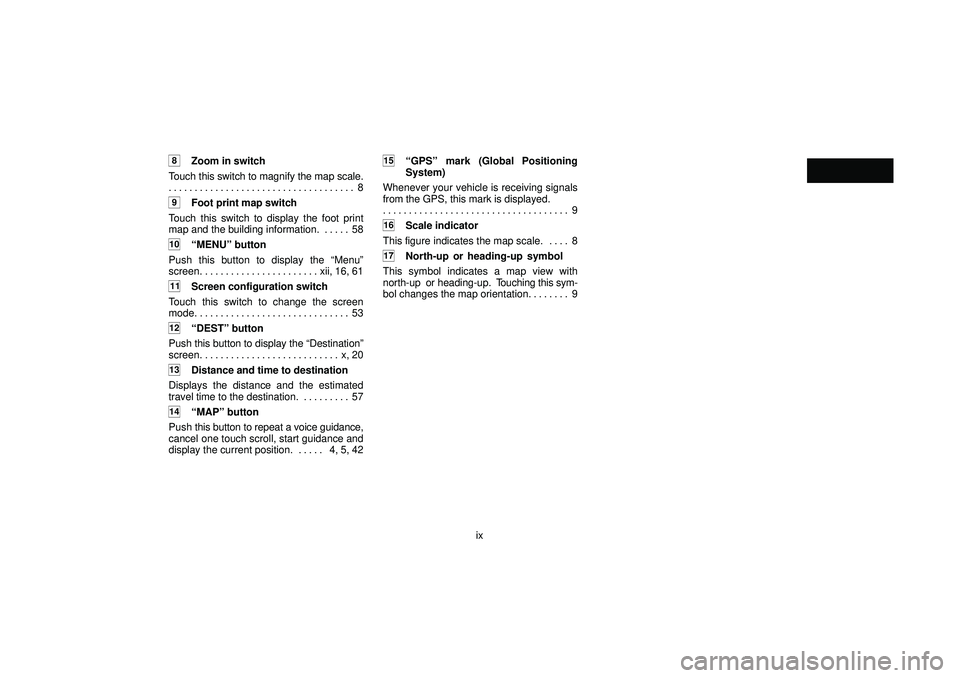

TOYOTA HIGHLANDER 2001 Service Repair Manual ix 8Zoom in switch Touch this switch to magnify the map scale. 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Foot print map switch Touch this switch to display the foot p
