Page 137 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
21
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

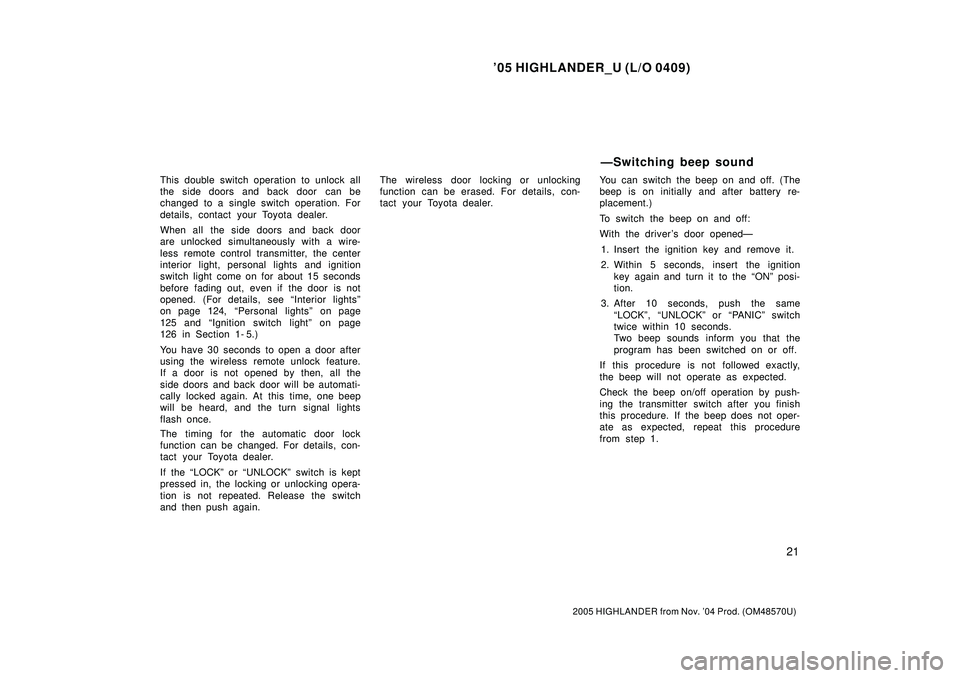

This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For

'05 HIGHLANDER_U (L/O 0409)
21
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When all the side doors and back door
are unlocked simultaneously with a wire-
less remote control transmitter, the center
interior light, personal lights and ignition
switch light come on for about 15 seconds
before fading out, even if the door is not
opened. (For details, see Interior lightsº
on page 124, Personal lightsº on page
125 and Ignition switch lightº on page
126 in Section 1- 5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again. At this time, one beep
will be heard, and the turn signal lights
flash once.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the LOCKº or UNLOCKº switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.The wireless door locking or unlocking
function can be erased. For details, con-
tact your Toyota dealer.You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver 's door openedÐ
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition
key again and turn it to the ONº posi-
tion.
3. After 10 seconds, push the same
LOCKº, UNLOCKº or PANICº switch
twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
Check the beep on/off operation by push-
ing the transmitter switch after you finish
this procedure. If the beep does not oper-
ate as expected, repeat this procedure
from step 1.
ÐSwitching beep sound

Page 138 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
22
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

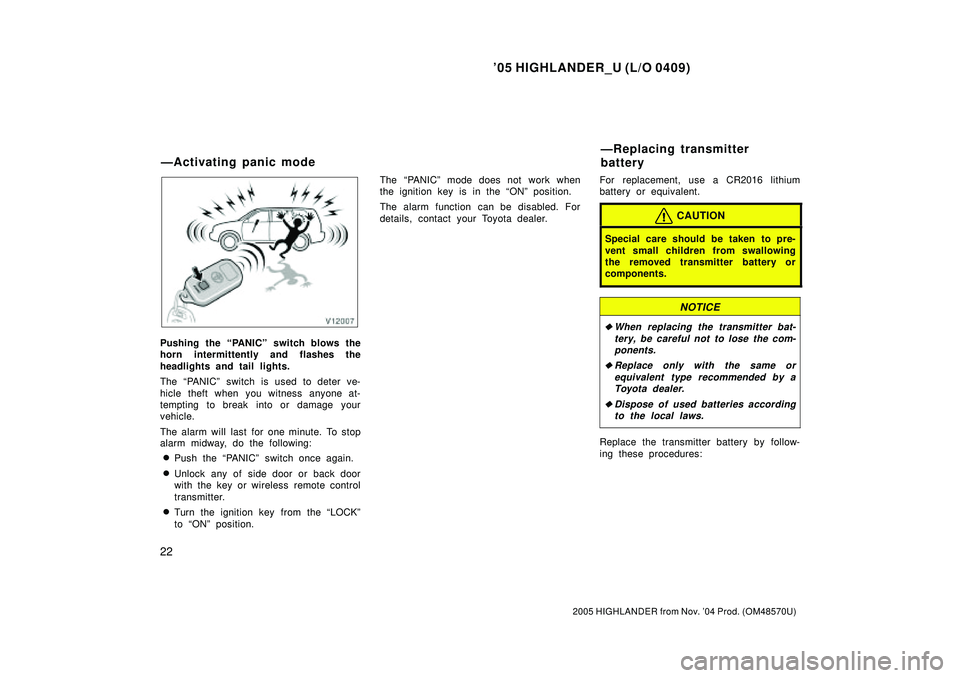

Pushing the PANICº switch blows the
horn intermittently and flashes the
headlights and tail lights.
The PANICº switch

Page 139 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
23
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

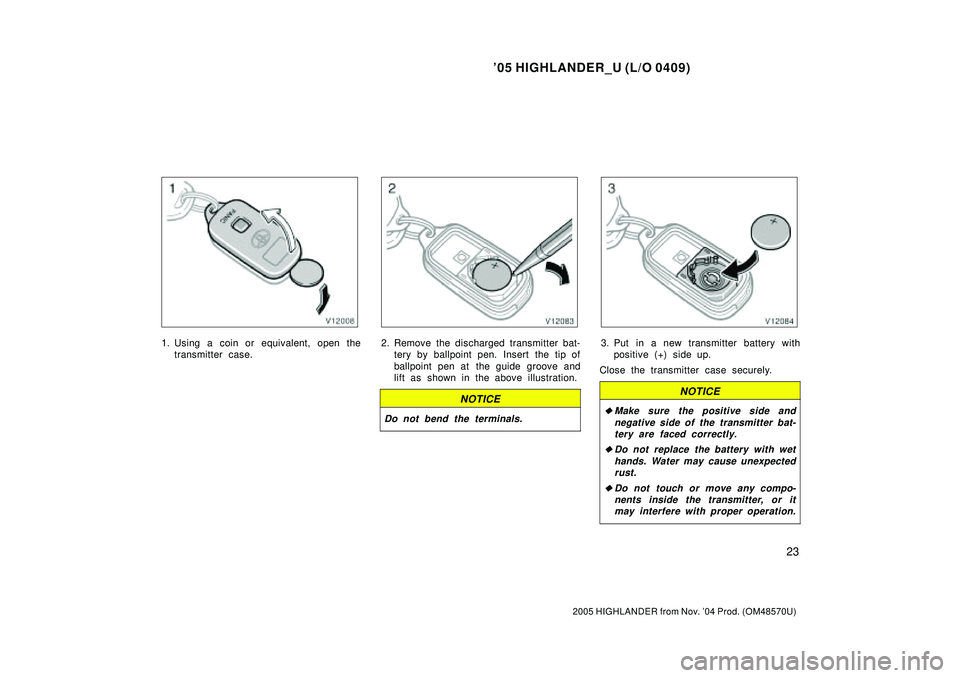

1. Using a coin or equivalent, open the
transmitter case.2. Remove the discharged transmitter bat-
tery by ballpoint pen.

Page 140 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
24
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

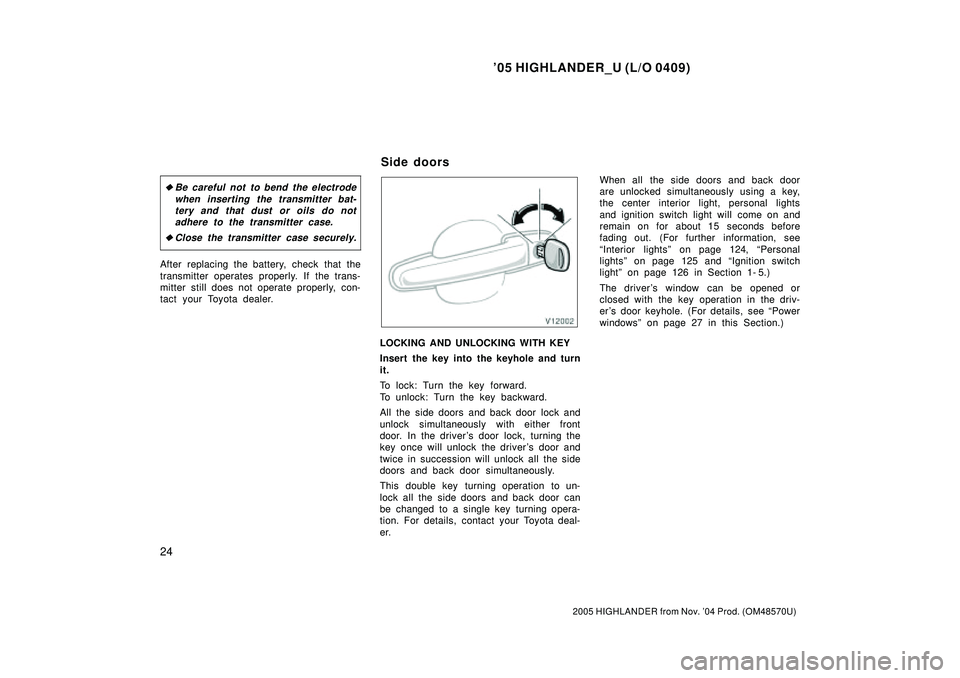

Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the

Page 141 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
25
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob b

Page 142 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
26
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

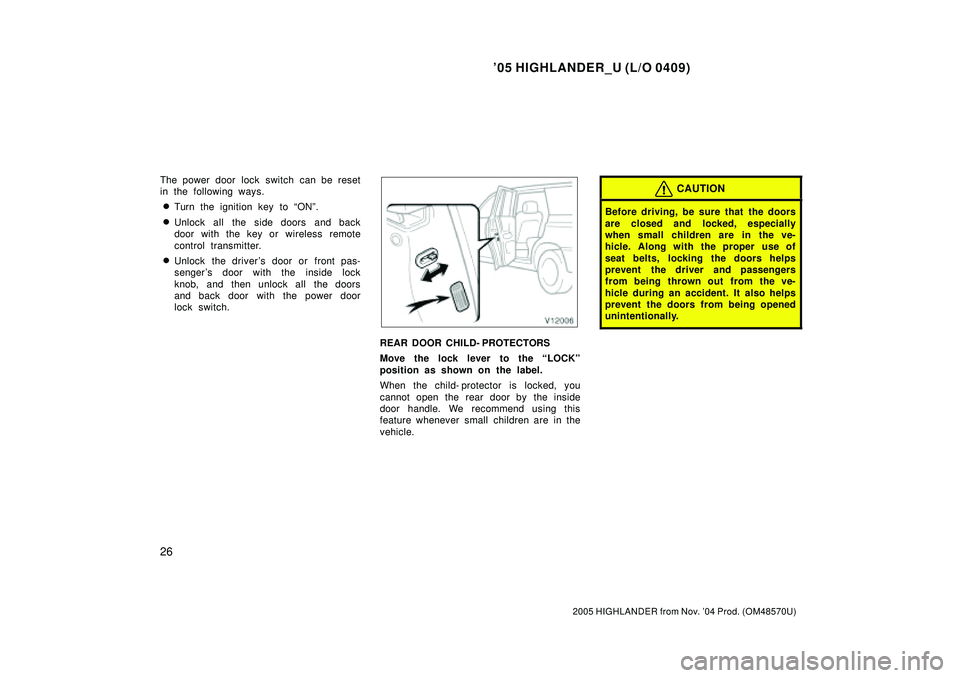

The power door lock switch can be reset
in the following ways.
Turn the ignition key to ONº.
Unlock all the side doors

Page 143 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
27
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

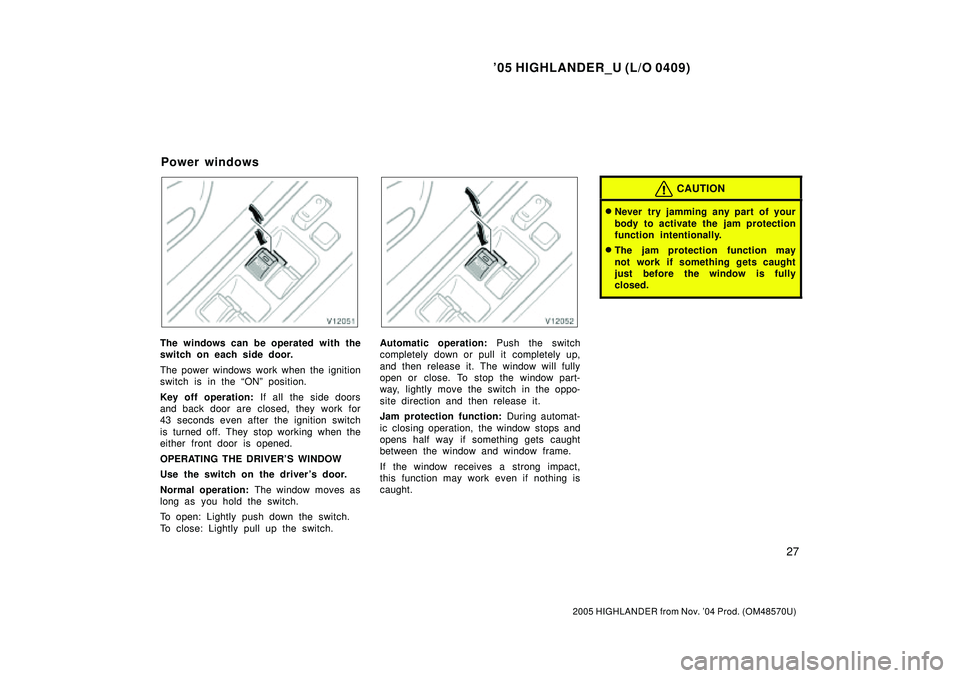

The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the

Page 144 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
28
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

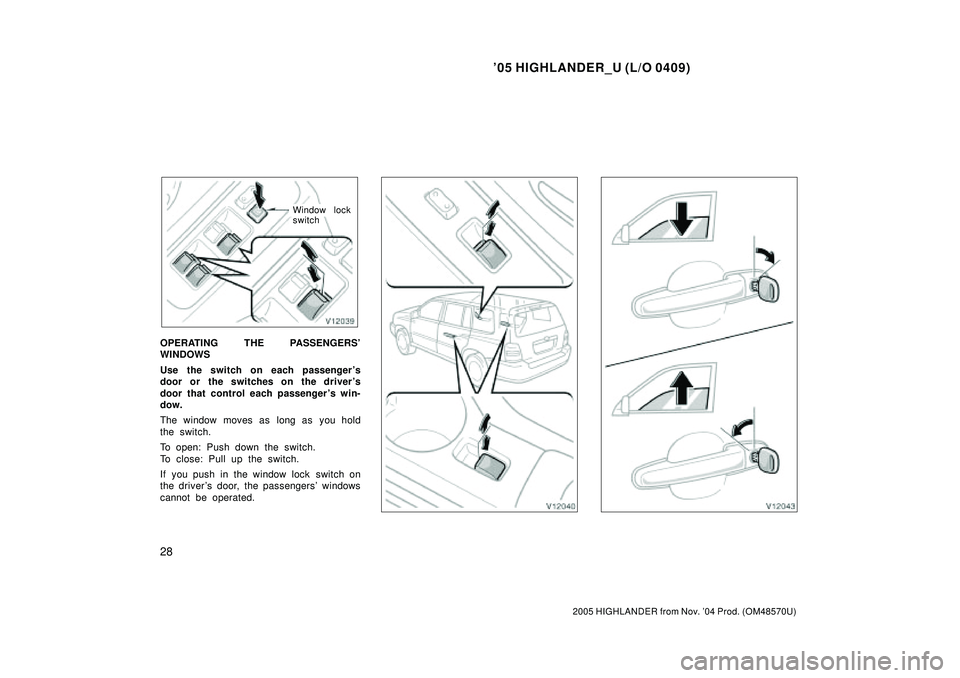

Window lock
switch
OPERATING THE PASSENGERS
WINDOWS
Use the switch on each passenger s
door or the switches on the drive
