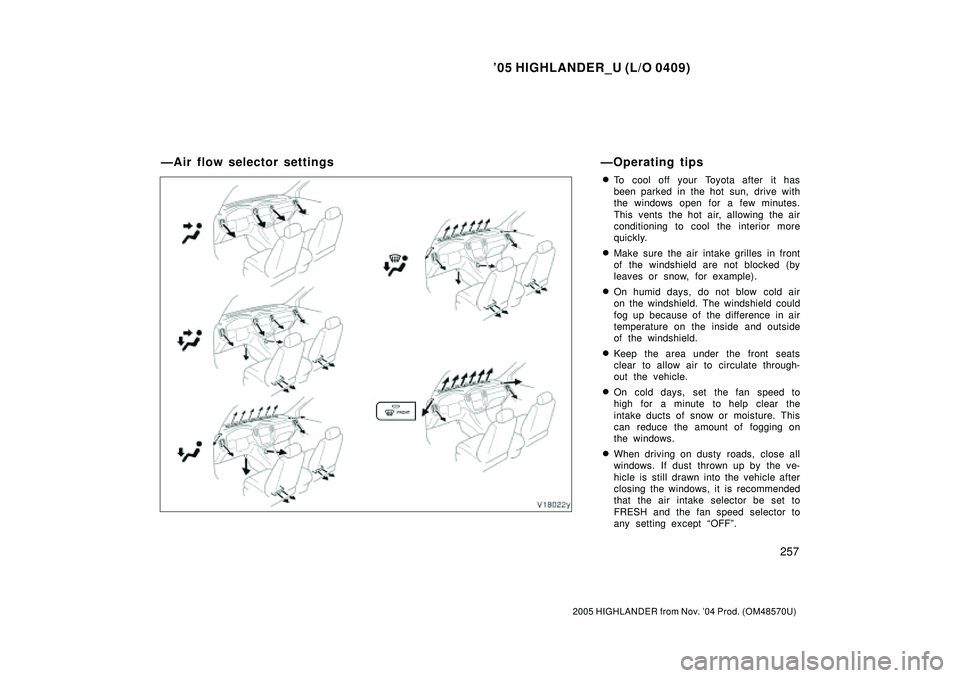

Page 425 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 257 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This ven

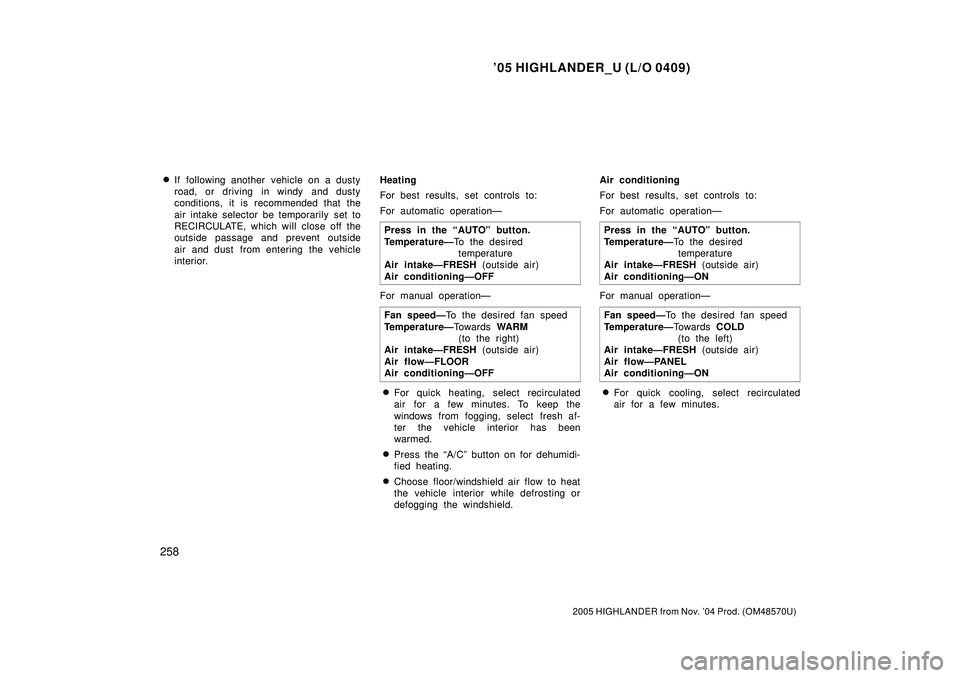

Page 426 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 258 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) If following another vehicle on a dusty road, or driving in windy and dusty conditions, it is recommended that the air

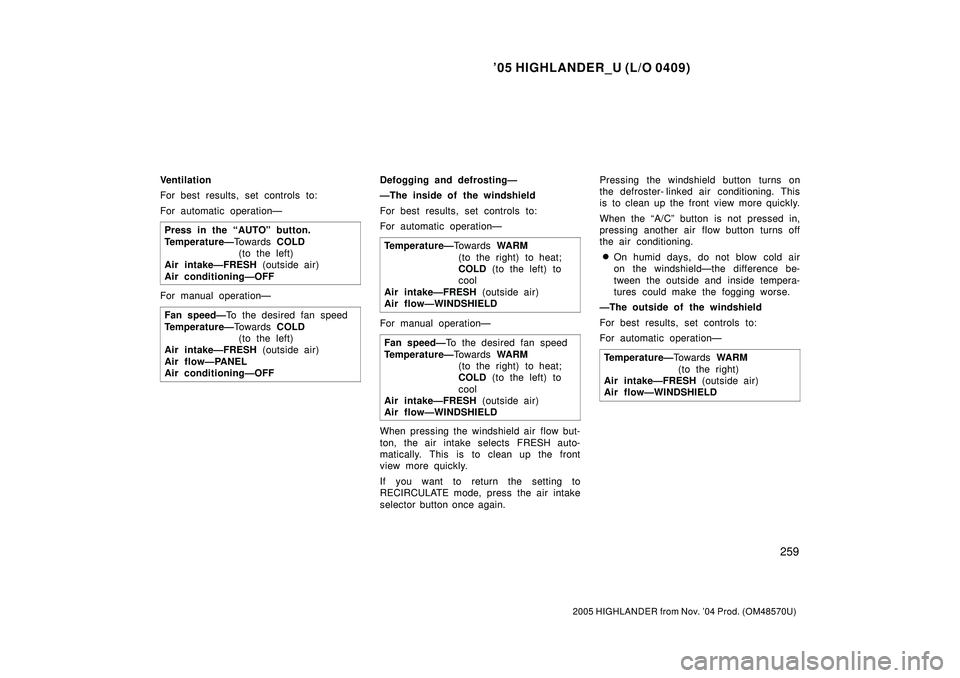

Page 427 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 259 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) Ventilation For best results, set controls to: For automatic operationÐ Press in the AUTOº button. TemperatureÐTo w a

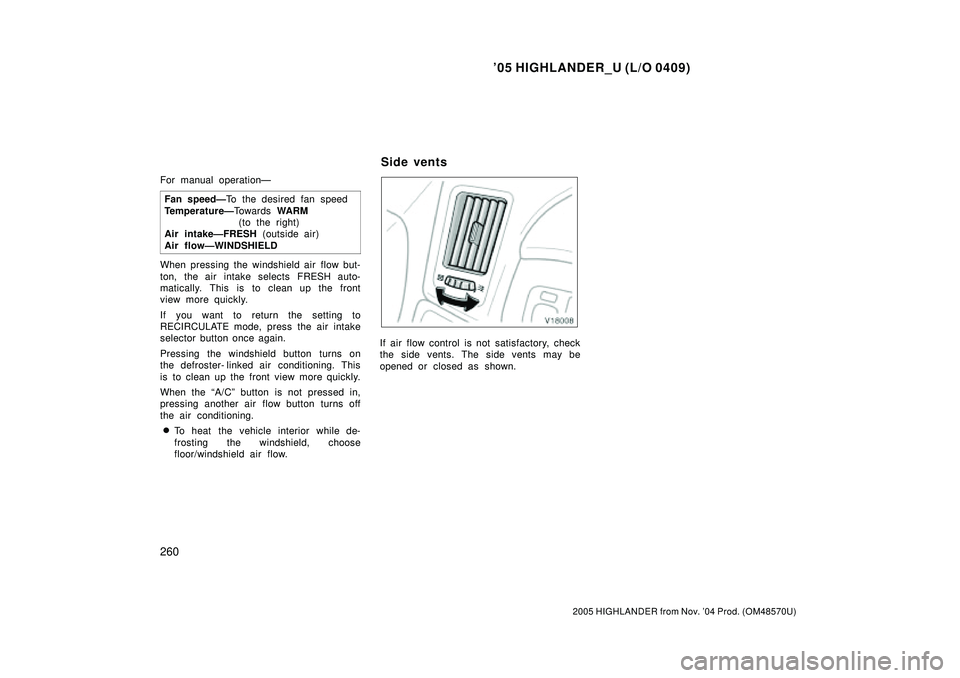

Page 428 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 260 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) For manual operationÐ Fan speedÐTo the desired fan speed TemperatureÐTo w a r d s WARM (to the right) Air intakeÐFRE

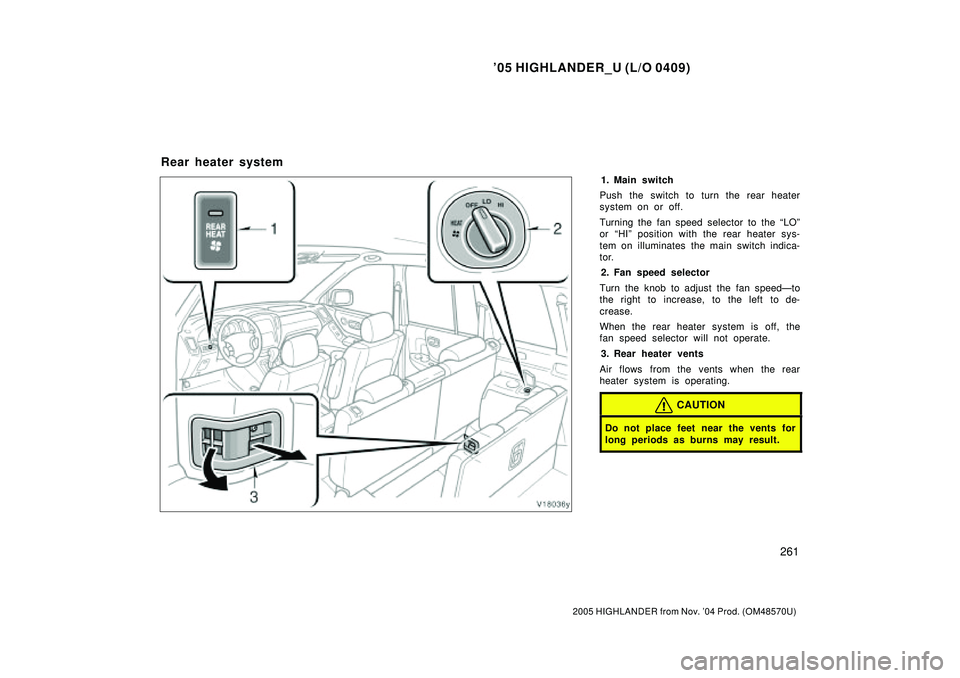

Page 429 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 261 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 1. Main switch Push the switch to turn the rear heater system on or off. Turning the fan speed selector to the LOº or

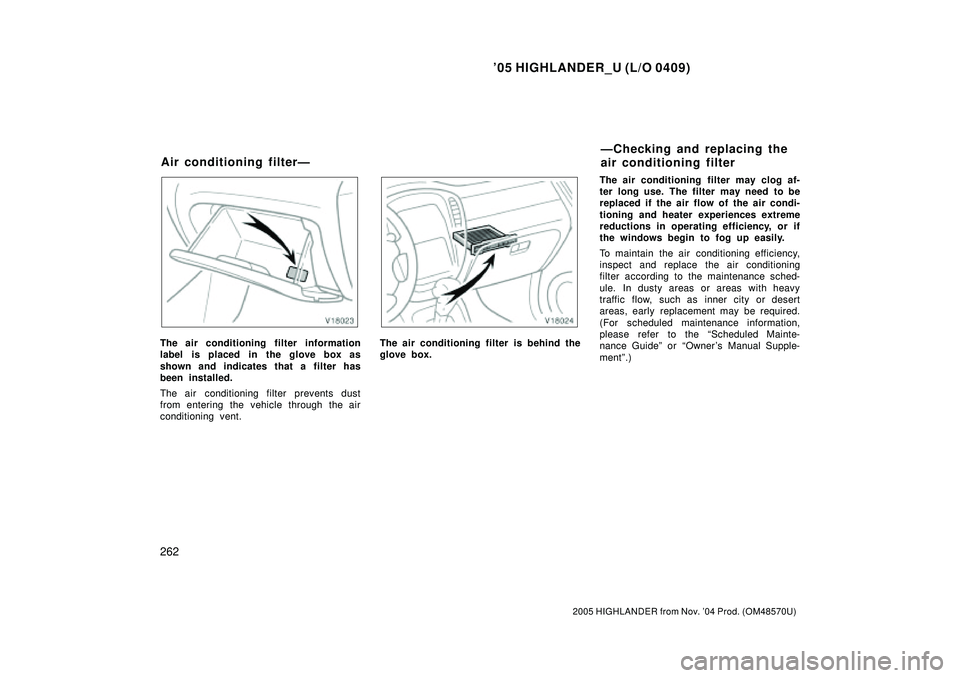

Page 430 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 262 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) The air conditioning filter information label is placed in the glove box as shown and indicates that a filter has been in

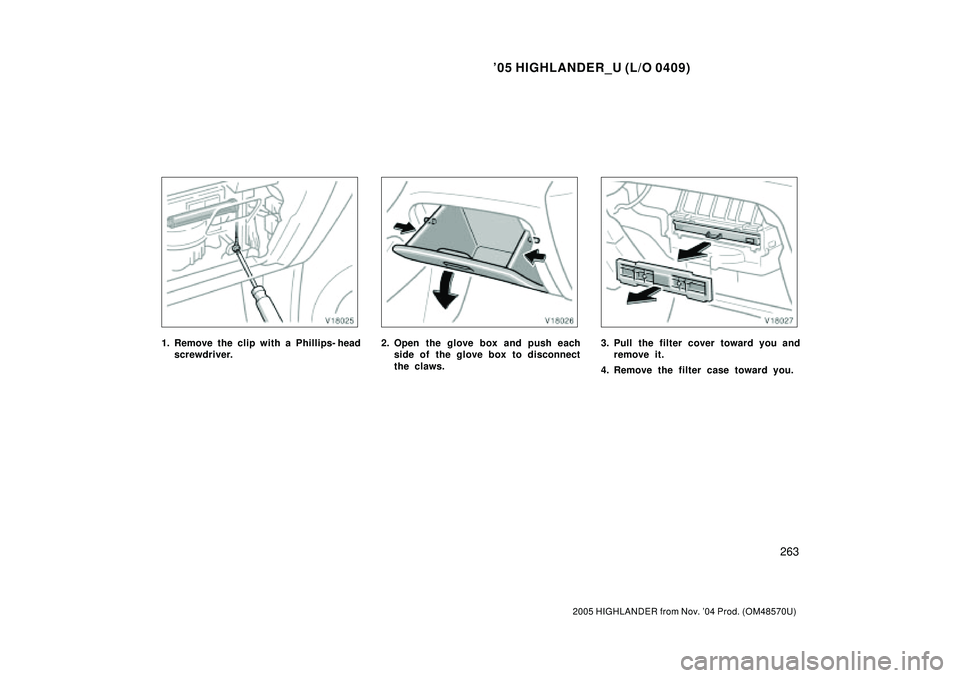

Page 431 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 263 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 1. Remove the clip with a Phillips- head screwdriver.2. Open the glove box and push each side of the glove box to disconn

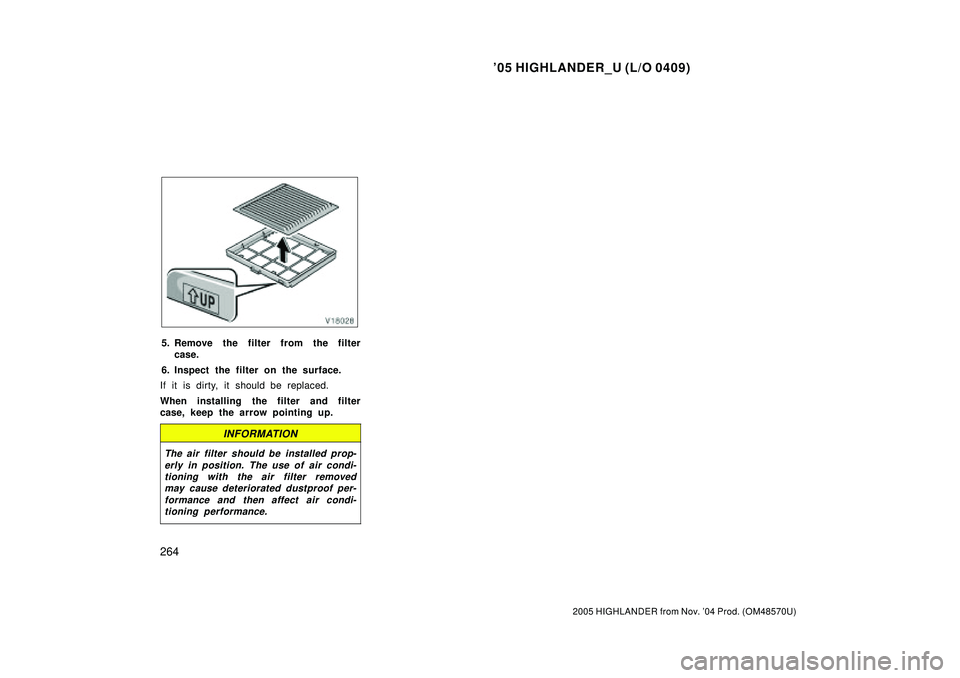

Page 432 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 264 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 5. Remove the filter from the filter case. 6. Inspect the filter on the surface. If it is dirty, it should be replaced. W
