Page 105 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
409
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

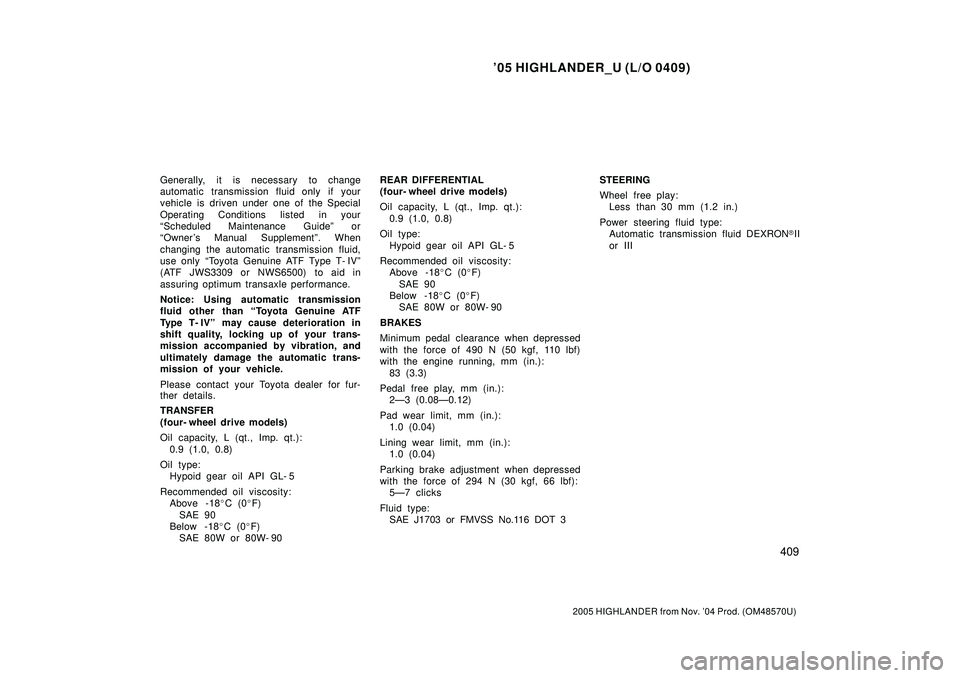

Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special

Page 106 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
410
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

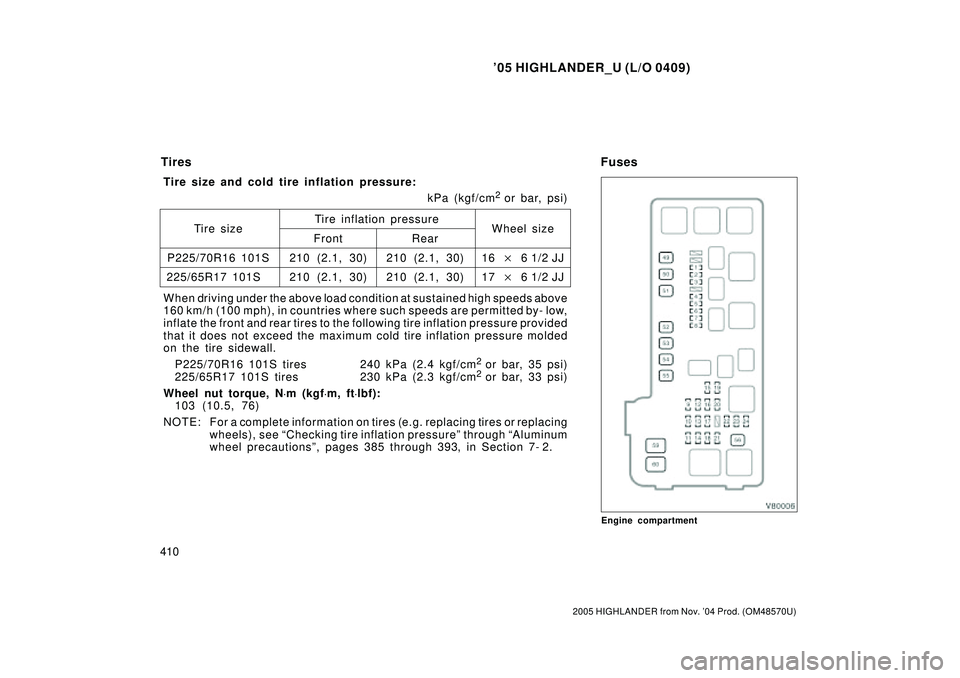

Engine compartment
Tires
Ti r e siz eTi r e inf lat ion pr es s ur e
Front Rear
P225/70R16 101S
225/65R17 101S210 (2.1, 3

Page 107 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
411
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Instrument panel
Fuses (type A)
1. A/F 25 A: Air fuel ratio sensor
2. CRT 7.5 A: Rear seat entertainment
system, navigati

Page 108 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
412
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
25. IGN 10 A: Gauges and meters, SRS
airbag system, multiport fuel injection
system/sequential multiport fuel injec-
tion

'05 HIGHLANDER_U (L/O 0409)
412
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
25. IGN 10 A: Gauges and meters, SRS
airbag system, multiport fuel injection
system/sequential multiport fuel injec-
tion system, front passenger occupant
classification system
26. RAD NO.2 7.5 A: Audio system, shift
lock system, navigation system, rear
seat entertainment system, air condi-
tioning system, multiplex communica-
tion system
27. CIG 15 A: Cigarette lighter
28. P RR DOOR 20 A: Power windows
29. PWR OUTLET1 15 A: Power outlets
30. FR FOG 20 A: Front fog lights
31. ECU- IG 10 A: Electric moon roof,
anti- lock brake system, vehicle stability
control system, shift lock system,
charging system, starting system
32. WIPER 25 A: Windshield wipers and
washer
33. D RR DOOR 20 A: Power windows
34. D FR DOOR 25 A: Power windows,
door courtesy lights, power door lock
system
35. S/ROOF 20 A: Electric moon roof36. HEATER 10 A: Air conditioning system,
electric cooling fan, rear window defog-
ger, outside rear view mirror defogger,
gauges and meters
37. IG1 7.5 A: Back- up lights, vehicle sta-
bility control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, outside rear view mir-
ror heaters, power door lock system,
wireless remote control system, naviga-
tion system, multiplex communication
system
38. RR WIP 15 A: Rear window wiper
39. STOP 20 A: Stop lights, high mounted
stoplight, anti- lock brake system, ve-
hicle stability control system, shift lock
system, trailer lights, multiplex commu-
nication system, multiport fuel injection
system/sequential multiport fuel injec-
tion system
40. OBD 7.5 A: On- board diagnosis sys-
tem
41. SEAT HTR 15 A: Seat heaters
42. IG2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, starter sys-
tem
43. WASHER 20 A: Low windshield washer
fluid level warning light44. FR DEF 20 A: Air conditioning system,
outside rear view mirror defoggers
45. P FR DOOR 20 A: Power windows,
door courtesy lights, multiplex commu-
nication system
46. TAIL 10 A: Tail lights, license plate
lights, instrument panel lights, front fog
lights, front side marker lights, rear
side marker lights, parking lights
47. PANEL 7.5 A: Instrument panel lights,
trailer lights
48. DRL 7.5 A: Daytime running light sys-
tem
Fuses (type B)
49. AM2 30 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starting system
50. ABS2 50 A: Anti- lock brake system,
vehicle stability control system
51. ABS1 30 A: Anti- lock brake system,
vehicle stability control system
52. HTR 50 A: Air conditioning system
53. RDI 30 A: Electric cooling fans
54. RR DEF 30 A: Rear window defoggers
55. CDS 30 A: Electric cooling fans

Page 109 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
413
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

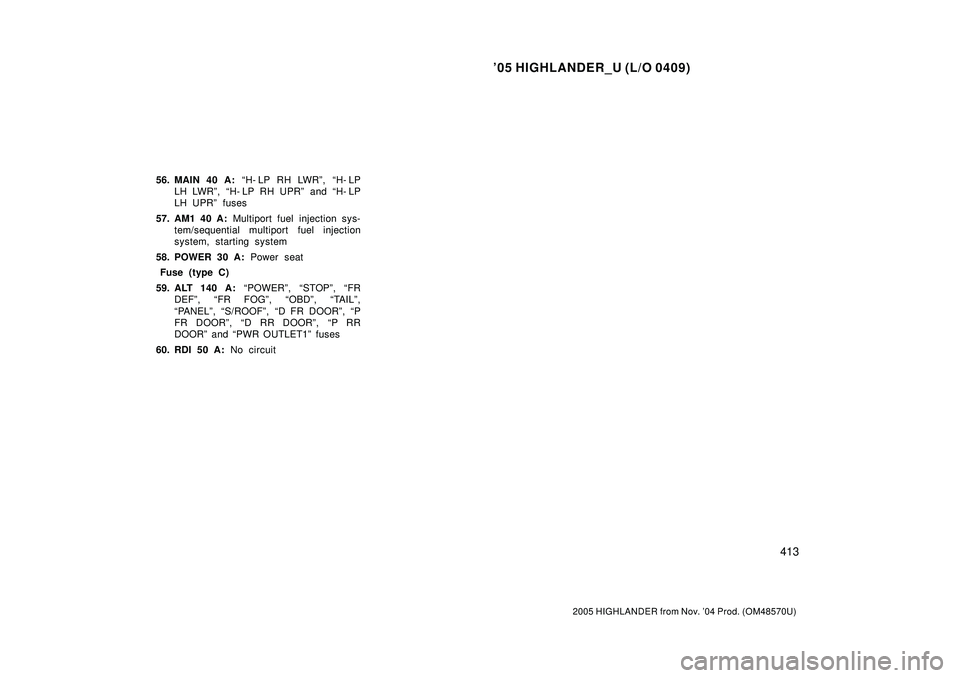

56. MAIN 40 A: H- LP RH LWRº, H- LP
LH LWRº, H- LP RH UPRº and H- LP
LH UPRº fuses
57. AM1 40 A: Multiport fuel i

Page 110 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
414
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

Page 111 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
415
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

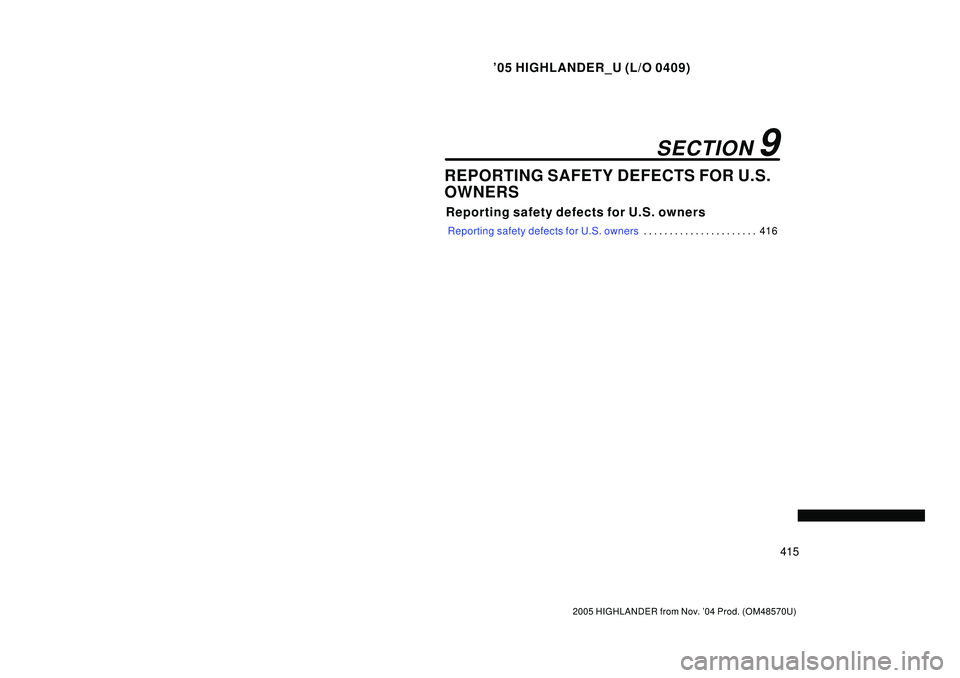

REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owner

Page 112 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
416
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

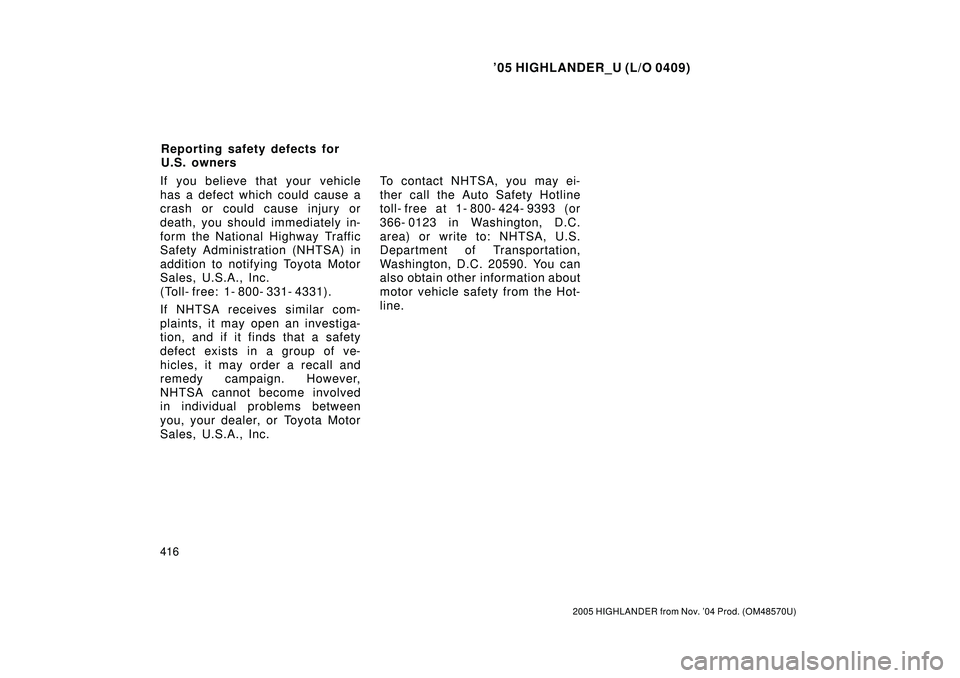

If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immedi
