Page 393 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
233
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

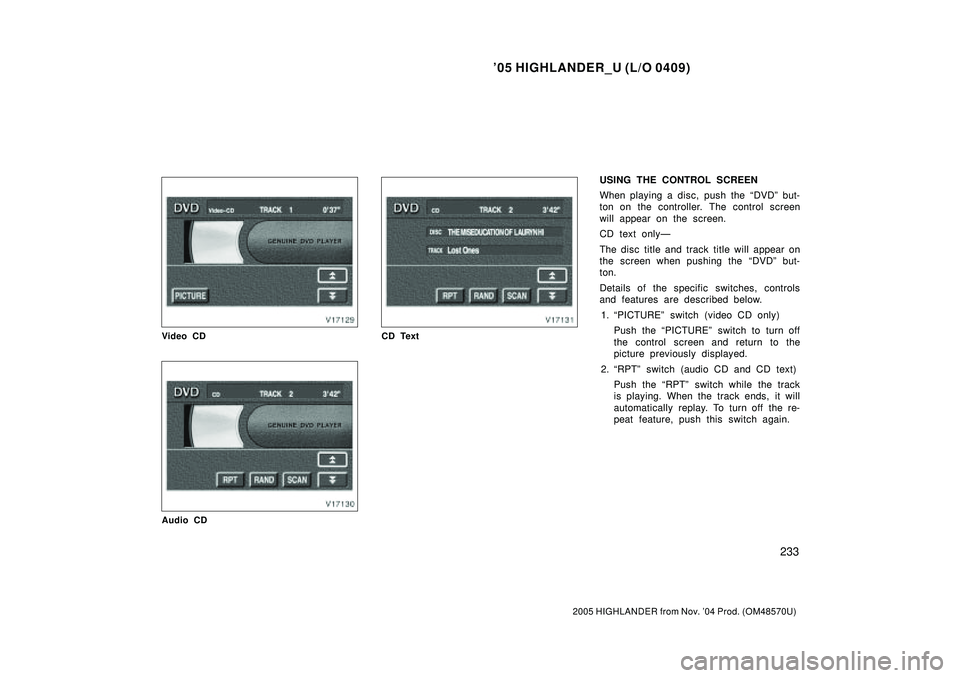

Video CD
Audio CD
CD Text
USING THE CONTROL SCREEN
When playing a disc, push the DVDº but-
ton on the controller. The c

Page 394 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
234
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

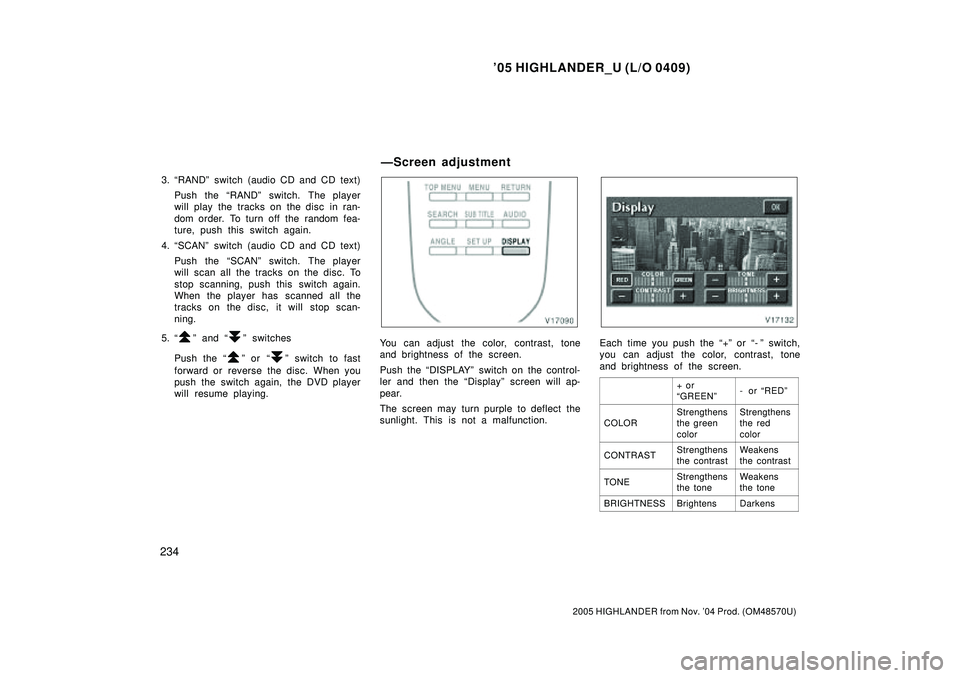

3. RANDº switch (audio CD and CD text)
Push the RANDº switch. The player
will play the tracks on the disc in ran-
dom

Page 395 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
235
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

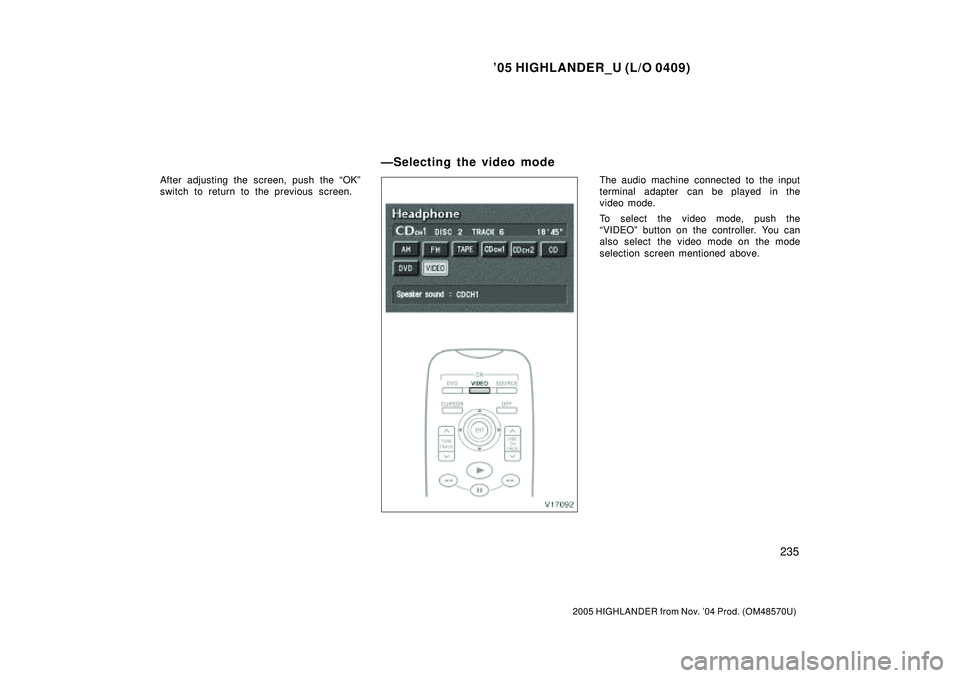

After adjusting the screen, push the OKº
switch to return to the previous screen.The audio machine connected to the inp

Page 396 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
236
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

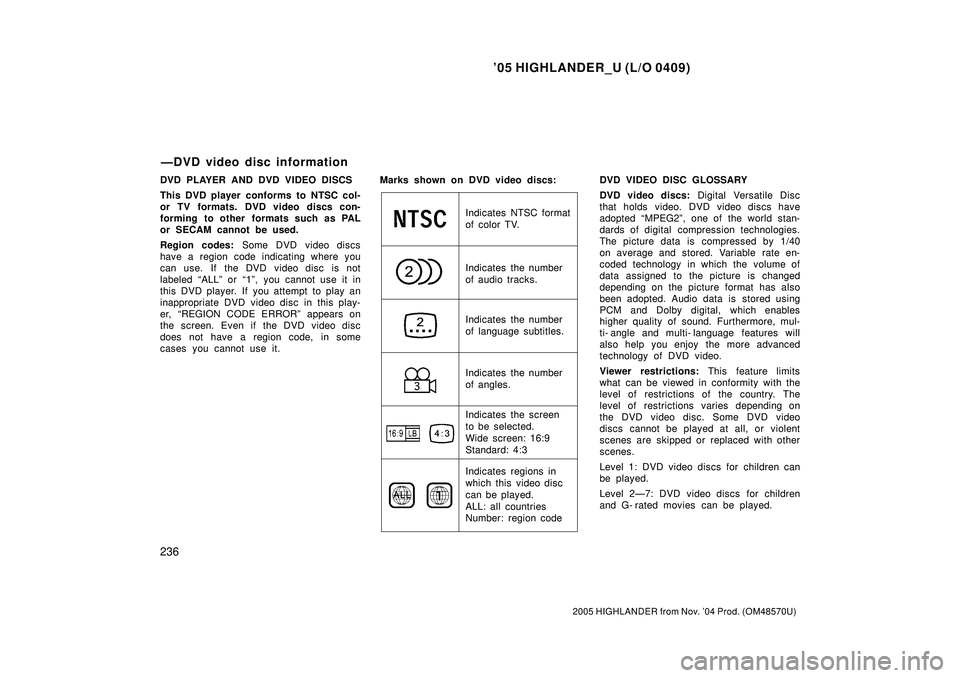

DVD PLAYER AND DVD VIDEO DISCS
This DVD player conforms to NTSC col-
or TV formats. DVD video discs con-
forming to othe

'05 HIGHLANDER_U (L/O 0409)
236
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
DVD PLAYER AND DVD VIDEO DISCS
This DVD player conforms to NTSC col-
or TV formats. DVD video discs con-
forming to other formats such as PAL
or SECAM cannot be used.
Region codes: Some DVD video discs
have a region code indicating where you
can use. If the DVD video disc is not
labeled ALLº or 1º, you cannot use it in
this DVD player. If you attempt to play an
inappropriate DVD video disc in this play-
er, REGION CODE ERRORº appears on
the screen. Even if the DVD video disc
does not have a region code, in some
cases you cannot use it.Marks shown on DVD video discs:
Indicates NTSC format
of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen
to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in
which this video disc
can be played.
ALL: all countries
Number: region codeDVD VIDEO DISC GLOSSARY
DVD video discs: Digital Versatile Disc
that holds video. DVD video discs have
adopted MPEG2º, one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40
on average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed
depending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti- angle and multi- language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with the
level of restrictions of the country. The
level of restrictions varies depending on
the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with other
scenes.
Level 1: DVD video discs for children can
be played.
Level 2Ð7: DVD video discs for children
and G- rated movies can be played.
ÐDVD video disc information

Page 397 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
237
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

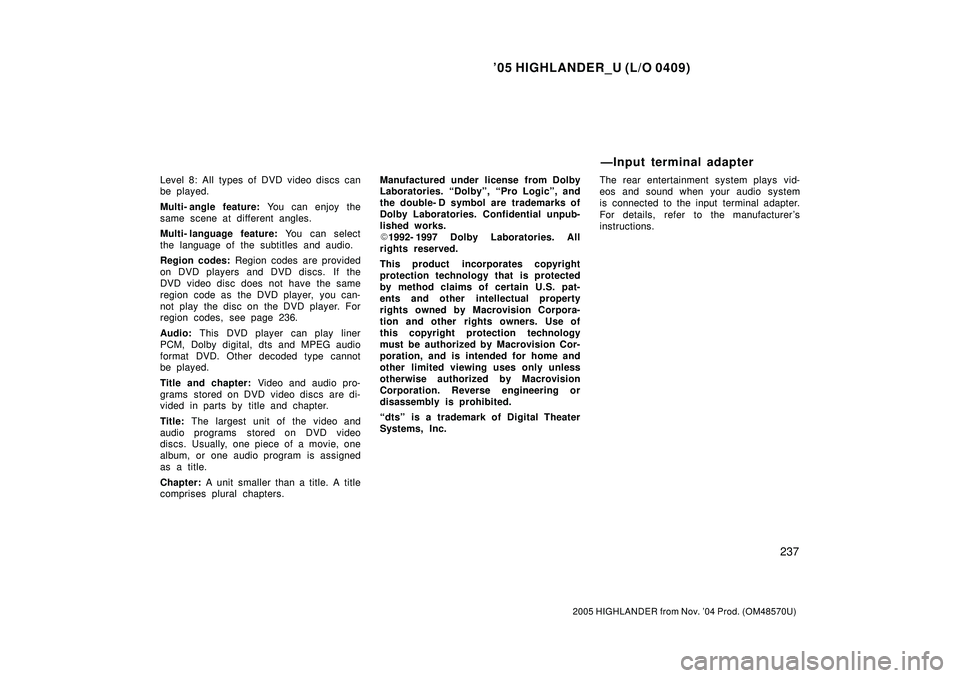

Level 8: All types of DVD video discs can
be played.
Multi- angle feature: You can enjoy the
same scene at different angl

Page 398 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
238
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

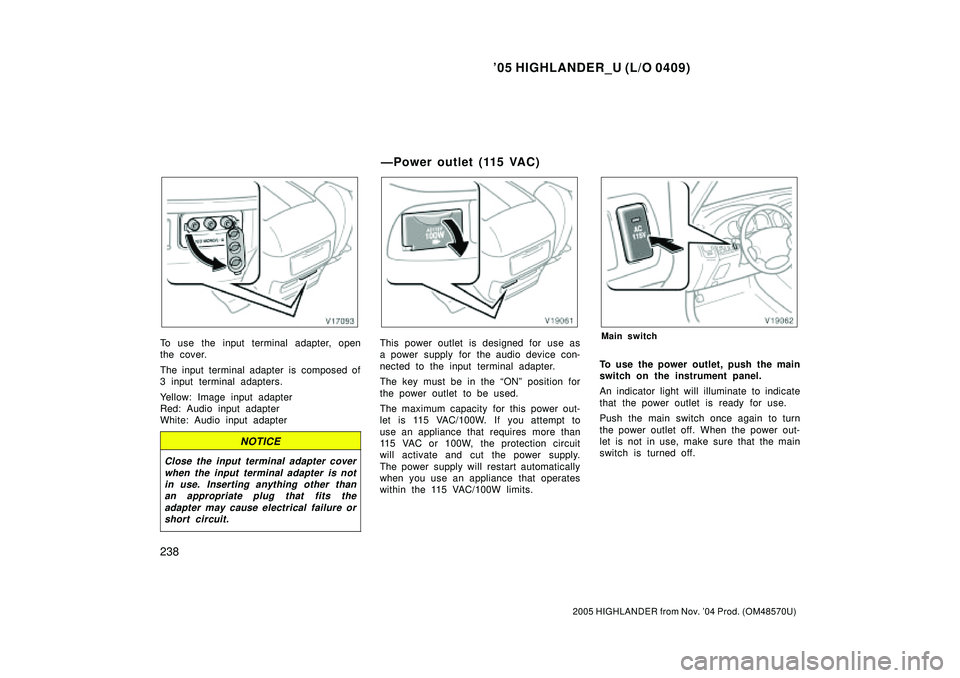

To use the input terminal adapter, open
the cover.
The input terminal adapter is composed of
3 input terminal adapters.
Y

Page 399 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
239
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

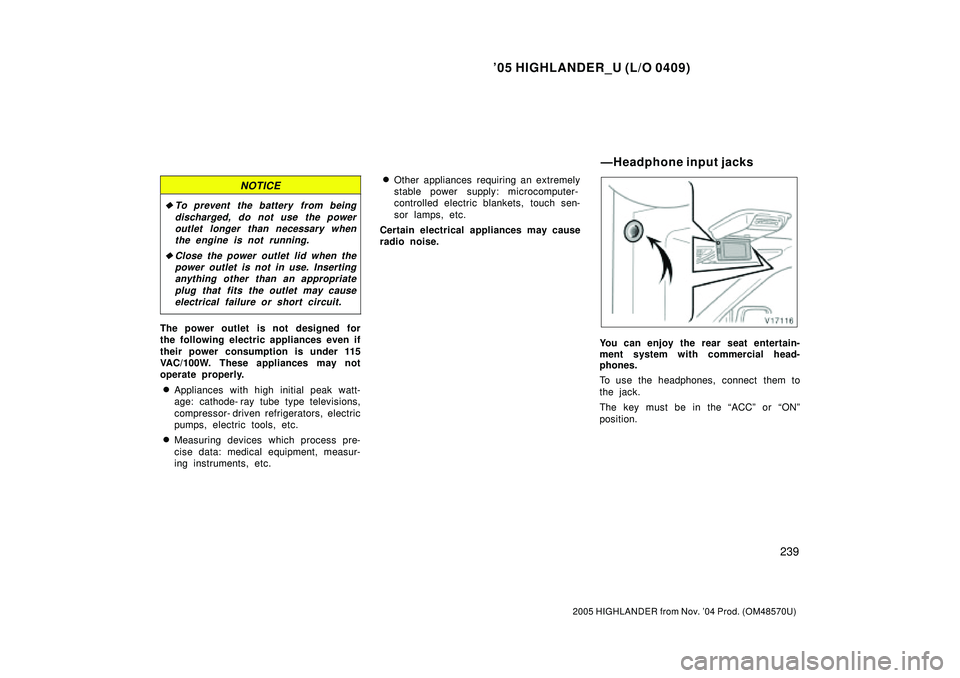

NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine i

Page 400 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
240
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

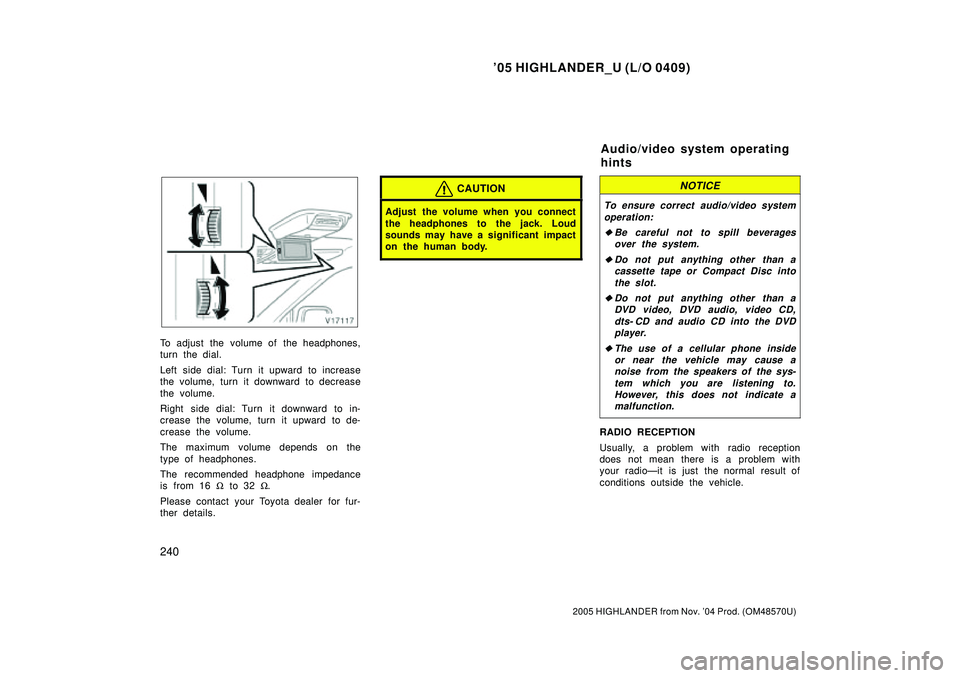

To adjust the volume of the headphones,
turn the dial.
Left side dial: Turn it upward to increase
the volume, turn it d
