Page 1417 of 2572

A97610
EVAP Purge Flow:
Canister Purge VSV
(ON)
Vacuum Pump (OFF)Air Filter Fuel Tank fuel tank cap
To Intake Manifold
Pump Module
Pressure Sensor0.02 Inch Orifice
Vent Valve (OFF)
ECM
Soak Timer
Refueling Valve
To Atmosphere
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-319
509 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
Key-off monitor
This monitor checks for EVAP (Evaporative Emission) system leaks and pump module malfunctions. The
monitor starts 5 hours*
after the ignition switch is turned OFF. More than 5 hours are required to allow enough
time for the fuel to cool down to stabilize the Fuel Tank Pressure (FTP), thus making the EVAP system moni-
tor more accurate.
The electric vacuum pump creates negative pressure (vacuum) in the EVAP system and the pressure is
measured. Finally, the ECM monitors for leaks from the EVAP system, and malfunctions in both the pump
module and purge VSV, based on the EVAP pressure.
HINT:
*:If the engine coolant temperature is not below 35C 5 hours after the ignition switch is turned off, the moni-
tor check starts 2 hours later. If it is still not below 35C 7 hours after the ignition switch is turned off, the
monitor check starts 2.5 hours later.
Purge flow monitor
The purge flow monitor consists of the two monitors. The 1st monitor is always conducted every time and
the 2nd monitor is activated if necessary.
The 1st monitor
While the engine is running and the purge VSV (Vacuum Switching Valve) is ON (open), the ECM
monitors the purge flow by measuring the EVAP pressure change. If negative pressure is not
created, the ECM begins the 2nd monitor.
The 2nd monitor
The vent valve is turned ON (closed) and the EVAP pressure is then measured. If the variation
in the pressure is less than 0.5 kpa (3.75 mmHg), the ECM interprets this as the purge VSV being
stuck closed, and illuminates the MIL and sets DTC P0441 (2 trip detection logic).
Atmospheric pressure check:
In order to ensure reliable malfunction detection, the variation between the atmospheric pressures, before
and after conduction of the purge flow monitor, is measured by the ECM.
Page 1418 of 2572

05-320
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
510 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)Components
Operations
CanisterContains activated charcoal to absorb EVAP (Evaporative Emissions) generated in fuel tank.
Cut-of f valveLocated in fuel tank. Valve floats and closes when fuel tank is 100 % full.
Purge VSV (Vacuum
Switching Valve)Opens or closes line between canister and intake manifold. ECM uses purge VSV to control EVAP purge flow. In order
to discharge EVAP absorbed by canister to intake manifold, ECM opens purge VSV. EVAP discharge volume to intake
manifold controlled by purge VSV duty cycle ratio (current-carrying time). (Open: ON, Close: OFF)
Refueling valve
Controls EVAP pressure from fuel tank to canister. Valve consists of diaphragm, spring and restrictor (diameter: 0.08
inch). When fuel vapor and pressure inside fuel tank increase, valve opens. While EVAP purged, valve closes and re-
strictor prevents large amount of vacuum from affecting pressure in fuel tank. Valve opened while refueling. When valve
open, adding fuel into fuel tank possible.
Roll-over valveLocated in fuel tank. Valve closes by its own weight when vehicle overturns to prevent fuel from spilling out.
Service portUsed for connecting vacuum gauge for inspecting EVAP system.
Soak timerBuilt into ECM. To ensure accurate EVAP monitor, measures 5 hours* after ignition switch turned to OFF. This allows
fuel to cool down, stabilizing Fuel Tank Pressure (FTP). When apprx. 5 hours
* elapsed, ECM activates.
Pump moduleConsists of (a) to (d) below. Pump module cannot be disassembled.
(a) Vent valve
Vents and closes EVAP system. When ECM turns valve ON, EVAP system closed. When, ECM turns valve OFF, EVAP
system vented. Negative pressure (vacuum) created in EVAP system to check for EVAP leaks by closing purge VSV,
turning on vent valve (closed) and operating vacuum pump (refer to fig. 1).
(b) Pressure sensorIndicates pressure as voltages. ECM supplies regulated 5 V to pressure sensor, and uses feedback from sensor to
monitor EVAP system pressure (refer to fig 2).
(c) Vacuum pumpCreates negative pressure (vacuum) in EVAP system for leak check.
(d) 0.02 inch orificeHas opening with 0.02 inch diameter. Vacuum produced through orifice by closing purge VSV, turning off vent valve and
operating vacuum pump, to monitor 0.02 inch leak pressure. 0.02 inch leak pressure indicates small leak of EVAP.
HINT:
*:If the engine coolant temperature is not below 35C after 5 hours after the ignition switch is turned off, the
monitor check starts 2 hours later. If it is still not below 35C 7 hours after the ignition switch is turned off,
the monitor check starts 2.5 hours later.
Page 1419 of 2572
A97611
Pump Module (fig. 1)
Condition: Purge FlowCondition: Leak Check
From Refueling Valve
To Air Filter
(Atmosphere)
Vacuum Pump: OFFVent Valve: OFF
(vent)
Pressure Sensor 0.02 Inch Orifice
Canister
: Airflow
Vacuum Pump: ON
Vent Valve: ON
(closed)
A71562
Pressure Sensor Specification (fig. 2)
Output Voltage
Usable Range
4.900 V
4.150 V
1.425 V
0.450 V
Malfunction Area
Pressure
60
kPa11 0
kPa
Malfunction Area
Standard atmospheric pressure is 101.3 kPaHINT:
A85251
Soak Timer Circuit (fig. 3)
Ignition Switch
IGSW
Power
ECM
EFI MAIN
MREL+B
15 ASource IC
Soak Timer IC Main Relay
Control IC
Battery
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-321
511 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
Page 1420 of 2572
A85256
C17
Pump Module
BJ1 IO1 IM1E7
E5
E7
E5
E5
E7
E5 18
21
28
4
27
34
8VC
PPMP
E2
MPMP
VPMP
PRG
MRELECM
5V
Pressure Sensor
BJ1 IO1 IM1
BJ1 IO1 IM1
BJ1 IO1 IM1 BJ1 IO1 BJ1 IO1
EB1 16 7 13
12 3
17 15 12
14 5 14
18 16 513 4
1S28
S295 5
LG
BJ1 15
J19
J/C
BFBatteryEH
J2
J/C A AFL MAIN
W
W-B W-B
W-B
2
2I1
2F4EFI No. 2
EFI No. 1EFI Relay
2 53
113
IK3 P-L B
2B2D3
52
Y Engine Room J/BB-R
B-R
Vacuum Pump
Vent Valve
4
3
2
1
8
9Y
YY LLP
L
BRBRBR
WW
BR
RVSB
GRY-G BRBR
B-R
G 12
V4
Purge VSV 6 05-322
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
512 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
WIRING DIAGRAM
Page 1421 of 2572

0.02 inch orifice clogged
Pressure sensor low outputP043E
P043FP0441 P0451 P0452 P0453 P0455 P0456 P2419P2401
P2402
0.02 inch orifice high-flow
Pressure sensor stuck
Pressure sensor noise
Gross leak
Small leak
Vacuum pump stuck OFF
Vacuum pump stuck ON
Vent valve stuck closed
Vent valve stuck open (vent) Purge VSV stuck open
Purge VSV stuck closed
Pressure sensor high output
DTCs
Malfunctioning AreasP2420 P0450
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-323
513 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
NOTICE:
A hand-held tester is required to conduct the following diagnostic troubleshooting procedure.
HINT:
Using hand-held tester monitor results enables the EVAP (Evaporative Emission) system to be con-
firmed.
Read freeze frame data using a hand-held tester Freeze frame data record the engine condition when
malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle
was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and
other data, from the time the malfunction occurred.
1 CONFIRM DTC
(a) Turn the ignition switch OFF and wait 10 seconds.
(b) Turn the ignition switch ON.
(c) Turn the ignition switch OFF and wait 10 seconds.
(d) Connect the hand-held tester to the DLC3.
(e) Turn the ignition switch ON and press the hand-held tester switch ON.
(f) Enter the following menus: DIAGNOSIS/ ENHANCED OBD II/ DTC INFO/ CURRENT CODES.
(g) Confirm the DTCs and freeze frame data.
If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
NOTICE:
If the 0.02 inch reference pressure difference between the first and second checks is greater than
the specification, the DTCs corresponding to the reference pressure (P043E, P043F, P0441, P0455,
P0456, P2401, P2420) will be all stored.
NEXT
Page 1422 of 2572

05-324
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
514 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

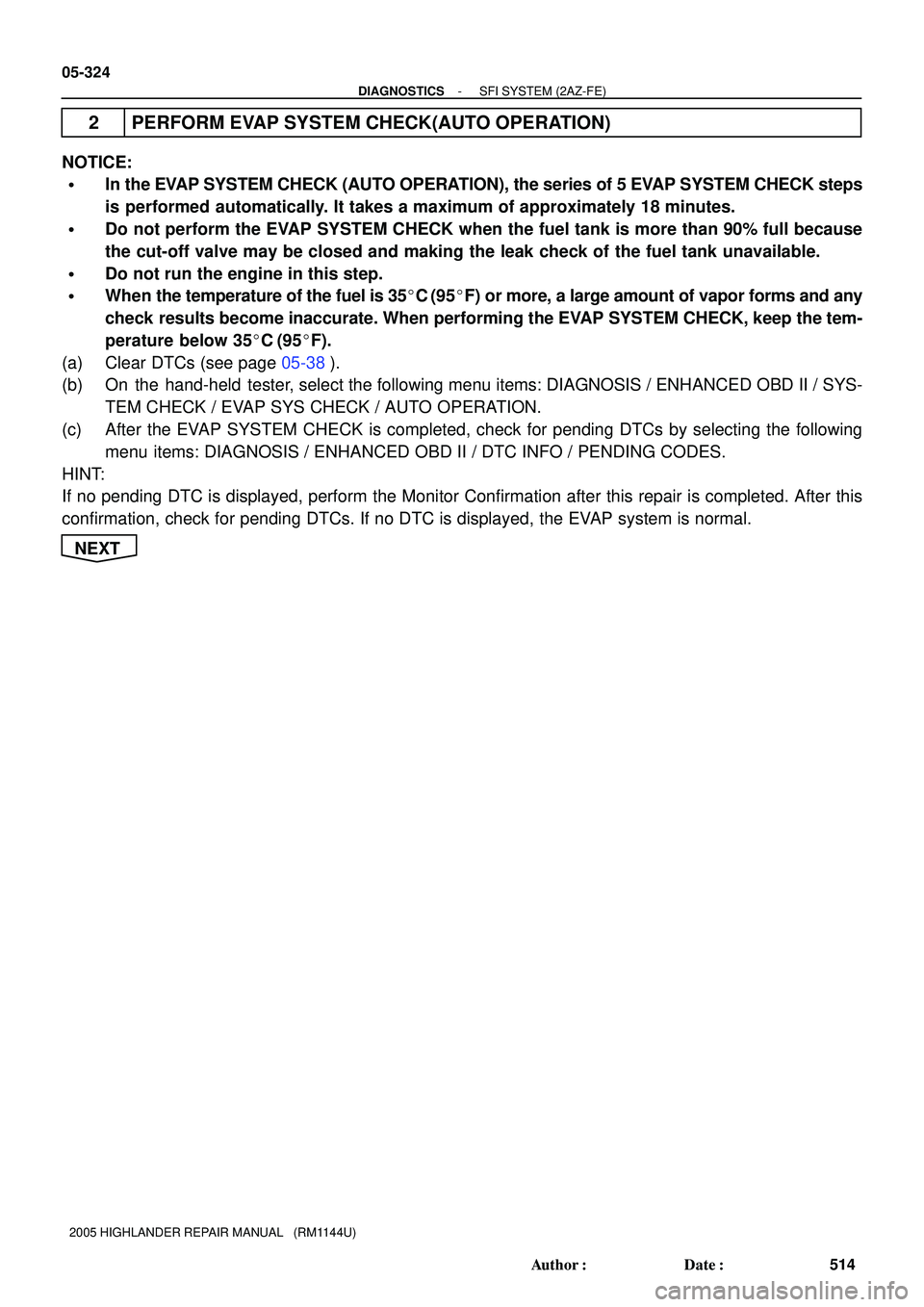

2 PERFORM EVAP SYSTEM CHECK(AUTO OPERATION)
NOTICE:
In the EVAP SYSTEM CHECK (AUTO OPERATION), the series of 5 EVAP SYSTEM CHECK steps
is performed automatically. It takes a maximum of approximately 18 minutes.
Do not perform the EVAP SYSTEM CHECK when the fuel tank is more than 90% full because
the cut-off valve may be closed and making the leak check of the fuel tank unavailable.
Do not run the engine in this step.
When the temperature of the fuel is 35C (95F) or more, a large amount of vapor forms and any
check results become inaccurate. When performing the EVAP SYSTEM CHECK, keep the tem-
perature below 35C
(95F).
(a) Clear DTCs (see page 05-38).
(b) On the hand-held tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / SYS-
TEM CHECK / EVAP SYS CHECK / AUTO OPERATION.
(c) After the EVAP SYSTEM CHECK is completed, check for pending DTCs by selecting the following
menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES.
HINT:
If no pending DTC is displayed, perform the Monitor Confirmation after this repair is completed. After this
confirmation, check for pending DTCs. If no DTC is displayed, the EVAP system is normal.
NEXT
Page 1423 of 2572

G36782
Purge VSV
Vent Valve
Vacuum Pump
EVAP Pressure
Positive
Leak PressureON: Open
NegativeONON
Steps
(Reference)60 Within 15 minutes 10 60ON
First 0.02 inch
2/5 3/5 4/55/5
OFF: Closed
OFF: Vent ON: Closed
EVAP SYSTEM CHECK
sec sec sec
Normal Pressure
10
sec
1/5
Gross Leak
No Leak Small Leak
TimeLeak Pressure
Second 0.02 inch
StandardStandard x 0.2
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-325
515 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

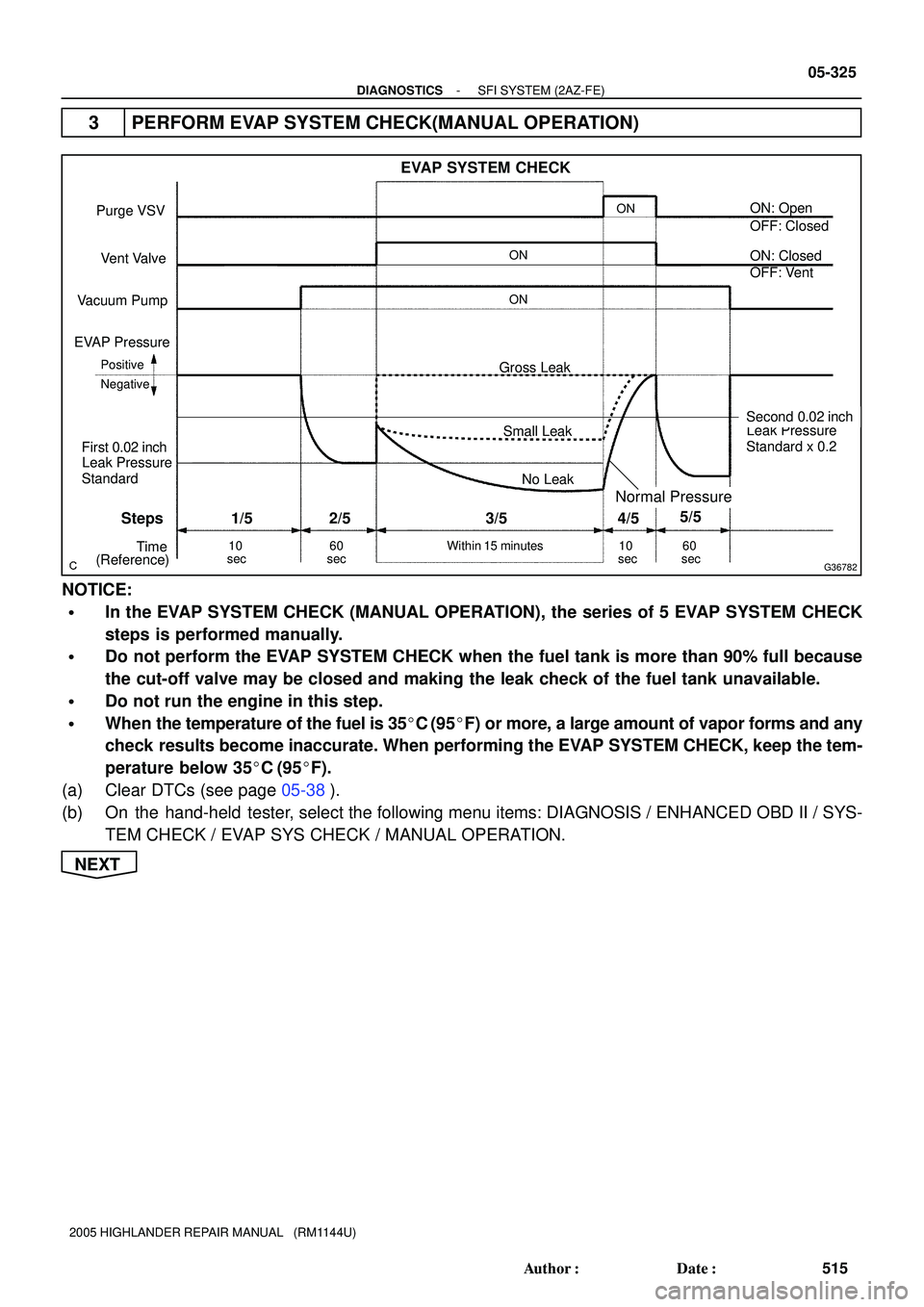

3 PERFORM EVAP SYSTEM CHECK(MANUAL OPERATION)
NOTICE:
In the EVAP SYSTEM CHECK (MANUAL OPERATION), the series of 5 EVAP SYSTEM CHECK
steps is performed manually.
Do not perform the EVAP SYSTEM CHECK when the fuel tank is more than 90% full because
the cut-off valve may be closed and making the leak check of the fuel tank unavailable.
Do not run the engine in this step.
When the temperature of the fuel is 35C (95F) or more, a large amount of vapor forms and any
check results become inaccurate. When performing the EVAP SYSTEM CHECK, keep the tem-
perature below 35C
(95F).
(a) Clear DTCs (see page 05-38).
(b) On the hand-held tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / SYS-
TEM CHECK / EVAP SYS CHECK / MANUAL OPERATION.
NEXT
Page 1424 of 2572
G36783
Purge VSV
Vent Valve
Vacuum Pump
EVAP Pressure
Positive
ON: Open
NegativeONON
Steps
(Reference)
ON
OFF: Closed
OFF: Vent ON: Closed
10
sec
1/5
Time
Pressure Sensor Noising
OK
Leak Pressure First 0.02 inch
Standard
05-326
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
516 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
4 PERFORM EVAP SYSTEM CHECK(STEP 1/5)
(a) Check the EVAP pressure in step 1/5.
Result:
DTCs*Test ResultsSuspected Trouble AreasProceed To
'Virtually no variation in EVAP pressureNot yet determinedA
P0451EVAP pressure fluctuates by 0.3 kPa
(2.25 mmHg) or morePressure sensor noisingB
*: The DTCs relating to the EVAP system displayed on a hand-held tester when checking.
B Go to step 30
A
