Page 2513 of 2572

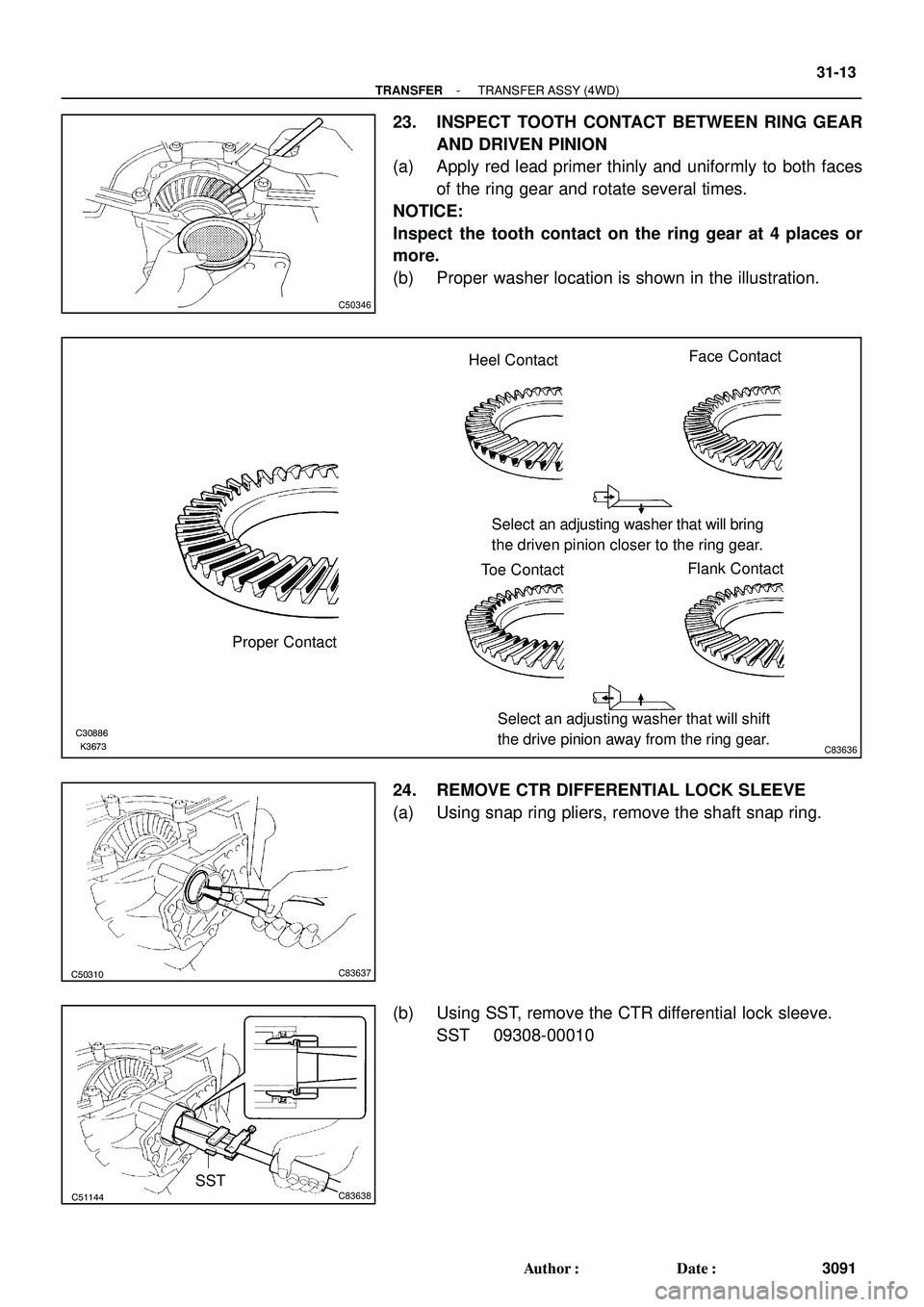

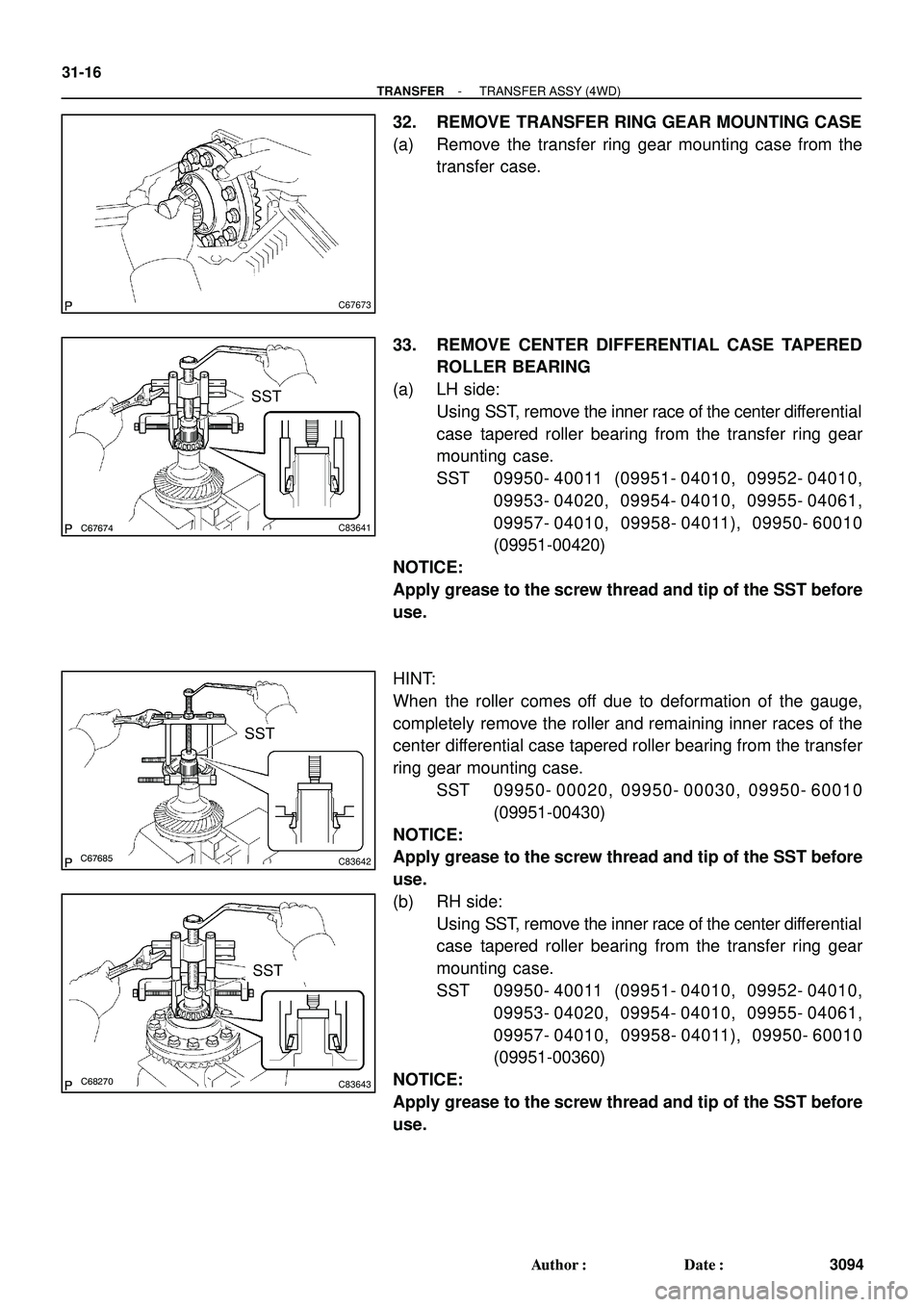

TOYOTA HIGHLANDER 2001 Service Repair Manual C50346 K3673 C30886C83636 Proper ContactHeel ContactFace Contact Toe ContactFlank Contact Select an adjusting washer that will bring the driven pinion closer to the ring gear. Select an adjusting wash

Page 2514 of 2572

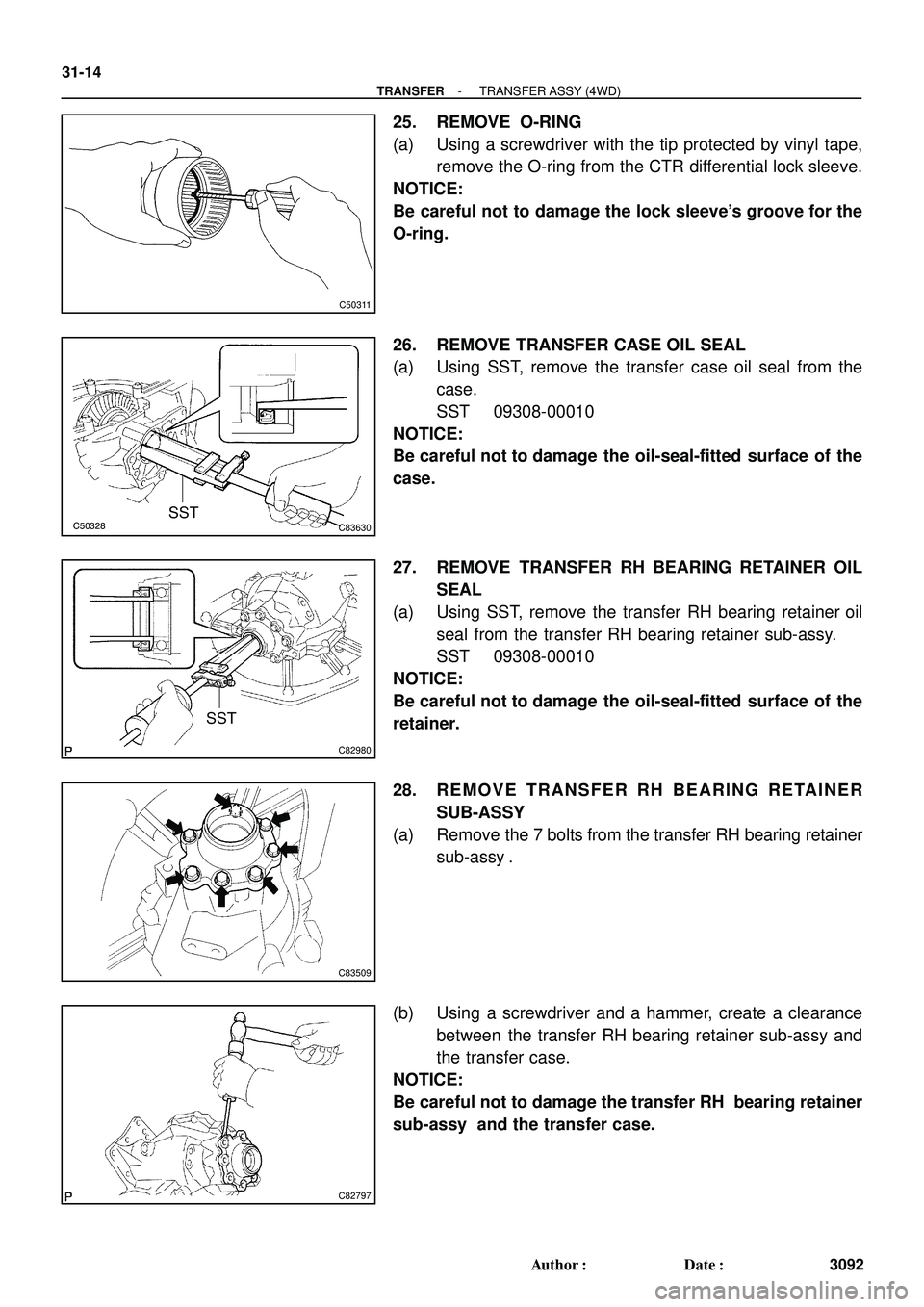

TOYOTA HIGHLANDER 2001 Service Repair Manual C50311 C50328C83630SST C82980 SST C83509 C82797 31-14 - TRANSFERTRANSFER ASSY (4WD) 3092 Author: Date: 25. REMOVE O-RING (a) Using a screwdriver with the tip protected by vinyl tape, remove the O-ri

Page 2515 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual C82981 SST C50313 C50315C83639 SST C50316C83640 - TRANSFERTRANSFER ASSY (4WD) 31-15 3093 Author: Date: (c) Using SST, remove the transfer RH bearing retainer sub- assy from the transfer case. SST 09

Page 2516 of 2572

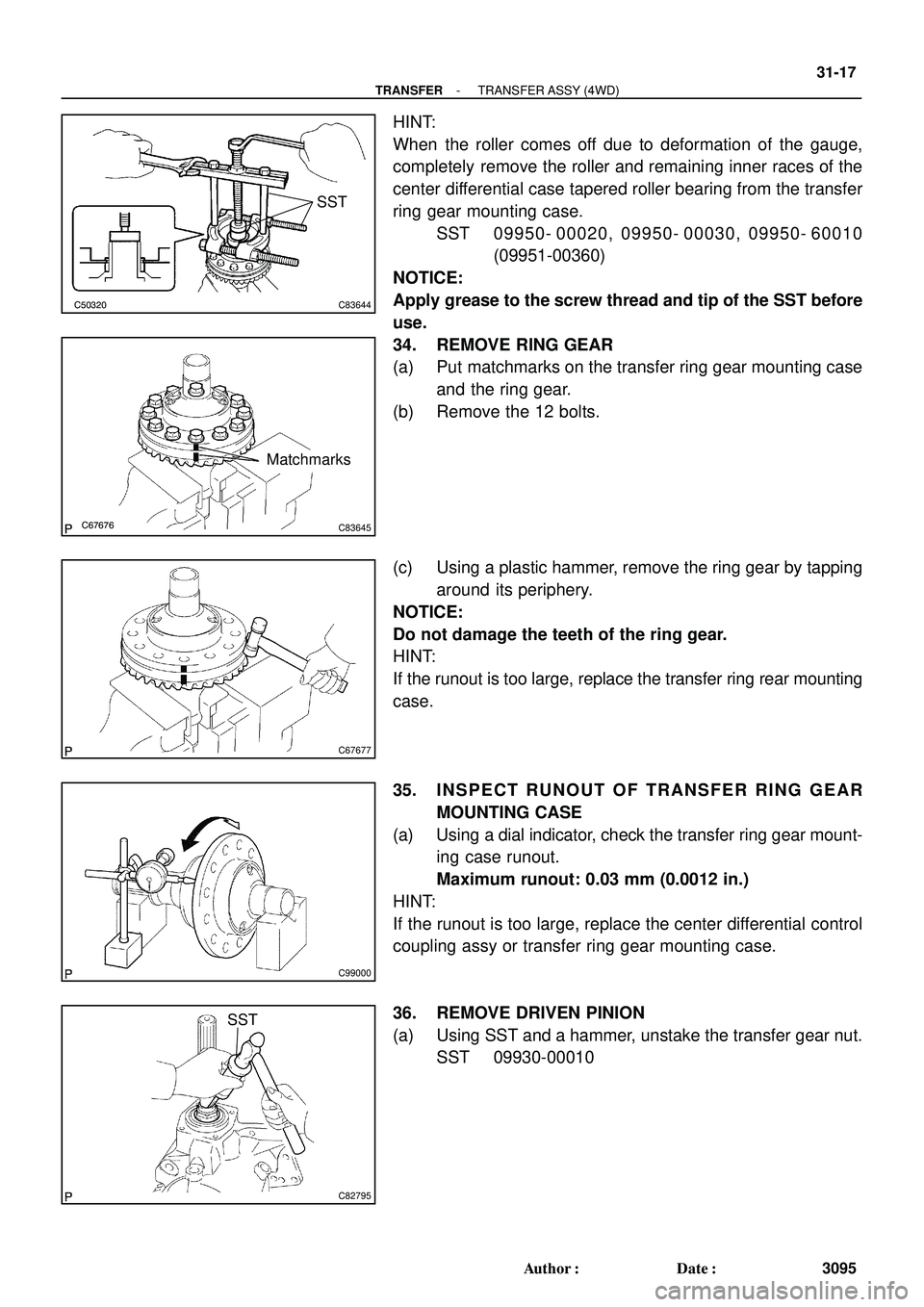

TOYOTA HIGHLANDER 2001 Service Repair Manual C67673 C67674C83641 SST C67685C83642 SST C68270C83643 SST 31-16 - TRANSFERTRANSFER ASSY (4WD) 3094 Author: Date: 32. REMOVE TRANSFER RING GEAR MOUNTING CASE (a) Remove the transfer ring gear mountin

Page 2517 of 2572

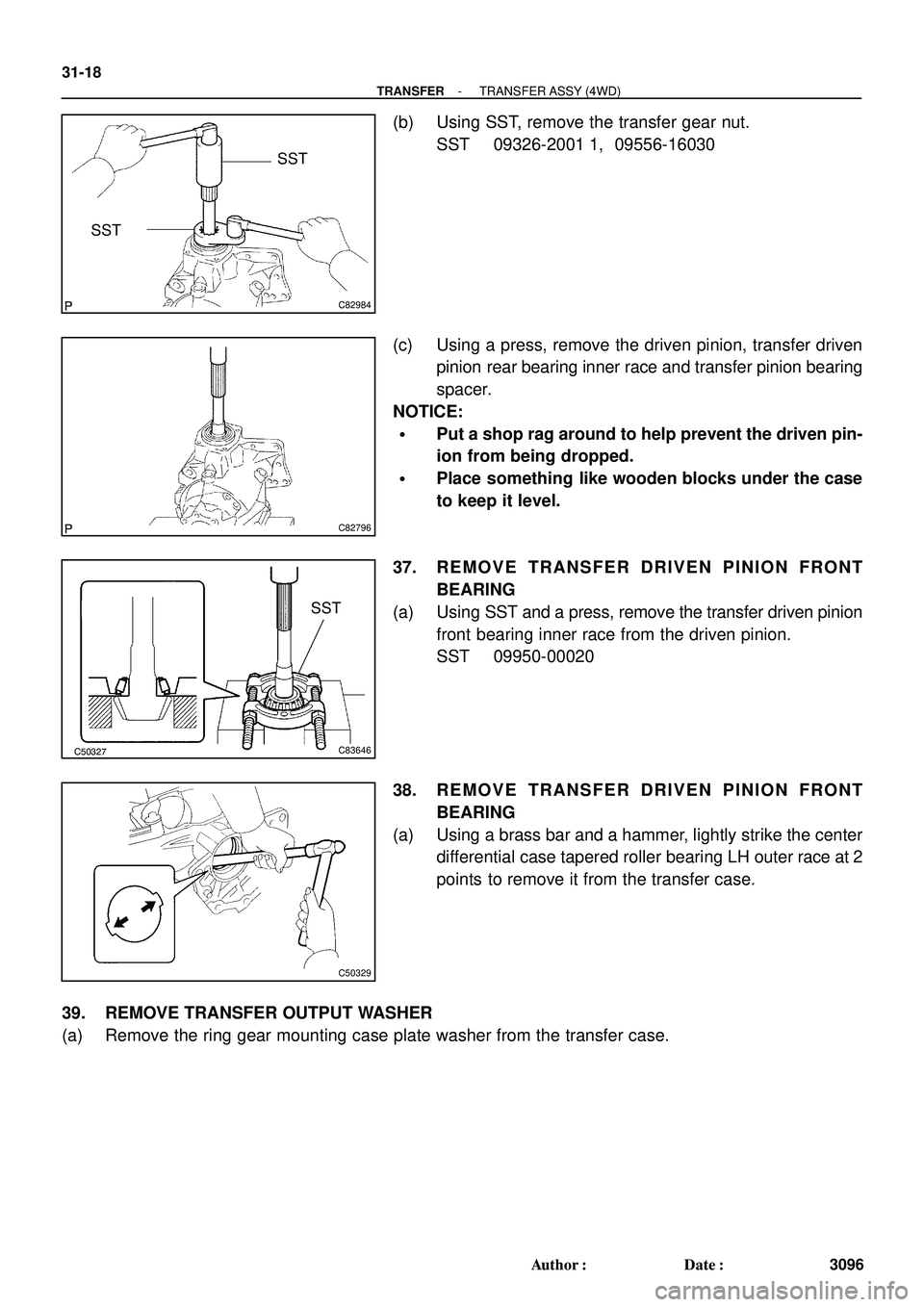

TOYOTA HIGHLANDER 2001 Service Repair Manual C50320C83644 SST C67676C83645 Matchmarks C67677 C99000 C82795 SST - TRANSFERTRANSFER ASSY (4WD) 31-17 3095 Author: Date: HINT: When the roller comes off due to deformation of the gauge, completely r

Page 2518 of 2572

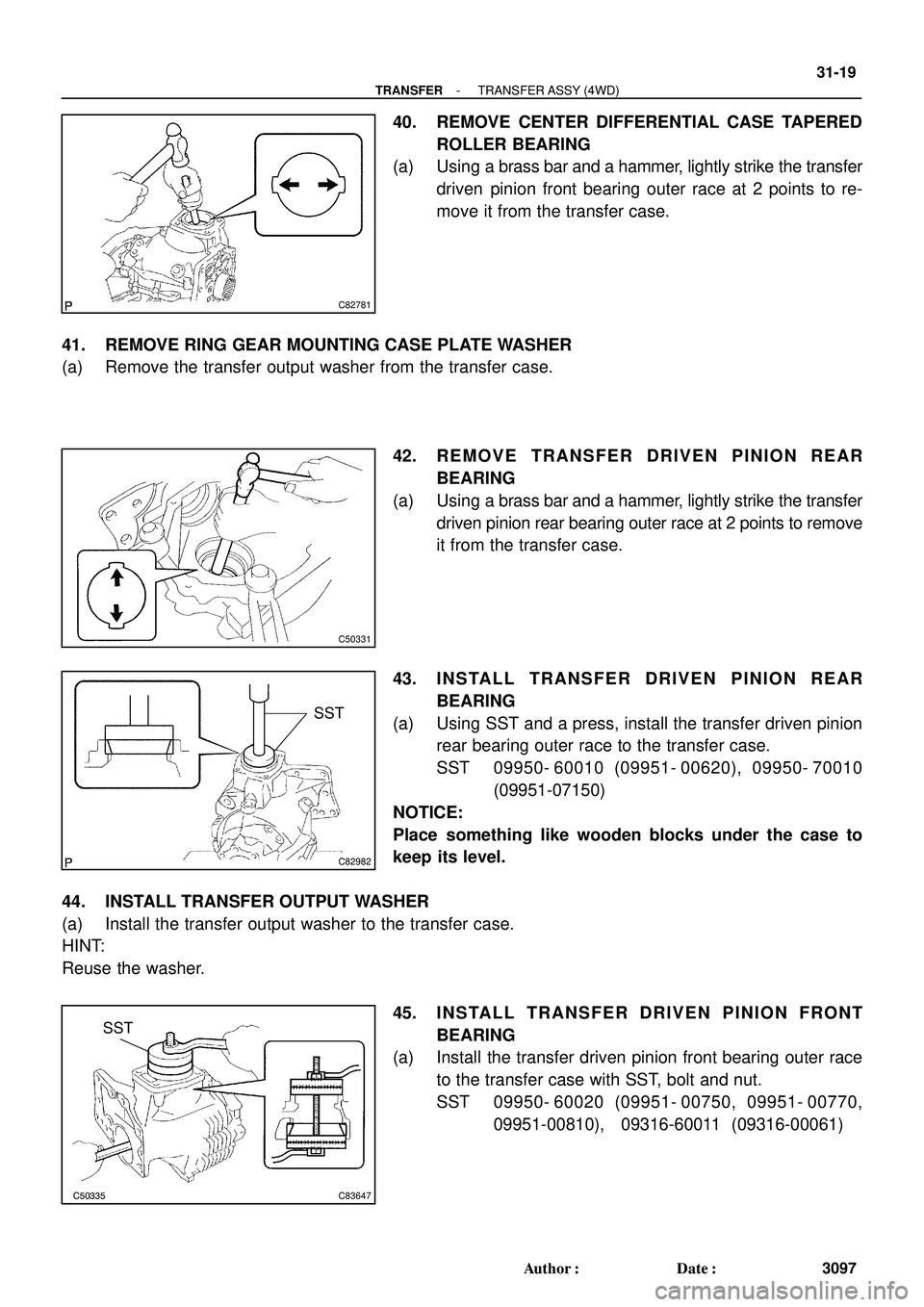

TOYOTA HIGHLANDER 2001 Service Repair Manual C82984 SST SST C82796 C50327C83646 SST C50329 31-18 - TRANSFERTRANSFER ASSY (4WD) 3096 Author: Date: (b) Using SST, remove the transfer gear nut. SST 09326-2001 1, 09556-16030 (c) Using a press, rem

Page 2519 of 2572

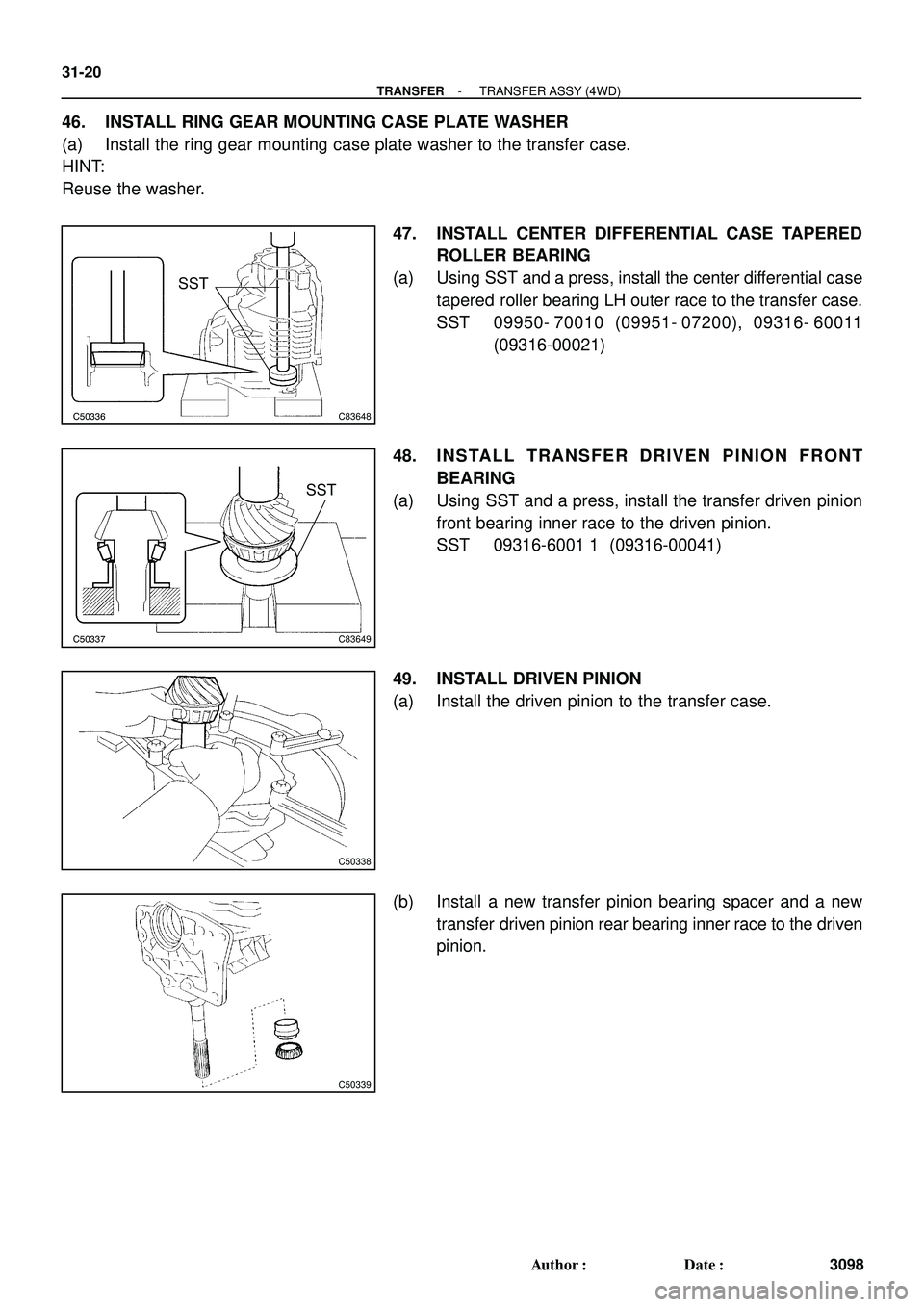

TOYOTA HIGHLANDER 2001 Service Repair Manual C82781 C50331 C82982 SST C50335C83647 SST - TRANSFERTRANSFER ASSY (4WD) 31-19 3097 Author: Date: 40. REMOVE CENTER DIFFERENTIAL CASE TAPERED ROLLER BEARING (a) Using a brass bar and a hammer, lightl

Page 2520 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual C50336C83648 SST C50337C83649 SST C50338 C50339 31-20 - TRANSFERTRANSFER ASSY (4WD) 3098 Author: Date: 46. INSTALL RING GEAR MOUNTING CASE PLATE WASHER (a) Install the ring gear mounting case plate
