Page 2417 of 2572

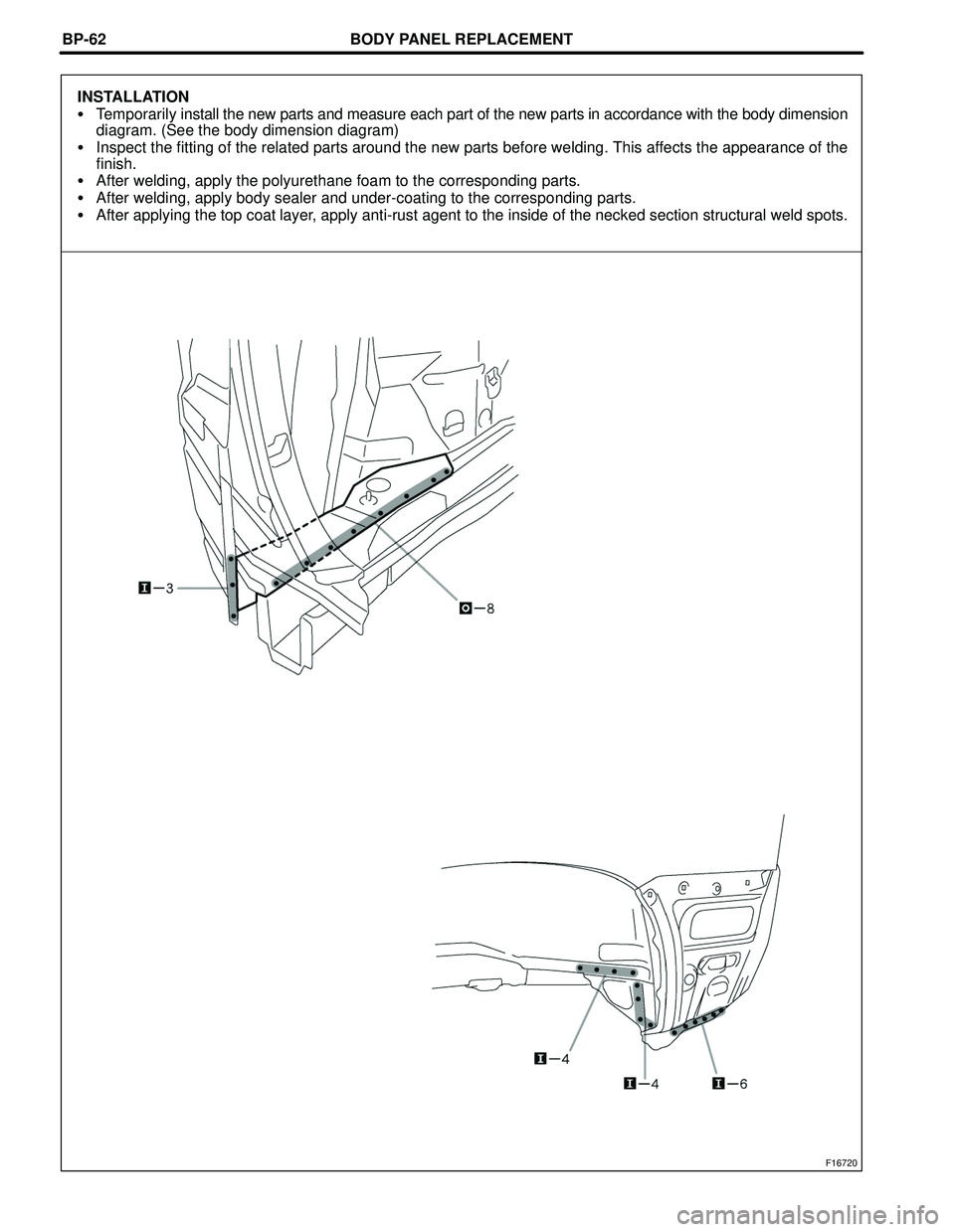

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16720 BP-62 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagra

Page 2418 of 2572

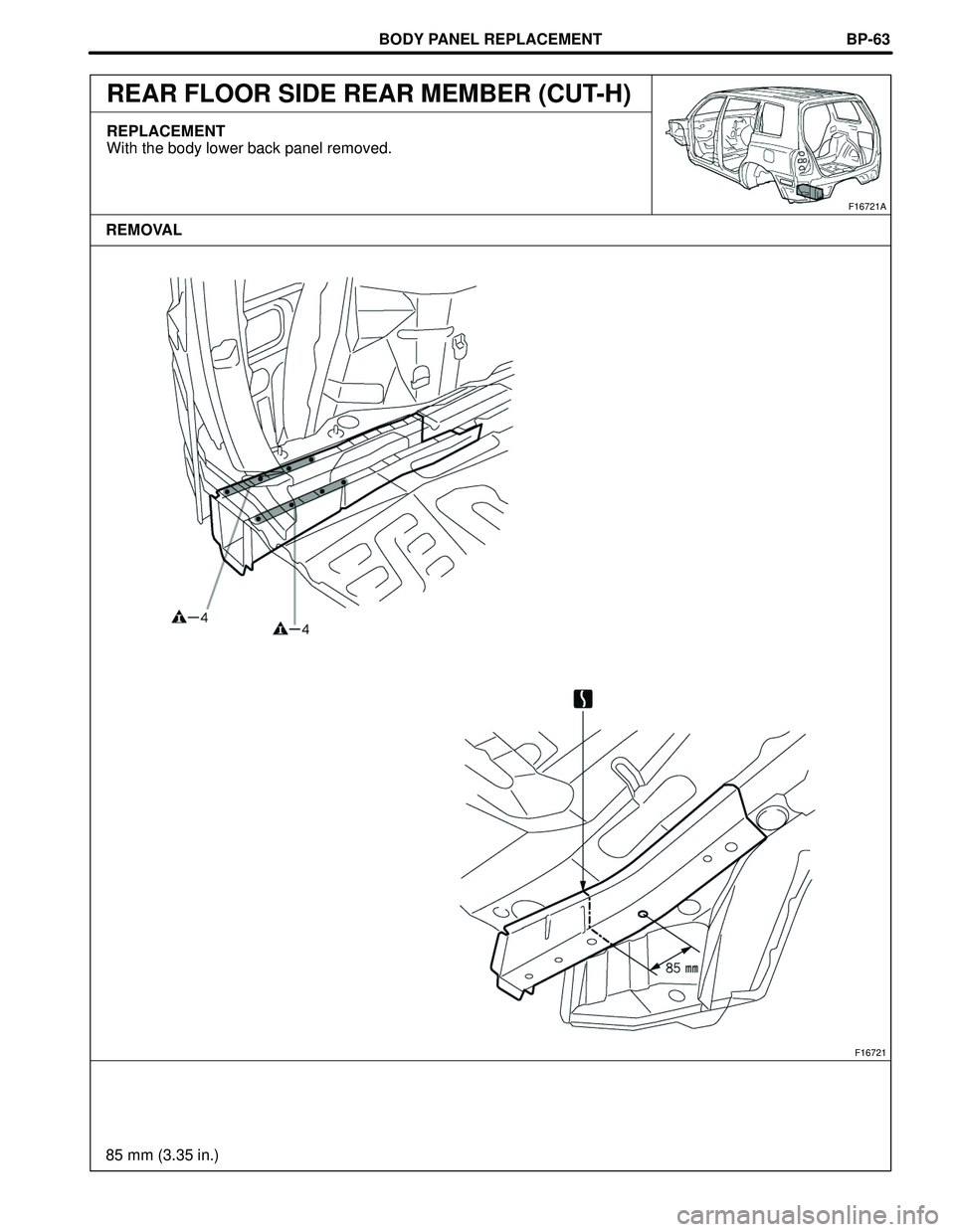

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16721 85 mm (3.35 in.) F16721A REMOVALBP-63 REAR FLOOR SIDE REAR MEMBER (CUT-H) REPLACEMENT With the body lower back panel removed.

Page 2419 of 2572

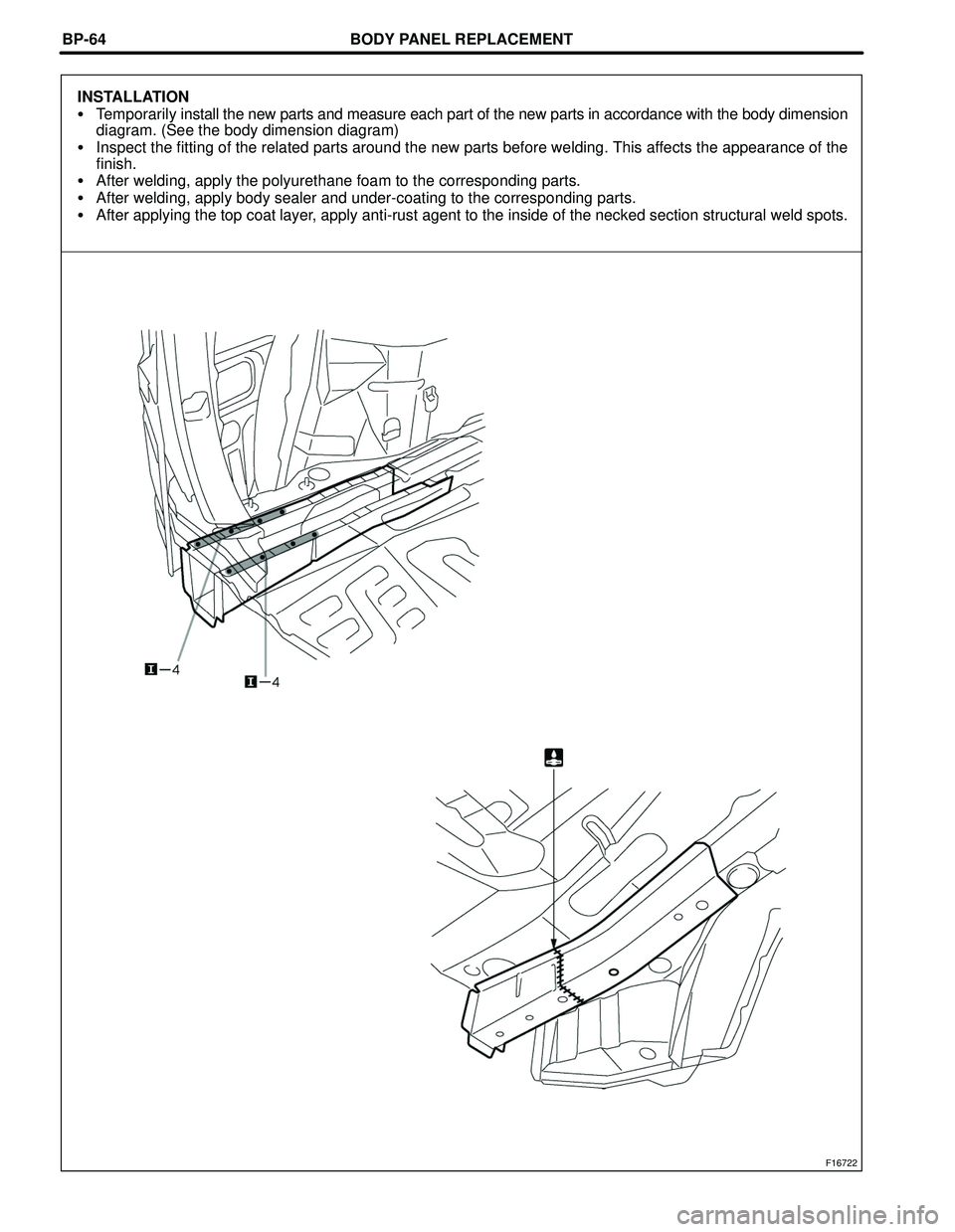

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16722 BP-64 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagra

Page 2420 of 2572

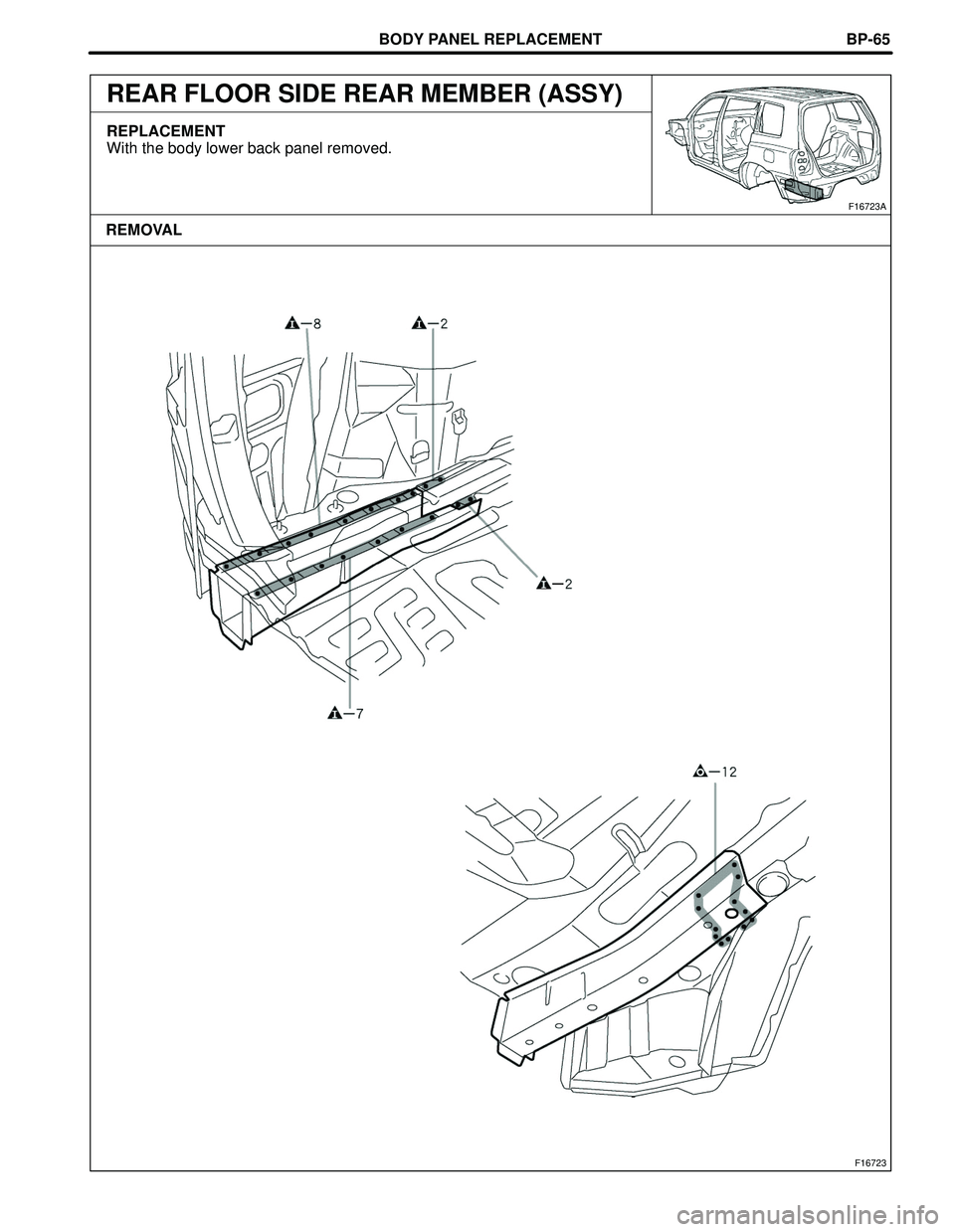

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16723 F16723A REMOVALBP-65 REAR FLOOR SIDE REAR MEMBER (ASSY) REPLACEMENT With the body lower back panel removed.

Page 2421 of 2572

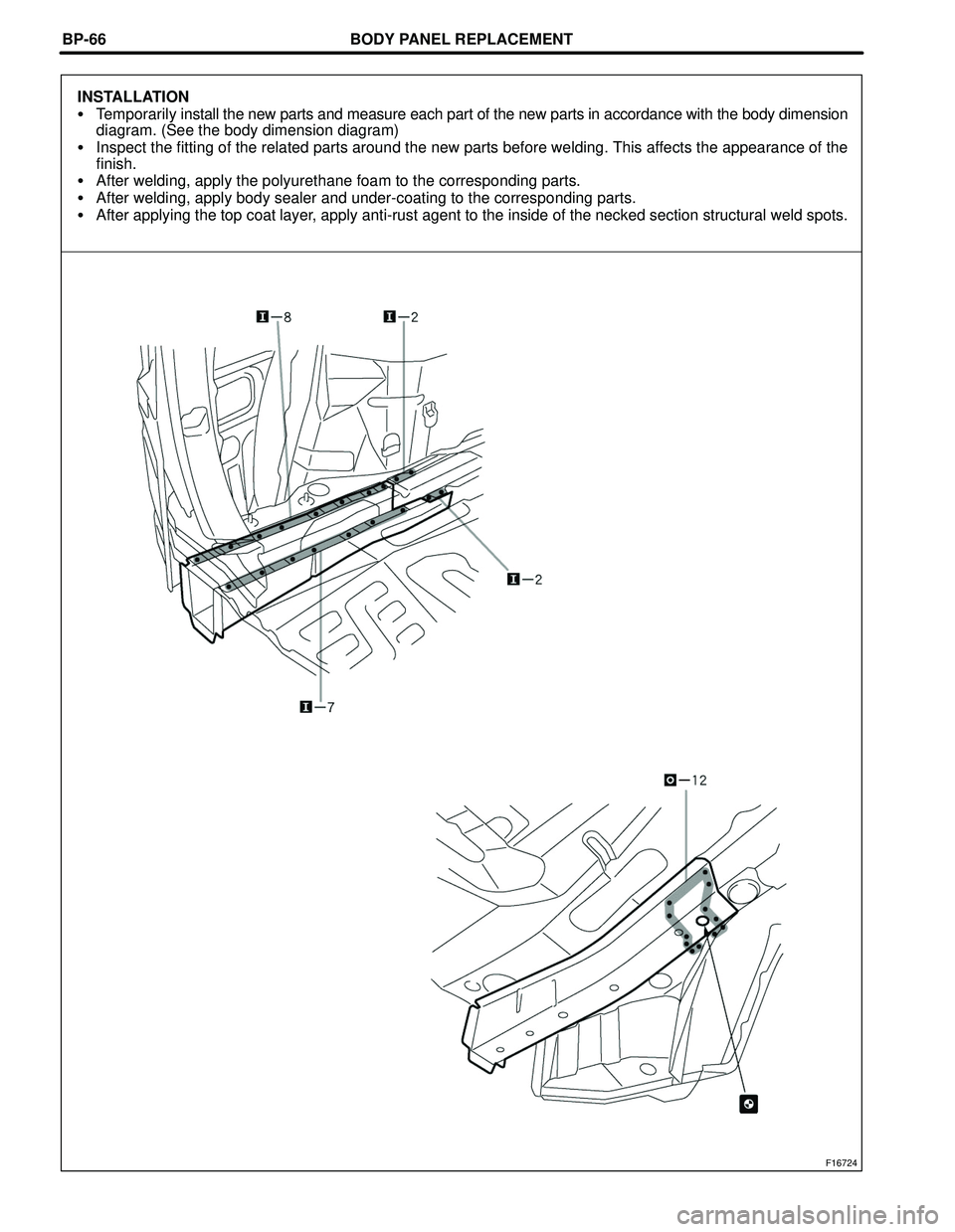

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16724 BP-66 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagra

Page 2422 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16725 F16725A REMOVALBP-67 REAR FLOOR NO.2 CROSSMEMBER (ASSY) REPLACEMENT

Page 2423 of 2572

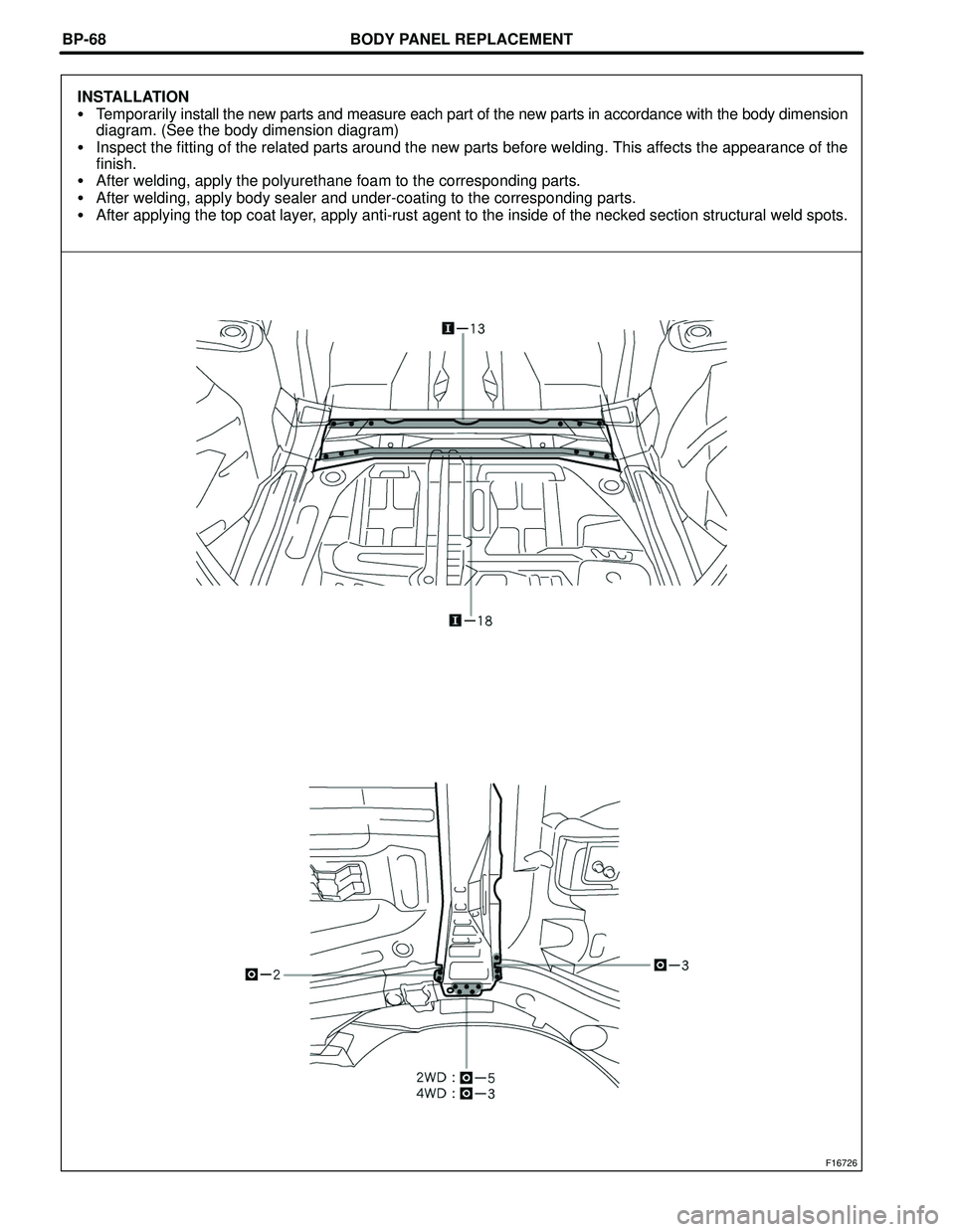

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16726 BP-68 INSTALLATION Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagra

Page 2424 of 2572

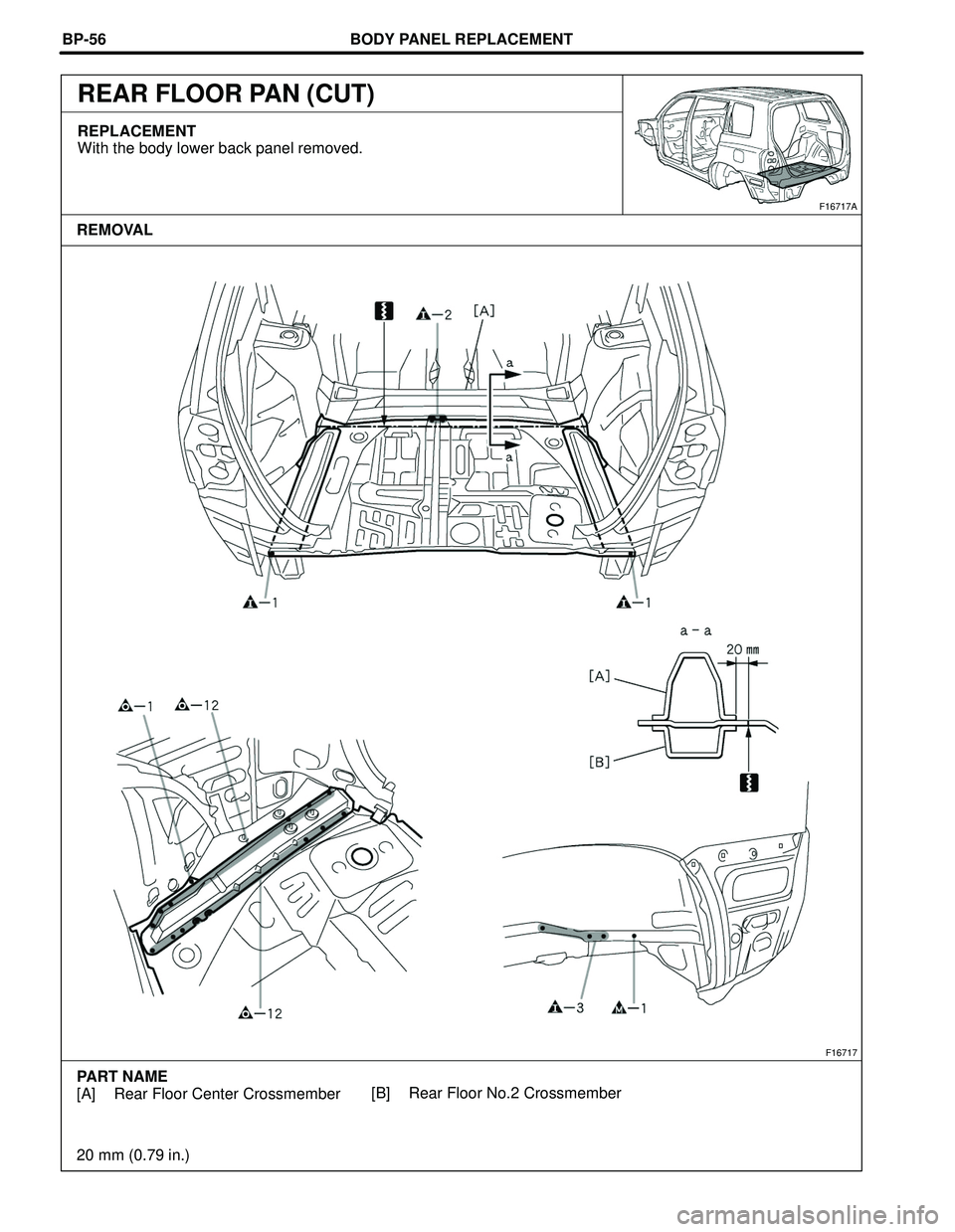

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16717 PART NAME [A] Rear Floor Center Crossmember 20 mm (0.79 in.)[B] Rear Floor No.2 Crossmember F16717A REMOVAL BP-56 REAR FLOOR PAN (CUT) REPLACEMENT With the body lower bac
