05-1074- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)
1264 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

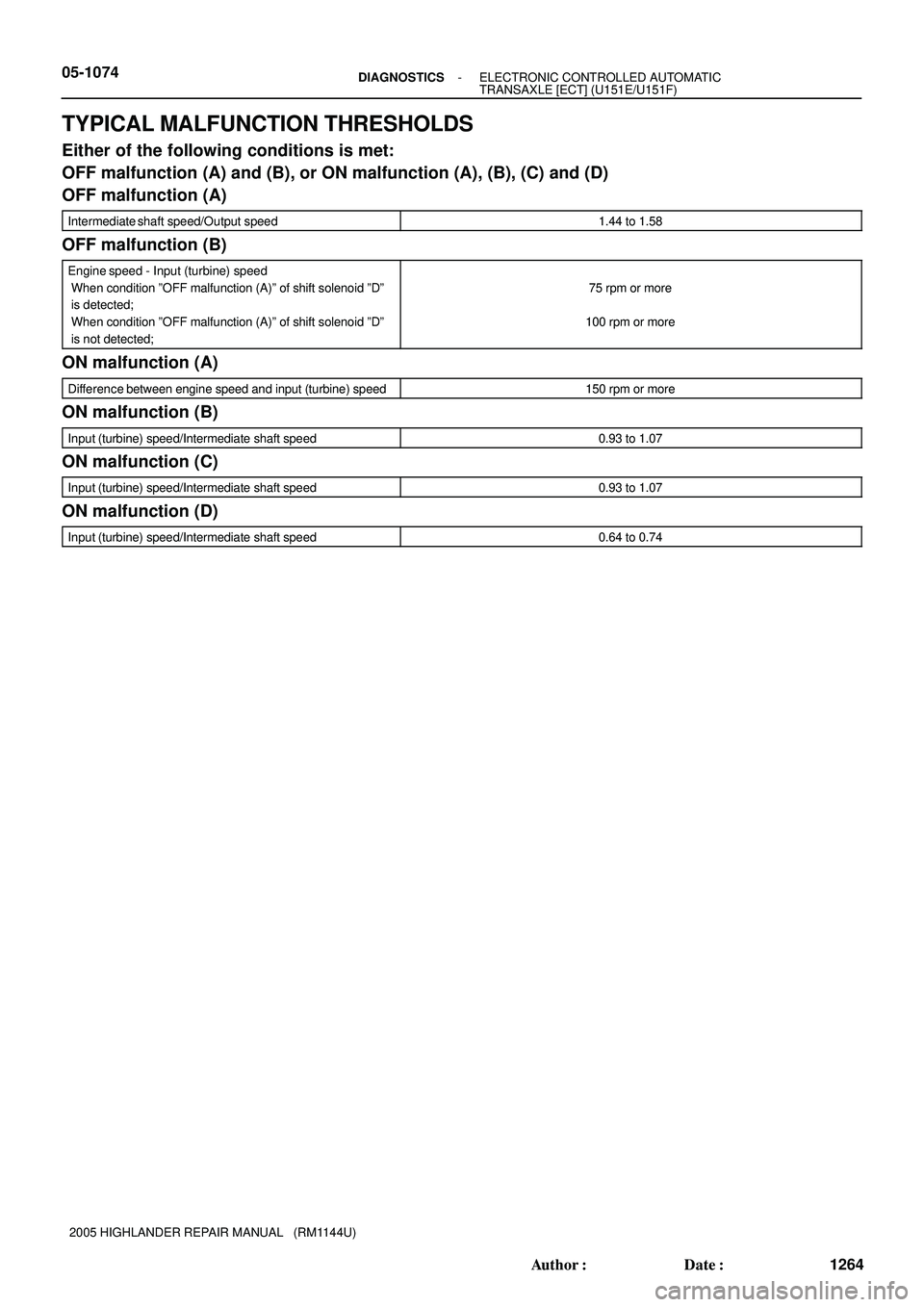

TYPICAL MALFUNCTION THRESHOLDS
Either of the following conditions is met:
OFF malfunction (A) and (B), or ON malfunction (A), (B), (C) and (D)
OFF malfunction (A)
Intermediate shaft speed/Output speed1.44 to 1.58
OFF malfunction (B)
Engine speed - Input (turbine) speed
When condition ºOFF malfunction (A)º of shift solenoid ºDº
is detected;
When condition ºOFF malfunction (A)º of shift solenoid ºDº
is not detected;
75 rpm or more
100 rpm or more
ON malfunction (A)
Difference between engine speed and input (turbine) speed150 rpm or more
ON malfunction (B)
Input (turbine) speed/Intermediate shaft speed0.93 to 1.07
ON malfunction (C)
Input (turbine) speed/Intermediate shaft speed0.93 to 1.07
ON malfunction (D)
Input (turbine) speed/Intermediate shaft speed0.64 to 0.74
Page 1850 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)05-1075
1265 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST u TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)05-1075
1265 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST u](/manual-img/14/57457/w960_57457-1849.png)
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)05-1075
1265 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to oper-
ate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method
to shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
(a) Turn the ignition switch off.
(b) Connect the hand-held tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Push the ºONº button of the hand-held tester.
(e) Select the item ºDIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/SHIFTº.
(f) According to the display on tester, perform the ºACTIVE TESTº.
HINT:
While driving, the shift position can be forcibly changed with the hand-held tester.
Comparing the shift position commanded by the ACTIVE TEST with the actual shift position enables you
to confirm the problem (see page 05-1030).
ItemTest DetailsDiagnostic Note
SHIFT
[Test Details]
Operate the shift solenoid valve and set the each shift position by your-
self.
[Vehicle Condition]
Less than 50 km/h (31 mph)
[Others]
Press º"º button: Shift up
Press ºuº button: Shift down
Possible to check the operation of
the shift solenoid valves.
HINT:
This test can be conducted when the vehicle speed is 50 km/h (31 mph) or less.
The shift position commanded by the ECM is shown in the DATA LIST/SHIFT display on the hand-held
tester.
1 CHECK OTHER DTCS OUTPUT(IN ADDITION TO DTC P0771)
(a) Connect the OBD II scan tool or the hand-held tester to the DLC3.
(b) Turn the ignition switch to the ON position and push the OBD II scan tool or the hand-held tester main
switch ON.
(c) When you use hand-held tester:
Select the item ºDIAGNOSIS/ENHANCED OBD II/DTC INFO/CURRENT CODESº.
(d) Read the DTCs using the OBD II scan tool or the hand-held tester.
Result:
Display (DTC output)Proceed to
Only ºP0771º is outputA
ºP0771º and other DTCsB
HINT:
If any other codes besides ºP0771º is output, perform the troubleshooting for those DTCs first.
B GO TO RELEVANT DTC CHART
(SEE PAGE 05-1034)
A
Page 1851 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual C90640
(+) (-)
Shift Solenoid Valve SR:
05-1076- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)
1266 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 INSPECT SHIFT TOYOTA HIGHLANDER 2001 Service Repair Manual C90640
(+) (-)
Shift Solenoid Valve SR:
05-1076- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)
1266 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 INSPECT SHIFT](/manual-img/14/57457/w960_57457-1850.png)

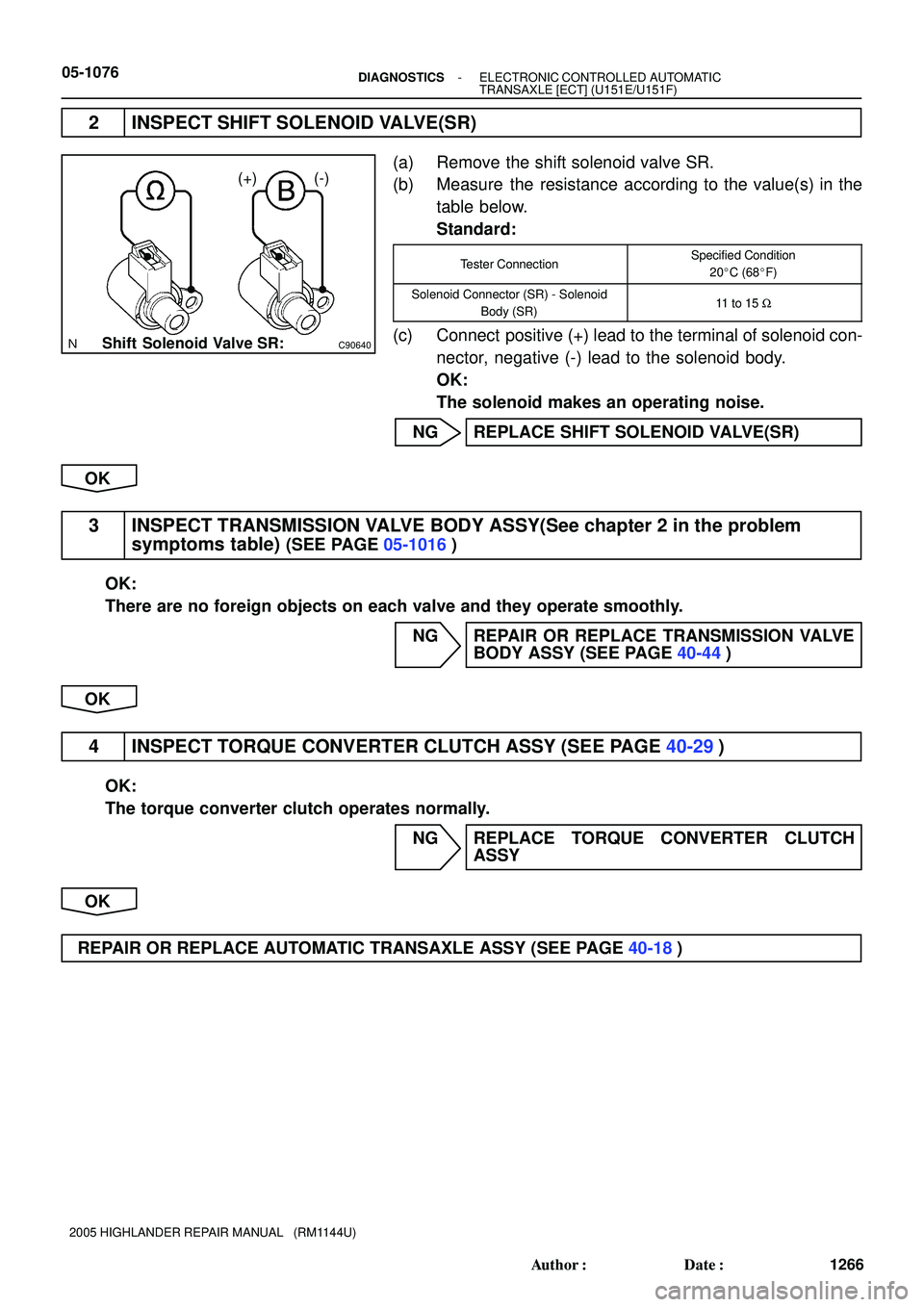

C90640
(+) (-)
Shift Solenoid Valve SR:
05-1076- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)
1266 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 INSPECT SHIFT SOLENOID VALVE(SR)
(a) Remove the shift solenoid valve SR.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
20C (68F)
Solenoid Connector (SR) - Solenoid
Body (SR)11 to 15 W
(c) Connect positive (+) lead to the terminal of solenoid con-
nector, negative (-) lead to the solenoid body.
OK:
The solenoid makes an operating noise.
NG REPLACE SHIFT SOLENOID VALVE(SR)
OK
3 INSPECT TRANSMISSION VALVE BODY ASSY(See chapter 2 in the problem
symptoms table)
(SEE PAGE 05-1016)
OK:
There are no foreign objects on each valve and they operate smoothly.
NG REPAIR OR REPLACE TRANSMISSION VALVE
BODY ASSY (SEE PAGE 40-44)
OK
4 INSPECT TORQUE CONVERTER CLUTCH ASSY (SEE PAGE 40-29)
OK:
The torque converter clutch operates normally.
NG REPLACE TORQUE CONVERTER CLUTCH
ASSY
OK
REPAIR OR REPLACE AUTOMATIC TRANSAXLE ASSY (SEE PAGE 40-18)
Page 1852 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual 05-960- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1150 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0776 PRESSURE CONTROL SOLENOID ºBº
PERFORMANCE (S TOYOTA HIGHLANDER 2001 Service Repair Manual 05-960- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1150 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0776 PRESSURE CONTROL SOLENOID ºBº
PERFORMANCE (S](/manual-img/14/57457/w960_57457-1851.png)
05-960- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1150 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0776 PRESSURE CONTROL SOLENOID ºBº
PERFORMANCE (SHIFT SOLENOID VALVE
SL2)
SYSTEM DESCRIPTION
The ECM uses signals from the vehicle speed sensor to detect the actual gear position (1st, 2nd, 3rd or O/D
gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical
problems of the shift solenoid valves and valve body.
DTC No.DTC Detecting ConditionTrouble Area
P0776The gear required by the ECM does not match the actual gear
when driving (2-trip detection logic)
Shift solenoid valve SL2 remains open or closed
Valve body is blocked
Shift solenoid valve SL2
Automatic transaxle (clutch, brake or gear etc.)
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. According to the input shaft
revolution, intermediate (counter) shaft revolution and output shaft revolution, the ECM detects the actual
gear position (1st, 2nd, 3rd or O/D gear position). When the gear position commanded by the ECM and the
actual gear position are not same, the ECM illuminates the MIL and stores the DTC.
MONITOR STRATEGY
Related DTCs
P0776:
Shift solenoid valve SL2/OFF malfunction
Shift solenoid valve SL2/ON malfunction
Required sensors/ComponentsShift solenoid valve SL2, Speed sensor (NT), Speed sensor (NC), Crankshaft posi-
tion sensor (NE)
Frequency of operationContinuous
Duration0.8 sec.
MIL operation2 driving cycles
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
All:
Transmission rangeºDº
ECT (Engine coolant temperature)60°C (140°F) or more
TFT (Transmission fluid temperature)-20C (-4F) or more
TFT sensor circuitNot circuit malfunction
ECT sensor circuitNot circuit malfunction
Turbine speed sensor circuitNot circuit malfunction
Intermediate shaft speed sensor circuitNot circuit malfunction
Output speed sensor circuitNot circuit malfunction
Shift solenoid valve SL1 circuitNot circuit malfunction
Shift solenoid valve SL2 circuitNot circuit malfunction
Shift solenoid valve S4 circuitNot circuit malfunction
Electronic throttle systemNot circuit malfunction
05C13-17
Page 1853 of 2572
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-961
1151 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

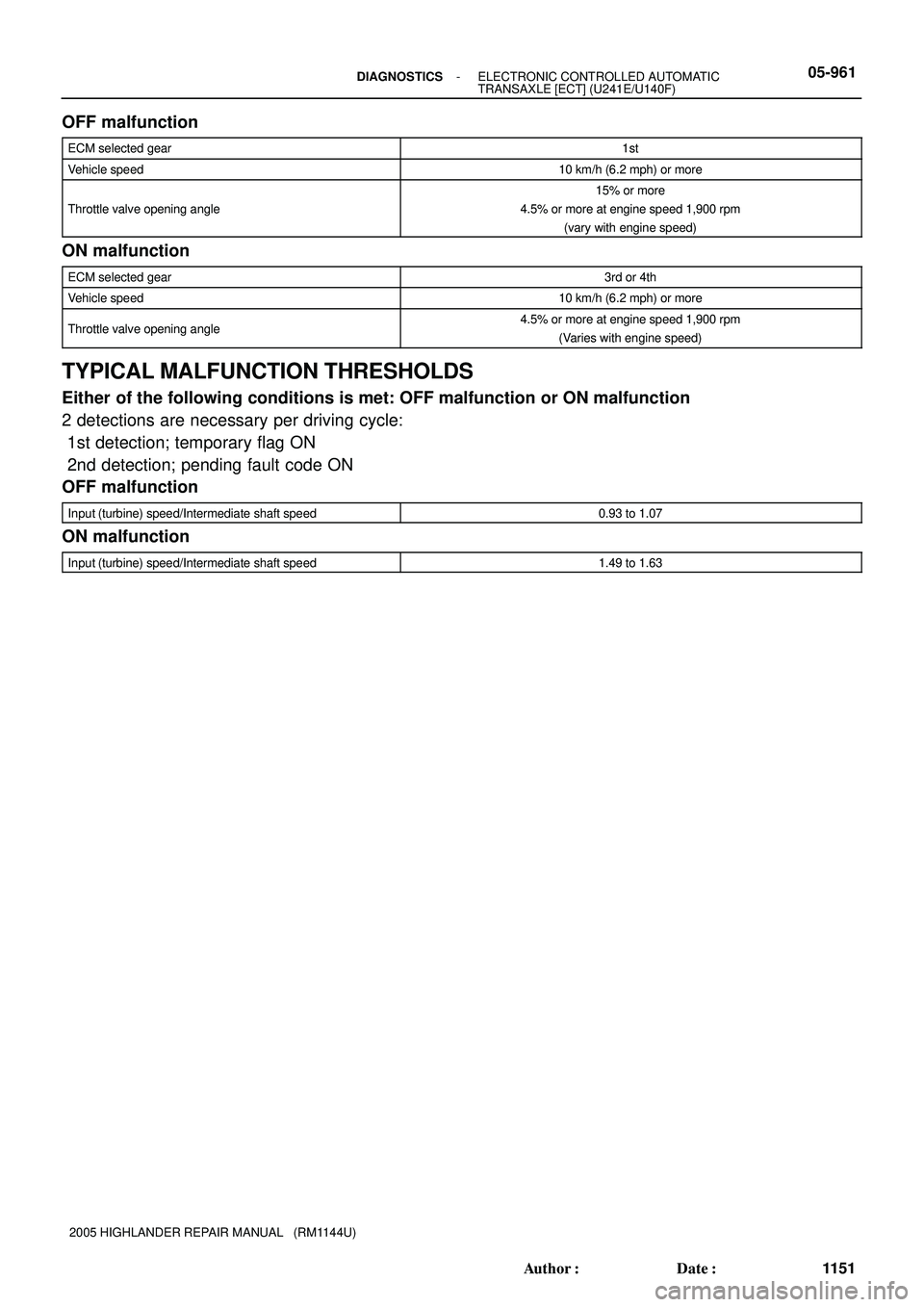

OFF malfunction
ECM selected gear1st
Vehicle speed10 km/h (6.2 mph) or more
Throttle valve opening angle
15% or more
4.5% or more at engine speed 1,900 rpm
(vary with engine speed)
ON malfunction
ECM selected gear3rd or 4th
Vehicle speed10 km/h (6.2 mph) or more
Throttle valve opening angle4.5% or more at engine speed 1,900 rpm
(Varies with engine speed)
TYPICAL MALFUNCTION THRESHOLDS
Either of the following conditions is met: OFF malfunction or ON malfunction
2 detections are necessary per driving cycle:
1st detection; temporary flag ON
2nd detection; pending fault code ON
OFF malfunction
Input (turbine) speed/Intermediate shaft speed0.93 to 1.07
ON malfunction
Input (turbine) speed/Intermediate shaft speed1.49 to 1.63
Page 1854 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual 05-962- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1152 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST us TOYOTA HIGHLANDER 2001 Service Repair Manual 05-962- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1152 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST us](/manual-img/14/57457/w960_57457-1853.png)

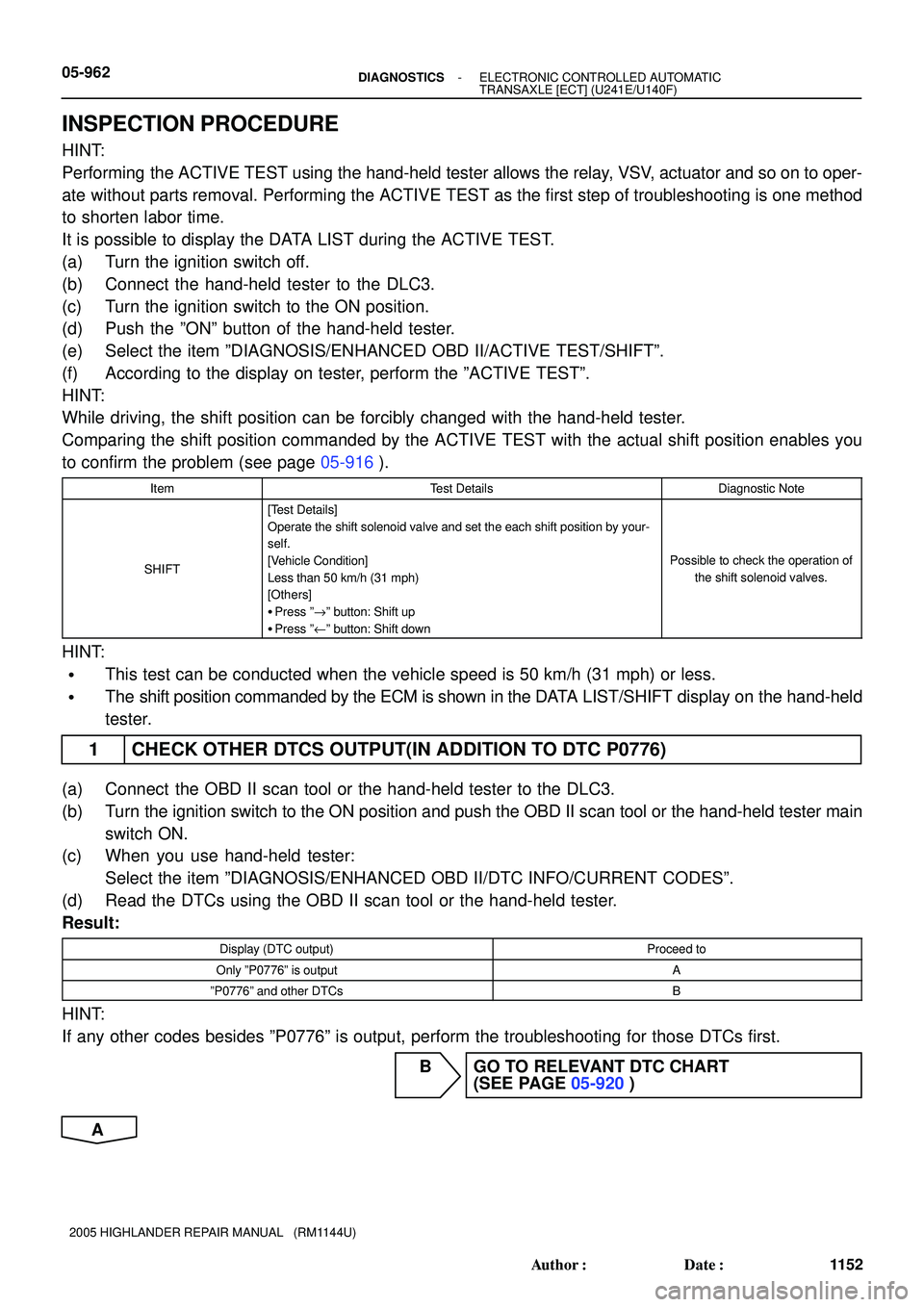

05-962- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1152 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to oper-
ate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method
to shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
(a) Turn the ignition switch off.
(b) Connect the hand-held tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Push the ºONº button of the hand-held tester.
(e) Select the item ºDIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/SHIFTº.
(f) According to the display on tester, perform the ºACTIVE TESTº.
HINT:
While driving, the shift position can be forcibly changed with the hand-held tester.
Comparing the shift position commanded by the ACTIVE TEST with the actual shift position enables you
to confirm the problem (see page 05-916).
ItemTest DetailsDiagnostic Note
SHIFT
[Test Details]
Operate the shift solenoid valve and set the each shift position by your-
self.
[Vehicle Condition]
Less than 50 km/h (31 mph)
[Others]
Press º"º button: Shift up
Press ºuº button: Shift down
Possible to check the operation of
the shift solenoid valves.
HINT:
This test can be conducted when the vehicle speed is 50 km/h (31 mph) or less.
The shift position commanded by the ECM is shown in the DATA LIST/SHIFT display on the hand-held
tester.
1 CHECK OTHER DTCS OUTPUT(IN ADDITION TO DTC P0776)
(a) Connect the OBD II scan tool or the hand-held tester to the DLC3.
(b) Turn the ignition switch to the ON position and push the OBD II scan tool or the hand-held tester main
switch ON.
(c) When you use hand-held tester:
Select the item ºDIAGNOSIS/ENHANCED OBD II/DTC INFO/CURRENT CODESº.
(d) Read the DTCs using the OBD II scan tool or the hand-held tester.
Result:
Display (DTC output)Proceed to
Only ºP0776º is outputA
ºP0776º and other DTCsB
HINT:
If any other codes besides ºP0776º is output, perform the troubleshooting for those DTCs first.
B GO TO RELEVANT DTC CHART
(SEE PAGE 05-920)
A
Page 1855 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual D25466
12
12
(+)
(-)

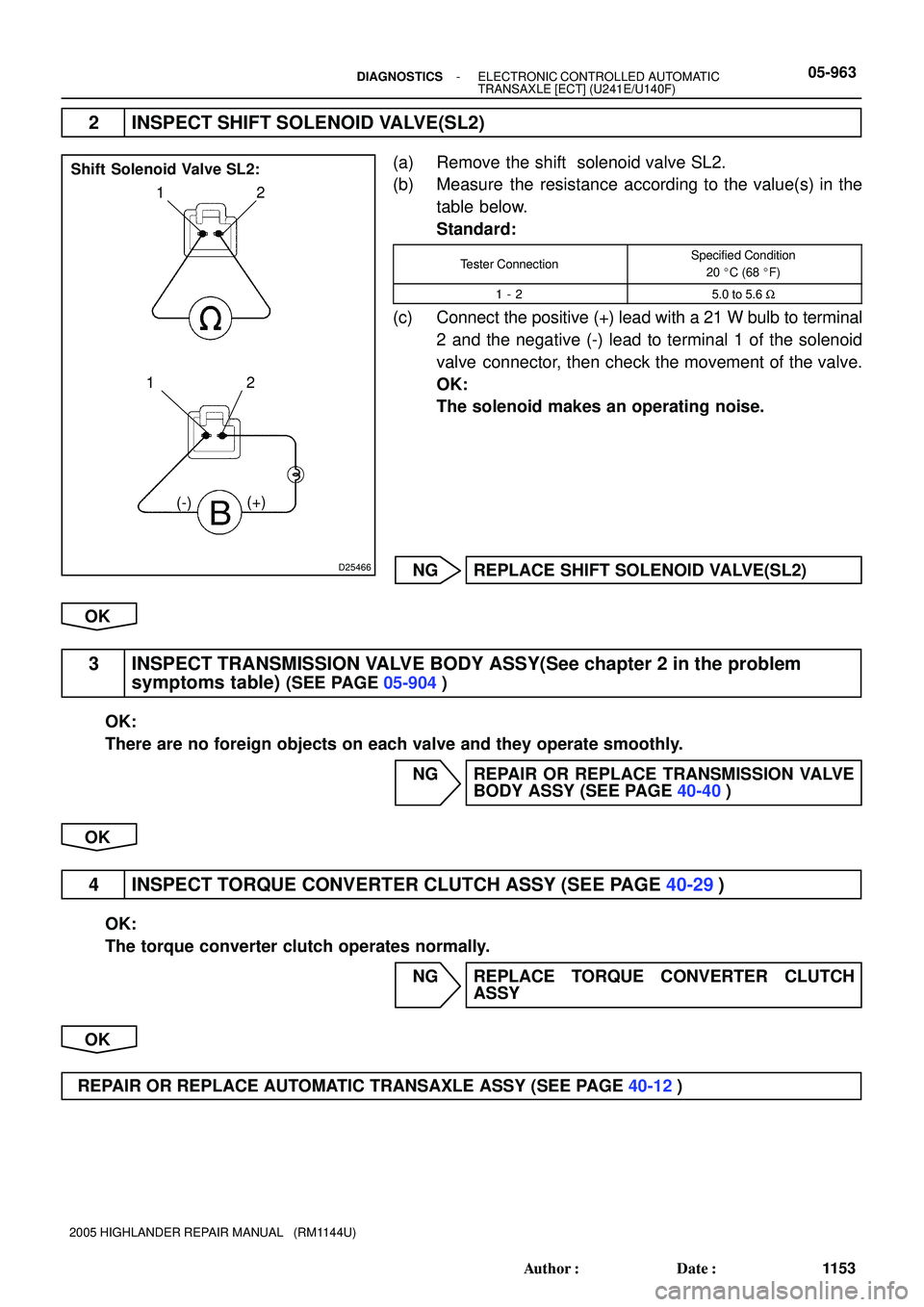

Shift Solenoid Valve SL2:
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-963
1153 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 INSPECT TOYOTA HIGHLANDER 2001 Service Repair Manual D25466
12
12
(+)
(-)
Shift Solenoid Valve SL2:
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-963
1153 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 INSPECT](/manual-img/14/57457/w960_57457-1854.png)
D25466
12
12
(+)
(-)
Shift Solenoid Valve SL2:
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-963
1153 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 INSPECT SHIFT SOLENOID VALVE(SL2)
(a) Remove the shift solenoid valve SL2.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
20 C (68 F)
1 - 25.0 to 5.6 W
(c) Connect the positive (+) lead with a 21 W bulb to terminal
2 and the negative (-) lead to terminal 1 of the solenoid
valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating noise.
NG REPLACE SHIFT SOLENOID VALVE(SL2)
OK
3 INSPECT TRANSMISSION VALVE BODY ASSY(See chapter 2 in the problem
symptoms table)
(SEE PAGE 05-904)
OK:
There are no foreign objects on each valve and they operate smoothly.
NG REPAIR OR REPLACE TRANSMISSION VALVE
BODY ASSY (SEE PAGE 40-40)
OK
4 INSPECT TORQUE CONVERTER CLUTCH ASSY (SEE PAGE 40-29)
OK:
The torque converter clutch operates normally.
NG REPLACE TORQUE CONVERTER CLUTCH
ASSY
OK
REPAIR OR REPLACE AUTOMATIC TRANSAXLE ASSY (SEE PAGE 40-12)
Page 1856 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual 05-964- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1154 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0778 PRESSURE CONTROL SOLENOID ºBº
ELECTRICAL (SH TOYOTA HIGHLANDER 2001 Service Repair Manual 05-964- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1154 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0778 PRESSURE CONTROL SOLENOID ºBº
ELECTRICAL (SH](/manual-img/14/57457/w960_57457-1855.png)
05-964- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1154 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0778 PRESSURE CONTROL SOLENOID ºBº
ELECTRICAL (SHIFT SOLENOID VALVE
SL2)
CIRCUIT DESCRIPTION
Shifting from 1st to O/D is performed in combination with ºONº and ºOFFº operation of the shift solenoid
valves SL1 and SL2 which is controlled by the ECM. If an open or short circuit occurs in either of the shift
solenoid valves, the ECM controls the remaining normal shift solenoid valve to allow the vehicle to be oper-
ated smoothly (Fail safe function).
DTC No.DTC Detection ConditionTrouble Area
P0778
ECM checks for an open or short circuit in shift solenoid valves
SL2 (1-trip detection logic)
Output signal duty equals to 100%Open or short in shift solenoid valve SL2 circuit
Shift solenoid valve SL2
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. When there is an open or
short circuit in any shift solenoid valve circuit, the ECM detects the problem and illuminates the MIL and
stores the DTC. And the ECM performs the fail-safe function and turns the other shift solenoid valves in good
condition ºON/OFFº (In case of an open or short circuit, the ECM stops sending current to the circuit.)
(see page 05-916).
MONITOR STRATEGY
Related DTCsP0778: Shift solenoid valve SL2/Range check
Required sensors/ComponentsShift solenoid valve SL2
Frequency of operationContinuous
Duration1 sec.
MIL operationImmediate
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
The monitor will run whenever this DTC is not present.See page 05-895
Battery voltage10 V or more
Ignition switchON
StarterOFF
TYPICAL MALFUNCTION THRESHOLDS
Output signal duty100%
COMPONENT OPERATING RANGE
Output signal dutyLess than 100%
05C14-17
