TOYOTA HIGHLANDER 2001 Service Repair Manual D25080
Negative (-)
Terminal
D31751
INCORRECT
- INTRODUCTIONREPAIR INSTRUCTION
01-15
15 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
(i) WIRE HARNESS AND CONNECTOR
(1) The SRS wire harne

D25080
Negative (-)
Terminal
D31751
INCORRECT
- INTRODUCTIONREPAIR INSTRUCTION
01-15
15 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

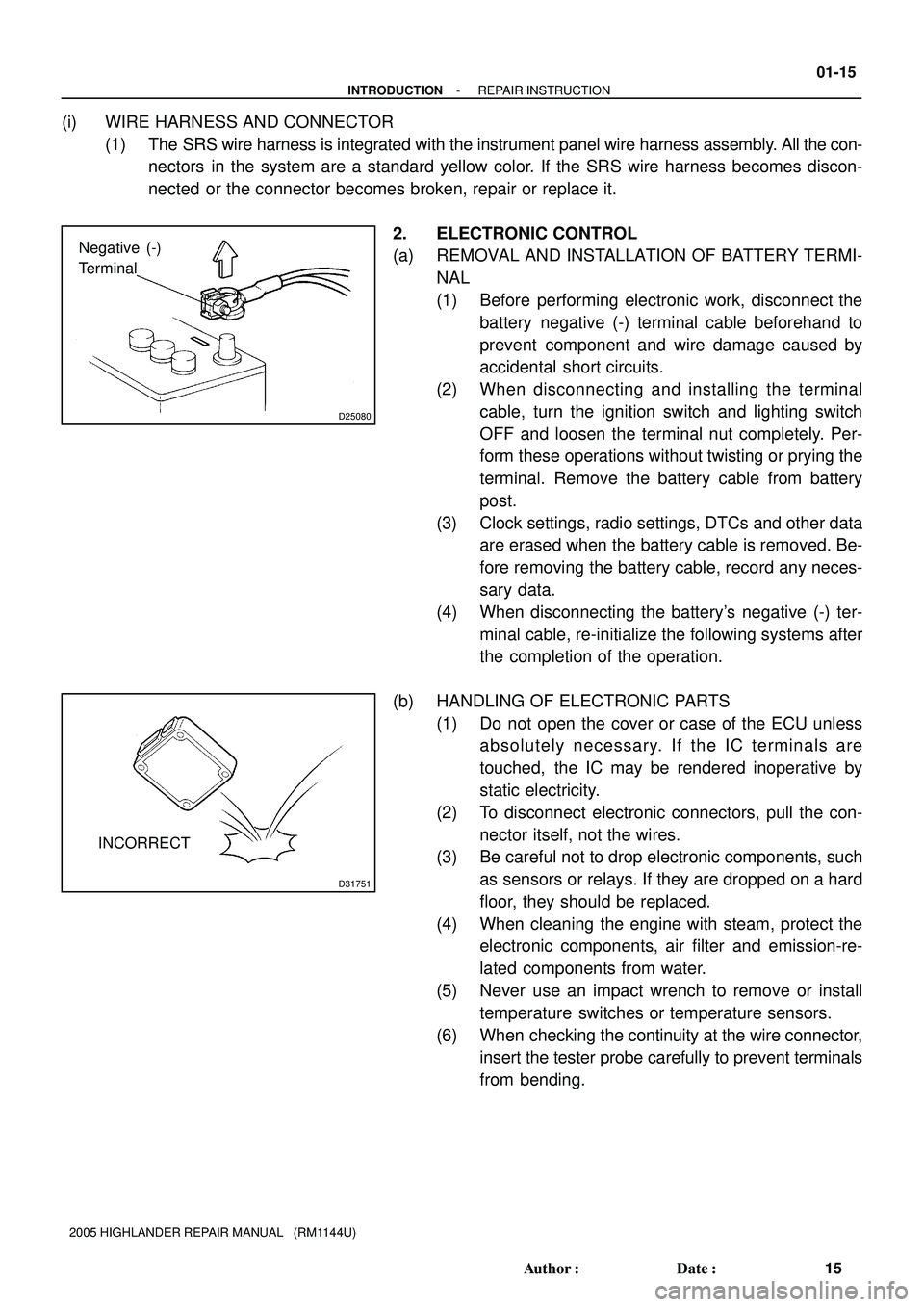

(i) WIRE HARNESS AND CONNECTOR
(1) The SRS wire harness is integrated with the instrument panel wire harness assembly. All the con-
nectors in the system are a standard yellow color. If the SRS wire harness becomes discon-
nected or the connector becomes broken, repair or replace it.
2. ELECTRONIC CONTROL
(a) REMOVAL AND INSTALLATION OF BATTERY TERMI-
NAL
(1) Before performing electronic work, disconnect the
battery negative (-) terminal cable beforehand to
prevent component and wire damage caused by
accidental short circuits.
(2) When disconnecting and installing the terminal
cable, turn the ignition switch and lighting switch
OFF and loosen the terminal nut completely. Per-
form these operations without twisting or prying the
terminal. Remove the battery cable from battery
post.
(3) Clock settings, radio settings, DTCs and other data
are erased when the battery cable is removed. Be-
fore removing the battery cable, record any neces-
sary data.
(4) When disconnecting the battery's negative (-) ter-
minal cable, re-initialize the following systems after
the completion of the operation.
(b) HANDLING OF ELECTRONIC PARTS
(1) Do not open the cover or case of the ECU unless
absolutely necessary. If the IC terminals are
touched, the IC may be rendered inoperative by
static electricity.
(2) To disconnect electronic connectors, pull the con-
nector itself, not the wires.
(3) Be careful not to drop electronic components, such
as sensors or relays. If they are dropped on a hard
floor, they should be replaced.
(4) When cleaning the engine with steam, protect the
electronic components, air filter and emission-re-
lated components from water.
(5) Never use an impact wrench to remove or install
temperature switches or temperature sensors.
(6) When checking the continuity at the wire connector,
insert the tester probe carefully to prevent terminals
from bending.

Page 2226 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual D01563
D25081
Spring Type Clamp
Clamp Track
D20025
01-16
- INTRODUCTIONREPAIR INSTRUCTION
16 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3. REMOVAL AND INSTALLATION OF FUEL CONTROL PART

D01563
D25081
Spring Type Clamp
Clamp Track
D20025
01-16
- INTRODUCTIONREPAIR INSTRUCTION
16 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

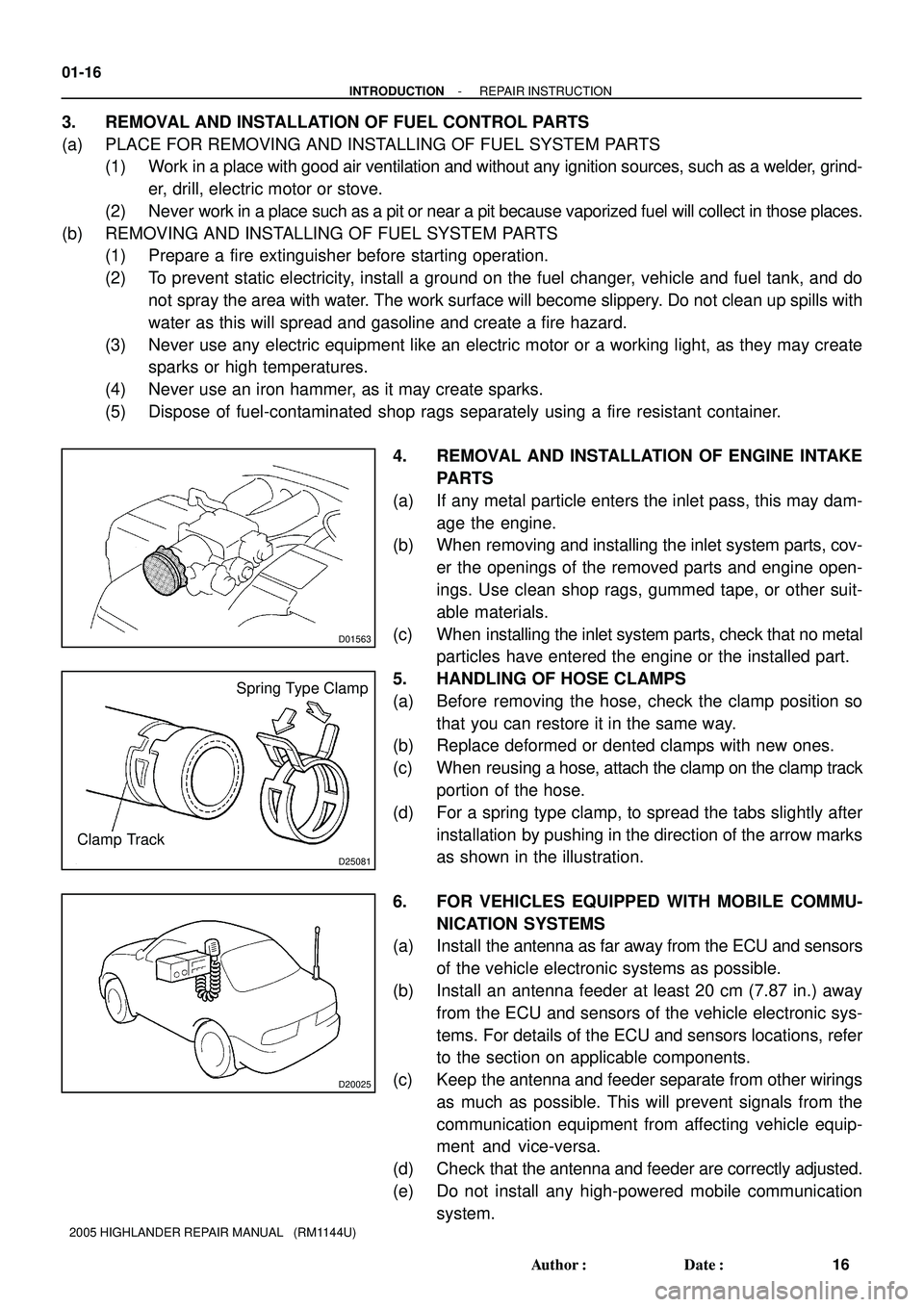

3. REMOVAL AND INSTALLATION OF FUEL CONTROL PARTS
(a) PLACE FOR REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
(1) Work in a place with good air ventilation and without any ignition sources, such as a welder, grind-
er, drill, electric motor or stove.
(2) Never work in a place such as a pit or near a pit because vaporized fuel will collect in those places.
(b) REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
(1) Prepare a fire extinguisher before starting operation.
(2) To prevent static electricity, install a ground on the fuel changer, vehicle and fuel tank, and do
not spray the area with water. The work surface will become slippery. Do not clean up spills with
water as this will spread and gasoline and create a fire hazard.
(3) Never use any electric equipment like an electric motor or a working light, as they may create
sparks or high temperatures.
(4) Never use an iron hammer, as it may create sparks.
(5) Dispose of fuel-contaminated shop rags separately using a fire resistant container.
4. REMOVAL AND INSTALLATION OF ENGINE INTAKE
PARTS
(a) If any metal particle enters the inlet pass, this may dam-
age the engine.
(b) When removing and installing the inlet system parts, cov-
er the openings of the removed parts and engine open-
ings. Use clean shop rags, gummed tape, or other suit-
able materials.
(c) When installing the inlet system parts, check that no metal
particles have entered the engine or the installed part.
5. HANDLING OF HOSE CLAMPS
(a) Before removing the hose, check the clamp position so
that you can restore it in the same way.
(b) Replace deformed or dented clamps with new ones.
(c) When reusing a hose, attach the clamp on the clamp track
portion of the hose.
(d) For a spring type clamp, to spread the tabs slightly after
installation by pushing in the direction of the arrow marks
as shown in the illustration.
6. FOR VEHICLES EQUIPPED WITH MOBILE COMMU-
NICATION SYSTEMS
(a) Install the antenna as far away from the ECU and sensors
of the vehicle electronic systems as possible.
(b) Install an antenna feeder at least 20 cm (7.87 in.) away
from the ECU and sensors of the vehicle electronic sys-
tems. For details of the ECU and sensors locations, refer
to the section on applicable components.
(c) Keep the antenna and feeder separate from other wirings
as much as possible. This will prevent signals from the
communication equipment from affecting vehicle equip-
ment and vice-versa.
(d) Check that the antenna and feeder are correctly adjusted.
(e) Do not install any high-powered mobile communication
system.

Page 2227 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual A82779
DLC3
1314 1516 12 11 10 9 12345678
TS
CG
- INTRODUCTIONREPAIR INSTRUCTION
01-17
17 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

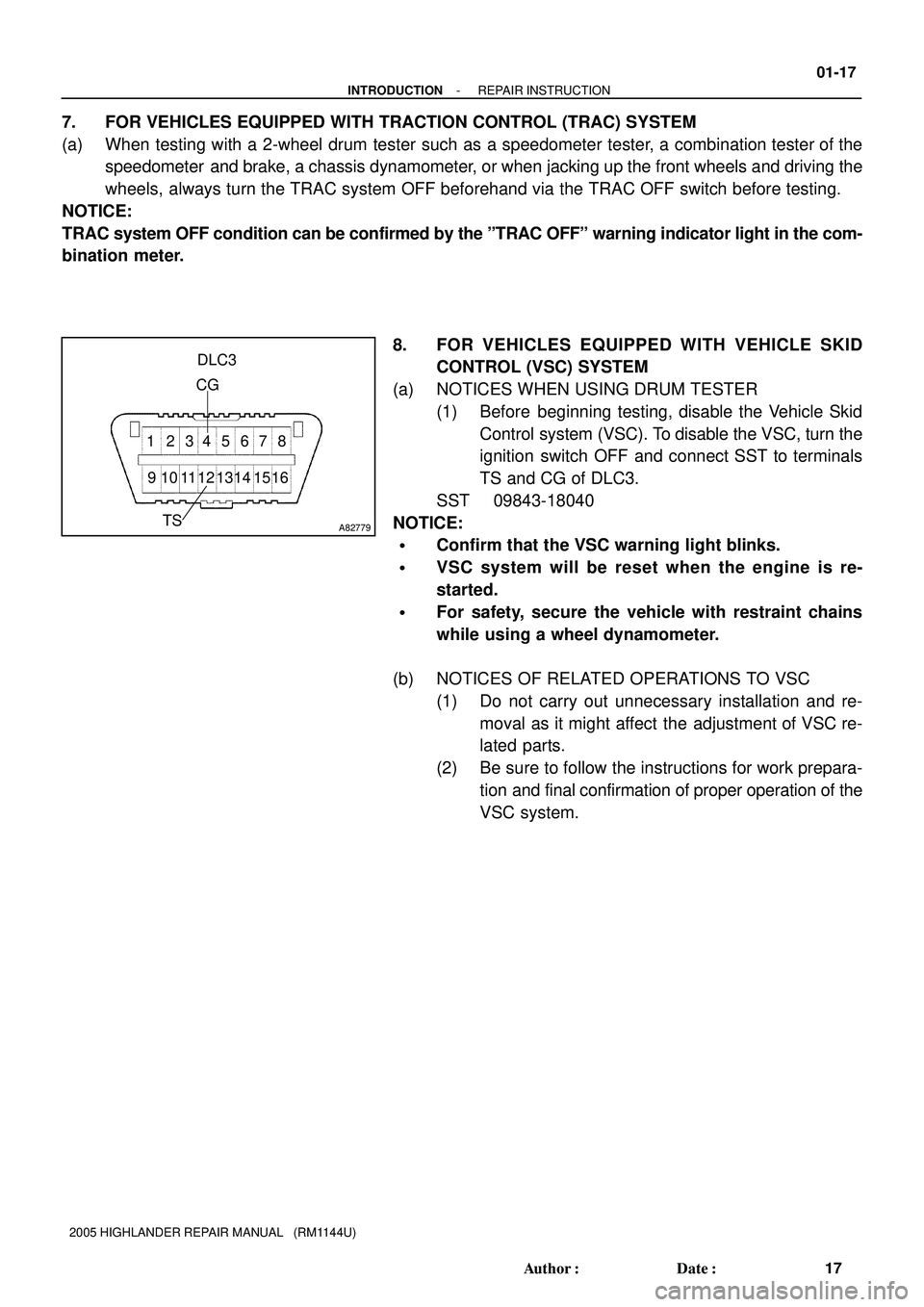

7. FOR VEHICLES EQUIPPED WITH TRACTION CONTROL (TRAC

Page 2228 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual D25530
D25531
01-18
- INTRODUCTIONREPAIR INSTRUCTION
18 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

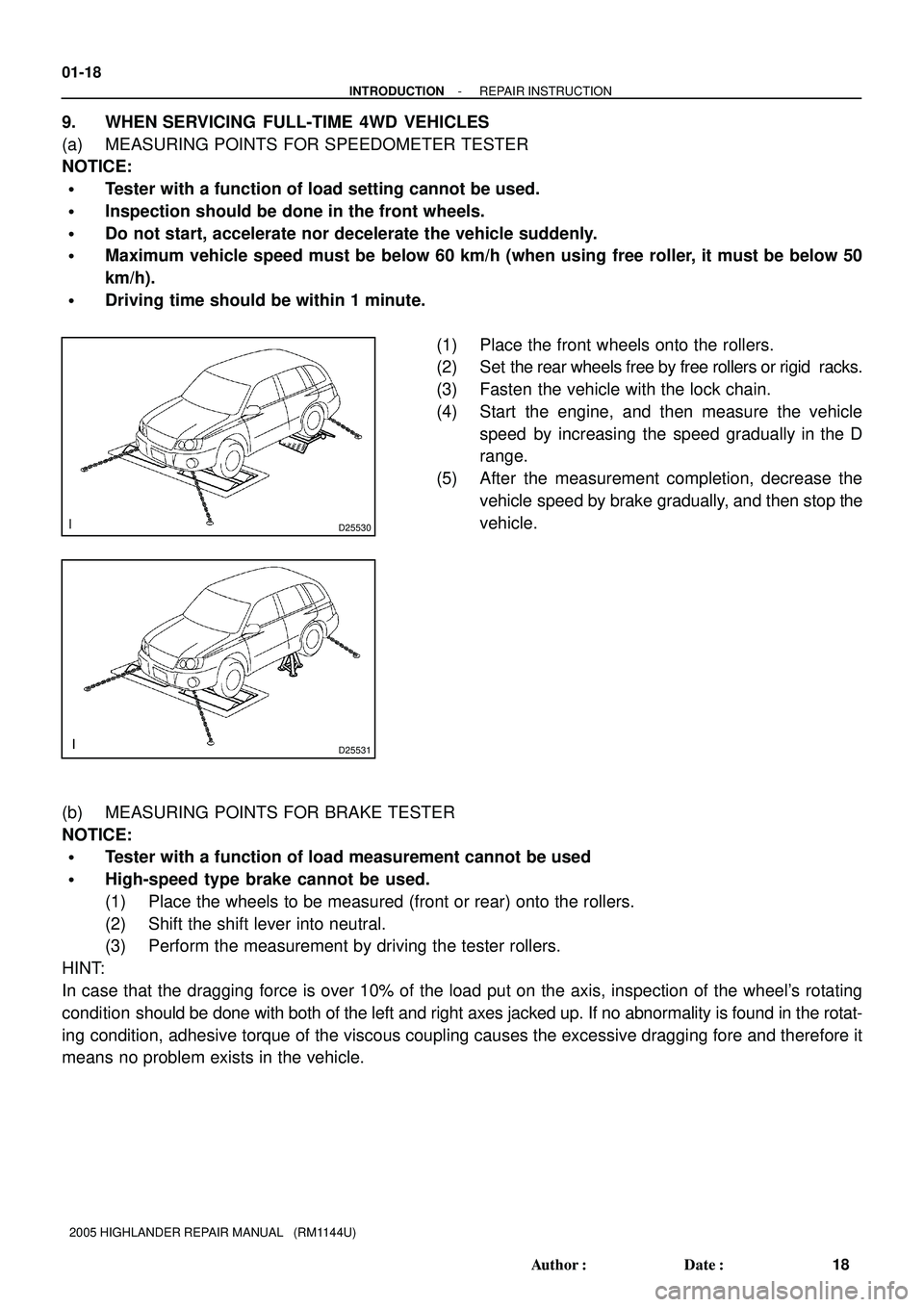

9. WHEN SERVICING FULL-TIME 4WD VEHICLES
(a) MEASURING POINTS FOR SPEEDOMETER TESTER
N

Page 2229 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual D25532
- INTRODUCTIONREPAIR INSTRUCTION
01-19
19 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

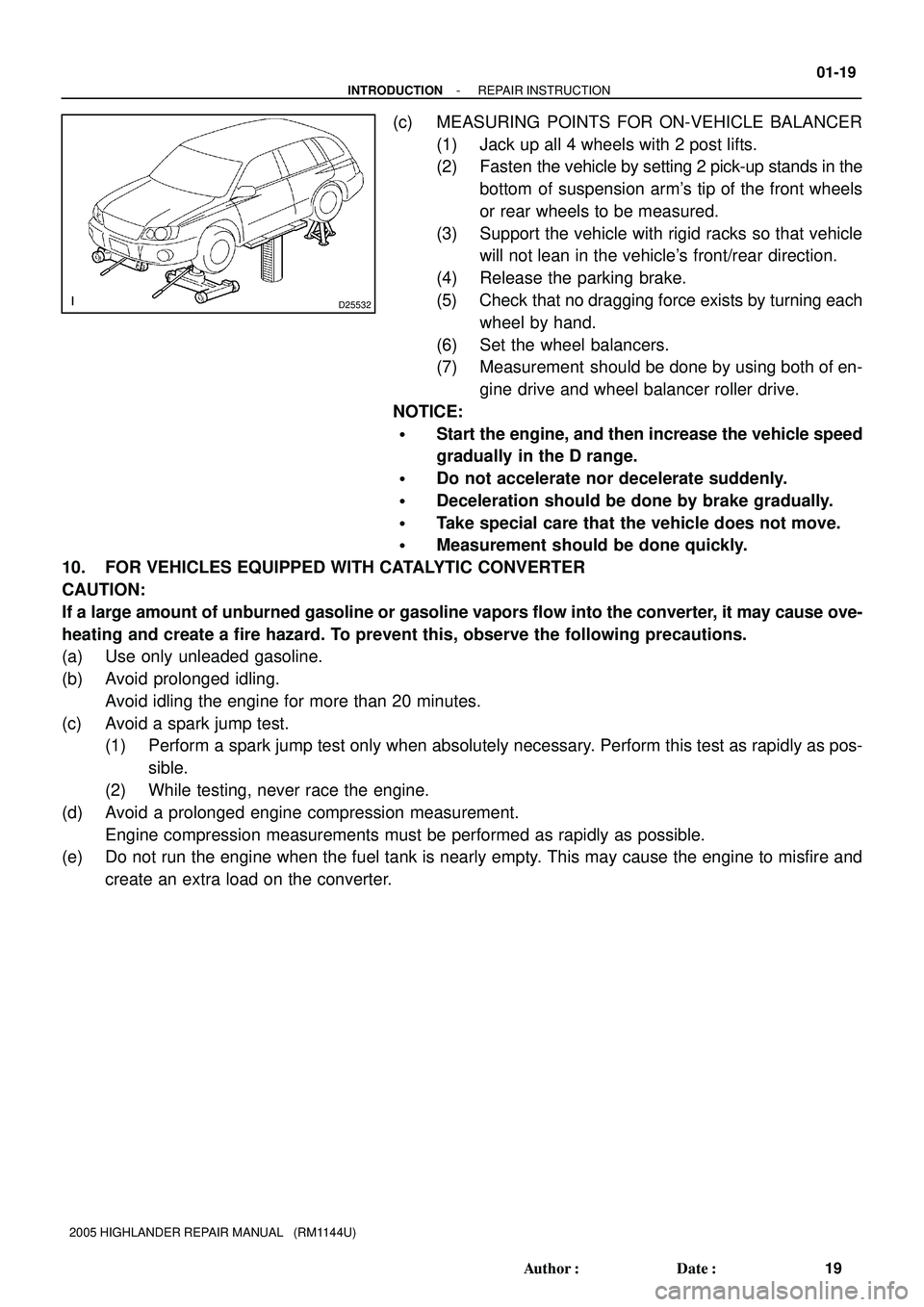

(c) MEASURING POINTS FOR ON-VEHICLE BALANCER
(1) Jack up all 4 wheels with 2 post lifts.
(2)

Page 2230 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual D25534
INCORRECT
D25533
INCORRECT
D25529
Flat Bed Truck
Wheel Lift Type Truck 01-20
- INTRODUCTIONREPAIR INSTRUCTION
20 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

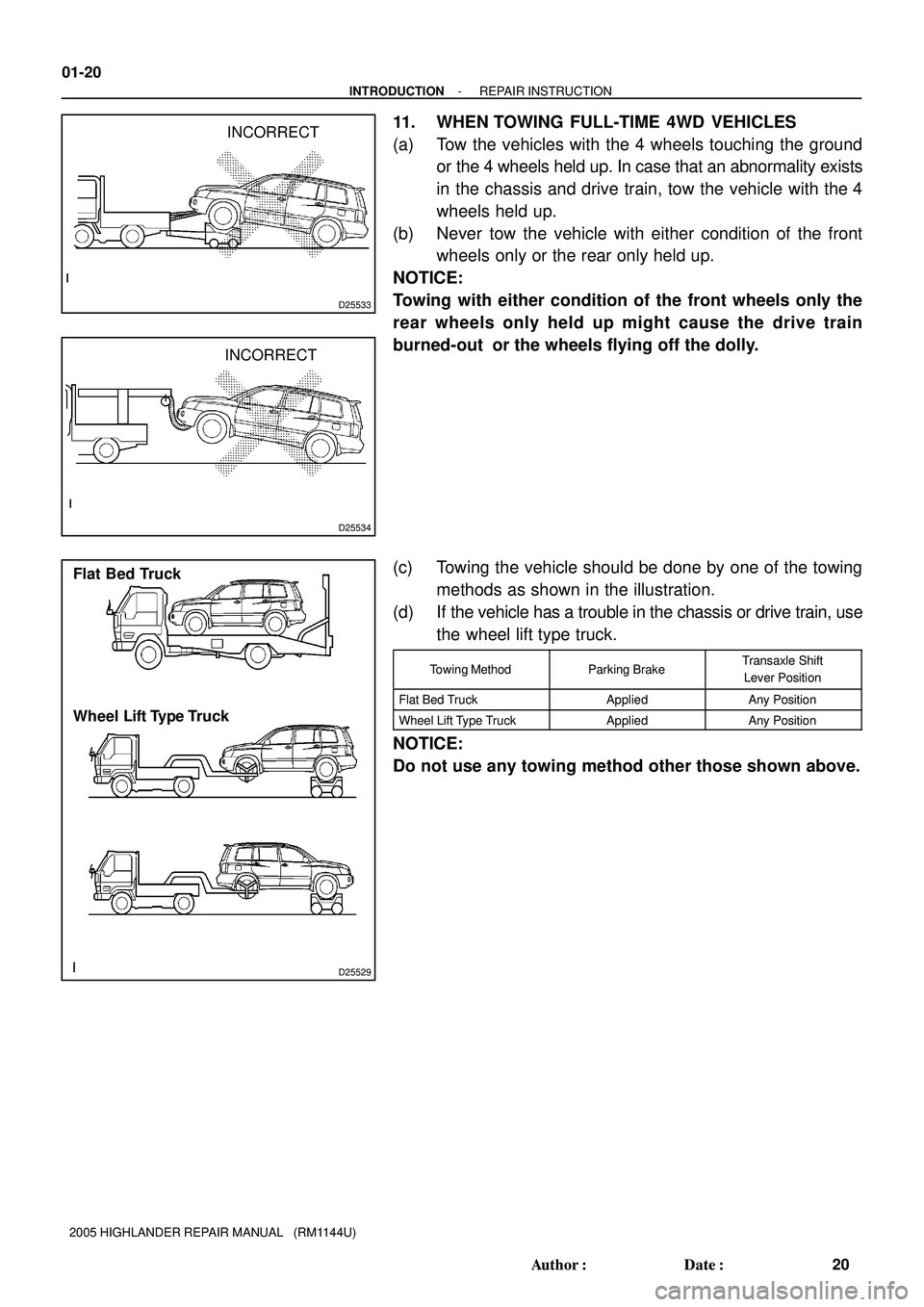

11. WHEN TOWING FULL-T

Page 2231 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 010QP-01
01-46
- INTRODUCTIONTERMS
46 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
GLOSSARY OF SAE AND TOYOTA TERMS
This glossary lists all SAE-J1930 terms and abbreviations used in this

010QP-01
01-46
- INTRODUCTIONTERMS
46 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

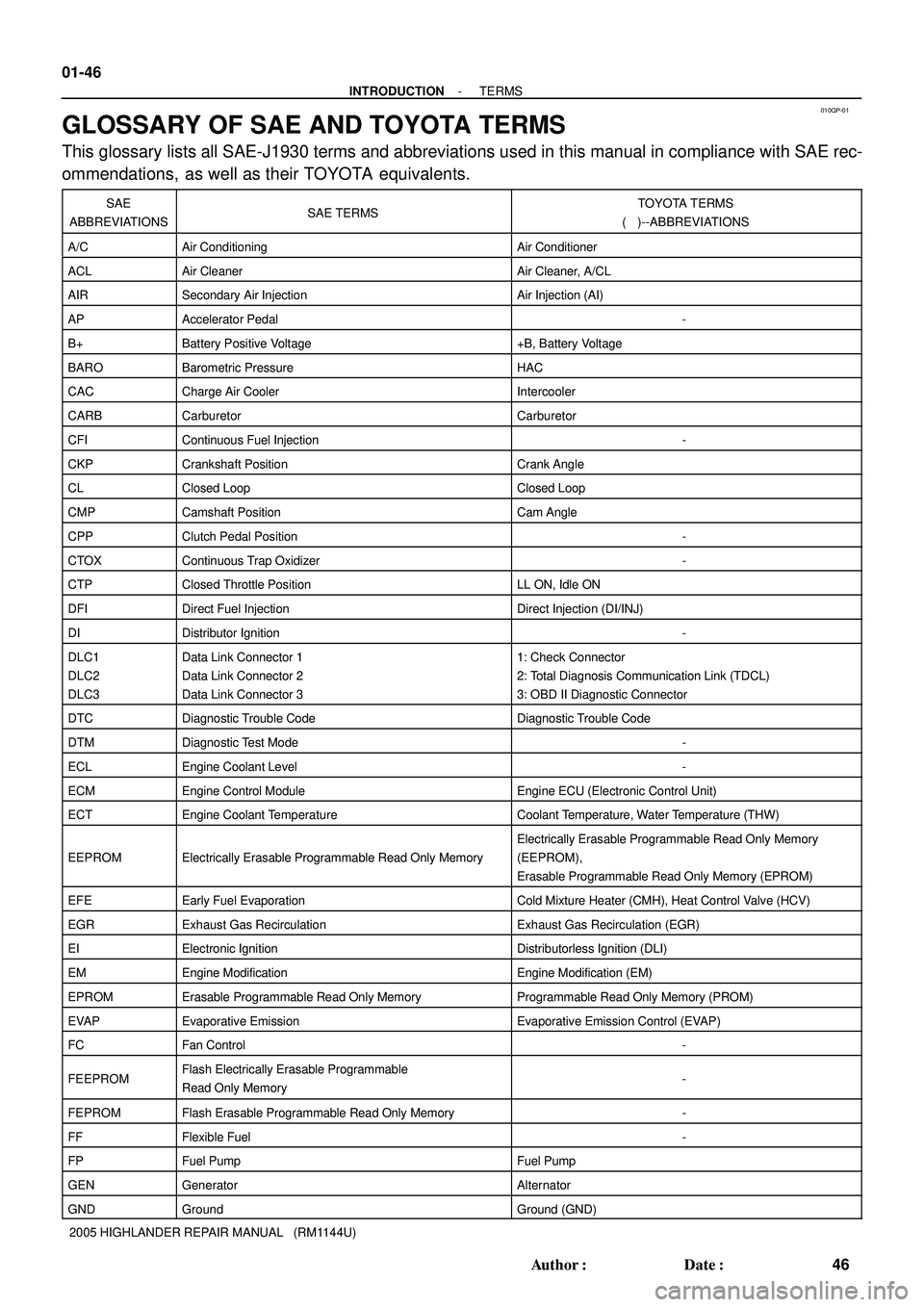

GLOSSARY OF SAE AND TOYOTA TERMS
This glossary lists all SAE-J1930 terms and abbreviations used in this manual in compliance with SAE rec-
ommendations, as well as their TOYOTA equivalents.
SAE
ABBREVIATIONSSAE TERMSTOYOTA TERMS
( )--ABBREVIATIONS
A/CAir ConditioningAir Conditioner
ACLAir CleanerAir Cleaner, A/CL
AIRSecondary Air InjectionAir Injection (AI)
APAccelerator Pedal-
B+Battery Positive Voltage+B, Battery Voltage
BAROBarometric PressureHAC
CACCharge Air CoolerIntercooler
CARBCarburetorCarburetor
CFIContinuous Fuel Injection-
CKPCrankshaft PositionCrank Angle
CLClosed LoopClosed Loop
CMPCamshaft PositionCam Angle
CPPClutch Pedal Position-
CTOXContinuous Trap Oxidizer-
CTPClosed Throttle PositionLL ON, Idle ON
DFIDirect Fuel InjectionDirect Injection (DI/INJ)
DIDistributor Ignition-
DLC1
DLC2
DLC3Data Link Connector 1
Data Link Connector 2
Data Link Connector 31: Check Connector
2: Total Diagnosis Communication Link (TDCL)
3: OBD II Diagnostic Connector
DTCDiagnostic Trouble CodeDiagnostic Trouble Code
DTMDiagnostic Test Mode-
ECLEngine Coolant Level-
ECMEngine Control ModuleEngine ECU (Electronic Control Unit)
ECTEngine Coolant TemperatureCoolant Temperature, Water Temperature (THW)
EEPROMElectrically Erasable Programmable Read Only Memory
Electrically Erasable Programmable Read Only Memory
(EEPROM),
Erasable Programmable Read Only Memory (EPROM)
EFEEarly Fuel EvaporationCold Mixture Heater (CMH), Heat Control Valve (HCV)
EGRExhaust Gas RecirculationExhaust Gas Recirculation (EGR)
EIElectronic IgnitionDistributorless Ignition (DLI)
EMEngine ModificationEngine Modification (EM)
EPROMErasable Programmable Read Only MemoryProgrammable Read Only Memory (PROM)
EVAPEvaporative EmissionEvaporative Emission Control (EVAP)
FCFan Control-
FEEPROMFlash Electrically Erasable Programmable
Read Only Memory-
FEPROMFlash Erasable Programmable Read Only Memory-
FFFlexible Fuel-
FPFuel PumpFuel Pump
GENGeneratorAlternator
GNDGroundGround (GND)

Page 2232 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual - INTRODUCTIONTERMS
01-47
47 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U) HO2S
Heated Oxygen SensorHeated Oxygen Sensor (HO2S)
IACIdle Air ControlIdle Speed Control (ISC)
IATIntake Air Te
