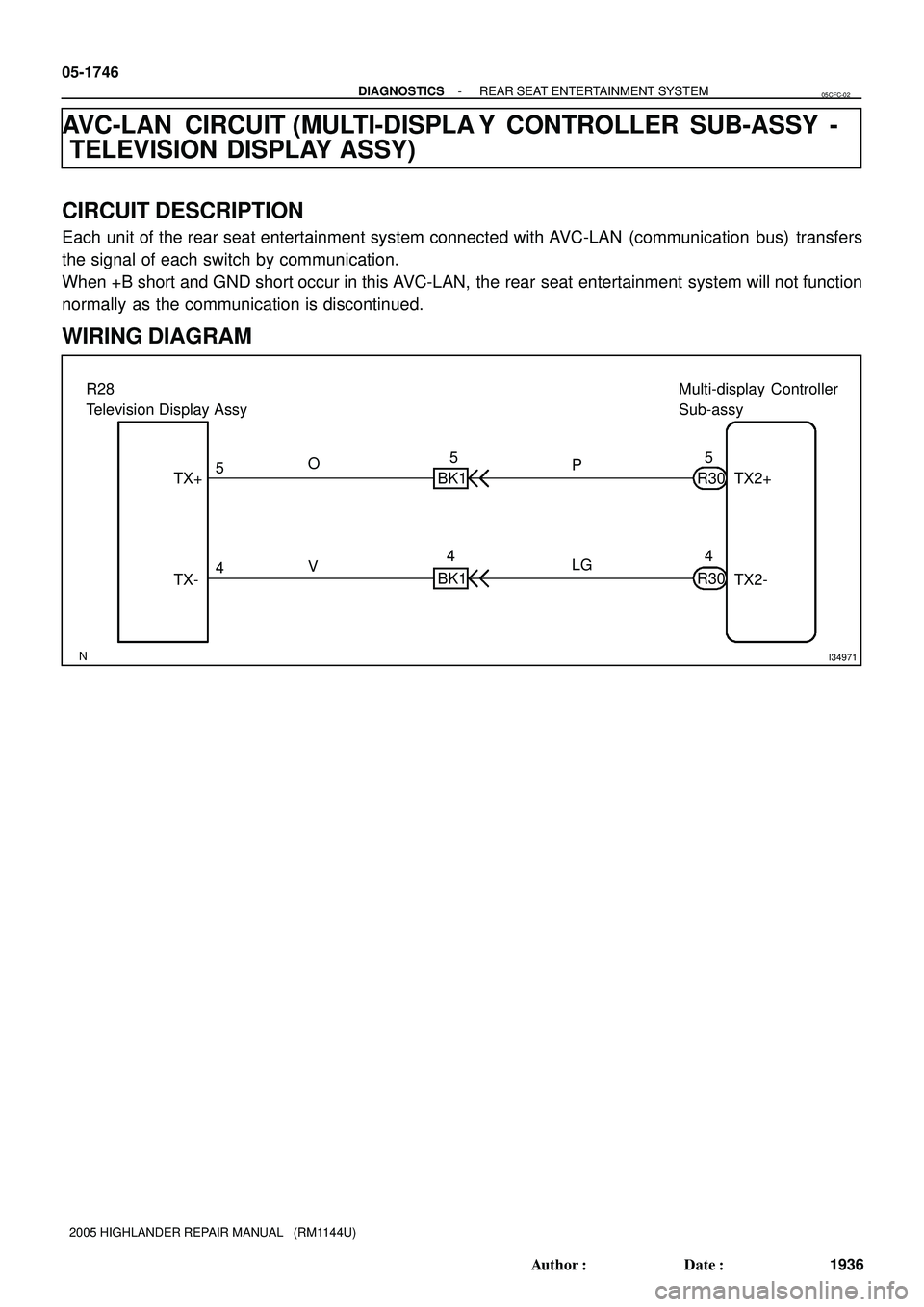

Page 1993 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I34971
Multi-display Controller
Sub-assy
R30 R28
Television Display Assy
BK1
R30TX2+
TX2- 4 5
4 5
TX+
TX-V O
P
LG 45
BK1 05-1746
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
1936 Author: Date:
2005

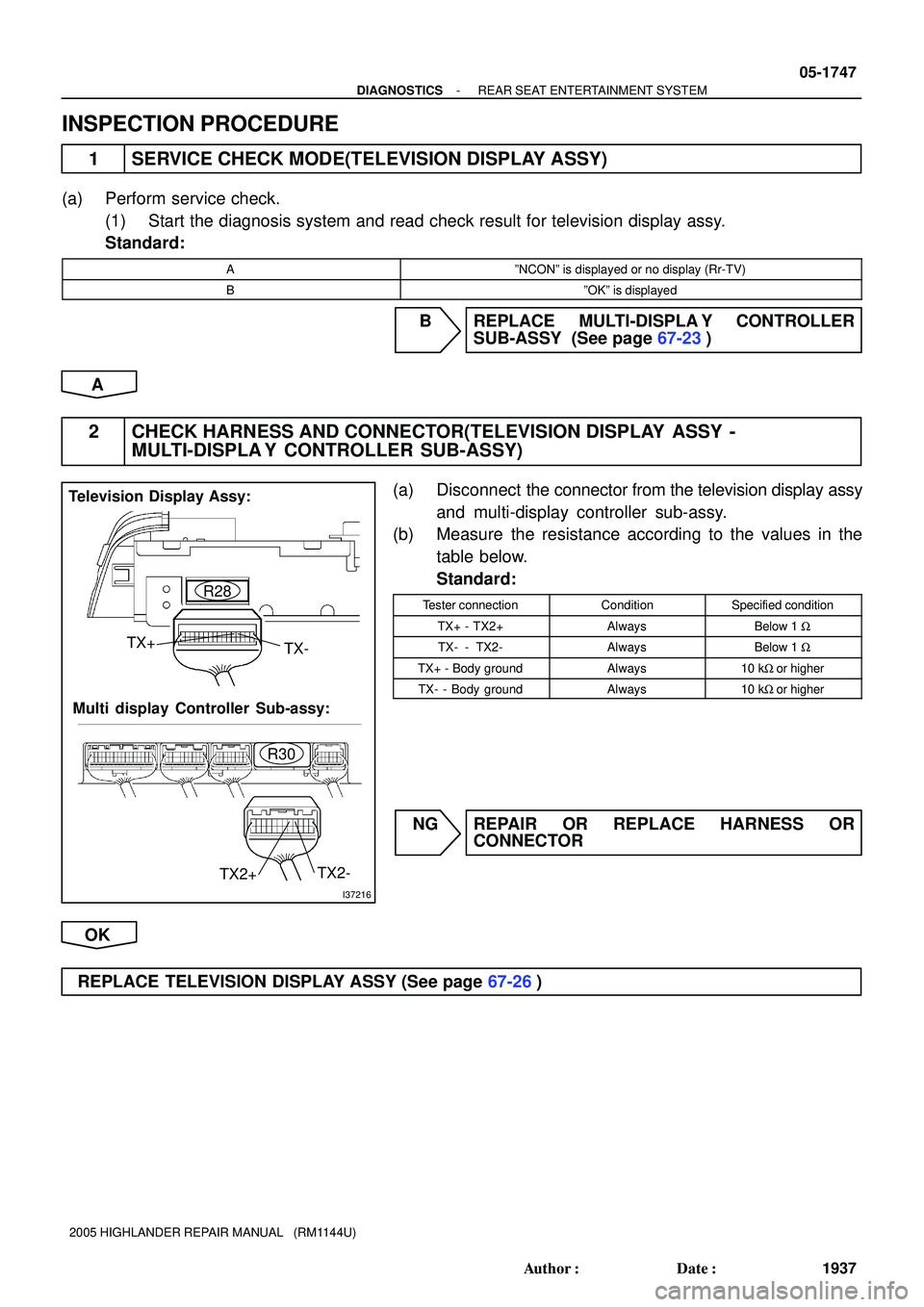

Page 1994 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I37216
Television Display Assy:
TX+
TX-
Multi display Controller Sub-assy:
TX2+TX2-
R28
R30
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
05-1747
1937 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM

Page 1995 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05ITC-02
05-26
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
216 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

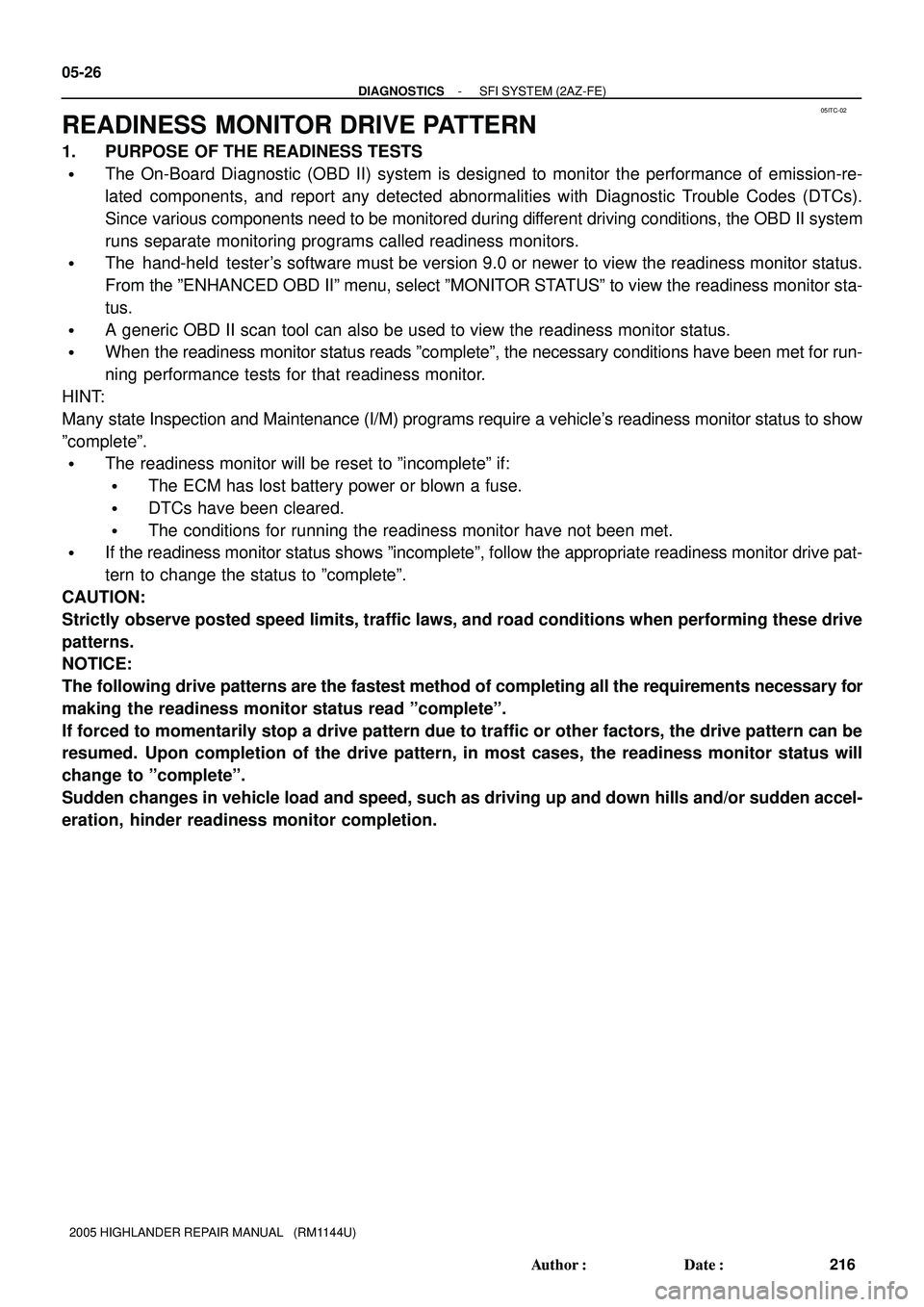

READINESS MONITOR DRIVE PATTERN
1. PURPOSE OF THE READINESS TESTS
The On-Board Diagnostic

05ITC-02
05-26
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
216 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
READINESS MONITOR DRIVE PATTERN
1. PURPOSE OF THE READINESS TESTS
The On-Board Diagnostic (OBD II) system is designed to monitor the performance of emission-re-
lated components, and report any detected abnormalities with Diagnostic Trouble Codes (DTCs).
Since various components need to be monitored during different driving conditions, the OBD II system
runs separate monitoring programs called readiness monitors.
The hand-held tester's software must be version 9.0 or newer to view the readiness monitor status.
From the ºENHANCED OBD IIº menu, select ºMONITOR STATUSº to view the readiness monitor sta-
tus.
A generic OBD II scan tool can also be used to view the readiness monitor status.
When the readiness monitor status reads ºcompleteº, the necessary conditions have been met for run-
ning performance tests for that readiness monitor.
HINT:
Many state Inspection and Maintenance (I/M) programs require a vehicle's readiness monitor status to show
ºcompleteº.
The readiness monitor will be reset to ºincompleteº if:
The ECM has lost battery power or blown a fuse.
DTCs have been cleared.
The conditions for running the readiness monitor have not been met.
If the readiness monitor status shows ºincompleteº, follow the appropriate readiness monitor drive pat-
tern to change the status to ºcompleteº.
CAUTION:
Strictly observe posted speed limits, traffic laws, and road conditions when performing these drive
patterns.
NOTICE:
The following drive patterns are the fastest method of completing all the requirements necessary for
making the readiness monitor status read ºcompleteº.
If forced to momentarily stop a drive pattern due to traffic or other factors, the drive pattern can be
resumed. Upon completion of the drive pattern, in most cases, the readiness monitor status will
change to ºcompleteº.
Sudden changes in vehicle load and speed, such as driving up and down hills and/or sudden accel-
eration, hinder readiness monitor completion.

Page 1996 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual A82401
64 to 88 km/h
(40 to 55 mph)
64 to 80 km/h
(40 to 50 mph)
Warm up time
(idle speed)4 minutes 16 minutes Ignition Switch OFFIdling
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-27
217 Author: Date:
2

Page 1997 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-28
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
218 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

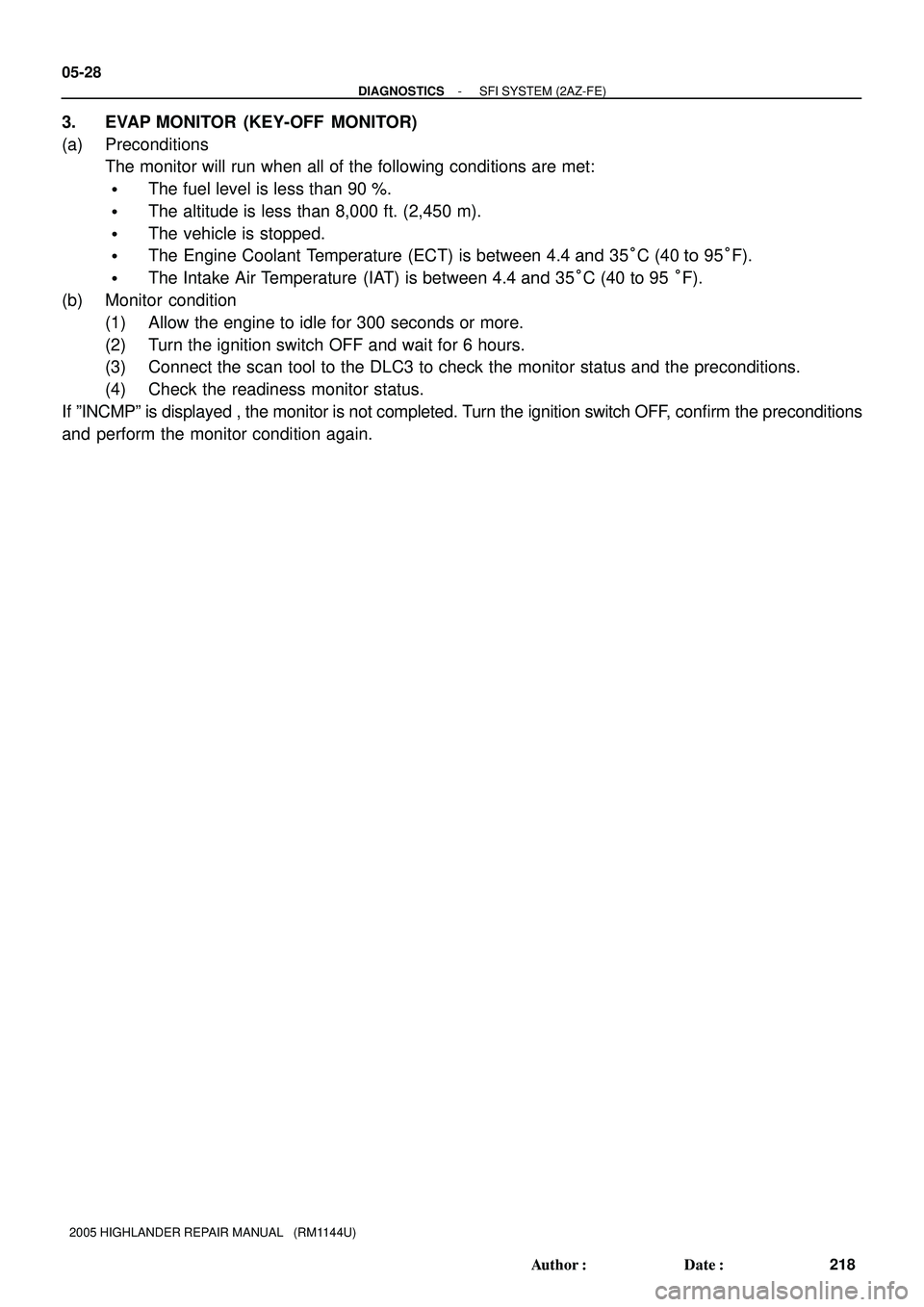

3. EVAP MONITOR (KEY-OFF MONITOR)
(a) Preconditions
The monitor will run when all of the following

Page 1998 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual A82400
112 km/h (70 mph)
(under 3200 rpm)
64 km/h (40 mph)
(over 1400 rpm)
40 km/h (25 mph)
(over 900 rpm)
Idling
Ignition Switch OFFOnce Twice 10 times
Over
2 minutesOver
150 secondsOver
40 sec

Page 1999 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual A78886
Idling
Ignition Switch OFF40 km/h
(25 mph)
Over 2 minutes Over 500 seconds 05-30
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
220 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
5. OXYGEN / A/F S

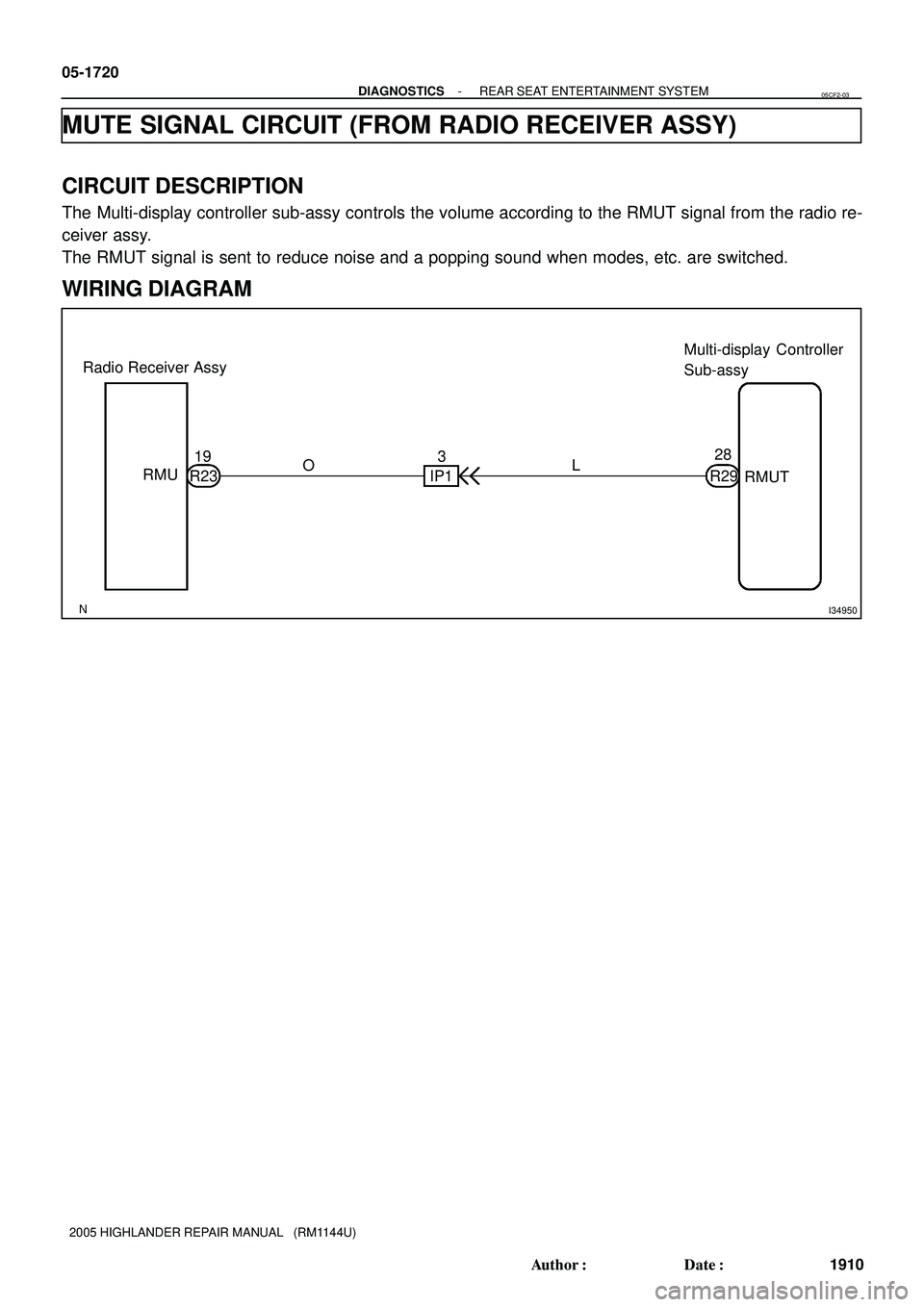

Page 2000 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I34950
Radio Receiver AssyMulti-display Controller
Sub-assy
RMUT R2928
IP13
R2319
OL
RMU 05-1720
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
1910 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM11
