2001 TOYOTA HIGHLANDER Service Repair Manual

pairing phonebolt patternwindshield wipersfuel filterwindowwasher fluid
Popular search:
oil typeset clockfuse boxinterior lightsinstrument clusterwiper fluidremote control
Previous
Next
Load previous 8 pages

Page 1353 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual E74263 B11-2 Multiplex Network Body ECU Connector Front View: B11 B11-3 - DIAGNOSTICSLIGHTING SYSTEM 05-1567 1757 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 4 INSPECT MULTIPLEX NETWORK

Page 1354 of 2572

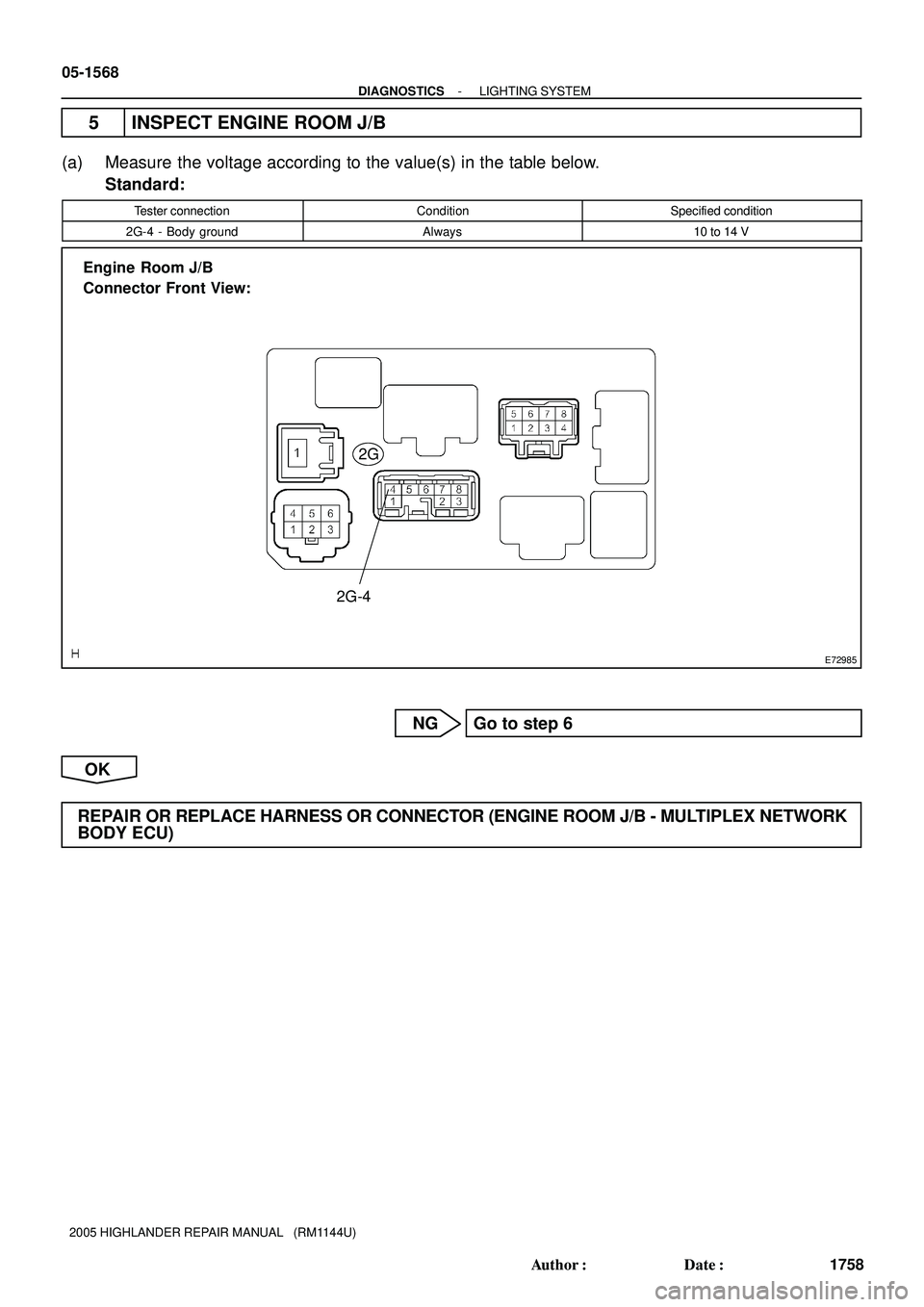

TOYOTA HIGHLANDER 2001 Service Repair Manual E72985 Engine Room J/B Connector Front View: 2G 2G-4 05-1568 - DIAGNOSTICSLIGHTING SYSTEM 1758 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 5 INSPECT ENGINE ROOM J/B (a) Measure the volt

Page 1355 of 2572

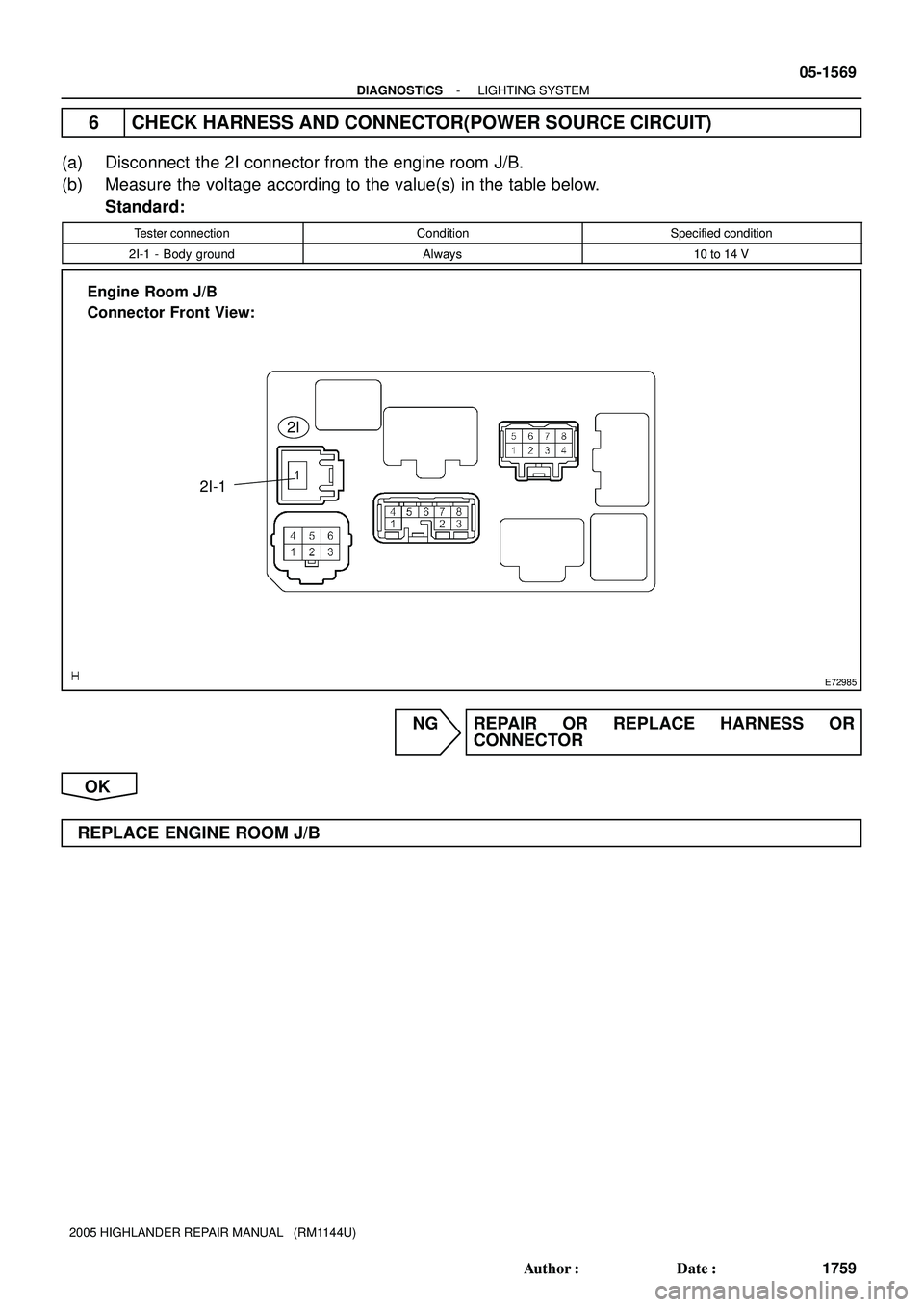

TOYOTA HIGHLANDER 2001 Service Repair Manual E72985 Engine Room J/B Connector Front View: 2I 2I-1 - DIAGNOSTICSLIGHTING SYSTEM 05-1569 1759 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 6 CHECK HARNESS AND CONNECTOR(POWER SOURCE CIR

Page 1356 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual E72985 Engine Room J/B Connector Front View: 2B 2B-1 05-1570 - DIAGNOSTICSLIGHTING SYSTEM 1760 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 7 INSPECT ENGINE ROOM J/B (a) Disconnect the

Page 1357 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual E72985 Engine Room J/B Connector Front View: 2F 2F-5 2F-2 - DIAGNOSTICSLIGHTING SYSTEM 05-1571 1761 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 8 INSPECT ENGINE ROOM J/B (a) Measure the

Page 1358 of 2572

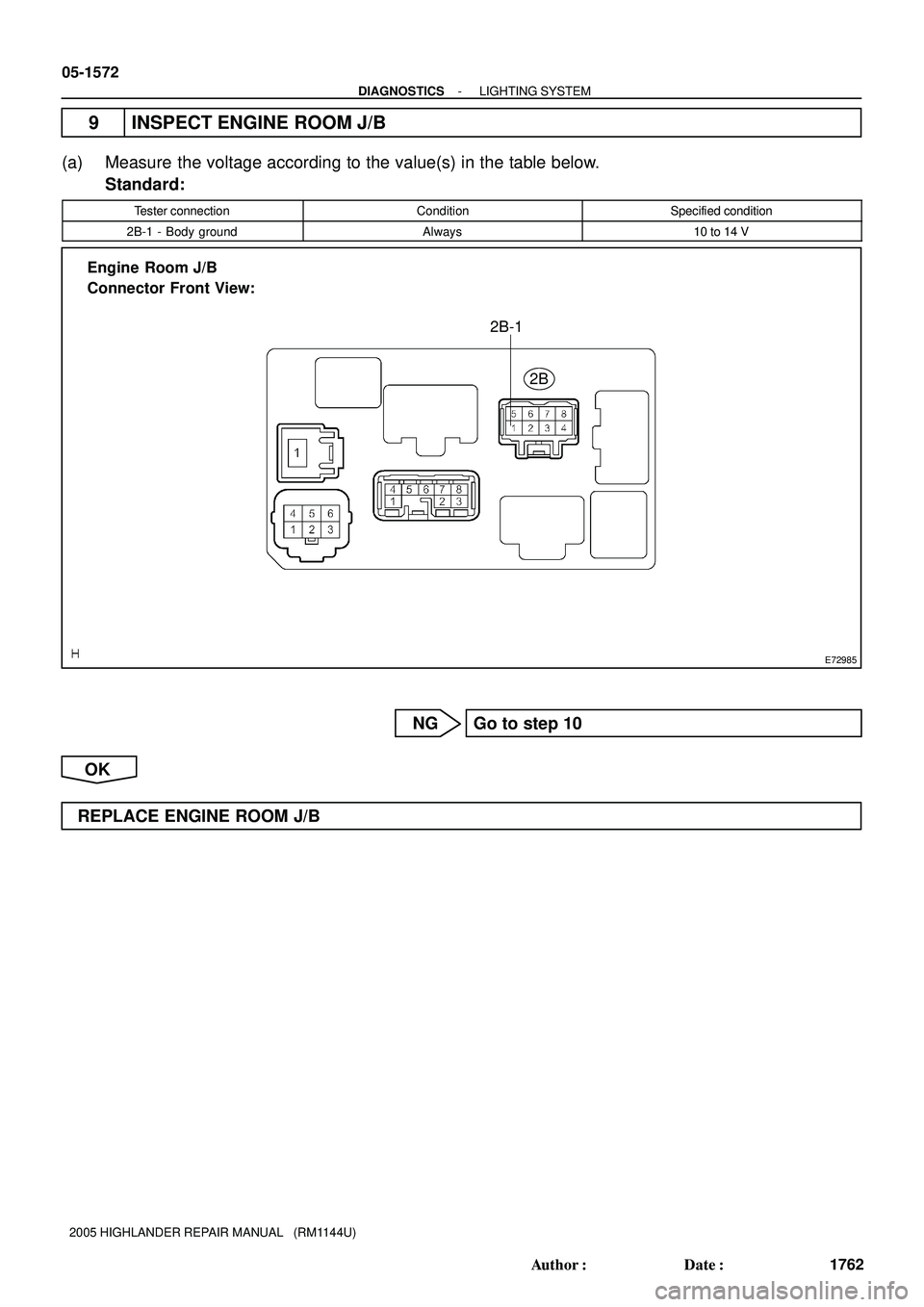

TOYOTA HIGHLANDER 2001 Service Repair Manual E72985 Engine Room J/B Connector Front View: 2B 2B-1 05-1572 - DIAGNOSTICSLIGHTING SYSTEM 1762 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 9 INSPECT ENGINE ROOM J/B (a) Measure the volt

Page 1359 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual E72985 Engine Room J/B Connector Front View: 2I 2I-1 - DIAGNOSTICSLIGHTING SYSTEM 05-1573 1763 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) 10 CHECK HARNESS AND CONNECTOR(POWER SOURCE CI

Page 1360 of 2572

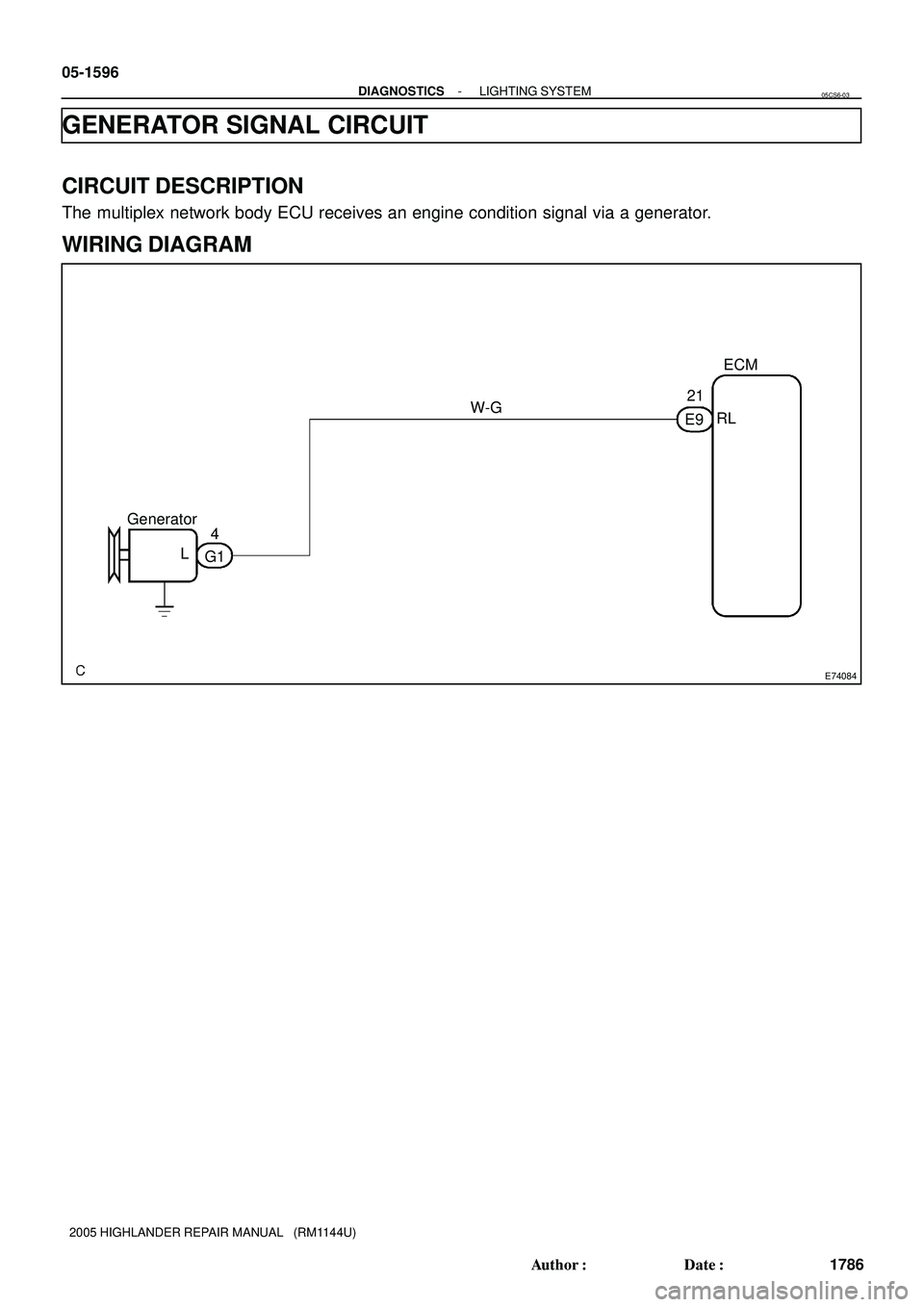

TOYOTA HIGHLANDER 2001 Service Repair Manual E74084 GeneratorECM W-G21 E9RL 4 G1 L 05-1596 - DIAGNOSTICSLIGHTING SYSTEM 1786 Author: Date: 2005 HIGHLANDER REPAIR MANUAL (RM1144U) GENERATOR SIGNAL CIRCUIT CIRCUIT DESCRIPTION The multiplex net
