Page 2169 of 2572
05CCW-06
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-761
951 Author: Date:

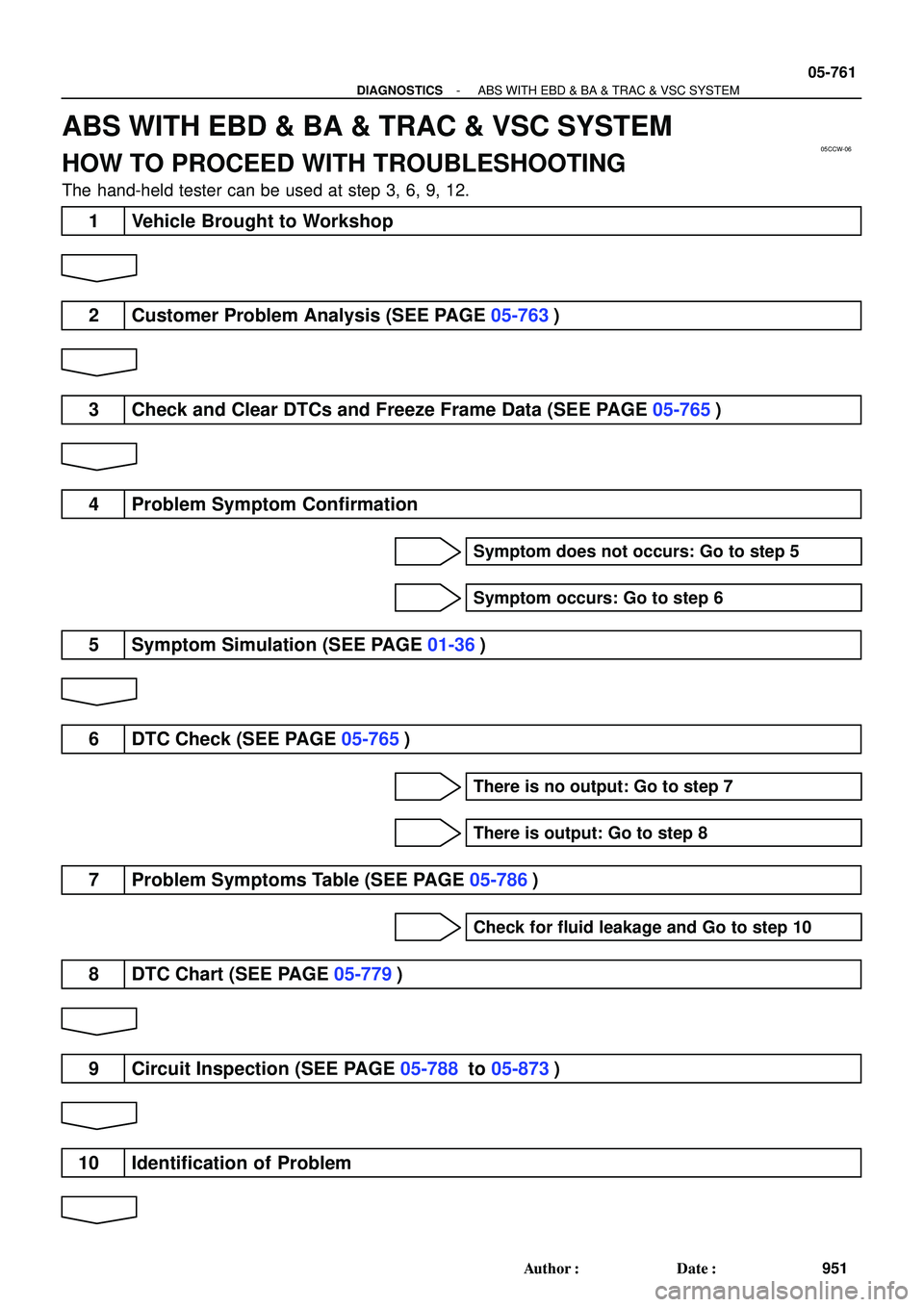

ABS WITH EBD & BA & TRAC & VSC SYSTEM
HOW TO PROCEED WITH TROUBLESHOOTING
The hand-held tester can be used at step 3, 6, 9, 12.
1 Vehicle Brought to Workshop
2 Customer Problem Analysis (SEE PAGE 05-763)
3 Check and Clear DTCs and Freeze Frame Data (SEE PAGE 05-765)
4 Problem Symptom Confirmation
Symptom does not occurs: Go to step 5
Symptom occurs: Go to step 6
5 Symptom Simulation (SEE PAGE 01-36)
6 DTC Check (SEE PAGE 05-765)
There is no output: Go to step 7
There is output: Go to step 8
7 Problem Symptoms Table (SEE PAGE 05-786)
Check for fluid leakage and Go to step 10
8 DTC Chart (SEE PAGE 05-779)
9 Circuit Inspection (SEE PAGE 05-788 to 05-873)
10 Identification of Problem
Page 2170 of 2572
05-762
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
952 Author: Date:

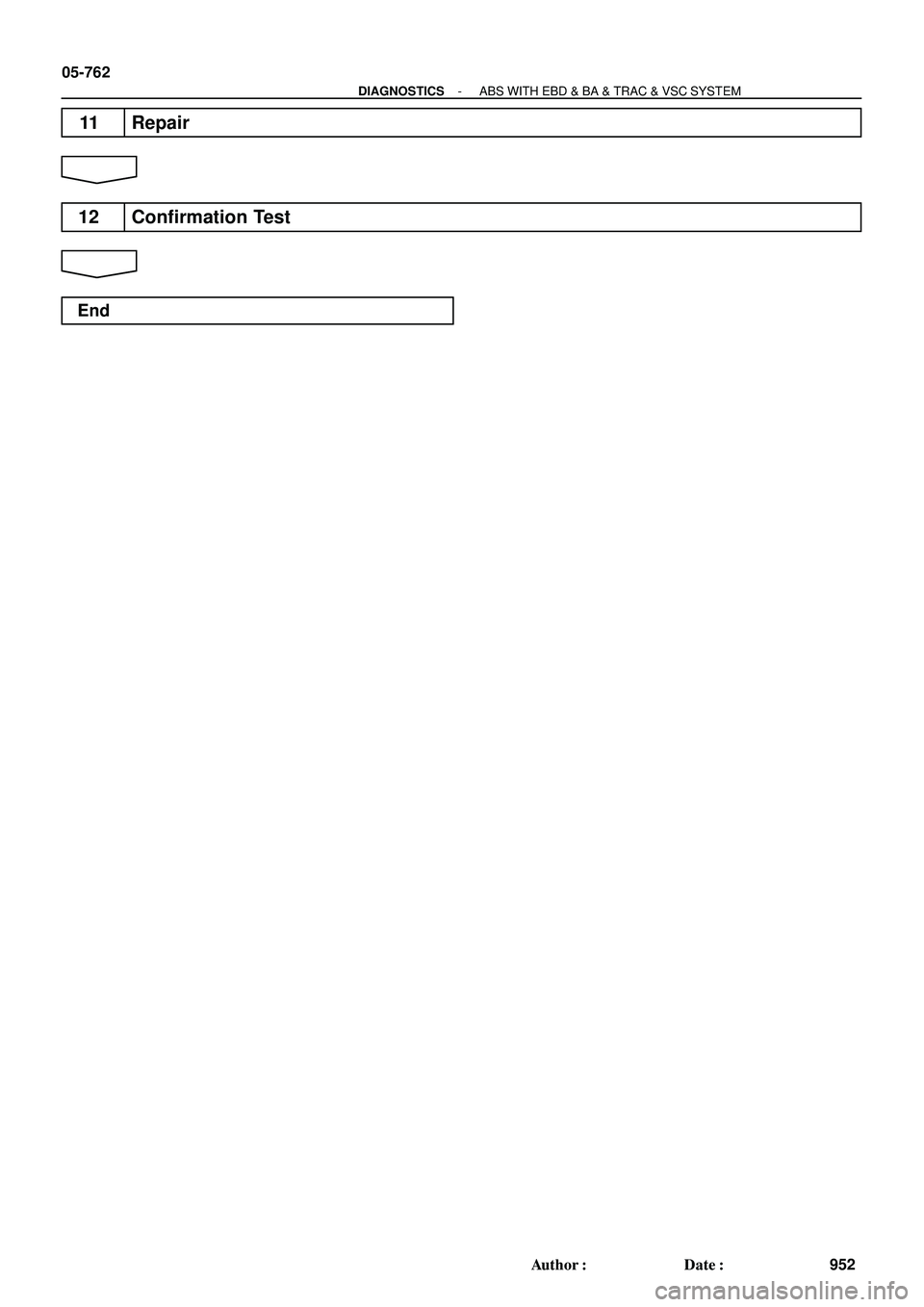

11 Repair
12 Confirmation Test
End
Page 2171 of 2572
051ZF-14
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-5
195 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

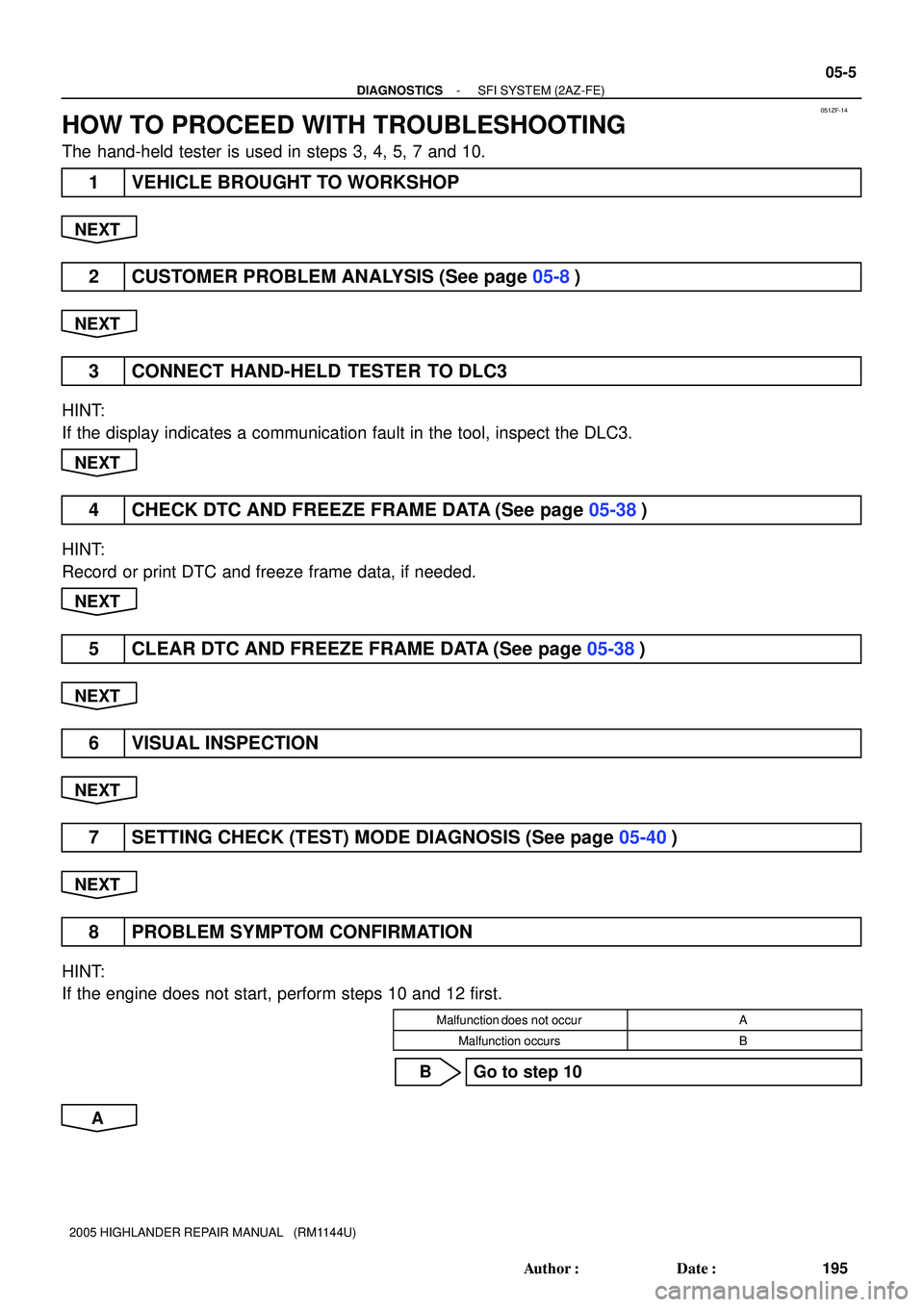

HOW TO PROCEED WITH TROUBLESHOOTING
The hand-held tester is used in steps 3, 4, 5, 7 and 10.
1 VEHICLE BROUGHT TO WORKSHOP
NEXT
2 CUSTOMER PROBLEM ANALYSIS (See page 05-8)
NEXT
3 CONNECT HAND-HELD TESTER TO DLC3
HINT:
If the display indicates a communication fault in the tool, inspect the DLC3.
NEXT
4 CHECK DTC AND FREEZE FRAME DATA (See page 05-38)
HINT:
Record or print DTC and freeze frame data, if needed.
NEXT
5 CLEAR DTC AND FREEZE FRAME DATA (See page 05-38)
NEXT
6 VISUAL INSPECTION
NEXT
7 SETTING CHECK (TEST) MODE DIAGNOSIS (See page 05-40)
NEXT
8 PROBLEM SYMPTOM CONFIRMATION
HINT:
If the engine does not start, perform steps 10 and 12 first.
Malfunction does not occurA
Malfunction occursB
B Go to step 10
A
Page 2172 of 2572
05-6
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
196 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

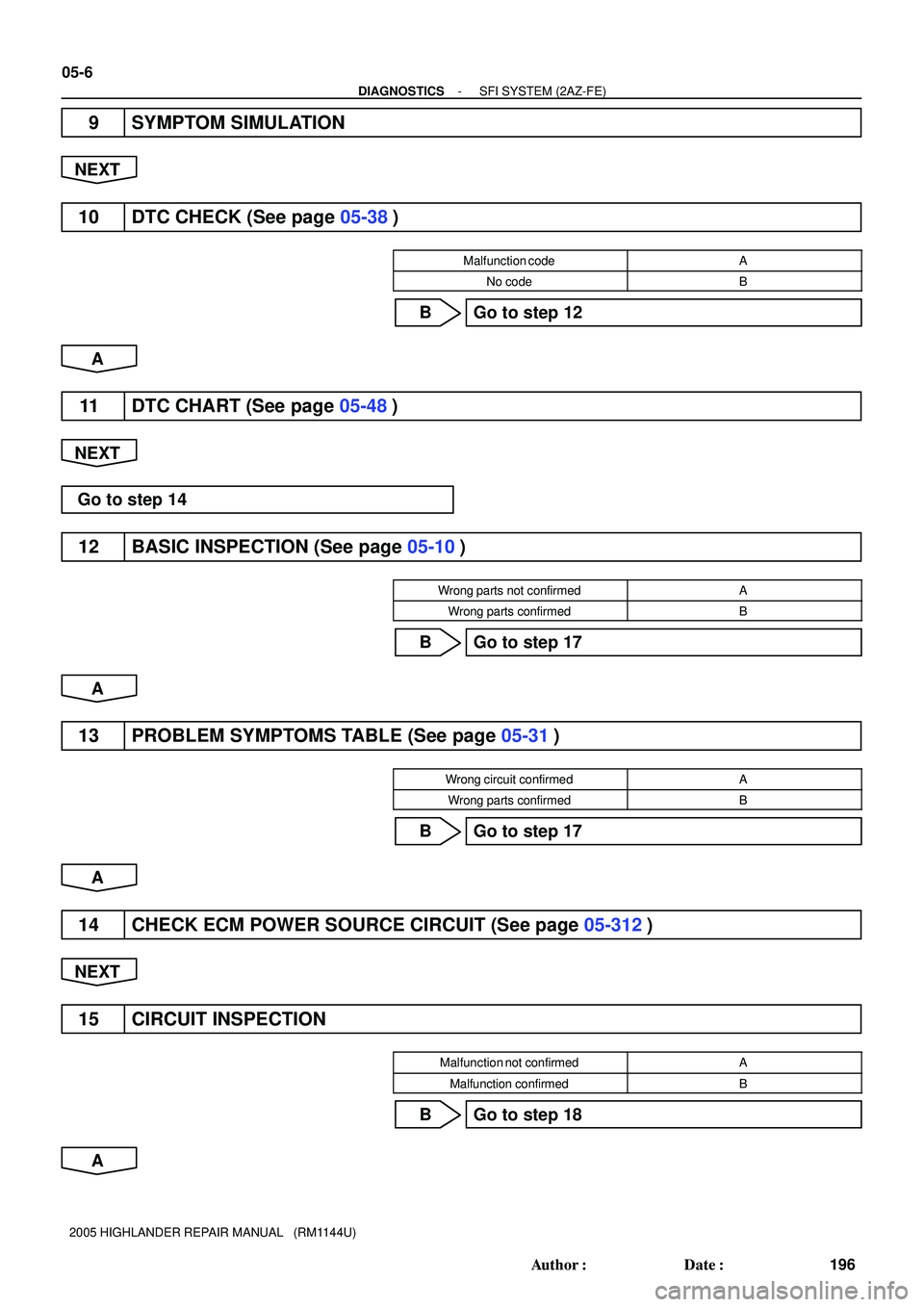

9 SYMPTOM SIMULATION
NEXT
10 DTC CHECK (See page 05-38)
Malfunction codeA
No codeB
B Go to step 12
A
11 DTC CHART (See page 05-48)
NEXT
Go to step 14
12 BASIC INSPECTION (See page 05-10)
Wrong parts not confirmedA
Wrong parts confirmedB
B Go to step 17
A
13 PROBLEM SYMPTOMS TABLE (See page 05-31)
Wrong circuit confirmedA
Wrong parts confirmedB
B Go to step 17
A
14 CHECK ECM POWER SOURCE CIRCUIT (See page 05-312)
NEXT
15 CIRCUIT INSPECTION
Malfunction not confirmedA
Malfunction confirmedB
B Go to step 18
A
Page 2173 of 2572
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-7
197 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

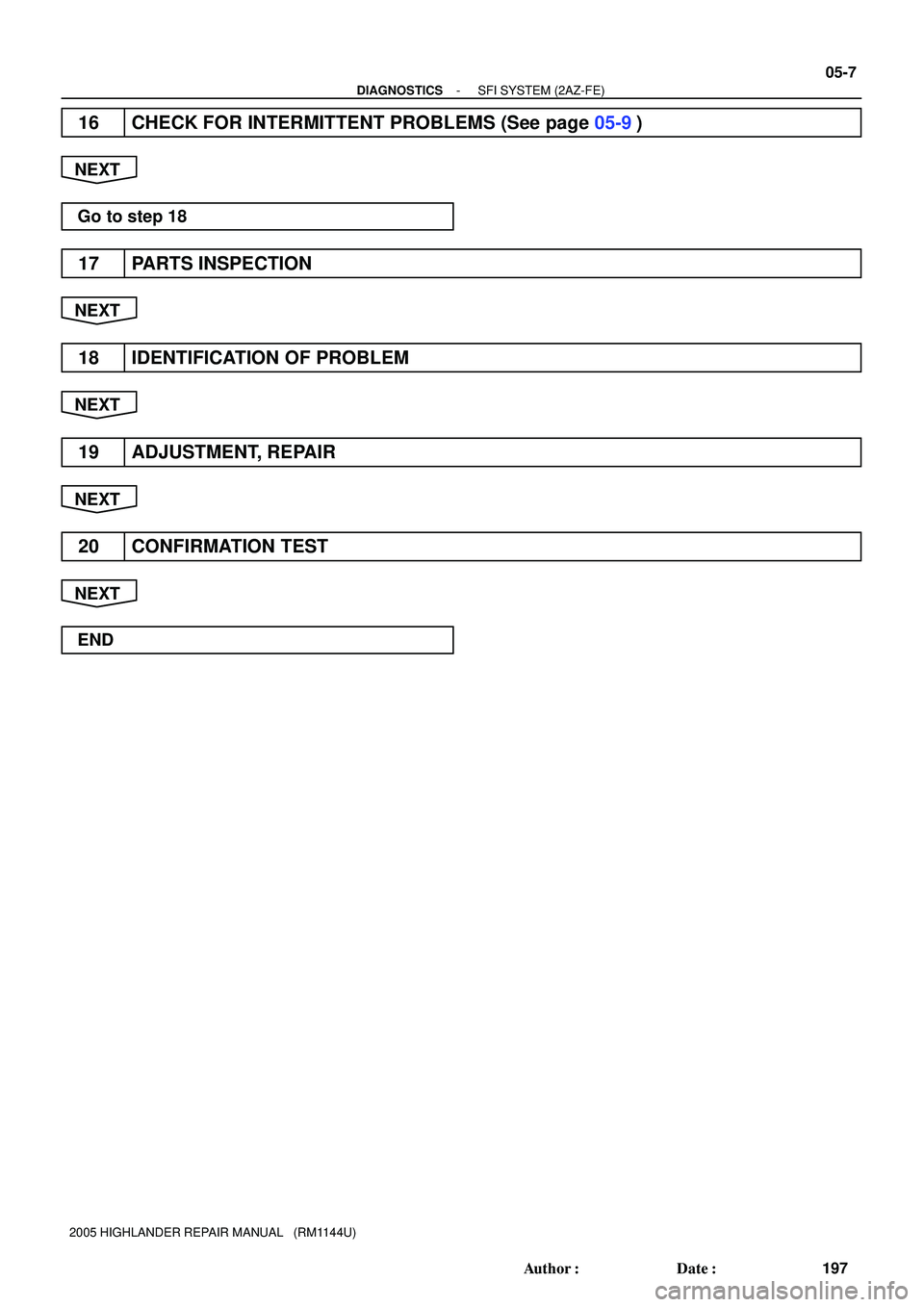

16 CHECK FOR INTERMITTENT PROBLEMS (See page 05-9)
NEXT
Go to step 18
17 PARTS INSPECTION
NEXT
18 IDENTIFICATION OF PROBLEM
NEXT
19 ADJUSTMENT, REPAIR
NEXT
20 CONFIRMATION TEST
NEXT
END
Page 2174 of 2572
B78737
O5
740EE-01
74-8

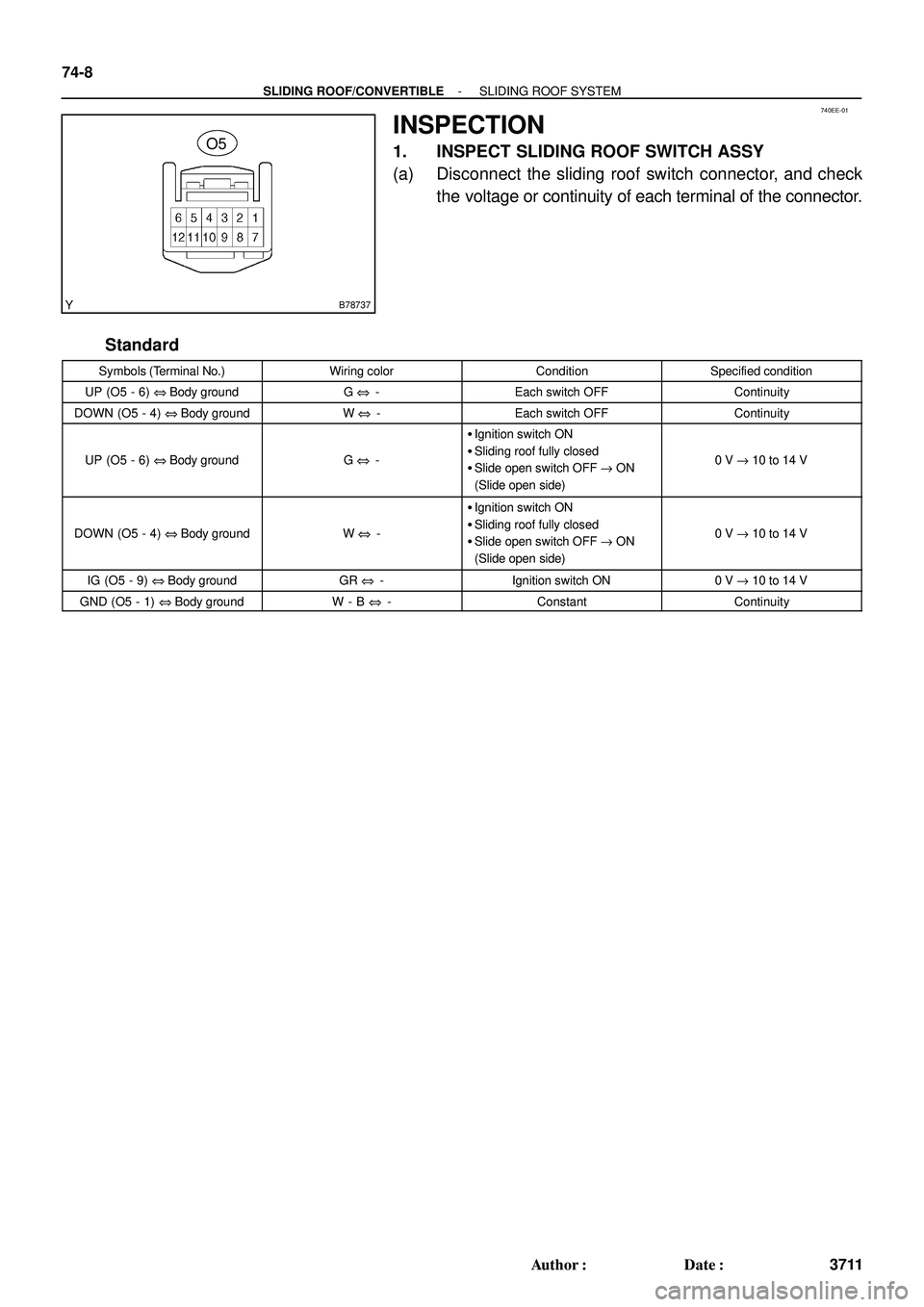

- SLIDING ROOF/CONVERTIBLESLIDING ROOF SYSTEM
3711 Author: Date:
INSPECTION
1. INSPECT SLIDING ROOF SWITCH ASSY
(a) Disconnect the sliding roof switch connector, and check
the voltage or continuity of each terminal of the connector.
Standard
Symbols (Terminal No.)Wiring colorConditionSpecified condition
UP (O5 - 6) @ Body groundG @ -Each switch OFFContinuity
DOWN (O5 - 4) @ Body groundW @ -Each switch OFFContinuity
UP (O5 - 6) @ Body groundG @ -
Ignition switch ON
Sliding roof fully closed
Slide open switch OFF " ON
(Slide open side)
0 V " 10 to 14 V
DOWN (O5 - 4) @ Body groundW @ -
Ignition switch ON
Sliding roof fully closed
Slide open switch OFF " ON
(Slide open side)
0 V " 10 to 14 V
IG (O5 - 9) @ Body groundGR @ -Ignition switch ON0 V " 10 to 14 V
GND (O5 - 1) @ Body groundW - B @ -ConstantContinuity
Page 2175 of 2572

141P0-02
A87787
CORRECTINCORRECT
A80020
Hand-held Tester
DLC3
A82779
7 6 5 34 2 18
9 10111213141516DLC3
CG
TC
- ENGINE MECHANICALENGINE (2AZ-FE)
14-1
2494 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

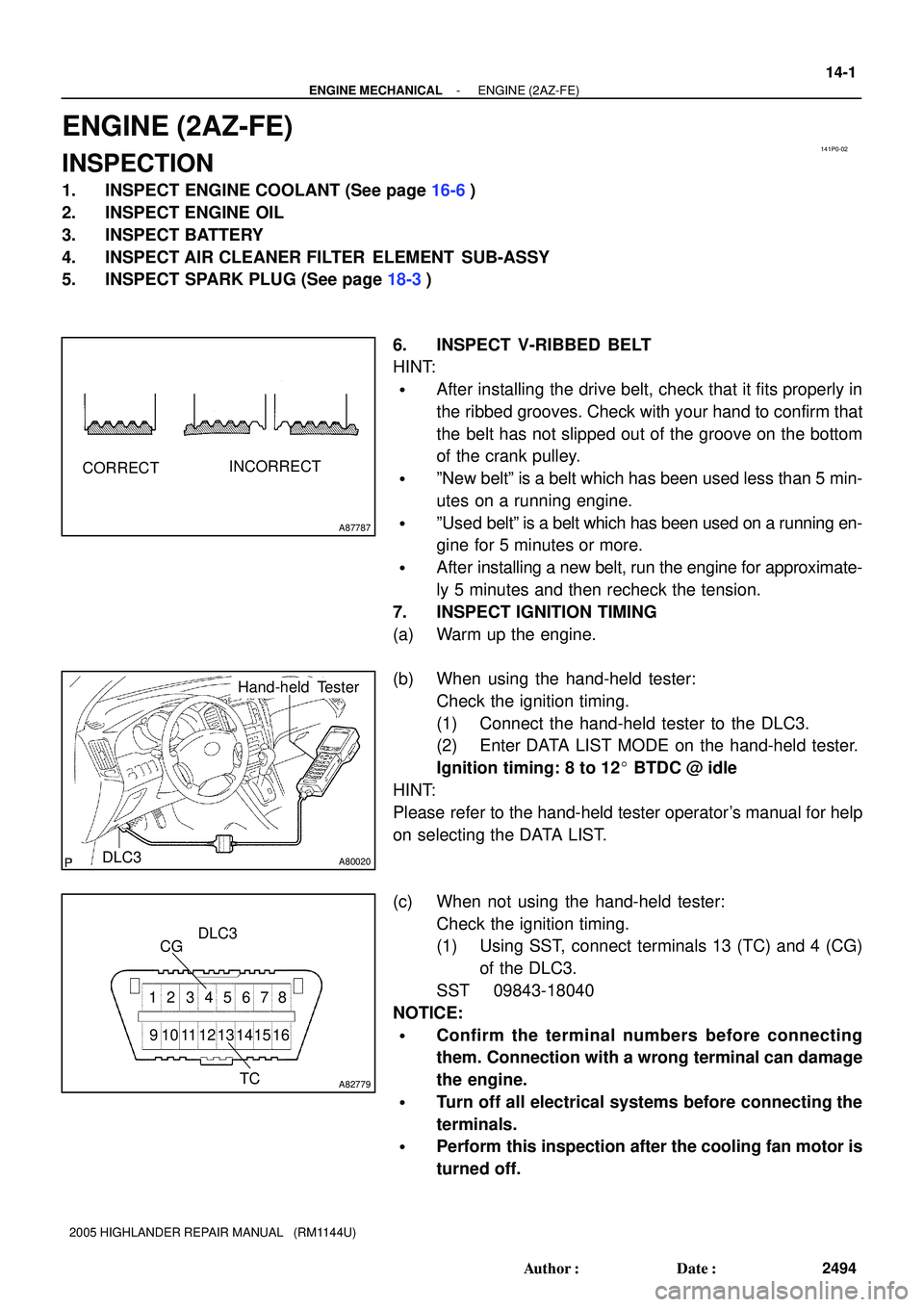

ENGINE (2AZ-FE)
INSPECTION
1. INSPECT ENGINE COOLANT (See page 16-6)
2. INSPECT ENGINE OIL
3. INSPECT BATTERY
4. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSY
5. INSPECT SPARK PLUG (See page 18-3)
6. INSPECT V-RIBBED BELT
HINT:
After installing the drive belt, check that it fits properly in
the ribbed grooves. Check with your hand to confirm that
the belt has not slipped out of the groove on the bottom
of the crank pulley.
ºNew beltº is a belt which has been used less than 5 min-
utes on a running engine.
ºUsed beltº is a belt which has been used on a running en-
gine for 5 minutes or more.
After installing a new belt, run the engine for approximate-
ly 5 minutes and then recheck the tension.
7. INSPECT IGNITION TIMING
(a) Warm up the engine.
(b) When using the hand-held tester:
Check the ignition timing.
(1) Connect the hand-held tester to the DLC3.
(2) Enter DATA LIST MODE on the hand-held tester.
Ignition timing: 8 to 12 BTDC @ idle
HINT:
Please refer to the hand-held tester operator's manual for help
on selecting the DATA LIST.
(c) When not using the hand-held tester:
Check the ignition timing.
(1) Using SST, connect terminals 13 (TC) and 4 (CG)
of the DLC3.
SST 09843-18040
NOTICE:
Confirm the terminal numbers before connecting
them. Connection with a wrong terminal can damage
the engine.
Turn off all electrical systems before connecting the
terminals.
Perform this inspection after the cooling fan motor is
turned off.
Page 2176 of 2572

A52004
A80020
Hand-held Tester
DLC3
A82779
7 6 5 34 2 18
9 10111213141516DLC3
TA C
14-2
- ENGINE MECHANICALENGINE (2AZ-FE)
2495 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

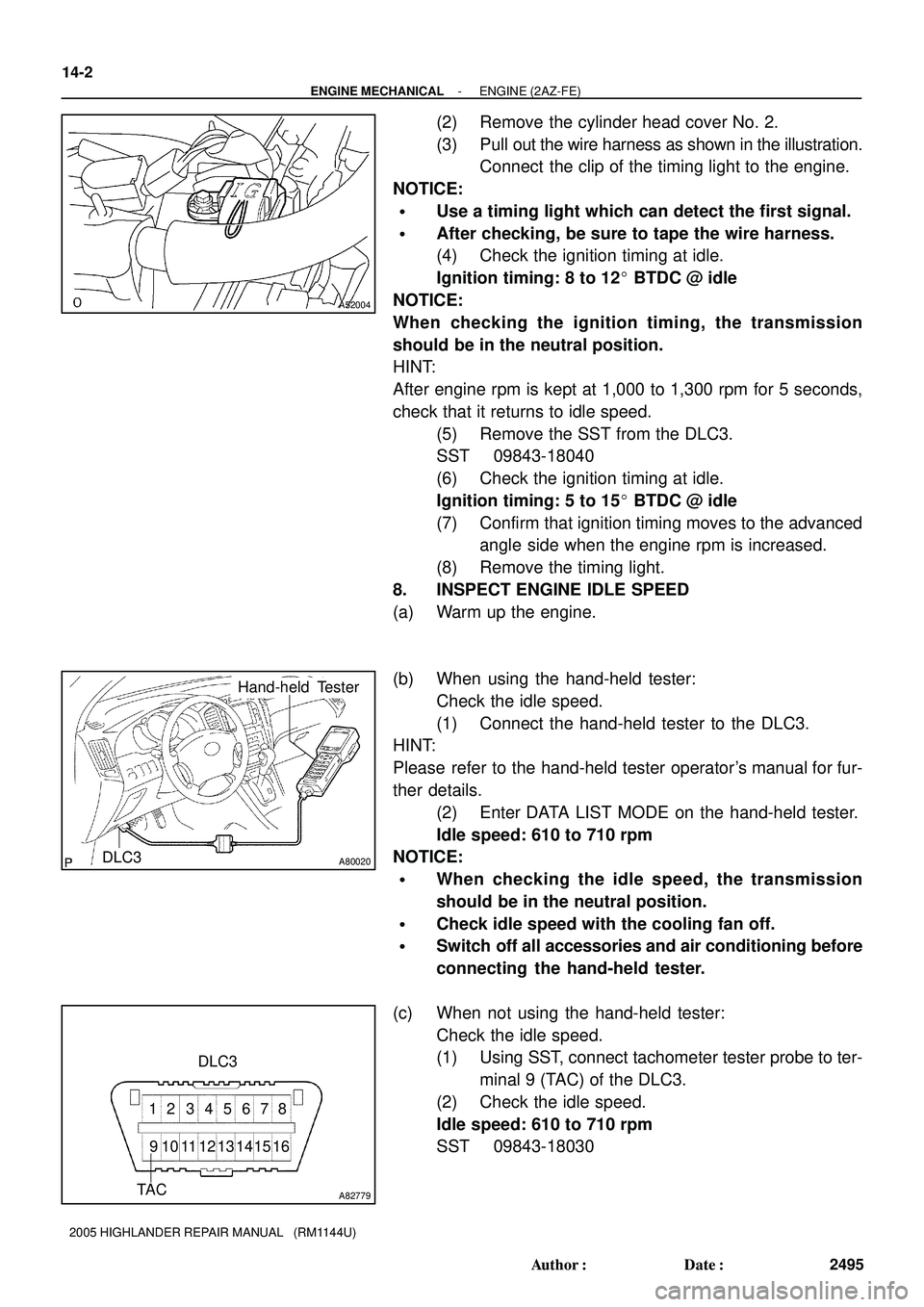

(2) Remove the cylinder head cover No. 2.
(3) Pull out the wire harness as shown in the illustration.
Connect the clip of the timing light to the engine.
NOTICE:
Use a timing light which can detect the first signal.
After checking, be sure to tape the wire harness.
(4) Check the ignition timing at idle.
Ignition timing: 8 to 12 BTDC @ idle
NOTICE:
When checking the ignition timing, the transmission
should be in the neutral position.
HINT:
After engine rpm is kept at 1,000 to 1,300 rpm for 5 seconds,
check that it returns to idle speed.
(5) Remove the SST from the DLC3.
SST 09843-18040
(6) Check the ignition timing at idle.
Ignition timing: 5 to 15 BTDC @ idle
(7) Confirm that ignition timing moves to the advanced
angle side when the engine rpm is increased.
(8) Remove the timing light.
8. INSPECT ENGINE IDLE SPEED
(a) Warm up the engine.
(b) When using the hand-held tester:
Check the idle speed.
(1) Connect the hand-held tester to the DLC3.
HINT:
Please refer to the hand-held tester operator's manual for fur-
ther details.
(2) Enter DATA LIST MODE on the hand-held tester.
Idle speed: 610 to 710 rpm
NOTICE:
When checking the idle speed, the transmission
should be in the neutral position.
Check idle speed with the cooling fan off.
Switch off all accessories and air conditioning before
connecting the hand-held tester.
(c) When not using the hand-held tester:
Check the idle speed.
(1) Using SST, connect tachometer tester probe to ter-
minal 9 (TAC) of the DLC3.
(2) Check the idle speed.
Idle speed: 610 to 710 rpm
SST 09843-18030
