Page 1833 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual G30837G32448
ECM
STP
E6 19
BR
4M BPassenger Side J/B
Instrument Panel J/B S15
Stop Light SW
F7
FL Block
Battery FL MAINW
ALT1
1A 3
112
1E
1 2
Y
STOP 4L
2B 1
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATI

Page 1834 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual E65594
Free Pushed in2
3
41
05-942- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1132 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
A

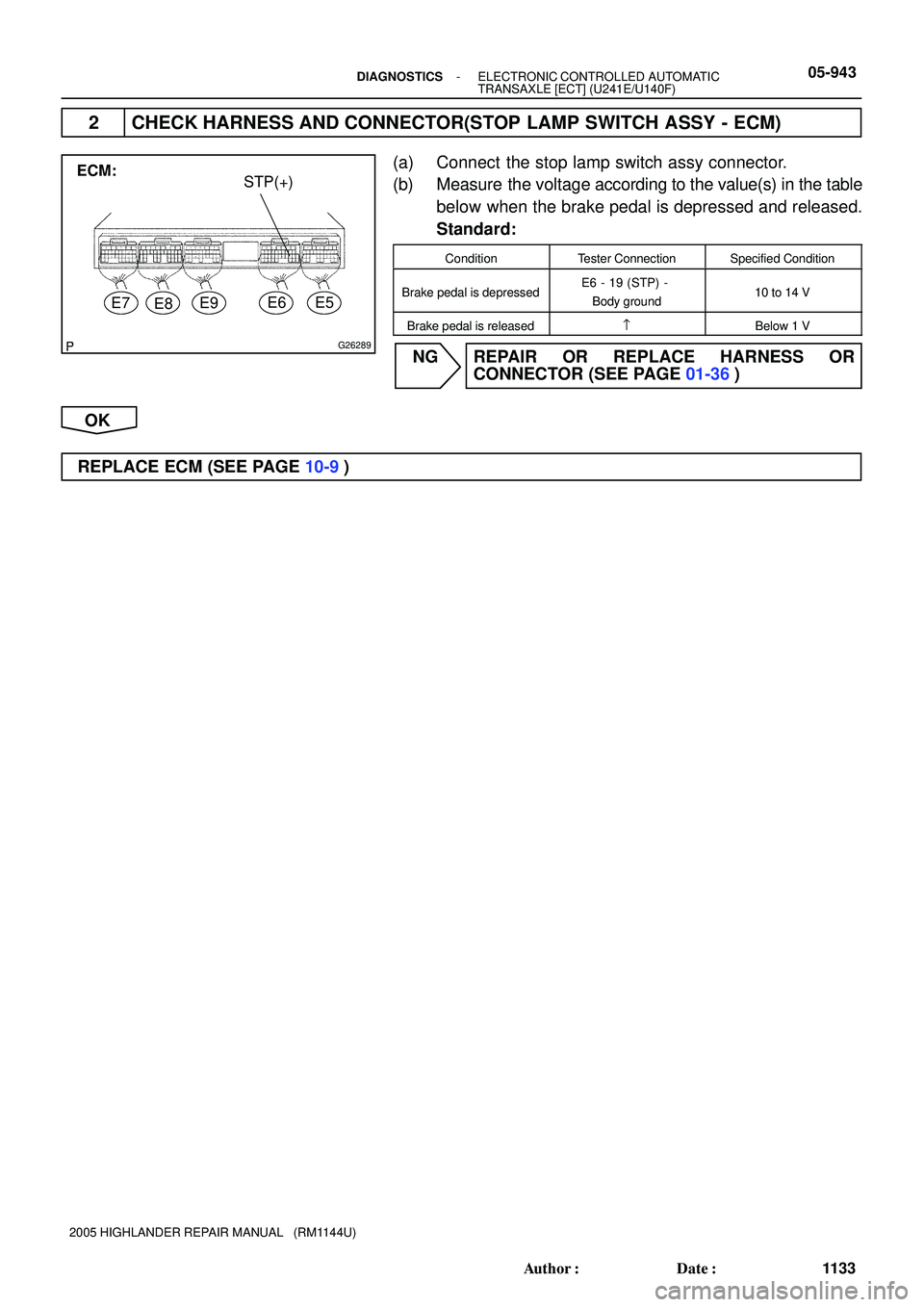

Page 1835 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual G26289
STP(+)
E7E8E9E6E5
ECM:
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-943
1133 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 CHECK HARNESS AND CONNEC

Page 1836 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-949
1139 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0746 PRESSURE CONTROL SOLENOID ºAº
PERFORMANCE (S

Page 1837 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-950- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1140 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
TYPICAL ENABLING CONDITIONS
ALL:
Transmission rangeºDº

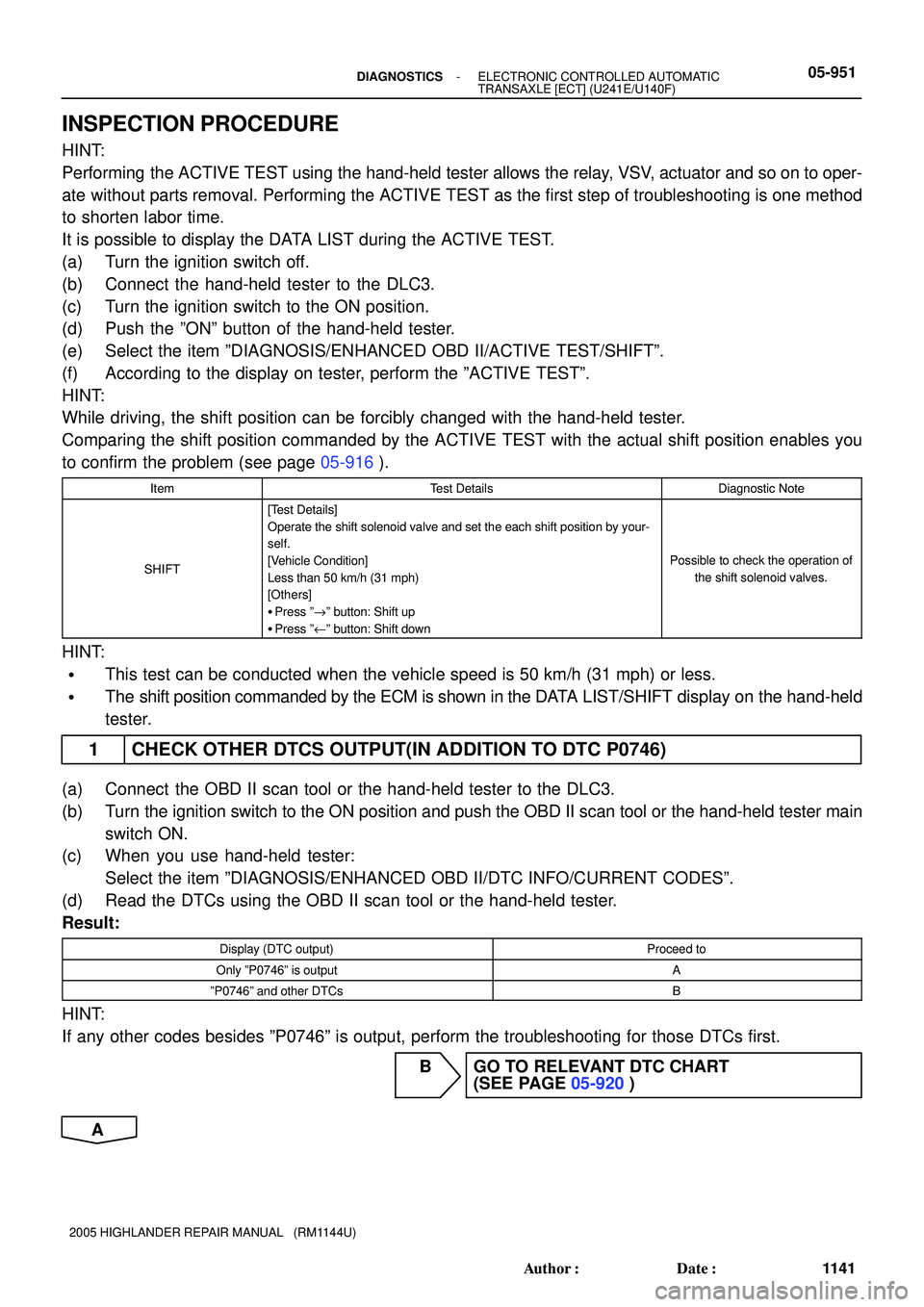

Page 1838 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-951
1141 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST us

- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-951
1141 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to oper-
ate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method
to shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
(a) Turn the ignition switch off.
(b) Connect the hand-held tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Push the ºONº button of the hand-held tester.
(e) Select the item ºDIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/SHIFTº.
(f) According to the display on tester, perform the ºACTIVE TESTº.
HINT:
While driving, the shift position can be forcibly changed with the hand-held tester.
Comparing the shift position commanded by the ACTIVE TEST with the actual shift position enables you
to confirm the problem (see page 05-916).
ItemTest DetailsDiagnostic Note
SHIFT
[Test Details]
Operate the shift solenoid valve and set the each shift position by your-
self.
[Vehicle Condition]
Less than 50 km/h (31 mph)
[Others]
Press º"º button: Shift up
Press ºuº button: Shift down
Possible to check the operation of
the shift solenoid valves.
HINT:
This test can be conducted when the vehicle speed is 50 km/h (31 mph) or less.
The shift position commanded by the ECM is shown in the DATA LIST/SHIFT display on the hand-held
tester.
1 CHECK OTHER DTCS OUTPUT(IN ADDITION TO DTC P0746)
(a) Connect the OBD II scan tool or the hand-held tester to the DLC3.
(b) Turn the ignition switch to the ON position and push the OBD II scan tool or the hand-held tester main
switch ON.
(c) When you use hand-held tester:
Select the item ºDIAGNOSIS/ENHANCED OBD II/DTC INFO/CURRENT CODESº.
(d) Read the DTCs using the OBD II scan tool or the hand-held tester.
Result:
Display (DTC output)Proceed to
Only ºP0746º is outputA
ºP0746º and other DTCsB
HINT:
If any other codes besides ºP0746º is output, perform the troubleshooting for those DTCs first.
B GO TO RELEVANT DTC CHART
(SEE PAGE 05-920)
A

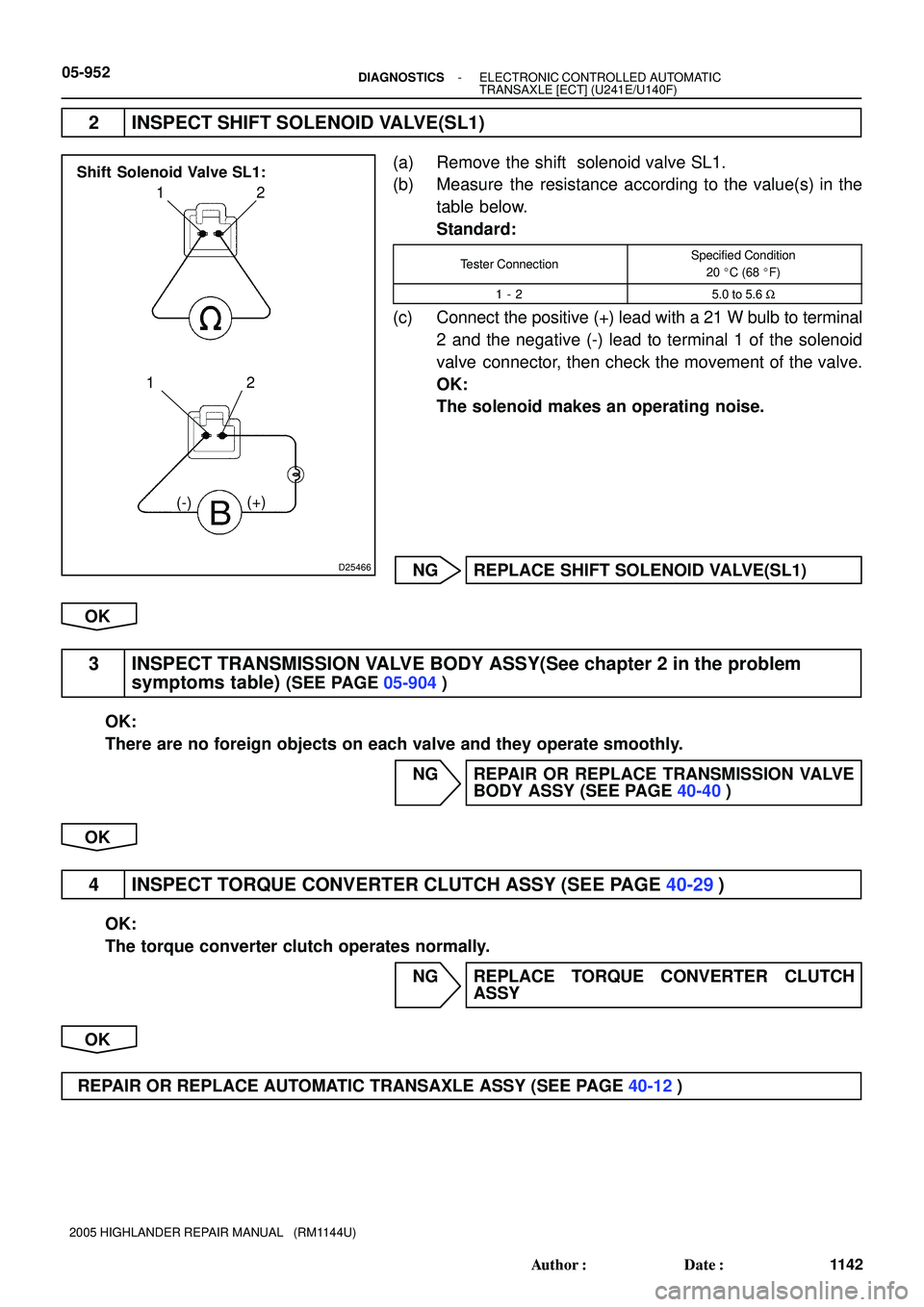

Page 1839 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual D25466
12
12
(+)
(-)
Shift Solenoid Valve SL1:
05-952- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1142 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 INSPECT

Page 1840 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual - DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-953
1143 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0748 PRESSURE CONTROL SOLENOID ºAº
ELECTRICAL (SH
