Page 2369 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual F02135
Start Position
End PositionWithin ± 5° 05-776
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
966 Author: Date:
(c) Check the yaw rate:
(1) Shift the shift lever to the D position and dr

F02135
Start Position
End PositionWithin ± 5° 05-776
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
966 Author: Date:
(c) Check the yaw rate:
(1) Shift the shift lever to the D position and drive the
vehicle at a speed of approx. 3 mph (5 km/h), and
maintain a 180° circular drive for the vehicle.
(2) Stop the vehicle and shift the shift lever to the P
position, and check that the skid control buzzer
sounds for 3 seconds.
HINT:
If the skid control buzzer sounds, the sensor check is
completed normally.
If the skid control buzzer does not sound, check the skid
control buzzer circuit (See page 05-866), then perform
the sensor check again. If the skid control buzzer still does
not sound, there is a malfunction in the VSC sensor, so
check for DTC.
Drive the vehicle in a 180° circle. At the end of the turn,
ensure that the vehicle is exactly 180° within a tolerance
of ± 5°, and facing the other direction from its original
start position.
Do not spin the wheels.
(d) Check the speed sensor:
(1) Drive the vehicle straight forward at the speed of 28
mph (45 km/h) or higher for several seconds and
check that the ABS warning light goes off.
HINT:
The sensor check may not be completed if the vehicle has its
wheels spun or its steering wheel turned during this check.
(2) Stop the vehicle.
(e) Read the DTC following the tester screen.
HINT:
Refer to the hand-held tester operator's manual for fur-
ther details.
If the check result is OK, the ABS warning light link goes
off when the brake pedal is once depressed.
9. IF NECESSARY, PERFORM ZERO POINT CALIBRA-
TION OF YAW RATE SENSOR AND/OR BRAKE AC-
TUATOR ASSY (USING SST CHECK WIRE)
NOTICE:
While obtaining the zero point, do not tilt, move or
shake the vehicle but keep it in a stationary condition.
(Do not start the engine.)
Be sure to perform the operation on a level surface
(within an inclination of 1 %).
(a) Check that the steering wheel is in the straight-ahead
position and shift the shift lever to the P position.
(b) Clear the zero point calibration:
HINT:
When replacing the yaw rate sensor only (not replace the brake
actuator assy).
(1) Turn the ignition switch to the ON position.

Page 2370 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual C52361
DLC3
Ts
CG
F46259
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-777
967 Author: Date:
(2) Using SST, connect and disconnect terminals Ts
and CG of the DLC3 4 times or more within 8 se

C52361
DLC3
Ts
CG
F46259
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-777
967 Author: Date:
(2) Using SST, connect and disconnect terminals Ts
and CG of the DLC3 4 times or more within 8 se-
conds.
SST 09843-18040
(3) Remove the SST from the terminals of the DLC3.
(c) Obtain the zero point calibration:
(1) Turn the ignition switch off.
(2) Using SST, connect terminals Ts and CG of the
DLC3.
SST 09843-18040
(3) Turn the ignition switch to the ON position.
(4) Keep the vehicle in a stationary condition on a level
surface for 2 seconds or more.
(5) Check that the VSC warning light blinks.
HINT:
If the VSC warning light does not blink, perform the zero point
calibration again.
(d) Remove the SST from the terminals of the DLC3.
SST 09843-18040
(e) Turn the ignition switch off.
10. IF NECESSARY, PERFORM ZERO POINT CALIBRATION OF YAW RATE SENSOR AND/OR
BRAKE ACTUATOR ASSY (USING HAND-HELD TESTER)
NOTICE:
While obtaining the zero point, do not tilt, move or shake the vehicle but keep it in a stationary
condition. (Do not start the engine.)
Be sure to perform the operation on a level surface (within an inclination of 1 %).
(a) Check that the steering wheel is in the straight-ahead position and shift the shift lever to the P position.
(b) Connect the hand-held tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Perform the reset memory by following the prompts on the tester screen.
HINT:
When replace the yaw rate sensor only (not replace the brake actuator assy).
[System Selection Screen]
ºDIAGNOSISº - ºOBD/MOBDº - Select the vehicle - ºABS/VSCº - ºRESET MEMORYº
(e) Perform the signal check (test mode) by following the prompts on the tester screen.
[System Selection Screen]
ºDIAGNOSISº - ºOBD/MOBDº - Select the vehicle - ºABS/VSCº - ºSIGNAL CHECKº
(f) Obtain zero point of the yaw rate sensor and deceleration sensor:
(1) Keep the vehicle in a stationary condition on a level surface for 2 seconds or more.
(2) Check that the VSC warning light blinks.

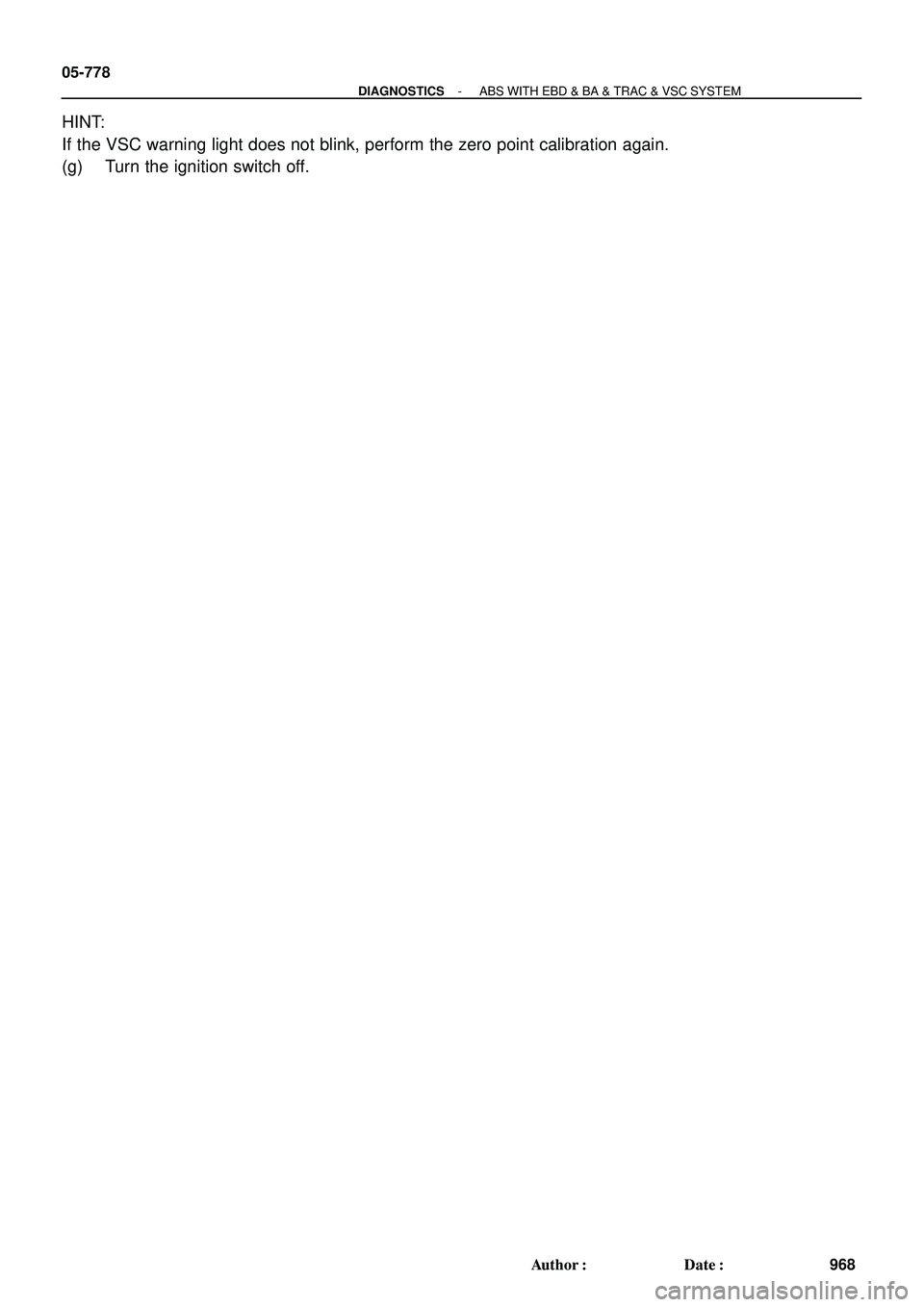

Page 2371 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05-778
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
968 Author: Date:
HINT:
If the VSC warning light does not blink, perform the zero point calibration again.
(g) Turn the ignition switch off.

Page 2372 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05IU9-01
Turn igniton switch ON with AUTO
and R/F switches held down.
Indicator Check
DTC Check
(Sensor Check)
(continuous operation)
DTC Check
(Sensor Check)
(stepped operation)OFF
OFF
DEF
DEF
Actuat

Page 2373 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I41003
w/o Navigation System
I38757
w/ Navigation System
I36113
1 Sec.
1 Sec.
ON
OFF
I30327
DTC w/o Navigation System
I38759
w/ Navigation SystemDTC 05-1 118
- DIAGNOSTICSAIR CONDITIONING SYSTEM
1308

Page 2374 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I30328
w/o Navigation System
I38758
w/ Navigation System
I30337
ECU-B Fuse Engine Room J/B
F46779
- DIAGNOSTICSAIR CONDITIONING SYSTEM
05-1 119
1309 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM

Page 2375 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual I30329
w/o Navigation System
I38758
w/ Navigation System
Blower level Step No.Display
codeConditions
Air flow vent
Air inlet damper Magnetic clutch
ºCOOLº side
(Fully closed) Air mix damper
OFF FRE

Page 2376 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 3 2 1 45678
9 1 0 111 21 31 41 51 6
DLC3
A04550
- DIAGNOSTICSAIR CONDITIONING SYSTEM
05-1 121
1311 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

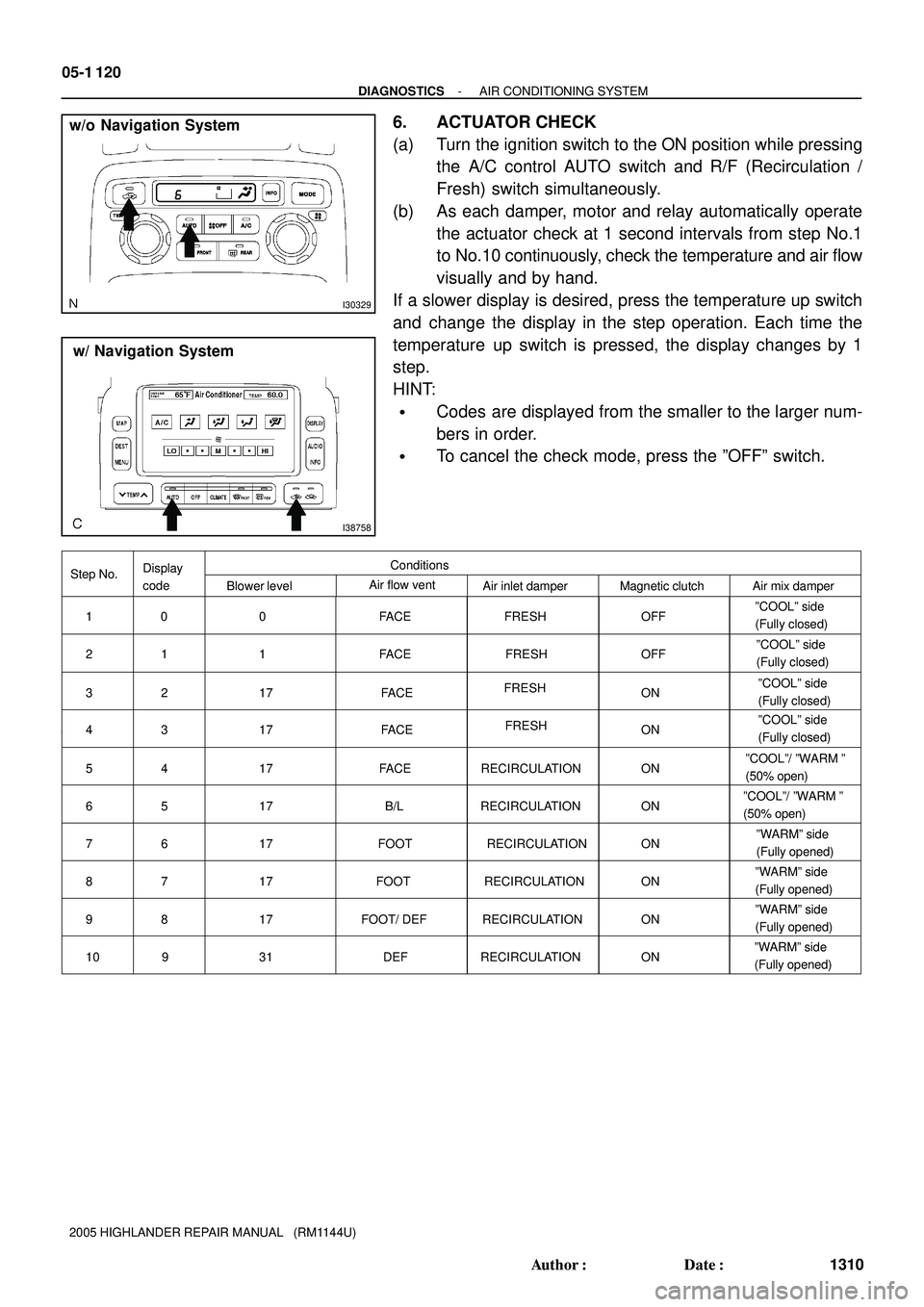

7. CHECK DLC3
(a) The vehicles ECM uses IS

3 2 1 45678
9 1 0 111 21 31 41 51 6
DLC3
A04550
- DIAGNOSTICSAIR CONDITIONING SYSTEM
05-1 121
1311 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
7. CHECK DLC3
(a) The vehicle's ECM uses ISO 9141-2 for communication.
The terminal arrangement of the DLC3 complies with
SAEJ1962 and matches the ISO 9141-2 format.
Terminal No.Connection/Voltage or ResistanceCondition
7Bus + Line/Pulse generationDuring transmission
4Chassis Ground - Body Ground/1 W or lessAlways
5Signal Ground - Body Ground/1 W or lessAlways
16Battery Positive - Body Ground/9 to 14 VAlways
8. DATA LIST
HINT:
From the DATA LIST displayed on the hand-held tester, you can read the values of the displays, sensors,
actuators and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is
one way to shorten labor time.
(a) Connect the hand-held tester to the DLC3.
(b) Turn the ignition switch to the ON position.
(c) From the display on the tester, select the ºDATA LISTº.
ALL:
ItemMeasurement Item / Display
(Range)Normal ConditionDiagnostic Note
A/C SIGA/C signal / ON or OFFA/C ON: ON-
A C:
ItemMeasurement Item/Display
(Range)Normal ConditionDiagnostic Note
ROOM TEMP
Room temperature sensor
/min.: -6.5C (20.3F)
max.: 57.25C (135.05F)
Actual room temperature-
AMBI TEMP SENS
Ambient temperature sensor
/min.: -23.3C (-9.94F)
max.: 65.95C (150.71F)
Actual ambient temperature-
AMBI TEMP
Adjusted ambient temperature
/min.: -30.8C (-23.44F)
max.: 50.8C (123.44F)
Actual ambient temperature-
EVAP TEMP
Evaporator temperature sensor
/min.: -29.7C (-21.46F)
max.: 59.55C (139.19F)
Actual evaporator temperature-
SOLAR SENS-DSolar sensor (Driver side)
/min.: 0 max.: 255Changes depending on brightness
(Driver side)-
COOLANT TEMP
Engine coolant temperature
/min.: 1.3C (34.34F)
max.: 90.55C (194.99F)
Actual engine coolant temperature-
SET TEMP-D
Set temperature
(Driver side)
/min.: 0 max.: 255Actual set temperature
(Driver side)-
A/M DAMP POS-D
Air mix damper position
(Driver side)
/min.: -14% max.: 113.5%Changes depending on the set
temperature (Driver side)-
