05-888- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1078 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

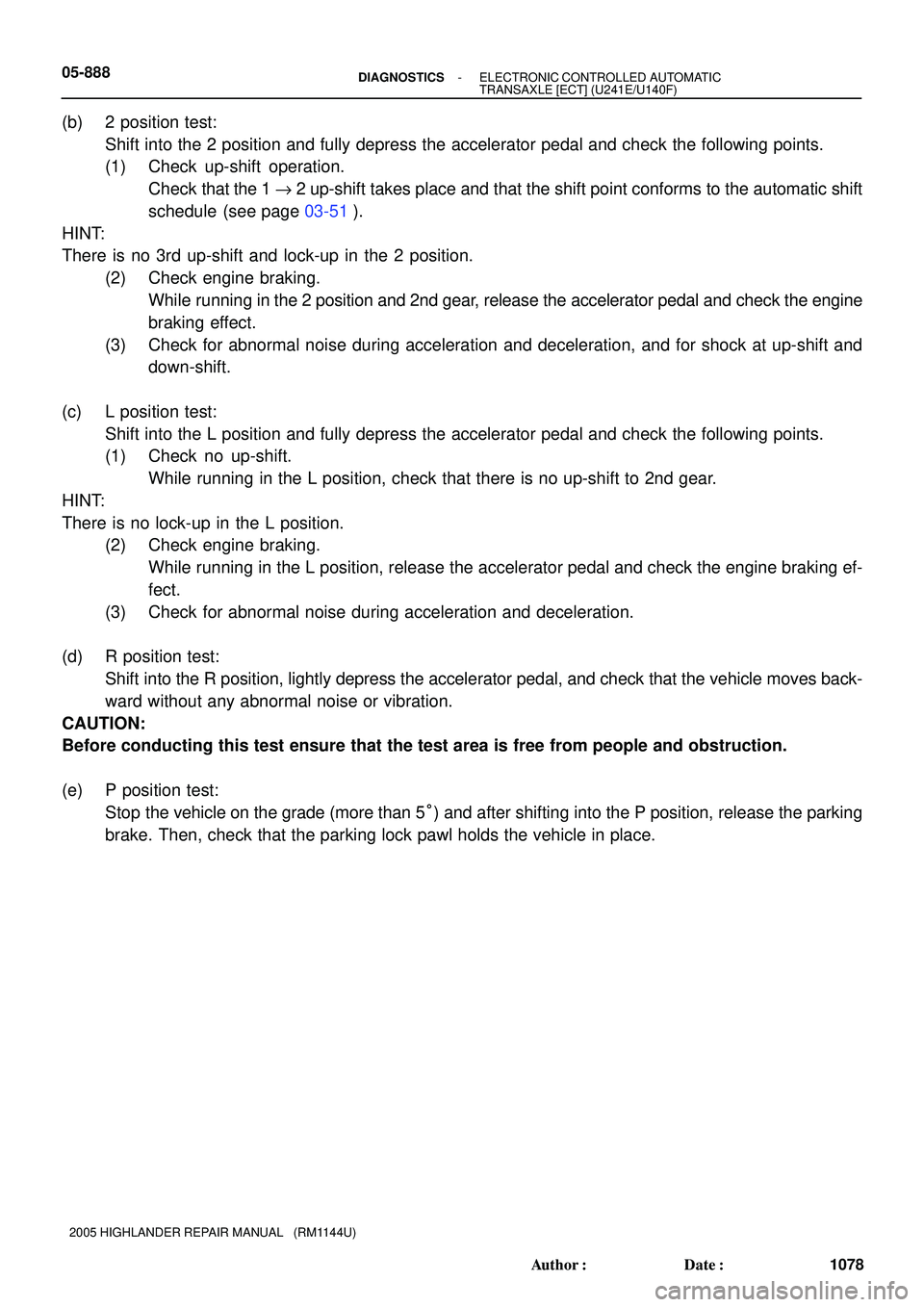

(b) 2 position test:
Shift into the 2 position and fully depress the accelerator pedal and check the following points.
(1) Check up-shift operation.
Check that the 1 " 2 up-shift takes place and that the shift point conforms to the automatic shift
schedule (see page 03-51).
HINT:
There is no 3rd up-shift and lock-up in the 2 position.
(2) Check engine braking.
While running in the 2 position and 2nd gear, release the accelerator pedal and check the engine
braking effect.
(3) Check for abnormal noise during acceleration and deceleration, and for shock at up-shift and
down-shift.
(c) L position test:
Shift into the L position and fully depress the accelerator pedal and check the following points.
(1) Check no up-shift.
While running in the L position, check that there is no up-shift to 2nd gear.
HINT:
There is no lock-up in the L position.
(2) Check engine braking.
While running in the L position, release the accelerator pedal and check the engine braking ef-
fect.
(3) Check for abnormal noise during acceleration and deceleration.
(d) R position test:
Shift into the R position, lightly depress the accelerator pedal, and check that the vehicle moves back-
ward without any abnormal noise or vibration.
CAUTION:
Before conducting this test ensure that the test area is free from people and obstruction.
(e) P position test:
Stop the vehicle on the grade (more than 5°) and after shifting into the P position, release the parking
brake. Then, check that the parking lock pawl holds the vehicle in place.
Page 2018 of 2572

H45941
Airbag Sensor
Assy Center
A175
E1 E2
27IG2
1
Battery28 7IGN Instrument Panel J/B
IG2
6 YAM2
GR
1LB
A17
A17 1C
IAW-B
W-B W-B14
9
1L 1L
1D L-Y 1
IC1
FL MAINW F7 FL Block
WI15
Ignition SW
Instrument Panel J/BAM2
10
1 16
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1515
1705 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
SOURCE VOLTAGE DROP
CIRCUIT DESCRIPTION
The SRS is equipped with a voltage-increase circuit (DC-DC converter) in the airbag sensor assy center
in case the source voltage drops.
When the battery voltage drops, the voltage-increase circuit (DC-DC converter) functions to increase the
voltage of the SRS to normal voltage.
A malfunction in this circuit is displayed differently from other codes. The source voltage drop is indicated
when the SRS warning light comes on without showing any DTCs.
A malfunction in this circuit is not recorded in the airbag sensor assy center. The SRS warning light automati-
cally goes off when the source voltage returns to normal.
DTC No.Diagnosis
(Normal)Source voltage drop
WIRING DIAGRAM
05267-05
Page 2019 of 2572

H40065
A17 IG2
E2
E1
05-1516
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1706 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
INSPECTION PROCEDURE
1 CHECK SOURCE VOLTAGE
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connector of the airbag sensor assy cen-
ter.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage and resistance according to the val-
ue(s) in the table below.
Standard:
Tester connectionConditionSpecified condition
A17-5 (IG2) -
Body groundIgnition switch ON10 to 14 V
A17-27 (E1) -
Body groundAlwaysBelow 1 W
A17-28 (E2) -
Body groundAlwaysBelow 1 W
NG REPAIR OR REPLACE WIRE HARNESS
(BATTERY - AIRBAG SENSOR ASSY CENTER),
CHARGING SYSTEM AND BATTERY
OK
2 CHECK SRS WARNING LIGHT
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Connect the airbag sensor assy center connectors.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Operate all components of the electrical system (defogger, wiper, headlight, heater blower, etc.) and
check the SRS warning light operation.
OK:
SRS warning light does not come on.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
END
Page 2020 of 2572
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1517
1707 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

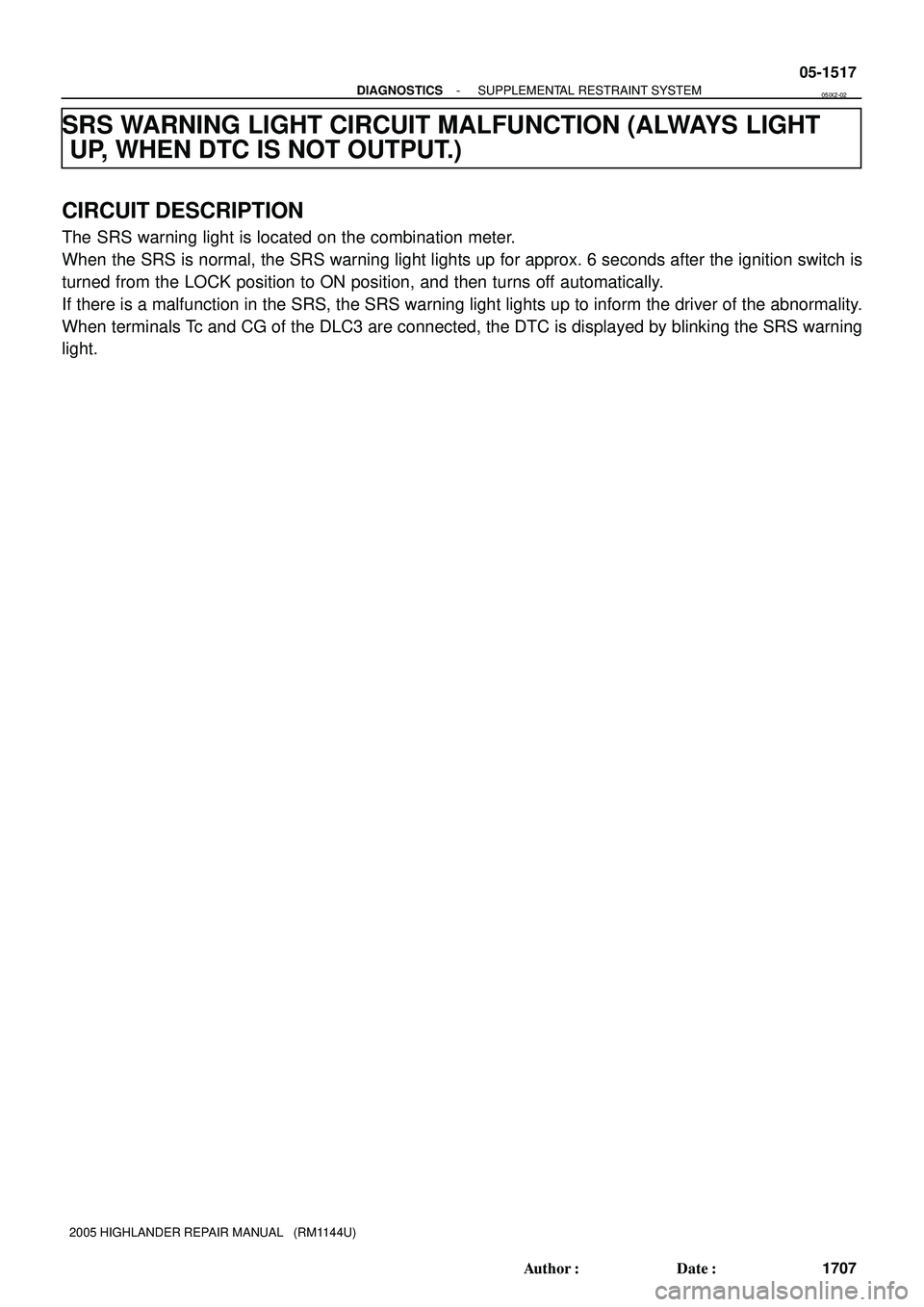

SRS WARNING LIGHT CIRCUIT MALFUNCTION (ALWAYS LIGHT
