Page 217 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
97
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

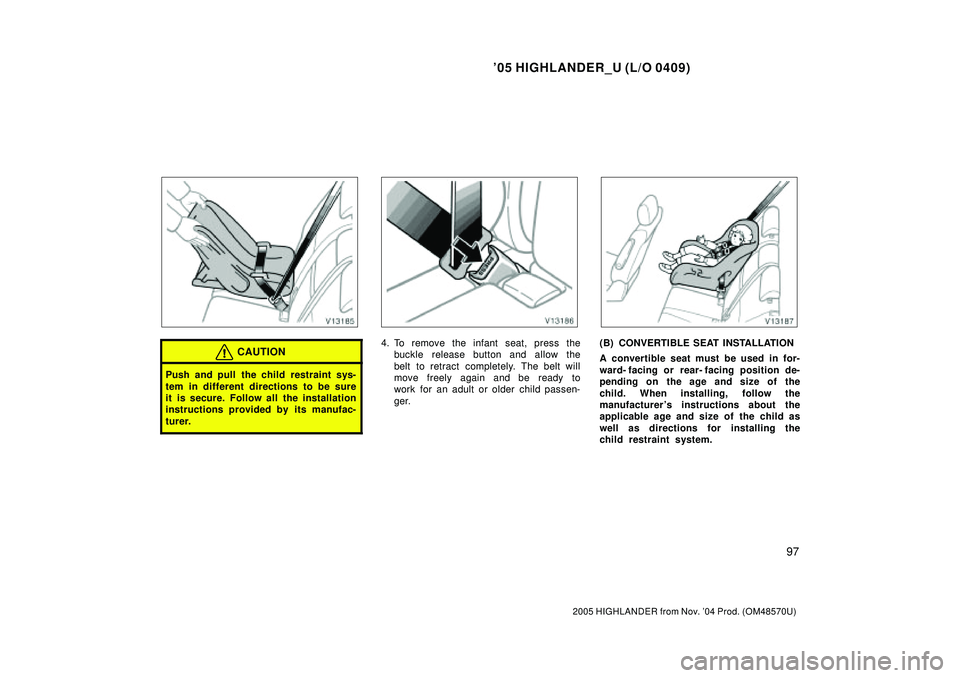

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the install

Page 218 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
98
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

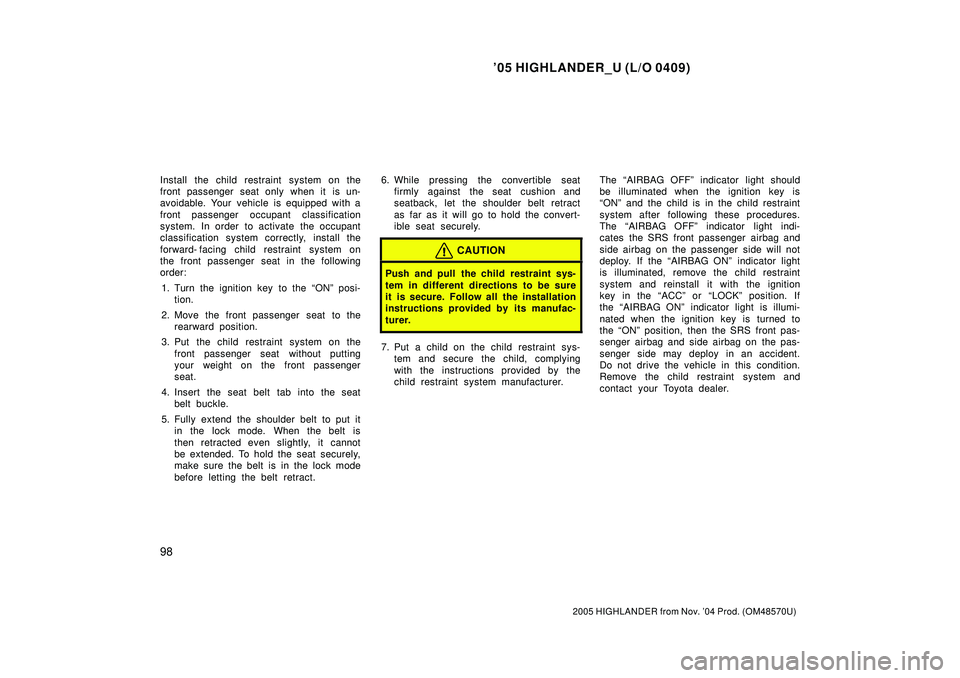

Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped wi

'05 HIGHLANDER_U (L/O 0409)
98
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward- facing child restraint system on
the front passenger seat in the following
order:
1. Turn the ignition key to the ONº posi-
tion.
2. Move the front passenger seat to the
rearward position.
3. Put the child restraint system on the
front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat
belt buckle.
5. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract.6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-
tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.The AIRBAG OFFº indicator light should
be illuminated when the ignition key is
ONº and the child is in the child restraint
system after following these procedures.
The AIRBAG OFFº indicator light indi-
cates the SRS front passenger airbag and
side airbag on the passenger side will not
deploy. If the AIRBAG ONº indicator light
is illuminated, remove the child restraint
system and reinstall it with the ignition
key in the ACCº or LOCKº position. If
the AIRBAG ONº indicator light is illumi-
nated when the ignition key is turned to
the ONº position, then the SRS front pas-
senger airbag and side airbag on the pas-
senger side may deploy in an accident.
Do not drive the vehicle in this condition.
Remove the child restraint system and
contact your Toyota dealer.

Page 219 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
99
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
CAUTION
Never install a rear- facing child re-
straint system on the front passen-
ger seat. A forward- facing child re-

Page 220 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
100
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

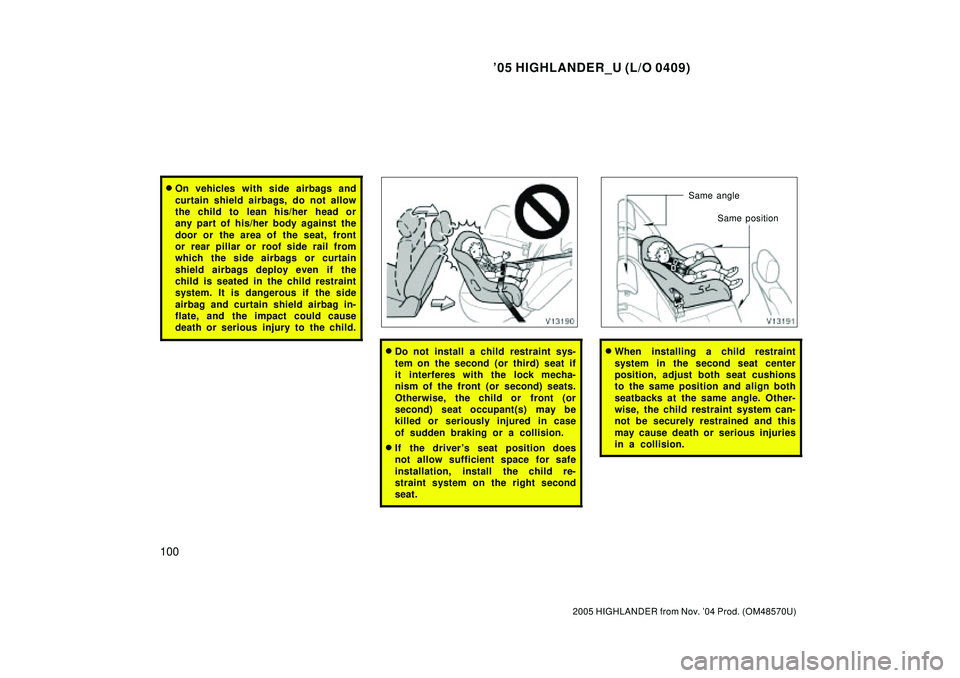

On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of h

Page 221 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
101
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufa

Page 222 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
102
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

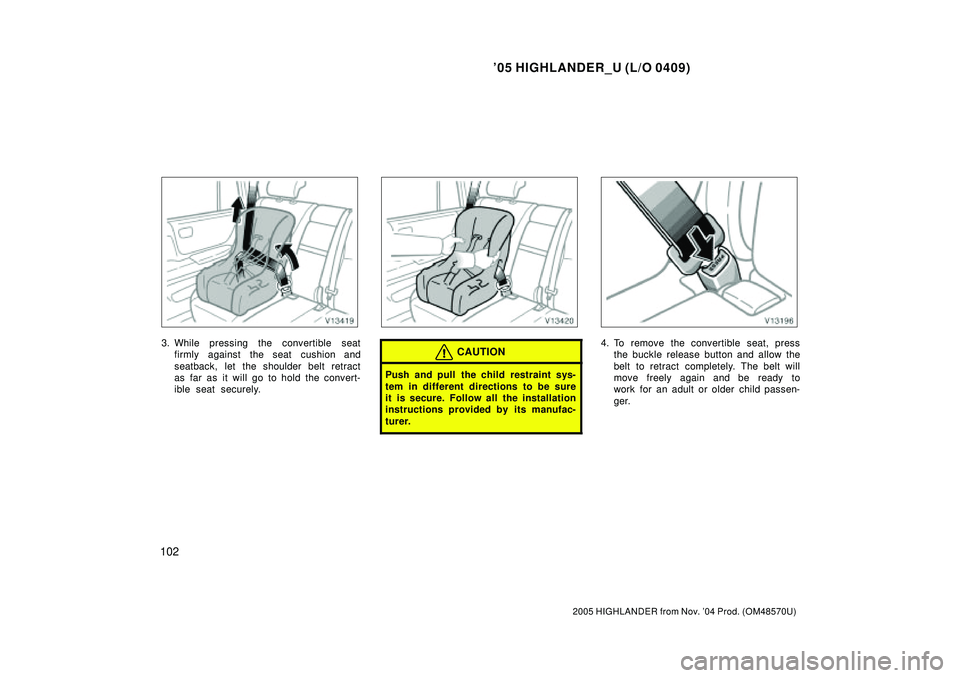

3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far

Page 223 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
103
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

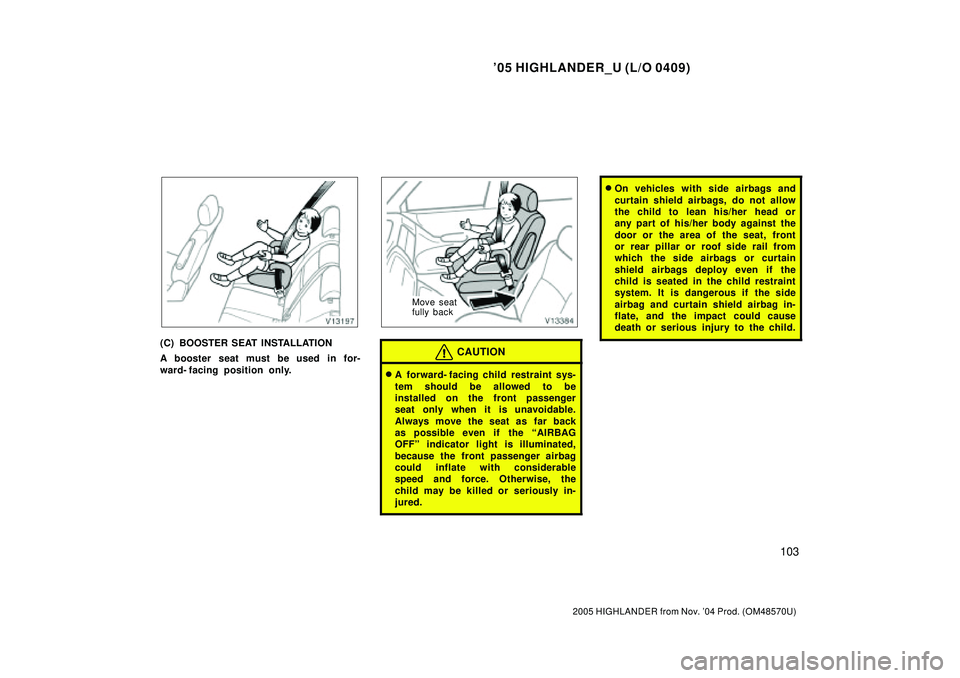

(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
ward- facing position only.
Move seat
fully back
CAUTIO

Page 224 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
104
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

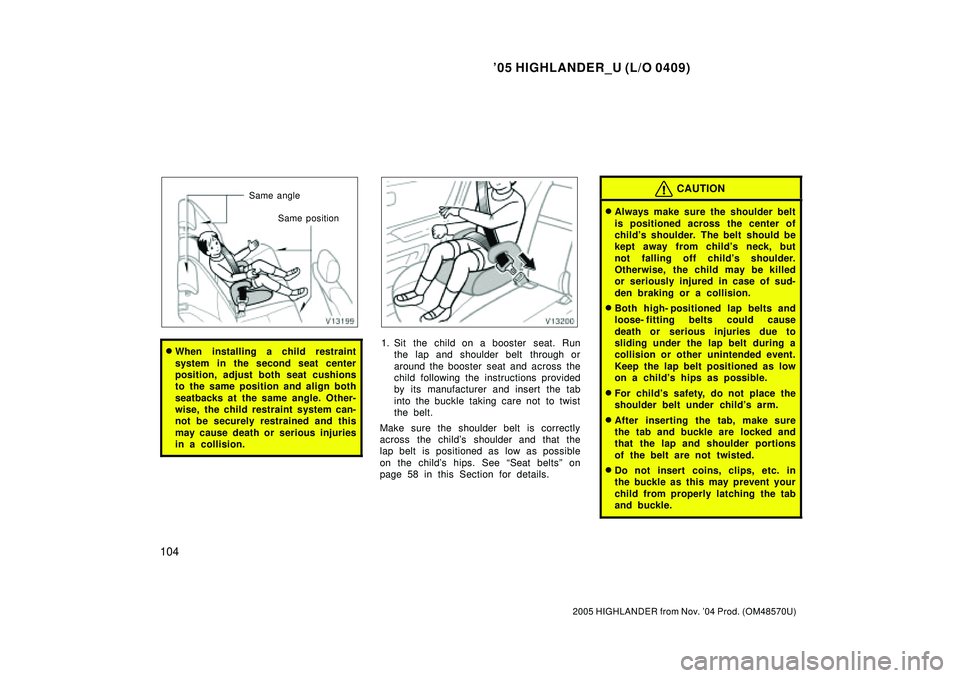

Same angle
Same position
When installing a child restraint
system in the second seat center
position, adjust both seat c
