TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
295
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
NOTICE
A large amount of unburned gases
flowing into the three- way catalytic
converter may cause it to overheat
and crea

'05 HIGHLANDER_U (L/O 0409)
295
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
NOTICE
A large amount of unburned gases
flowing into the three- way catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three-
way catalytic converter.
Do not allow the engine to run at
idle speed for more than 20 min-
utes.
Avoid racing the engine.
Do not push- start or pull- start your
vehicle.
Do not turn off the ignition while
the vehicle is moving.
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel systems could cause an ex-
tremely high three- way catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a check- up as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
three- way catalytic converter sys-
tem best.
To ensure that the three- way cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the Scheduled Maintenance
Guideº or Owner 's Manual Supple-
mentº.
CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
Engine exhaust cautions

Page 26 of 2572

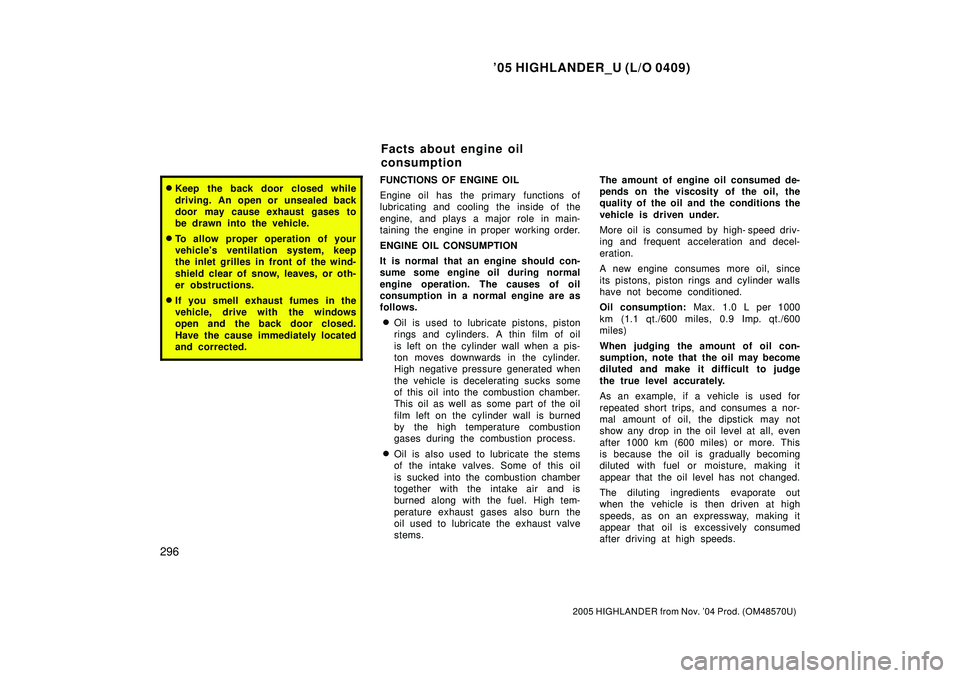

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
296
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Keep the back door closed while
driving. An open or unsealed back
door may cause exhaust gases to
be drawn into the vehi

'05 HIGHLANDER_U (L/O 0409)
296
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Keep the back door closed while
driving. An open or unsealed back
door may cause exhaust gases to
be drawn into the vehicle.
To allow proper operation of your
vehicle's ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, drive with the windows
open and the back door closed.
Have the cause immediately located
and corrected.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion chamber
together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.The amount of engine oil consumed de-
pends on the viscosity of the oil, the
quality of the oil and the conditions the
vehicle is driven under.
More oil is consumed by high- speed driv-
ing and frequent acceleration and decel-
eration.
A new engine consumes more oil, since
its pistons, piston rings and cylinder walls
have not become conditioned.
Oil consumption: Max. 1.0 L per 1000
km (1.1 qt./600 miles, 0.9 Imp. qt./600
miles)
When judging the amount of oil con-
sumption, note that the oil may become
diluted and make it difficult to judge
the true level accurately.
As an example, if a vehicle is used for
repeated short trips, and consumes a nor-
mal amount of oil, the dipstick may not
show any drop in the oil level at all, even
after 1000 km (600 miles) or more. This
is because the oil is gradually becoming
diluted with fuel or moisture, making it
appear that the oil level has not changed.
The diluting ingredients evaporate out
when the vehicle is then driven at high
speeds, as on an expressway, making it
appear that oil is excessively consumed
after driving at high speeds.
Facts about engine oil
consumption

Page 27 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
297
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
IMPORTANCE OF ENGINE OIL LEVEL
CHECK
One of the most important points in prop-
er vehicle maintenance is to keep the en-

Page 28 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
298
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
CAUTION
Do not pump the brake pedal if the
engine stalls. Each push on the
pedal uses up your reserved vacu-
um.
Even

'05 HIGHLANDER_U (L/O 0409)
298
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
CAUTION
Do not pump the brake pedal if the
engine stalls. Each push on the
pedal uses up your reserved vacu-
um.
Even if the power assist is com-
pletely lost, the brakes will still
work. But you will have to push the
pedal hard, much harder than nor-
mal. And your braking distance will
increase.
ANTI- LOCK BRAKE SYSTEM
(with ABSº warning light)
The anti- lock brake system is designed
to help prevent lock- up of the wheels
during a sudden braking or braking on
slippery road surfaces. This assists in
providing directional stability and steer-
ing performance of the vehicle under
these circumstances.
Effective way to press the ABS brake
pedal: When the anti- lock brake system
function is in action, you may feel the
brake pedal pulsating and hear a noise.
In this situation, to let the anti- lock
brake system work for you, just hold the
brake pedal down more firmly. Do not
pump the brake in a panic stop. This
will result in reduced braking performan-
ce.
The anti- lock brake system becomes op-
erative after the vehicle has accelerated
to a speed in excess of approximately 10
km/h (6 mph). It stops operating when the
vehicle decelerates to a speed below
approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery
road surfaces such as on a manhole cov-
er, a steel plate at a construction site,
joints in a bridge, etc. on a rainy day
tends to activate the anti- lock brake sys-
tem.
You may hear a click or motor sound in
the engine compartment for a few seconds
when the engine is started or just after
the vehicle begins to move. This means
that the anti- lock brake system is in the
self- check mode, and does not indicate a
malfunction.When the anti- lock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the anti- lock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the anti- lock brake sys-
tem activation, the brake pedal may
move a little forward.

Page 29 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
299
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
CAUTION
Do not overestimate the anti- lock
brake system: Although the anti- lock
brake system assists in providing ve-
hi

Page 30 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
300
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
ABSº warning light
The light comes on when the ignition key
is turned to the ONº position. If the anti-
lock brake sy

'05 HIGHLANDER_U (L/O 0409)
300
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
ABSº warning light
The light comes on when the ignition key
is turned to the ONº position. If the anti-
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if the
system malfunctions, the light comes on
again.
When the ABSº warning light is on (and
the brake system warning light is off), the
anti- lock brake system, the brake assist
system, the traction control system and
the vehicle stability control system do not
operate, but the brake system still oper-
ates conventionally.
When the ABSº warning light is on (and
the brake system warning light is off), the
anti- lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the components moni-
tored by the warning light system. Con-
tact your Toyota dealer as soon as
possible to service the vehicle.
The light does not come on when the
ignition key is turned to the ONº posi-
tion, or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the ABSº warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the anti- lock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
DRUM- IN- DISC TYPE PARKING BRAKE
SYSTEM
Your vehicle has a drum- in- disc type
parking brake system. This type of brake
system needs bedding- down of the brake
shoes periodically or whenever the parking
brake shoes and/or drums are replaced.
Have your Toyota dealer perform the bed-
ding- down.BRAKE ASSIST SYSTEM
If you slam the brakes on such as in
an emergency or apply the brakes more
firmly than usual such as when de-
scending the hill with the designated
number of occupants in the vehicle, the
brake assist system provides more
powerful braking.
If you slam the brakes on or apply the
brakes more firmly, more powerful braking
will be applied. At this time, you may hear
a sound in the engine compartment and
feel the vibrations of the brake pedal. This
does not indicate a malfunction.
The brake assist system becomes opera-
tive after the vehicle has accelerated to
a speed in excess of approximately 10
km/h (6 mph). It stops operating when the
vehicle decelerates to a speed below
approximately 5 km/h (3 mph).
For an explanation of this system's warn-
ing light, see Service reminder indicators
and warning buzzersº on page 135 in Sec-
tion 1- 6.

Page 31 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
301
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
repla

Page 32 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
302
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

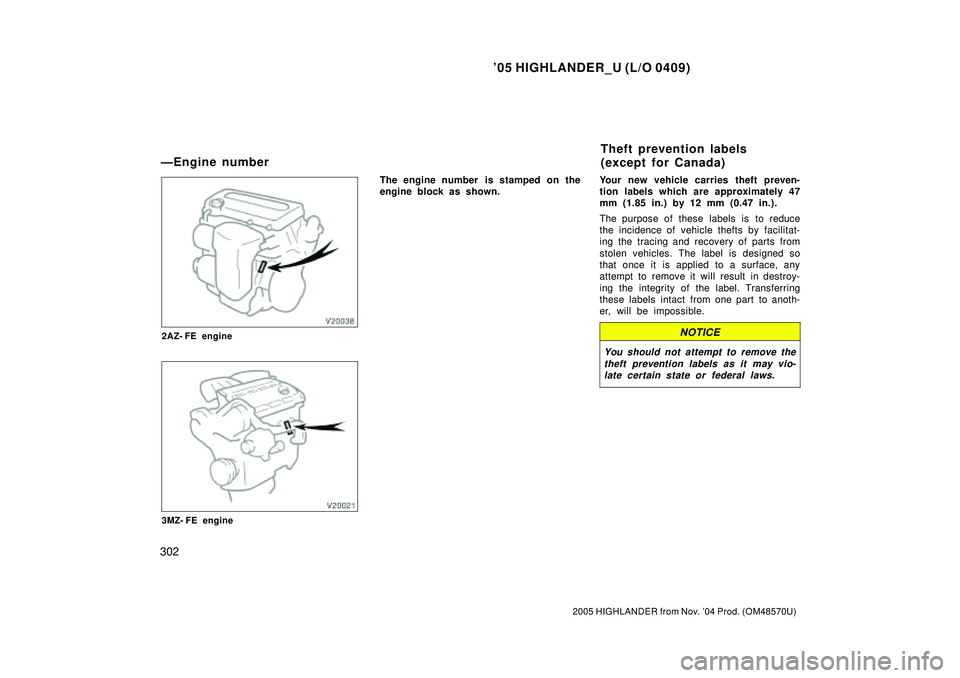

2AZ- FE engine
3MZ- FE engine
The engine number is stamped on the
engine block as shown.Your new vehicle carries theft p

Load next 8 pages

Page: < prev 1-10 9-16 17-24 25-32 33-40 41-48 49-56 57-64 ... 2576 next >

brake pads replacement gas mileage wheel cooling immobilizer service schedule
