TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
150

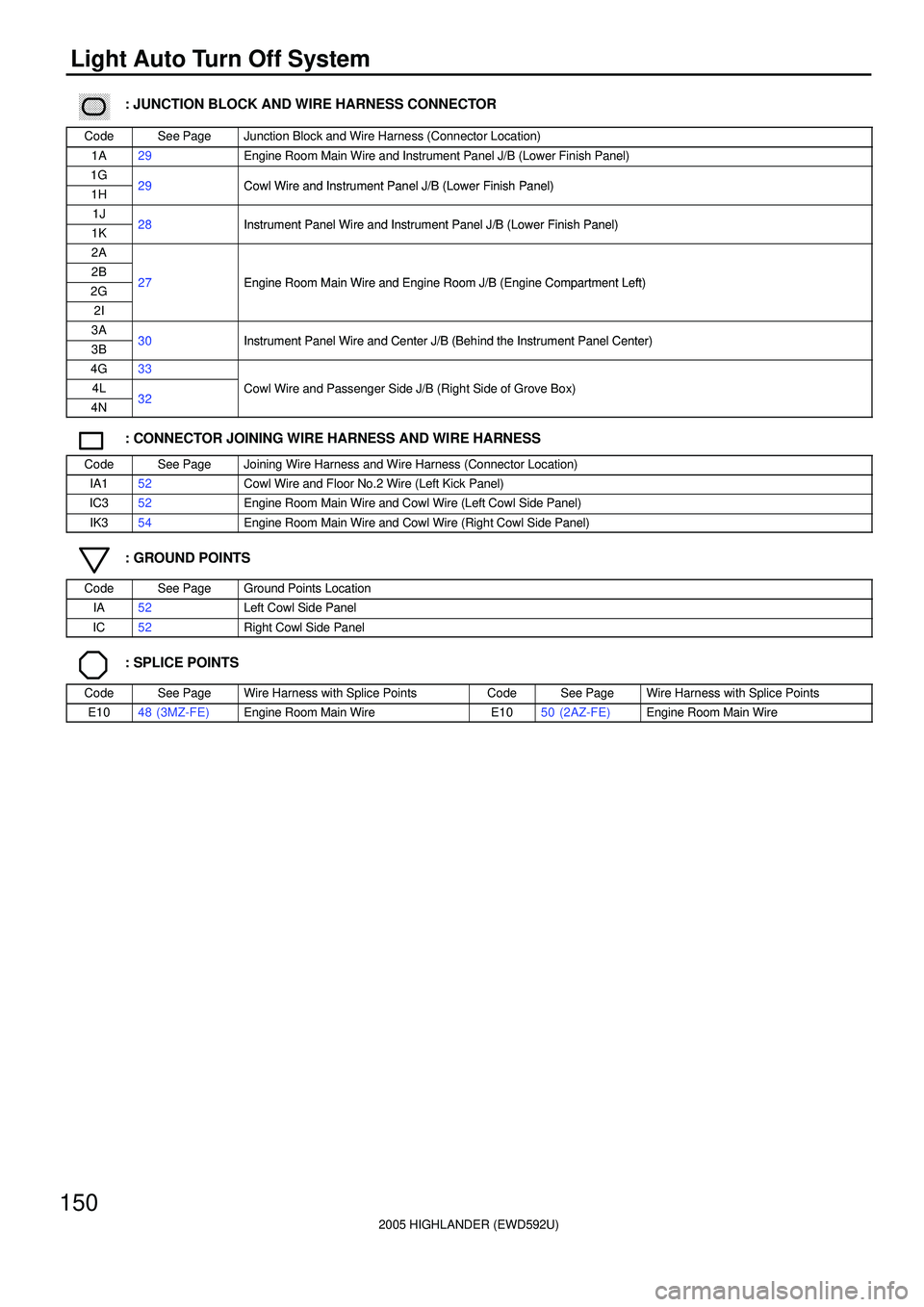

Light Auto Turn Off System
�� : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1A29Engine Room Main Wir

Page 466 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
151

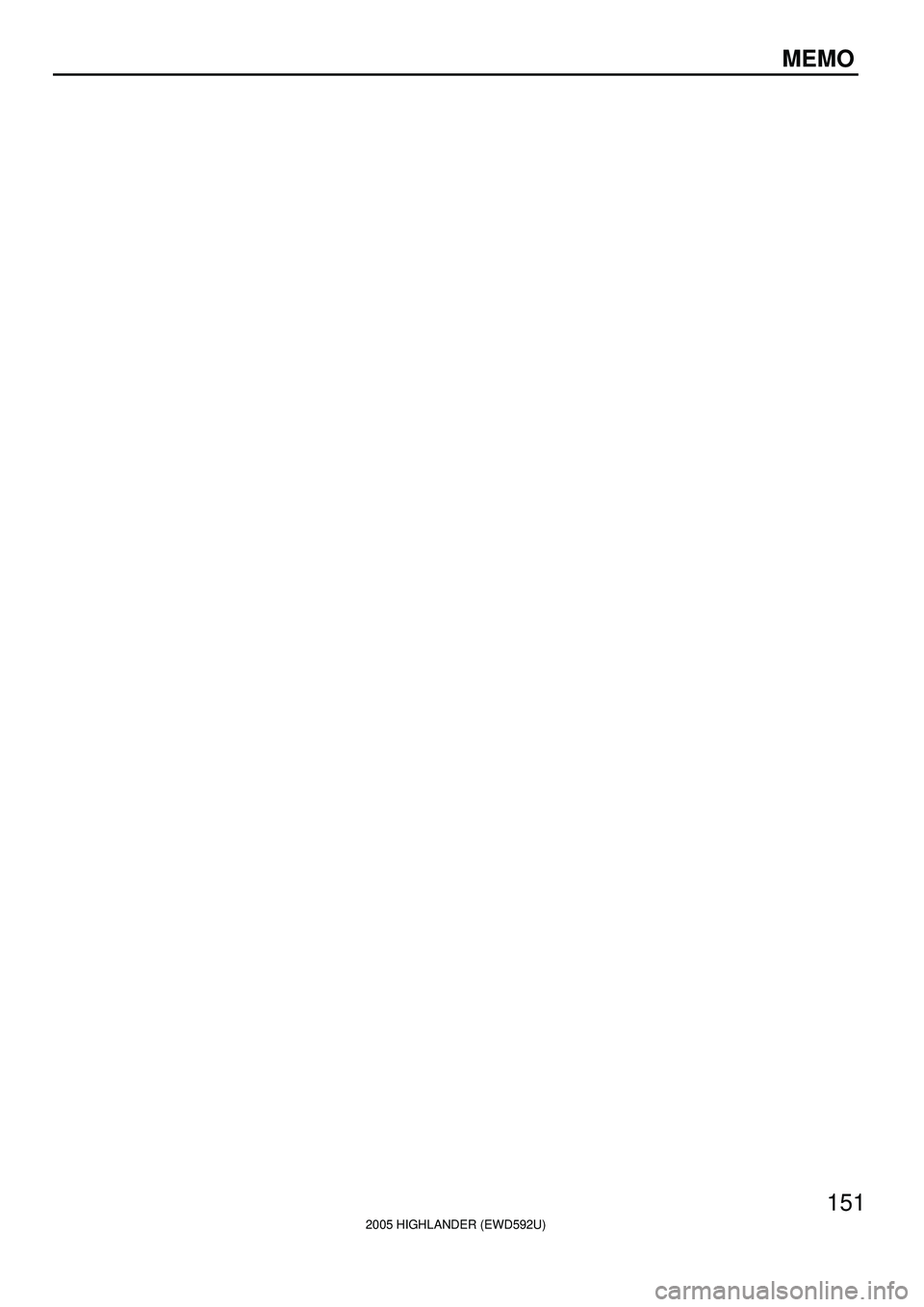

MEMO

Page 467 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
152

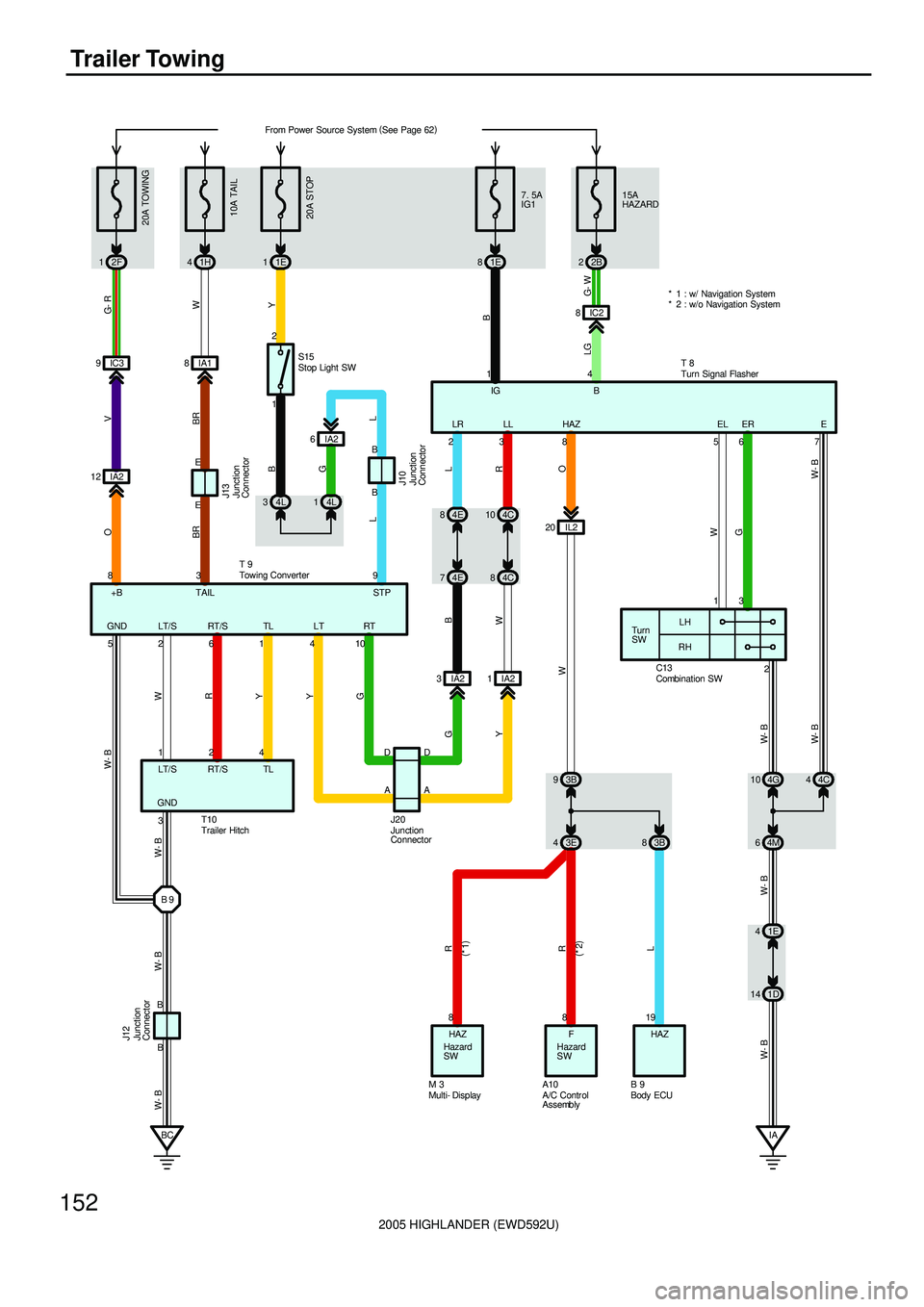

Trailer Towing
20A TOWING
2F 1
10A TAIL
1H 4
20A STOP
1E 17. 5A
IG1
1E 815A
HAZARD
2B 2
1 2
4L 34L1
4E 8
4E 74C 10
4C 8IL2 20
LH
RH
3B 9
3B 8
IA BC BIA2 1 5261410
323 8
2

Page 468 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
153

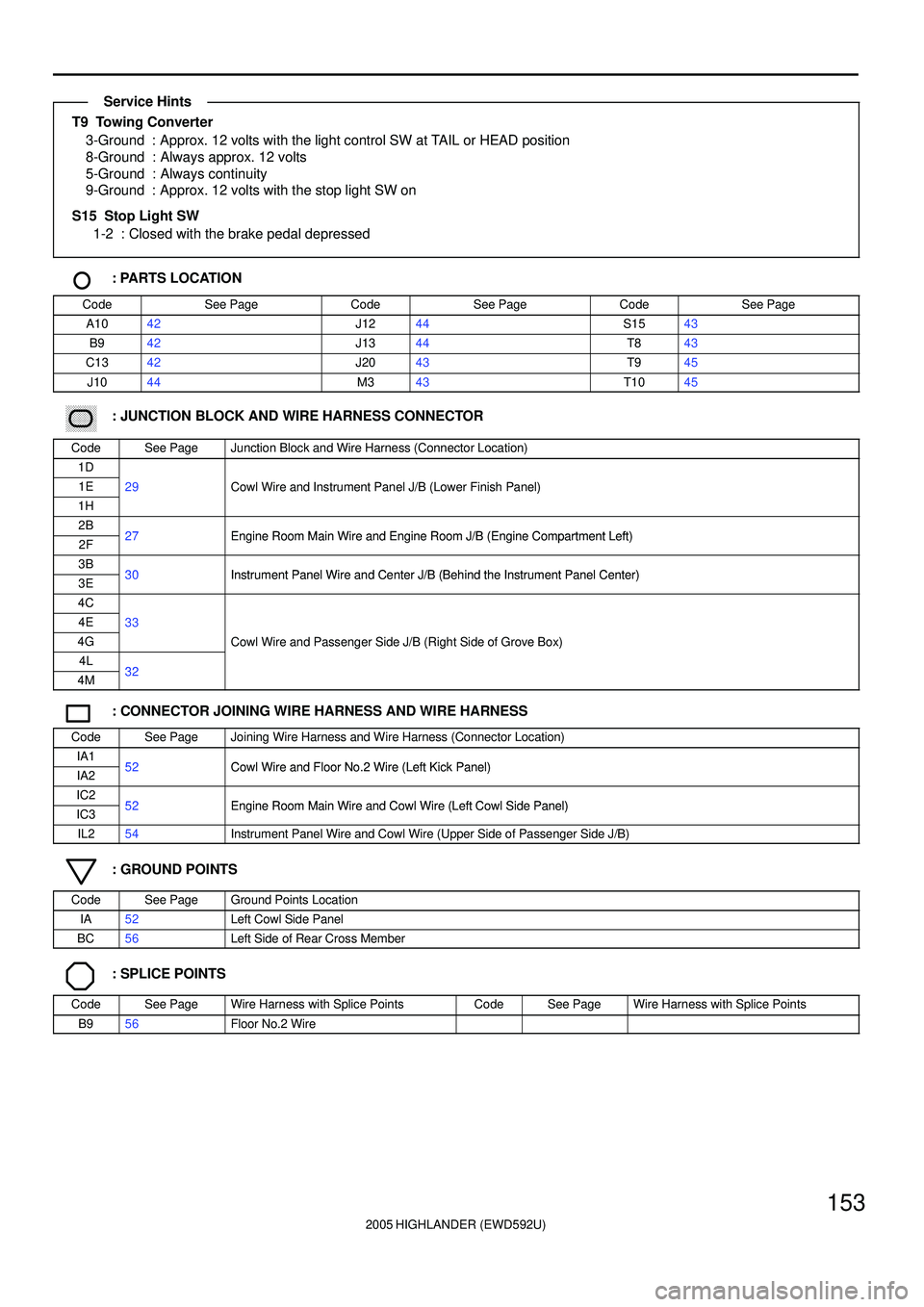

T9 Towing Converter
3-Ground : Approx. 12 volts with the light control SW at TAIL or HEAD position
8-Ground : Always approx. 12 volts
5-Ground : Always continuity
9-Grou

Page 469 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
154

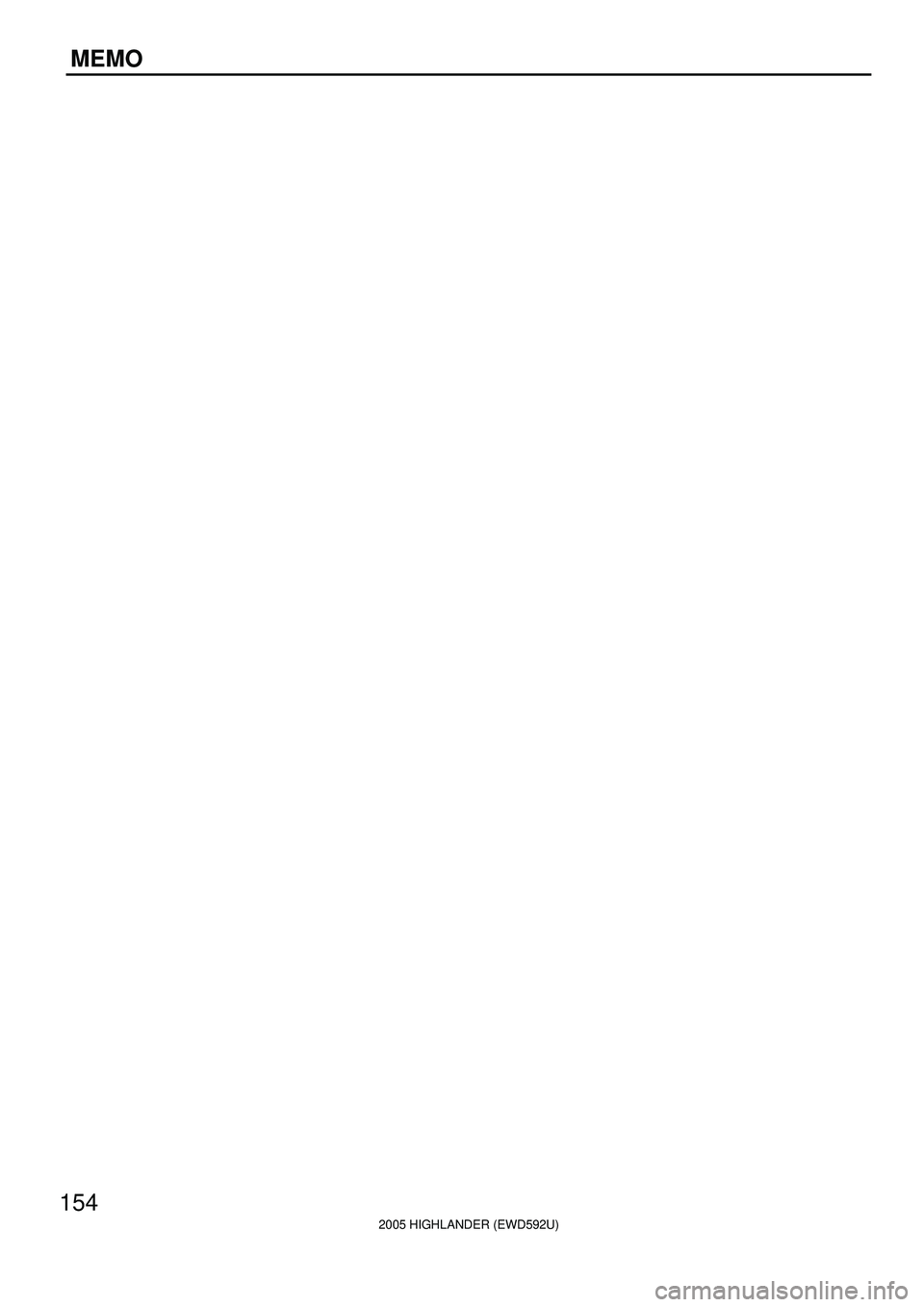

MEMO

Page 470 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
155
SRS
NOTICE: When inspecting or repairing the SRS, perform service in accordance with the following precautionary instructions
and the procedure, and precautions in the Re

2005 HIGHLANDER (EWD592U)
155
SRS
NOTICE: When inspecting or repairing the SRS, perform service in accordance with the following precautionary instructions
and the procedure, and precautions in the Repair Manual applicable for the model year.
Malfunction symptoms of the SRS are difficult to confirm, so the DTCs become the most important source of information
when troubleshooting. When troubleshooting the SRS, always inspect the DTCs before disconnecting the battery.
Work must be started more than 90 seconds after the ignition SW is turned to the ºLOCKº position and the
negative (-) terminal cable is disconnected from the battery.
(The SRS is equipped with a back-up power source so that if work is started within 90 seconds from
disconnecting the negative (-) terminal cable of the battery, the SRS may deploy.)
When the negative (-) terminal cable is disconnected from the battery, the memory of the clock and audio system will be
cleared. So before starting work, make a record of the contents in the audio memory system. When work is finished,
reset the audio systems as they were before and adjust the clock. Some vehicles have power tilt steering, power
telescopic steering, power seat and power outside rear view mirror which are all equipped with memory function.
However, it is not possible to make a record of these memory contents. So when the work is finished, it will be
necessary to explain it to your customer, and ask the customer to adjust the features and reset the memory. To avoid
erasing the memory in each system, never use a back-up power supply from outside the vehicle.
Before repair, remove the airbag sensor if shocks are likely to be applied to the sensor during repair.
Do not expose the following parts directly to hot air or flame;
Even in cases of a minor collision where the SRS does not deploy, the following parts should be inspected;
Never use SRS parts from another vehicle. When replacing parts, replace with new parts.
For the purpose of reuse, never disassemble and repair the following parts.
If the following parts have been dropped, or have cracks, dents and other defects in their case, bracket, and connector,
replace with new one.
Use a volt/ohmmeter with high impedance (10 kW/V minimum) for troubleshooting electrical circuits of the system.
Information labels are attached to the periphery of the SRS components. Follow the instructions of the notice.
After work on the SRS is completed, check the SRS warning light.
If the vehicle is equipped with a mobile communication system, refer to the precaution in the IN section of the Repair
Manual.
*Steering wheel pad
*Front passenger airbag assembly
*Side airbag assembly
*Curtain shield airbag assembly
*Seat belt pretensioner
*Center airbag sensor assembly
*Front airbag sensor assembly
*Side airbag sensor assembly

Page 471 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
156
SRS
10A
IGN
1L 6
B 5 B 10 B11
IG2 P+ P- 12
Y- B
Y
B 8B7
P2+ P2- 34
Y- R
Y- G
2 1
Y- B
Y
P132 1C 9C10
Y- B
Y
P14 PL+ PL- PR+ PR-
2 1B 14 B13
Y- B
Y
A20D+ D-
3 4B 16 B17
Y-

Page 472 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
157
C 18 C4C19 C20
CSR+ CSR- VUCR ESCR
R
G
W
B
3241S33
1A A 15 A14 A13
CSL+ CSL- VUCL ESCL
R
G
W
B
3241S32
2 1A 12 A11
Y- B
Y
S182 1C 5C6
Y- B
Y
S19 SFL+ SFL- SFR+ SFR-
7C 8C
