Page 697 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
395
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
DO- IT- YOURSELF MAINTENANCE

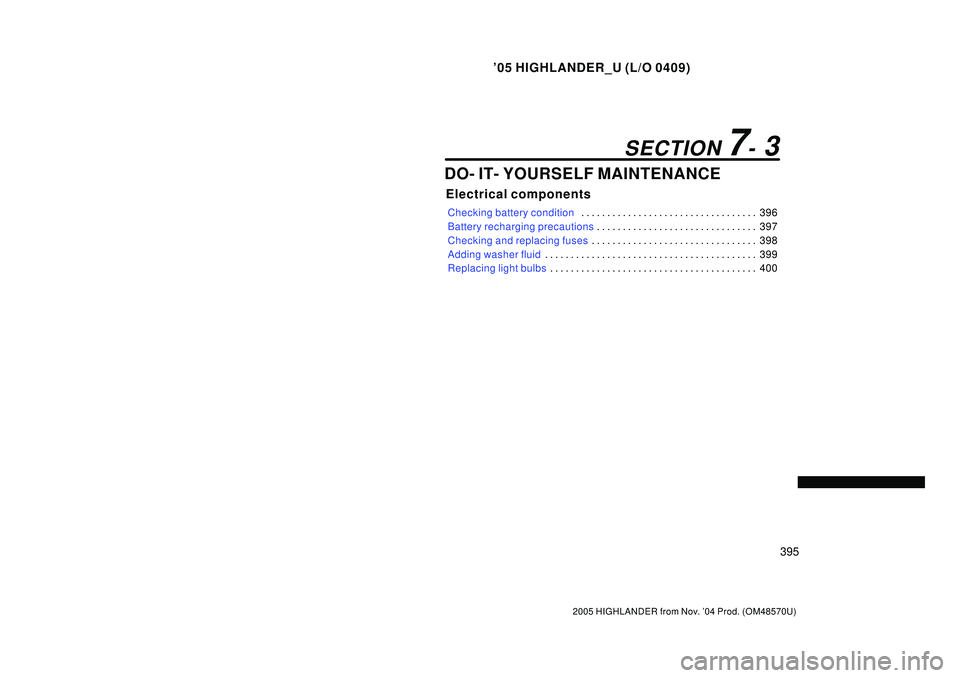

Electrical components
Checking battery condition396 . . . . . . . . . . . . . . . . . . . .

Page 698 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
396
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

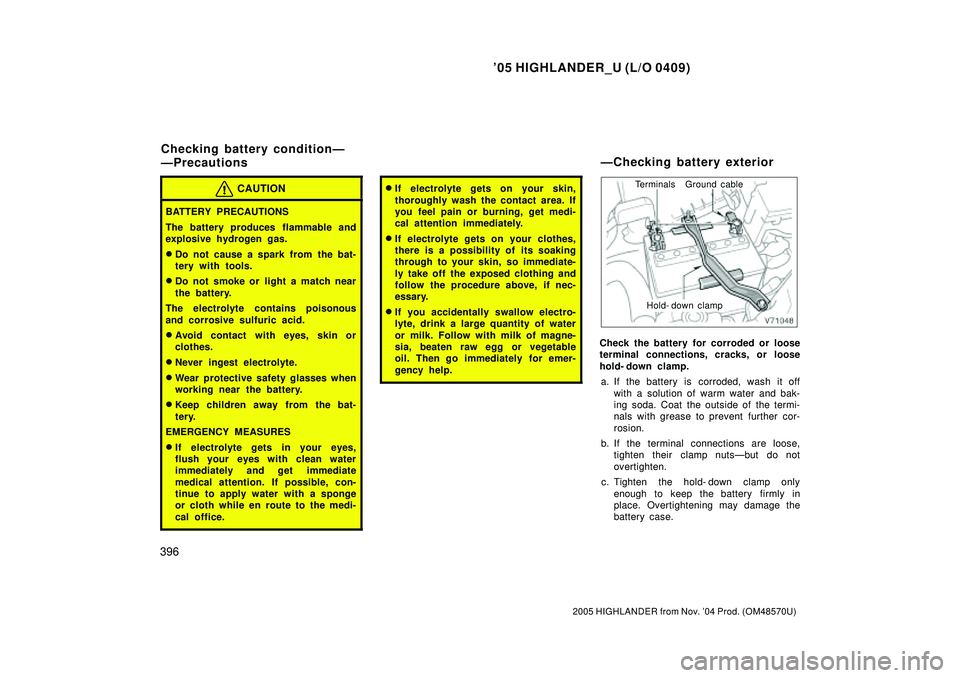

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat

Page 699 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
397
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

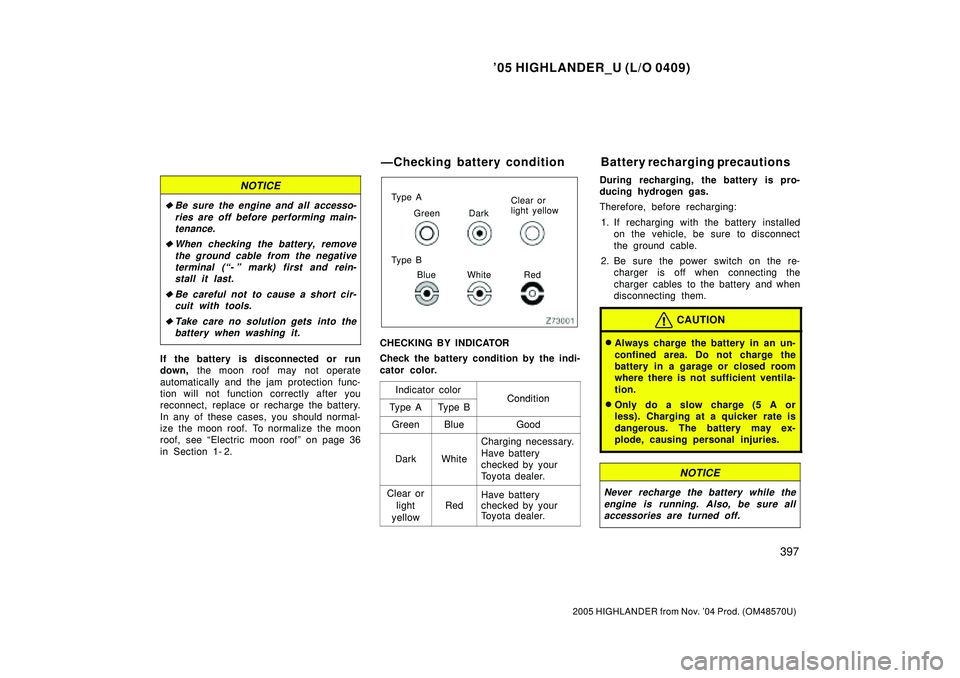

NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
When checking the battery, rem

Page 700 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
398
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

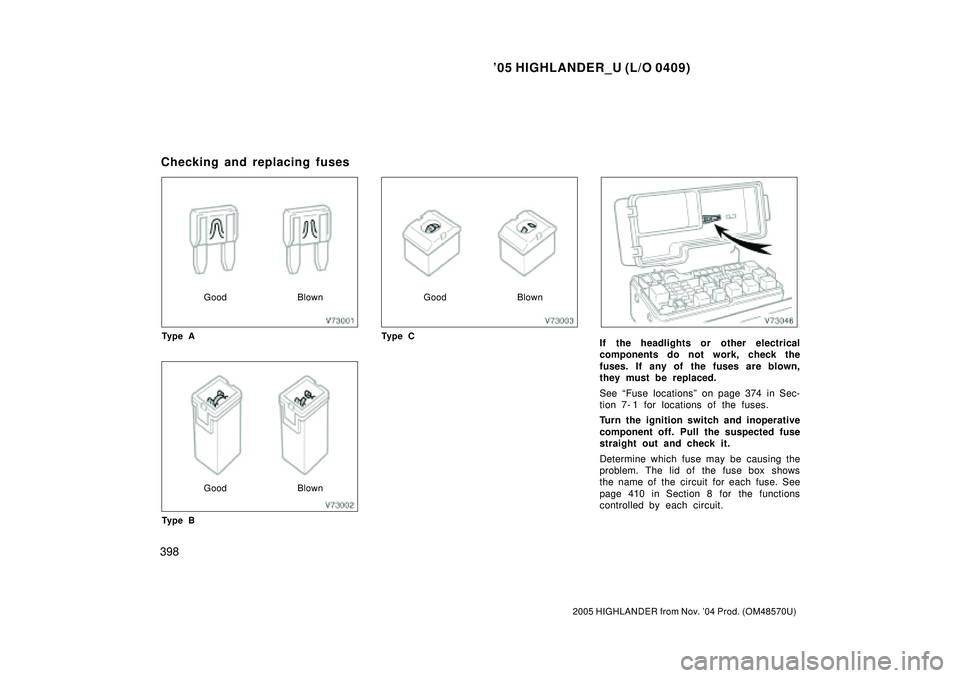

Good Blown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
If the headlights or other electrical
components do not work,

Page 701 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
399
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

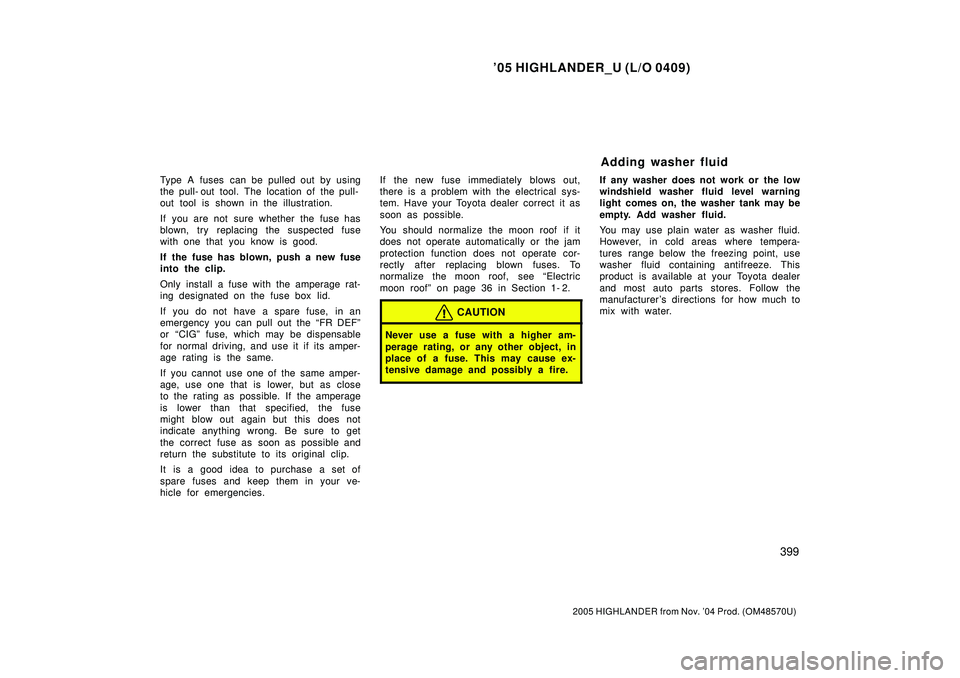

Type A fuses can be pulled out by using
the pull- out tool. The location of the pull-
out tool is shown in the illustrati

'05 HIGHLANDER_U (L/O 0409)
399
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Type A fuses can be pulled out by using
the pull- out tool. The location of the pull-
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the FR DEFº
or CIGº fuse, which may be dispensable
for normal driving, and use it if its amper-
age rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
You should normalize the moon roof if it
does not operate automatically or the jam
protection function does not operate cor-
rectly after replacing blown fuses. To
normalize the moon roof, see Electric
moon roofº on page 36 in Section 1- 2.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer 's directions for how much to
mix with water.
Adding washer fluid

Page 702 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
400
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

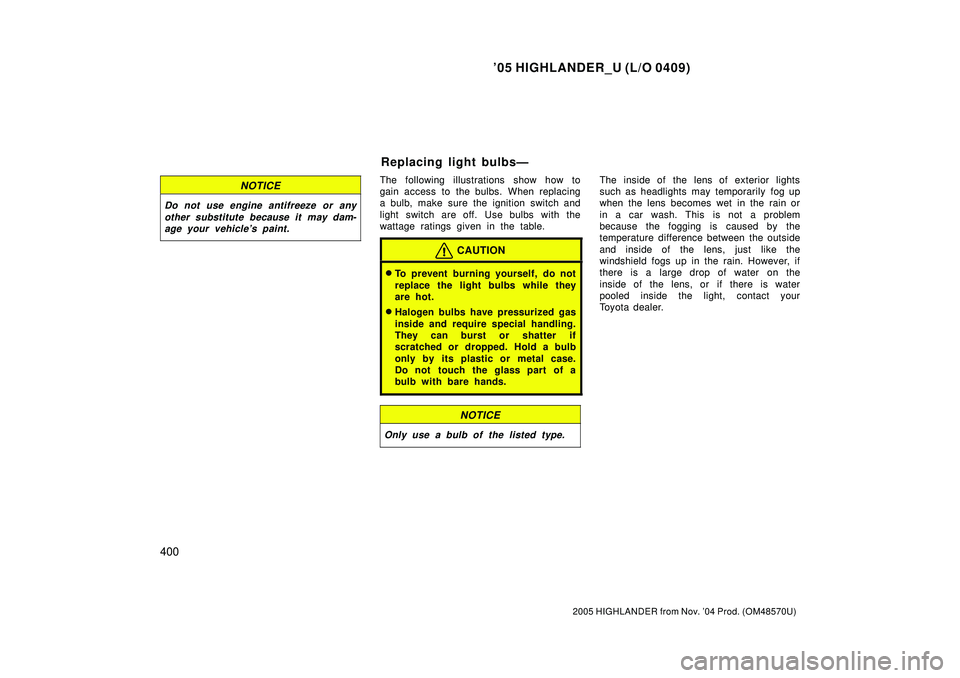

NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicles paint.
The following i

Page 703 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
401
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

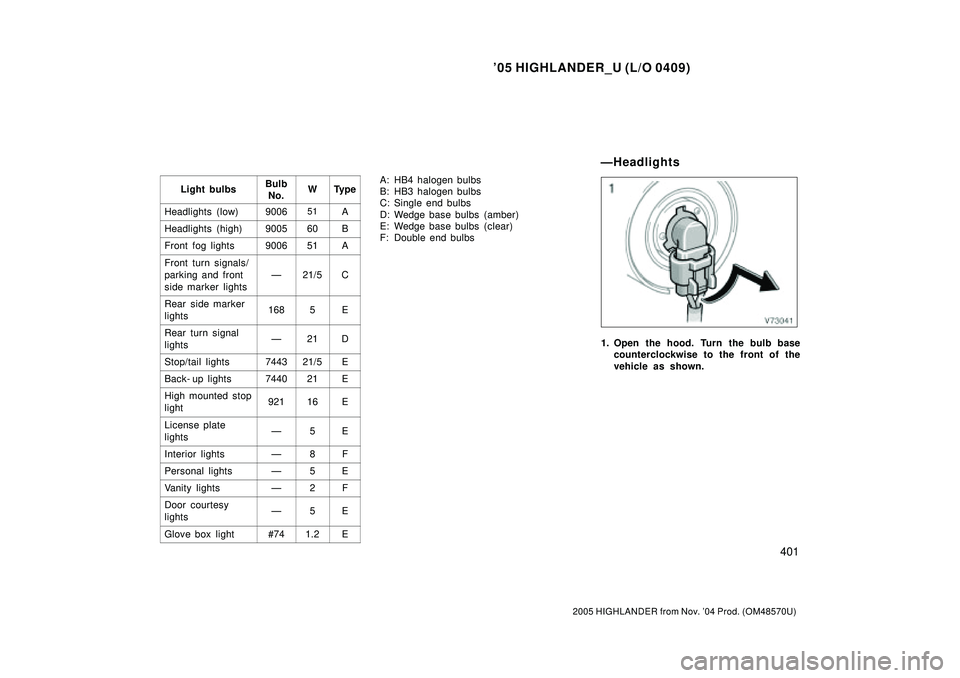

Light bulbsBulb
No.WTy p e
Headlights (low)900651A
Headlights (high)900560B
Front fog lights900651A
Front turn signals/
p

Page 704 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
402
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

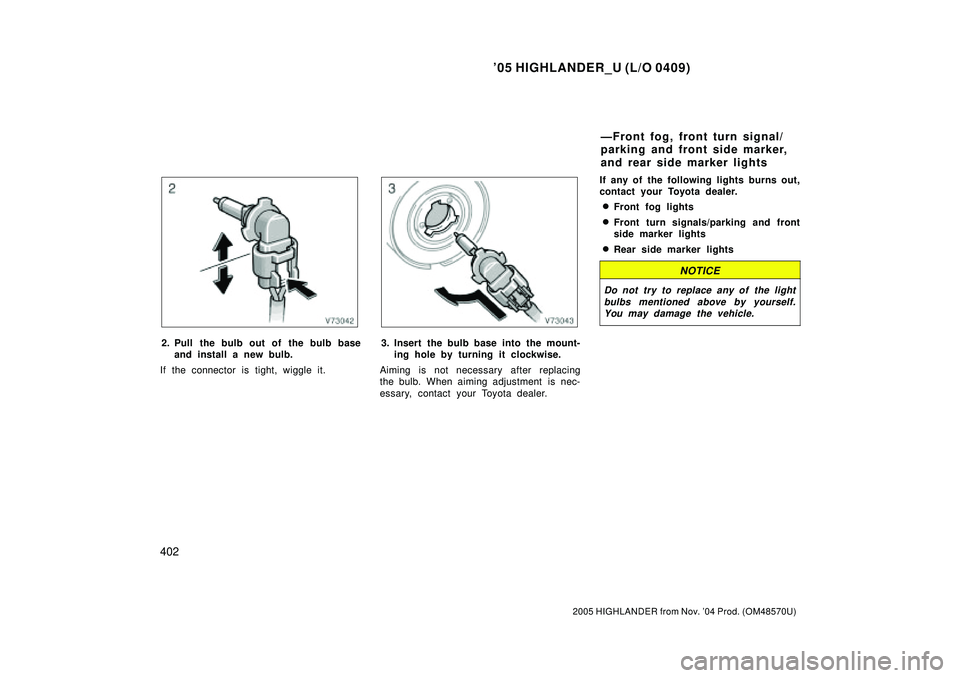

2. Pull the bulb out of the bulb base
and install a new bulb.
If the connector is tight, wiggle it.3. Insert the bulb bas

Load next 8 pages
