Page 753 of 2572

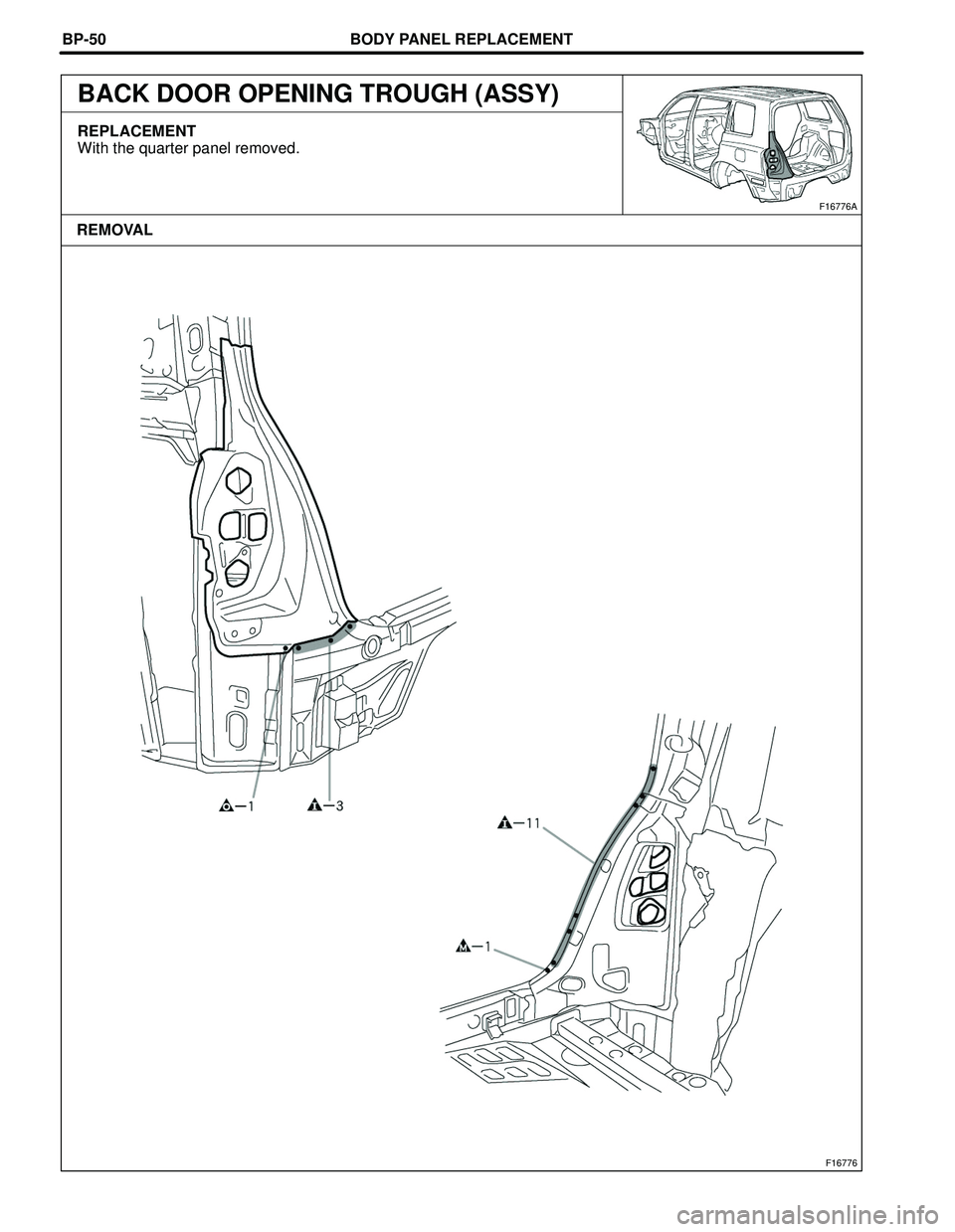

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16776 F16776A REMOVAL BP-50 BACK DOOR OPENING TROUGH (ASSY) REPLACEMENT With the quarter panel removed.

Page 754 of 2572

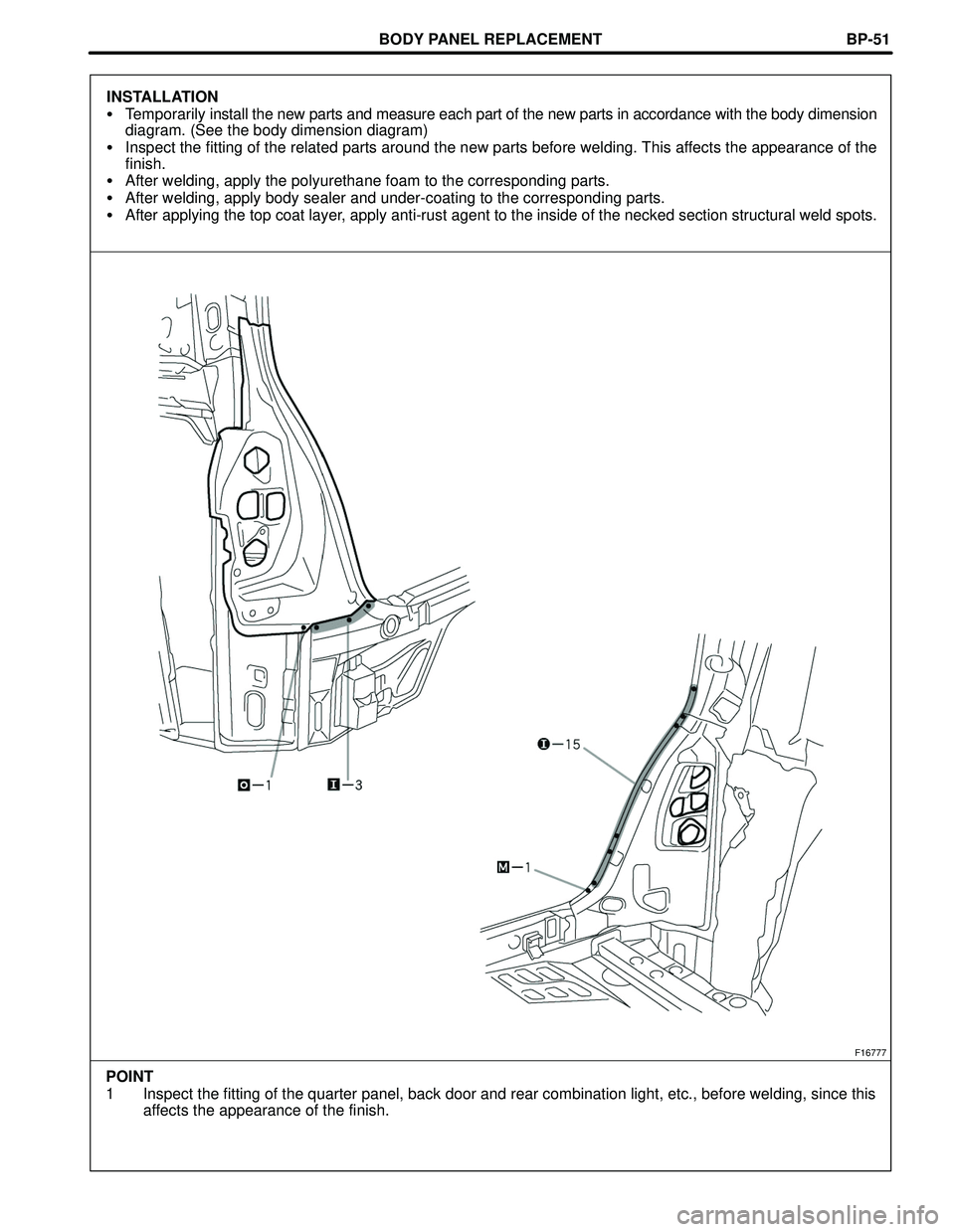

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16777 POINT 1 Inspect the fitting of the quarter panel, back door and rear combination light, etc., before welding, since this affects the appearance of the finish.BP-51 INSTAL

Page 755 of 2572

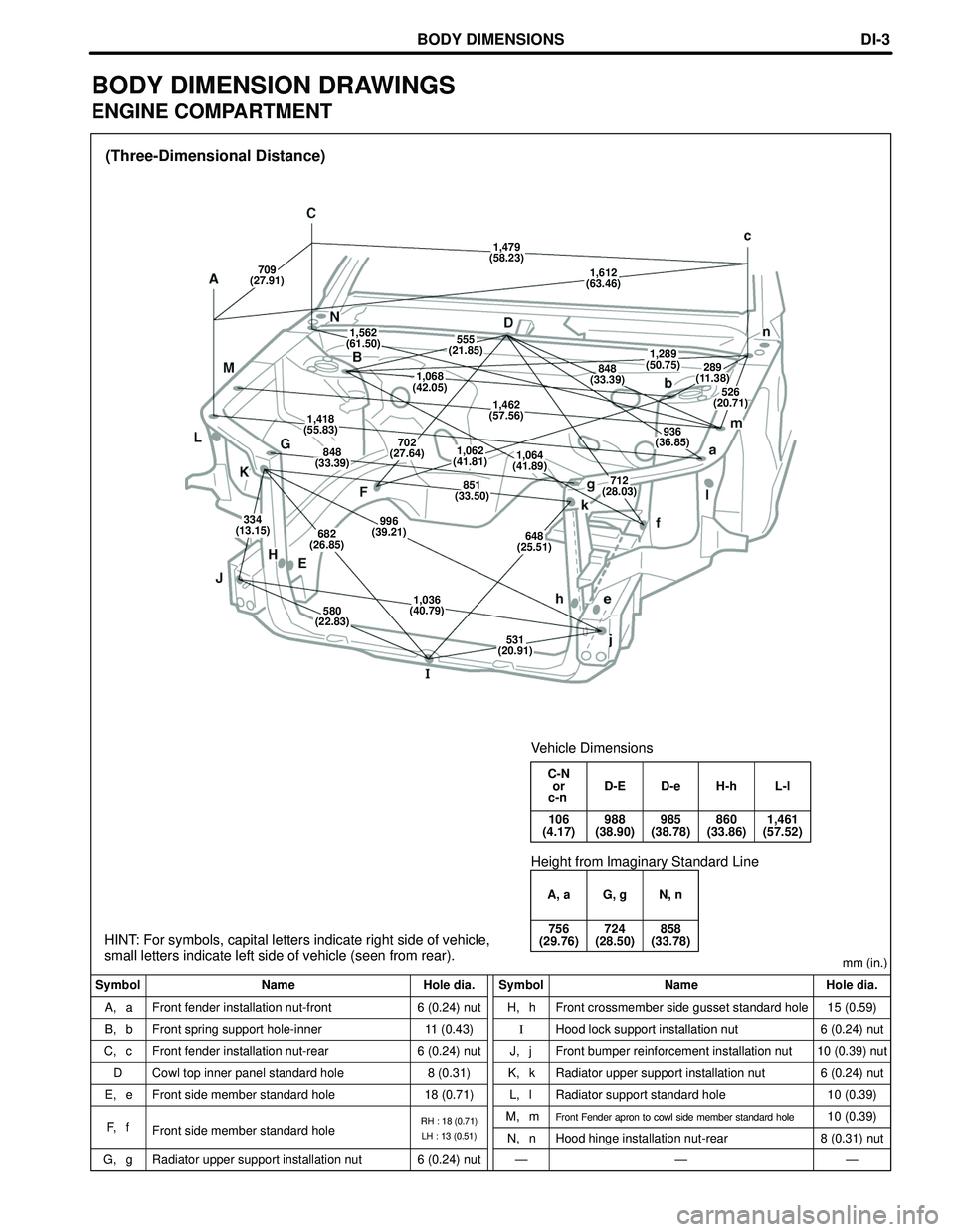

TOYOTA HIGHLANDER 2001 Service Repair Manual (Three-Dimensional Distance) Symbol Name Hole dia. Symbol Name Hole dia.mm (in.) A, a B, b C, c D E, e G, gFront fender installation nut-front Front spring support hole-inner Front fender installation

Page 756 of 2572

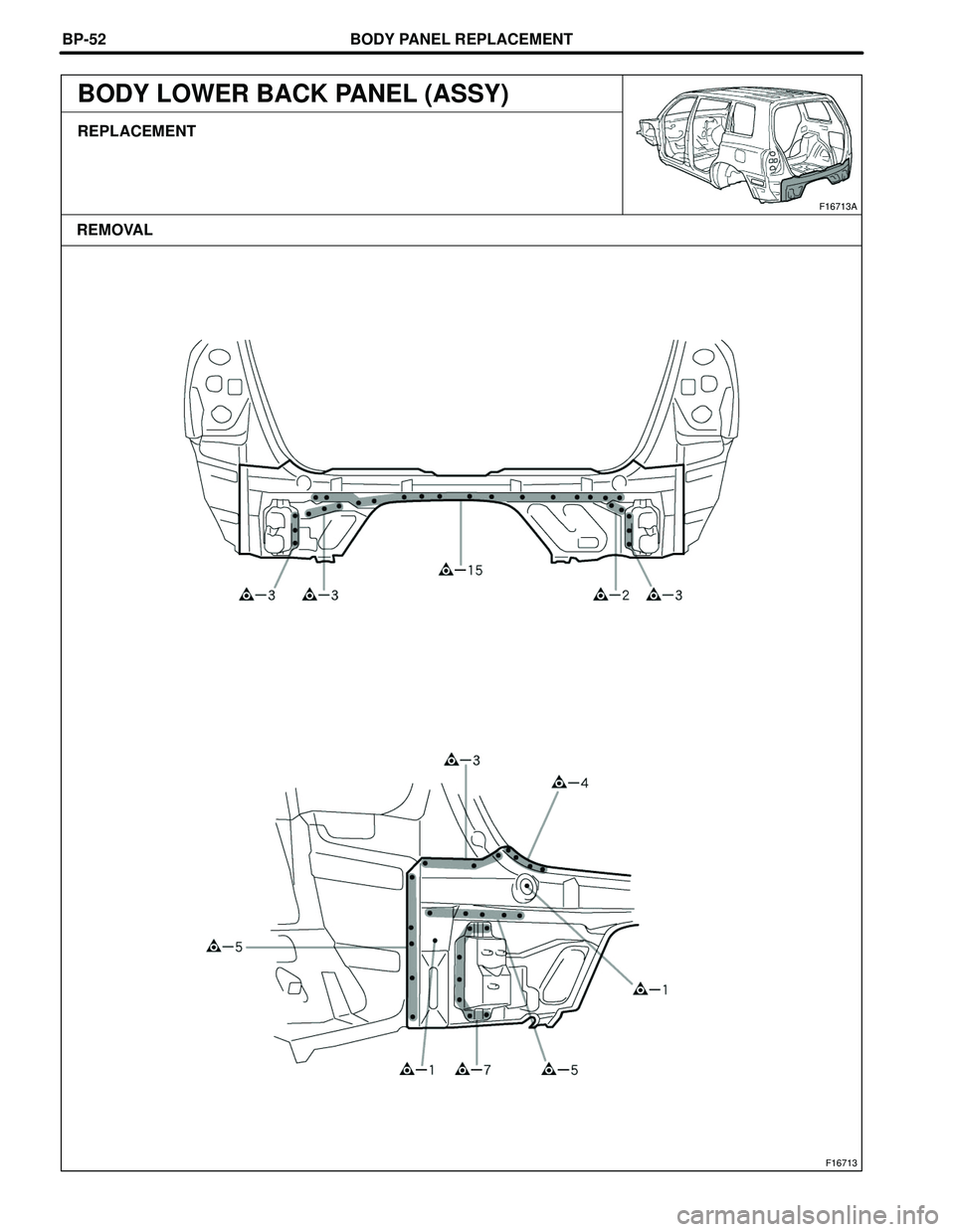

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16713 F16713A REMOVAL BP-52 BODY LOWER BACK PANEL (ASSY) REPLACEMENT

Page 757 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual BODY PANEL REPLACEMENT F16714 POINT 1 Inspect the fitting of the back door etc., before welding, since this affects the appearance of the finish.BP-53 INSTALLATION Temporarily install the new parts a

Page 758 of 2572

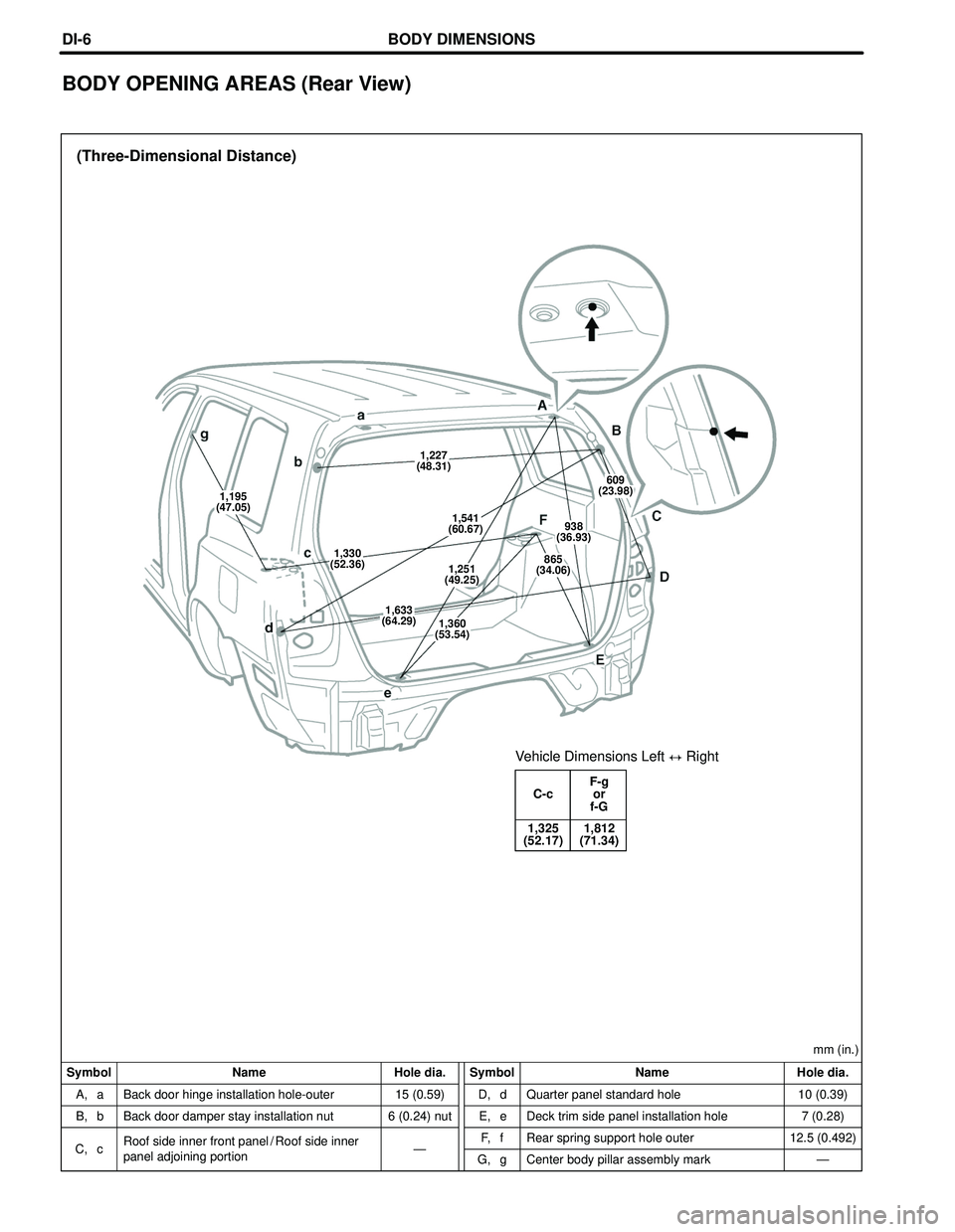

TOYOTA HIGHLANDER 2001 Service Repair Manual (Three-Dimensional Distance) Symbol Name Hole dia. Symbol Name Hole dia.mm (in.) G, g I,i N, n O, oRocker panel assembly mark Roof side rail assembly mark Center body pillar assembly mark Center body

Page 759 of 2572

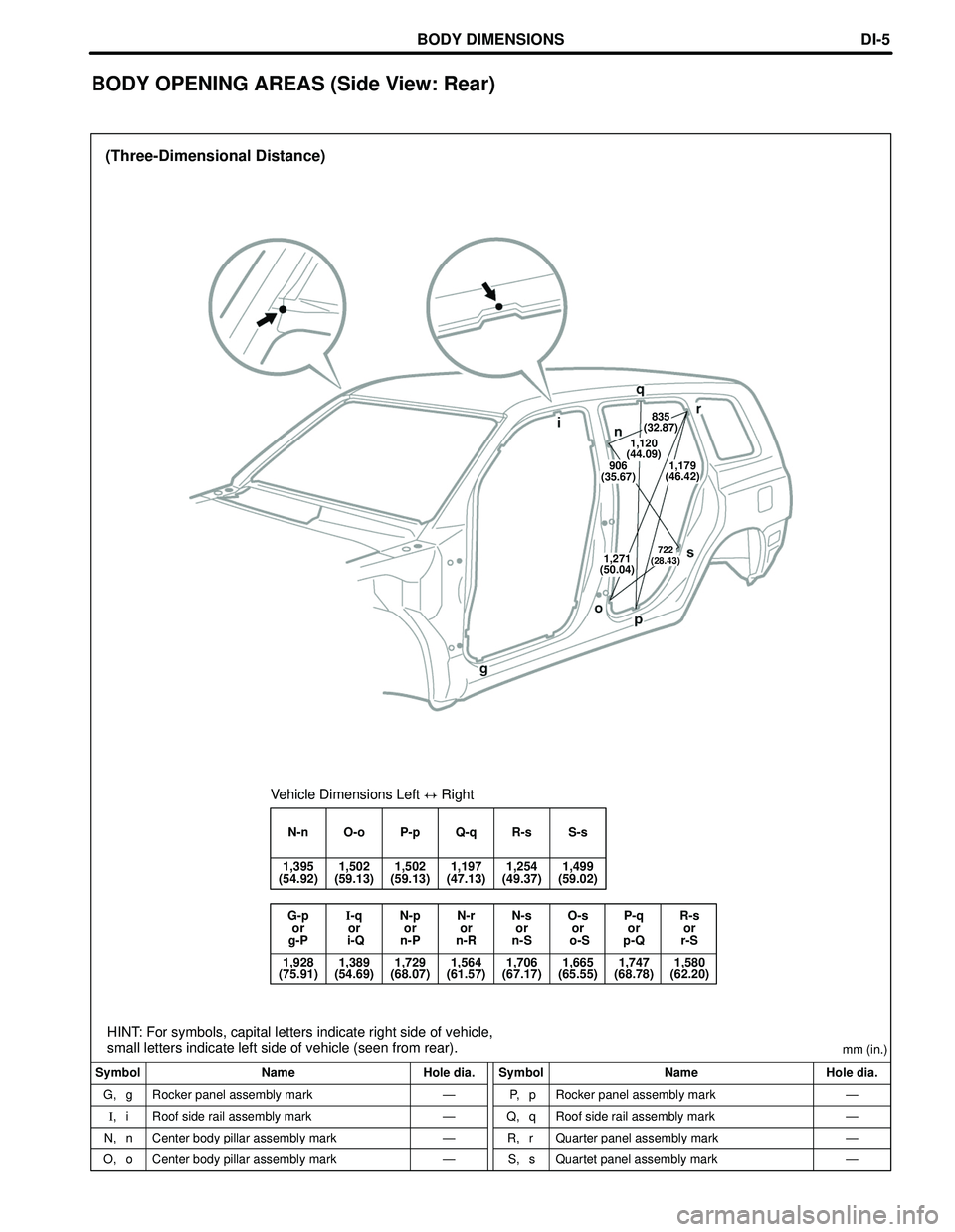

TOYOTA HIGHLANDER 2001 Service Repair Manual (Three-Dimensional Distance) Symbol Name Hole dia. Symbol Name Hole dia.mm (in.) A, a B, bBack door hinge installation hole-outer Back door damper stay installation nut15 (0.59) 6 (0.24) nutD, d E, e

Page 760 of 2572

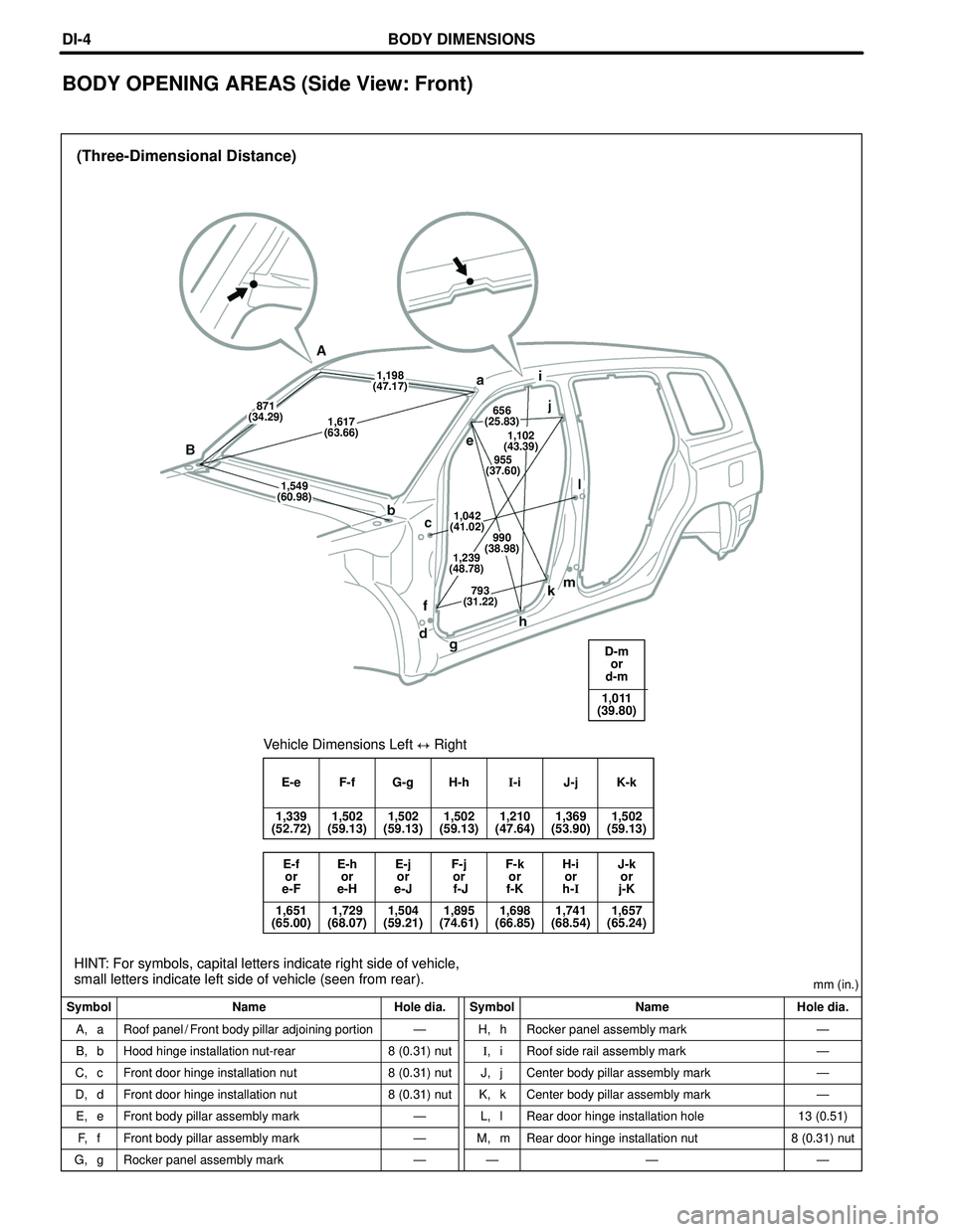

TOYOTA HIGHLANDER 2001 Service Repair Manual (Three-Dimensional Distance) Symbol Name Hole dia. Symbol Name Hole dia.mm (in.) A, a B, b C, c D, d E, e F, f G, gRoof panel / Front body pillar adjoining portion Hood hinge installation nut-rear Fro
