Page 361 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
201
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
SELECTING THE MODE
Use the joystick to select the mode. Push
the ENTº button to enter the mode.
The mode display which

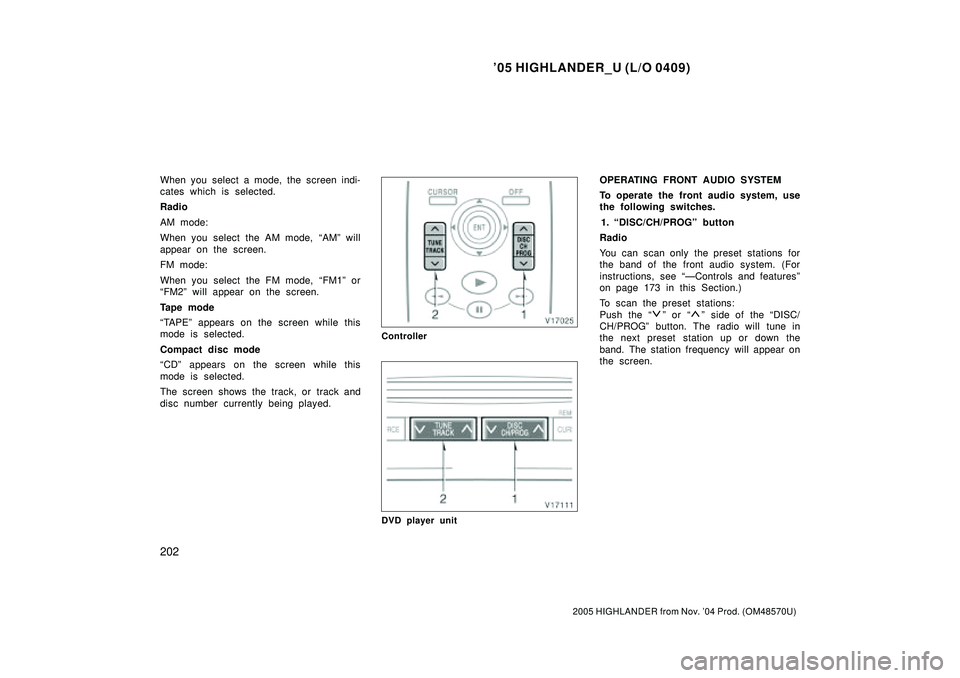

Page 362 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
202
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
When you select a mode, the screen indi-
cates which is selected.
Radio
AM mode:
When you select the AM mode, AMº will

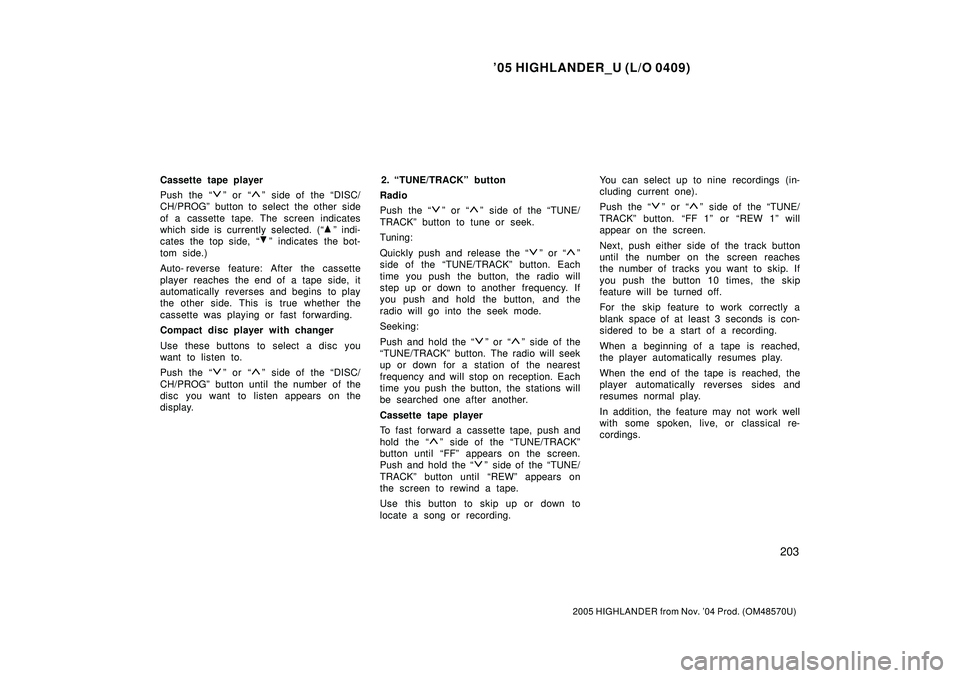

Page 363 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
203
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Cassette tape player
Push the
º or º side of the DISC/
CH/PROGº button to select the other side
of a cassette tap

'05 HIGHLANDER_U (L/O 0409)
203
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Cassette tape player
Push the
º or º side of the DISC/
CH/PROGº button to select the other side
of a cassette tape. The screen indicates
which side is currently selected. (
º indi-
cates the top side,
º indicates the bot-
tom side.)
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
Compact disc player with changer
Use these buttons to select a disc you
want to listen to.
Push the
º or º side of the DISC/
CH/PROGº button until the number of the
disc you want to listen appears on the
display.2. TUNE/TRACKº button
Radio
Push the
º or º side of the TUNE/
TRACKº button to tune or seek.
Tuning:
Quickly push and release the
º or º
side of the TUNE/TRACKº button. Each
time you push the button, the radio will
step up or down to another frequency. If
you push and hold the button, and the
radio will go into the seek mode.
Seeking:
Push and hold the
º or º side of the
TUNE/TRACKº button. The radio will seek
up or down for a station of the nearest
frequency and will stop on reception. Each
time you push the button, the stations will
be searched one after another.
Cassette tape player
To fast forward a cassette tape, push and
hol d the
º side of the TUNE/TRACKº
button until FFº appears on the screen.
Push and hold the
º side of the TUNE/
TRACKº button until REWº appears on
the screen to rewind a tape.
Use this button to skip up or down to
locate a song or recording.You can select up to nine recordings (in-
cluding current one).
Push the
º or º side of the TUNE/
TRACKº button. FF 1º or REW 1º will
appear on the screen.
Next, push either side of the track button
until the number on the screen reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.

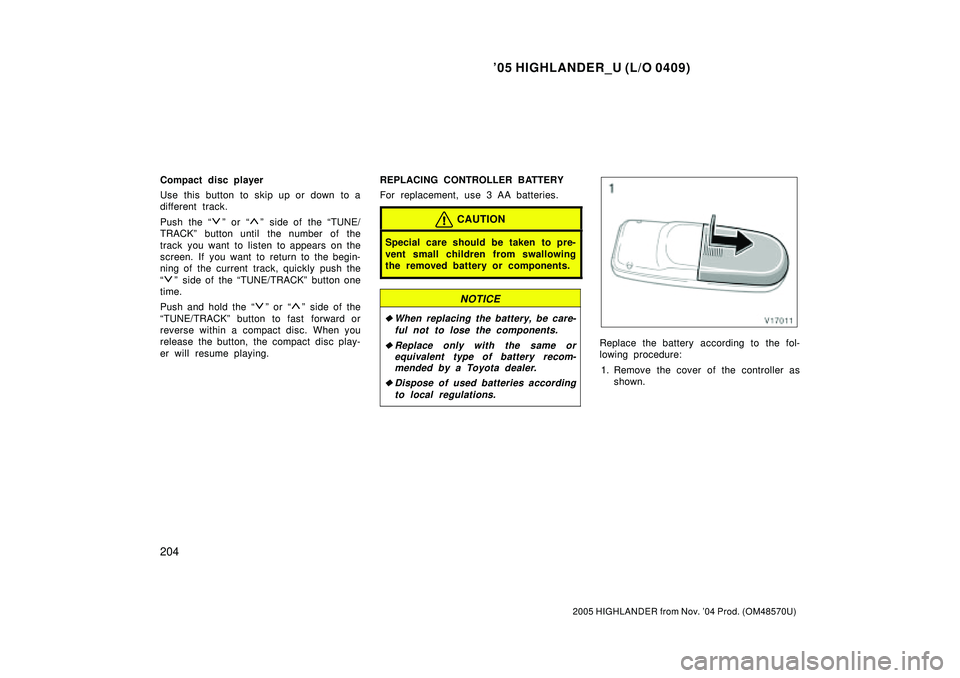

Page 364 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
204
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
Compact disc player
Use this button to skip up or down to a
different track.
Push the
º or º side of the TUNE/
T

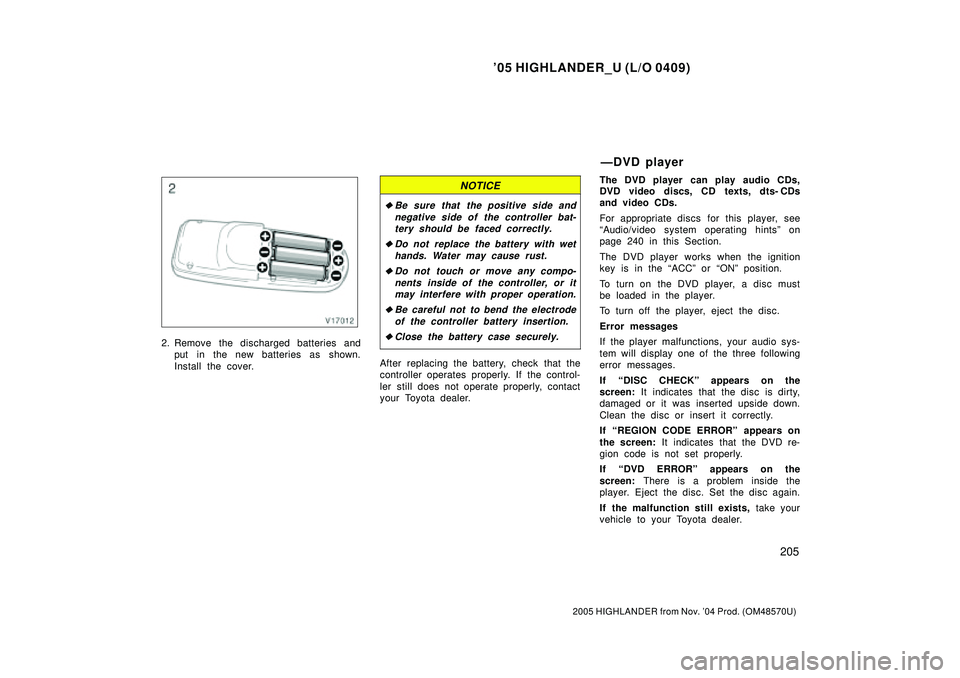

Page 365 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
205
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
2. Remove the discharged batteries and
put in the new batteries as shown.
Install the cover.
NOTICE
Be sure that the pos

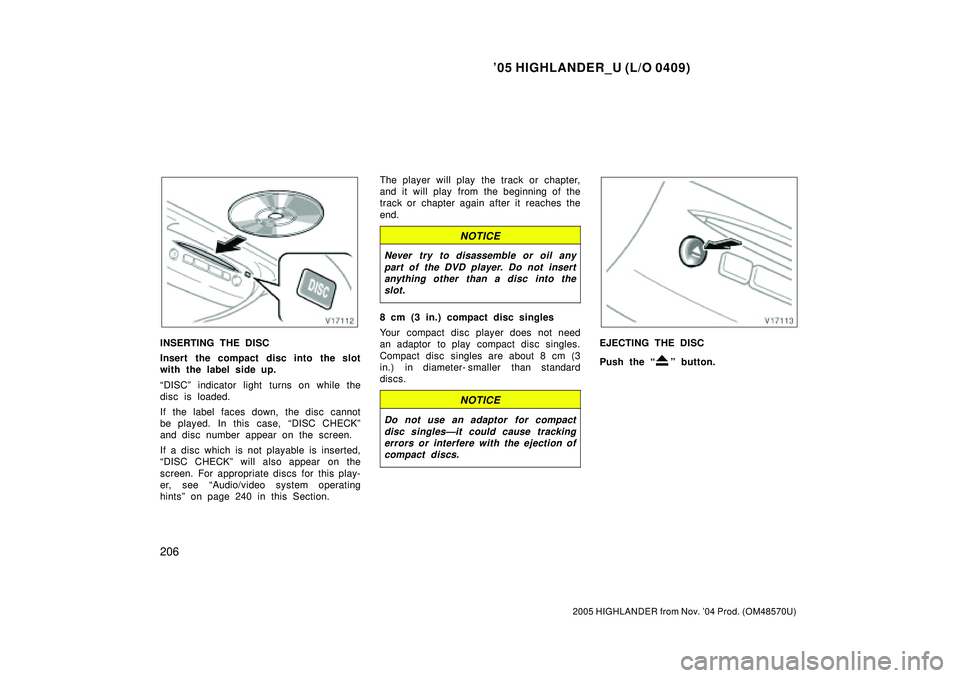

Page 366 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
206
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
INSERTING THE DISC
Insert the compact disc into the slot
with the label side up.
DISCº indicator light turns on while t

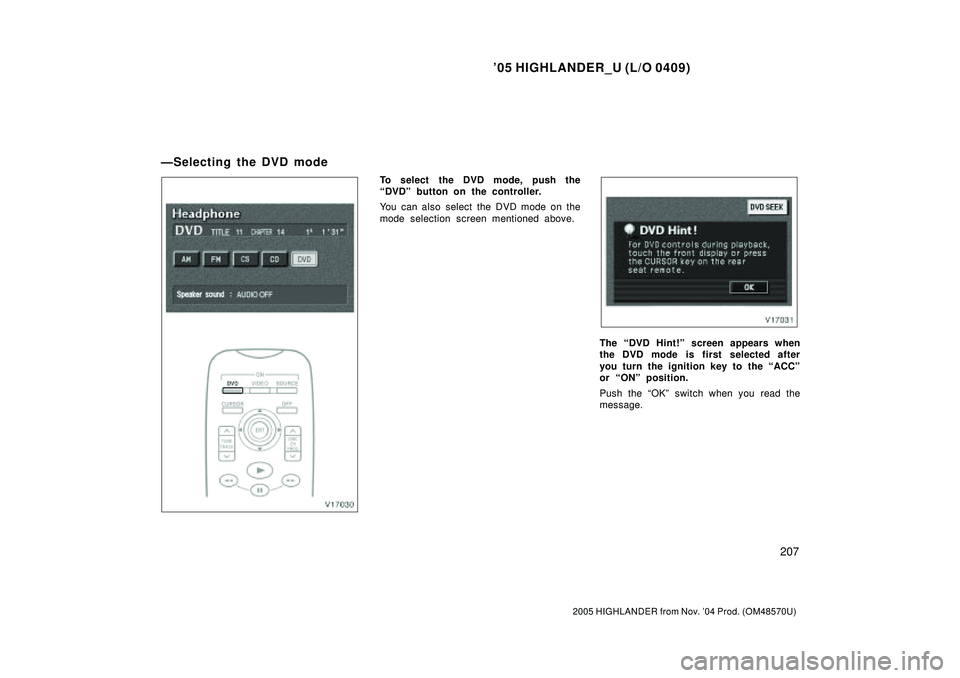

Page 367 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
207
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
To select the DVD mode, push the
DVDº button on the controller.
You can also select the DVD mode on the
mode selection

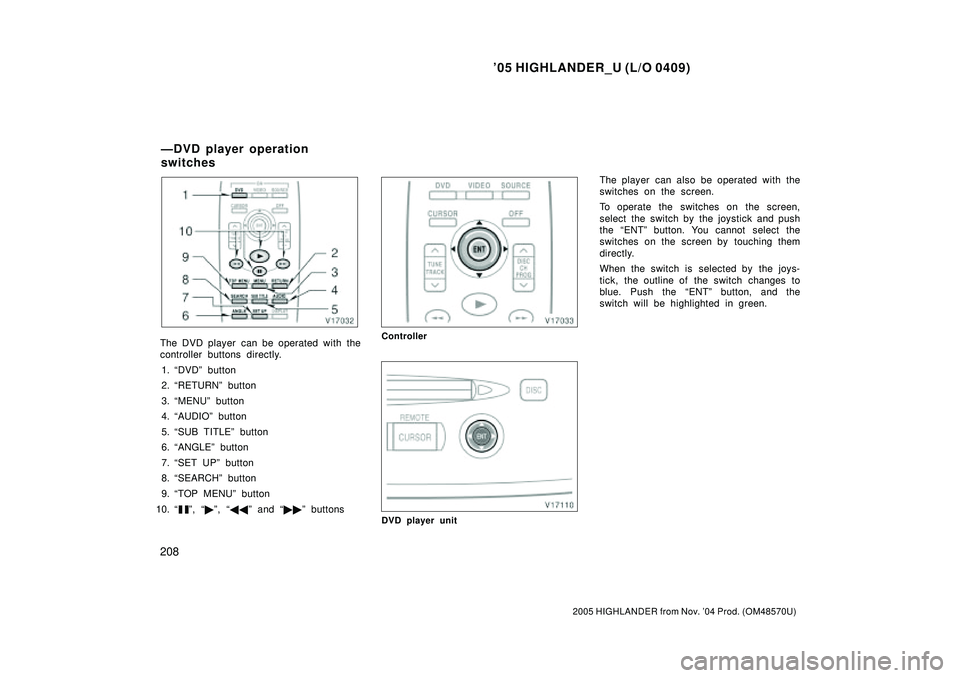

Page 368 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
208
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
The DVD player can be operated with the
controller buttons directly.
1. DVDº button
2. RETURNº button
3. MENUº but
